CHEVROLET MALIBU 1998 Owners Manual

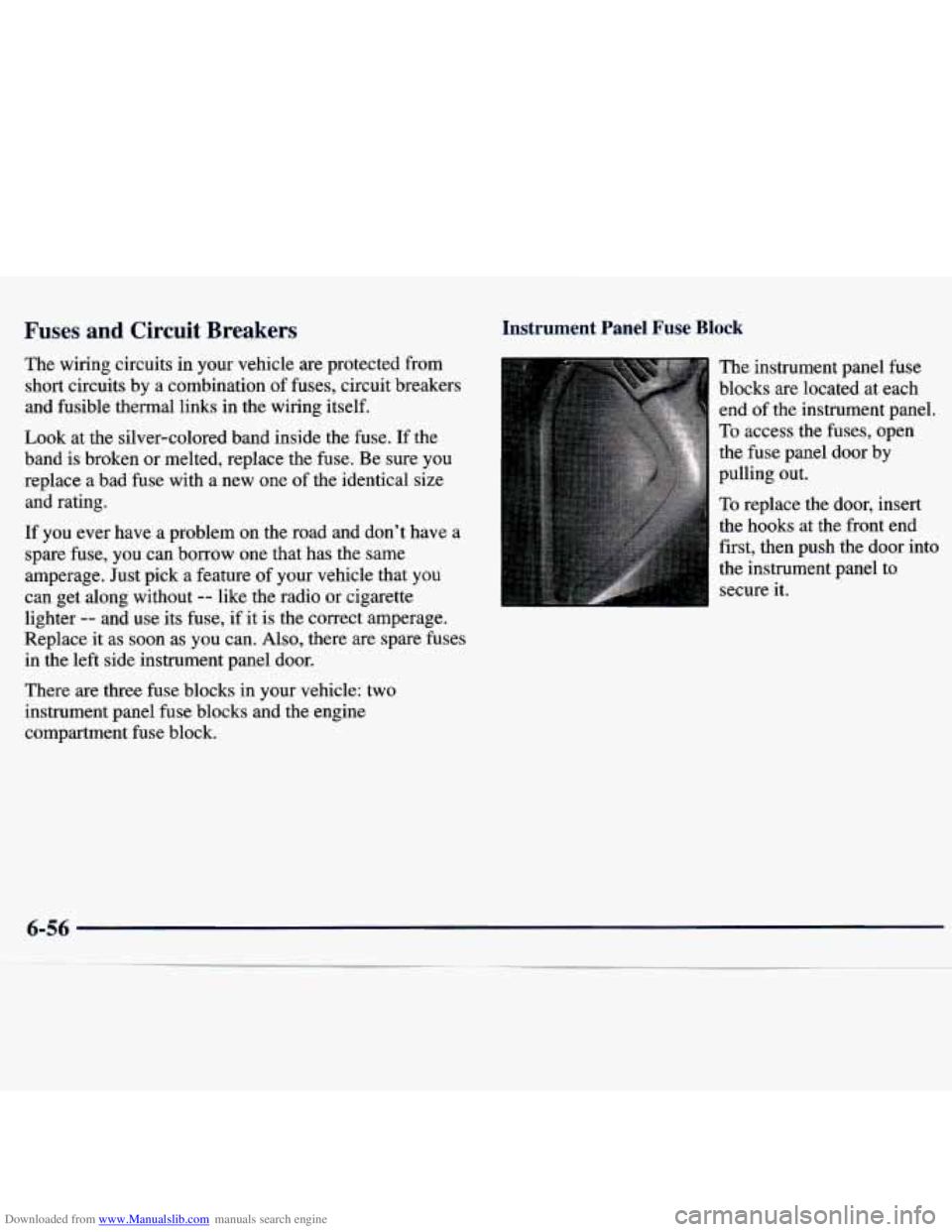

Downloaded from www.Manualslib.com manuals search engine Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links in the wiring itself.
Look at
the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don’t have a
spare fuse, you can borrow one that has the same
amperage. Just pick a feature of your vehicle that you
can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as you can. Also, there are spare fuses
in the left side instrument panel door.
There are three fuse blocks in your vehicle: two
instrument panel fuse blocks and the engine
compartment fuse block.
Instrument Panel Fuse Block
The instrument panel fuse
blocks are located at each end of the instrument panel.
To access the fuses, open
the fuse panel door by
pulling out.
To replace the door, insert
the hooks at the front end
first, then push the door into
the instrument panel to
secure it.
6-56

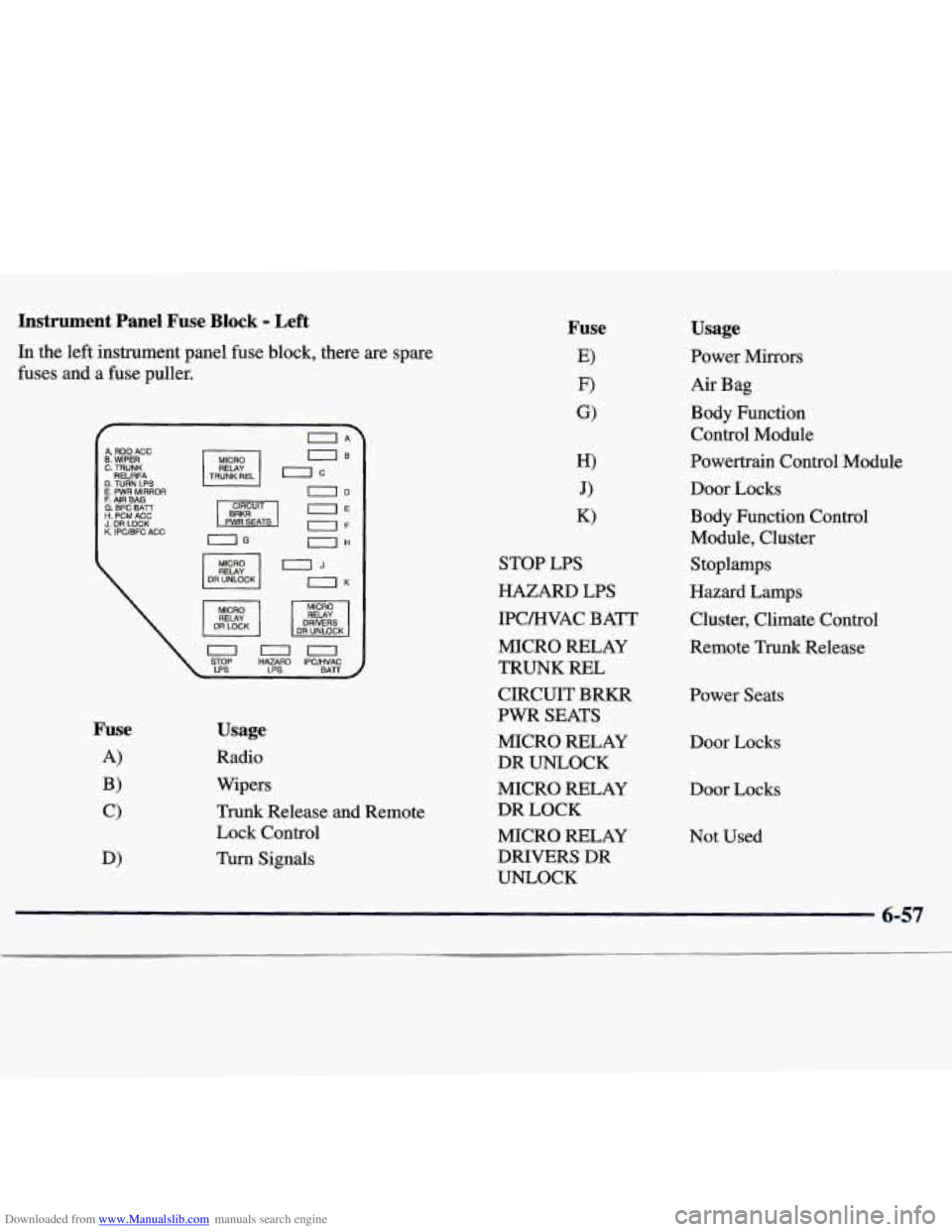

Downloaded from www.Manualslib.com manuals search engine Instrument Panel Fuse Block - Left
In the left instrument panel fuse block, there are spare
fuses and a fuse puller.
A RDO ACC B. WIPER C. TRUNK
D. TURN LPS REURFA
E. PWR MIRROR F. AIR BAG G. BFC BATT H. PCM ACC J. DR LOCK
K. IPC/BFC ACC
- . - - -. . . .
MICRO
TRUNK REL

MICRO
OR LOCK
Usage
Radio
Wipers Trunk Release and Remote
Lock Control
Turn Signals STOP
LPS
HAZARD LPS
IPCIHVAC BATT
MICRO RELAY
TRUNK REL
CIRCUIT BRKR
PWR SEATS
MICRO RELAY
DR UNLOCK
MICRO RELAY
DR LOCK
MICRO RELAY
DRIVERS DR
UNLOCK
Usage
Power Mirrors
Air Bag
Body Function
Control Module
Powertrain Control Module
Door Locks
Body Function Control
Module, Cluster
Stoplamps
Hazard Lamps
Cluster, Climate Control
Remote Trunk Release
Power Seats
Door Locks
Door Locks
Not Used
6-57

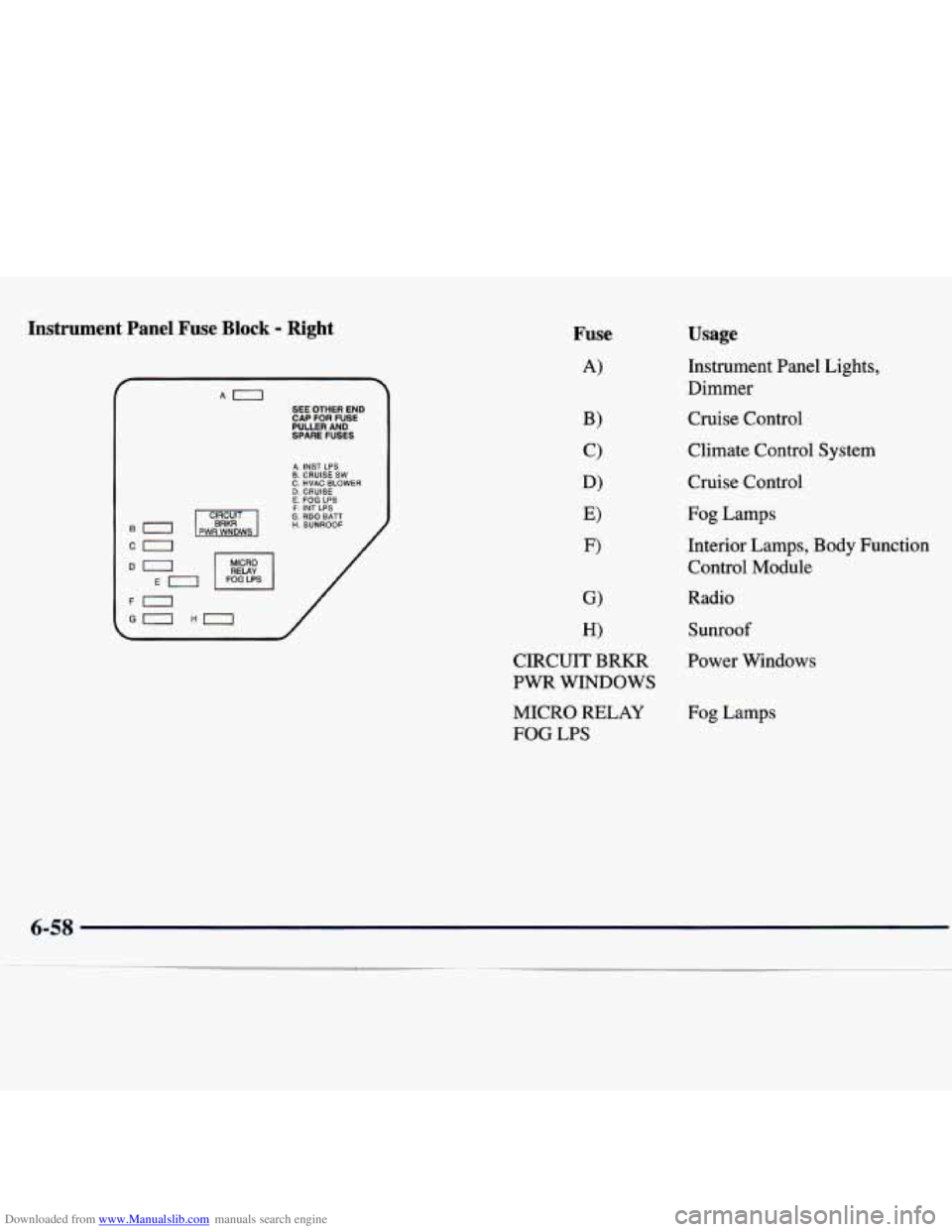

Downloaded from www.Manualslib.com manuals search engine Instrument Panel Fuse Block - Right
SEE OTHER END
CAP FOR FUSE PUUER AND
SPARE FUSES
A. INST LPS B. CRUISE SW C. HVAC BLOWER D. CRUISE E. FOG LPS F. INT LPS G. RDO BATT H. SUNROOF
/
/
Fuse
A)
Usage
Instrument Panel Lights,
Dimmer
Cruise Control
Climate Control
System
Cruise Control
Fog Lamps
Interior Lamps, Body Function Control Module
Radio
Sunroof
CIRCUIT BRKR Power Windows
PWR WINDOWS
MICRO RELAY
FOG
LPS
Fog Lamps
6-58

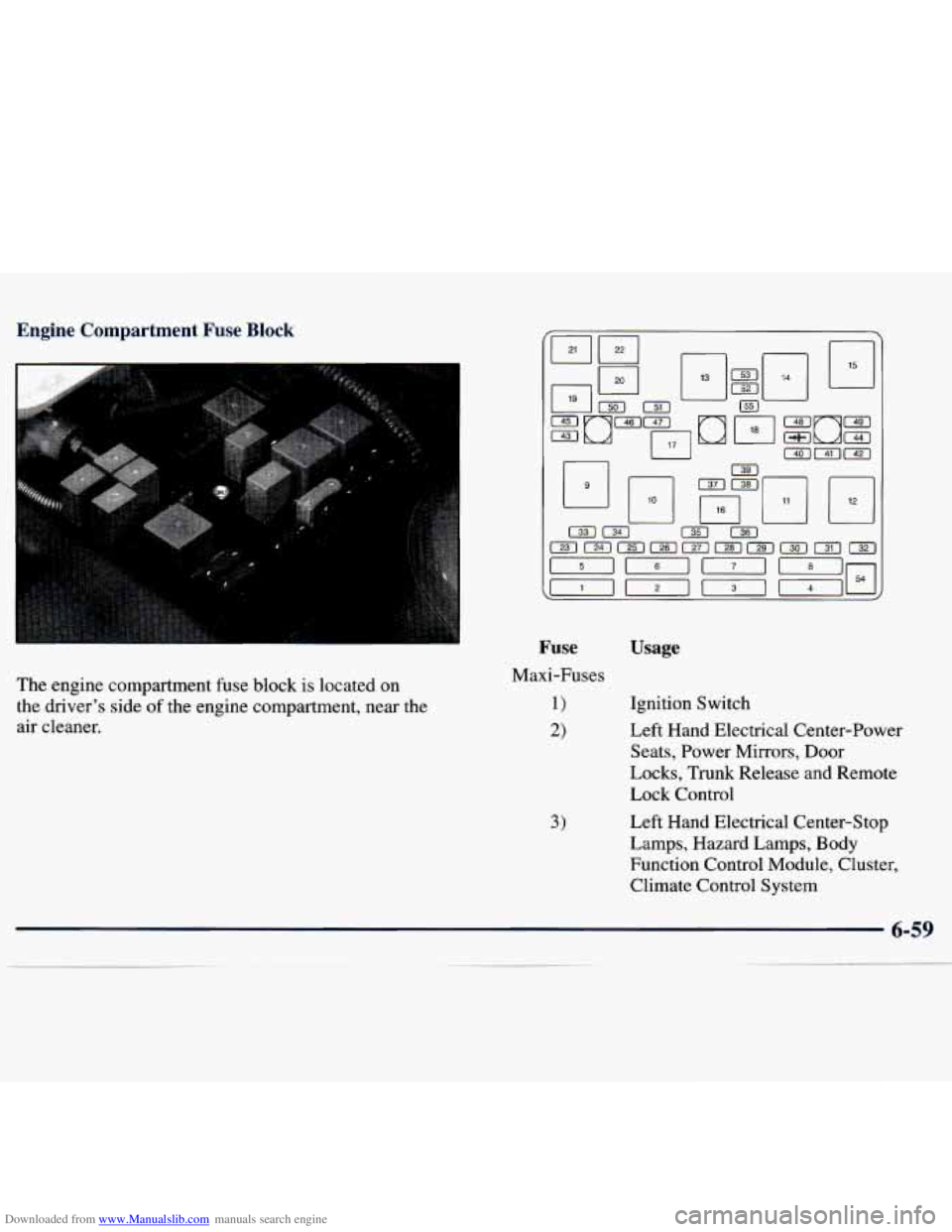

Downloaded from www.Manualslib.com manuals search engine Engine Comnartment Fuse Block
The engine compartment fuse block is located on
the driver’s side of the engine compartment, near the
air cleaner.
Fuse Usage
Maxi-Fuses
1)
2)
3)
Ignition Switch
Left Hand Electrical Center-Power Seats, Power Mirrors, Door
Locks, Trunk Release and Remote
Lock Control
Left Hand Electrical Center-Stop
Lamps, Hazard Lamps, Body
Function Control Module, Cluster,
Climate Control System

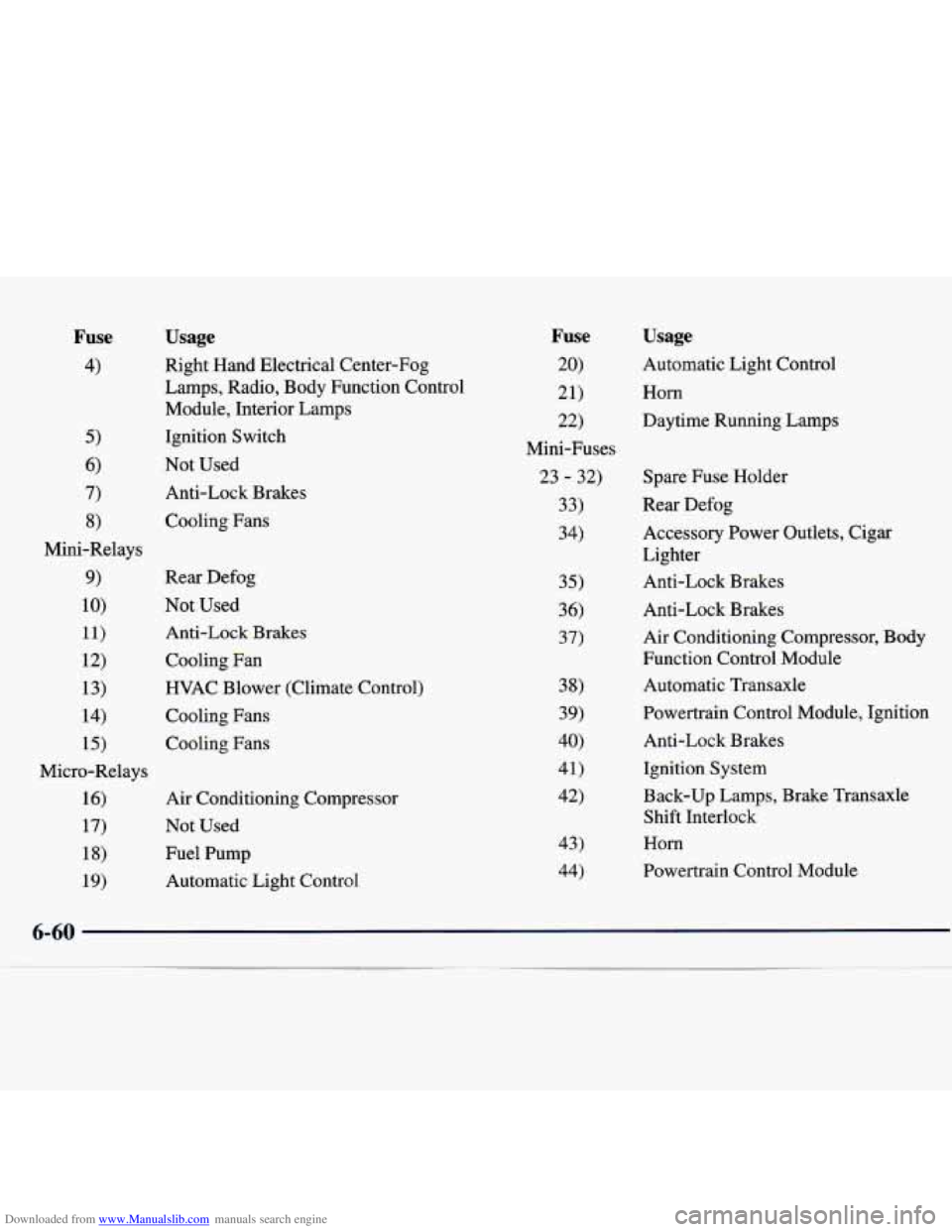

Downloaded from www.Manualslib.com manuals search engine Fuse
4)
Usage
Right Hand Electrical Center-Fog
Lamps, Radio, Body Function Control
Module, Interior Lamps
Ignition Switch
Not Used
Anti-Lock Brakes
Cooling Fans
Mini-Relays
9) Rear Defog
10) Not Used
11) Anti-Lock Brakes
12) Cooling Fan
13) HVAC Blower (Climate Control)
14) Cooling Fans
15) Cooling Fans
16) Air Conditioning Compressor
17) Not Used
1% Fuel Pump
19) Automatic Light Control
Micro-Relays
Fuse
20)
21)
22)
Mini-Fuses
23
- 32)
33)
34)
35)
36)
37)
43)
44)
Usage
Automatic Light Control
Horn
Daytime Running
Lamps
Spare Fuse Holder
Rear Defog
Accessory Power Outlets, Cigar
Lighter
Anti-Lock Brakes
Anti-Lock Brakes
Air Conditioning Compressor, Body
Function Control Module
Automatic Transaxle
Powertrain Control Module, Ignition Anti-Lock Brakes
Ignition System Back-up Lamps, Brake Transaxle
Shift Interlock
Horn
Powertrain Control Module

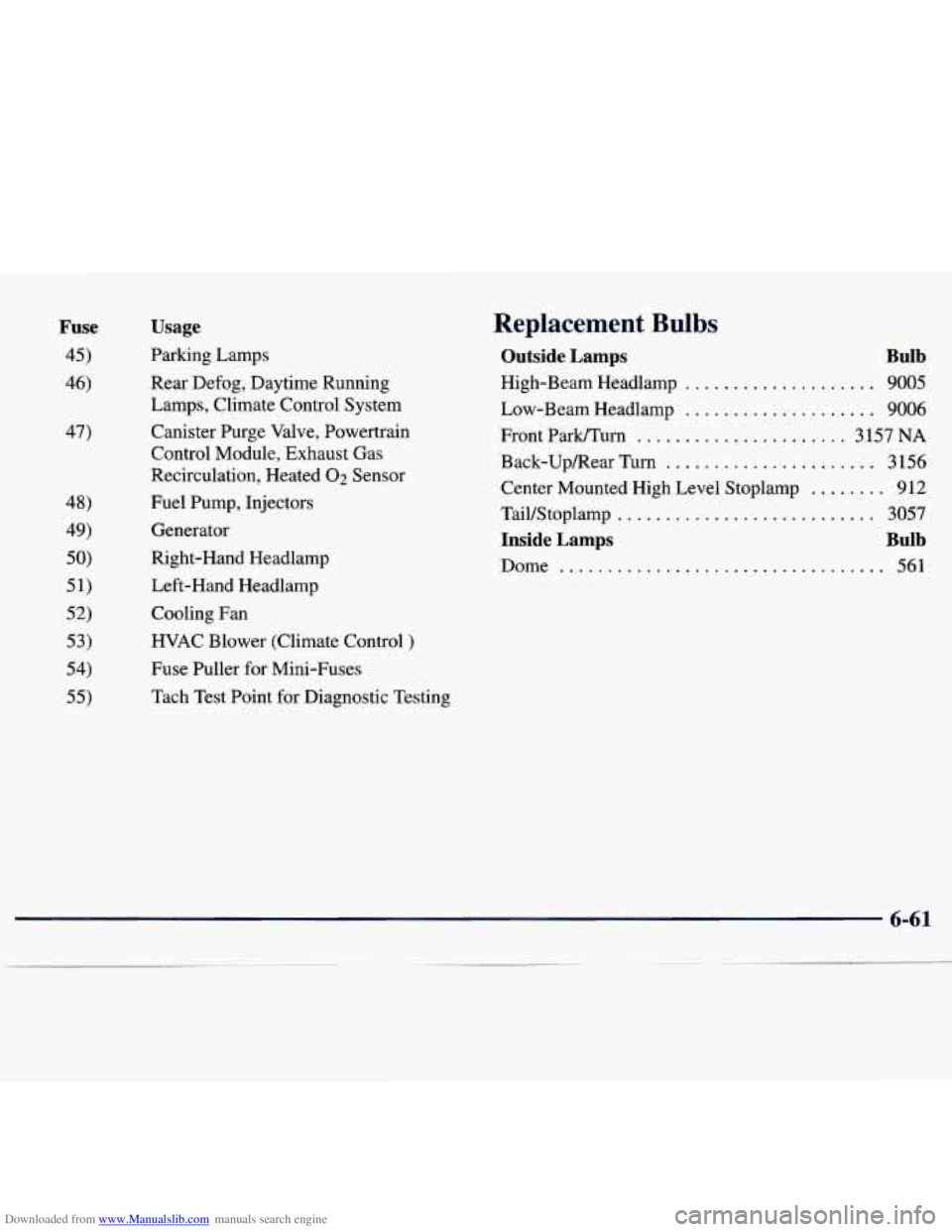

Downloaded from www.Manualslib.com manuals search engine Fuse
45)
46)
47)
Usage
Parking Lamps
Rear Defog, Daytime Running
Lamps, Climate Control System
Canister Purge Valve, Powertrain
Control Module, Exhaust Gas
Recirculation, Heated
02 Sensor
Fuel Pump, Injectors
Generator
Right-Hand Headlamp
Left-Hand Headlamp
Cooling Fan
HVAC Blower (Climate Control
)
Fuse Puller for Mini-Fuses
Tach Test Point
for Diagnostic Testing
Replacement Bulbs
Outside Lamps Bulb
High-Beam Headlamp .................... 9005
Low-Beam Headlamp
.................... 9006
Front Park/Turn
...................... 3157 NA
Back-UpRear Turn ...................... 3156
Center Mounted High Level Stoplamp
........ 912
Tail/Stoplamp
........................... 3057
Inside Lamps Bulb
Dome .................................. 561
6-61

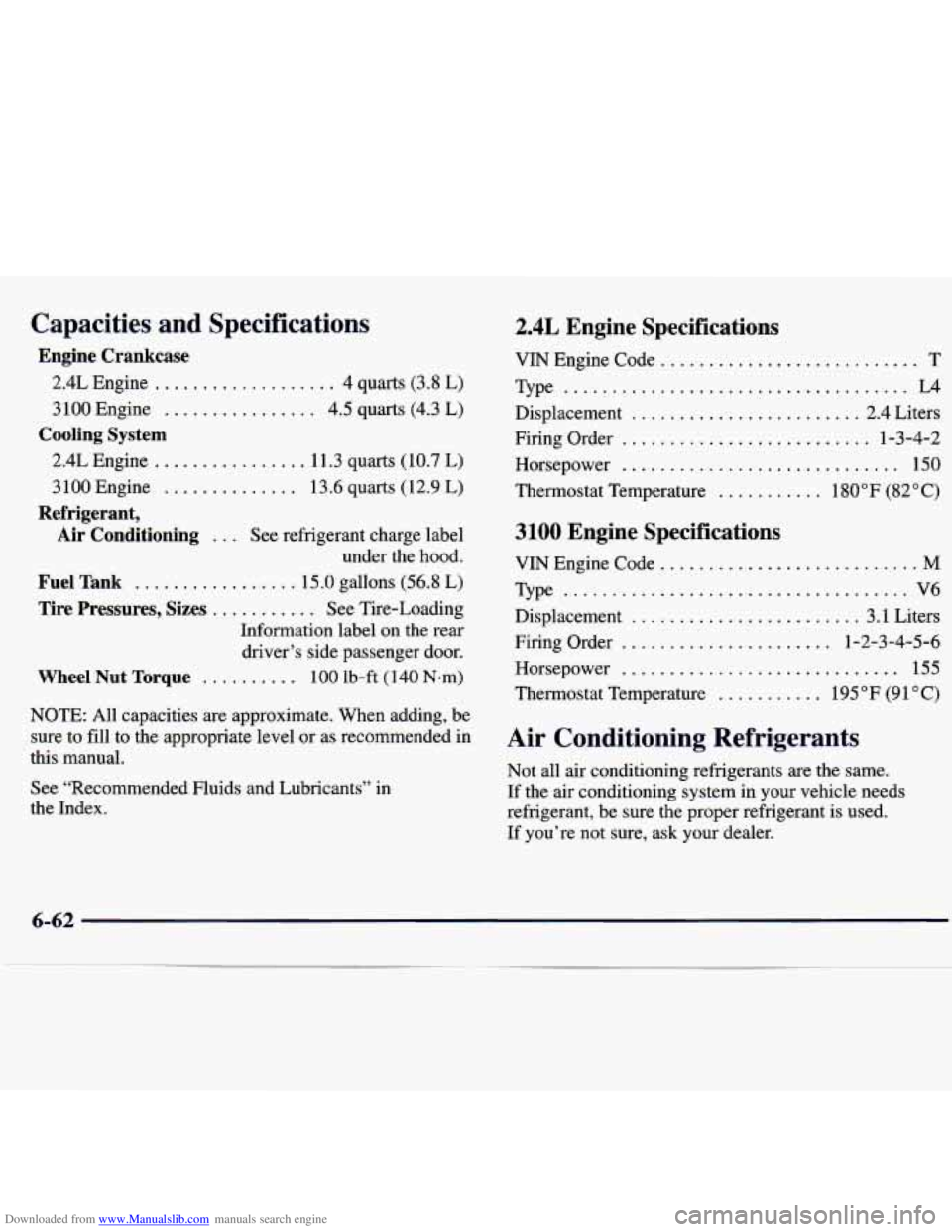

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications
Engine Crankcase
2.4L Engine ................... 4 quarts (3.8 L)
3 100 Engine
................ 4.5 quarts (4.3 L)
2.4LEngine ................ 11.3quarts(10.7L)
3100 Engine .............. 13.6 quarts (12.9 L)
Air Conditioning ... See refrigerant charge label
under the hood.
Fuel Tank ................. 15.0 gallons (56.8 L)
Information label on the rear
driver’s side passenger door.
Wheel Nut Torque .......... 100 lb-ft (140 Nsm)
Cooling System
Refrigerant,
Tire Pressures, Sizes
........... See Tire-Loading
NOTE: All capacities are approximate. When adding, be
sure to fill
to the appropriate level or as recommended in
this manual.
See “Recommended Fluids and Lubricants” in
the Index.
2.4L Engine Specifications
VIN Engine Code ........................... T
Type .................................... L4
Displacement ........................ 2.4 Liters
Firing Order
.......................... 1-3-4-2
Horsepower
............................. 150
Thermostat Temperature ........... 180°F (82°C)
3100 Engine Specifications
VIN Engine Code ........................... M
Type .................................... V6
Displacement
........................ 3.1 Liters
Firing Order
...................... 1-2-3-4-5-6
Horsepower
............................. 155
Thermostat Temperature
........... 195 OF (9 1 O C)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant,
be sure the proper refrigerant is used.
If you’re not sure, ask your dealer.
6-62

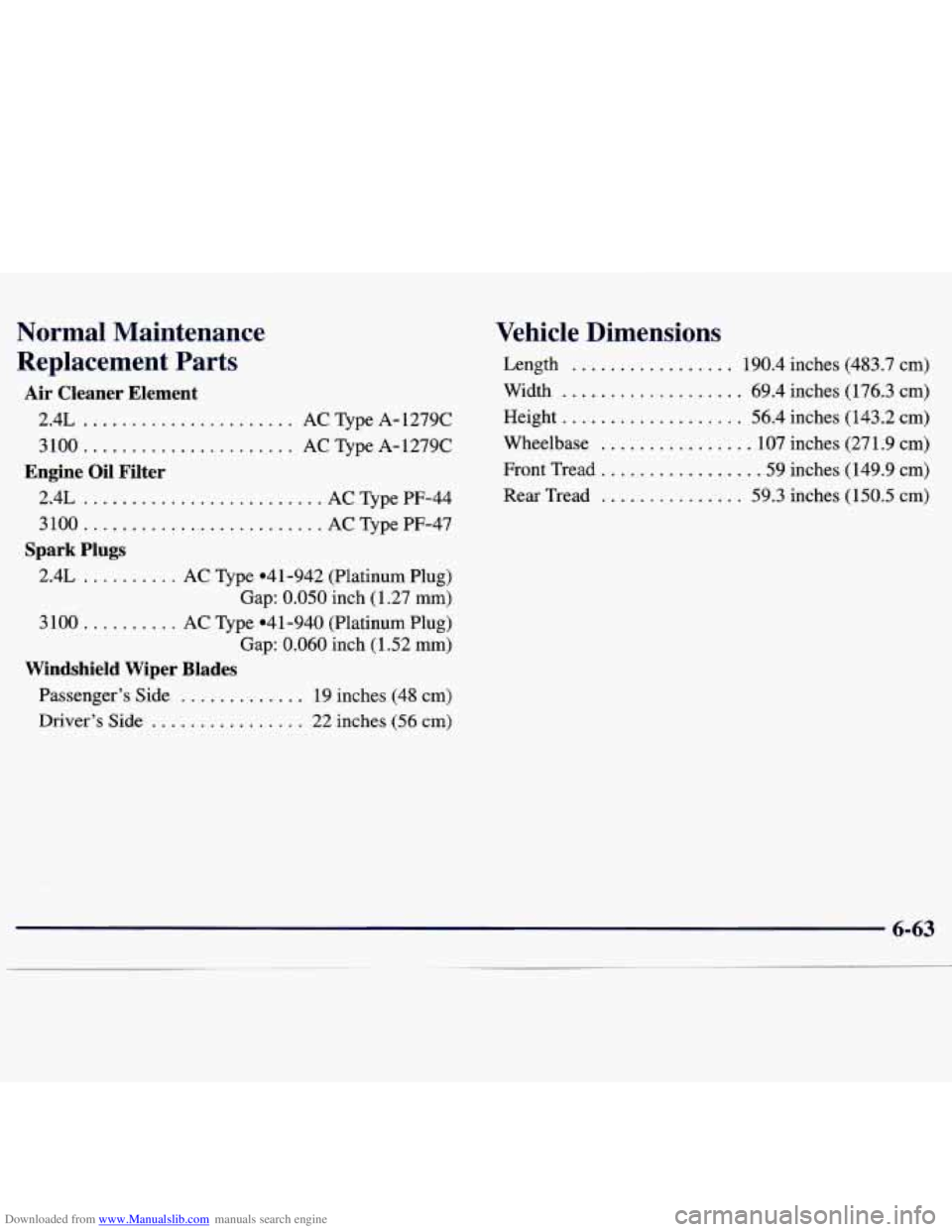

Downloaded from www.Manualslib.com manuals search engine Normal Maintenance Replacement Parts
Air Cleaner Element
2.4L ...................... AC Type A- 1279C
3 100
...................... AC Type A- 1279C
2.4L
......................... AC Type PF-44
3100
......................... ACTypePF-47
2.4L
.......... AC Type 04 1-942 (Platinum Plug)
Gap:
0.050 inch (1.27 mm)
3 100
.......... AC Type 041 -940 (Platinum Plug)
Gap: 0.060 inch (1.52 mm)
Passenger’s Side
............. 19 inches (48 cm)
Driver’s Side ................ 22 inches (56 cm)
Engine Oil Filter
Spark Plugs
Windshield Wiper Blades
Vehicle Dimensions
Length ................. 190.4 inches (483.7 cm)
Width
................... 69.4 inches (176.3 cm)
Height
................... 56.4 inches (143.2 cm)
Wheelbase
................ 107 inches (27 1.9 cm)
Front Tread.
............... .59 inches (149.9 cm)
Rear Tread
............... 59.3 inches (150.5 cm)
