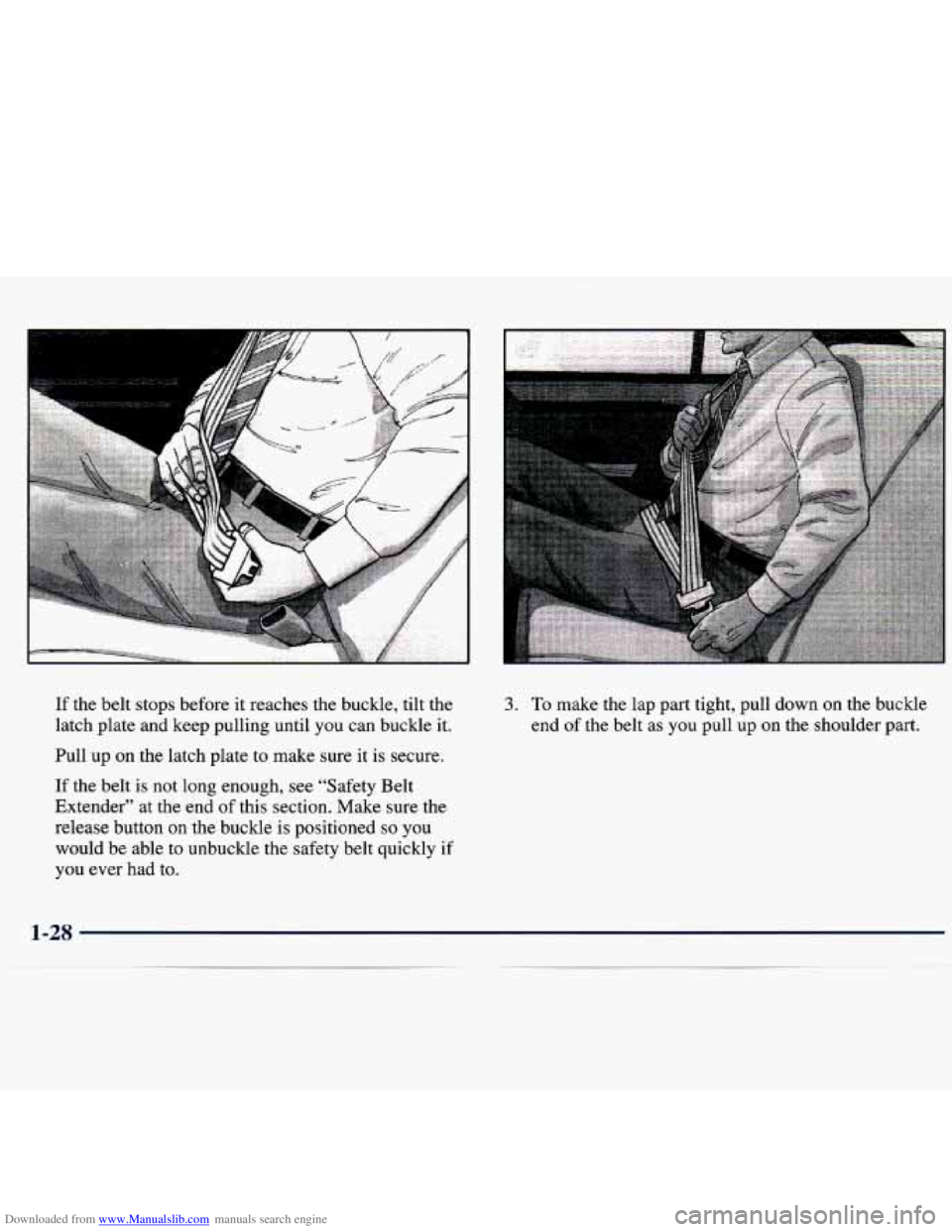

Downloaded from www.Manualslib.com manuals search engine If the belt stops before it reaches the buckle, tilt the
latch plate and keep pulling until you can buckle it.
Pull up on the latch plate to make sure it is secure.
If the belt is not long enough, see “Safety Belt
Extender” at the end of this section. Make sure the
release button
on the buckle is positioned so you
would be able to unbuckle the safety belt quickly
if
you ever had to.
I ... .
b
3. To make the lap part tight, pull down on the buckle
end of the belt as you pull up on the shoulder part.

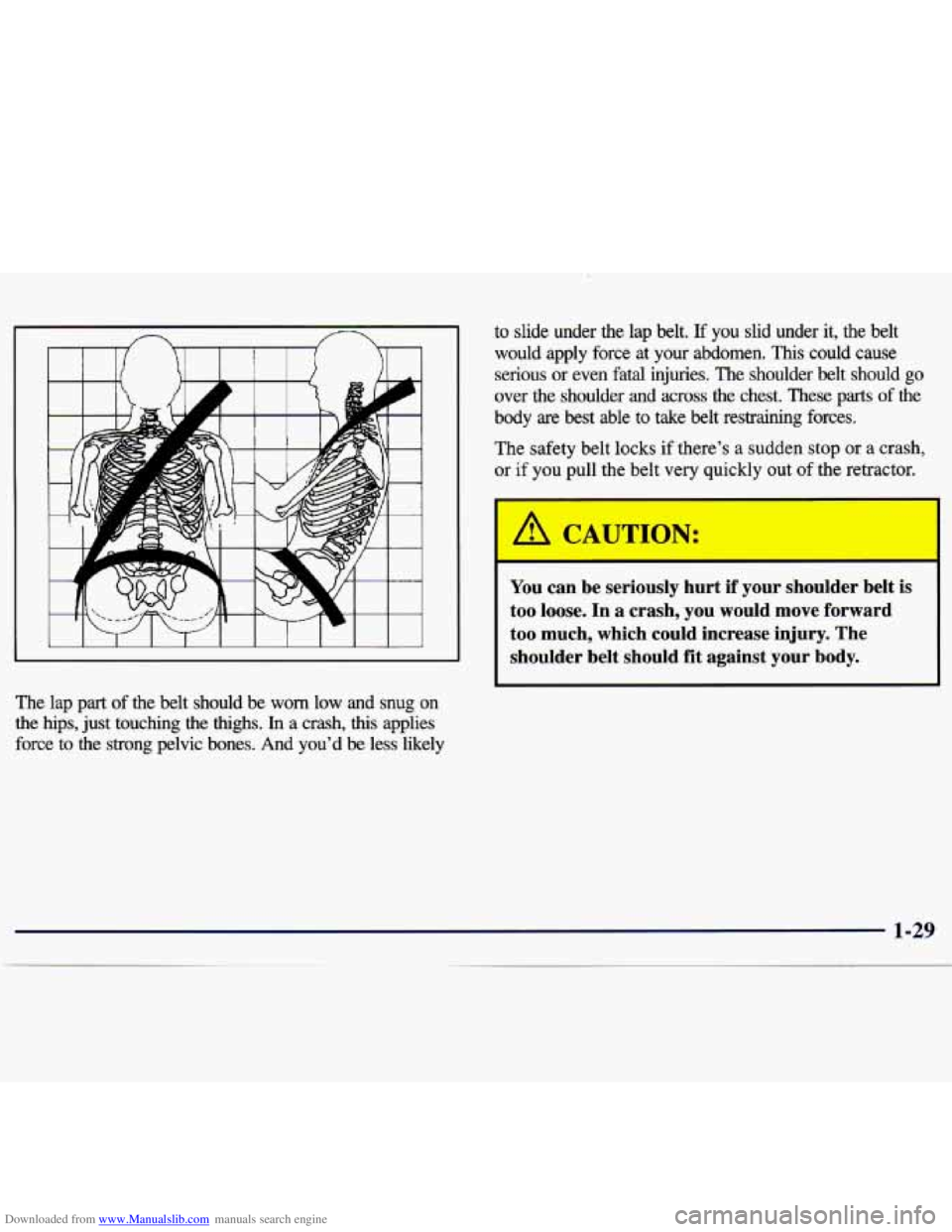

Downloaded from www.Manualslib.com manuals search engine The lap part of the belt should be worn low and snug on
the hips, just touching the thighs.
In a crash, this applies
force to the strong pelvic bones. And you’d
be less likely
to slide under the lap belt. If you slid under it, the belt
would apply force at your abdomen.
This could cause
serious or even fatal injuries.
The shoulder belt should go
over the shoulder and across the chest. These parts of the
body are
best able to take belt restraining forces.
The safety belt locks if there’s a sudden stop or
a crash,
or if you pull the belt very quickly out of the retractor.
You can be seriously hurt if your shoulder belt is
too loose. In a crash, you would move forward
too much, which could increase injury. The
shoulder belt should fit against your body.

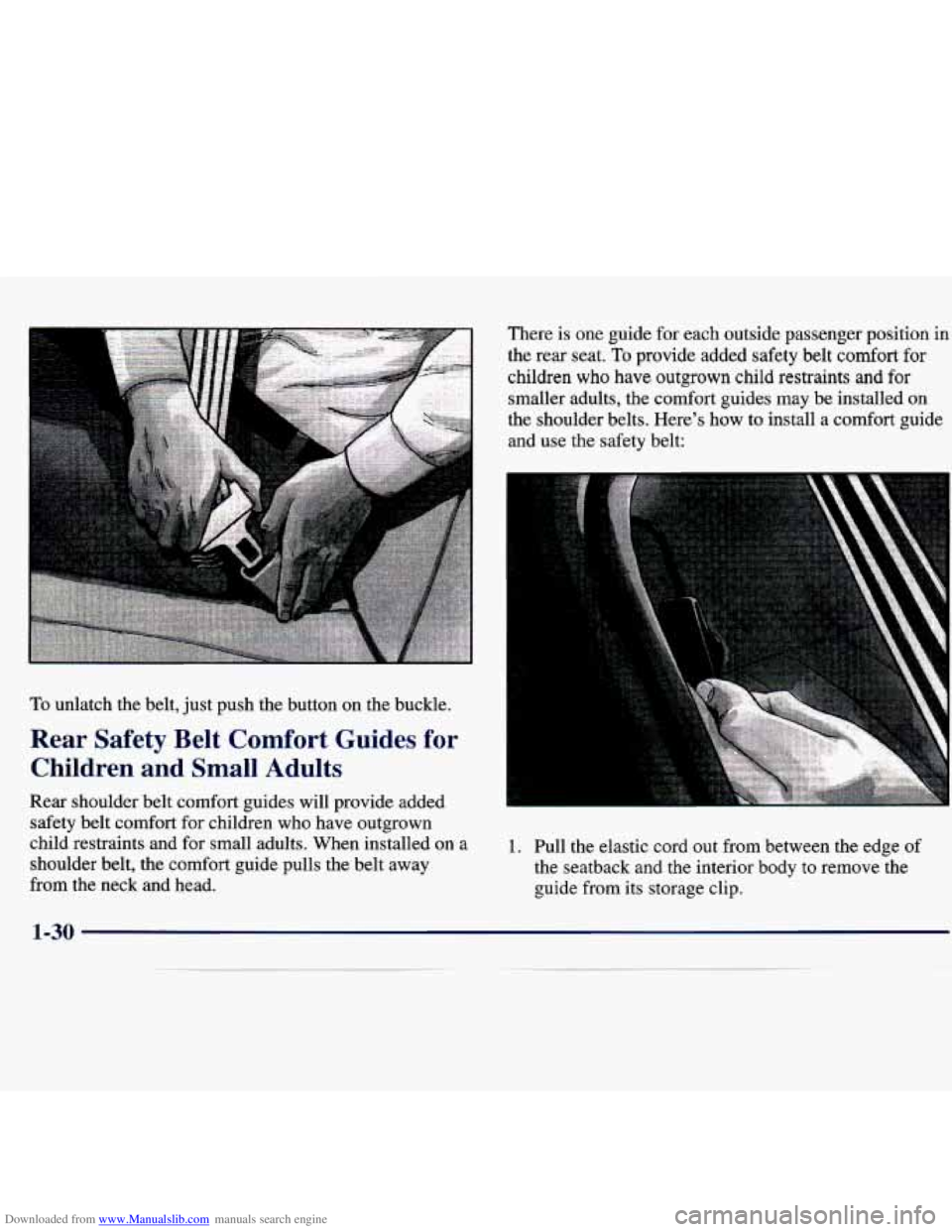

Downloaded from www.Manualslib.com manuals search engine To unlatch the belt, just push the button on the buckle.
Rear Safety Belt Comfort Guides for
Children and Small Adults
Rear shoulder belt comfort guides will provide added
safety belt comfort for children who have outgrown
child restraints and for small adults. When installed on a
shoulder belt, the comfort guide pulls the belt away
from the neck and head. There
is one guide
for each outside passenger position in
the rear seat.
To provide added safety belt comfort for
children who have outgrown child restraints and for
smaller adults, the comfort guides
may be installed on
the shoulder belts. Here’s
how to install a comfort guide
and use the safety belt:
1. Pull the elastic cord out from between the edge of
the seatback and the interior body to remove the
guide from its storage clip.

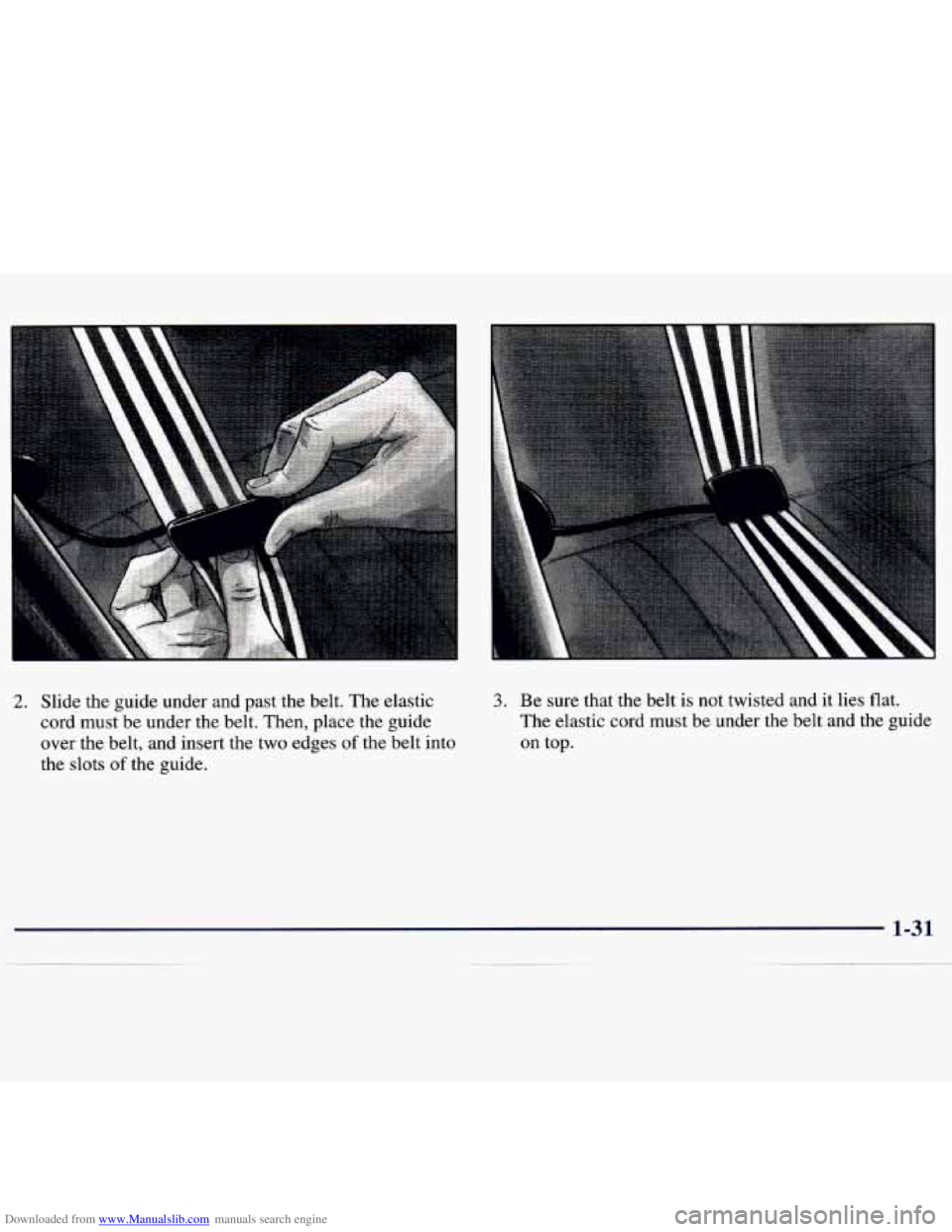

Downloaded from www.Manualslib.com manuals search engine 2. Slide the guide under and past the belt. The elastic
cord must be under the belt. Then, place the guide
over the belt,
and insert the two edges of the belt into
the slots
of the guide.
3. Be sure that the belt is not twisted and it lies flat.
The elastic cord must be under the belt and the guide
on top.

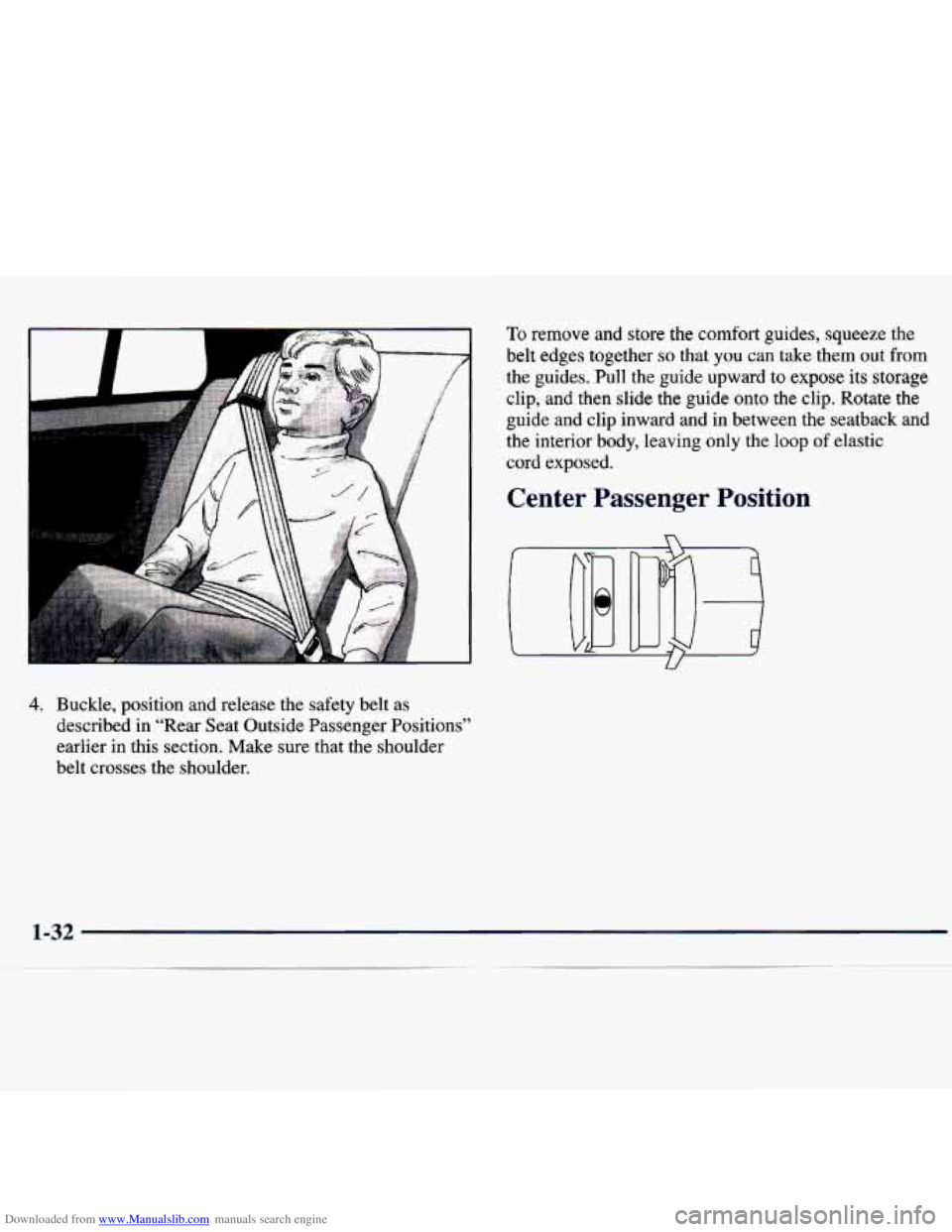

Downloaded from www.Manualslib.com manuals search engine To remove and store the comfort guides, squeeze the
belt edges together
so that you can take them out from
the guides.
Pull the guide upward to expose its storage
clip, and then slide the guide onto the clip. Rotate the
guide and clip inward and
in between the seatback and
the interior body, leaving only the loop
of elastic
cord exposed.
Center Passenger Position
U
4. Buckle, position and release the safety belt as
described in
“Rear Seat Outside Passenger Positions”
earlier in this section. Make sure that the shoulder
belt crosses the shoulder.

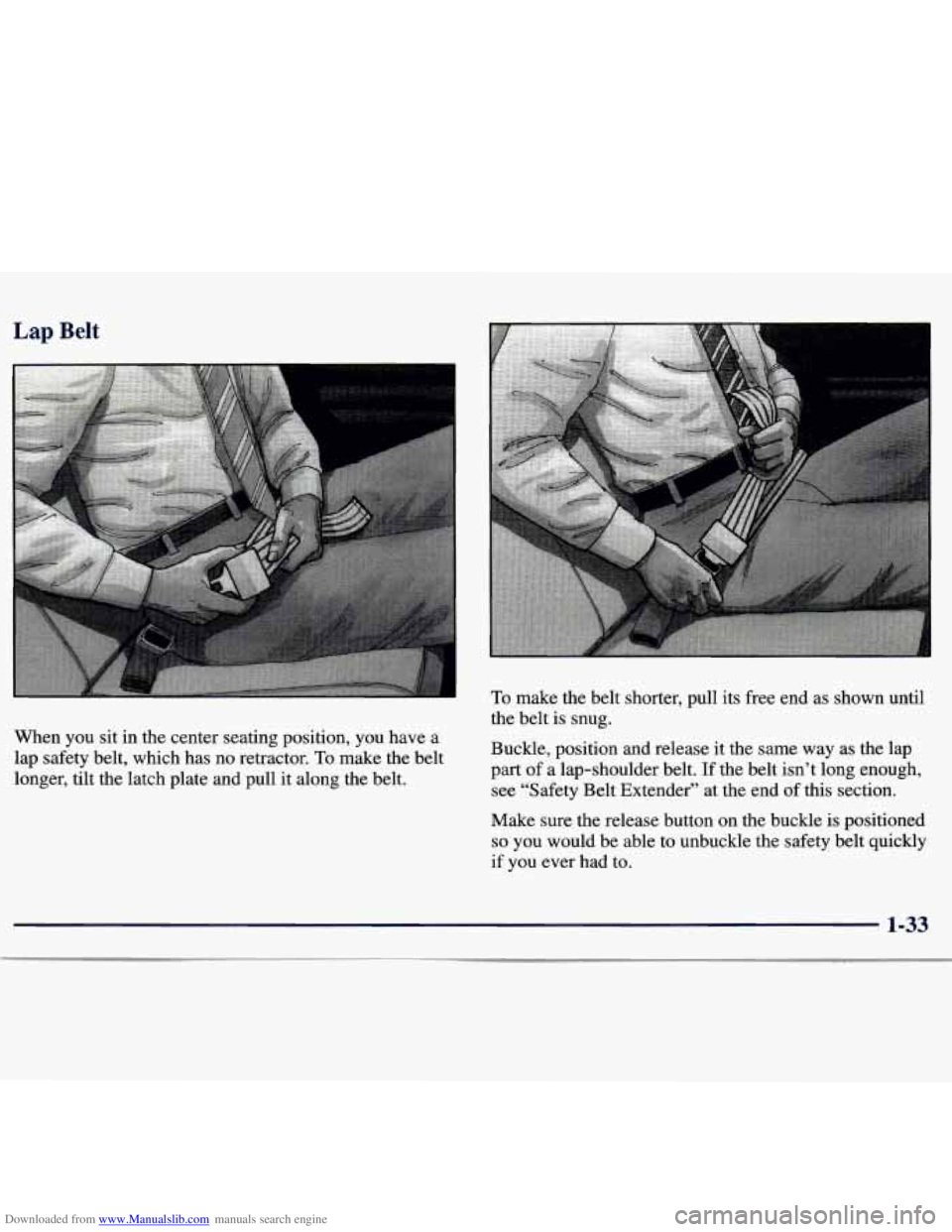

Downloaded from www.Manualslib.com manuals search engine Lap Belt
When you sit in the center seating position, you have a
lap safety belt, which has no retractor.
To make the belt
longer, tilt the latch plate and pull it along the belt. To
make the belt shorter, pull its free end as shown until
the belt is snug.
Buckle, position and release it the same way as the lap
part of a lap-shoulder belt. If the belt isn’t long enough,
see “Safety Belt Extender” at the end of this section.
Make sure the release button on the buckle is positioned
so you would be able to unbuckle the safety belt quickly
if you ever had to.
1-33

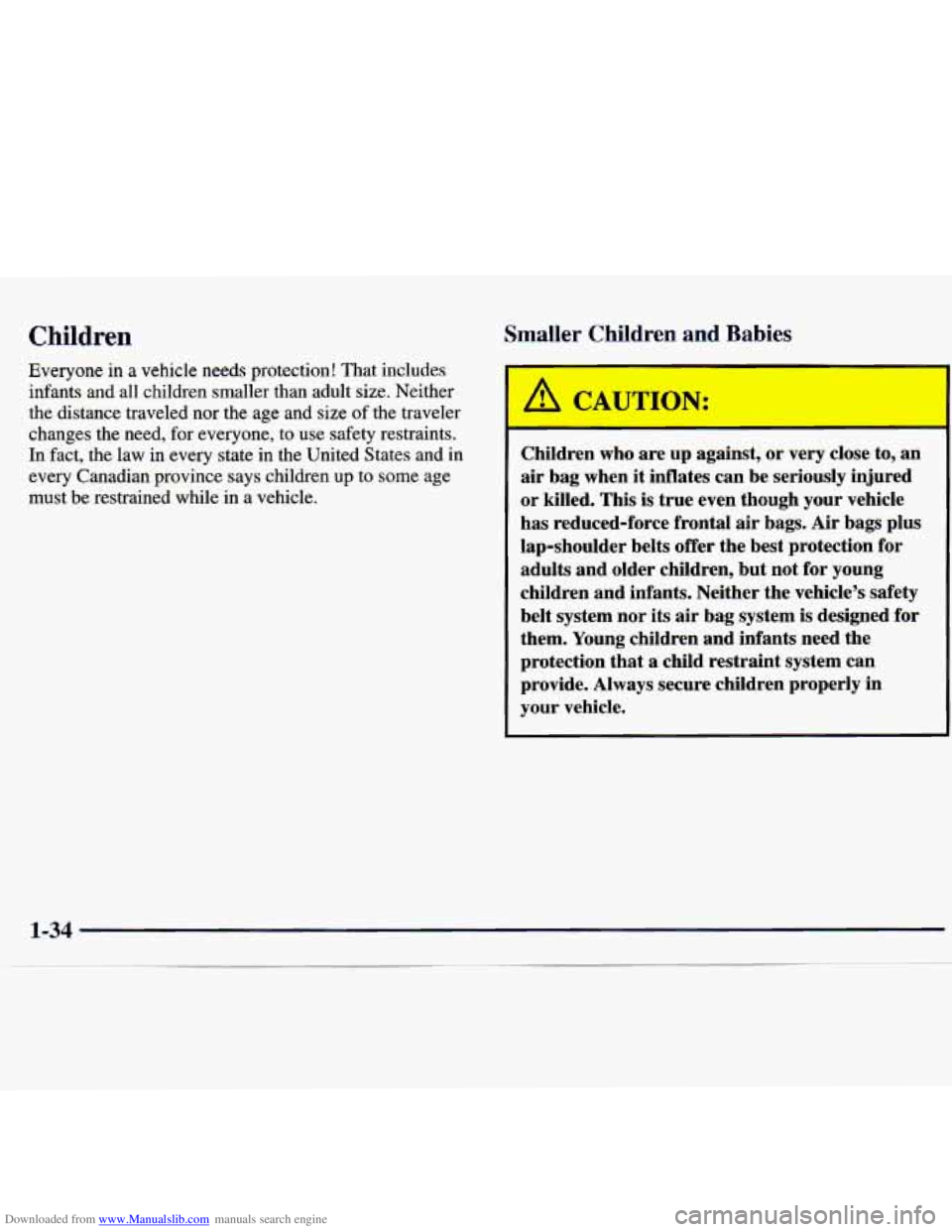

Downloaded from www.Manualslib.com manuals search engine Children Smaller Chil4ren md Babies
Everyone in a vehicle needs protection! That includes
infants and all children smaller than adult size. Neither
the distance traveled
nor the age and size of the traveler
changes the need, for everyone, to use safety restraints.
In fact, the law in every state in the United States and
in
every Canadian province says children up to some age
must be restrained
while in a vehicle.
/1 CAUTION:
1- -
Children who are up against, or very 4 se to, an
air bag when it inflates can be seriously injured
or killed. This is true even though your vehicle
has reduced-force frontal
air bags. Air bags plus
lap-shoulder belts
offer the best protection for
adults and older children, but not
for young
children and infants. Neither the vehicle’s safety
belt system nor its
air bag system is designed for
them. Young children and infants need the
protection that
a child restraint system can
provide. Always secure children properly in
your vehicle.

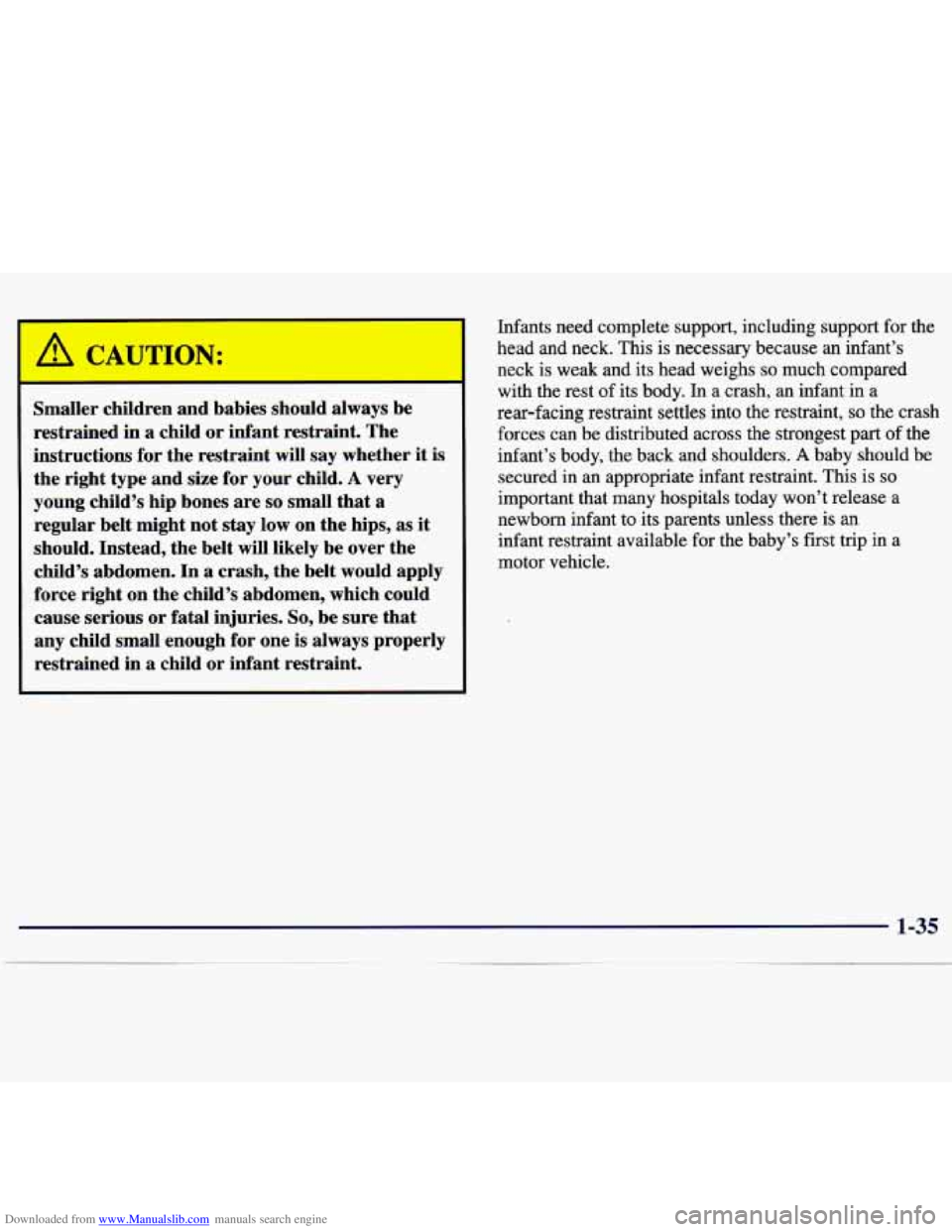

Downloaded from www.Manualslib.com manuals search engine /I CAUTION:
Smaller children and babies should always be
restrained in a child or infant restraint. The
instructions for the restraint will say whether it is
the right type and size
for your child. A very
young child’s hip bones
are so small that a
regular belt might not
stay low on the hips, as it
should. Instead, the belt will likely be over the
child’s abdomen. In a crash, the belt would apply
force right on the child’s abdomen, which could
cause serious or fatal injuries.
So, be sure that
any child small enough for one is always properly
restrained in a child or infant restraint.
Infants need complete support, including support for the
head and neck. This is necessary because an infant’s
neck
is weak and its head weighs so much compared
with the rest of its body. In
a crash, an infant in a
rear-facing restraint settles into the restraint,
so the crash
forces can be distributed across the strongest part
of the
infant’s body, the back
and shoulders. A baby should be
secured in an appropriate infant restraint. This
is so
important that many hospitals today won’t release a
newborn infant to its parents unless there is an
infant restraint available for the baby’s first trip in a
motor vehicle.
1-35

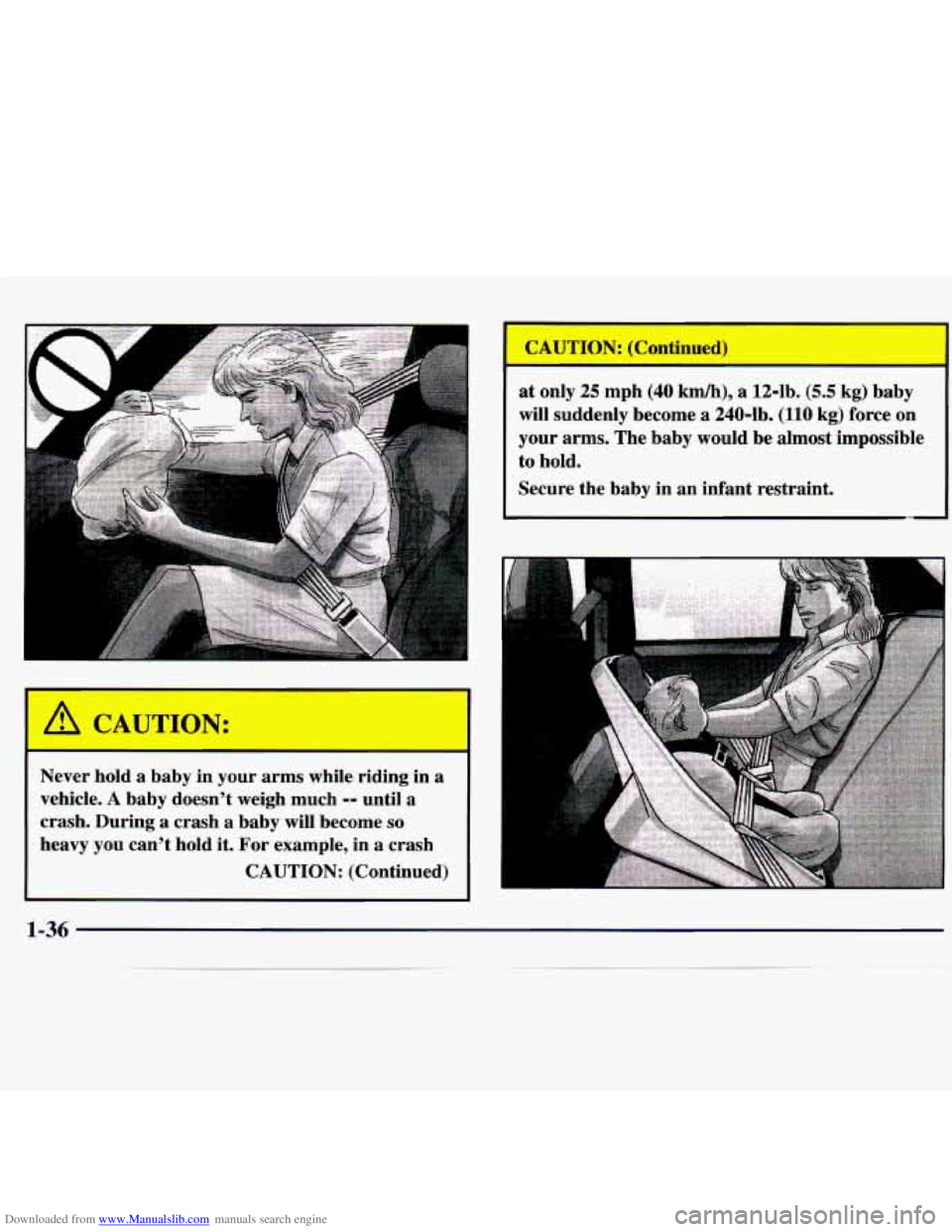

Downloaded from www.Manualslib.com manuals search engine 1 A CAUTION:
Never hold a baby in your arms while riding in a
vehicle.
A baby doesn’t weigh much -- until a
crash. During a crash a baby will become so
heavy you can’t hold it. For example, in a crash
CAUTION: (Continued)
at only 25 mph (40 kmh), a 12-1b. (5.5 kg) baby
will suddenly become a 2404b. (110 kg) force on
your arms. The baby would be almost impossible
to
hold.
Secure the baby in an infant restraint.
1-36

Downloaded from www.Manualslib.com manuals search engine Child Restraints
Every time infants and young children ride in
vehicles, they should have protection provided by
appropriate restraints.
What are the different types of add-on
child restraints?
A: Add-on child restraints are available in four basic
types. When selecting a child restraint, take into
consideration not only the child’s weight and size,
but also whether or not the restraint will be
compatible with the niotor vehicle in which it will
be used.
An infant car bed (A) is
a special bed made for use
in a motor vehicle. It’s an infant restraint system
designed to restrain or position a child on a
continuous flat surface. With an infant car bed, make sure that the infant’s head rests toward the
center of the vehicle.
