Tachometer
The tachometer shows your engine speed in
revolutions per minute (rpm).
Safety Belt Reminder Light
When the key is turned to ON or START,
a chime will come on for several seconds to
remind people to fasten their safety belts, unless
the driver’s safety belt is already buckled.
The safety belt light
will also come on
and stay on for
several seconds,
then it will ash for
several more.
This chime and light will be repeated if the driver
remains unbuckled and the vehicle is in motion.
If the driver’s belt is already buckled, neither
the chime nor the light will come on.
201

Passenger Safety Belt
Reminder Light
Several seconds after the key is turned to ON or
START, a chime will sound for several seconds
to remind the front passenger to buckle their
safety belt. This would only occur if the passenger
airbag is enabled. SeePassenger Sensing
System on page 82for more information. The
passenger safety belt light will also come on and
stay on for several seconds, then it will ash
for several more.
This chime and light
is repeated if the
passenger remains
unbuckled and
the vehicle is
in motion.
If the passenger’s safety belt is buckled,
neither the chime nor the light will come on.
Airbag Readiness Light
There is an airbag readiness light on the
instrument panel cluster, which shows the
airbag symbol. The system checks the airbag’s
electrical system for malfunctions. The light
tells you if there is an electrical problem.
The system check includes the airbag sensor,
the pretensioners, the airbag modules, the wiring
and the crash sensing and diagnostic module.
For more information on the airbag system,
seeAirbag System on page 72.
This light will come on
when you start your
vehicle, and it will ash
for a few seconds.
Then the light should
go out. This means
the system is ready.
If the airbag readiness light stays on after you
start the vehicle or comes on when you are
driving, your airbag system may not work properly.
Have your vehicle serviced right away.
202

{CAUTION:
If the airbag readiness light stays on
after you start your vehicle, it means
the airbag system may not be working
properly. The airbags in your vehicle may
not inate in a crash, or they could even
inate without a crash. To help avoid
injury to yourself or others, have your
vehicle serviced right away if the airbag
readiness light stays on after you start
your vehicle.
The airbag readiness light should ash for a
few seconds when you turn the ignition key to ON.
If the light does not come on then, have it xed
so it will be ready to warn you if there is a problem.
Passenger Airbag Status Indicator
Your vehicle has the passenger sensing system.
Your instrument panel has a passenger airbag
status indicator.
When the ignition key is turned to ON or START,
the passenger airbag status indicator will light
ON and OFF, or the symbol for on and off,
for several seconds as a system check. Then,
after several more seconds, the status indicator
will light either ON or OFF, or either the on
or off symbol to let you know the status of the
right front passenger’s frontal airbag.
United StatesCanada
203

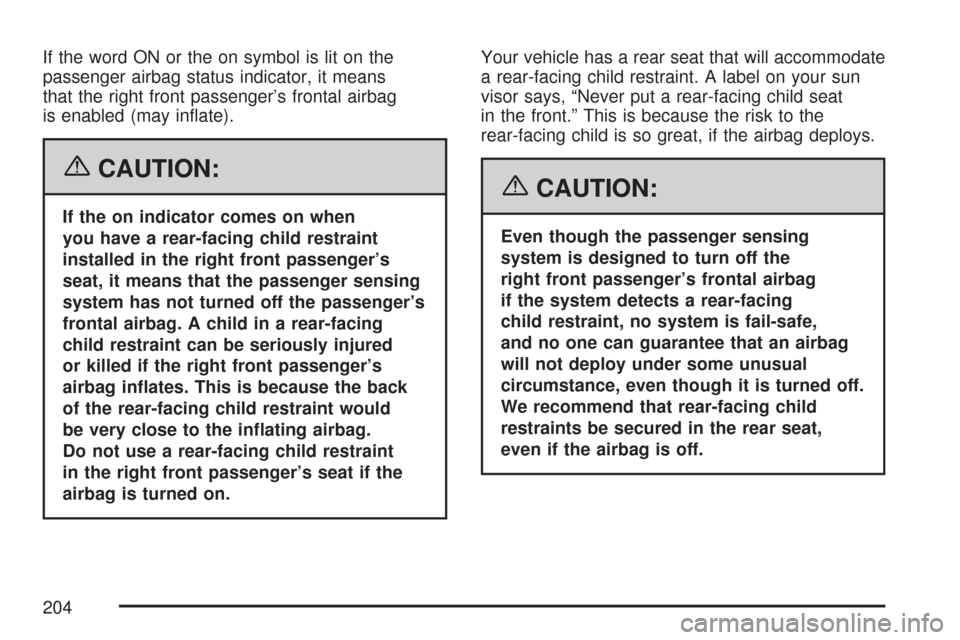

If the word ON or the on symbol is lit on the
passenger airbag status indicator, it means
that the right front passenger’s frontal airbag
is enabled (may inate).
{CAUTION:
If the on indicator comes on when
you have a rear-facing child restraint
installed in the right front passenger’s
seat, it means that the passenger sensing
system has not turned off the passenger’s
frontal airbag. A child in a rear-facing
child restraint can be seriously injured
or killed if the right front passenger’s
airbag inates. This is because the back
of the rear-facing child restraint would
be very close to the inating airbag.
Do not use a rear-facing child restraint
in the right front passenger’s seat if the
airbag is turned on.Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun
visor says, “Never put a rear-facing child seat
in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
Even though the passenger sensing
system is designed to turn off the
right front passenger’s frontal airbag
if the system detects a rear-facing
child restraint, no system is fail-safe,
and no one can guarantee that an airbag
will not deploy under some unusual
circumstance, even though it is turned off.
We recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbag is off.
204

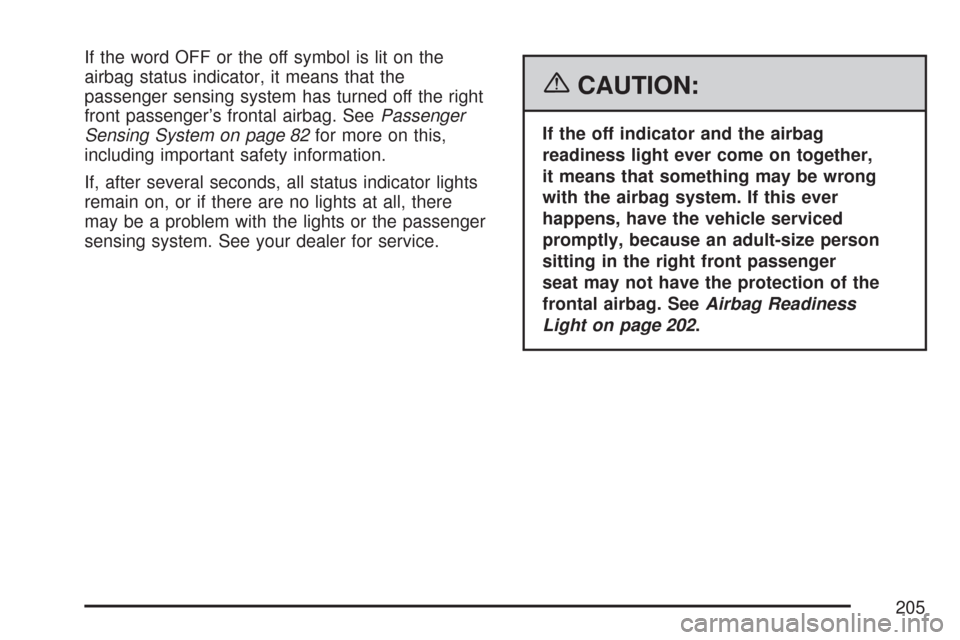

If the word OFF or the off symbol is lit on the
airbag status indicator, it means that the
passenger sensing system has turned off the right
front passenger’s frontal airbag. SeePassenger
Sensing System on page 82for more on this,
including important safety information.
If, after several seconds, all status indicator lights
remain on, or if there are no lights at all, there
may be a problem with the lights or the passenger
sensing system. See your dealer for service.
{CAUTION:
If the off indicator and the airbag
readiness light ever come on together,
it means that something may be wrong
with the airbag system. If this ever
happens, have the vehicle serviced
promptly, because an adult-size person
sitting in the right front passenger
seat may not have the protection of the
frontal airbag. SeeAirbag Readiness
Light on page 202.
205

Charging System Light
The charging system
light will come on
briey when you turn
on the ignition, but
the engine is not
running, as a check to
show you it is working.
It should go out once the engine is running.
If it stays on, or comes on while you are driving,
you may have a problem with the charging system.
It could indicate that you have problems with a
generator drive belt, or another electrical problem.
Have it checked right away. Driving while this
light is on could drain your battery.
If you must drive a short distance with the light on,
be certain to turn off all your accessories, such
as the radio and air conditioner.
Brake System Warning Light
Your vehicle’s hydraulic brake system is divided
into two parts. If one part is not working, the
other part can still work and stop you. For good
braking, though, you need both parts working well.
If the warning light comes on, there is a brake
problem. Have your brake system inspected
right away.
United StatesCanada
206

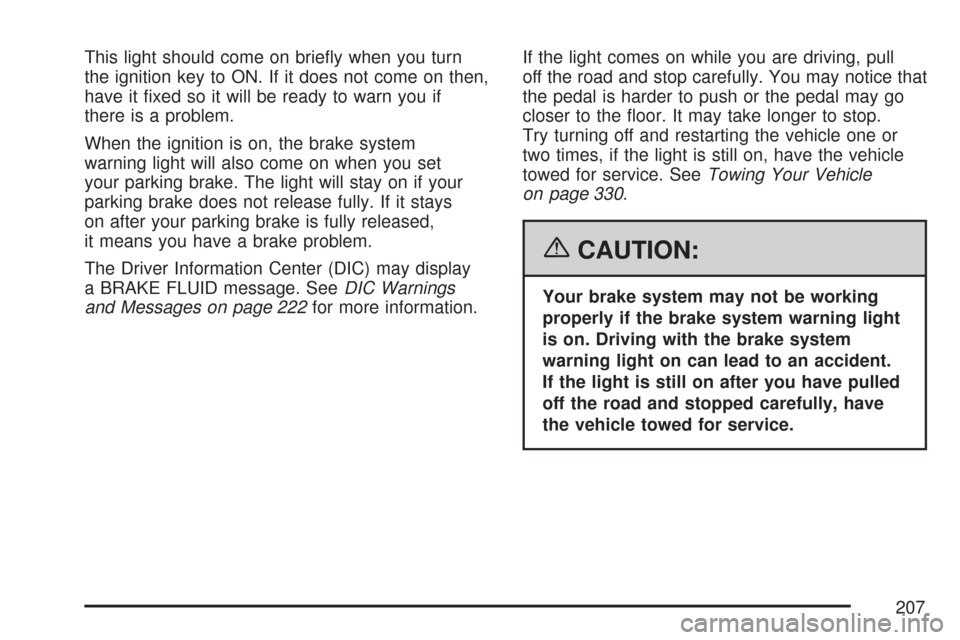

This light should come on briey when you turn
the ignition key to ON. If it does not come on then,
have it xed so it will be ready to warn you if
there is a problem.
When the ignition is on, the brake system
warning light will also come on when you set
your parking brake. The light will stay on if your
parking brake does not release fully. If it stays
on after your parking brake is fully released,
it means you have a brake problem.
The Driver Information Center (DIC) may display
a BRAKE FLUID message. SeeDIC Warnings
and Messages on page 222for more information.If the light comes on while you are driving, pull
off the road and stop carefully. You may notice that
the pedal is harder to push or the pedal may go
closer to the oor. It may take longer to stop.
Try turning off and restarting the vehicle one or
two times, if the light is still on, have the vehicle
towed for service. SeeTowing Your Vehicle
on page 330.
{CAUTION:
Your brake system may not be working
properly if the brake system warning light
is on. Driving with the brake system
warning light on can lead to an accident.
If the light is still on after you have pulled
off the road and stopped carefully, have
the vehicle towed for service.
207

Anti-Lock Brake System
Warning Light
Your vehicle may have
the Anti-Lock Brake
System (ABS).
This light will come on when your engine is
started and may stay on for several seconds.
This is normal.If the light stays on, turn the ignition to off.
If the light comes on and the chime sounds when
you are driving, stop as soon as possible and
turn the ignition off. Then start the engine again
to reset the system. If the light still stays on,
or comes on again while you are driving, your
vehicle needs service. If the regular brake system
warning light is not on, you still have brakes,
but you do not have anti-lock brakes. If the regular
brake system warning light is also on, you do
not have anti-lock brakes and there is a problem
with your regular brakes. SeeBrake System
Warning Light on page 206earlier in this section.
The ABS warning light will come on briey
when you turn the ignition key to ON. This is
normal. If the light does not come on then,
have it xed so it will be ready to warn you if
there is a problem.
208

Traction Control System (TCS)
Warning Light
If your vehicle has
the Traction Control
System (TCS), this
light may come on for
the following reasons:
If you turn the system off by pressing the
TC (traction control) button located on
the center console, the light will come on
and stay on. To turn the system back on,
press the button again and the warning light
should go out.
If there is a brake system problem that is
specically related to traction control, the
TCS will turn off and the warning light
will come on.
If the traction control system warning light comes on
and stays on for an extended period of time when
the system is turned on, your vehicle needs service.
Traction Control System
Active Light
If your vehicle has
the Traction Control
System (TCS), this
light will come on
when the system is
limiting wheel spin.
Slippery road conditions may exist if the TCS
active light comes on, so adjust your driving
accordingly.
The light will stay on for a few seconds after
the system stops limiting wheel spin.
209

Enhanced Traction System
Warning Light
If your vehicle has the
Enhanced Traction
System (ETS), this light
may come on for the
following reasons:
If you turn the system off by pressing the
TC (traction control) button located on
the center console, the light will come on
and stay on. To turn the system back on,
press the button again and the warning light
should go out.
If there’s a brake system problem that is
specically related to traction control, the
ETS will turn off and the warning light
will come on.
If the traction control system warning light comes on
and stays on for an extended period of time when
the system is turned on, your vehicle needs service.
Enhanced Traction System
Active Light
If your vehicle has the
Enhanced Traction
System (ETS), this
light will come on
when the system is
limiting wheel spin.
Slippery road conditions may exist if the
Enhanced Traction System active light comes
on, so adjust your driving accordingly.
The light will stay on for a few seconds after
the system stops limiting wheel spin.
