CHEVROLET MALIBU 2007 6.G Owners Manual
Manufacturer: CHEVROLET, Model Year: 2007, Model line: MALIBU, Model: CHEVROLET MALIBU 2007 6.GPages: 510, PDF Size: 2.8 MB

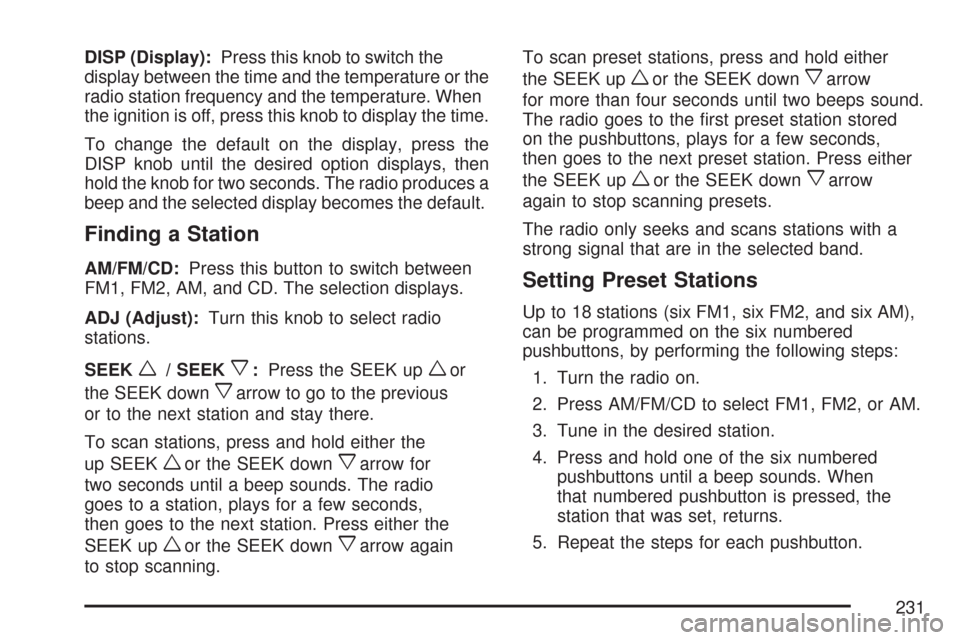

Page 231 of 510

DISP (Display):Press this knob to switch the
display between the time and the temperature or the
radio station frequency and the temperature. When
the ignition is off, press this knob to display the time.
To change the default on the display, press the
DISP knob until the desired option displays, then
hold the knob for two seconds. The radio produces a
beep and the selected display becomes the default.
Finding a Station
AM/FM/CD:Press this button to switch between
FM1, FM2, AM, and CD. The selection displays.
ADJ (Adjust):Turn this knob to select radio
stations.
SEEK
w/ SEEKx:Press the SEEK upwor
the SEEK down
xarrow to go to the previous
or to the next station and stay there.
To scan stations, press and hold either the
up SEEK
wor the SEEK downxarrow for
two seconds until a beep sounds. The radio
goes to a station, plays for a few seconds,
then goes to the next station. Press either the
SEEK up
wor the SEEK downxarrow again
to stop scanning.To scan preset stations, press and hold either
the SEEK up
wor the SEEK downxarrow
for more than four seconds until two beeps sound.
The radio goes to the rst preset station stored
on the pushbuttons, plays for a few seconds,
then goes to the next preset station. Press either
the SEEK up
wor the SEEK downxarrow
again to stop scanning presets.
The radio only seeks and scans stations with a
strong signal that are in the selected band.
Setting Preset Stations
Up to 18 stations (six FM1, six FM2, and six AM),
can be programmed on the six numbered
pushbuttons, by performing the following steps:
1. Turn the radio on.
2. Press AM/FM/CD to select FM1, FM2, or AM.
3. Tune in the desired station.
4. Press and hold one of the six numbered
pushbuttons until a beep sounds. When
that numbered pushbutton is pressed, the
station that was set, returns.
5. Repeat the steps for each pushbutton.
231

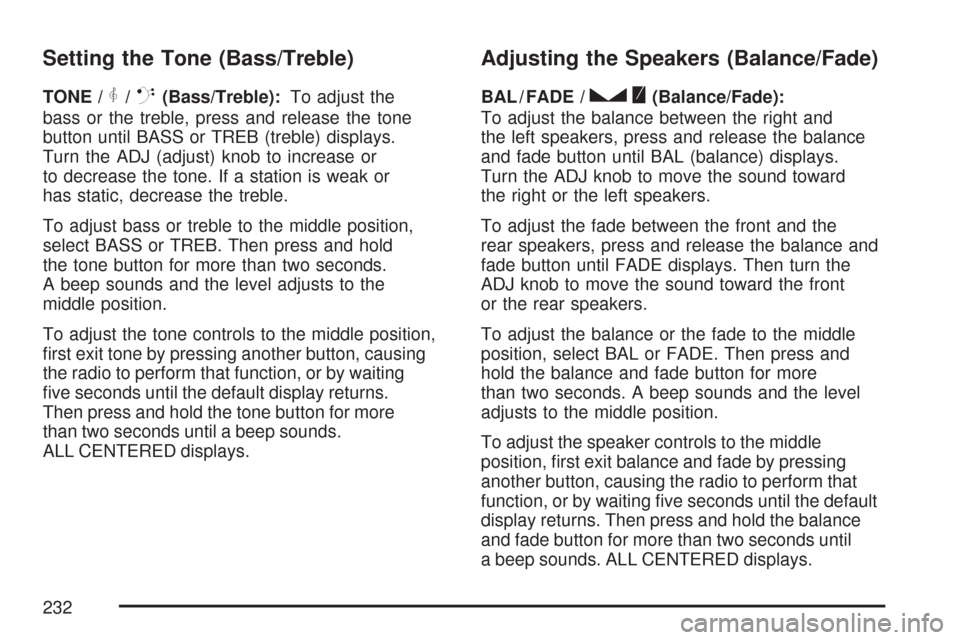

Page 232 of 510

Setting the Tone (Bass/Treble)
TONE /P/Q(Bass/Treble):To adjust the
bass or the treble, press and release the tone
button until BASS or TREB (treble) displays.
Turn the ADJ (adjust) knob to increase or
to decrease the tone. If a station is weak or
has static, decrease the treble.
To adjust bass or treble to the middle position,
select BASS or TREB. Then press and hold
the tone button for more than two seconds.
A beep sounds and the level adjusts to the
middle position.
To adjust the tone controls to the middle position,
rst exit tone by pressing another button, causing
the radio to perform that function, or by waiting
ve seconds until the default display returns.
Then press and hold the tone button for more
than two seconds until a beep sounds.
ALL CENTERED displays.
Adjusting the Speakers (Balance/Fade)
BAL / FADE /S(Balance/Fade):
To adjust the balance between the right and
the left speakers, press and release the balance
and fade button until BAL (balance) displays.
Turn the ADJ knob to move the sound toward
the right or the left speakers.
To adjust the fade between the front and the
rear speakers, press and release the balance and
fade button until FADE displays. Then turn the
ADJ knob to move the sound toward the front
or the rear speakers.
To adjust the balance or the fade to the middle
position, select BAL or FADE. Then press and
hold the balance and fade button for more
than two seconds. A beep sounds and the level
adjusts to the middle position.
To adjust the speaker controls to the middle
position, rst exit balance and fade by pressing
another button, causing the radio to perform that
function, or by waiting ve seconds until the default
display returns. Then press and hold the balance
and fade button for more than two seconds until
a beep sounds. ALL CENTERED displays.
232
