fuel filter CHEVROLET MALIBU 2018 Owner's Manual

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348460) - 2018 - crc - 5/3/17
In Brief 29
E85 or FlexFuel
No E85 or FlexFuel
Gasoline-ethanol fuel blends greater
than E15 (15% ethanol by volume),
such as E85, cannot be used in this
vehicle.
Engine Oil Life System
The engine oil life system calculates
engine oil life based on vehicle use
and displays the CHANGE ENGINE
OIL SOON message when it is time
to change the engine oil and filter.
The oil life system should be reset
to 100% only following an oil
change.
Resetting the Oil Life System1. Using the DIC controls on the right side of the steering wheel,
display REMAINING OIL LIFE
on the DIC. See
Driver Information Center
(DIC) (Uplevel) 0134 orDriver
Information Center (DIC) (Base
Level) 0131. When remaining
oil life is low, the CHANGE
ENGINE OIL SOON message
will appear on the display.
2. Press
Von the DIC controls
and hold down for a few
seconds to clear the CHANGE
ENGINE OIL SOON message
and reset the oil life at 100%.
Be careful not to reset the oil
life display accidentally at any
time other than after the oil is
changed. It cannot be reset
accurately until the next oil
change.
The system is reset when the
CHANGE ENGINE OIL SOON
message is off and the REMAINING
OIL LIFE 100% message is
displayed.
See Engine Oil Life System 0281.
Driving for Better Fuel
Economy
Driving habits can affect fuel
mileage. Here are some driving tips
to get the best fuel economy
possible.
.
Avoid fast starts and accelerate
smoothly.
. Brake gradually and avoid
abrupt stops.
. Avoid idling the engine for long
periods of time.
. When road and weather
conditions are appropriate, use
cruise control.
. Always follow posted speed
limits or drive more slowly when
conditions require.
. Keep vehicle tires properly
inflated.
. Combine several trips into a
single trip.
. Replace the vehicle's tires with
the same TPC Spec number
molded into the tire's sidewall
near the size.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348460) - 2018 - crc - 5/3/17
Service and Maintenance 361
Engine Oil Change
When the CHANGE ENGINE OIL
SOON message displays, have the
engine oil and filter changed within
the next 1 000 km/600 mi. If driven
under the best conditions, the
engine oil life system may not
indicate the need for vehicle service
for up to a year. The engine oil and
filter must be changed at least once
a year and the oil life system must
be reset. Your trained dealer
technician can perform this work.
If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 mi since the
last service. Reset the oil life
system when the oil is changed.
SeeEngine Oil Life System 0281.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation 0322. .
Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system.
See Engine Oil 0278 and
Engine Oil Life System 0281.
. Check engine coolant level.
See Cooling System (Engine)
0 283 orCooling System (Power
Electronics) 0287.
. Check windshield washer fluid
level. See Washer Fluid 0289.
. Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0349. Replace worn or
damaged wiper blades. See
Wiper Blade Replacement
0 294.
. Check tire inflation pressures.
See Tire Pressure 0316.
. Inspect tire wear. See Tire
Inspection 0322.
. Visually check for fluid leaks. .
Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter
0 282.
. Inspect brake system. See
Exterior Care 0349.
. Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of
wear. See Exterior Care 0349.
. Check restraint system
components. See Safety System
Check 071.
. Visually inspect fuel system for
damage or leaks.
. Visually inspect exhaust system
and nearby heat shields for
loose or damaged parts.
. Lubricate body components. See
Exterior Care 0349.
. Check starter switch. See Starter
Switch Check 0293.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348460) - 2018 - crc - 5/3/17
364 Service and Maintenance
Footnotes—Maintenance
Schedule Additional Required
Services - Normal
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2) Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition.
(3) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
(4) Or every five years, whichever
comes first.
See Cooling System (Engine) 0283
or Cooling System (Power
Electronics) 0287. (5)
Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage;
replace, if needed.
(6) Replace brake fluid every five
years. See Brake Fluid 0290.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348460) - 2018 - crc - 5/3/17

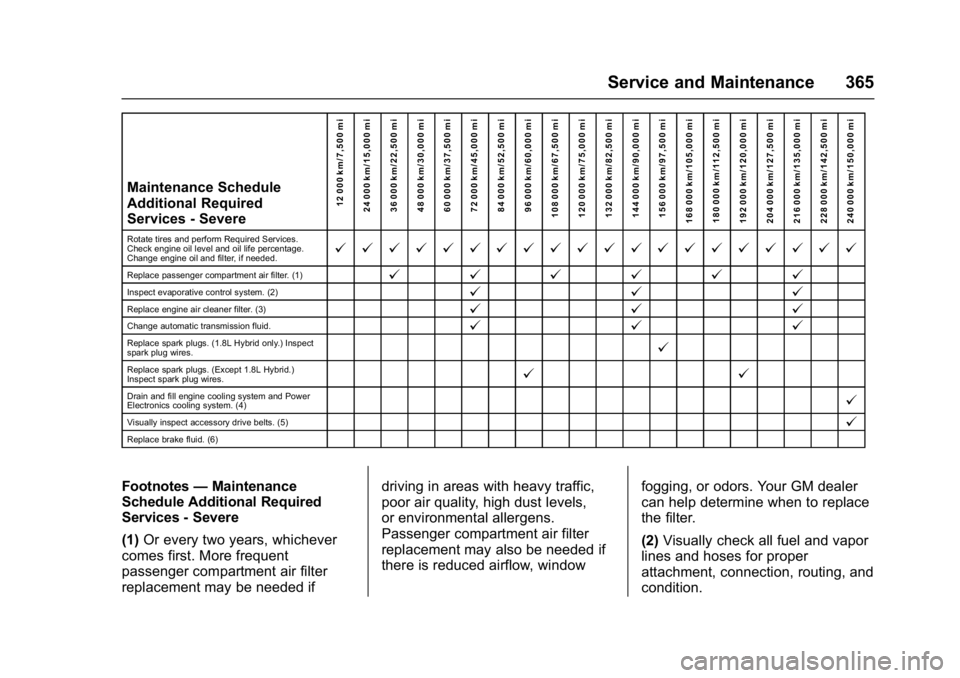

Service and Maintenance 365
Maintenance Schedule
Additional Required
Services - Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.
Check engine oil level and oil life percentage.
Change engine oil and filter, if needed.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
Inspect evaporative control system. (2)@ @@
Replace engine air cleaner filter. (3)@@@
Change automatic transmission fluid.@@@
Replace spark plugs. (1.8L Hybrid only.) Inspect
spark plug wires.@
Replace spark plugs. (Except 1.8L Hybrid.)
Inspect spark plug wires.@ @
Drain and fill engine cooling system and Power
Electronics cooling system. (4)@
Visually inspect accessory drive belts. (5)@
Replace brake fluid. (6)
Footnotes—Maintenance
Schedule Additional Required
Services - Severe
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2)
Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348460) - 2018 - crc - 5/3/17

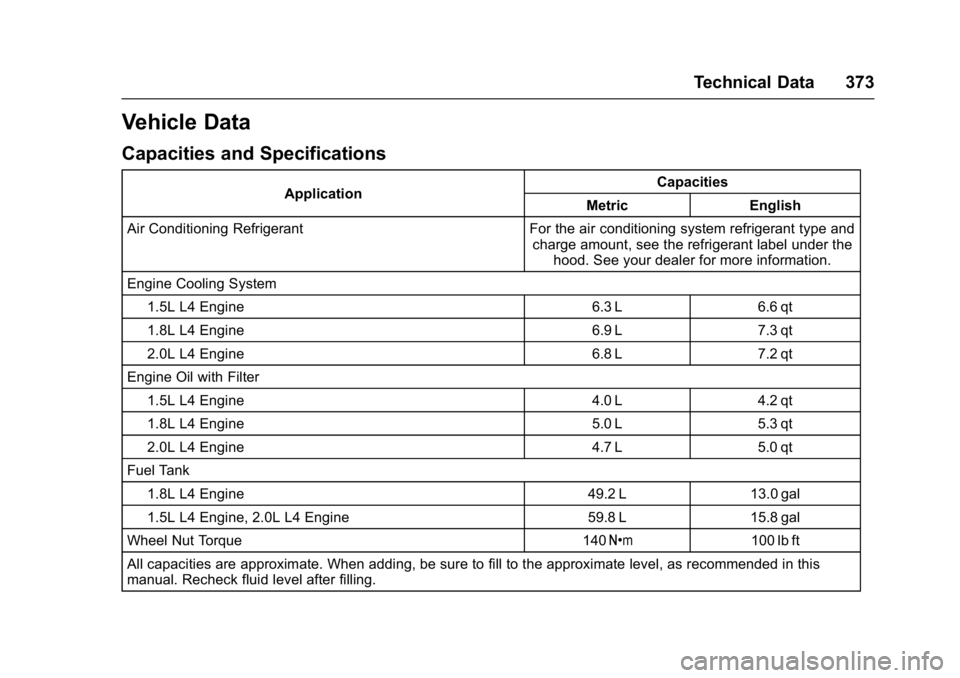

Technical Data 373
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System 1.5L L4 Engine 6.3 L 6.6 qt
1.8L L4 Engine 6.9 L 7.3 qt
2.0L L4 Engine 6.8 L 7.2 qt
Engine Oil with Filter 1.5L L4 Engine 4.0 L 4.2 qt
1.8L L4 Engine 5.0 L 5.3 qt
2.0L L4 Engine 4.7 L 5.0 qt
Fuel Tank
1.8L L4 Engine 49.2 L 13.0 gal
1.5L L4 Engine, 2.0L L4 Engine 59.8 L 15.8 gal
Wheel Nut Torque 140 Y100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348460) - 2018 - crc - 5/3/17
Index 403
Drive Belt Routing, Engine . . . . . . 374
Driver Assistance Systems . . . . . 242
Driver InformationCenter (DIC) . . . . . . . . . . . . . 131, 134
Driving Assistance Systems . . . . . . . . . . 247
Characteristics andTowing Tips . . . . . . . . . . . . . . . . . 262
Defensive . . . . . . . . . . . . . . . . . . . . . 207
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 207
For Better Fuel Economy . . . . . . . 29
Hill and Mountain Roads . . . . . . 210
If the Vehicle is Stuck . . . . . . . . . 212
Loss of Control . . . . . . . . . . . . . . . 209
Off-Road Recovery . . . . . . . . . . . 208
Vehicle Load Limits . . . . . . . . . . . 212
Wet Roads . . . . . . . . . . . . . . . . . . . 209
Winter . . . . . . . . . . . . . . . . . . . . . . . . .211
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . 199
E
Electric Parking Brake . . . . . . . . . . 228
Electric Parking Brake Light . . . . 124
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . . 267
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 302 Electrical System (cont'd)
Fuses and Circuit Breakers . . . 301
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 306
Overload . . . . . . . . . . . . . . . . . . . . . 301
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 390
Energy Information . . . . . . . . . . . . . 131
Engine Air Cleaner/Filter . . . . . . . . . . . . . 282
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 122
Compartment Overview . . . . . . . 273
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . .119
Cooling System . . . . . . . . . . 283, 287
Drive Belt Routing . . . . . . . . . . . . 374
Exhaust . . . . . . . . . . . . . . . . . . . . . . 223
Heater . . . . . . . . . . . . . . . . . . . . . . . . 220
Oil Life System . . . . . . . . . . . . . . . 281
Oil Pressure Light . . . . . . . . . . . . 128
Overheating . . . . . . . . . . . . . . . . . . 288
Power Messages . . . . . . . . . . . . . 138
Running While Parked . . . . . . . . 223
Starting . . . . . . . . . . . . . . . . . . . . . . . 218
Entry Lighting . . . . . . . . . . . . . . . . . . . 160
Equipment, Towing . . . . . . . . . . . . . 266
Event Data Recorders . . . . . . . . . . 387 Exit Lighting . . . . . . . . . . . . . . . . . . . . 160
Extended Parking . . . . . . . . . . . . . . . 222
Extender, Seat Belt . . . . . . . . . . . . . . 71
Exterior Lamp Controls . . . . . . . . . 154
Exterior Lamps Off Reminder . . . 156
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 161
F
Features
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter,
Engine Air Cleaner . . . . . . . . . . . 282
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 156
Flashers, Hazard Warning . . . . . . 157
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 329 Changing . . . . . . . . . . . . . . . . . . . . . 337
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 357
Fluid Automatic Transmission . . . . . . 282
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 290
Washer . . . . . . . . . . . . . . . . . . . . . . . 289
Folding Mirrors . . . . . . . . . . . . . . . . . . 49
Forward Automatic Braking . . . . . 249
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 247
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 385
