CHEVROLET MALIBU MAXX 2007 6.G Owners Manual

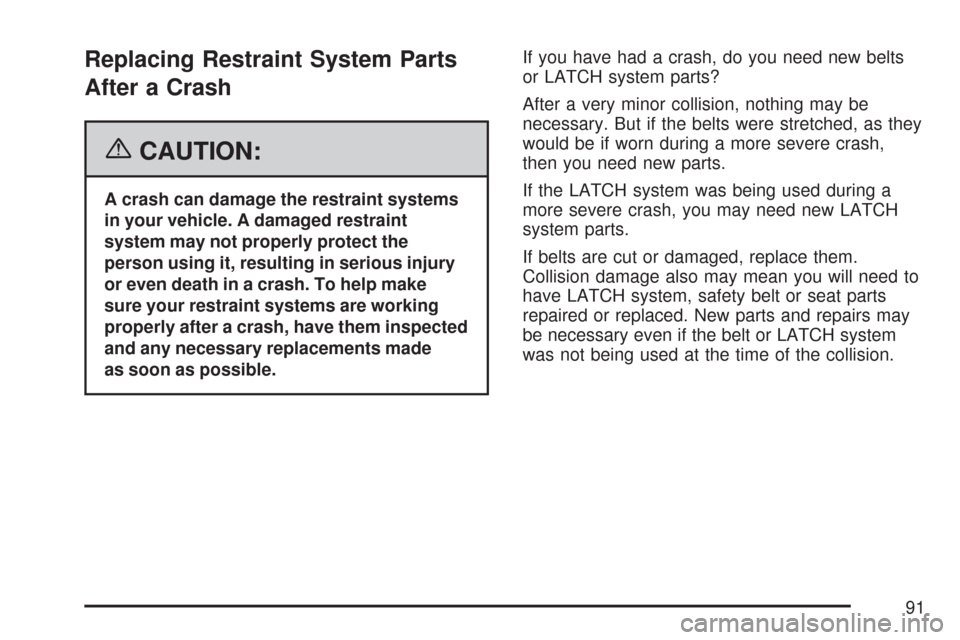

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make
sure your restraint systems are working
properly after a crash, have them inspected
and any necessary replacements made
as soon as possible.If you have had a crash, do you need new belts
or LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.
If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.
91

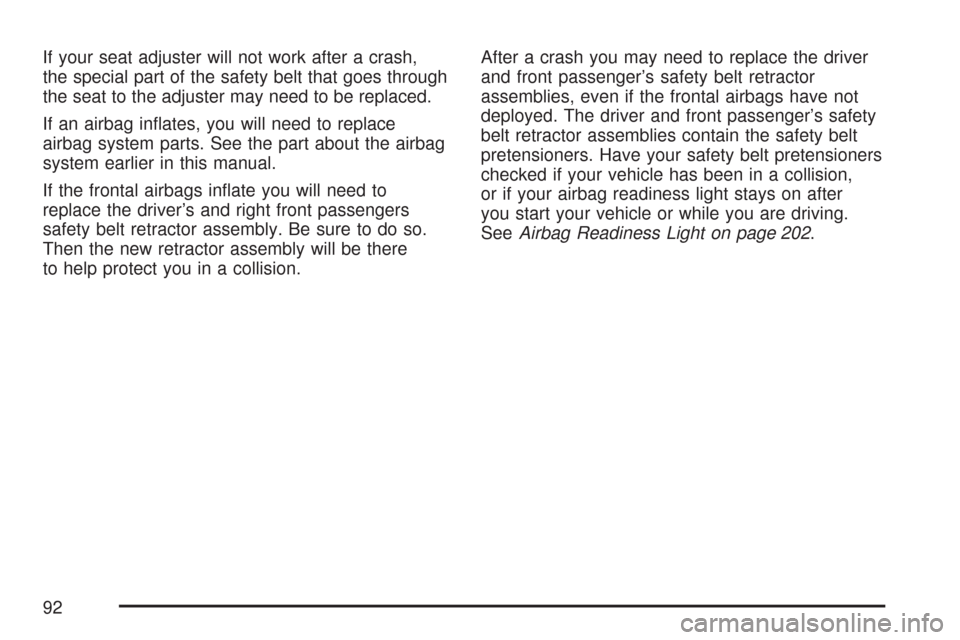

If your seat adjuster will not work after a crash,
the special part of the safety belt that goes through
the seat to the adjuster may need to be replaced.
If an airbag inates, you will need to replace
airbag system parts. See the part about the airbag
system earlier in this manual.
If the frontal airbags inate you will need to
replace the driver’s and right front passengers
safety belt retractor assembly. Be sure to do so.
Then the new retractor assembly will be there
to help protect you in a collision.After a crash you may need to replace the driver
and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt retractor assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision,
or if your airbag readiness light stays on after
you start your vehicle or while you are driving.
SeeAirbag Readiness Light on page 202.
92

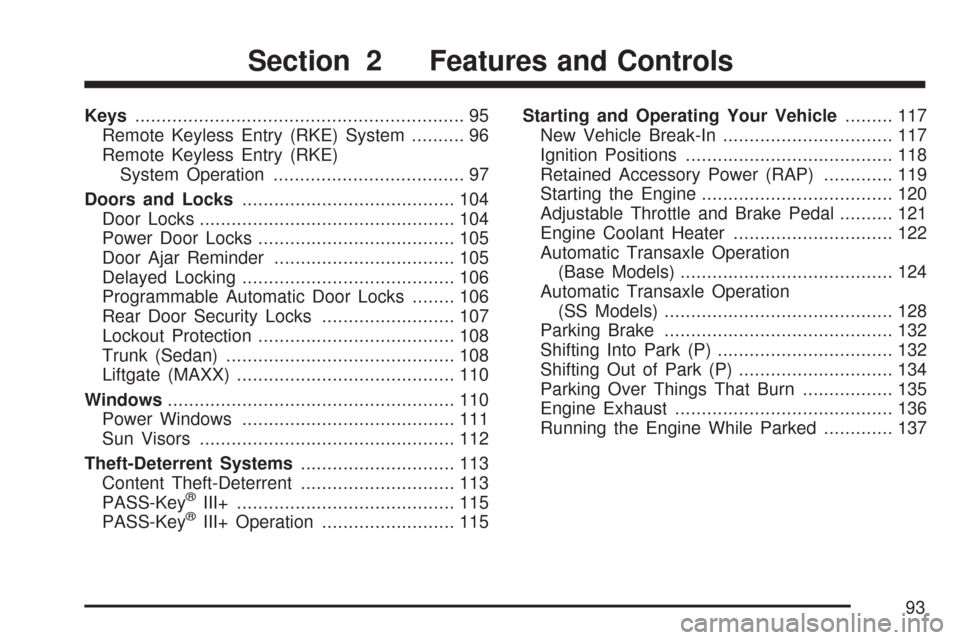

Keys.............................................................. 95
Remote Keyless Entry (RKE) System.......... 96
Remote Keyless Entry (RKE)
System Operation.................................... 97
Doors and Locks........................................ 104
Door Locks................................................ 104
Power Door Locks..................................... 105
Door Ajar Reminder.................................. 105
Delayed Locking........................................ 106
Programmable Automatic Door Locks........ 106
Rear Door Security Locks......................... 107
Lockout Protection..................................... 108
Trunk (Sedan)........................................... 108
Liftgate (MAXX)......................................... 110
Windows...................................................... 110
Power Windows........................................ 111
Sun Visors................................................ 112
Theft-Deterrent Systems............................. 113
Content Theft-Deterrent............................. 113
PASS-Key
®III+......................................... 115
PASS-Key®III+ Operation......................... 115Starting and Operating Your Vehicle......... 117
New Vehicle Break-In................................ 117
Ignition Positions....................................... 118
Retained Accessory Power (RAP)............. 119
Starting the Engine.................................... 120
Adjustable Throttle and Brake Pedal.......... 121
Engine Coolant Heater.............................. 122
Automatic Transaxle Operation
(Base Models)........................................ 124
Automatic Transaxle Operation
(SS Models)........................................... 128
Parking Brake........................................... 132
Shifting Into Park (P)................................. 132
Shifting Out of Park (P)............................. 134
Parking Over Things That Burn................. 135
Engine Exhaust......................................... 136
Running the Engine While Parked............. 137
Section 2 Features and Controls
93

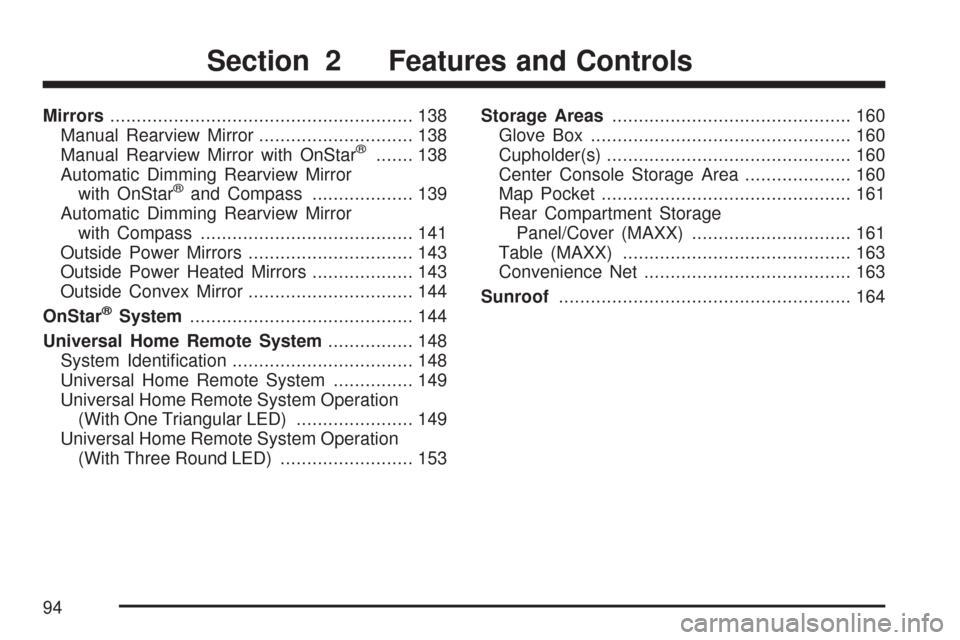

Mirrors......................................................... 138
Manual Rearview Mirror............................. 138
Manual Rearview Mirror with OnStar
®....... 138
Automatic Dimming Rearview Mirror
with OnStar
®and Compass................... 139
Automatic Dimming Rearview Mirror
with Compass........................................ 141
Outside Power Mirrors............................... 143
Outside Power Heated Mirrors................... 143
Outside Convex Mirror............................... 144
OnStar
®System.......................................... 144
Universal Home Remote System................ 148
System Identication.................................. 148
Universal Home Remote System............... 149
Universal Home Remote System Operation
(With One Triangular LED)...................... 149
Universal Home Remote System Operation
(With Three Round LED)......................... 153Storage Areas............................................. 160
Glove Box................................................. 160
Cupholder(s).............................................. 160
Center Console Storage Area.................... 160
Map Pocket............................................... 161
Rear Compartment Storage
Panel/Cover (MAXX).............................. 161
Table (MAXX)........................................... 163
Convenience Net....................................... 163
Sunroof....................................................... 164
Section 2 Features and Controls
94

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move. The
windows will function with the keys in the
ignition and they could be seriously
injured or killed if caught in the path of a
closing window. Do not leave the keys in
a vehicle with children.
95

One key is used for the
ignition and all locks.
When a new vehicle is delivered, the key has a
bar-coded key tag. This tag may be removed
by your dealer/retailer before it is delivered.
Each tag has a key code on it that tells your
dealer/retailer or a qualied locksmith how to
make extra keys. Keep the tag in a safe place.
If you lose your keys, you’ll be able to have
one made easily using this tag. If you need a
new key, go to your dealer/retailer for the correct
key code. SeeRoadside Assistance Program
on page 481for more information.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.Remote Keyless Entry (RKE)
System
If the vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
96

Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
At times you may notice a decrease in range.
This is normal for any RKE system. If the
transmitter does not work or if you have to
stand closer to your vehicle for the transmitter
to work, try this:
Check the distance. You may be too far from
your vehicle. You may need to stand closer
during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement
is necessary. See “Battery Replacement”
underRemote Keyless Entry (RKE) System
Operation on page 97.
If you are still having trouble, see your
dealer/retailer or a qualied technician
for service.
Remote Keyless Entry (RKE)
System Operation
The vehicle’s doors may be locked and unlocked,
and the trunk or liftgate may be opened from
about 3 feet (1 m) up to 197 feet (60 m) away
with the remote keyless entry transmitter. If your
vehicle has the remote vehicle start feature,
you can also start the vehicle’s engine with the
remote keyless entry transmitter.
Remote Keyless Entry
with Remote StartRemote Keyless Entry
without Remote Start
97

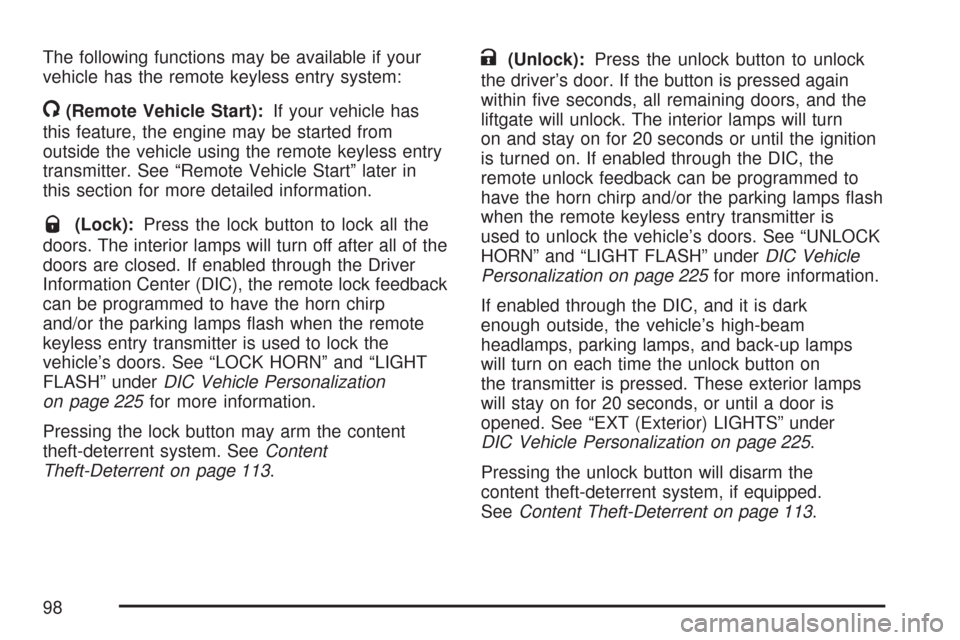

The following functions may be available if your
vehicle has the remote keyless entry system:
/(Remote Vehicle Start):If your vehicle has
this feature, the engine may be started from
outside the vehicle using the remote keyless entry
transmitter. See “Remote Vehicle Start” later in
this section for more detailed information.
Q(Lock):Press the lock button to lock all the
doors. The interior lamps will turn off after all of the
doors are closed. If enabled through the Driver
Information Center (DIC), the remote lock feedback
can be programmed to have the horn chirp
and/or the parking lamps ash when the remote
keyless entry transmitter is used to lock the
vehicle’s doors. See “LOCK HORN” and “LIGHT
FLASH” underDIC Vehicle Personalization
on page 225for more information.
Pressing the lock button may arm the content
theft-deterrent system. SeeContent
Theft-Deterrent on page 113.
K(Unlock):Press the unlock button to unlock
the driver’s door. If the button is pressed again
within ve seconds, all remaining doors, and the
liftgate will unlock. The interior lamps will turn
on and stay on for 20 seconds or until the ignition
is turned on. If enabled through the DIC, the
remote unlock feedback can be programmed to
have the horn chirp and/or the parking lamps ash
when the remote keyless entry transmitter is
used to unlock the vehicle’s doors. See “UNLOCK
HORN” and “LIGHT FLASH” underDIC Vehicle
Personalization on page 225for more information.
If enabled through the DIC, and it is dark
enough outside, the vehicle’s high-beam
headlamps, parking lamps, and back-up lamps
will turn on each time the unlock button on
the transmitter is pressed. These exterior lamps
will stay on for 20 seconds, or until a door is
opened. See “EXT (Exterior) LIGHTS” under
DIC Vehicle Personalization on page 225.
Pressing the unlock button will disarm the
content theft-deterrent system, if equipped.
SeeContent Theft-Deterrent on page 113.
98

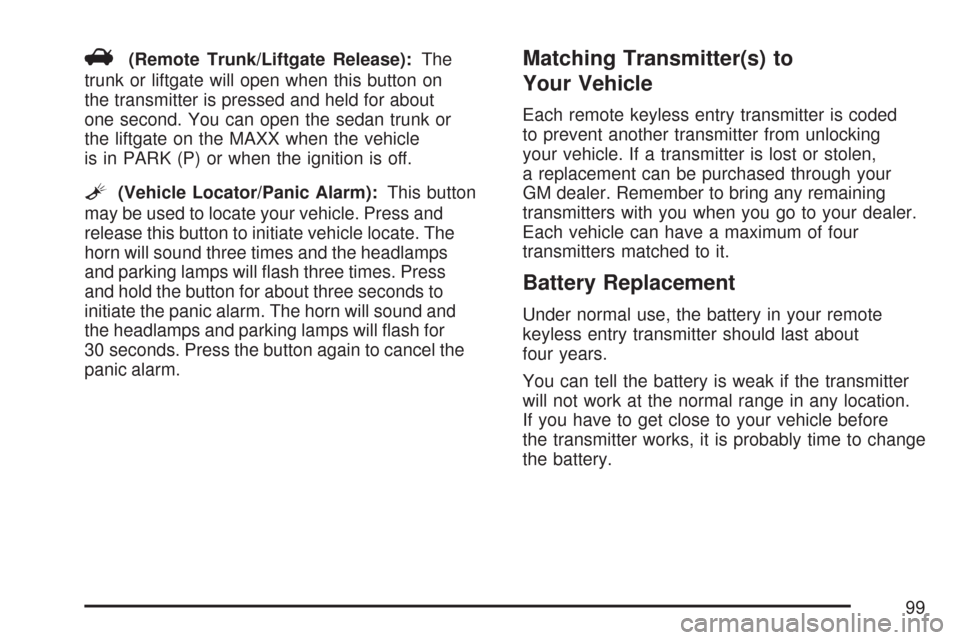

V(Remote Trunk/Liftgate Release):The
trunk or liftgate will open when this button on
the transmitter is pressed and held for about
one second. You can open the sedan trunk or
the liftgate on the MAXX when the vehicle
is in PARK (P) or when the ignition is off.
L(Vehicle Locator/Panic Alarm):This button
may be used to locate your vehicle. Press and
release this button to initiate vehicle locate. The
horn will sound three times and the headlamps
and parking lamps will ash three times. Press
and hold the button for about three seconds to
initiate the panic alarm. The horn will sound and
the headlamps and parking lamps will ash for
30 seconds. Press the button again to cancel the
panic alarm.
Matching Transmitter(s) to
Your Vehicle
Each remote keyless entry transmitter is coded
to prevent another transmitter from unlocking
your vehicle. If a transmitter is lost or stolen,
a replacement can be purchased through your
GM dealer. Remember to bring any remaining
transmitters with you when you go to your dealer.
Each vehicle can have a maximum of four
transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote
keyless entry transmitter should last about
four years.
You can tell the battery is weak if the transmitter
will not work at the normal range in any location.
If you have to get close to your vehicle before
the transmitter works, it is probably time to change
the battery.
99

The KEY FOB BATT LOW message in the
vehicle’s DIC will display if the remote keyless
entry transmitter battery is low.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static from
your body transferred to these surfaces may
damage the transmitter.To replace the battery in the remote keyless entry
transmitter do the following:
1. Insert a at object, with a thin edge, into the
notch located below the vehicle locator/panic
alarm button, and separate the bottom
half from the top half of the transmitter.
2. Remove the battery and replace it with the
new one. Make sure the positive (+) side of
the battery faces up. Use one three-volt,
CR2032, or equivalent type battery.
3. Put the two halves back together. Make sure
the cover is on tight, so water will not get
inside the transmitter.
4. Test the operation of the transmitter with
the vehicle.
100
