CHEVROLET MALIBU MAXX 2007 6.G Owners Manual

Power Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome from
extreme heat in warm or hot weather and
suffer permanent injuries or even death
from heat stroke.
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move.
CAUTION: (Continued)
CAUTION: (Continued)
The windows will function with the keys in
the ignition and they could be seriously
injured or killed if caught in the path of a
closing window. Do not leave keys in a
vehicle with children.
When there are children in the rear seat
use the window lockout button to prevent
unintentional operation of the windows.
The power window
switches are located
on the armrest on the
driver’s door. In addition,
each passenger door
has a switch for its
own window.
111

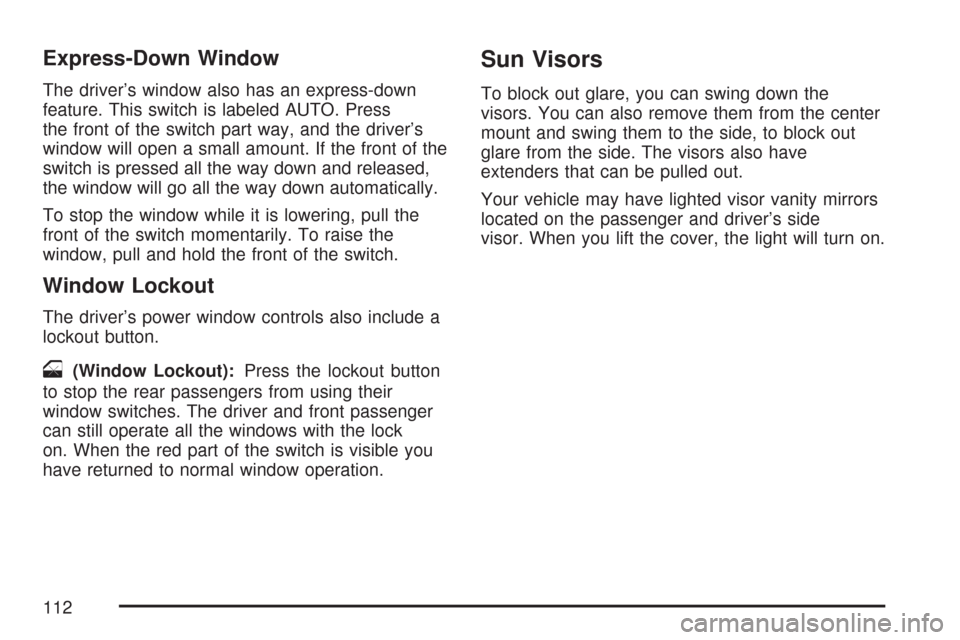

Express-Down Window
The driver’s window also has an express-down
feature. This switch is labeled AUTO. Press
the front of the switch part way, and the driver’s
window will open a small amount. If the front of the
switch is pressed all the way down and released,
the window will go all the way down automatically.
To stop the window while it is lowering, pull the
front of the switch momentarily. To raise the
window, pull and hold the front of the switch.
Window Lockout
The driver’s power window controls also include a
lockout button.
o(Window Lockout):Press the lockout button
to stop the rear passengers from using their
window switches. The driver and front passenger
can still operate all the windows with the lock
on. When the red part of the switch is visible you
have returned to normal window operation.
Sun Visors
To block out glare, you can swing down the
visors. You can also remove them from the center
mount and swing them to the side, to block out
glare from the side. The visors also have
extenders that can be pulled out.
Your vehicle may have lighted visor vanity mirrors
located on the passenger and driver’s side
visor. When you lift the cover, the light will turn on.
112

Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
Your vehicle may have
a content theft-deterrent
alarm system.
Arming the System
With the ignition off, you can arm the system by
doing any one of the following:
Press the remote keyless entry transmitter
lock button.
Press the power door lock switch while the
driver’s door is open.The system will arm either:
Thirty seconds after all the doors and the
liftgate (MAXX) are closed.
Sixty seconds with any door open.
If you press the lock button on the remote keyless
entry transmitter a second time while all the
doors and liftgate are closed, the system will
arm immediately. The system will still arm
in sixty seconds if a door or liftgate is open.
When the opened door or liftgate is closed,
it will also become armed.
The security light, located on the instrument
panel cluster, will turn on to indicate that arming
has been initiated. Once the system is armed, the
security light will ash once every three seconds.
If the security light is ashing twice per second,
this means that a door or the liftgate is open.
If you do not want to arm the system, you may
lock the car with the lock knob on the doors.
113

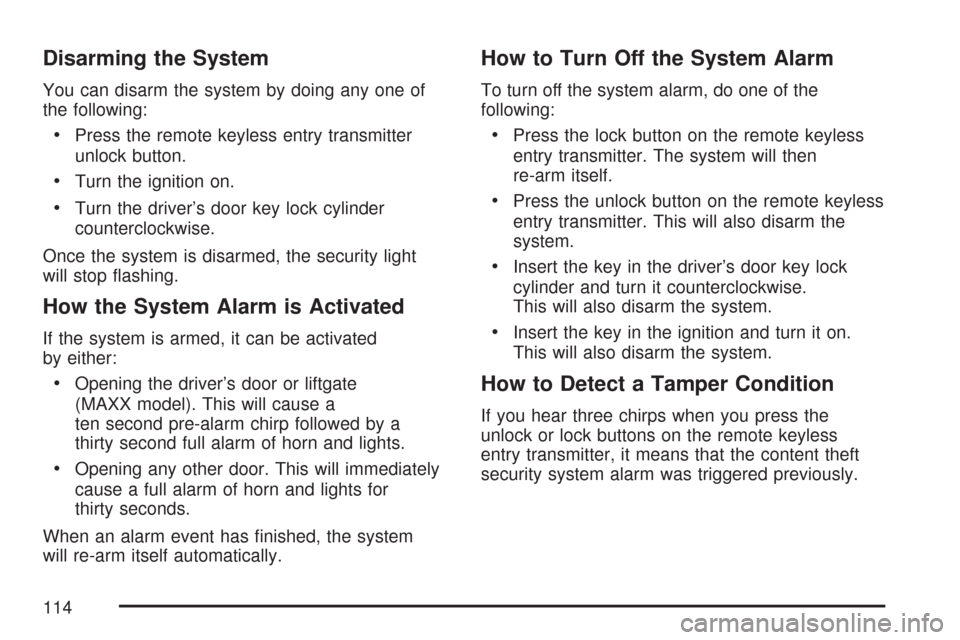

Disarming the System
You can disarm the system by doing any one of
the following:
Press the remote keyless entry transmitter
unlock button.
Turn the ignition on.
Turn the driver’s door key lock cylinder
counterclockwise.
Once the system is disarmed, the security light
will stop ashing.
How the System Alarm is Activated
If the system is armed, it can be activated
by either:
Opening the driver’s door or liftgate
(MAXX model). This will cause a
ten second pre-alarm chirp followed by a
thirty second full alarm of horn and lights.
Opening any other door. This will immediately
cause a full alarm of horn and lights for
thirty seconds.
When an alarm event has nished, the system
will re-arm itself automatically.
How to Turn Off the System Alarm
To turn off the system alarm, do one of the
following:
Press the lock button on the remote keyless
entry transmitter. The system will then
re-arm itself.
Press the unlock button on the remote keyless
entry transmitter. This will also disarm the
system.
Insert the key in the driver’s door key lock
cylinder and turn it counterclockwise.
This will also disarm the system.
Insert the key in the ignition and turn it on.
This will also disarm the system.
How to Detect a Tamper Condition
If you hear three chirps when you press the
unlock or lock buttons on the remote keyless
entry transmitter, it means that the content theft
security system alarm was triggered previously.
114

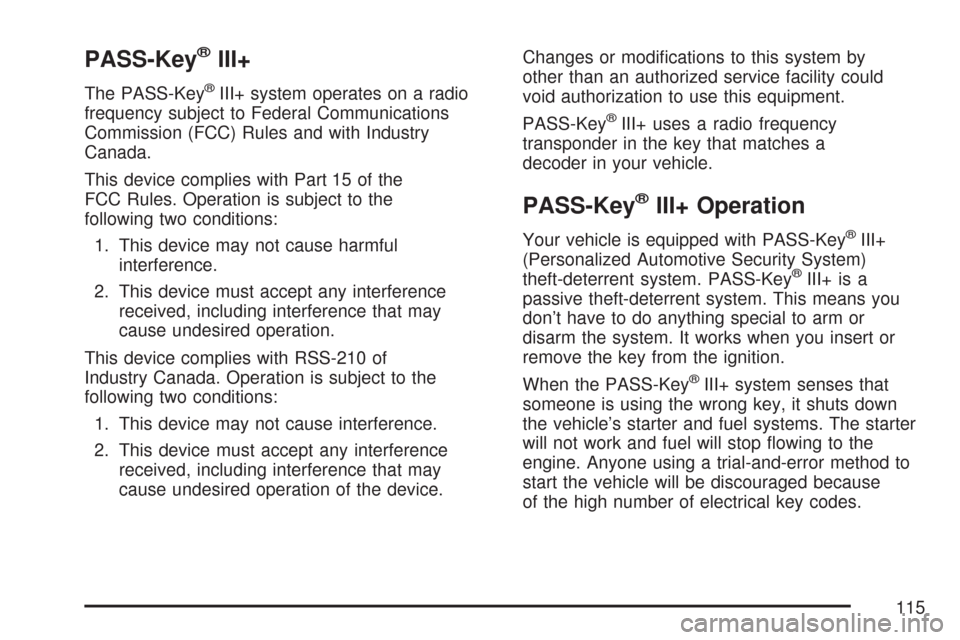

PASS-Key®III+
The PASS-Key®III+ system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry
Canada.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of
Industry Canada. Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.Changes or modications to this system by
other than an authorized service facility could
void authorization to use this equipment.
PASS-Key
®III+ uses a radio frequency
transponder in the key that matches a
decoder in your vehicle.
PASS-Key®III+ Operation
Your vehicle is equipped with PASS-Key®III+
(Personalized Automotive Security System)
theft-deterrent system. PASS-Key
®III+ is a
passive theft-deterrent system. This means you
don’t have to do anything special to arm or
disarm the system. It works when you insert or
remove the key from the ignition.
When the PASS-Key
®III+ system senses that
someone is using the wrong key, it shuts down
the vehicle’s starter and fuel systems. The starter
will not work and fuel will stop owing to the
engine. Anyone using a trial-and-error method to
start the vehicle will be discouraged because
of the high number of electrical key codes.
115

When trying to start the vehicle if the engine does
not start and the security light comes on, the
key may have a damaged transponder. Turn the
ignition off and try again.
If the engine still does not start, and the key
appears to be undamaged, try another ignition
key. At this time, you may also want to check the
fuse, seeFuses on page 446. If the engine still
does not start with the other key, your vehicle
needs service. If your vehicle does start, the
rst key may be faulty. See your dealer who
can service the PASS-Key
®III+ to have a new
key made. In an emergency, contact Chevrolet
Roadside Assistance. SeeRoadside Assistance
Program on page 481for more information.
It is possible for the PASS-Key
®III+ decoder
to “learn” the transponder value of a new
or replacement key. Up to 10 additional keys may
be programmed for the vehicle. The following
procedure is for programming additional keys only.
If all the currently programmed keys are lost or
do not operate, you must see your dealer or
a locksmith who can service PASS-Key
®III+ to
have keys made and programmed to the system.See your GM dealer or a locksmith who can
service PASS-Key
®III+ to get a new key blank
that is cut exactly as the ignition key that operates
the system.
To program the new key do the following:
1. Verify that the new key has “+” stamped on it.
2. Insert the already programmed key in the
ignition and start the engine. If the engine
will not start, see your dealer for service.
3. After the engine has started, turn the key to
off, and remove the key.
4. Insert the key to be programmed and turn
it to on within ve seconds of removing the
original key.
5. The security light will turn off once the key
has been programmed. It may not be
apparent that the security light went on due to
how quickly the key is programmed.
6. Repeat Steps 1 through 5 if additional keys
are to be programmed.
116

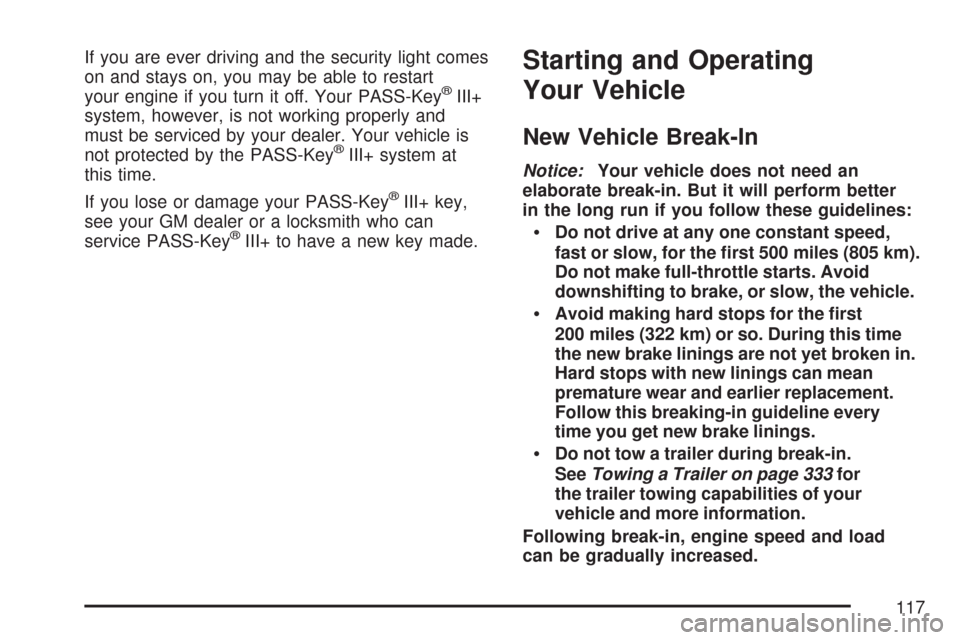

If you are ever driving and the security light comes
on and stays on, you may be able to restart
your engine if you turn it off. Your PASS-Key
®III+
system, however, is not working properly and
must be serviced by your dealer. Your vehicle is
not protected by the PASS-Key
®III+ system at
this time.
If you lose or damage your PASS-Key
®III+ key,
see your GM dealer or a locksmith who can
service PASS-Key
®III+ to have a new key made.
Starting and Operating
Your Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an
elaborate break-in. But it will perform better
in the long run if you follow these guidelines:
Do not drive at any one constant speed,
fast or slow, for the rst 500 miles (805 km).
Do not make full-throttle starts. Avoid
downshifting to brake, or slow, the vehicle.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time
the new brake linings are not yet broken in.
Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every
time you get new brake linings.
Do not tow a trailer during break-in.
SeeTowing a Trailer on page 333for
the trailer towing capabilities of your
vehicle and more information.
Following break-in, engine speed and load
can be gradually increased.
117

Ignition Positions
With the key in the
ignition switch, you can
turn it to four different
positions.
Notice:Using a tool to force the key from the
ignition switch could cause damage or break
the key. Use the correct key and turn the key
only with your hand. Make sure the key is in all
the way. If none of this works, then your vehicle
needs service.
9(OFF):This is the only position from which
you can remove the key. It also locks the ignition
and transaxle. A warning chime sounds if the
driver’s door is opened while the ignition is off and
the key is left in the ignition.ACC (ACCESSORY):This position lets you use
things like the radio and windshield wipers
while the engine is not running.
Use this position if your vehicle must be pushed or
towed, but never try to push-start your vehicle.
SeeRecreational Vehicle Towing on page 330.
R(ON):This position unlocks the ignition.
It is also the position to where the key returns after
you release the switch and the engine starts.
The switch will stay in this position while the
engine is running. But even while the engine is not
running, you can use ON to operate the electrical
accessories, and to display some instrument
panel warning lights.
The battery could be drained if you leave the key
in the ACC or ON position with the engine off.
You might not be able to start your vehicle if the
battery is allowed to drain for an extended
period of time.
/(START):This position starts the engine.
When the engine starts, release the key.
The ignition switch will return to the ON position
for normal driving.
118

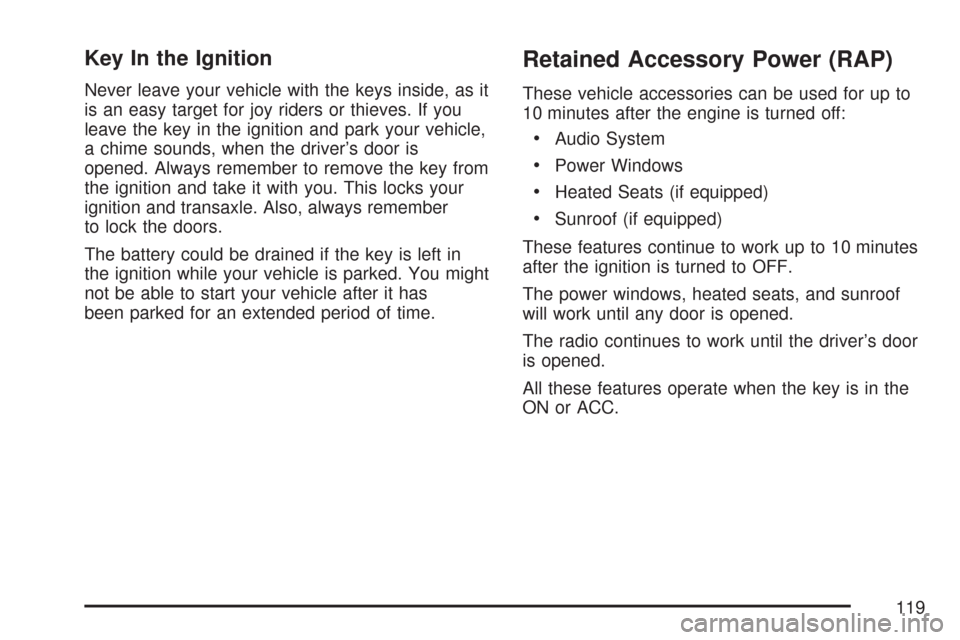

Key In the Ignition
Never leave your vehicle with the keys inside, as it
is an easy target for joy riders or thieves. If you
leave the key in the ignition and park your vehicle,
a chime sounds, when the driver’s door is
opened. Always remember to remove the key from
the ignition and take it with you. This locks your
ignition and transaxle. Also, always remember
to lock the doors.
The battery could be drained if the key is left in
the ignition while your vehicle is parked. You might
not be able to start your vehicle after it has
been parked for an extended period of time.
Retained Accessory Power (RAP)
These vehicle accessories can be used for up to
10 minutes after the engine is turned off:
Audio System
Power Windows
Heated Seats (if equipped)
Sunroof (if equipped)
These features continue to work up to 10 minutes
after the ignition is turned to OFF.
The power windows, heated seats, and sunroof
will work until any door is opened.
The radio continues to work until the driver’s door
is opened.
All these features operate when the key is in the
ON or ACC.
119

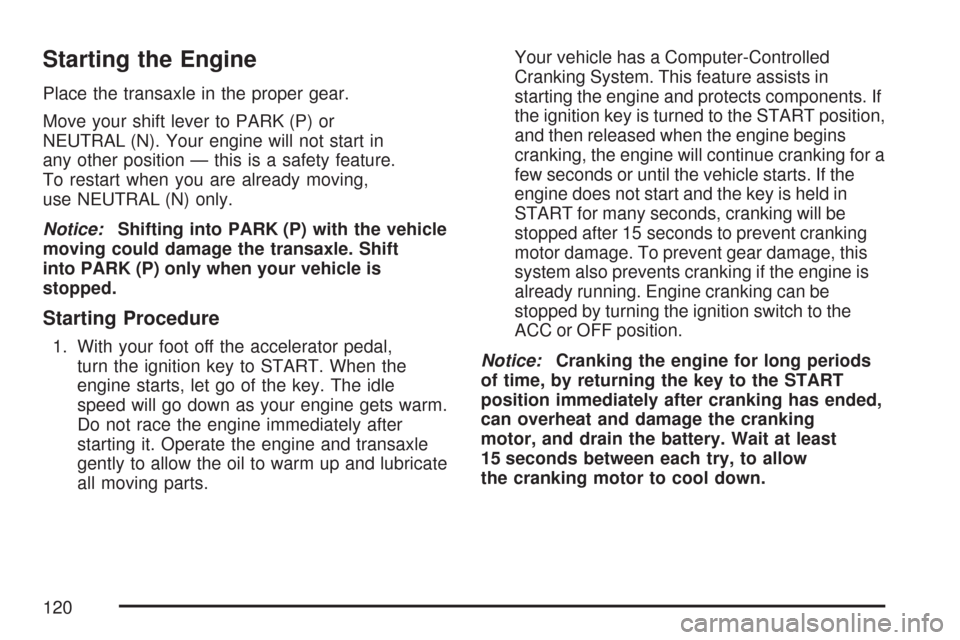

Starting the Engine
Place the transaxle in the proper gear.
Move your shift lever to PARK (P) or
NEUTRAL (N). Your engine will not start in
any other position — this is a safety feature.
To restart when you are already moving,
use NEUTRAL (N) only.
Notice:Shifting into PARK (P) with the vehicle
moving could damage the transaxle. Shift
into PARK (P) only when your vehicle is
stopped.
Starting Procedure
1. With your foot off the accelerator pedal,
turn the ignition key to START. When the
engine starts, let go of the key. The idle
speed will go down as your engine gets warm.
Do not race the engine immediately after
starting it. Operate the engine and transaxle
gently to allow the oil to warm up and lubricate
all moving parts.Your vehicle has a Computer-Controlled
Cranking System. This feature assists in
starting the engine and protects components. If
the ignition key is turned to the START position,
and then released when the engine begins
cranking, the engine will continue cranking for a
few seconds or until the vehicle starts. If the
engine does not start and the key is held in
START for many seconds, cranking will be
stopped after 15 seconds to prevent cranking
motor damage. To prevent gear damage, this
system also prevents cranking if the engine is
already running. Engine cranking can be
stopped by turning the ignition switch to the
ACC or OFF position.
Notice:Cranking the engine for long periods
of time, by returning the key to the START
position immediately after cranking has ended,
can overheat and damage the cranking
motor, and drain the battery. Wait at least
15 seconds between each try, to allow
the cranking motor to cool down.
120
