CHEVROLET MALIBU MAXX 2007 6.G Owners Manual

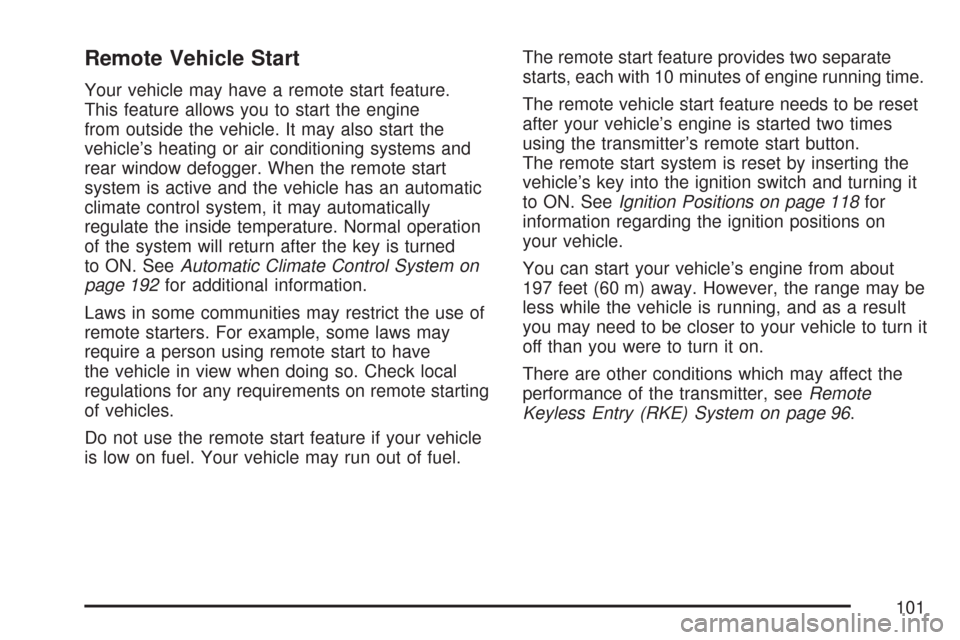

Remote Vehicle Start
Your vehicle may have a remote start feature.
This feature allows you to start the engine
from outside the vehicle. It may also start the
vehicle’s heating or air conditioning systems and
rear window defogger. When the remote start
system is active and the vehicle has an automatic
climate control system, it may automatically
regulate the inside temperature. Normal operation
of the system will return after the key is turned
to ON. SeeAutomatic Climate Control System on
page 192for additional information.
Laws in some communities may restrict the use of
remote starters. For example, some laws may
require a person using remote start to have
the vehicle in view when doing so. Check local
regulations for any requirements on remote starting
of vehicles.
Do not use the remote start feature if your vehicle
is low on fuel. Your vehicle may run out of fuel.The remote start feature provides two separate
starts, each with 10 minutes of engine running time.
The remote vehicle start feature needs to be reset
after your vehicle’s engine is started two times
using the transmitter’s remote start button.
The remote start system is reset by inserting the
vehicle’s key into the ignition switch and turning it
to ON. SeeIgnition Positions on page 118for
information regarding the ignition positions on
your vehicle.
You can start your vehicle’s engine from about
197 feet (60 m) away. However, the range may be
less while the vehicle is running, and as a result
you may need to be closer to your vehicle to turn it
off than you were to turn it on.
There are other conditions which may affect the
performance of the transmitter, seeRemote
Keyless Entry (RKE) System on page 96.
101

/(Remote Start):If your vehicle has the remote
start feature, the keyless entry transmitter will
have a button with this symbol on it.
To start the vehicle using the remote start feature,
do the following:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock
button, then immediately press and hold
the transmitter’s remote start button until the
vehicle’s turn signal lights ash.
When the vehicle starts, the parking lamps
will turn on and remain on while the engine
is running.
3. If it is the rst remote start since the vehicle
has been driven, repeat these steps, while
the engine is still running, to extend the engine
running time by 10 minutes. Remote start
can be extended one time.After entering the vehicle during a remote start,
insert and turn the key to ON to drive the vehicle.
If the remote start procedure is used again
before the rst 10 minute time frame has ended,
the rst 10 minutes will immediately expire and the
second 10 minute time frame will start.
The engine will shut off automatically after
10 minutes, unless a time extension has been
done, or the vehicle’s key is inserted into
the ignition switch and turned to ON.
To manually shut off a remote start, do any of the
following. The parking lamps will turn off.
Aim the remote keyless entry transmitter at the
vehicle, and press the remote start button.
Turn on the hazard warning ashers.
Turn the ignition switch to ON and then to OFF.
102

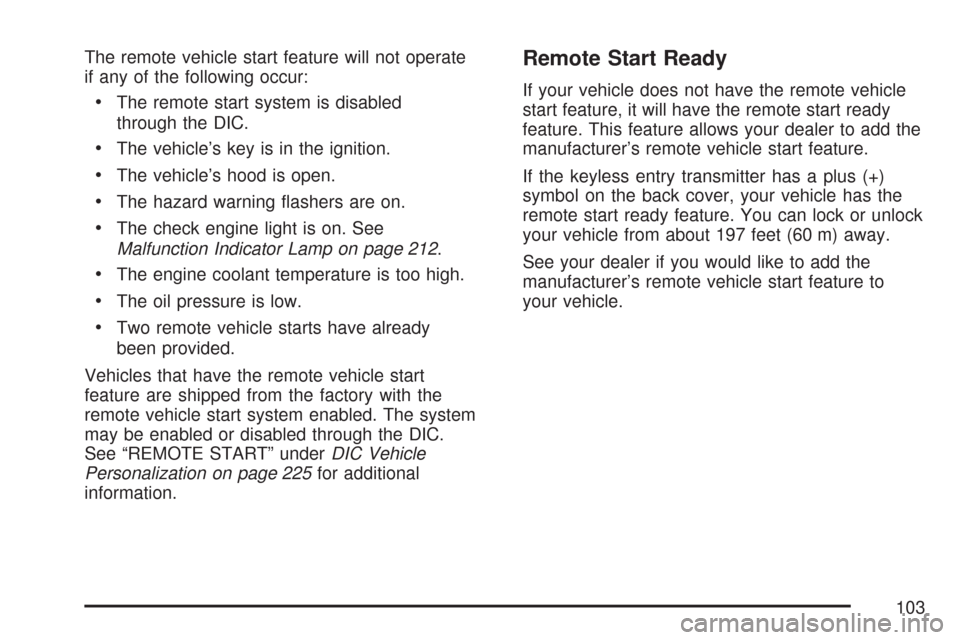

The remote vehicle start feature will not operate
if any of the following occur:
The remote start system is disabled
through the DIC.
The vehicle’s key is in the ignition.
The vehicle’s hood is open.
The hazard warning ashers are on.
The check engine light is on. See
Malfunction Indicator Lamp on page 212.
The engine coolant temperature is too high.
The oil pressure is low.
Two remote vehicle starts have already
been provided.
Vehicles that have the remote vehicle start
feature are shipped from the factory with the
remote vehicle start system enabled. The system
may be enabled or disabled through the DIC.
See “REMOTE START” underDIC Vehicle
Personalization on page 225for additional
information.
Remote Start Ready
If your vehicle does not have the remote vehicle
start feature, it will have the remote start ready
feature. This feature allows your dealer to add the
manufacturer’s remote vehicle start feature.
If the keyless entry transmitter has a plus (+)
symbol on the back cover, your vehicle has the
remote start ready feature. You can lock or unlock
your vehicle from about 197 feet (60 m) away.
See your dealer if you would like to add the
manufacturer’s remote vehicle start feature to
your vehicle.
103

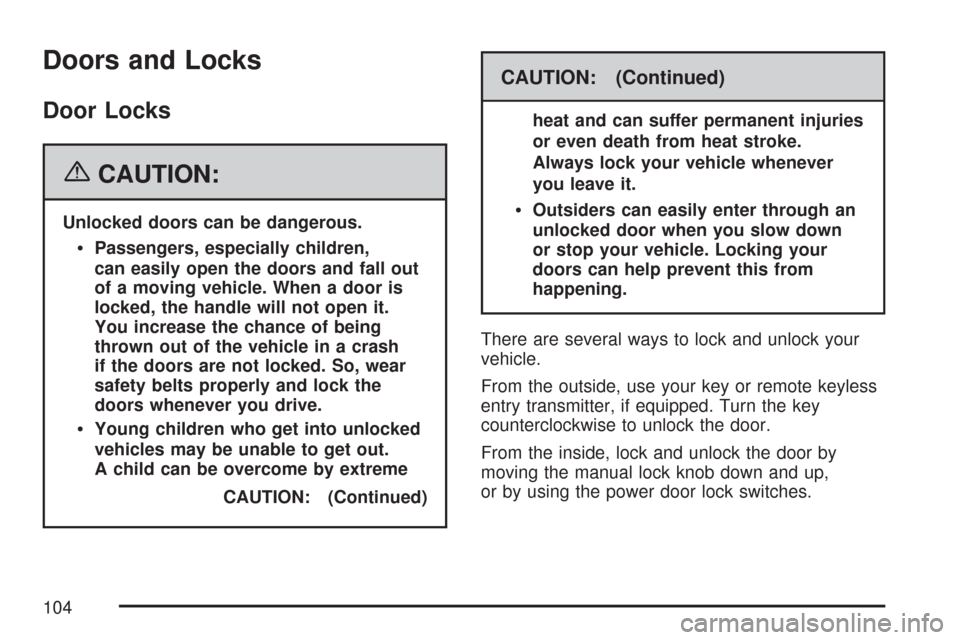

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children,
can easily open the doors and fall out
of a moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash
if the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out.
A child can be overcome by extreme
CAUTION: (Continued)
CAUTION: (Continued)
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
There are several ways to lock and unlock your
vehicle.
From the outside, use your key or remote keyless
entry transmitter, if equipped. Turn the key
counterclockwise to unlock the door.
From the inside, lock and unlock the door by
moving the manual lock knob down and up,
or by using the power door lock switches.
104

Power Door Locks
The power door lock
switches are located on
the driver’s and front
passenger’s door.
Press the top of the switch to unlock all doors and
liftgate, if equipped. Press the bottom of the
switch to lock all doors and liftgate, if equipped.
The rear doors do not have power door lock
switches. Rear seat passengers must use
the manual lock knob on their doors.
Door Ajar Reminder
If one of the doors is not fully closed while the
ignition is on and the shift lever is moved out of
PARK (P) or NEUTRAL (N) the following will occur:
A chime will sound.
The DOOR AJAR message will display
through the Driver Information Center (DIC)
until the door is closed. SeeDIC Warnings
and Messages on page 222.
105

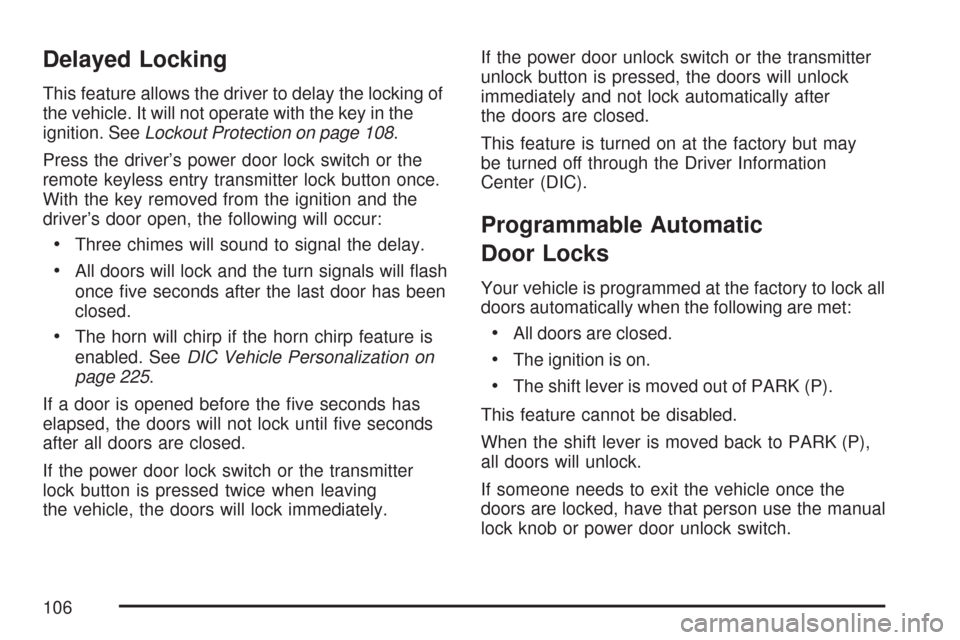

Delayed Locking
This feature allows the driver to delay the locking of
the vehicle. It will not operate with the key in the
ignition. SeeLockout Protection on page 108.
Press the driver’s power door lock switch or the
remote keyless entry transmitter lock button once.
With the key removed from the ignition and the
driver’s door open, the following will occur:
Three chimes will sound to signal the delay.
All doors will lock and the turn signals will ash
once ve seconds after the last door has been
closed.
The horn will chirp if the horn chirp feature is
enabled. SeeDIC Vehicle Personalization on
page 225.
If a door is opened before the ve seconds has
elapsed, the doors will not lock until ve seconds
after all doors are closed.
If the power door lock switch or the transmitter
lock button is pressed twice when leaving
the vehicle, the doors will lock immediately.If the power door unlock switch or the transmitter
unlock button is pressed, the doors will unlock
immediately and not lock automatically after
the doors are closed.
This feature is turned on at the factory but may
be turned off through the Driver Information
Center (DIC).
Programmable Automatic
Door Locks
Your vehicle is programmed at the factory to lock all
doors automatically when the following are met:
All doors are closed.
The ignition is on.
The shift lever is moved out of PARK (P).
This feature cannot be disabled.
When the shift lever is moved back to PARK (P),
all doors will unlock.
If someone needs to exit the vehicle once the
doors are locked, have that person use the manual
lock knob or power door unlock switch.
106

The power door unlock function can be
programmed through prompts displayed on
the Driver Information Center (DIC). These
prompts allow you to choose unlock settings.
SeeDIC Vehicle Personalization on page 225.
Rear Door Security Locks
Your vehicle has rear door security locks.
These prevent passengers from opening the
rear doors from the inside.
The rear door security
locks are located on
the inside edge of each
rear door. You must
open the rear doors
to access them.
The label showing lock
and unlock positions
is located near the lock.To set the locks, do the following:
1. Insert the key into the security lock slot and
turn it so the slot is in the horizontal position.
2. Close the door.
When you want to open a rear door when the
security lock is on, do the following:
1. Unlock the door using the remote keyless
entry transmitter, if the vehicle has one,
the power door lock switch, or by lifting the
rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the
following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot
and turn it so the slot is in the vertical position.
Security Lock Label
shown
107

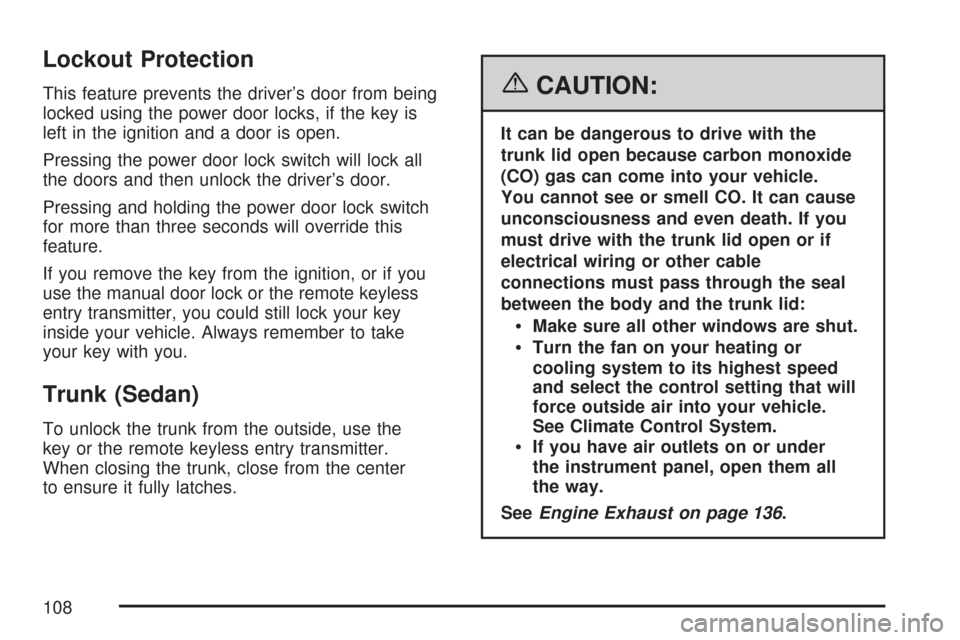

Lockout Protection
This feature prevents the driver’s door from being
locked using the power door locks, if the key is
left in the ignition and a door is open.
Pressing the power door lock switch will lock all
the doors and then unlock the driver’s door.
Pressing and holding the power door lock switch
for more than three seconds will override this
feature.
If you remove the key from the ignition, or if you
use the manual door lock or the remote keyless
entry transmitter, you could still lock your key
inside your vehicle. Always remember to take
your key with you.
Trunk (Sedan)
To unlock the trunk from the outside, use the
key or the remote keyless entry transmitter.
When closing the trunk, close from the center
to ensure it fully latches.
{CAUTION:
It can be dangerous to drive with the
trunk lid open because carbon monoxide
(CO) gas can come into your vehicle.
You cannot see or smell CO. It can cause
unconsciousness and even death. If you
must drive with the trunk lid open or if
electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
and select the control setting that will
force outside air into your vehicle.
See Climate Control System.
If you have air outlets on or under
the instrument panel, open them all
the way.
SeeEngine Exhaust on page 136.
108

Remote Trunk/Liftgate Release
Press the remote
release button, located
on the lower edge
of the driver’s door,
to open the trunk lid
or the liftgate.
You can open the trunk lid on the sedan or the
liftgate on the MAXX only while the vehicle
is in PARK (P) or the ignition is off.
Emergency Trunk Release Handle
Notice:Do not use the emergency trunk
release handle as a tie-down or anchor point
when securing items in the trunk as it
could damage the handle. The emergency
trunk release handle is only intended to aid a
person trapped in a latched trunk, enabling
them to open the trunk from the inside.
There is a glow-in-the-dark emergency trunk
release handle located inside the trunk of the sedan
model on the trunk latch. This handle will glow
following exposure to light. Pull the release handle
up to open the trunk from the inside.
109

Liftgate (MAXX)
To open the liftgate, press the trunk/liftgate button
on the remote keyless entry transmitter or the
remote trunk/liftgate release button located on the
lower edge of the driver’s door. See “Remote
Trunk/Liftgate Release” underTrunk (Sedan)
on page 108.
If the liftgate is unlocked, you can manually open it
by pressing the touchpad located on the underside
of the liftgate trim panel, to the right of center.
Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome by
the extreme heat and suffer permanent
injuries or even death from heat stroke.
CAUTION: (Continued)
CAUTION: (Continued)
Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the
windows closed in warm or hot weather.
110
