CHEVROLET METRO 1999 2.G Owners Manual

yellowblue
5-21

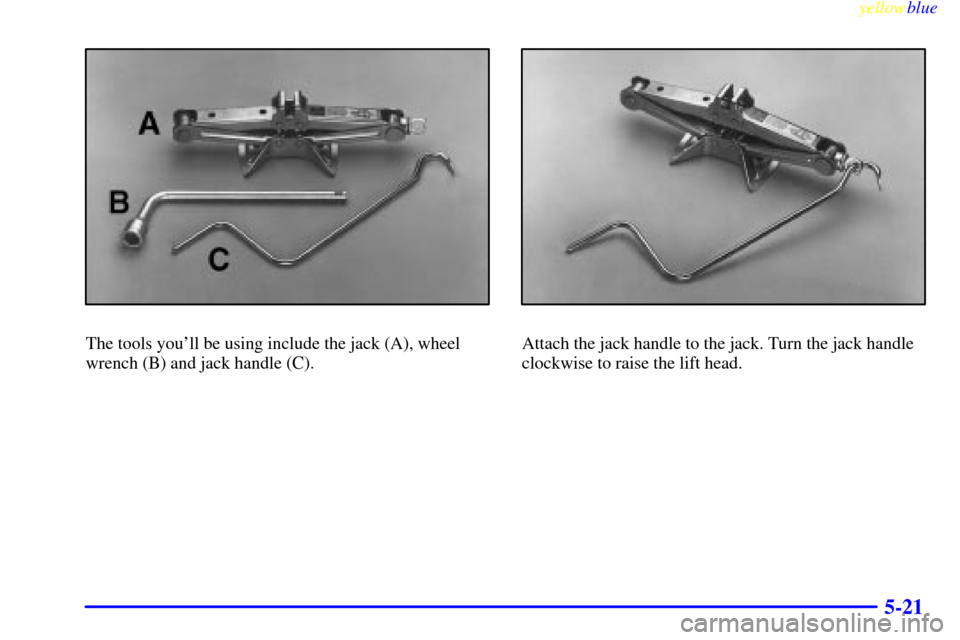

The tools you'll be using include the jack (A), wheel
wrench (B) and jack handle (C).Attach the jack handle to the jack. Turn the jack handle
clockwise to raise the lift head.

yellowblue
5-22
If you have a wheel cover, remove it using the flat end
of the jack handle. Pry along the edge of the wheel
cover (as shown) and pull toward you until it comes off.
Removing the Flat Tire and Installing the
Spare Tire
1. Using the wheel wrench,
loosen all the wheel
nuts. Don't remove
them yet.

yellowblue
5-23
2. Under the vehicle near each wheel, there are jack
head seating plates in the vehicle's frame. Position
the jack and raise the jack lift head until it fits firmly
onto the plates closest to the flat tire. The jack should
be positioned as shown above if a rear tire is
being changed.
3. If the flat tire is a front tire, follow the instructions
noted before and position the jack as shown.
Regardless of whether it is a front or rear tire that is
flat, the jack head groove will fit in the plates.

yellowblue
5-24
CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall. To help avoid personal injury and
vehicle damage, be sure to fit the jack lift head
into the proper location before raising
the vehicle.
4. Raise the vehicle by turning the jack handle
clockwise. Raise the vehicle far enough off the
ground so there is enough room for the spare tire
to fit.
5. Remove all the wheel nuts and take off the flat tire.

yellowblue
5-25
6. Remove any rust or dirt from the wheel bolts,
mounting surfaces and spare wheel.
CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth or a paper towel
to do this; but be sure to use a scraper or wire
brush later, if you need to, to get all the rust or
dirt off.
CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.

yellowblue
5-26
7. Replace the wheel nuts
with the rounded end of
the nuts toward the
wheel. Tighten each nut
by hand until the wheel
is held against the hub.
8. Lower the vehicle by turning the jack handle
counterclockwise. Lower the jack completely.

yellowblue
5-27
9. Tighten the wheel nuts
firmly in a criss
-cross
sequence as shown.
CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come off. This could lead to an accident.
Be sure to use the correct wheel nuts. If you have
to replace them, be sure to get new GM original
equipment wheel nuts.
Stop somewhere as soon as you can and have
the nuts tightened with a torque wrench to
45 lb
-ft (60 N´m).
NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
10. Don't try to put a wheel cover on your compact
spare tire. It won't fit. Store the wheel cover in the
rear area until you have the flat tire repaired
or replaced.
NOTICE:
Wheel covers won't fit on your compact spare. If
you try to put a wheel cover on your compact
spare, you could damage the cover or the spare.

yellowblue

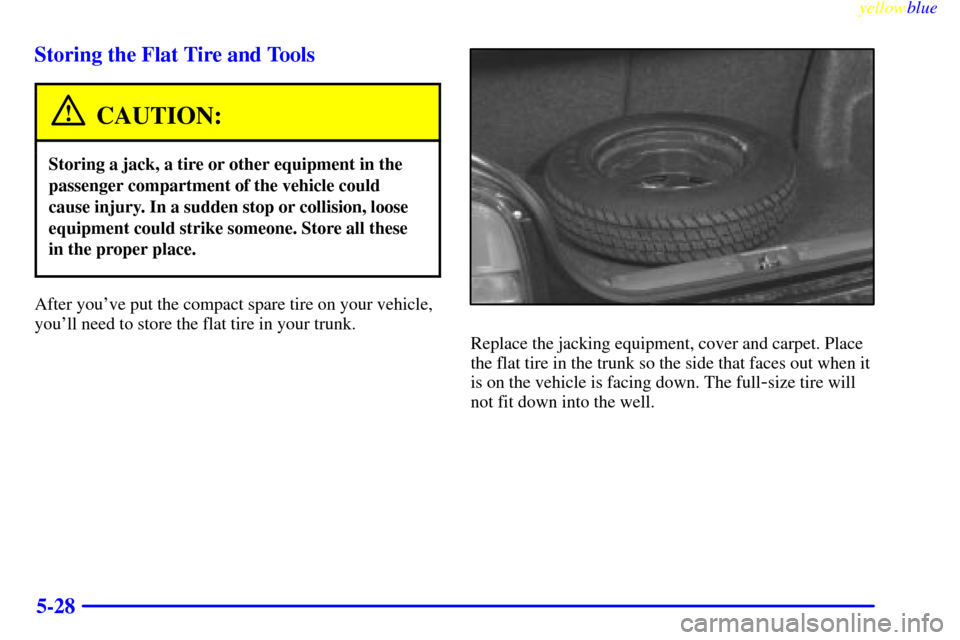

5-28 Storing the Flat Tire and Tools
CAUTION:
Storing a jack, a tire or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
After you've put the compact spare tire on your vehicle,
you'll need to store the flat tire in your trunk.
Replace the jacking equipment, cover and carpet. Place
the flat tire in the trunk so the side that faces out when it
is on the vehicle is facing down. The full
-size tire will
not fit down into the well.

yellowblue
5-29 Storing the Spare Tire and Tools
CAUTION:
Storing a jack, a tire or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
The compact spare tire is for temporary use only.
Replace the compact spare tire with a full
-size tire as
soon as you can. See ªCompact Spare Tireº in the Index.
1. Cover
2. Clamp
3. Jack Handle
4. Jack
5. Wheel Wrench
6. Bolt
Replace the jack, jack handle, flat tire and
wheel wrench.

yellowblue
5-30
Compact Spare Tire
Although the compact spare tire was fully inflated when
your vehicle was new, it can lose air after a time.
Check the inflation pressure regularly. It should be
60 psi (420 kPa).
After installing the compact spare on your vehicle, you
should stop as soon as possible and make sure your
spare tire is correctly inflated. The compact spare is
made to perform well at speeds up to 65 mph
(105 km/h) for distances up to 3,000 miles (5 000 km),
so you can finish your trip and have your full
-size tire
repaired or replaced where you want. Of course, it's best
to replace your spare with a full
-size tire as soon as you
can. Your spare will last longer and be in good shape in
case you need it again.
NOTICE:
When the compact spare is installed, don't take
your vehicle through an automatic car wash with
guide rails. The compact spare can get caught on
the rails. That can damage the tire and wheel,
and maybe other parts of your vehicle.
Don't use your compact spare on other vehicles.
And don't mix your compact spare tire or wheel with
other wheels or tires. They won't fit. Keep your spare
tire and its wheel together.
NOTICE:
Tire chains won't fit your compact spare. Using
them can damage your vehicle and can damage
the chains too. Don't use tire chains on your
compact spare.
