Engine Compartment Fuse Block

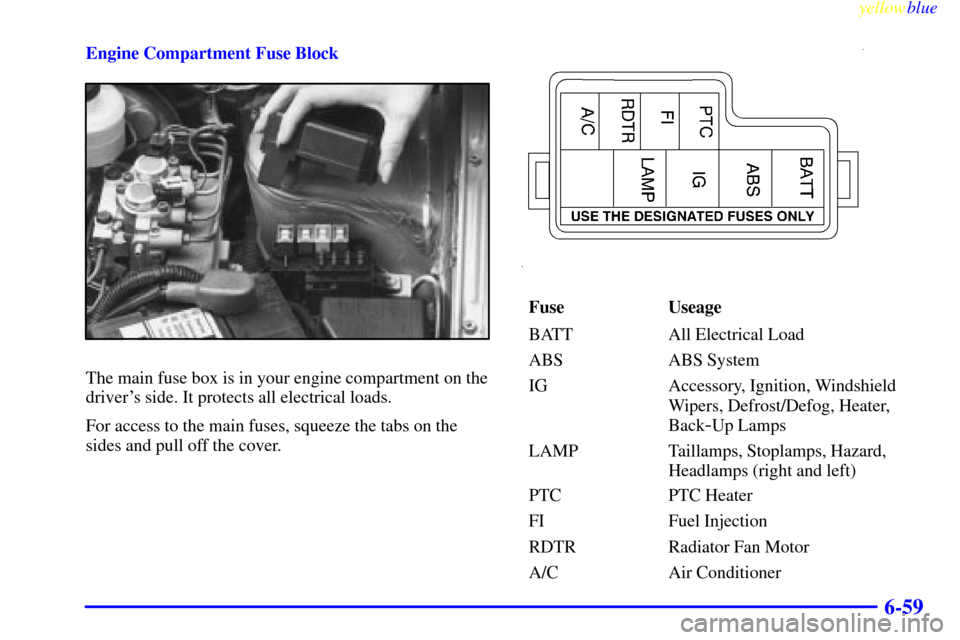

The main fuse box is in your engine compartment on the
driver's side. It protects all electrical loads.
For access to the main fuses, squeeze the tabs on the
sides and pull off the cover.
Fuse Useage
BATT All Electrical Load
ABS ABS System
IG Accessory, Ignition, Windshield
Wipers, Defrost/Defog, Heater,
Back
-Up Lamps
LAMP Taillamps, Stoplamps, Hazard,
Headlamps (right and left)
PTC PTC Heater
FI Fuel Injection
RDTR Radiator Fan Motor
A/C Air Conditioner

yellowblue
6-60
Replacement Bulbs
Lamps Bulb Number. . . . . . . . . . . . . . . . . . . . . . . . .
Back
-Up 921. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GM Part No. 96059983 or equivalent
Center High
-Mounted Stoplamp 921. . . . . . . . . . . . .
GM Part No. 96059983 or equivalent
Dome GM Part No. 94153335. . . . . . . . . . . . . . . . . . .
Front Parking and Sidemarker 168. . . . . . . . . . . . . . .
GM Part No. 96053293 or equivalent
Headlamp (Halogen) GM Part No. 9441731 . . . . . . .
or GM Part No. 91171148 or equivalent
License Plate 168. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Sidemarker 194. . . . . . . . . . . . . . . . . . . . . . . . .
Rear Stop/Tail 1157. . . . . . . . . . . . . . . . . . . . . . . . . .
Turn Signal and Hazard (Front and Rear) 1156. . . . .
Capacities and Specifications
The following approximate capacities are given in U.S.
and metric conversions. Please refer to ªRecommended
Fluids and Lubricantsº in the Index for more information.
Automatic Transaxle
Drain and Refill 1.6 quarts (1.5 L)**. . . . . . . . . . . . .
Manual Transaxle2.5 quarts (2.4 L)** . . . . . . . . . .
Cooling System
Automatic Transaxle
VIN Engine Code 2 5.0 quarts (4.7 L). . . . . . . . . . . .
Manual Transaxle
VIN Engine Code 6 4.1 quarts (3.9 L). . . . . . . . . . . .
VIN Engine Code 2 4.9 quarts (4.6 L). . . . . . . . . . . .
Crankcase
(With Filter Change)3.5 quarts (3.3 L)* . . . . . . .
Fuel Tank10.6 gallons (40.0 L) . . . . . . . . . . . . . . . . .
Wheel Nut Torque45 lb
-ft (60 N´m) . . . . . . . . . . . .
Air Conditioning

See the refrigerant information label under the hood.

See ªAir Conditioning Refrigerantsº later in
this section.

yellowblue
6-61
*When changing the oil filter, additional oil may be
needed. Recheck the oil level after filling. See ªEngine
Oilº in the Index.
**Recheck the fluid level after filling. See ªAutomatic
Transaxle Fluidº or ªManual Transaxle Fluidº in
the Index.
Engine Specifications
Type
VIN Engine Code 6 L3. . . . . . . . . . . . . . . . . . . . . . .
VIN Engine Code 2 L4. . . . . . . . . . . . . . . . . . . . . . .
Firing Order
VIN Engine Code 6 1
-3-2 . . . . . . . . . . . . . . . . . . . . .
VIN Engine Code 2 1
-3-4-2 . . . . . . . . . . . . . . . . . . .
Horsepower
VIN Engine Code 6 55 hp @ 5700 rpm. . . . . . . . . .
VIN Engine Code 2 79 hp @ 6000 rpm. . . . . . . . . .
Fuel DeliveryFuel Injection . . . . . . . . . . . . . . . . . . .
Piston Displacement
VIN Engine Code 6 61 CID (1.0L). . . . . . . . . . . . . .
VIN Engine Code 2 79 CID (1.3L). . . . . . . . . . . . . .
Valve ArrangementIn
-Head . . . . . . . . . . . . . . . . . . .
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you're not sure, ask your dealer.
See the refrigerant charge label under the hood for
information regarding refrigerant capacity.
Normal Maintenance
Replacement Parts
Air Cleaner Filter AC Type A1203C. . . . . . . . . . . . . .
Battery 26R
-50S . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Oil Filter AC Type PF53. . . . . . . . . . . . . . . .
Fuel Filter GM Part No. 96068664 or equivalent. . . . .
PCV Valve GM Part No. 96051849. . . . . . . . . . . . . . .
Radiator Pressure Cap 13 psi (90 kPa). . . . . . . . . . . .
Spark Plugs
1.0L L3 Engine AC Type R42XLS. . . . . . . . . . . . . . .
0.039 to 0.045 inch gap (1.0 to 1.1 mm)
1.3L L4 Engine NGK Type BKR6E11. . . . . . . . . . . .
0.039 to 0.045 inch gap (1.0 to 1.1 mm)
1.3L L4 Engine Denso Type K20PR
-U11 . . . . . . . . .
0.039 to 0.045 inch gap (1.0 to 1.1 mm)

yellowblue
6-62 Vehicle Dimensions
Length
Coupe 149.4 inches (379.0 cm). . . . . . . . . . . . . . . .
Sedan 164.0 inches (417.0 cm). . . . . . . . . . . . . . . . .
Width
Coupe 62.6 inches (159.0 cm). . . . . . . . . . . . . . . . .
Sedan 62.6 inches (159.0 cm). . . . . . . . . . . . . . . . . .
Height
Coupe 54.7 inches (139.0 cm). . . . . . . . . . . . . . . . .
Sedan 55.4 inches (140.0 cm). . . . . . . . . . . . . . . . . . Wheelbase
Coupe 93.1 inches (237.0 cm). . . . . . . . . . . . . . . . .
Sedan 93.1 inches (237.0 cm). . . . . . . . . . . . . . . . . .
Front Tread
Coupe 54.5 inches (138.0 cm). . . . . . . . . . . . . . . . .
Sedan 54.5 inches (138.0 cm). . . . . . . . . . . . . . . . . .
Rear Tread
Coupe 53.5 inches (136.0 cm). . . . . . . . . . . . . . . . .
Sedan 53.5 inches (136.0 cm). . . . . . . . . . . . . . . . . .

yellowblue
6-63
-NOTES

yellowblue
6-64
-NOTES

7-
yellowblue
7-1
Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7
-2 Introduction
7
-4 Part A: Scheduled Maintenance Services
7
-8 Short Trip/City Scheduled Maintenance
7
-26 Long Trip/Highway Scheduled Maintenance7
-38 Part B: Owner Checks and Services
7
-42 Part C: Periodic Maintenance Inspections
7
-44 Part D: Recommended Fluids and Lubricants
7
-46 Part E: Maintenance Record

yellowblue
7-2
Have you purchased the GM Protection Plan? The Plan
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet, or your dealer
for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in good
condition, please maintain your vehicle properly.

yellowblue
7-3 How This Section is Organized
This maintenance schedule is divided into five parts:
ªPart A: Scheduled Maintenance Servicesº shows
what to have done and how often. Some of these
services can be complex, so unless you are technically
qualified and have the necessary equipment, you should
let your dealer's service department or another qualified
service center do these jobs.
CAUTION:
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs, you can
be seriously injured. Do your own maintenance
work only if you have the required know
-how
and the proper tools and equipment for the job.
If you have any doubt, have a qualified
technician do the work.
If you are skilled enough to do some work on your
vehicle, you will probably want to get the service
information. See ªService and Owner Publicationsº in
the Index.ªPart B: Owner Checks and Servicesº tells you
what should be checked and when. It also explains what
you can easily do to help keep your vehicle in
good condition.
ªPart C: Periodic Maintenance Inspectionsº
explains important inspections that your dealer's service
department or another qualified service center
should perform.
ªPart D: Recommended Fluids and Lubricantsº
lists some recommended products to help keep your
vehicle properly maintained. These products, or their
equivalents, should be used whether you do the work
yourself or have it done.
ªPart E: Maintenance Recordº provides a place for
you to record the maintenance performed on your
vehicle. Whenever any maintenance is performed, be
sure to write it down in this part. This will help you
determine when your next maintenance should be done.
In addition, it is a good idea to keep your maintenance
receipts. They may be needed to qualify your vehicle for
warranty repairs.

yellowblue
7-4
Part A: Scheduled Maintenance
Services
Using Your Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we don't know
exactly how you'll drive it. You may drive very short
distances only a few times a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries. Or you
may drive it to work, to do errands or in many
other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may need more
frequent checks and replacements. So please read the
following and note how you drive. If you have any
questions on how to keep your vehicle in good
condition, see your dealer.
This part tells you the maintenance services you should
have done and when you should schedule them. If you
go to your dealer for your service needs, you'll know
that GM
-trained and supported service people will
perform the work using genuine GM parts.The proper fluids and lubricants to use are listed in
Part D. Make sure whoever services your vehicle uses
these. All parts should be replaced and all necessary
repairs done before you or anyone else drives
the vehicle.
These schedules are for vehicles that:

carry passengers and cargo within recommended
limits. You will find these limits on your vehicle's
Tire
-Loading Information label. See ªLoading Your
Vehicleº in the Index.

are driven on reasonable road surfaces within legal
driving limits.

use the recommended fuel. See ªFuelº in the Index.
Selecting the Right Schedule
First you'll need to decide which of the two schedules is
right for your vehicle. Here's how to decide which
schedule to follow:
