CHEVROLET MONTE CARLO 1995 5.G Owners Manual

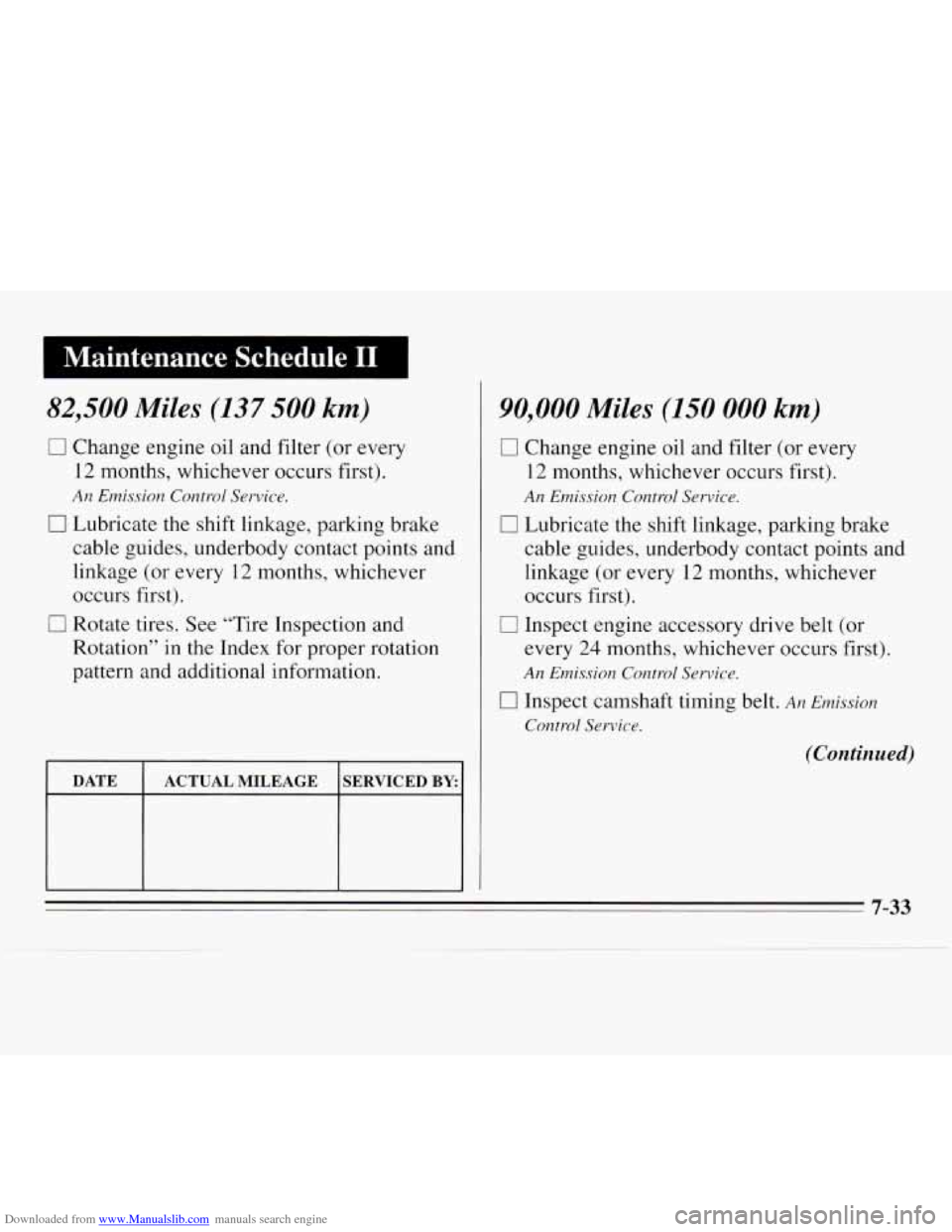

Downloaded from www.Manualslib.com manuals search engine 82,500 Miles (137 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Ernixyim Control Service.
0 Lubricate the shift linkage, parking brake
cable guides, underbody contact points
and
linkage (or every 12 months, whichever
occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern and additional information.
DATE SERVICED BY ACTUAL MILEAGE
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
A11 Emissiorl Corztrol SPr-vic*e.
0 Lubricate the shift linkage, parking brake
cable guides, underbody contact points and linkage (or every
12 months, whichever
occurs first).
every
24 months, whichever occurs first).
An Emissiorl Co17trol Service.
Inspect camshaft timing belt. AH E1nissim
0 Inspect engine accessory drive belt (or
Coz~trol Serl!ic-.e.
(Continued)
7-33

Downloaded from www.Manualslib.com manuals search engine I Maintenance Schedule I1

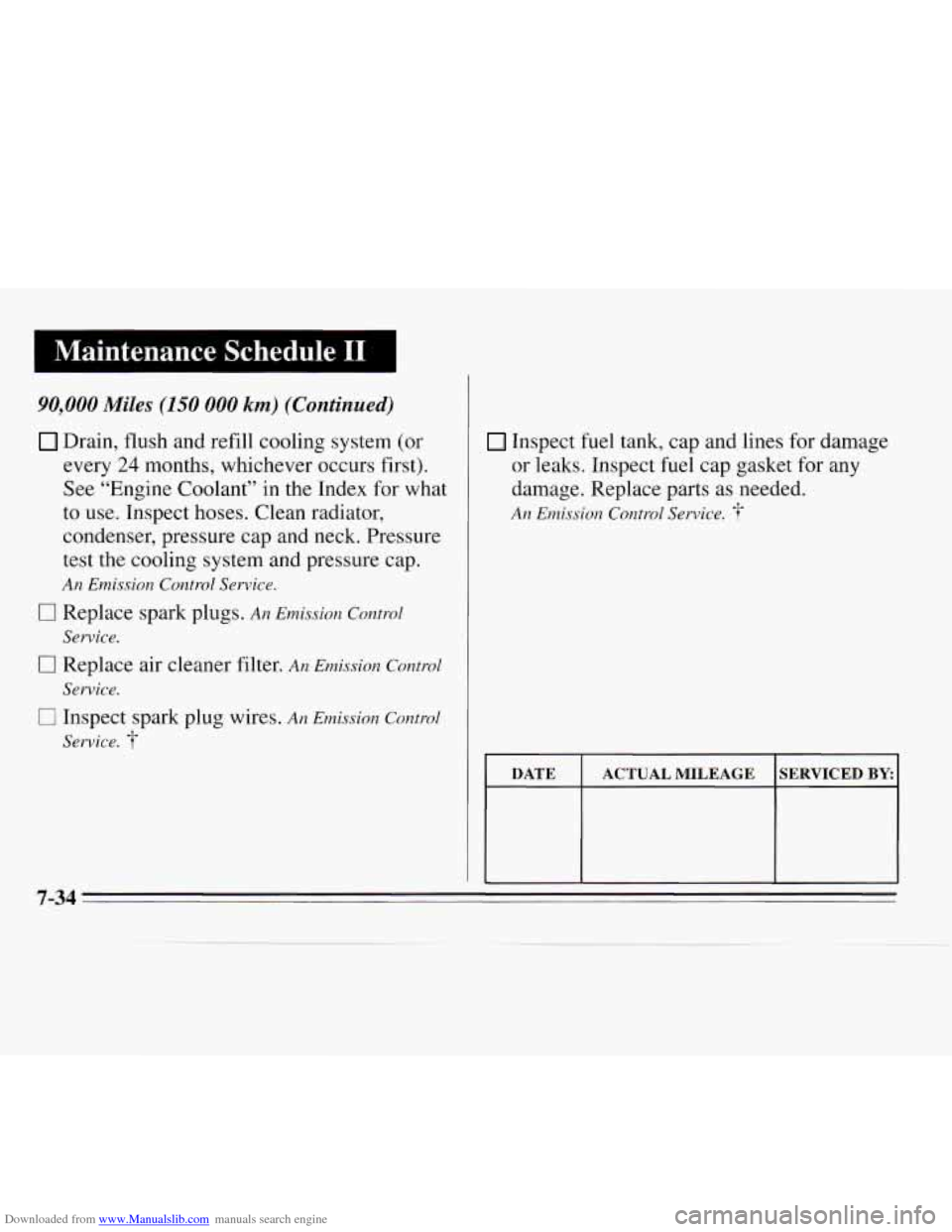

90,000 Miles (150 000 km) (Continued)
Drain, flush and refill cooling system (or every
24 months, whichever occurs first).
See “Engine Coolant’’ in the Index for what
to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service.
0 Replace spark plugs. An Emission Control
0 Replace air cleaner filter. An Emission Control
c? Inspect spark plug wires. An Emission Control
Service.
Service.
Service.
7
Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service.
DATE
SERVICED BY: ACTUAL MILEAGE
7-34

Downloaded from www.Manualslib.com manuals search engine I Maintenance Schedule I1 I

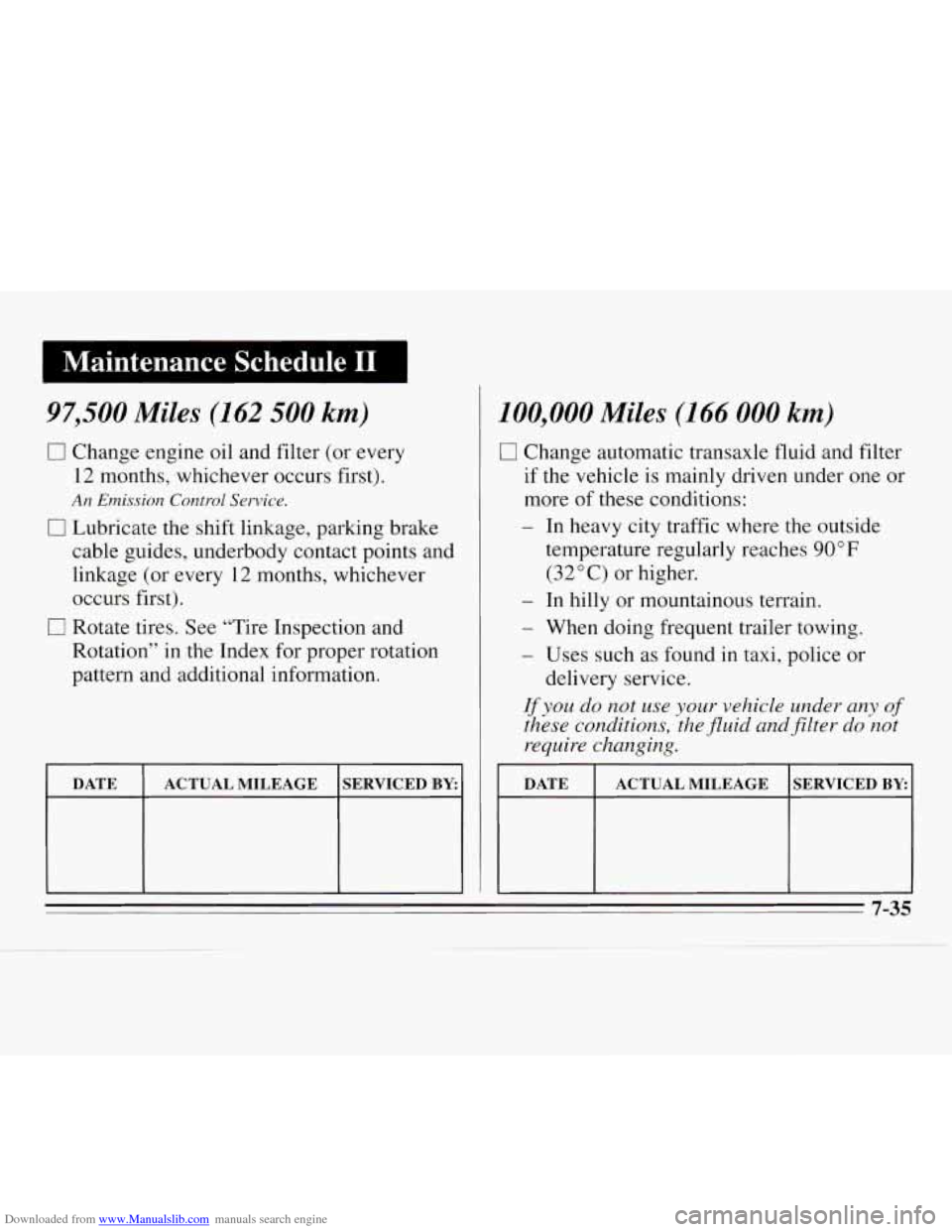

97,500 Miles (162 500 km)
I7 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the shift linkage, parking brake
cable guides, underbody contact points and
linkage (or every
12 months, whichever
occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern and additional information.
100,000 Miles (166 000 km)
0 Change automatic transaxle fluid and filter
if the vehicle is mainly driven under one or
more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 O F
(32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
lfyou do not use your vehicle under any of
these conditions, the fluid and filter do not
require changing.
7-35

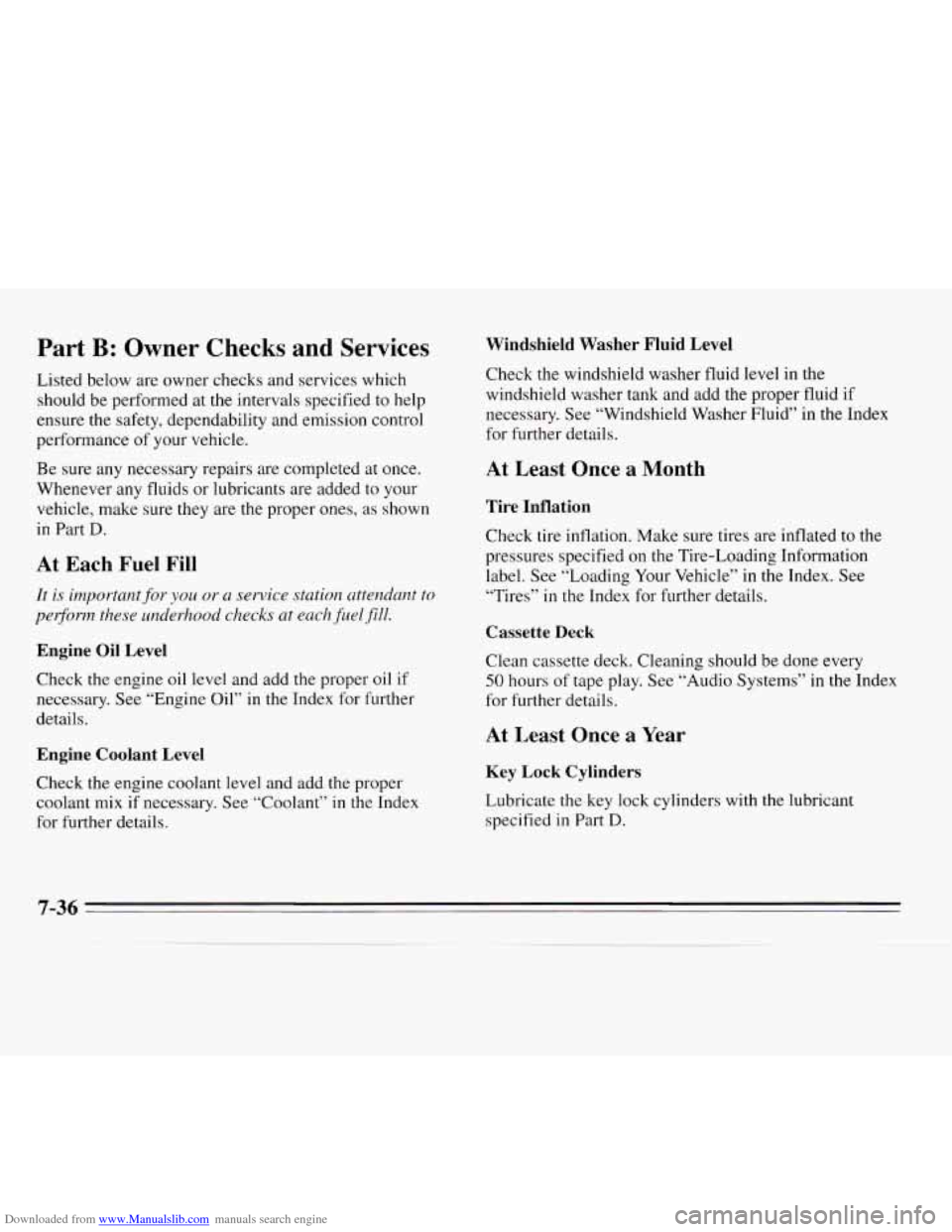

Downloaded from www.Manualslib.com manuals search engine Part B: Owner Checks and Services
Listed below are owner checks and services which should be performed at the intervals specified
to help
ensure the safety, dependability and emission control
performance
of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part
D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each.fuelfil1.
Engine Oil Level
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for further
details.
Engine Coolant Level
Check the engine coolant level and add the proper
coolant mix
if necessary. See “Coolant” in the Index
for further details.
Windshield Washer Fluid Level
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Least Once a Month
Tire Inflation
Check tire inflation. Make sure tires are inflated to the
pressures specified on the Tire-Loading Information
label. See “Loading
Your Vehicle” in the Index. See
“Tires” in
the Index for further details.
Cassette Deck
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the Index
for further details.
At Least Once a Year
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant
specified
in Part D.

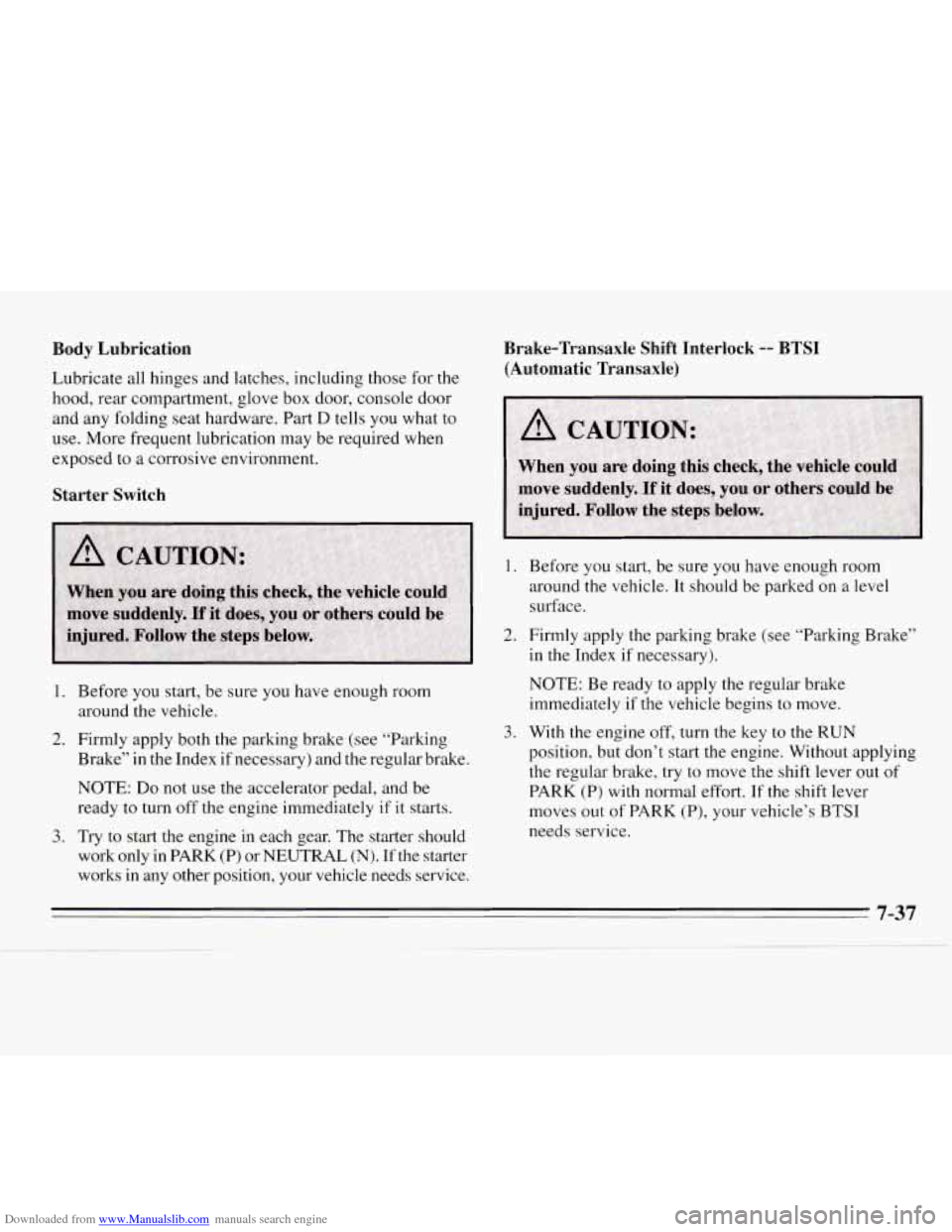

Downloaded from www.Manualslib.com manuals search engine Body Lubrication
Lubricate all hinges and latches, including those for the
hood, rear compartment, glove box door, console door
and any folding seat hardware. Part
D tells you what to
use. More frequent lubrication may be required when
exposed to a corrosive environment.
Brake-Transaxle Shift Interlock -- BTSI
(Automatic Transaxle)
Starter Switch
1.
2.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake’’
in the Index if necessary) and the regular brake.
NOTE:
Do not use the accelerator pedal, and be
ready to turn off the engine immediately
if it starts.
3. Try to start the engine in each gear. The starter should
work only in PARK (P) or
NEUTRAL (N). If the starter
works in any other position, your vehicle needs service.
3.
Before you start, be sure you have enough room
around
the vehicle. It should be parked on a level
surface.
Firmly apply the parking brake (see “Parking Brake’’
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
With the engine off, turn the key to the
RUN
position, but don’t start the engine. Without applying
the regular brake, try to move the shift lever out of
PARK (P) with normal effort.
If the shift lever
moves out of PARK
(P), your vehicle’s BTSI
needs service.
7-37

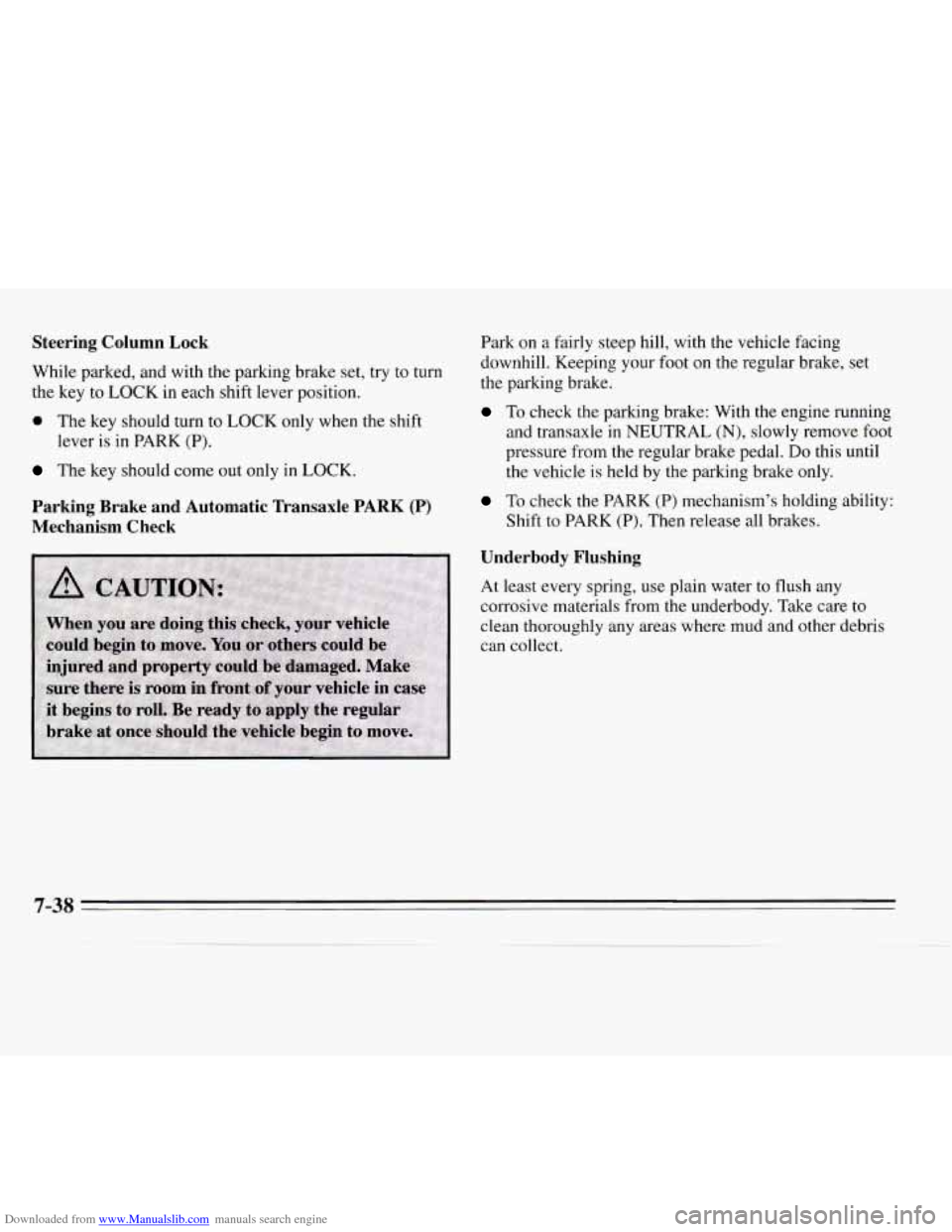

Downloaded from www.Manualslib.com manuals search engine Steering Column Lock
While parked, and with the parking brake set, try to turn
the key to LOCK
in each shift lever position.
0 The key should turn to LOCK only when the shift
lever is
in PARK (P).
The key should come out only in LOCK.
Parking Brake and Automatic Transaxle PARK (P)
Mechanism Check
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot
on the regular brake, set
the parking brake.
To check the parking brake: With the engine running
and transaxle in NEUTRAL
(N), slowly remove foot
pressure from the regular brake pedal.
Do this until
the vehicle
is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
Shift to PARK (P). Then release all brakes.
Underbody Flushing
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care
to
clean thoroughly any areas where mud and other debris
can collect.

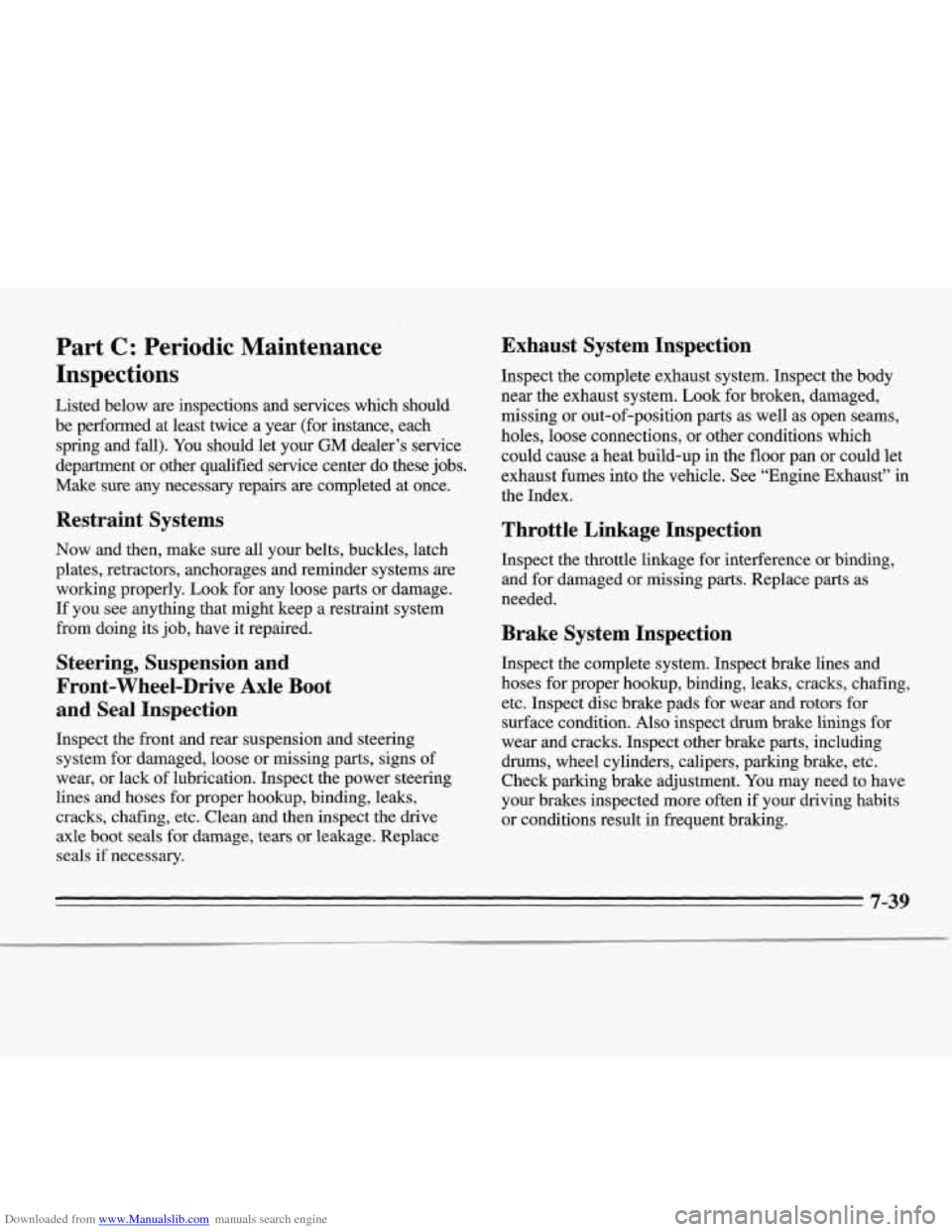

Downloaded from www.Manualslib.com manuals search engine Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall). You should let your
GM dealer’s service
department or other qualified service center do these jobs.
Make sure
any necessary repairs are completed at once.
Restraint Systems
Now and then, make sure all your belts, buckles, latch
plates, retractors, anchorages and reminder systems are
working properly. Look for any loose parts or damage.
If you see anything that might keep a restraint system
from doing its job, have it repaired.
Steering, Suspension and
Front-Wheel-Drive Axle Boot
and
Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear, or lack of lubrication. Inspect the power steering
lines and hoses for proper hookup, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals
if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open
seams,
holes, loose connections, or other conditions which
could cause a heat build-up
in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust”
in
the Index.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damaged or missing parts. Replace parts as
needed.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hookup, binding, leaks, cracks, chafing,
etc. Inspect disc brake pads
for wear and rotors for
surface condition.
Also inspect drum brake linings for
wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment.
You may need to have
your brakes inspected more often if your driving habits
or conditions result in frequent braking.
7-39

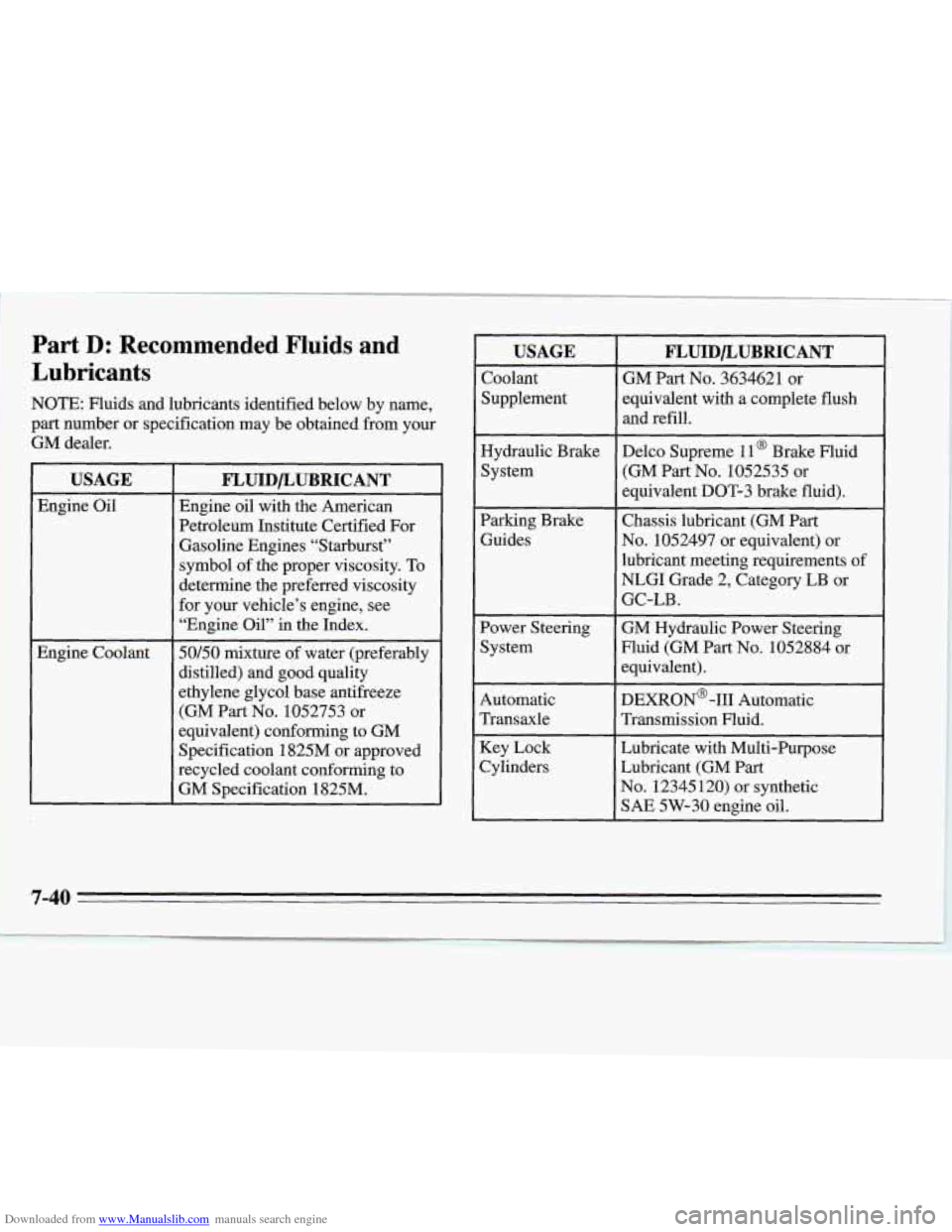

Downloaded from www.Manualslib.com manuals search engine Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
Engine Coolant
FLUIDfiUBRICANT
Engine oil with the American
Petroleum Institute Certified For Gasoline Engines “Starburst”
symbol
of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of water (preferably
distilled) and good quality
ethylene glycol base antifreeze
(GM Part No. 1052753 or
equivalent) conforming to GM
Specification 1825M or approved
recycled coolant conforming to
GM Specification 1825M.
USAGE FLUIDfiUBRICANT
Coolant GM Part No. 3634621 or
Supplement equivalent with a complete flush
Hydraulic Brake Delco Supreme
ll@ Brake Fluid
System (GM Part
No. 1052535 or
equivalent DOT-3 brake fluid).
Parking Brake Chassis lubricant (GM Part
Guides
No. 1052497 or equivalent) or
and refill.
lubricant meeting requirements of
NLGI Grade 2, Category LB or
GC-LB.
Power Steering GM Hydraulic Power Steering
System Fluid (GM Part
No. 1052884 or
equivalent).
Automatic DEXRON@-I11 Automatic
Transaxle Transmission Fluid.
Key Lock Lubricate with Multi-Purpose
Cylinders Lubricant (GM Part
No. 12345 120) or synthetic
SAE 5W-30 engine oil.
7-40

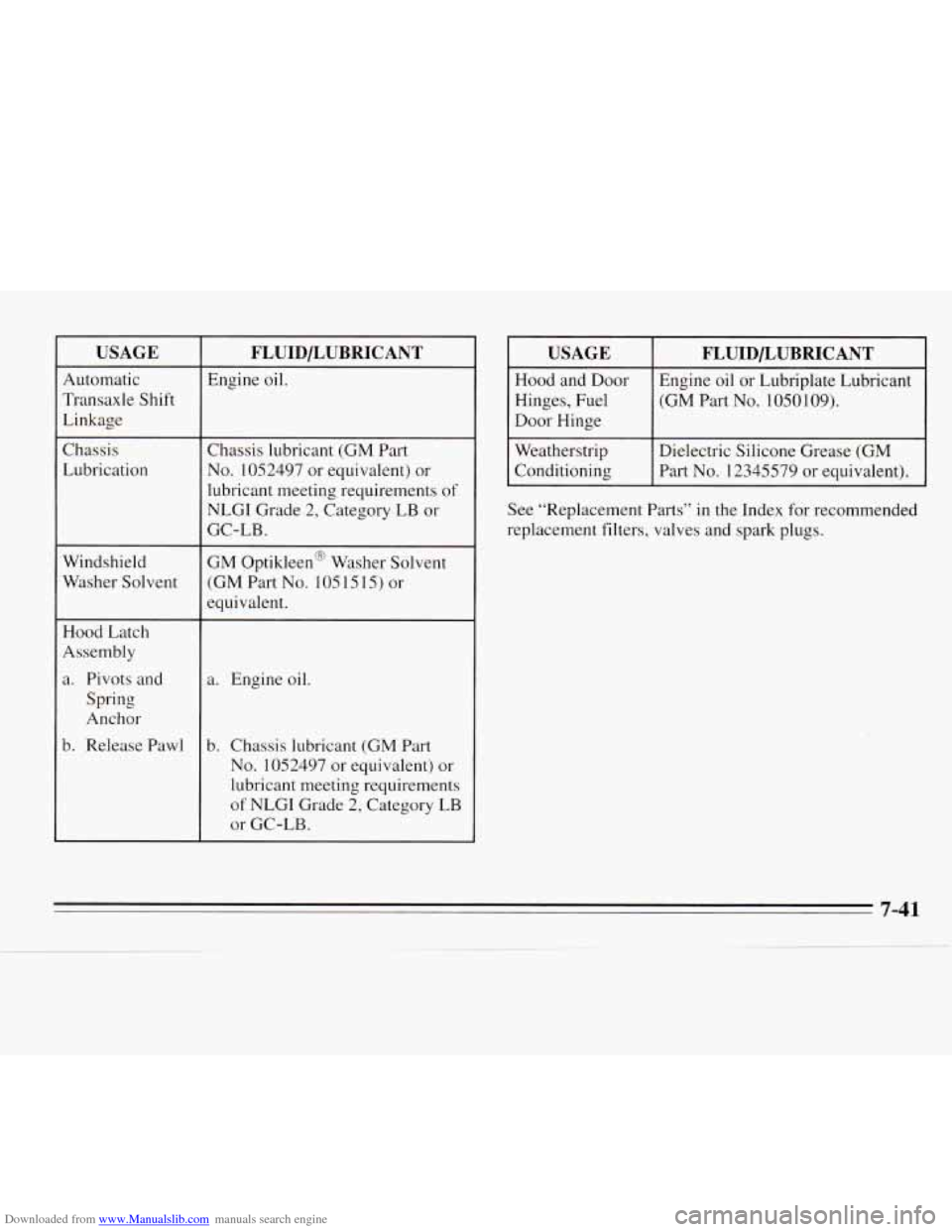

Downloaded from www.Manualslib.com manuals search engine USAGE
Automatic
Transaxle Shift
Linkage
Chassis
Lubrication
Windshield
Washer Solvent
Hood Latch
Assembly
a. Pivots and Spring
Anchor
b. Release Pawl
FLUID/LUBRICANT
Engine oil.
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of
NLGI Grade 2, Category LB or
~~~_____
GC-LB.
GM Optikleen@ Washer Solvent
(GM Part
No. 1051515) or
equivalent.
a. Engine oil.
b. Chassis lubricant
(GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
USAGE FLUID/LUBRICANT
Hood and Door Engine oil or Lubriplate Lubricant
Hinges, Fuel (GM Part
No. 1050109).
Door Hinge
Weatherstrip Dielectric Silicone Grease (GM
Conditioning Part
No. 12345579 or equivalent).
See “Replacement Parts” in the Index for recommended
replacement filters, valves and spark plugs.

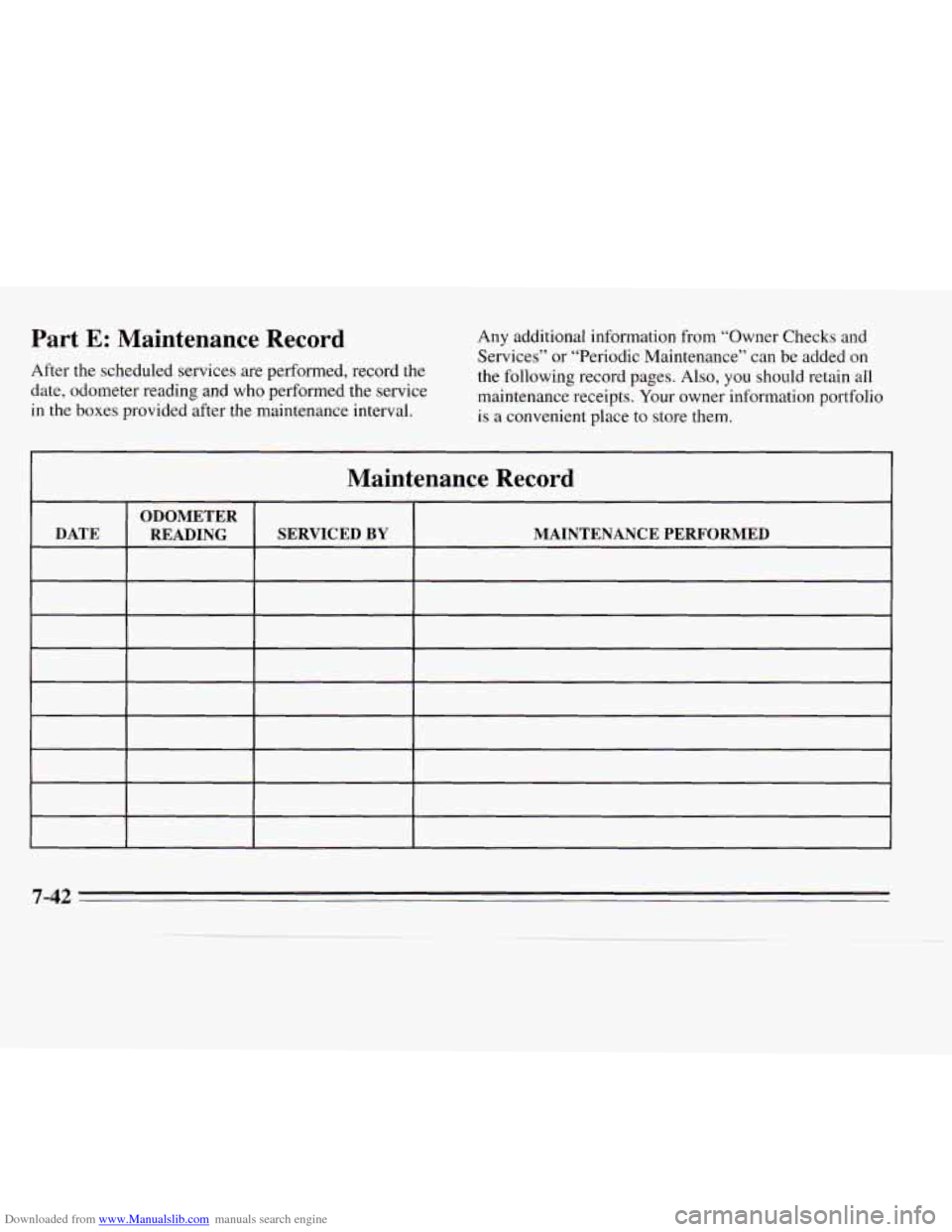

Downloaded from www.Manualslib.com manuals search engine Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed the service
in the boxes provided after the maintenance interval. Any
additional information from “Owner Checks and
Services” or “Periodic Maintenance” can be added
on
the following record pages. Also, you should retain all
maintenance receipts. Your owner information portfolio
is a convenient place
to store them.
I I
Maintenance Record
ODOMETER
DATE MAINTENANCE PERFORMED SERVICED
BY READING
7-42
