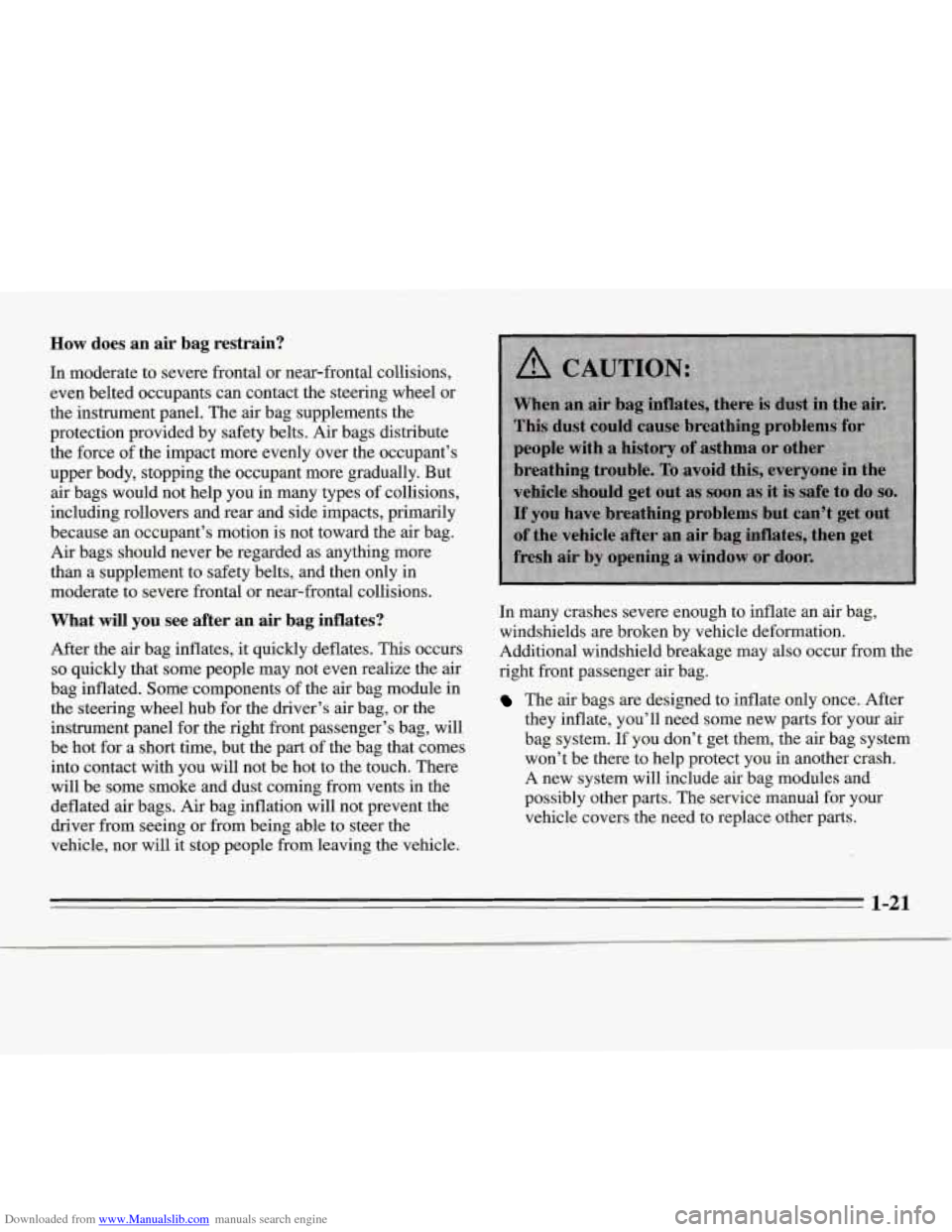

Downloaded from www.Manualslib.com manuals search engine How does an air bag restrain?
In moderate to severe frontal or near-frontal collisions, even belted occupants can contact the steering wheel or
the instrument panel. The
air bag supplements the
protection provided by safety belts.
Air bags distribute
the force of the impact more evenly over the occupant’s
upper body, stopping the occupant more gradually. But
air bags would not help you in many types of collisions,
including rollovers and rear and side impacts,
primarily
because an occupant’s motion is not toward the air bag.
Air bags should never be regarded as anything more
than a supplement to safety belts, and then only in
moderate to severe frontal or near-frontal collisions.
What will you see after an air bag inflates?
After the air bag inflates, it quickly deflates. This occurs
so quickly that some people may not even realize the air
bag inflated. Somecomponents of the air bag module in
the steering wheel hub for the driver’s air bag,
or the
instrument panel for the right front passenger’s bag, will
be hot for a short time, but the part of the bag that comes
into contact with you will not be hot to the touch. There
will be some smoke and dust coming from vents in the
deflated
air bags. Air bag inflation will not prevent the
driver from seeing or from being able to steer the
vehicle, nor will it stop people from leaving the vehicle. In
many crashes severe enough to inflate an air bag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from the
right front passenger
air bag.
The air bags are designed to inflate only once. After
they inflate, you’ll need some new parts for your
air
bag system. If you don’t get them, the air bag system
won’t be there to help protect you in another crash.
A new system will include air bag modules and
possibly other parts. The service manual for your
vehicle covers the need to replace other parts.
1-21
~

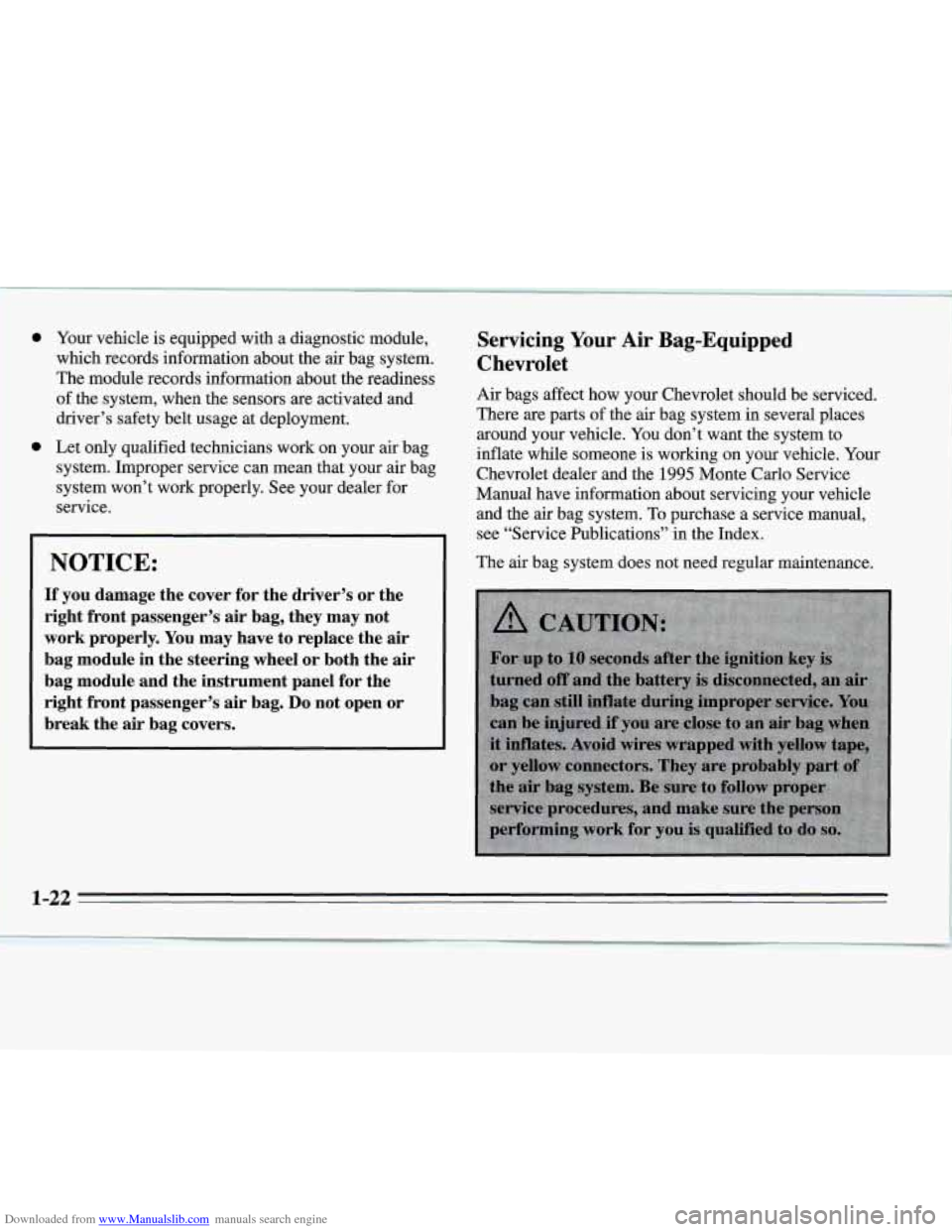

Downloaded from www.Manualslib.com manuals search engine 0 Your vehicle is equipped with a diagnostic module,
which records information about the air bag system.
The module records information about the readiness
of the system, when the sensors are activated and
driver’s safety belt usage at deployment.
0 Let only qualified technicians work on your air bag
system. Improper service can mean that your
air bag
system won’t work properly. See your dealer for
service.
I NOTICE: I
If you damage the cover for the driver’s or the
right front passenger’s air bag, they may not
work properly. You may have to replace the
air
bag module in the steering wheel or both the air
bag module and the instrument panel for the
right front passenger’s
air bag. Do not open or
break the
air bag covers. ,
Servicing Your Air Bag-Equipped
Chevrolet
Air bags affect how your Chevrolet should be serviced.
There are parts of the air bag system in several places
around your vehicle. You don’t want the system to
inflate while someone is working on your vehicle. Your
Chevrolet dealer and the
1995 Monte Carlo Service
Manual have information about servicing your vehicle
and the
air bag system. To purchase a service manual,
see “Service Publications” in the Index.
The air bag system does not need regular maintenance.
1-22
-

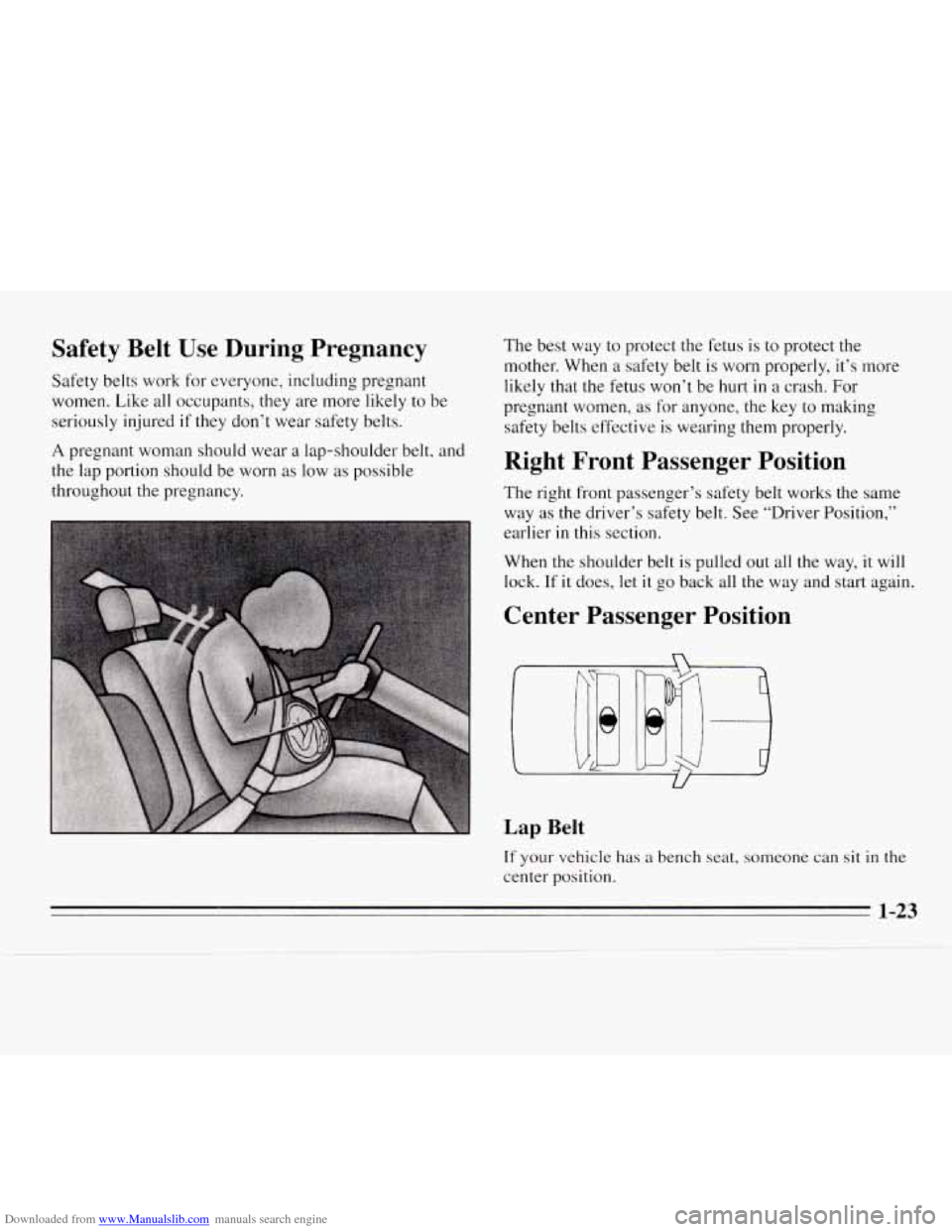

Downloaded from www.Manualslib.com manuals search engine Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like
all occupants, they are more likely to be
seriously injured
if they don’t wear safety belts.
A pregnant woman should wear a lap-shoulder belt, and
the lap portion should be worn as low as possible
throughout the pregnancy. The best
way to protect the
fetus is to protect the
mother. When
a safety belt is worn properly, it’s more
likely that the fetus won’t be hurt in
a crash. For
pregnant women,
as for anyone, the key to making
safety belts effective
is wearing them properly.
Right Front Passenger Position
The right front passenger’s safety belt works the same
way as the driver’s safety belt. See “Driver Position,”
earlier in this section.
When the shoulder belt is pulled
out all the way, it will
lock. If it does,
let it go back all the way and start again.
Center Passenger Position
Lap Belt
If your vehicle has a bench seat, someone can sit in the
center position.
1-23

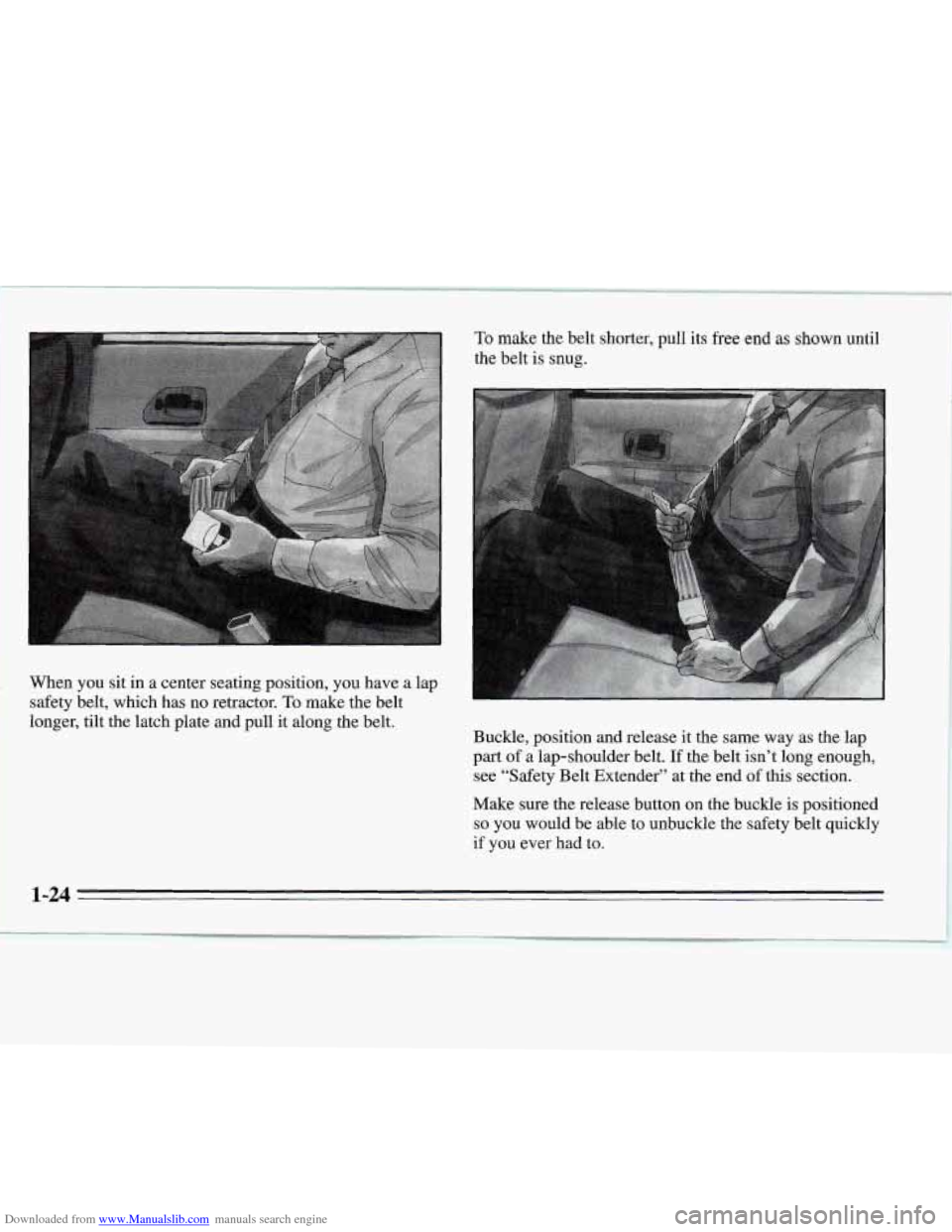

Downloaded from www.Manualslib.com manuals search engine When you sit in a center seating position, you have a lap
safety belt, which has no retractor.
To make the belt
longer, tilt the latch plate and pull it along the belt.
To make the belt shorter, pull its free end as shown until
the belt
is snug.
Buckle, position and release it the same way as the lap
part of a lap-shoulder belt.
If the belt isn’t long enough,
see “Safety Belt Extender’’ at the end
of this section.
Make sure the release button on the buckle
is positioned
so you would be able to unbuckle the safety belt quickly
if you ever had
to.
1-24

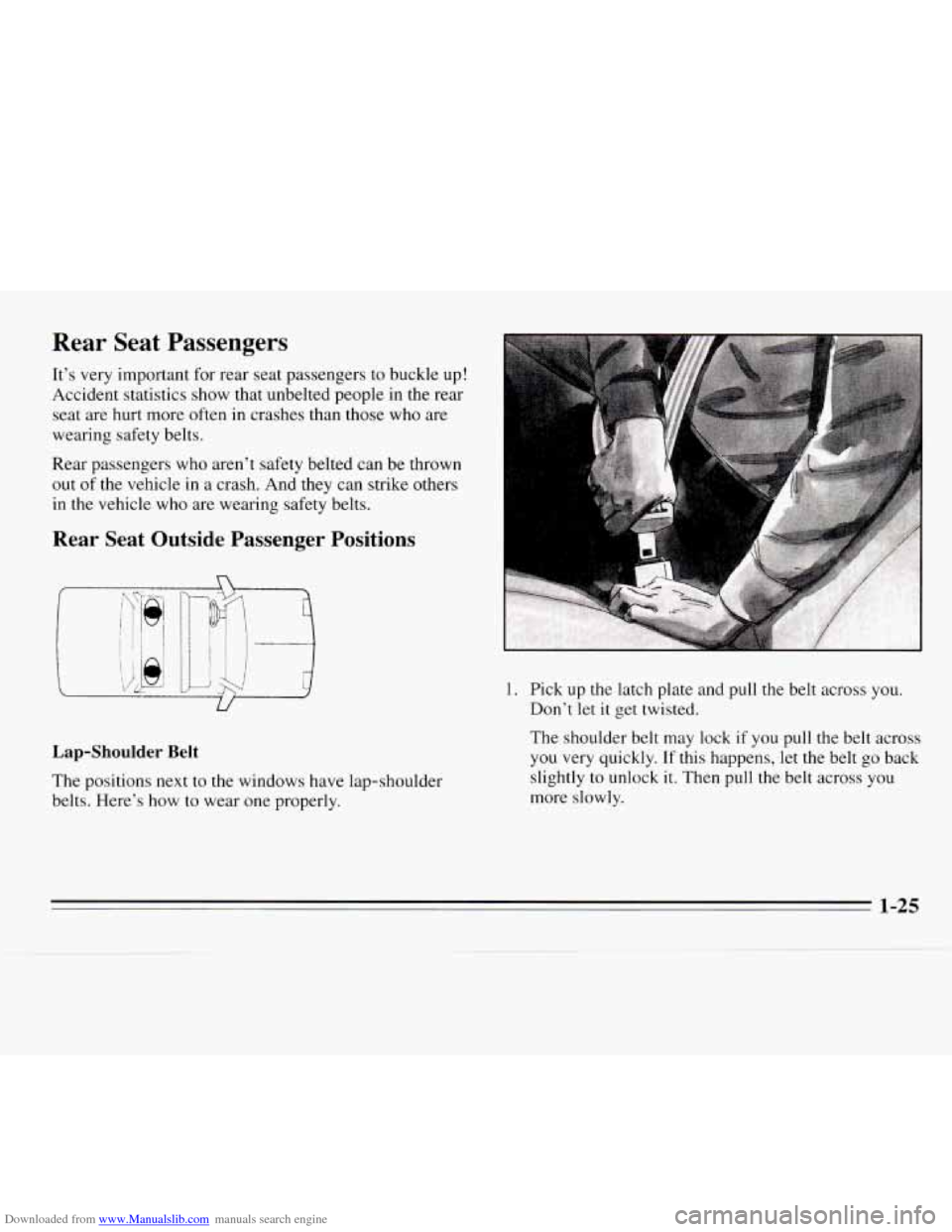

Downloaded from www.Manualslib.com manuals search engine Rear Seat Passengers
It’s very important for rear seat passengers to buckle up!
Accident statistics show that unbelted people in the rear
seat are
hurt more often in crashes than those who are
wearing safety belts.
Rear passengers who aren’t safety belted can be thrown
out
of the vehicle in a crash. And they can strike others
in the vehicle who are wearing safety belts.
Rear Seat Outside Passenger Positions
w
Lap-Shoulder Belt
The positions next to the windows have lap-shoulder
belts. Here’s how to wear one properly.
1. Pick up the latch plate and pull the belt across you.
Don’t let it get twisted.
The shoulder belt may lock
if you pull the belt across
you very quickly. If this happens, let the belt go back
slightly
to unlock it. Then pull the belt across you
more slowly.

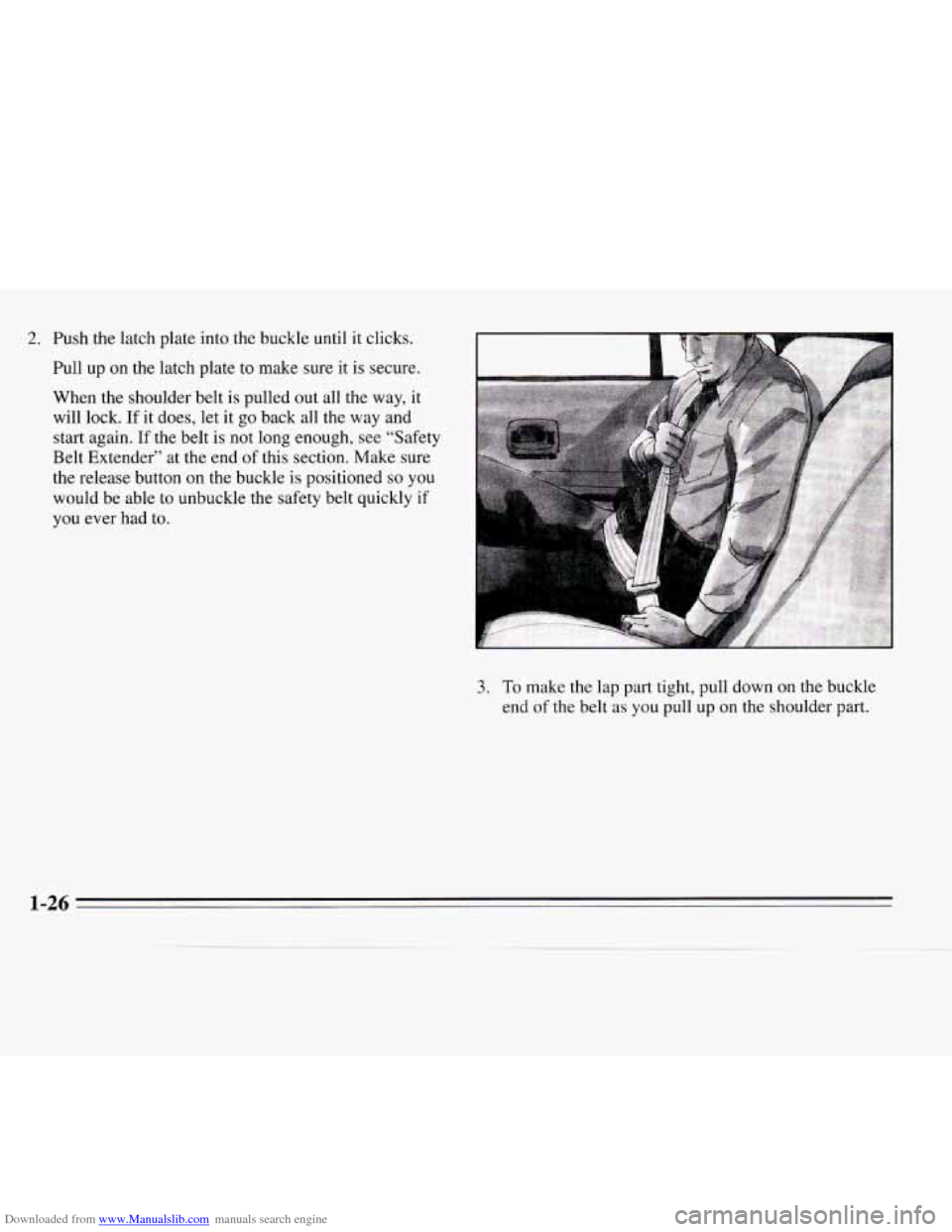

Downloaded from www.Manualslib.com manuals search engine 2. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it
is secure.
When the shoulder belt
is pulled out all the way, it
will lock. If
it does, let it go back all the way and
start again.
If the belt is not long enough, see “Safety
Belt Extender”
at the end of this section. Make sure
the release button on the buckle is positioned
so you
would be able
to unbuckle the safety belt quickly if
you ever had to.
3. To make the lap part tight, pull down on the buckle
end
of the belt as you pull up on the shoulder part.
1-26

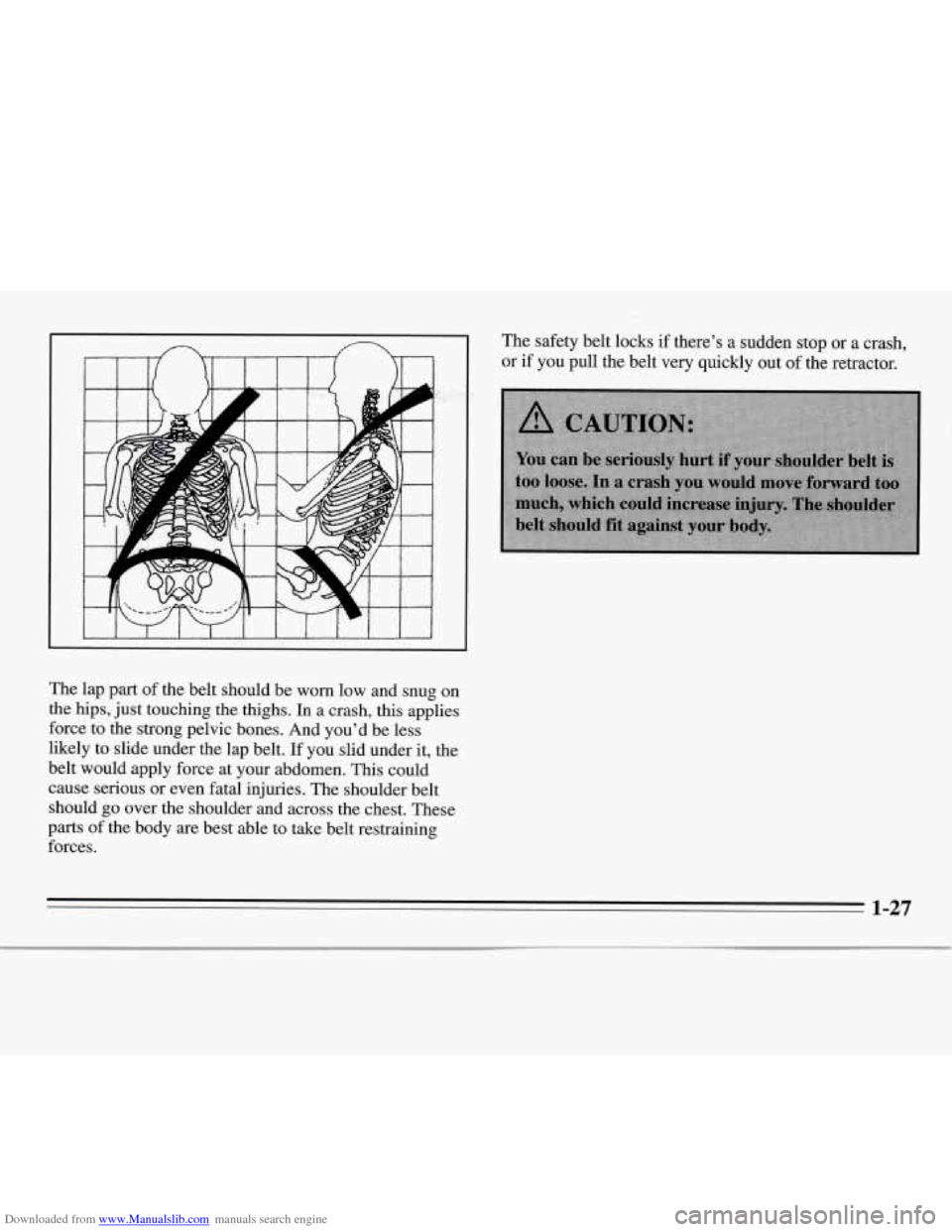

Downloaded from www.Manualslib.com manuals search engine The lap part of the belt should be worn low and snug on
the hips, just touching the thighs.
In a crash, this applies
force to the strong pelvic bones. And you’d be less
likely to slide under the lap belt.
If you slid under it, the
belt would apply force at your abdomen. This could
cause serious or even fatal injuries. The shoulder belt
should go over the shoulder and across the chest. These
parts of the body are best able to take belt restraining
forces. The safety
belt locks
if there’s a sudden stop or a crash,
or
if you pull the belt very quickly out of the retractor.
1-27

Downloaded from www.Manualslib.com manuals search engine To unlatch the belt, just push the button on the buckle.
Rear Safety Belt Comfort Guides for
Children and Small Adults
Rear shoulder belt comfort guides will provide added
comfort for children who have outgrown child restraints
and for small adults. The comfort guides pull the
shoulder belts away from the neck and head. There
is one guide for each outside passenger position
in
the rear seat. You will find them tucked in between the
seatback and the interior body, about half-way down the
edge
of the seatback. Here is how you should install the
comfort guides on
the shoulder belts:
1. Pull the elastic cord out from between the edge of
the seatback and the interior body to remove the
guide from its storage clip.
1-28

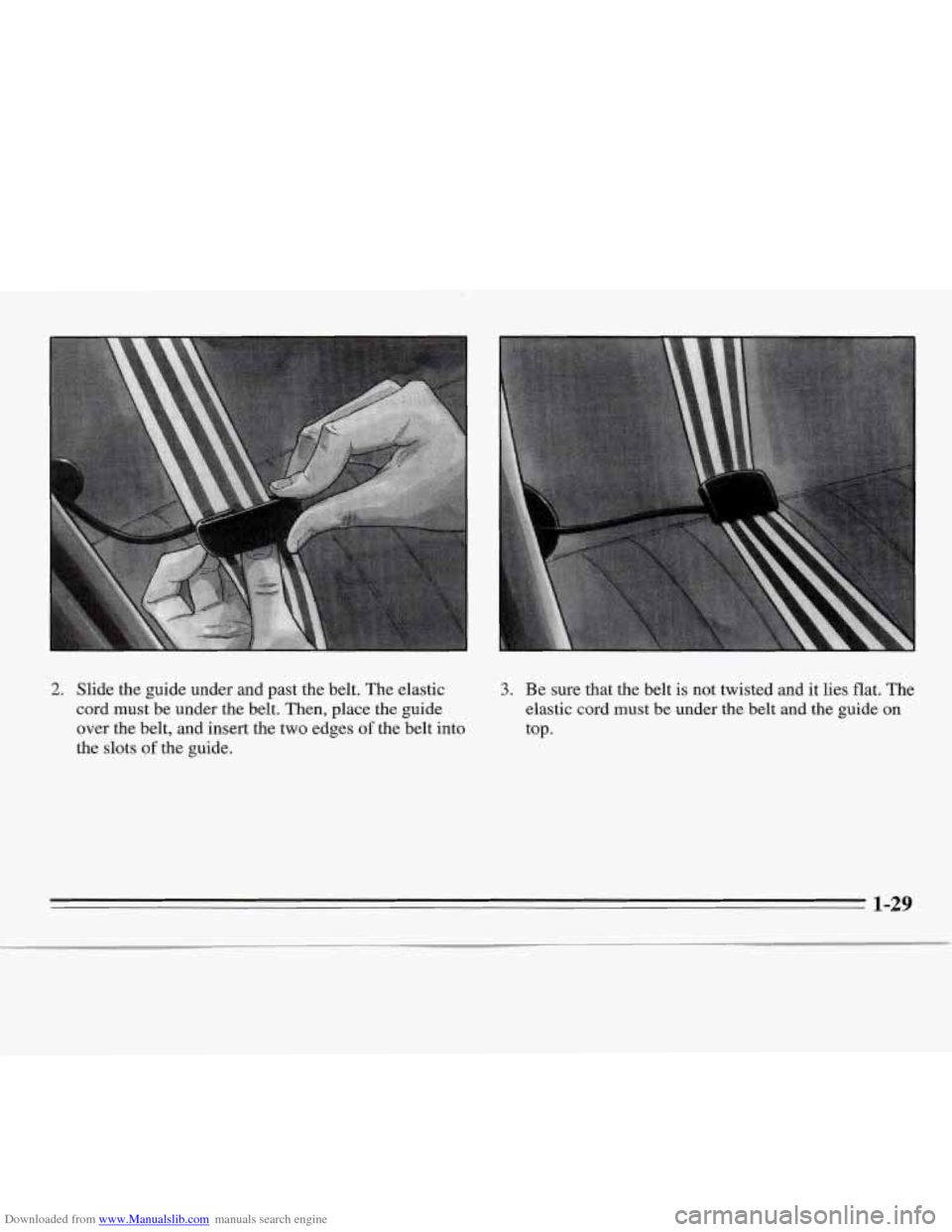

Downloaded from www.Manualslib.com manuals search engine 2. Slide the guide under and past the belt. The elastic
cord must be under the belt. Then, place the guide
over the belt, and insert the two edges
of the belt into
the slots
of the guide.
3. Be sure that the belt is not twisted and it lies flat. The
elastic cord must be under the belt and the guide on
top.
1-29

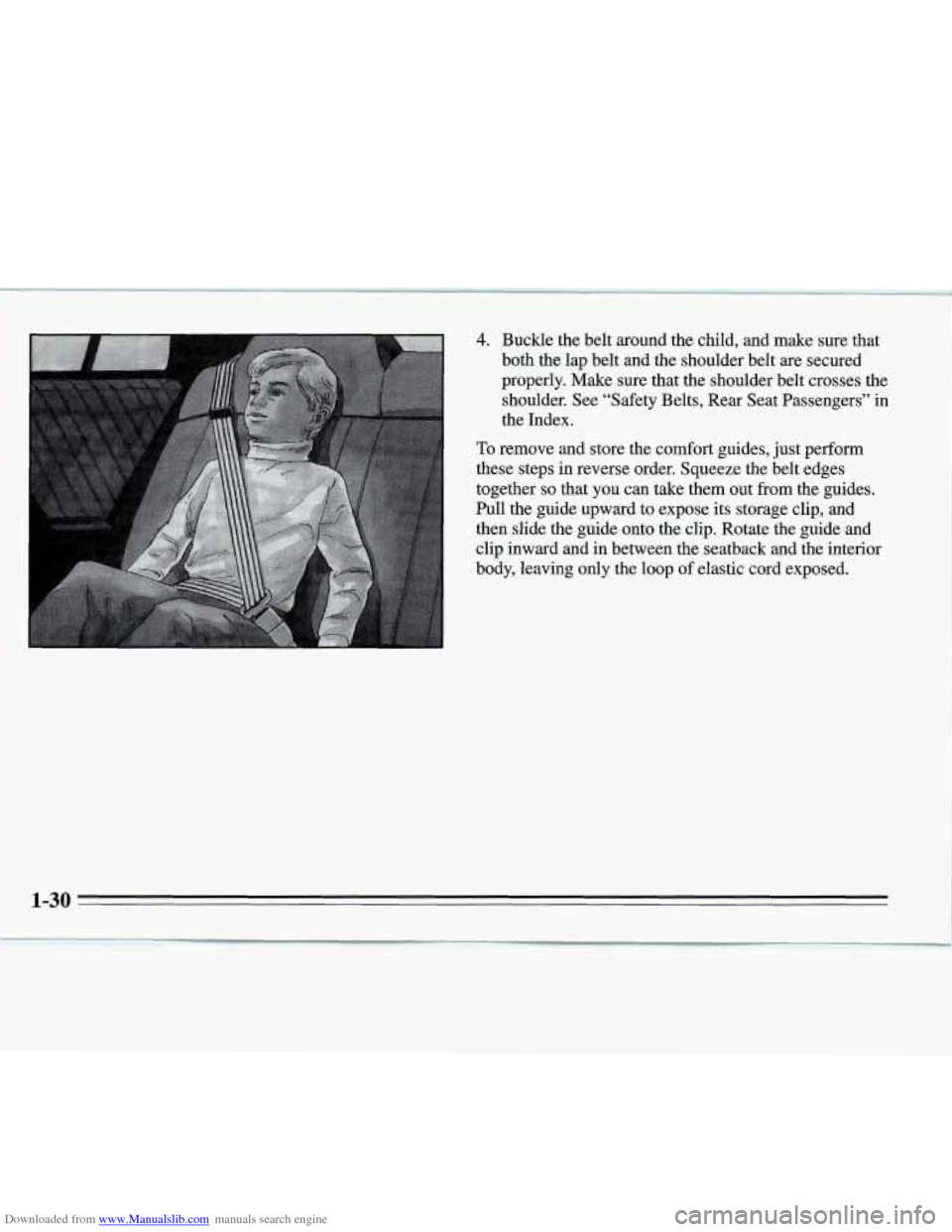

Downloaded from www.Manualslib.com manuals search engine 4. Buckle the belt around the child, and make sure that
both the lap belt and the shoulder belt are secured
properly. Make sure that the shoulder belt crosses the
shoulder. See “Safety Belts, Rear Seat Passengers”
in
the Index.
To remove and store the comfort guides, just perform
these steps in reverse order. Squeeze the belt edges
together
so that you can take them out from the guides.
Pull the guide upward to expose its storage clip, and
then slide the guide onto the clip. Rotate the guide and
clip inward and in between the seatback and the interior
body, leaving only the loop
of elastic cord exposed.
