2-5 Power Door Locks
The power door lock switch
is located on the door above
the armrest.
Press the top part of the switch to unlock both doors, or
press the bottom part of the switch to lock both doors.
If your vehicle is equipped with the content
theft
-deterrent system and it is armed, the power door
lock switches are disabled. You must use your remote
keyless entry transmitter or your key to unlock the doors
when the system is armed.
Programmable Automatic Power
Door Locks
Programmable automatic power door locks is a standard
feature that is intended to provide enhanced security and
convenience by automatically locking and unlocking
doors. For your vehicle, you may select and program
one of the following four operating modes:
Mode 1: No automatic door lock or unlock.
Mode 2: Automatic all
-door lock when the transaxle is
shifted out of PARK (P); no automatic door unlock.
Mode 3: Automatic all
-door lock when the transaxle
is shifted out of PARK (P); automatic unlock for
the driver's door only when the transaxle is shifted
into PARK (P).
Mode 4: Automatic all
-door lock when the transaxle is
shifted out of PARK (P); automatic all
-door unlock
when the transaxle is shifted into PARK (P).
To change the operating mode of the programmable
automatic power door locks see ªVehicle Customization
Settingsº in the Index.
Disconnecting the vehicle's battery for up to a year will
not change the programmed mode of the programmable
automatic power door locks.

2-6 Lockout Protection Feature
To protect you from locking your key in the vehicle, this
feature stops the power door locks from locking when
the keys are in the ignition and a door is open.
If a power lock switch is pressed when a door is open
and the key is in the ignition, both doors will lock and
then the driver's door will unlock. A chime will sound
continuously, also, until all doors are closed.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.
Remote Keyless Entry (If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your remote keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-7 Operation
Press UNLOCK once to
unlock the driver's door and
to turn on the interior
lamps. (See ªIllumination
on Remote Activationº in
the Index for more details.).
Press UNLOCK again within five seconds to unlock the
passenger's door. To lock both doors, press LOCK. To
release the trunk, press the trunk symbol on the remote
keyless entry transmitter. The shift lever must be in
PARK (P) for this to work.
Operating the remote keyless entry transmitter may
interact with the Content Theft
-Deterrent System
(if your vehicle is equipped with this feature).
See ªContent Theft
-Deterrent Systemº in the Index.Panic Alarm Button
This feature allows you to activate an alarm by pressing
a button on the remote keyless entry transmitter. Your
vehicle's ignition must be in OFF or ACC for the instant
alarm to work. When you press the horn button on the
remote keyless entry transmitter, your vehicle's
headlamps will flash, the horn will honk repeatedly and
your interior lamps will illuminate attracting attention if
you need it. The alarm will continue until:

You press the alarm button on the remote keyless
entry transmitter a second time,

the vehicle's ignition is in ON or

an alarm period of about 110 seconds has elapsed.
Transmitter Verification (If Equipped)
This feature provides feedback to the holder of the
remote keyless entry transmitter that a command has
been received by the keyless entry receiver. The
headlamps and back
-up lamps will flash on every lock
and the first unlock command, and the horn will sound
once for every lock and twice for the first unlock
command. Silent operation and other options may be
selected for this feature (see ªVehicle Customization
Settingsº in the Index).

2-8
If your vehicle is equipped with the content theft-deterrent
system, the first time the remote unlock is received, three
flashes will be seen and three horn chirps heard to indicate
an alarm condition has occurred since last arming.
See ªContent Theft
-Deterrentº in the Index.
Illumination on Remote Activation
This feature provides interior illumination when a
remote keyless entry door unlock command is received
and executed, the trunk release button is pressed or
when the panic alarm is activated. The interior lamps
will illuminate until your vehicle's ignition is turned to
ON or until an illumination period of 40 seconds has
elapsed or the doors are locked with the power lock
switch or the remote keyless entry transmitter. If a door
is opened during the illumination period, the timed
illumination will be canceled, and the interior lamps will
remain on since a door is open.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
See ªVehicle Customization Settingsº in the Index for
more information.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.

2-9
To replace your battery:
1. Insert a flat object like a dime into the slot on the
back of the transmitter. Gently pry apart the front
and back.
2. Gently pry the battery out of the transmitter. Do not
use a metal object.
3. Put the new battery into the transmitter as
shown on the transmitter (use type CR2032 battery
or equivalent).4. Put the two halves back together. Make sure the
halves are together tightly so water won't get in.
5. Resynchronize and then test the transmitter.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
Resynchronization
After you have changed the battery in your transmitter,
you will need to resynchronize the transmitter. To do
this, press the LOCK and UNLOCK buttons on the
transmitter at the same time and hold for approximately
seven seconds or until one brief horn chirp is heard.

2-10

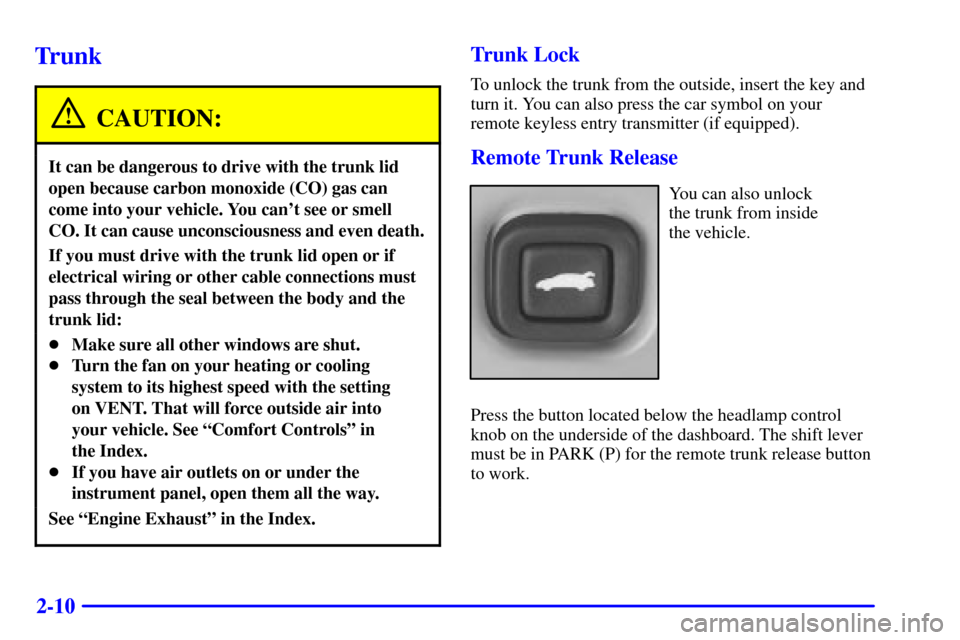

Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on VENT. That will force outside air into
your vehicle. See ªComfort Controlsº in
the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Trunk Lock
To unlock the trunk from the outside, insert the key and
turn it. You can also press the car symbol on your
remote keyless entry transmitter (if equipped).
Remote Trunk Release
You can also unlock
the trunk from inside
the vehicle.
Press the button located below the headlamp control
knob on the underside of the dashboard. The shift lever
must be in PARK (P) for the remote trunk release button
to work.

2-11
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your ignition and transaxle will be locked.
And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it's best to lock it up and take your keys.
But what if you have to leave your ignition key?

If possible, park in a busy, well lit area.

Put your valuables in a storage area, like your
trunk or glove box. Be sure to close and lock the
storage area.

Close all windows.

Lock the glove box.

Lock all the doors except the driver's.

Then take the door key and remote keyless entry
transmitter with you.

2-12
Content Theft-Deterrent
(If Equipped)
Your vehicle may be equipped with a content
theft
-deterrent alarm system.
With this system, a light on the radio will flash.
This light reminds you to activate the theft
-deterrent
system. Here's how to do it:
1. Open the door.
2. Lock the door with the power door lock switch or the
remote keyless entry transmitter. The light on the
radio should come on and stay on. If using the
remote keyless entry transmitter (if equipped), the
door does not need to be open.
3. Close all doors. The light on the radio will slowly
flash once the system is armed.
Once armed, the alarm will go off if someone tries to
enter the vehicle (without using the remote keyless entry
transmitter or a key) or turns the ignition on with an
incorrect key. The horn will sound and your vehicle's
headlamps and back
-up lamps will flash for
approximately two minutes.When the alarm is armed, the trunk may be opened with
the remote keyless entry transmitter. If you use the key
to open the trunk, the alarm will sound. Also, the power
door lock switches are disabled. You must use your
remote keyless entry transmitter or your key to unlock
the doors when the system is armed.
Arming with the Power Lock Switch
Your alarm system will arm when you use either power
lock switch to lock the doors while any door or the trunk
is open and the key is removed from the ignition.
The light on the radio flashes quickly to let you know
when the system is ready to arm with the power door
lock switches. The light on the radio will stop flashing
and stay on when you press the bottom of the power
lock switch, to let you know the system is arming. After
all doors and the trunk are closed and locked, the light
on the radio will flash slowly to let you know the system
is armed.

2-13 Arming with the Remote Keyless
Entry Transmitter
Your alarm system will arm when you use your remote
keyless entry transmitter (if equipped) to lock the doors,
if the key is not in the ignition. The light on the radio
will turn on to let you know the system is arming. After
all doors and the trunk are closed and locked, the light
on the radio will begin flashing at a very slow rate to let
you know the system is armed.
Disarming with the Remote Keyless
Entry Transmitter
Your alarm system will disarm when you use your
remote keyless entry transmitter (if equipped) to unlock
the doors. The light on the radio will go off to let you
know the system is no longer armed.
The first time a remote UNLOCK command is
received, three flashes will be seen and three horn chirps
heard to indicate an alarm condition has occurred since
last arming.
Disarming with Your Key
Your alarm system will disarm when you use your key
to unlock the doors. The light on the radio will go off to
let you know the system is no longer armed.
Vehicle Customization Settings
Some of your vehicle's convenience features can be
reset or customized to perform according to your
preference. The features you can program depend upon
the options that came with your vehicle. The following
list shows the features that can be reset or customized
along with the option you need to program that feature:

Settings (Available for All)

Oil Life Reset (Available for All)

Low Tire Pressure Reset (If Equipped)

Delayed Headlamp Illumination (Available for All)

Automatic Door Lock and Unlock
(Available for All)

Remote Visual Verification (Available with Remote
Keyless Entry)

Remote Audible Verification (Available with Remote
Keyless Entry)

Content Theft Operation (If Equipped with Content
Theft System)

Trunk Jamb (If Equipped with Content
Theft System)

2-14

Horn Chirp On Timer (Available with Remote
Keyless Entry)

Remote Keyless Entry Transmitter Programming
(Available with Remote Keyless Entry)

Return to Original Factory Settings
(Available for All)

Exit Vehicle Customization Mode
To reset or customize your vehicle's features, you must
first enter the vehicle customization main menu. To
enter the main menu:
1. Turn the ignition to ACC or ON and the radio off.
2. Press and hold the DISP button on the radio for at
least five seconds until SETTINGS is displayed.
3. Press the SEEK up or down arrows to scroll through
each available feature on your main menu.
4. Press the PREV or NEXT buttons to scroll through
the lower menu. An asterisk will appear next to the
item that is the current setting.The following information shows how to reset or
customize features after entering the main menu:
SETTINGS
- Display Current Settings
OIL LIFE
- Oil Life Reset: This feature allows you to
reset the engine oil life monitor after an oil change, see
ªEngine Oilº in the Index. Be careful not to reset the
OIL LIFE accidentally at any time other than when the
oil has been changed. It can't be reset accurately until
the next oil change. To clear the CHANGE ENGINE
OIL light from the instrument cluster and reset the oil
life monitor:
1. Scroll, using the SEEK up or down arrows, until OIL
LIFE appears on the display.
2. Press the PREV or NEXT button to enter the
submenu. RESET will then be displayed.
3. Press the DISP button to reset. A chime will be heard
to verify the new setting and DONE will be
displayed for one second.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
