CHEVROLET MONTE CARLO 2004 Owners Manual

Entry Lighting
Your vehicle may have the entry lighting feature.
Your courtesy lamps will come on and stay on for a
set time whenever you press UNLOCK on the remote
keyless entry transmitter.
If you open a door, the lamps will stay on while it’s open
and then turn off automatically about 25 seconds after
you close it. If you press UNLOCK and don’t open
a door, the lamps will turn off after about 40 seconds.
Illuminated entry includes a feature called theater
dimming. With theater dimming, the lamps don’t just
turn off at the end of the delay time. Instead, they slowly
dim after the delay time until they go out. The delay
time is canceled if you turn the ignition key to ON
or press the power door lock switch.
When the ignition is on, illuminated entry is inactive,
which means the courtesy lamps won’t come on unless
a door is opened.
Delayed Entry Lighting
Delayed entry lighting illuminates the interior for a
period of time after all the doors have been closed.
The ignition must be off for delayed entry lighting
to work. Immediately after both doors have been closed,
the delayed entry lighting feature will continue to work
until one of the following occurs:
The ignition is moved to ON,
the doors are locked or
an illumination period of 25 seconds has elapsed.
If during the illumination period a door is opened,
the timed illumination period will be canceled and the
interior lamps will remain on.
3-17

Delayed Exit Lighting
This feature illuminates the interior for a period of time
after the key is removed from the ignition.
The vehicle’s ignition must be off for delayed exit
lighting to work.
When the key is removed, interior illumination will
activate and remain on until one of the following occurs:
The ignition is moved to ON,
the power door locks are activated or
an illumination period of 25 seconds has elapsed.
If during the illumination period a door is opened,
the timed illumination period will be canceled and the
interior lamps will remain on.
Parade Dimming
The instrument panel has an added feature called
parade dimming. This feature prohibits the dimming of
your instrument panel displays during the daylight
while the headlamps are on so that you’ll still be able to
see the displays.
Reading Lamps
The reading lamps are located on the rearview mirror.
These lamps and the interior courtesy lamps come
on when any door is opened. Press the button to turn
them on and off while the doors are closed.
Dome Lamp
The dome lamp will come on when you open a door.
You can also turn this lamp on by turning the exterior
lamp control clockwise to DOME.
3-18

Battery Rundown Protection
Your vehicle has a feature to help prevent you from
draining the battery in case you accidentally leave on the
interior courtesy lamps, reading/map lamps, visor
vanity lamps, trunk lamp or glove box lamps. If you leave
any of these lamps on, they will automatically turn off
after 10 minutes, if the ignition is off. The lamps
won’t come back on again until you do the following:
Turn the ignition on or
turn the exterior lamps control off, then on again.
If your vehicle has less than 15 miles (25 km) on
the odometer, the battery saver will turn off the lamps
after only three minutes.
Battery rundown protection will also work if the
headlamps are left on. After having been left on for
10 minutes, the headlamps and the parking lamps will
ash three times. They will remain on for one more
minute before turning off automatically.
Accessory Power Outlets
Your vehicle has a 12-volt outlet which can be used to
plug in electrical equipment such as a cellular telephone,
a compact disc player, etc.
It is located at the rear
of the console.
Lift the cover to access the outlet. When not using the
outlet, make sure the protective cover is in place.
Notice:Leaving electrical equipment on for
extended periods will drain the battery. Always turn
off electrical equipment when not in use and do
not plug in equipment that exceeds the maximum
amperage rating.
3-19

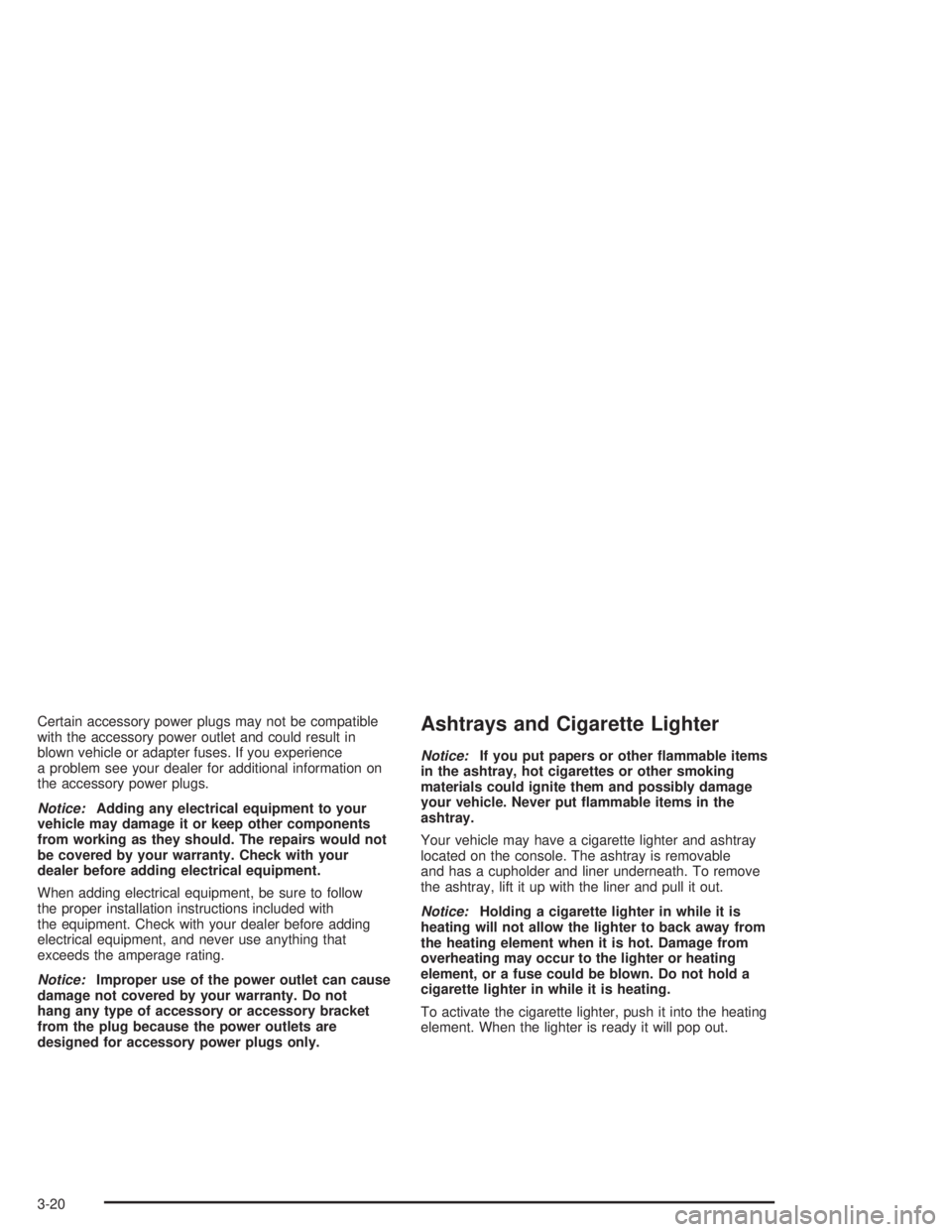

Certain accessory power plugs may not be compatible
with the accessory power outlet and could result in
blown vehicle or adapter fuses. If you experience
a problem see your dealer for additional information on
the accessory power plugs.
Notice:Adding any electrical equipment to your
vehicle may damage it or keep other components
from working as they should. The repairs would not
be covered by your warranty. Check with your
dealer before adding electrical equipment.
When adding electrical equipment, be sure to follow
the proper installation instructions included with
the equipment. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the amperage rating.
Notice:Improper use of the power outlet can cause
damage not covered by your warranty. Do not
hang any type of accessory or accessory bracket
from the plug because the power outlets are
designed for accessory power plugs only.Ashtrays and Cigarette Lighter
Notice:If you put papers or other ammable items
in the ashtray, hot cigarettes or other smoking
materials could ignite them and possibly damage
your vehicle. Never put ammable items in the
ashtray.
Your vehicle may have a cigarette lighter and ashtray
located on the console. The ashtray is removable
and has a cupholder and liner underneath. To remove
the ashtray, lift it up with the liner and pull it out.
Notice:Holding a cigarette lighter in while it is
heating will not allow the lighter to back away from
the heating element when it is hot. Damage from
overheating may occur to the lighter or heating
element, or a fuse could be blown. Do not hold a
cigarette lighter in while it is heating.
To activate the cigarette lighter, push it into the heating
element. When the lighter is ready it will pop out.
3-20

Climate Controls
Dual Climate Control System
With this system you can control the heating, cooling,
defrost, defog and ventilation for your vehicle.
Manual Operation
Turn the right knob clockwise or counterclockwise to
direct the airow inside of your vehicle.To change the current mode, select one of the following:
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode allows for approximately a
50/50 split of air to the instrument panel outlets and
to the oor outlets.
6(Floor):This mode directs most of the air to the
oor outlets, with some of the air directed to the
windshield and side window outlets. In this mode,
the system will automatically select Outside Air.
The right knob can also be used to select defog or
defrost mode. For information on defogging and
defrosting, see “Defogging and Defrosting” later in this
section.
By positioning the right knob between two modes,
a combination of those two modes is selected.
It should be noted, that the air conditioning compressor
will be engaged unless the outside temperature is
40° F (4°C) or below. Recirculation cannot be selected
when in Floor Mode.
3-21

Selecting the Fan Speed
9
(Fan):Turn the left knob clockwise or
counterclockwise to increase or decrease the fan speed.
Turn the knob to OFF to turn off the fan. The fan must be
turned on for the air conditioning compressor to operate.
If the airow seems low when the fan is at the highest
setting, the passenger compartment air lter, if equipped,
may need to be replaced. For more information, see
Passenger Compartment Air Filter on page 3-27and
Scheduled Maintenance on page 6-4.
Selecting Outside Air or Recirculation
The outside air mode is used to bring outside air into your
vehicle; also use this mode to remove excess moisture
from the inside of the windows. The recirculation mode is
used to recirculate the air inside of your vehicle; also use
this mode to help prevent outside odors and/or dust from
entering your vehicle or to help heat or cool the air inside
of your vehicle quickly.
:(Outside Air):Press this button to turn the
outside air mode on. When this button is pressed, an
indicator light in the button will come on to let you know
that it is activated. During daylight hours, you may
have to adjust the instrument panel brightness control to
the highest setting in order to see the indicator light.
SeeInterior Lamps on page 3-16for more information.
When this mode is on, outside air will circulate
throughout your vehicle.
?(Recirculation):Press this button to turn the
recirculation mode on. When this mode is on, inside air
and a small percentage of outside air will recirculate
throughout your vehicle. This selection will reduce
the entry of outside air and odors from entering your
vehicle, it may also help heat or cool your vehicle more
quickly. When this button is pressed, an indicator
light in the button will also come on to let you know that
it is activated. During daylight hours, you may have
to adjust the instrument panel brightness control to
the highest setting in order to see the indicator light.
SeeInterior Lamps on page 3-16for more information.
The recirculation mode can be used with vent and
bi-level modes, but it cannot be used with oor, defog,
defrost or outside air modes.
This system will default back to the outside air setting,
so you will have to re-select this setting every time
that you start the vehicle.
If the weather is cold and damp, the system may cause
the windows to fog while using the recirculation
mode. If the windows do start to fog, do the following:
1. Select the defog or defrost mode.
2. Select the temperature.
3. Select the highest fan speed.
4. Operate the system in the outside air mode, 4to
help prevent a recurrence.
3-22

Heating
Adjust the air temperature by using the following levers:
D (Driver):Slide this lever up or down to raise or
lower the temperature on the driver’s side of the vehicle.
P (Passenger):Slide this lever up or down to raise
or lower the temperature on the passenger’s side of the
vehicle.
To warm your vehicle on cold days, do the following:
1. Select the oor mode.
2. Select the warmest temperature.
3. Select the fan speed.
4. Select outside air mode, after the air has warmed,
to prevent it from becoming too stale.
When it’s cold outside 0°F (−18°C) or lower, use the
engine coolant heater, if equipped, to provide warmer air
faster to your vehicle. An engine coolant heater warms
the coolant that the engine uses to provide heat to
warm the inside of your vehicle. For more information,
seeEngine Coolant Heater on page 2-20.
Cooling
On hot days, open the windows to let hot air escape;
then close them. This helps to reduce the time it takes
for your vehicle to cool down. It also helps the system
to operate more efficiently.
#(Air Conditioning):Press this button to turn the
air-conditioning system on or off. When the system is on,
an indicator light will come on and the system will
begin to cool and dehumidify the air inside of your
vehicle. During daylight hours, you may have to adjust
the instrument panel brightness control to the highest
setting in order to see the indicator light. SeeInterior
Lamps on page 3-16for more information.
You may notice a slight change in engine performance
when the air-conditioning compressor shuts off and
turns on again. This is normal. The system is designed
to make adjustments to help with fuel economy while
still maintaining the selected temperature.
The Air Conditioning System removes moisture from
the air, so you may notice a small amount of water
dripping underneath your vehicle when idling or after
turning off the engine.
3-23

For quicker cool down on hot days, do the following:
1. Select the vent mode.
2. Select A/C.
3. Select the recirculation mode.
4. Select the coolest temperature for both zones.
5. Select the highest fan speeds.
Using these settings together for long periods of time
may cause the air inside of your vehicle to become too
dry. To prevent this, after the air inside of your vehicle
has cooled, switch to Outside Air.
On cool, but sunny days, the sun may warm the upper
part of your body, but the lower part may not be
warm enough. To remedy this, do the following:
1. Select the bi-level mode.
2. Select A/C.
3. Select the temperature.
4. Select the fan speed.
The air-conditioning system removes moisture from the
air, so you may sometimes notice a small amount of
water dripping underneath your vehicle while idling
or after turning off the engine. This is normal.Defogging and Defrosting
Fog on the inside of your windows is a result of high
humidity (moisture) condensing on the cool window
glass. This can be minimized if the climate control
system is used properly.
There are two modes to choose from to clear fog or
frost from your windshield. Use the defog mode to
clear fog or moisture from the windows and warm the
passengers. Use the defrost mode to quickly remove fog
or frost from the windshield.
Turn the right knob clockwise or counterclockwise to
select one of the following modes:
/(Defog):This mode directs half of the air to the
windshield and side window vents and half to the oor
vents. In this mode, the system will automatically
force outside air into your vehicle. The recirculation
mode cannot be selected while in the defog mode.
The air conditioning compressor will run automatically in
this setting, unless the outside temperature is below
40°F (4°C).
Do not drive the vehicle until all the windows are clear.
3-24

0(Defrost):This mode directs most of the air to the
windshield and the side window vents, with only a
little air directed to the oor vents. In this mode, the
system will automatically force outside air into your
vehicle. There is a 5 minute timer linked to this function.
The recirculation mode cannot be selected while in
the defrost mode. The air conditioning compressor will
run automatically in this setting, unless the outside
temperature is below 40°F (4°C).
Do not drive the vehicle until all the windows are clear.
To circulate outside air and clear the windshield
quickly and bring outside air into your vehicle, do the
following:
1. Select defrost mode.
2. Select the temperature.
3. Select the highest fan speed.Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
<:Press this button to turn the rear window defogger
on or off. An indicator light in the button will come on
to let you know that the rear window defogger is
activated. During daylight hours, you may have to adjust
the instrument panel brightness control to the highest
setting in order to see the indicator light. SeeInterior
Lamps on page 3-16for more information.
The rear window defogger will turn off approximately
20 minutes after the button is pressed. If turned on
again, the defogger will run for the same amount of time.
The defogger can also be turned off by pressing the
button again or by turning off the engine.
If your vehicle has heated outside rearview mirrors,
the Rear Window Defogger also warms the heated
driver’s and passenger’s outside rearview mirrors to
help clear them of ice, snow and condensation.
Do not drive the vehicle until all the windows are clear.
Notice:Using a razor blade or sharp object to
clear the inside rear window may damage the rear
window defogger. Repairs would not be covered
by your warranty. Do not clear the inside of the
rear window with sharp objects.
3-25

Outlet Adjustment
The ow through ventilation system on your vehicle
allows outside air to enter your vehicle when it is moving.
Outside air will also enter your vehicle when the
air-conditioning compressor is running and even in small
amounts when the recirculation mode is activated.
Use the control located
below or to the side of
the vent, to change
the direction of the air
owing through them or
to shut them off.
For mild outside temperatures when little heating or
cooling is needed, do the following:
1. Select the vent mode.
2. Select outside air mode.
3. Select the temperature.
4. Select the fan speed.
Ventilation Tips

Clear away any ice, snow or leaves from the air
inlets on the hood that may block the ow of air
into your vehicle. This will help to remove fog
or frost from the windows it will also improve
heating.
Select the oor mode and set the fan at the highest
speed when rst starting your vehicle to help clear
the air intake ducts of moisture or snow. This
will also help to remove fog from the windows.
Keep the path under the front seats clear of objects
to help circulate the air inside of your vehicle more
effectively.
3-26
