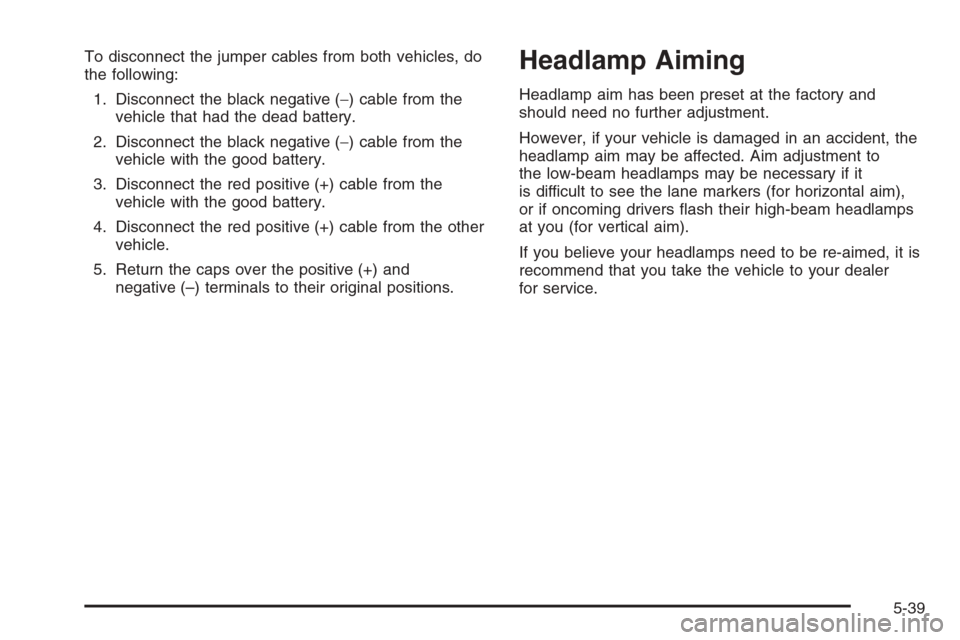

To disconnect the jumper cables from both vehicles, do
the following:
1. Disconnect the black negative (−) cable from the
vehicle that had the dead battery.
2. Disconnect the black negative (−) cable from the
vehicle with the good battery.
3. Disconnect the red positive (+) cable from the
vehicle with the good battery.
4. Disconnect the red positive (+) cable from the other
vehicle.
5. Return the caps over the positive (+) and
negative (–) terminals to their original positions.Headlamp Aiming
Headlamp aim has been preset at the factory and
should need no further adjustment.
However, if your vehicle is damaged in an accident, the
headlamp aim may be affected. Aim adjustment to
the low-beam headlamps may be necessary if it
is difficult to see the lane markers (for horizontal aim),
or if oncoming drivers flash their high-beam headlamps
at you (for vertical aim).
If you believe your headlamps need to be re-aimed, it is
recommend that you take the vehicle to your dealer
for service.
5-39

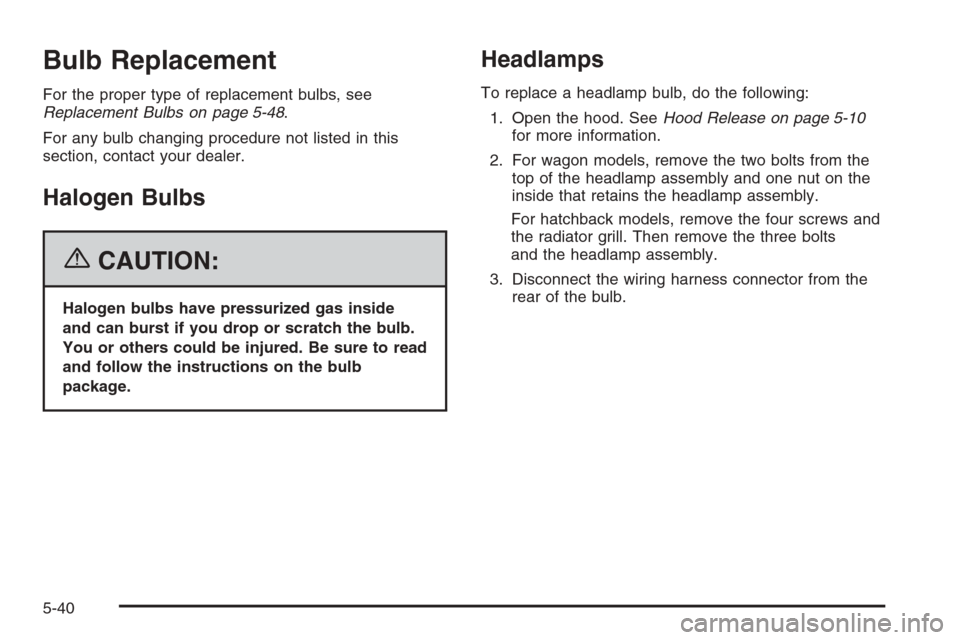

Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 5-48.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside
and can burst if you drop or scratch the bulb.
You or others could be injured. Be sure to read
and follow the instructions on the bulb
package.
Headlamps
To replace a headlamp bulb, do the following:
1. Open the hood. SeeHood Release on page 5-10
for more information.
2. For wagon models, remove the two bolts from the
top of the headlamp assembly and one nut on the
inside that retains the headlamp assembly.
For hatchback models, remove the four screws and
the radiator grill. Then remove the three bolts
and the headlamp assembly.
3. Disconnect the wiring harness connector from the
rear of the bulb.
5-40

4. Remove the headlamp cap (A for the low-beam or
B for the high-beam headlamp) by turning it
counterclockwise.
5. Release the spring that retains the bulb.
6. Remove the old bulb.
7. Install a new bulb.
8. Reverse Steps 1 through 5 to install the headlamp
assembly. Wagon Models
Hatchback Models
5-41

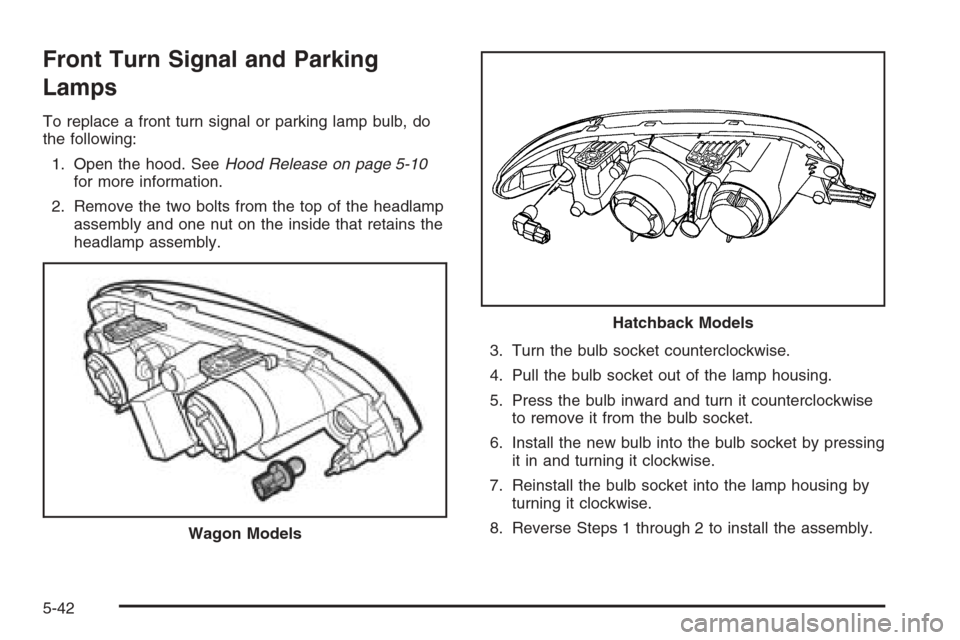

Front Turn Signal and Parking
Lamps
To replace a front turn signal or parking lamp bulb, do
the following:
1. Open the hood. SeeHood Release on page 5-10
for more information.
2. Remove the two bolts from the top of the headlamp
assembly and one nut on the inside that retains the
headlamp assembly.
3. Turn the bulb socket counterclockwise.
4. Pull the bulb socket out of the lamp housing.
5. Press the bulb inward and turn it counterclockwise
to remove it from the bulb socket.
6. Install the new bulb into the bulb socket by pressing
it in and turning it clockwise.
7. Reinstall the bulb socket into the lamp housing by
turning it clockwise.
8. Reverse Steps 1 through 2 to install the assembly.
Wagon Models
Hatchback Models
5-42

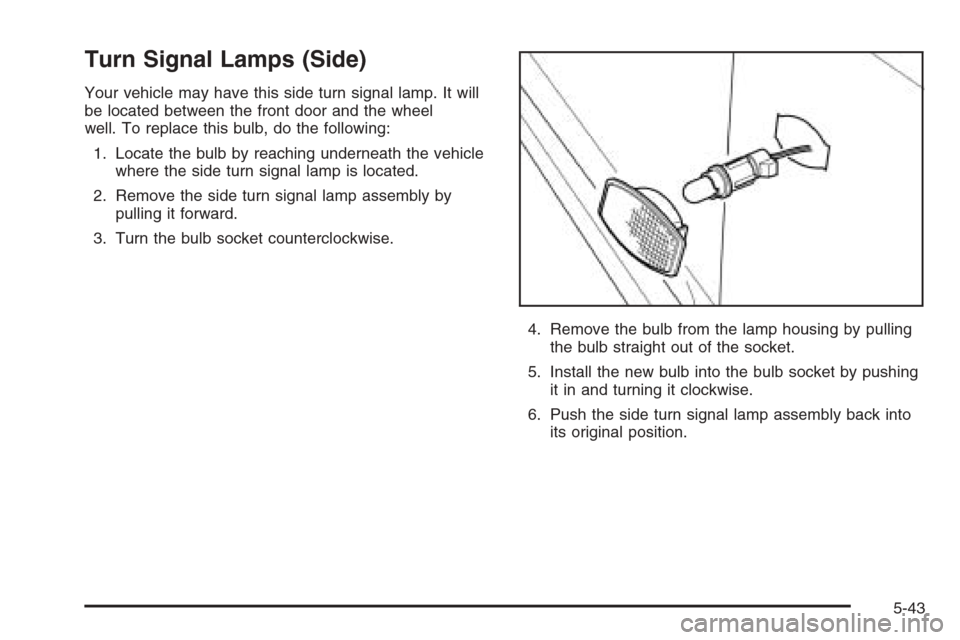

Turn Signal Lamps (Side)
Your vehicle may have this side turn signal lamp. It will
be located between the front door and the wheel
well. To replace this bulb, do the following:
1. Locate the bulb by reaching underneath the vehicle
where the side turn signal lamp is located.
2. Remove the side turn signal lamp assembly by
pulling it forward.
3. Turn the bulb socket counterclockwise.
4. Remove the bulb from the lamp housing by pulling
the bulb straight out of the socket.
5. Install the new bulb into the bulb socket by pushing
it in and turning it clockwise.
6. Push the side turn signal lamp assembly back into
its original position.
5-43

Sidemarker Lamps (Front)
To replace a front sidemarker bulb, do the following:
1. Open the hood. SeeHood Release on page 5-10for
more information.
2. Remove the headlamp assembly.
3. Turn the front sidemarker bulb socket
counterclockwise.
4. Pull the front sidemarker bulb socket out of the front
bumper.
5. Pull the old bulb straight out of the bulb socket
6. Push the new bulb straight into the socket.
7. Reverse Steps 1 through 5 to install the assembly.
Sidemarker Lamps (Rear)
To replace a rear sidemarker bulb, do the following:
1. Reach inside of the rear bumper and locate
the socket.
2. Turn the rear sidemarker bulb socket
counterclockwise.
3. Pull the rear sidemarker bulb socket out of the rear
bumper.
4. Pull the old bulb straight out from the bulb socket.
5. Push the new bulb straight into the socket.
6. Reverse Steps 1 through 3 to install the bulb socket.
5-44

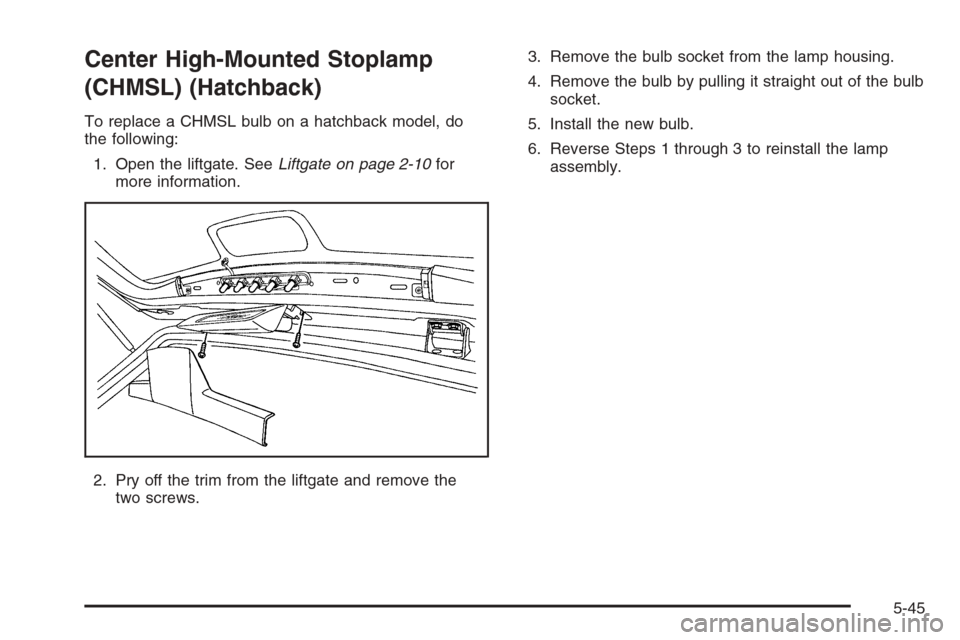

Center High-Mounted Stoplamp
(CHMSL) (Hatchback)
To replace a CHMSL bulb on a hatchback model, do
the following:
1. Open the liftgate. SeeLiftgate on page 2-10for
more information.
2. Pry off the trim from the liftgate and remove the
two screws.3. Remove the bulb socket from the lamp housing.
4. Remove the bulb by pulling it straight out of the bulb
socket.
5. Install the new bulb.
6. Reverse Steps 1 through 3 to reinstall the lamp
assembly.
5-45

Center High-Mounted Stoplamp
(CHMSL) (Wagon)
To replace a CHMSL bulb on a wagon model, do the
following:
1. Open the liftgate. SeeLiftgate on page 2-10for
more information.
2. Remove the two screws and the liftgate trim cover.
3. Remove the bulb socket from the lamp housing.
4. Remove the bulb by pulling it straight out of the bulb
socket.
5. Install the new bulb.
6. Reinstall the liftgate trim cover and secure with the
two screws to secure.
Taillamps, Turn Signal, and
Stoplamps (Hatchback)
To replace one of these bulbs, do the following:
1. Open the liftgate. SeeLiftgate on page 2-10for
more information.
2. Remove the two screws and the taillamp assembly.
3. Remove the bulb socket by turning it
counterclockwise from the taillamp assembly.
4. Remove the bulb from the socket by pressing the
bulb and turning it counterclockwise.
5-46

5. Install the appropriate new bulb into the socket.
6. Reverse Steps 1 through 3 to install the lamp
assembly.

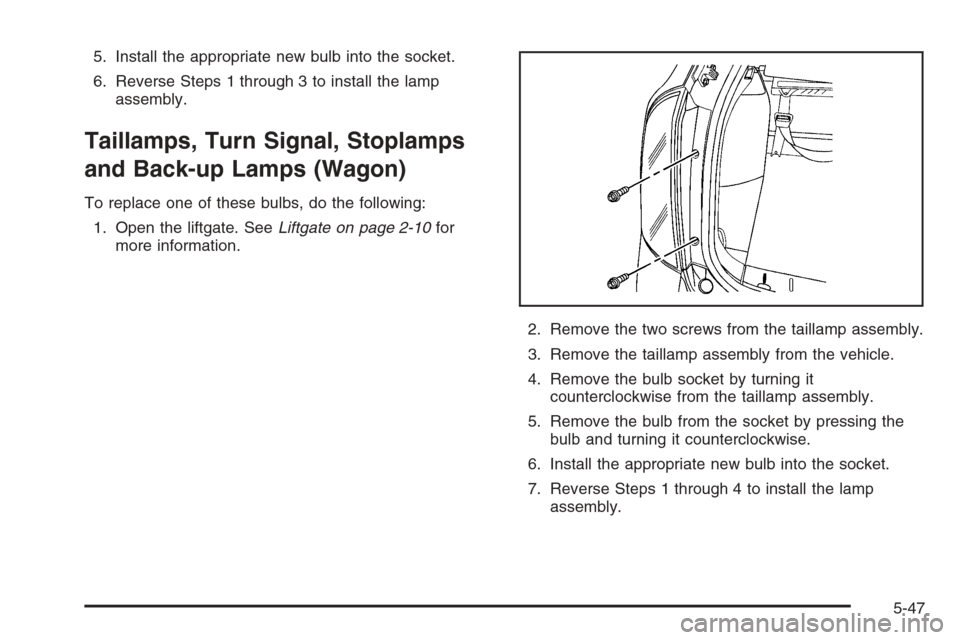

Taillamps, Turn Signal, Stoplamps
and Back-up Lamps (Wagon)
To replace one of these bulbs, do the following:
1. Open the liftgate. SeeLiftgate on page 2-10for
more information.
2. Remove the two screws from the taillamp assembly.
3. Remove the taillamp assembly from the vehicle.
4. Remove the bulb socket by turning it
counterclockwise from the taillamp assembly.
5. Remove the bulb from the socket by pressing the
bulb and turning it counterclockwise.
6. Install the appropriate new bulb into the socket.
7. Reverse Steps 1 through 4 to install the lamp
assembly.
5-47

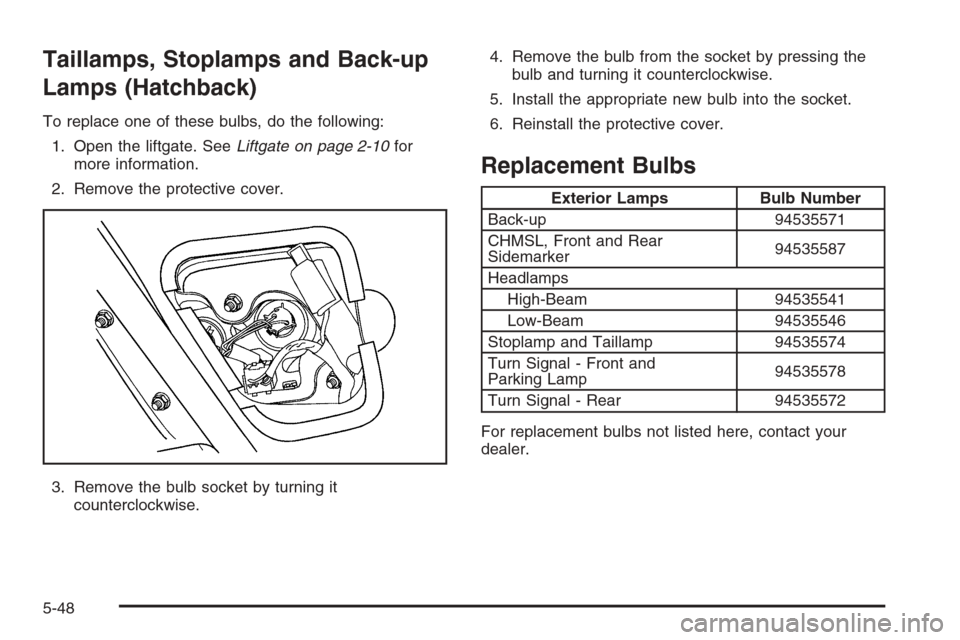

Taillamps, Stoplamps and Back-up
Lamps (Hatchback)
To replace one of these bulbs, do the following:
1. Open the liftgate. SeeLiftgate on page 2-10for
more information.
2. Remove the protective cover.
3. Remove the bulb socket by turning it
counterclockwise.4. Remove the bulb from the socket by pressing the
bulb and turning it counterclockwise.
5. Install the appropriate new bulb into the socket.
6. Reinstall the protective cover.
Replacement Bulbs
Exterior Lamps Bulb Number
Back-up 94535571
CHMSL, Front and Rear
Sidemarker94535587
Headlamps
High-Beam 94535541
Low-Beam 94535546
Stoplamp and Taillamp 94535574
Turn Signal - Front and
Parking Lamp94535578
Turn Signal - Rear 94535572
For replacement bulbs not listed here, contact your
dealer.
