CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual
Manufacturer: CHEVROLET, Model Year: 1993, Model line: PLYMOUTH ACCLAIM, Model: CHEVROLET PLYMOUTH ACCLAIM 1993Pages: 2438, PDF Size: 74.98 MB
Page 911 of 2438

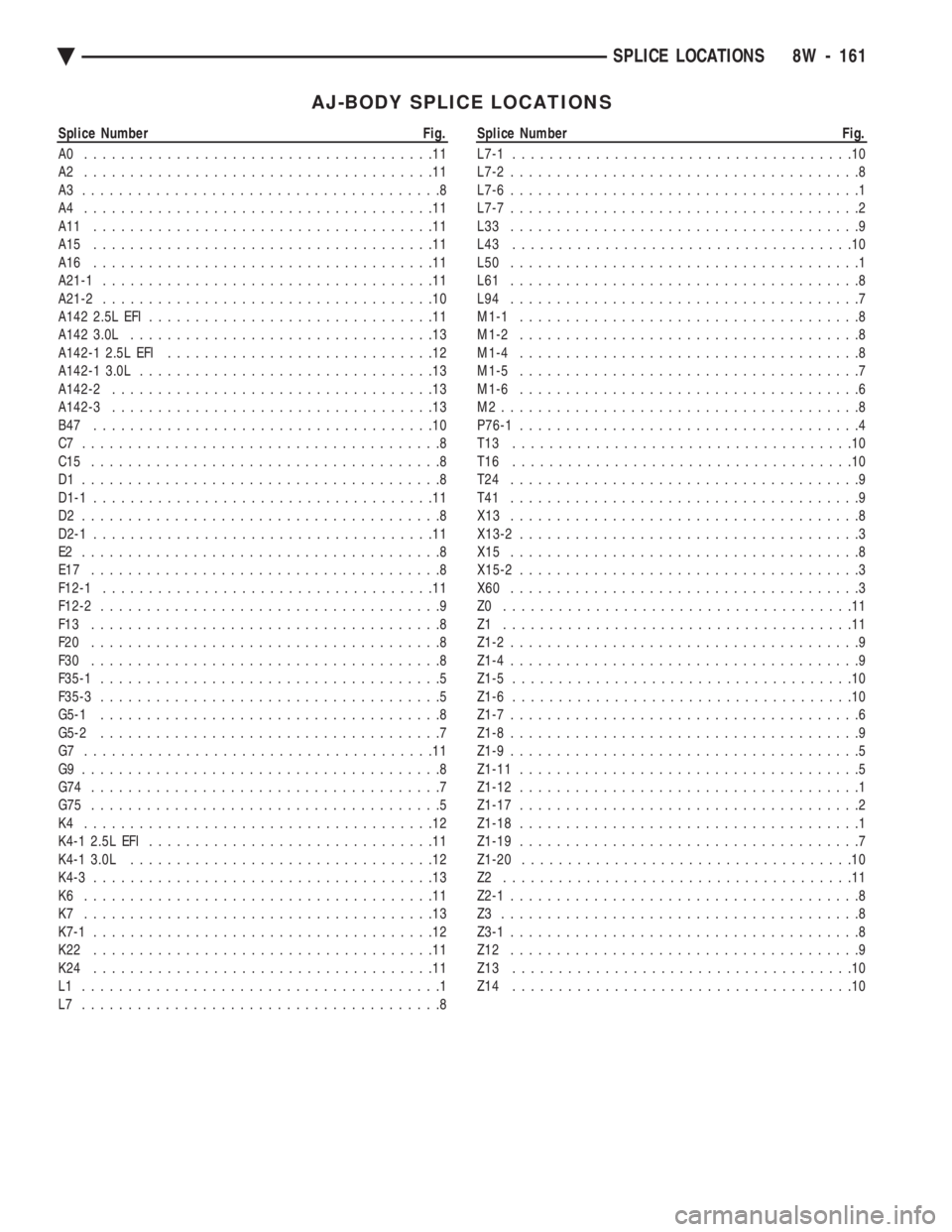

AJ-BODY SPLICE LOCATIONS
Splice Number Fig.
A0 ......................................11
A2 ......................................11
A3 .......................................8
A4 ......................................11
A11 .....................................11
A15 .....................................11
A16 .....................................11
A21-1 ....................................11
A21-2 ....................................10
A142 2.5L EFI ...............................11
A142 3.0L .................................13
A142-1 2.5L EFI .............................12
A142-1 3.0L ................................13
A142-2 ...................................13
A142-3 ...................................13
B47 .....................................10
C7 .......................................8
C15 ......................................8
D1 .......................................8
D1-1 .....................................11
D2 .......................................8
D2-1 .....................................11
E2 .......................................8
E17 ......................................8
F12-1 ....................................11
F12-2 .....................................9
F13 ......................................8
F20 ......................................8
F30 ......................................8
F35-1 .....................................5
F35-3 .....................................5
G5-1 .....................................8
G5-2 .....................................7
G7 ......................................11
G9 .......................................8
G74 ......................................7
G75 ......................................5
K4 ......................................12
K4-1 2.5L EFI ...............................11
K4-1 3.0L .................................12
K4-3 .....................................13
K6 ......................................11
K7 ......................................13
K7-1 .....................................12
K22 .....................................11
K24 .....................................11
L1 .......................................1
L7 .......................................8Splice Number Fig.
L7-1 .....................................10
L7-2 ......................................8
L7-6 ......................................1
L7-7 ......................................2
L33 ......................................9
L43 .....................................10
L50 ......................................1
L61 ......................................8
L94 ......................................7
M1-1 .....................................8
M1-2 .....................................8
M1-4 .....................................8
M1-5 .....................................7
M1-6 .....................................6
M2.......................................8
P76-1 .....................................4
T13 .....................................10
T16 .....................................10
T24 ......................................9
T41 ......................................9
X13 ......................................8
X13-2 .....................................3
X15 ......................................8
X15-2 .....................................3
X60 ......................................3
Z0 ......................................11
Z1 ......................................11
Z1-2 ......................................9
Z1-4 ......................................9
Z1-5 .....................................10
Z1-6 .....................................10
Z1-7 ......................................6
Z1-8 ......................................9
Z1-9 ......................................5
Z1-11 .....................................5
Z1-12 .....................................1
Z1-17 .....................................2
Z1-18 .....................................1
Z1-19 .....................................7
Z1-20 ....................................10
Z2 ......................................11
Z2-1 ......................................8
Z3 .......................................8
Z3-1 ......................................8
Z12 ......................................9
Z13 .....................................10
Z14 .....................................10
Ä SPLICE LOCATIONS 8W - 161
Page 912 of 2438

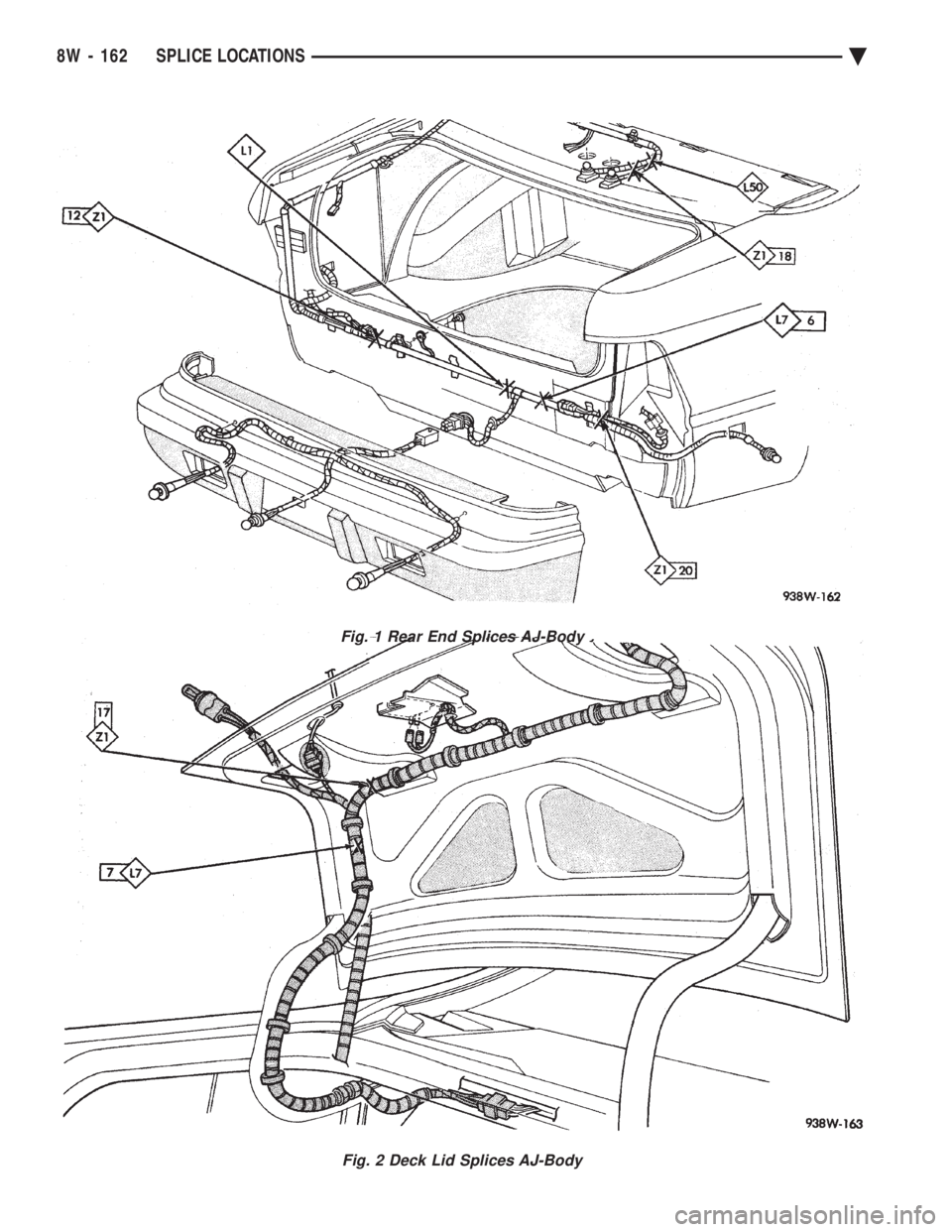

Fig. 1 Rear End Splices AJ-Body
Fig. 2 Deck Lid Splices AJ-Body
8W - 162 SPLICE LOCATIONS Ä
Page 913 of 2438
Fig. 3 Body Splices (Right Side) AJ-Body
Fig. 4 Door Splices
Ä SPLICE LOCATIONS 8W - 163
Page 914 of 2438
Fig. 5 Cowl Panel Splices AJ-Body
Fig. 6 Cowl Panel Splices (Left Side) AJ-Body
8W - 164 SPLICE LOCATIONS Ä
Page 915 of 2438
Fig. 7 Cowl Panel Splices (Right Side) AJ-Body
Fig. 8 Instrument Panel Splices AJ-Body
Ä SPLICE LOCATIONS 8W - 165
Page 916 of 2438
Fig. 9 Engine Compartment Splices AJ-Body
Fig. 10 Engine Compartment Splices AJ-Body
8W - 166 SPLICE LOCATIONS Ä
Page 917 of 2438
Fig. 11 Engine Compartment Splices AJ-Body
Ä SPLICE LOCATIONS 8W - 167
Page 918 of 2438

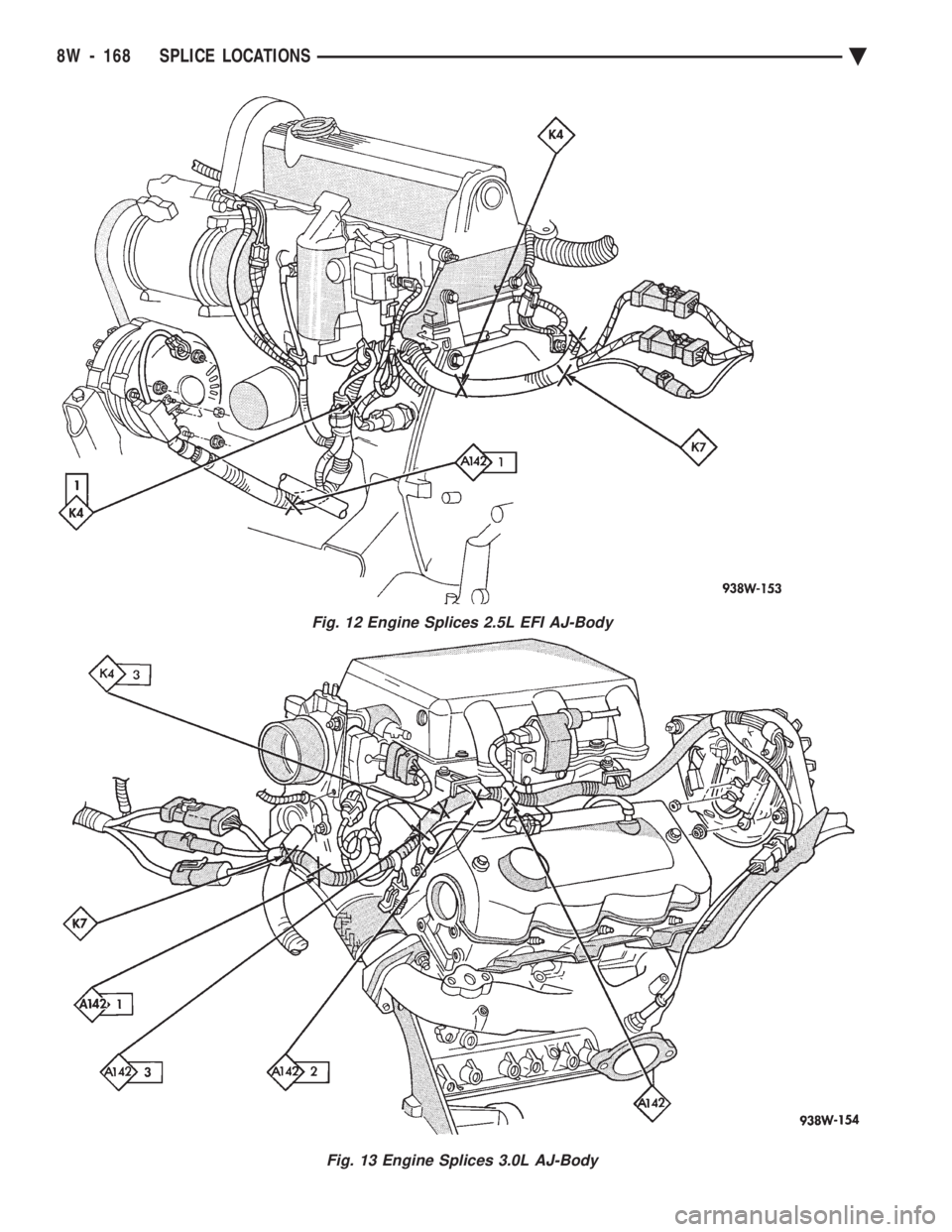

Fig. 12 Engine Splices 2.5L EFI AJ-Body
Fig. 13 Engine Splices 3.0L AJ-Body
8W - 168 SPLICE LOCATIONS Ä
Page 919 of 2438
AP-BODY SPLICE LOCATIONS
Splice Number Fig.
A0-1 2.2L-2.5L ...............................7
A0-1 3.0L ..................................8
A0-2 2.2L-2.5L ...............................7
A0-2 3.0L ..................................8
A1 2.2L-2.5L ................................7
A1 3.0L ....................................8
A3 .......................................3
A4 .......................................3
A10 2.2L-2.5L ...............................7
A10 3.0L ...................................8
A14 2.2L-2.5L ...............................7
A14 3.0L ...................................8
A14-1 2.2L-2.5L ..............................7
A14-2 3.0L .................................8
A16 3.0L ...................................8
A20 2.2L-2.5L ...............................7
A20 3.0L ...................................8
A21 ......................................3
A21 3.0L ...................................8
A21-1 2.2L-2.5L ..............................7
A21-1 3.0L .................................8
A21-2 2.2L-2.5L ..............................7
A21-2 3.0L .................................8
A142-1 2.2L-2.5L .............................7
A142-1 3.0L ................................11
A142-2 2.2L-2.5L .............................10
A142-2 3.0L ................................11
B47 2.2L-2.5L ...............................7
B47 3.0L ...................................8
C7 .......................................3
D1 3.0L ...................................8
D2 3.0L ...................................8
E2 .......................................3
E2-1 ......................................3
F20 ......................................3
F20-1 2.2L-2.5L ..............................7
F20-1 3.0L ..................................8
F30 ......................................3
F35 ......................................6
G5 .......................................3
G7 2.2L-2.5L ................................7
G7 3.0L ...................................8
K4 2.2L-2.5L ...............................10
K4-1 2.2L-2.5L ...............................7
K4-1 3.0L ..................................8
K4-3 3.0L .................................11
K6 2.2L-2.5L ...............................10
K6 3.0L ...................................11
K7-1 2.2L-2.5L ...............................7
K7-1 3.0L ..................................8
K22 3.0L ...................................8
K24 3.0L ...................................8
L3 2.2L-2.5L ................................7
L3 3.0L ....................................8
L4 2.2L-2.5L ................................7
L4 3.0L ....................................8Splice Number Fig.
L7-1 2.2L-2.5L ...............................7
L7-1 3.0L ..................................8
L7-2 2.2L-2.5L ...............................7
L7-2 3.0L ..................................8
L7-3 ......................................3
L7-4 ......................................1
L7-5 2.2L-2.5L ...............................7
L7-5 3.0L ..................................8
L20 ......................................3
L39 2.2L-2.5L ................................7
L39 3.0L ...................................8
L50 ......................................3
L60 2.2L-2.5L ................................7
L60 3.0L ...................................8
L60-1 .....................................3
L61 2.2L-2.5L ................................7
L61 3.0L ...................................8
L61-1 .....................................3
M1-1 .....................................3
M1-3 .....................................5
M2-1 .....................................5
M2-2 .....................................4
P33 ......................................6
P34 ......................................6
Q1 .......................................6
T13 ......................................9
T16 ......................................9
T41 ......................................9
T41-1 3.0L ..................................8
X2 2.2L-2.5L ................................7
X2 3.0L ....................................8
X2-1 2.2L-2.5L ...............................7
X2-1 3.0L ..................................8
X13 ......................................6
X15 ......................................6
Z0 2.2L-2.5L ................................10
Z0-1 2.2L-2.5L ..............................10
Z0-2 3.0L ..................................8
Z1 .......................................5
Z1-1 ......................................3
Z1-2 2.2L-2.5L ...............................7
Z1-2 3.0L ..................................8
Z1-3 2.2L-2.5L ...............................7
Z1-3 3.0L ..................................8
Z1-4 2.2L-2.5L ...............................7
Z1-5 ......................................6
Z1-6 ......................................3
Z1-7 ......................................4
Z1-8 ......................................2
Z1-10 2.2L-2.5L ..............................7
Z1-10 3.0L ..................................8
Z1-11 2.2L-2.5L ..............................7
Z1-11 3.0L ..................................8
Z1-12 .....................................1
Z1-13 2.2L-2.5L ..............................7
Z1-13 3.0L ..................................8
Ä SPLICE LOCATIONS 8W - 169
Page 920 of 2438
Splice Number Fig.
Z1-14 2.2l-2.5L ...............................7
Z1-14 3.0L ..................................8
Z2 .......................................3
Z12 2.2L-2.5L ................................7
Z12 3.0L ...................................8Splice Number Fig.
Z13 ......................................9
Z14 3.0L ...................................8
Z14 3.0L ...................................8
8W - 170 SPLICE LOCATIONS Ä
