CHEVROLET PLYMOUTH ACCLAIM 1993 Service Manual
Manufacturer: CHEVROLET, Model Year: 1993, Model line: PLYMOUTH ACCLAIM, Model: CHEVROLET PLYMOUTH ACCLAIM 1993Pages: 2438, PDF Size: 74.98 MB
Page 881 of 2438
Fig. 1 Rear End Splices AA-Body
Ä SPLICE LOCATIONS 8W - 131
Page 882 of 2438

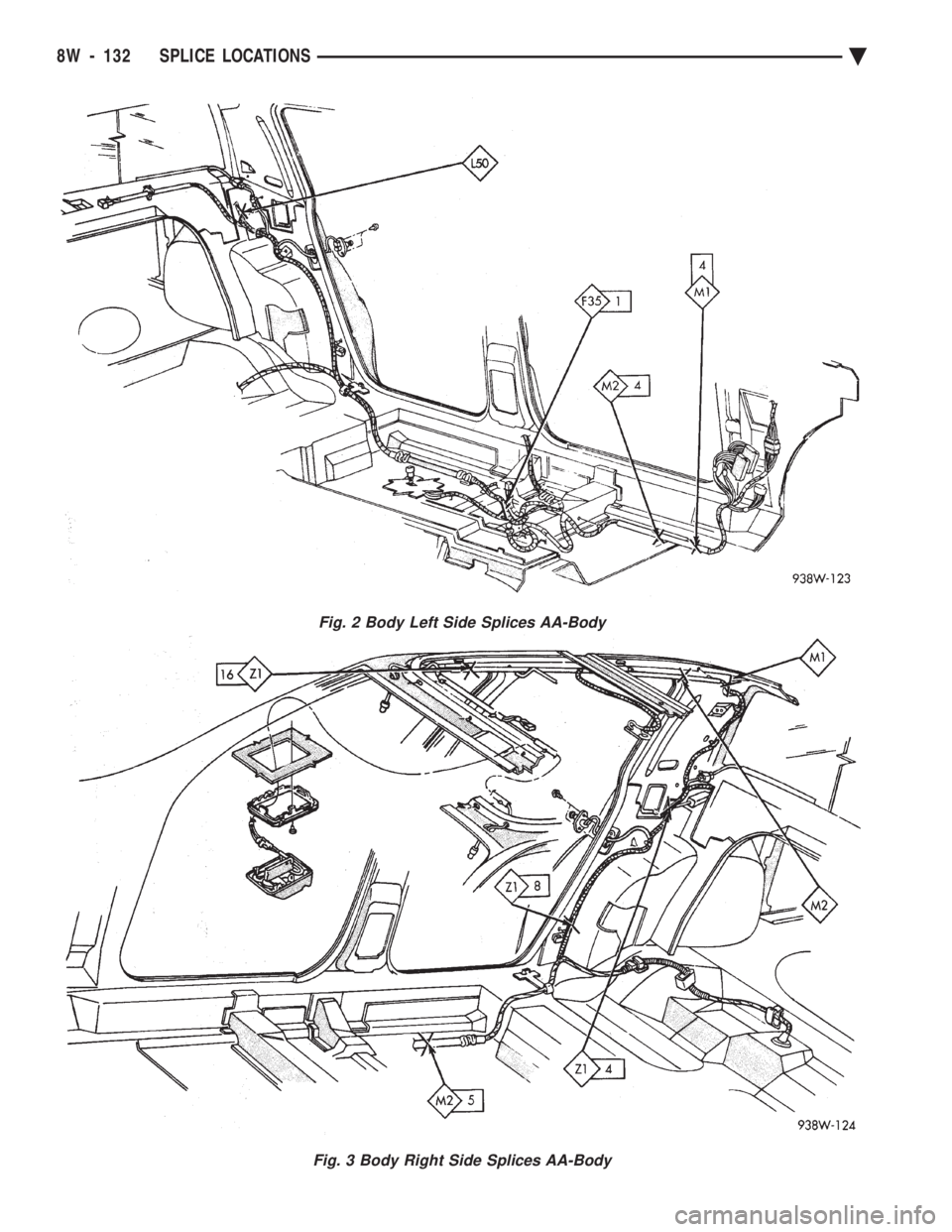

Fig. 2 Body Left Side Splices AA-Body
Fig. 3 Body Right Side Splices AA-Body
8W - 132 SPLICE LOCATIONS Ä
Page 883 of 2438

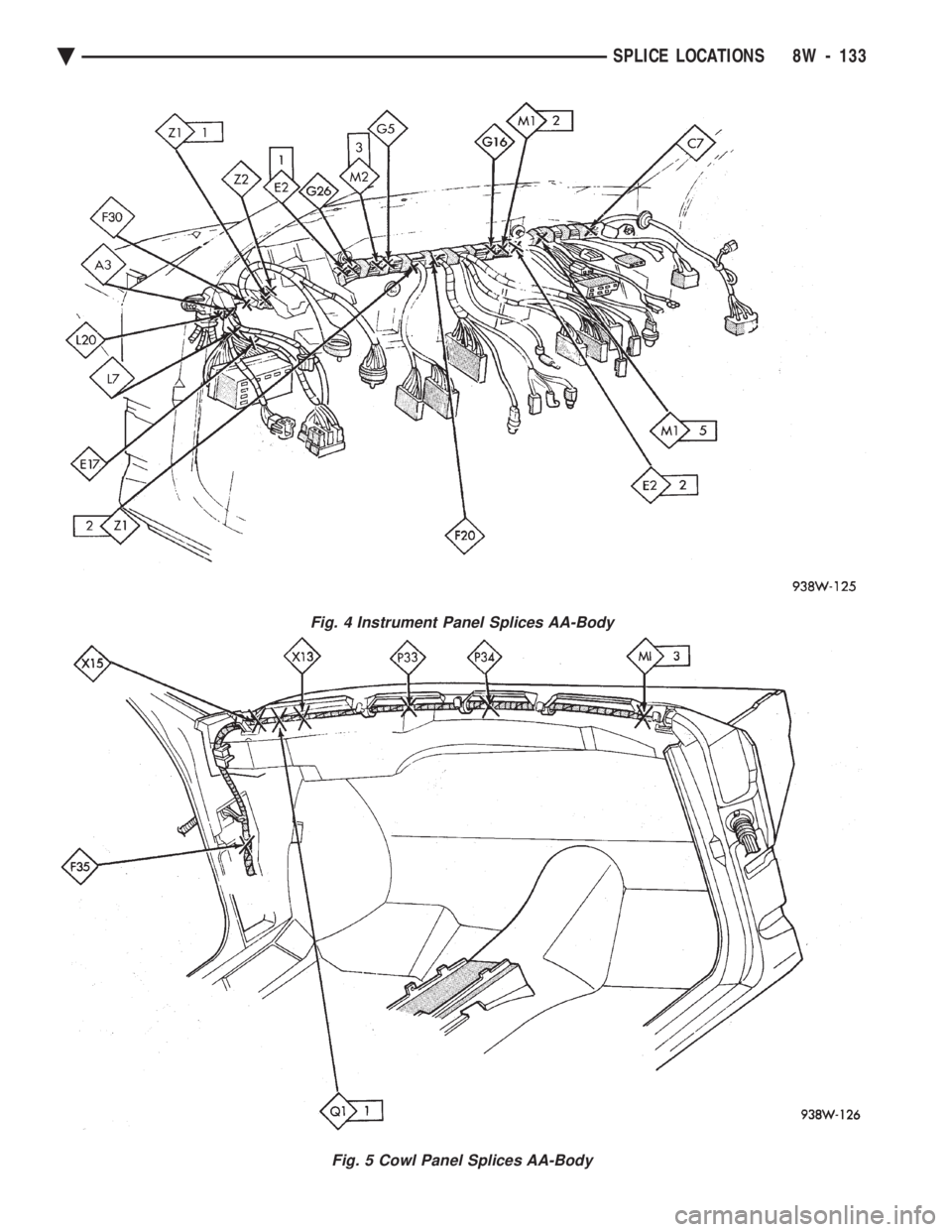

Fig. 4 Instrument Panel Splices AA-Body
Fig. 5 Cowl Panel Splices AA-Body
Ä SPLICE LOCATIONS 8W - 133
Page 884 of 2438

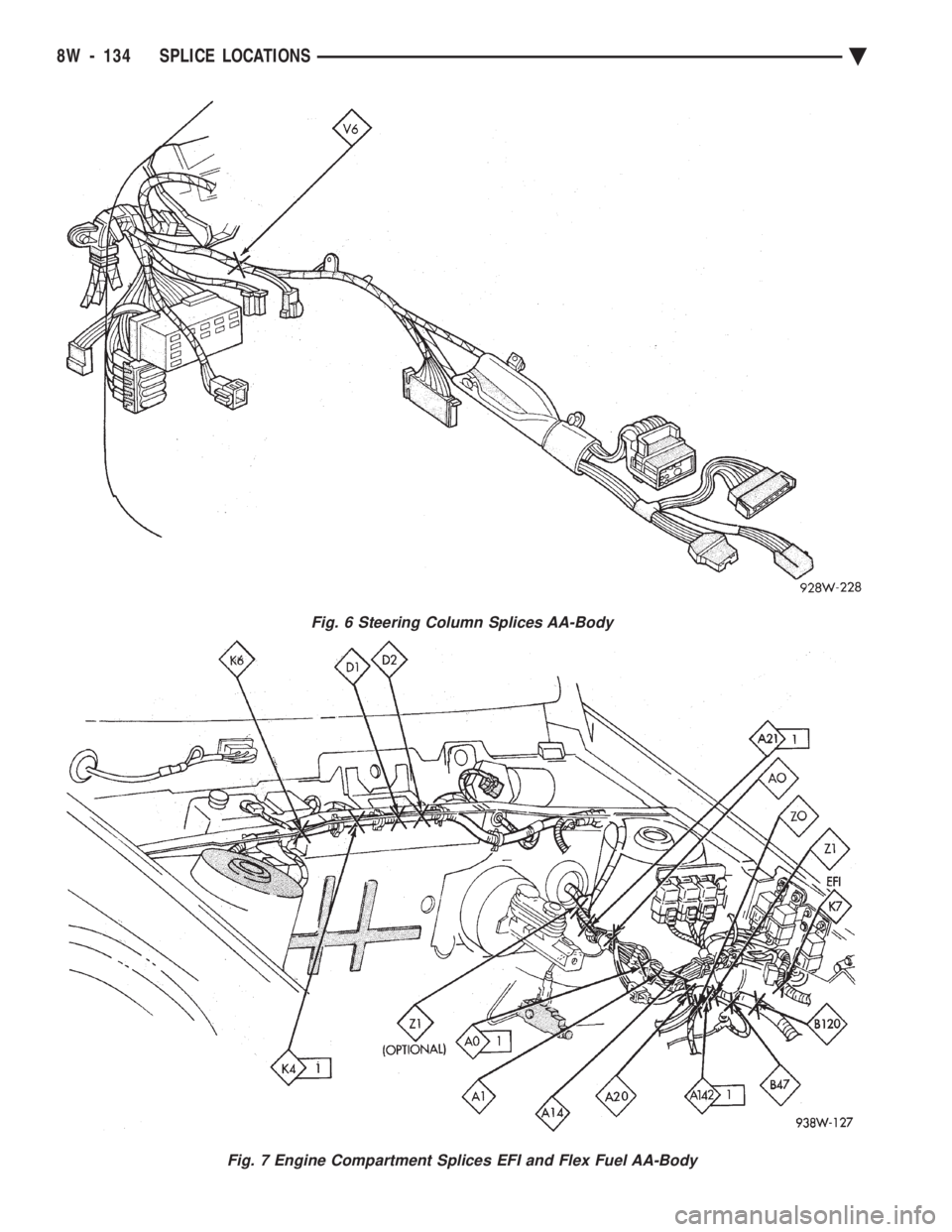

Fig. 6 Steering Column Splices AA-Body
Fig. 7 Engine Compartment Splices EFI and Flex Fuel AA-Body
8W - 134 SPLICE LOCATIONS Ä
Page 885 of 2438

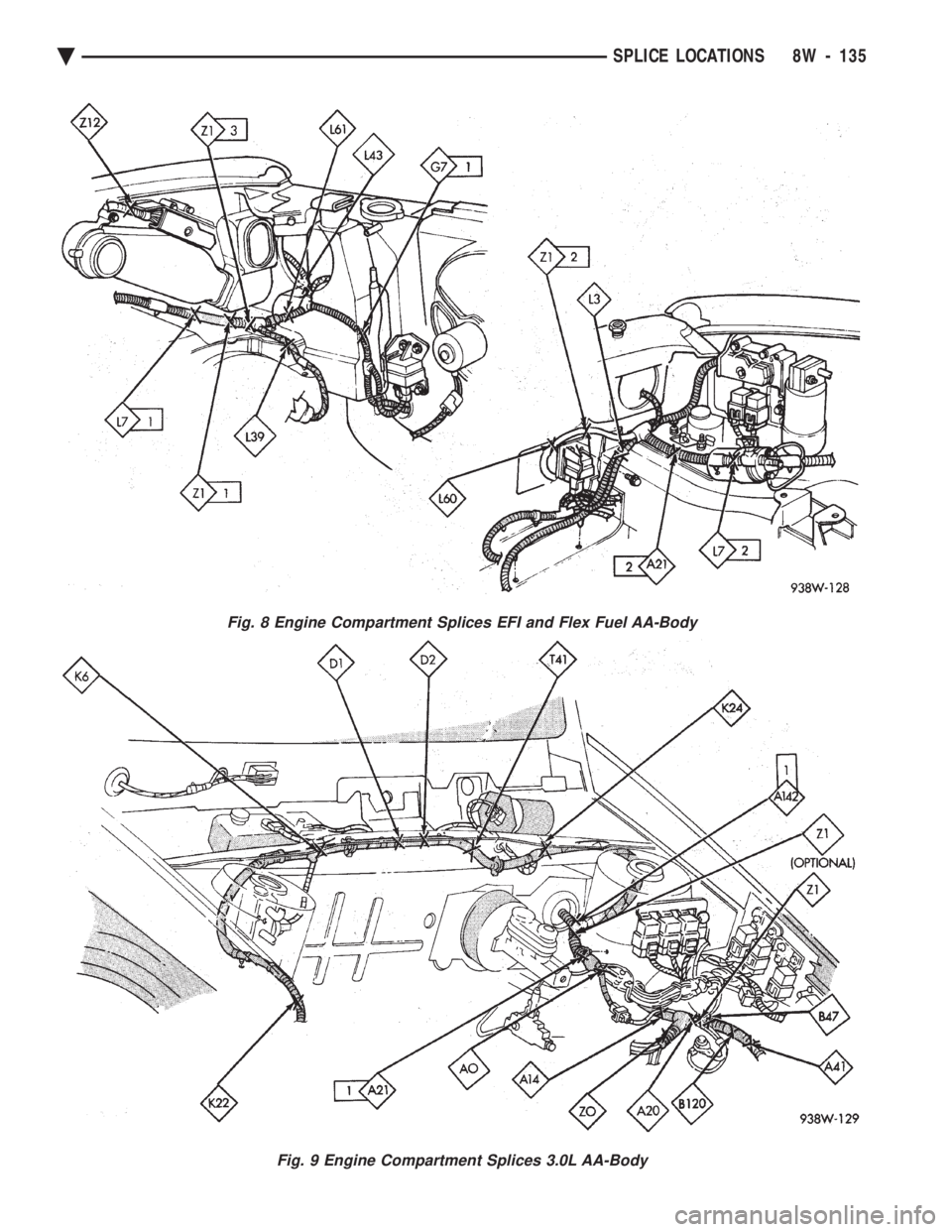

Fig. 8 Engine Compartment Splices EFI and Flex Fuel AA-Body
Fig. 9 Engine Compartment Splices 3.0L AA-Body
Ä SPLICE LOCATIONS 8W - 135
Page 886 of 2438

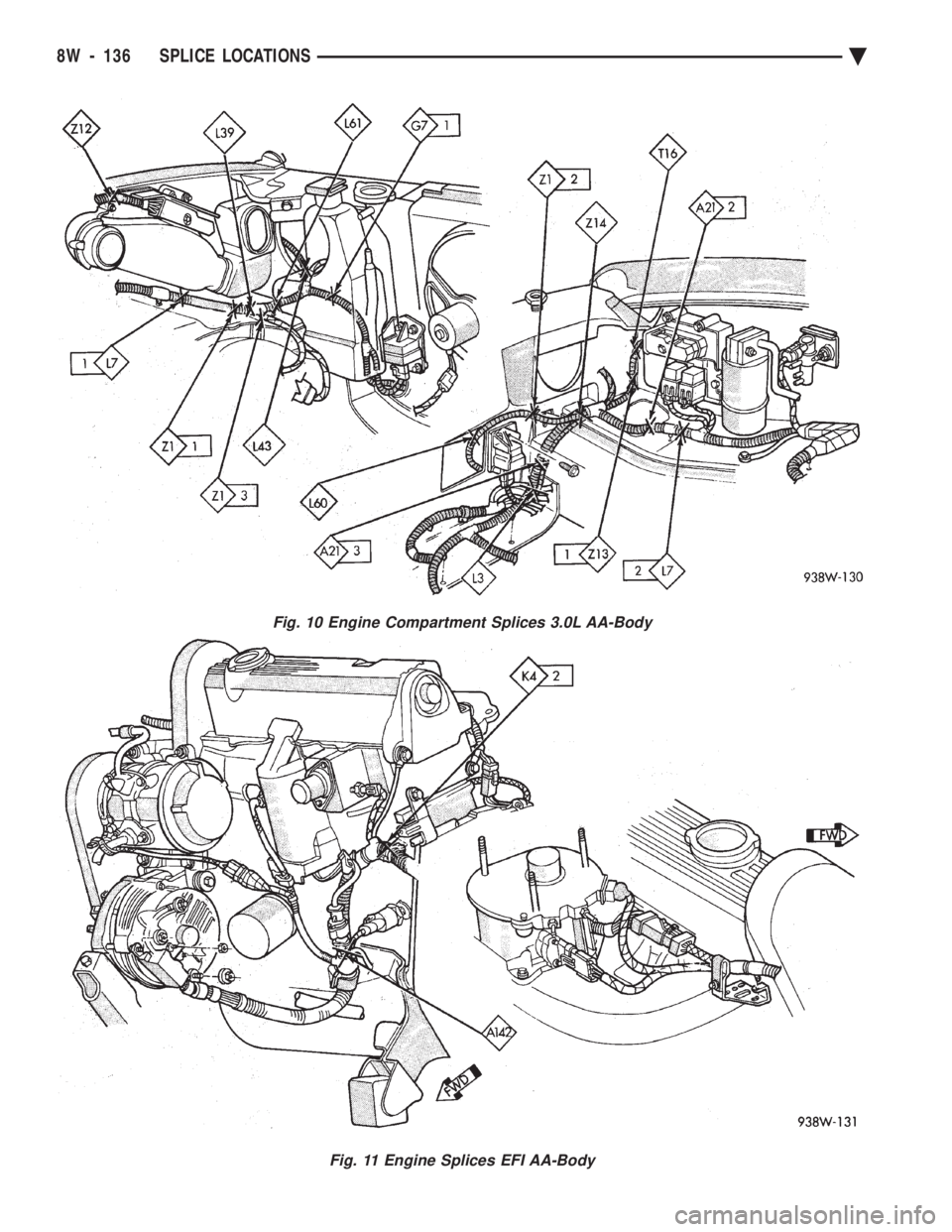

Fig. 10 Engine Compartment Splices 3.0L AA-Body
Fig. 11 Engine Splices EFI AA-Body
8W - 136 SPLICE LOCATIONS Ä
Page 887 of 2438

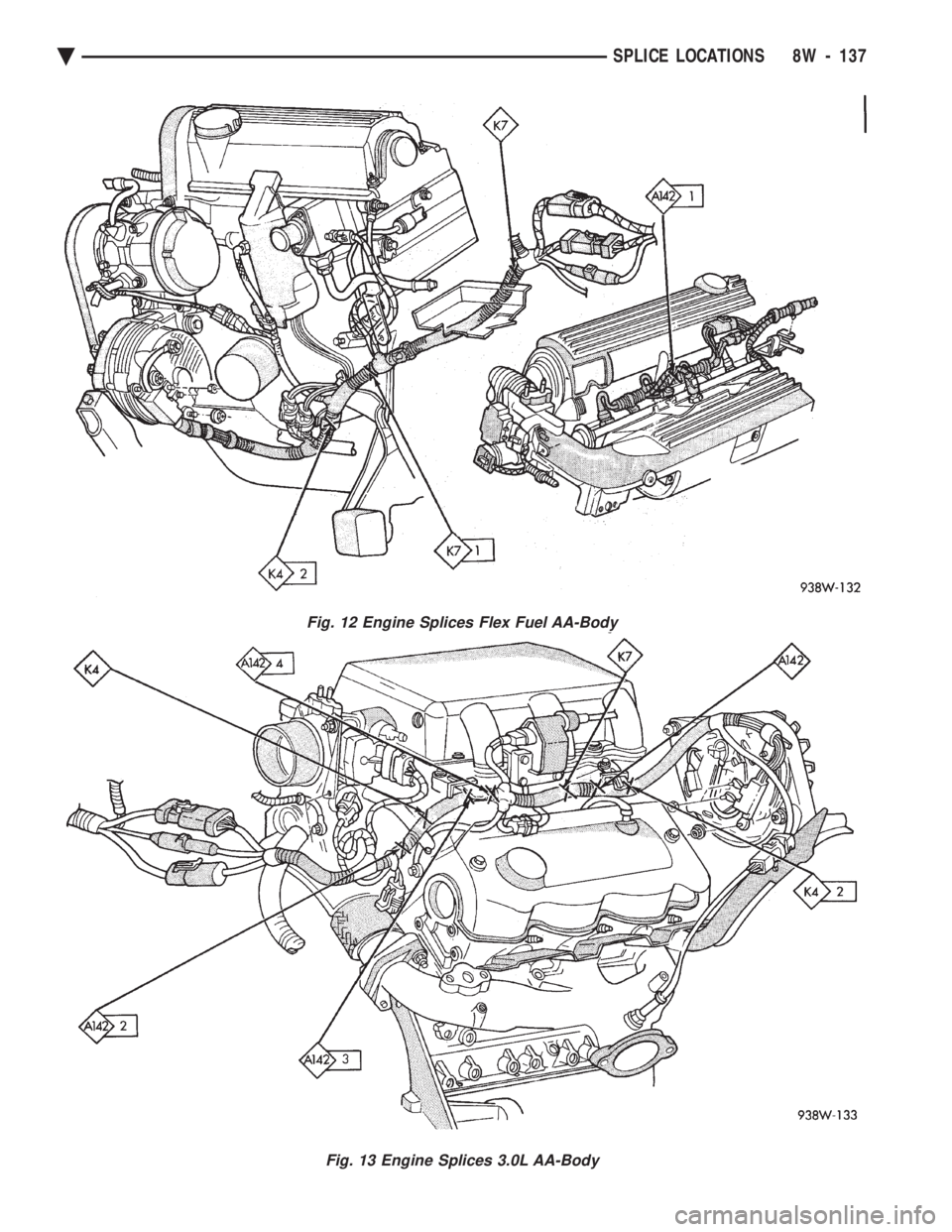

Fig. 12 Engine Splices Flex Fuel AA-Body
Fig. 13 Engine Splices 3.0L AA-Body
Ä SPLICE LOCATIONS 8W - 137
Page 888 of 2438

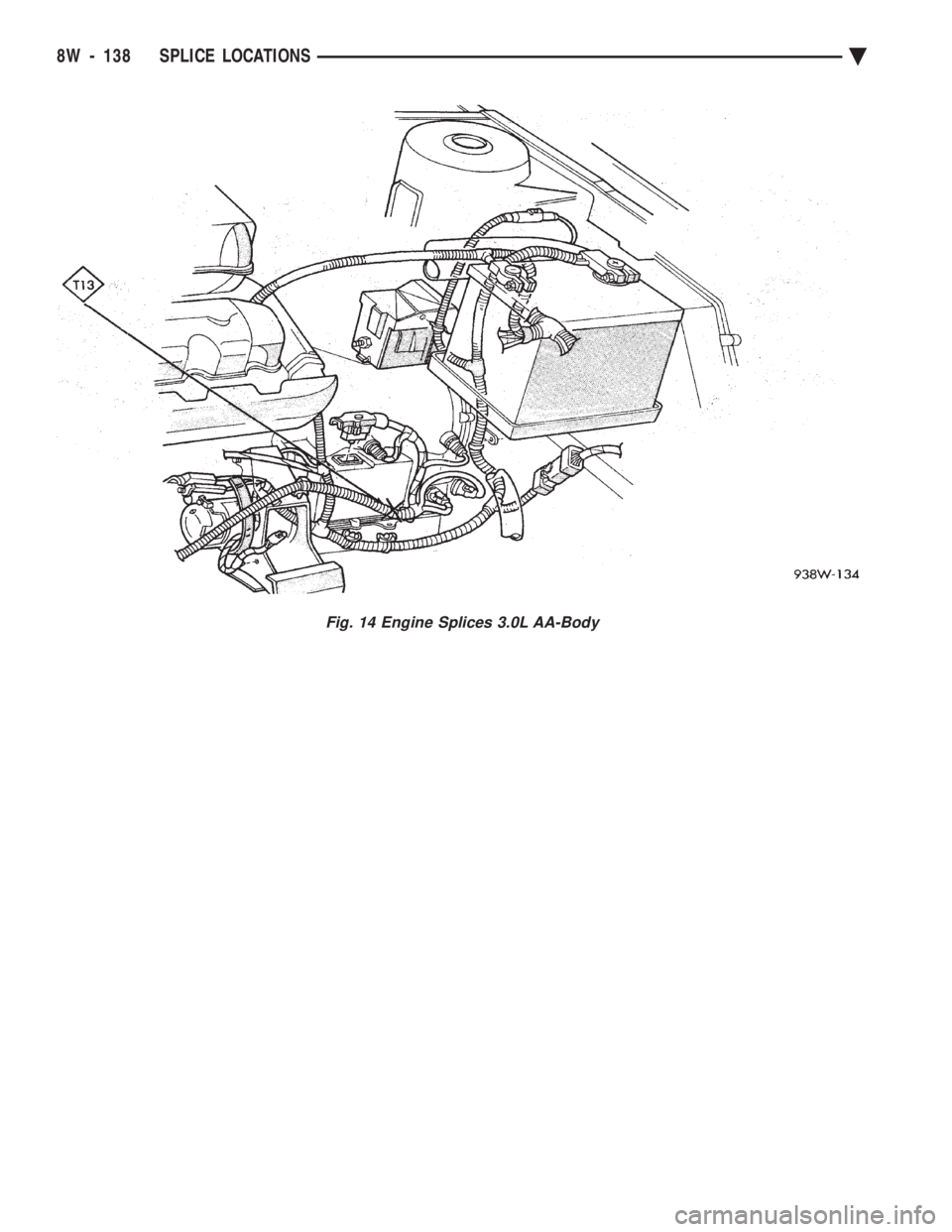

Fig. 14 Engine Splices 3.0L AA-Body
8W - 138 SPLICE LOCATIONS Ä
Page 889 of 2438

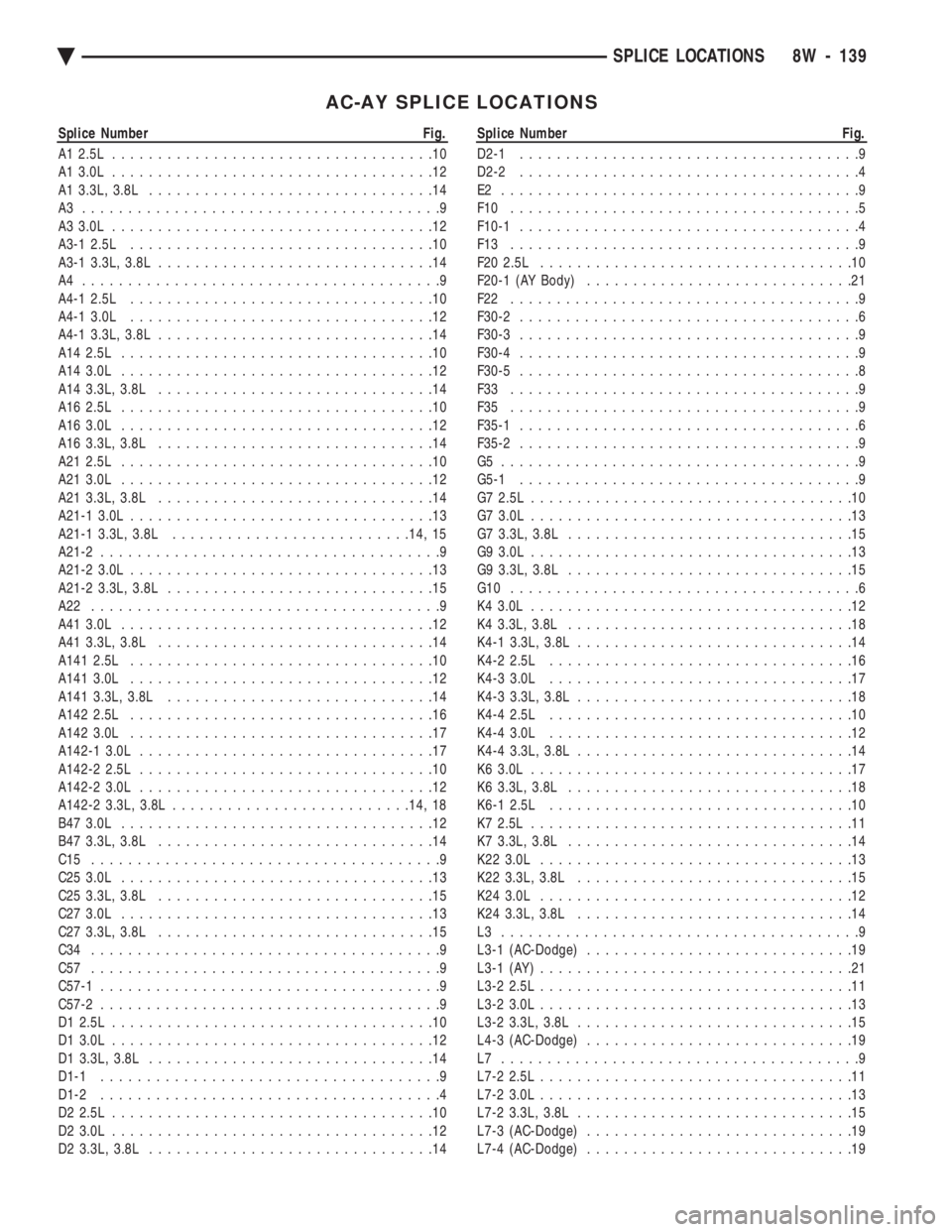

AC-AY SPLICE LOCATIONS
Splice Number Fig.
A1 2.5L ...................................10
A1 3.0L ...................................12
A1 3.3L, 3.8L ...............................14
A3 .......................................9
A3 3.0L ...................................12
A3-1 2.5L .................................10
A3-1 3.3L, 3.8L ..............................14
A4 .......................................9
A4-1 2.5L .................................10
A4-1 3.0L .................................12
A4-1 3.3L, 3.8L ..............................14
A14 2.5L ..................................10
A14 3.0L ..................................12
A14 3.3L, 3.8L ..............................14
A16 2.5L ..................................10
A16 3.0L ..................................12
A16 3.3L, 3.8L ..............................14
A21 2.5L ..................................10
A21 3.0L ..................................12
A21 3.3L, 3.8L ..............................14
A21-1 3.0L .................................13
A21-1 3.3L, 3.8L ......................... .14, 15
A21-2 .....................................9
A21-2 3.0L .................................13
A21-2 3.3L, 3.8L .............................15
A22 ......................................9
A41 3.0L ..................................12
A41 3.3L, 3.8L ..............................14
A141 2.5L .................................10
A141 3.0L .................................12
A141 3.3L, 3.8L .............................14
A142 2.5L .................................16
A142 3.0L .................................17
A142-1 3.0L ................................17
A142-2 2.5L ................................10
A142-2 3.0L ................................12
A142-2 3.3L, 3.8L ......................... .14, 18
B47 3.0L ..................................12
B47 3.3L, 3.8L ..............................14
C15 ......................................9
C25 3.0L ..................................13
C25 3.3L, 3.8L ..............................15
C27 3.0L ..................................13
C27 3.3L, 3.8L ..............................15
C34 ......................................9
C57 ......................................9
C57-1 .....................................9
C57-2 .....................................9
D1 2.5L ...................................10
D1 3.0L ...................................12
D1 3.3L, 3.8L ...............................14
D1-1 .....................................9
D1-2 .....................................4
D2 2.5L ...................................10
D2 3.0L ...................................12
D2 3.3L, 3.8L ...............................14Splice Number Fig.
D2-1 .....................................9
D2-2 .....................................4
E2 .......................................9
F10 ......................................5
F10-1 .....................................4
F13 ......................................9
F20 2.5L ..................................10
F20-1 (AY Body) .............................21
F22 ......................................9
F30-2 .....................................6
F30-3 .....................................9
F30-4 .....................................9
F30-5 .....................................8
F33 ......................................9
F35 ......................................9
F35-1 .....................................6
F35-2 .....................................9
G5 .......................................9
G5-1 .....................................9
G7 2.5L ...................................10
G7 3.0L ...................................13
G7 3.3L, 3.8L ...............................15
G9 3.0L ...................................13
G9 3.3L, 3.8L ...............................15
G10 ......................................6
K4 3.0L ...................................12
K4 3.3L, 3.8L ...............................18
K4-1 3.3L, 3.8L ..............................14
K4-2 2.5L .................................16
K4-3 3.0L .................................17
K4-3 3.3L, 3.8L ..............................18
K4-4 2.5L .................................10
K4-4 3.0L .................................12
K4-4 3.3L, 3.8L ..............................14
K6 3.0L ...................................17
K6 3.3L, 3.8L ...............................18
K6-1 2.5L .................................10
K7 2.5L ...................................11
K7 3.3L, 3.8L ...............................14
K22 3.0L ..................................13
K22 3.3L, 3.8L ..............................15
K24 3.0L ..................................12
K24 3.3L, 3.8L ..............................14
L3 .......................................9
L3-1 (AC-Dodge) .............................19
L3-1 (AY) ..................................21
L3-2 2.5L ..................................11
L3-2 3.0L ..................................13
L3-2 3.3L, 3.8L ..............................15
L4-3 (AC-Dodge) .............................19
L7 .......................................9
L7-2 2.5L ..................................11
L7-2 3.0L ..................................13
L7-2 3.3L, 3.8L ..............................15
L7-3 (AC-Dodge) .............................19
L7-4 (AC-Dodge) .............................19
Ä SPLICE LOCATIONS 8W - 139
Page 890 of 2438

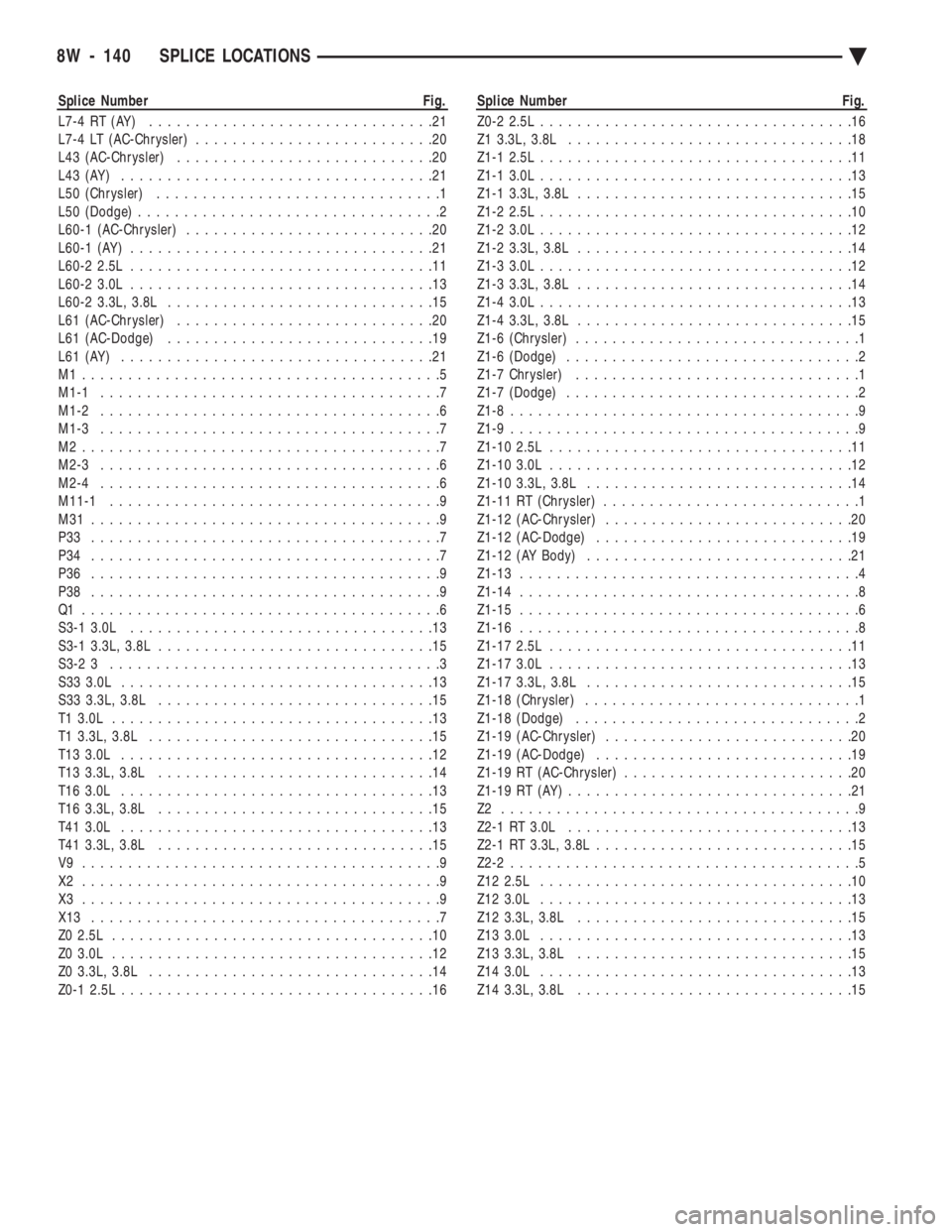

Splice Number Fig.
L7-4 RT (AY) ...............................21
L7-4 LT (AC-Chrysler) ..........................20
L43 (AC-Chrysler) ............................20
L43(AY) ..................................21
L50 (Chrysler) ...............................1
L50 (Dodge) .................................2
L60-1 (AC-Chrysler) ...........................20
L60-1 (AY) .................................21
L60-2 2.5L .................................11
L60-2 3.0L .................................13
L60-2 3.3L, 3.8L .............................15
L61 (AC-Chrysler) ............................20
L61 (AC-Dodge) .............................19
L61(AY) ..................................21
M1.......................................5
M1-1 .....................................7
M1-2 .....................................6
M1-3 .....................................7
M2.......................................7
M2-3 .....................................6
M2-4 .....................................6
M11-1 ....................................9
M31 ......................................9
P33 ......................................7
P34 ......................................7
P36 ......................................9
P38 ......................................9
Q1 .......................................6
S3-1 3.0L .................................13
S3-1 3.3L, 3.8L ..............................15
S3-2 3 ....................................3
S33 3.0L ..................................13
S33 3.3L, 3.8L ..............................15
T1 3.0L ...................................13
T1 3.3L, 3.8L ...............................15
T13 3.0L ..................................12
T13 3.3L, 3.8L ..............................14
T16 3.0L ..................................13
T16 3.3L, 3.8L ..............................15
T41 3.0L ..................................13
T41 3.3L, 3.8L ..............................15
V9 .......................................9
X2 .......................................9
X3 .......................................9
X13 ......................................7
Z0 2.5L ...................................10
Z0 3.0L ...................................12
Z0 3.3L, 3.8L ...............................14
Z0-1 2.5L ..................................16Splice Number Fig.
Z0-2 2.5L ..................................16
Z1 3.3L, 3.8L ...............................18
Z1-1 2.5L ..................................11
Z1-1 3.0L ..................................13
Z1-1 3.3L, 3.8L ..............................15
Z1-2 2.5L ..................................10
Z1-2 3.0L ..................................12
Z1-2 3.3L, 3.8L ..............................14
Z1-3 3.0L ..................................12
Z1-3 3.3L, 3.8L ..............................14
Z1-4 3.0L ..................................13
Z1-4 3.3L, 3.8L ..............................15
Z1-6 (Chrysler) ...............................1
Z1-6 (Dodge) ................................2
Z1-7 Chrysler) ...............................1
Z1-7 (Dodge) ................................2
Z1-8 ......................................9
Z1-9 ......................................9
Z1-10 2.5L .................................11
Z1-10 3.0L .................................12
Z1-10 3.3L, 3.8L .............................14
Z1-11 RT (Chrysler) ............................1
Z1-12 (AC-Chrysler) ...........................20
Z1-12 (AC-Dodge) ............................19
Z1-12 (AY Body) .............................21
Z1-13 .....................................4
Z1-14 .....................................8
Z1-15 .....................................6
Z1-16 .....................................8
Z1-17 2.5L .................................11
Z1-17 3.0L .................................13
Z1-17 3.3L, 3.8L .............................15
Z1-18 (Chrysler) ..............................1
Z1-18 (Dodge) ...............................2
Z1-19 (AC-Chrysler) ...........................20
Z1-19 (AC-Dodge) ............................19
Z1-19 RT (AC-Chrysler) .........................20
Z1-19 RT (AY) ...............................21
Z2 .......................................9
Z2-1 RT 3.0L ...............................13
Z2-1 RT 3.3L, 3.8L ............................15
Z2-2 ......................................5
Z12 2.5L ..................................10
Z12 3.0L ..................................13
Z12 3.3L, 3.8L ..............................15
Z13 3.0L ..................................13
Z13 3.3L, 3.8L ..............................15
Z14 3.0L ..................................13
Z14 3.3L, 3.8L ..............................15
8W - 140 SPLICE LOCATIONS Ä
