Page 11 of 364
Downloaded from www.Manualslib.com manuals search engine I
I
I
I I
I
I
I
I I l

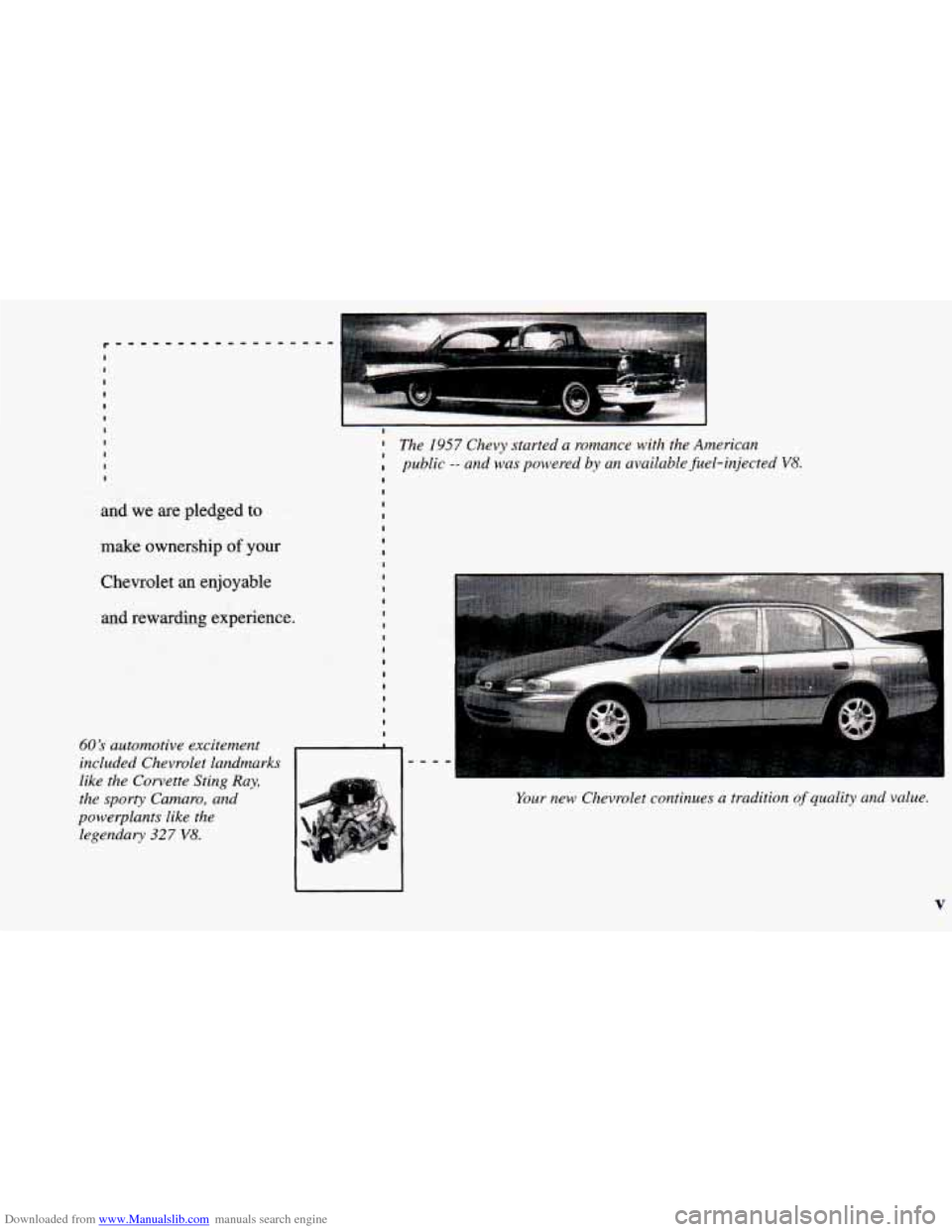

and we are pledged to
make ownership of your
Chevrolet an enjoyable and rewarding experience.
60's automotive excitement
included Chevrolet landmarks
like the Corvette Sting Ray,
the sporty Camaro, and
powerplants like the
legendary
327 V8.
L
I The 1957 Chevy started a romance with the American
I public -- and was powered by an available fuel-injected V8. I
I I I I I I I I I I I I I I I I I I I I I I I
J
Your new Chevrolet continues a tradition of quality and value.
V
Page 12 of 364

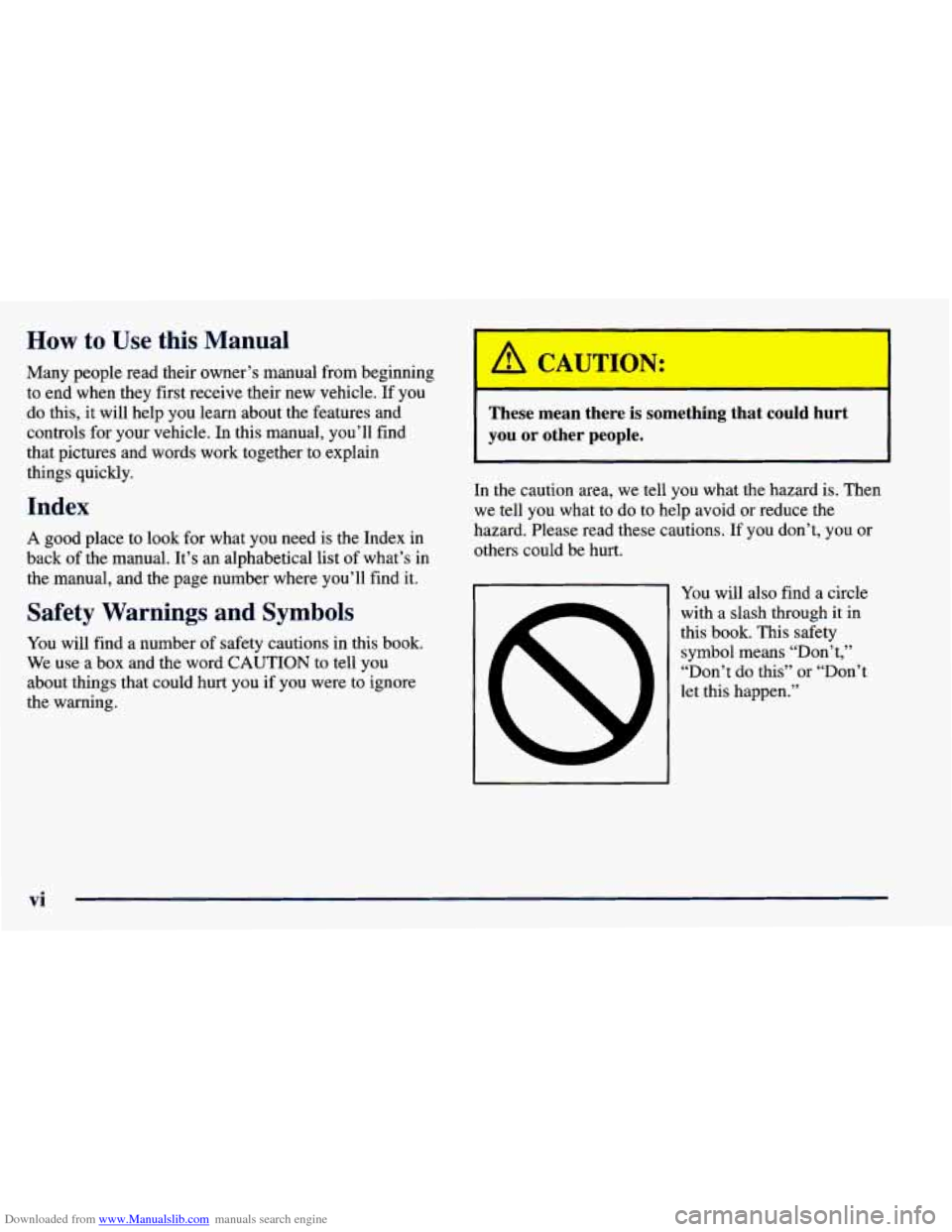

Downloaded from www.Manualslib.com manuals search engine How to Use this Manual
Many people read their owner’s manual from beginning
to end when they first receive their new vehicle. If you
do this,
it will help you learn about the features and
controls for
your vehicle. In this manual, you’ll find
that pictures and words work together to explain
things quickly.
Index
A good place to look for what you need is the Index in
back of the manual. It’s an alphabetical list of what’s in
the manual, and the page number where you’ll find it.
Safety Warnings and Symbols
You will find a number of safety cautions in this book.
We use a box and the word
CAUTION to tell you
about things that could hurt you if you were to ignore
the warning.
These mean there is something that could hurt
you or other people.
In the caution area, we tell you what the hazard is. Then
we tell you what to do
to help avoid or reduce the
hazard. Please read these cautions.
If you don’t, you or
others could be hurt.
dl You will also find a circle
1 with a slash through it in
this book. This safety
symbol means “Don’t,’’
“Don’t
do this” or “Don’t
let this happen.’’
vi
Page 13 of 364

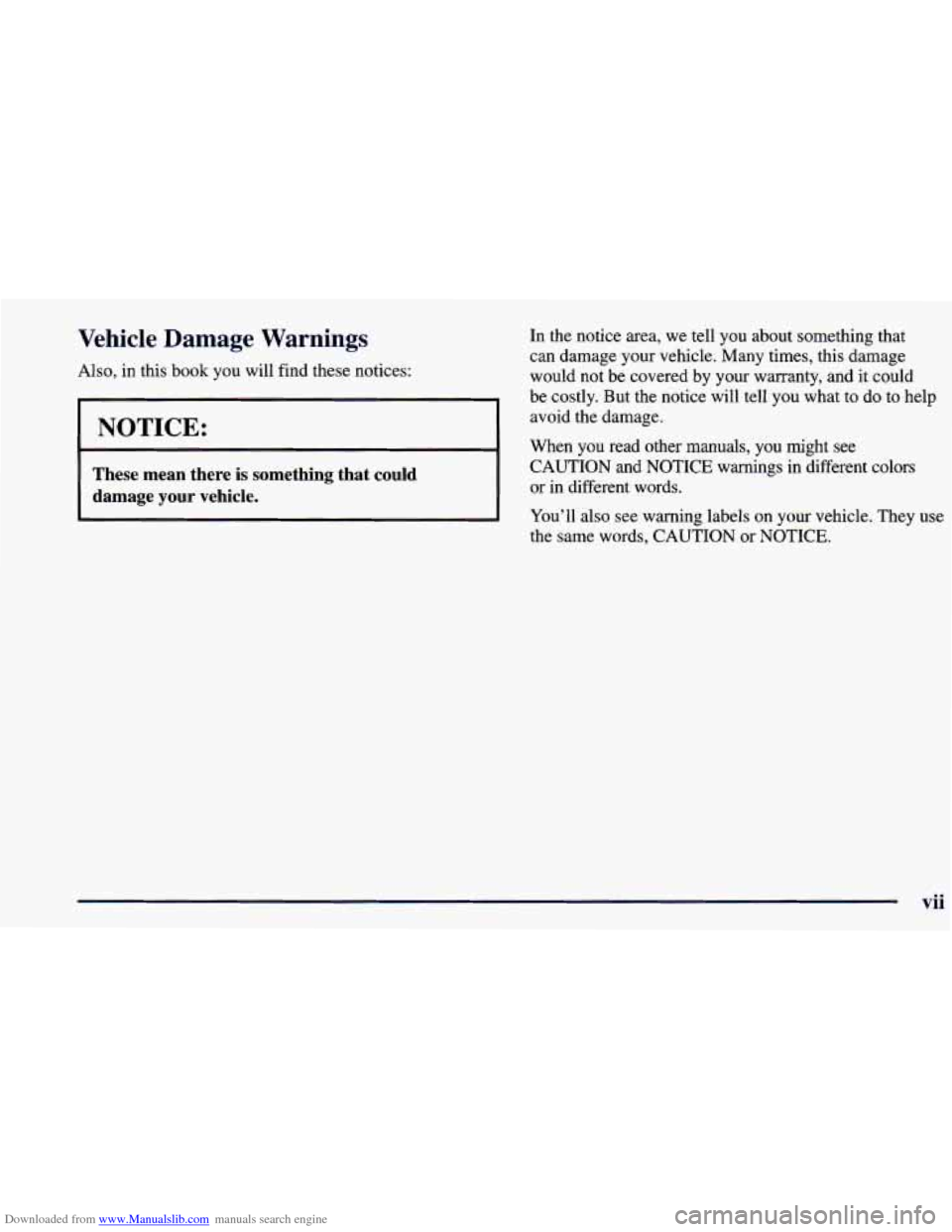

Downloaded from www.Manualslib.com manuals search engine Vehicle Damage Warnings
Also, in this book you will find these notices:
I NOTICE:
These mean there is something that could
damage
your vehicle.
In the notice area, we tell you about something that
can damage your vehicle. Many times, this damage
would not be covered by your warranty, and it could
be costly. But the notice will tell you what
to do to help
avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors or in different words.
You’ll also see warning labels on your vehicle. They use
the same words, CAUTION or NOTICE.
vii
Page 14 of 364
Downloaded from www.Manualslib.com manuals search engine Vehicle Symbols
These are some of the symbols you may find on your vehicle.
For example,
these symbols
are used
on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES BY
SHIELDING
Q
CAUSTIC
ACID COULD BATTERY
CAUSE
BURNS
AVOID
SPARKS
OR
FLAMES
SPARK
OR ,111,
COULD FLAME
EXPLODE BATTERY
These symbols are important
for you and
your passengers whenever your
vehicle
is
driven:
DOOR LOCK
UNLOCK
FASTEN SEAT
BELTS
These symbols
have to do with
your lamps:
SIGNALS e e
TURN
FOG LAMPS
$0
These symbols are
on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD DEFROSTER
WINDOW
DEFOGGER
VENTILATING FAN
These symbols are used on
warning and
indicator lights:
ENGINE t
COOLANT t- TEMP -
CHARGING I-1
BATTERY
SYSTEM
BRAKE
(0)
COOLANT a
ENGINE OIL w,
PRESSURE
ANTI-LOCK
(8)
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
a
HORN )tr
SPEAKER
b
FUEL p3
viii
Page 15 of 364

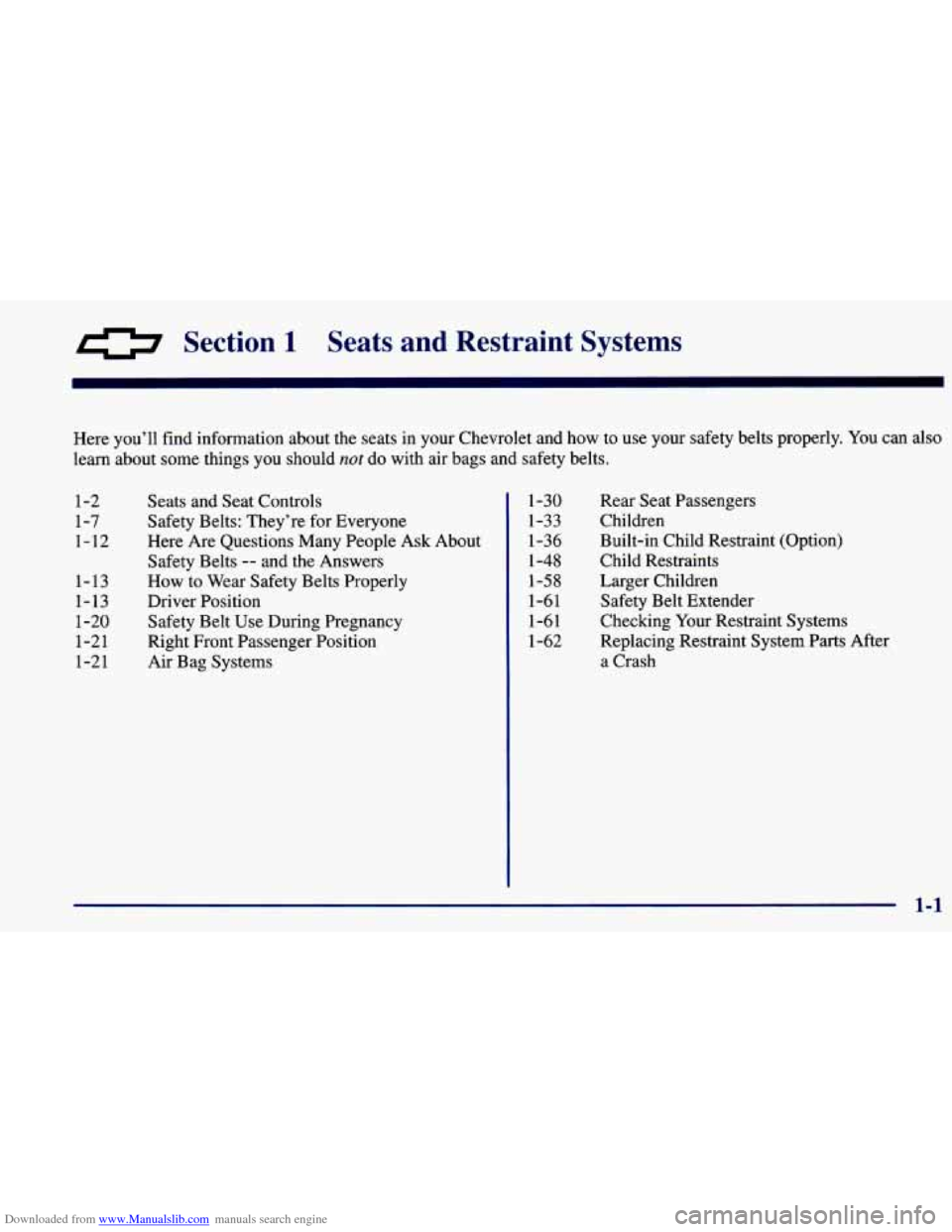

Downloaded from www.Manualslib.com manuals search engine a Section 1 Seats and Restraint Systems
Here you’ll find information about the seats in your Chevrolet and how to use your safety belts properly. You can also
learn about some things you should
not do with air bags and safety belts.
1-2 1-7
1-12
1-13
1-13
1-20
1-21
1-21 Seats
and Seat Controls
Safety Belts: They’re for Everyone
Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
How to Wear Safety Belts Properly
Driver Position
Safety Belt Use During Pregnancy
Right Front Passenger Position
Air Bag Systems 1-30
1-33
1-36 1-48
1-58
1-61
1-61
1-62 Rear
Seat Passengers
Children
Built-in Child Restraint (Option)
Child Restraints
Larger Children
Safety Belt Extender
Checking Your Restraint Systems
Replacing Restraint System Parts After
a Crash
Page 16 of 364

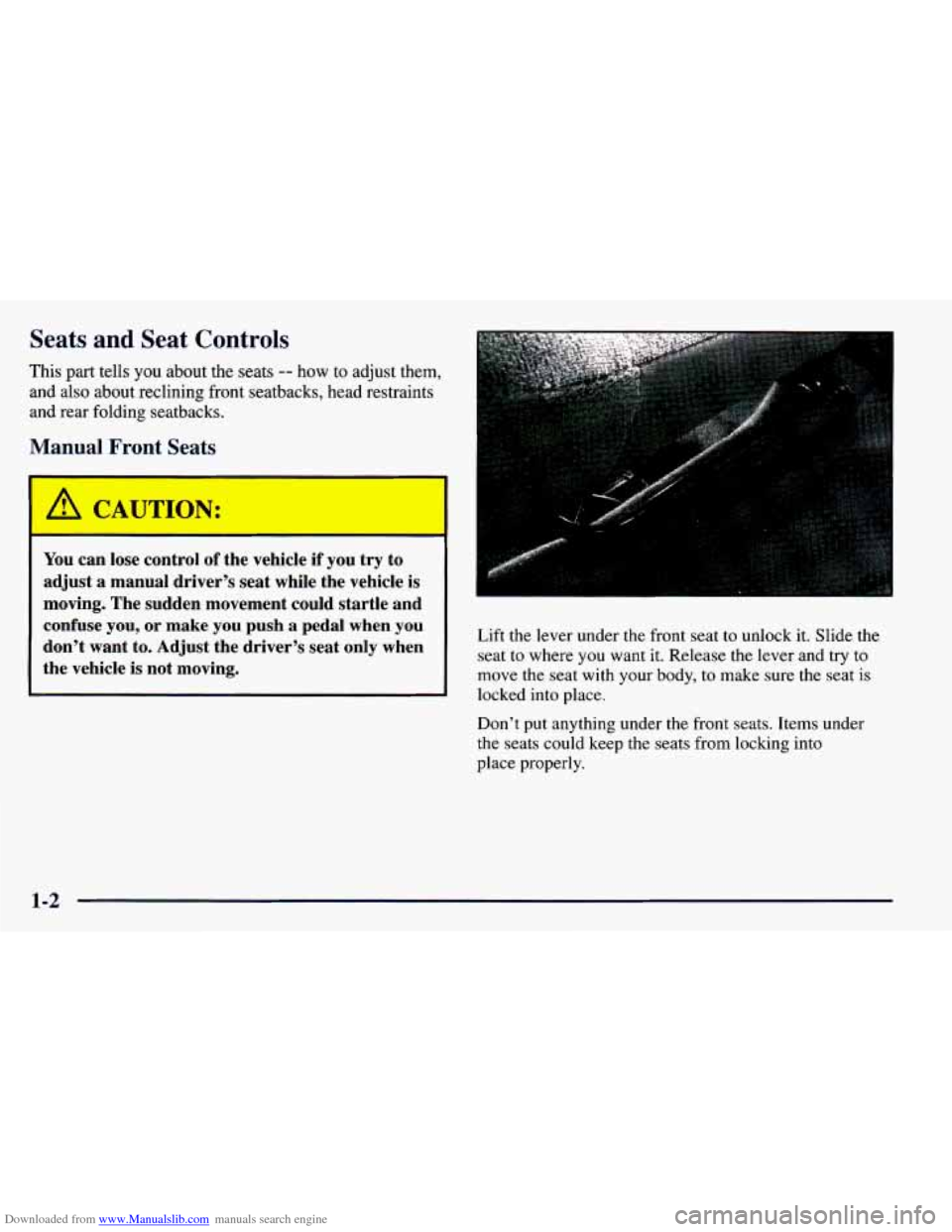

Downloaded from www.Manualslib.com manuals search engine Seats and Seat Controls
This part tells you about the seats -- how to adjust them,
and also about reclining front seatbacks, head restraints
and rear folding seatbacks.
Manual Front Seats
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and confuse
you, or make you push a pedal when you
don’t want to. Adjust the driver’s seat only when
the vehicle is not moving. Lift the lever under the front seat to unlock it. Slide the
seat to where you want it. Release the lever and try to
move the seat with your body,
to make sure the seat is
locked into place.
Don’t put anything under the front seats. Items under
the seats could keep the seats from locking
into
place properly.
1-2
Page 17 of 364

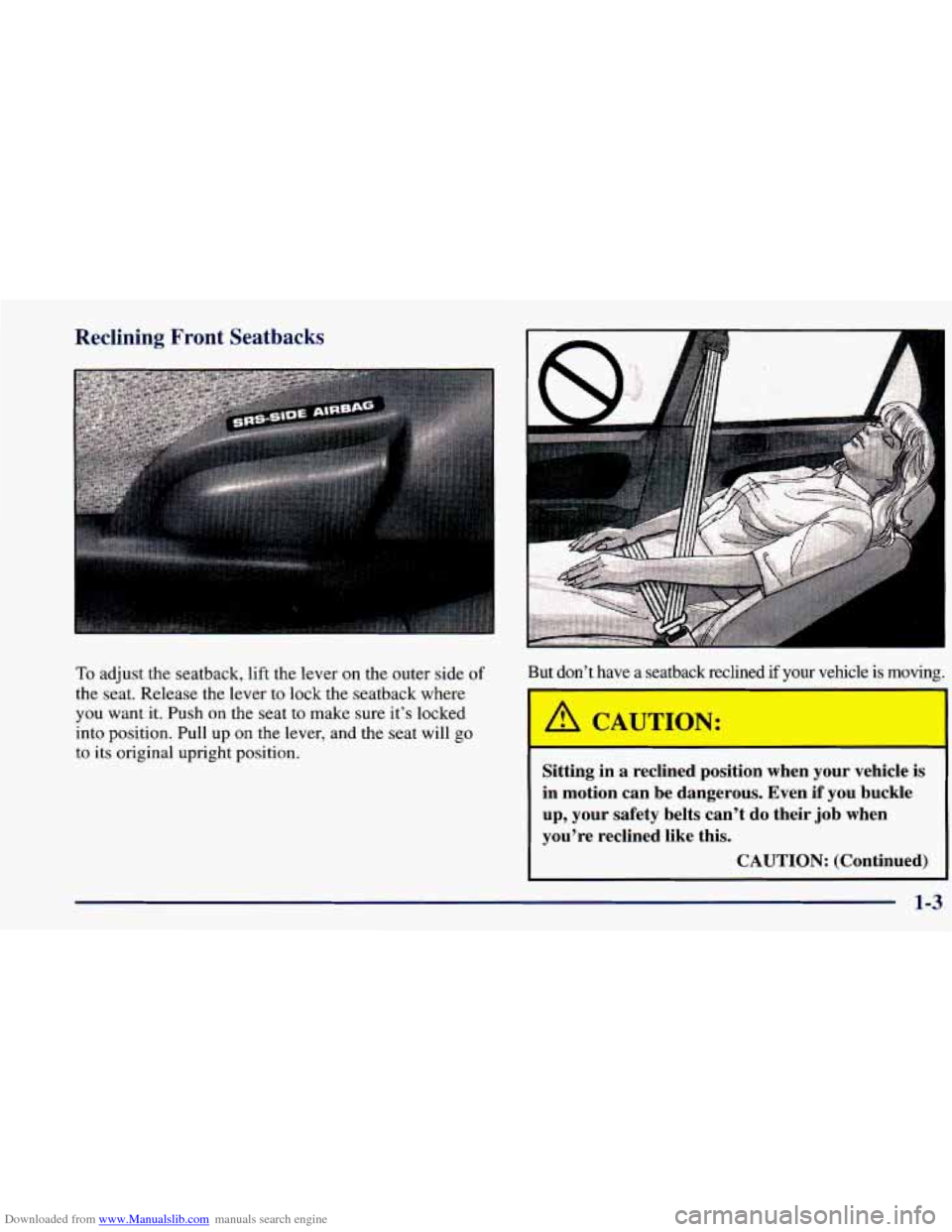

Downloaded from www.Manualslib.com manuals search engine Reclining Front Seatbacks
To adjust the seatback, lift the lever on the outer side of
the seat. Release the lever to
lock the seatback where
you want it. Push on
the seat to make sure it’s locked
into position. Pull
up on the lever, and the seat will go
to its original upright position. But don’t have
a seatback reclined
if your vehicle is moving
A CAUTION:
I-
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even
if you buckle
up, your safety belts can’t do their job when
you’re reclined like this.
CAUTION: (Continued)
1-3
Page 18 of 364

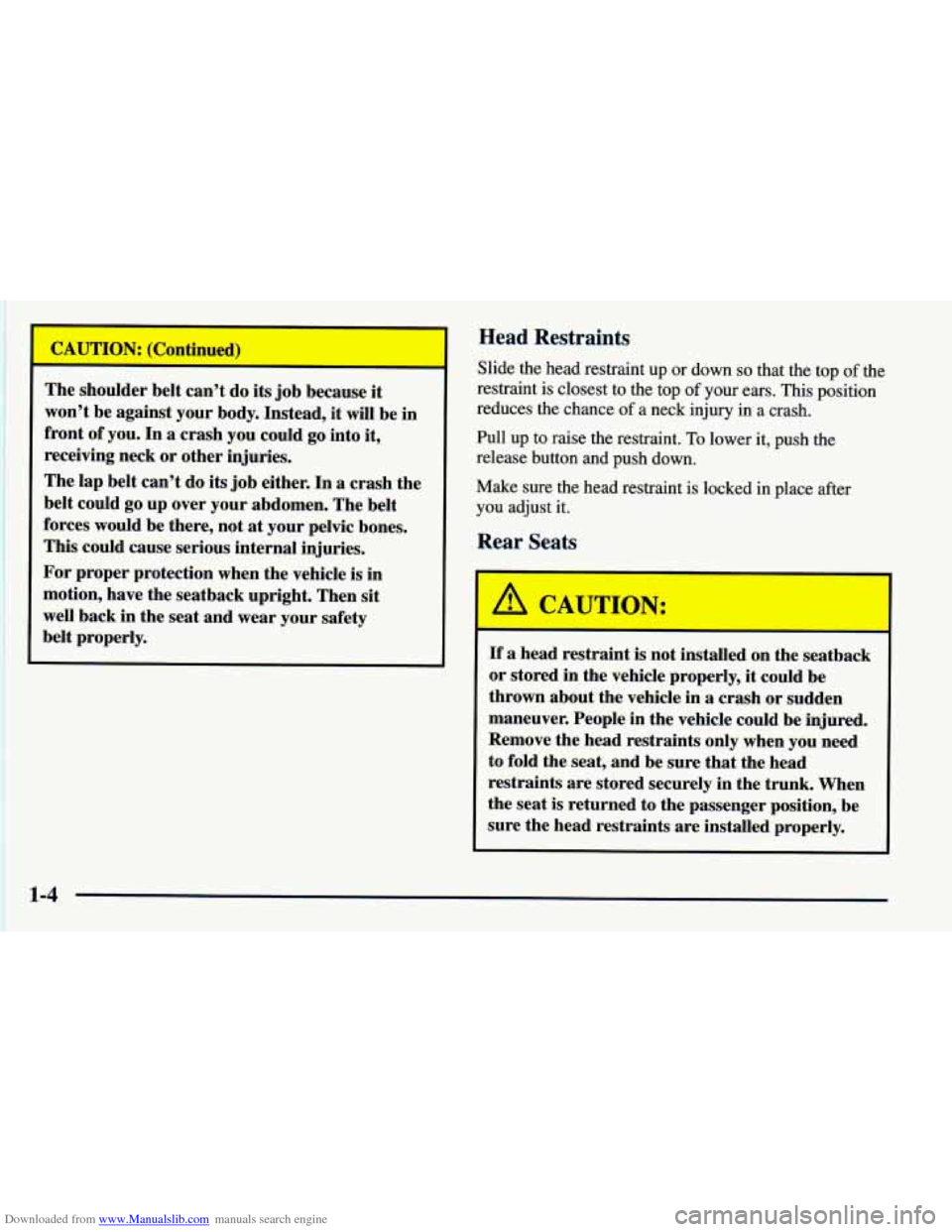

Downloaded from www.Manualslib.com manuals search engine The shoulder belt can’t do its job because it
won’t be against your body. Instead, it
will be in
front of you. In
a crash you could go into it,
receiving neck or other injuries.
The lap belt can’t do
its job either. In a crash the
belt could
go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back
in the seat and wear your safety
belt properly.
’
Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top
of your ears. This position
reduces the chance
of a neck injury in a crash.
Pull up to raise the restraint. To lower it, push the
release button and push down.
Make sure the head restraint is locked in place after
you adjust it.
---ts
I
I
If a head restraint is not installed on the seatback
or stored in the vehicle properly, it could be
thrown about the vehicle in
a crash or sudden
maneuver. People in the vehicle could be injured.
Remove the head restraints only when you need
to fold the seat, and be sure that the head
restraints are stored securely in the trunk. When
the seat
is returned to the passenger position, be
sure the head restraints are installed properly.
1-4
Page 19 of 364

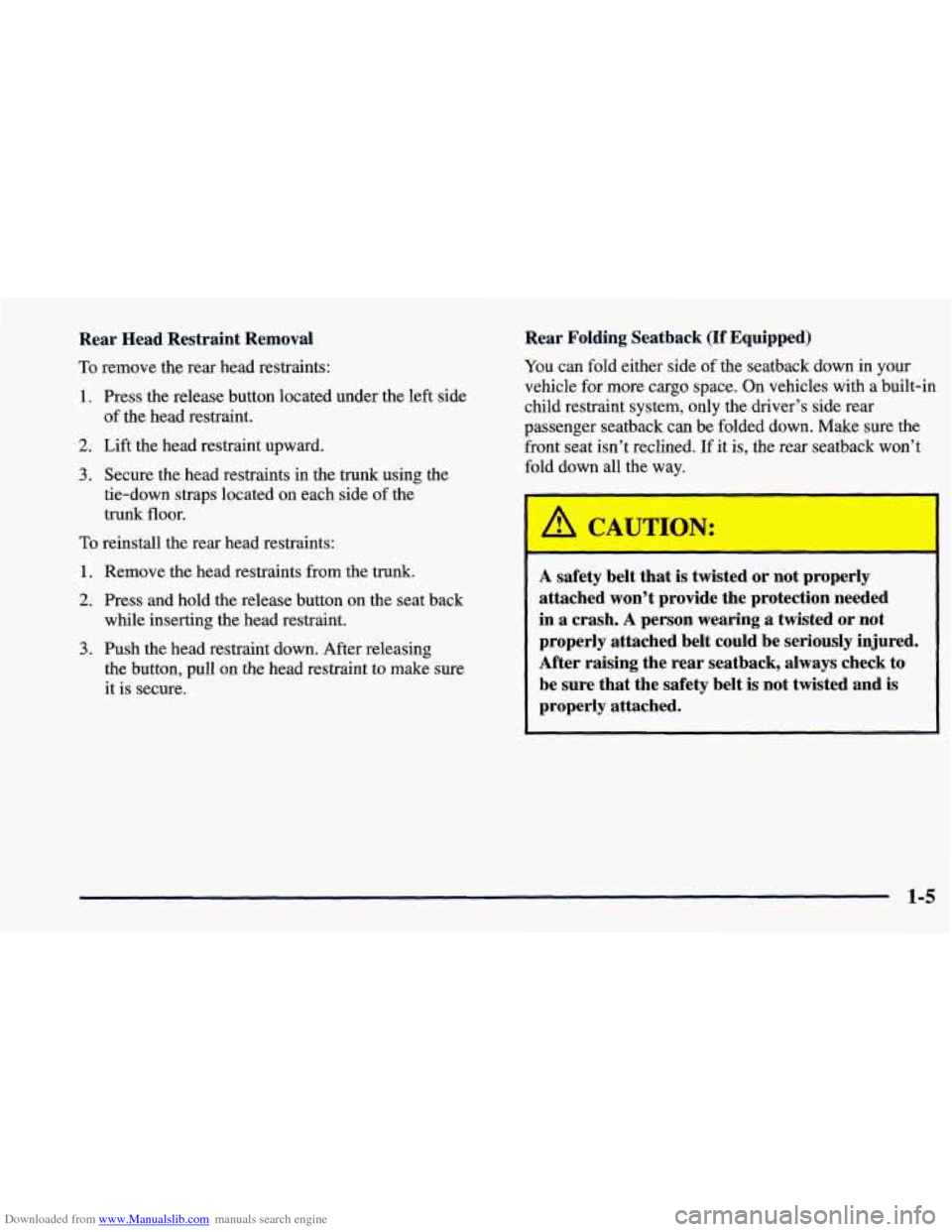

Downloaded from www.Manualslib.com manuals search engine Rear Head Restraint Removal
To remove the rear head restraints:
1. Press the release button located under the left side
of the head restraint.
2. Lift the head restraint upward.
3. Secure the head restraints in the trunk using the
tie-down straps located
on each side of the
trunk floor.
To reinstall the rear head restraints:
1. Remove the head restraints from the trunk.
2. Press and hold the release button on the seat back
while inserting the head restraint.
3. Push the head restraint down. After releasing
the button, pull on the head restraint to make sure
it is secure.
Rear Folding Seatback (If Equipped)
You can fold either side of the seatback down in your
vehicle for more cargo space. On vehicles with
a built-in
child restraint system, only the driver’s side rear
passenger seatback can be folded down. Make sure the
front seat isn’t reclined. If it is, the rear seatback won’t
fold down all the way.
A safety belt that is twisted or not properly
attached won’t provide the protection needed
in a crash.
A person wearing a twisted or not
properly attached belt could be seriously injured.
After raising the rear seatback, always check to
be sure that the safety belt is not twisted and is
properly attached.
1-5
Page 20 of 364

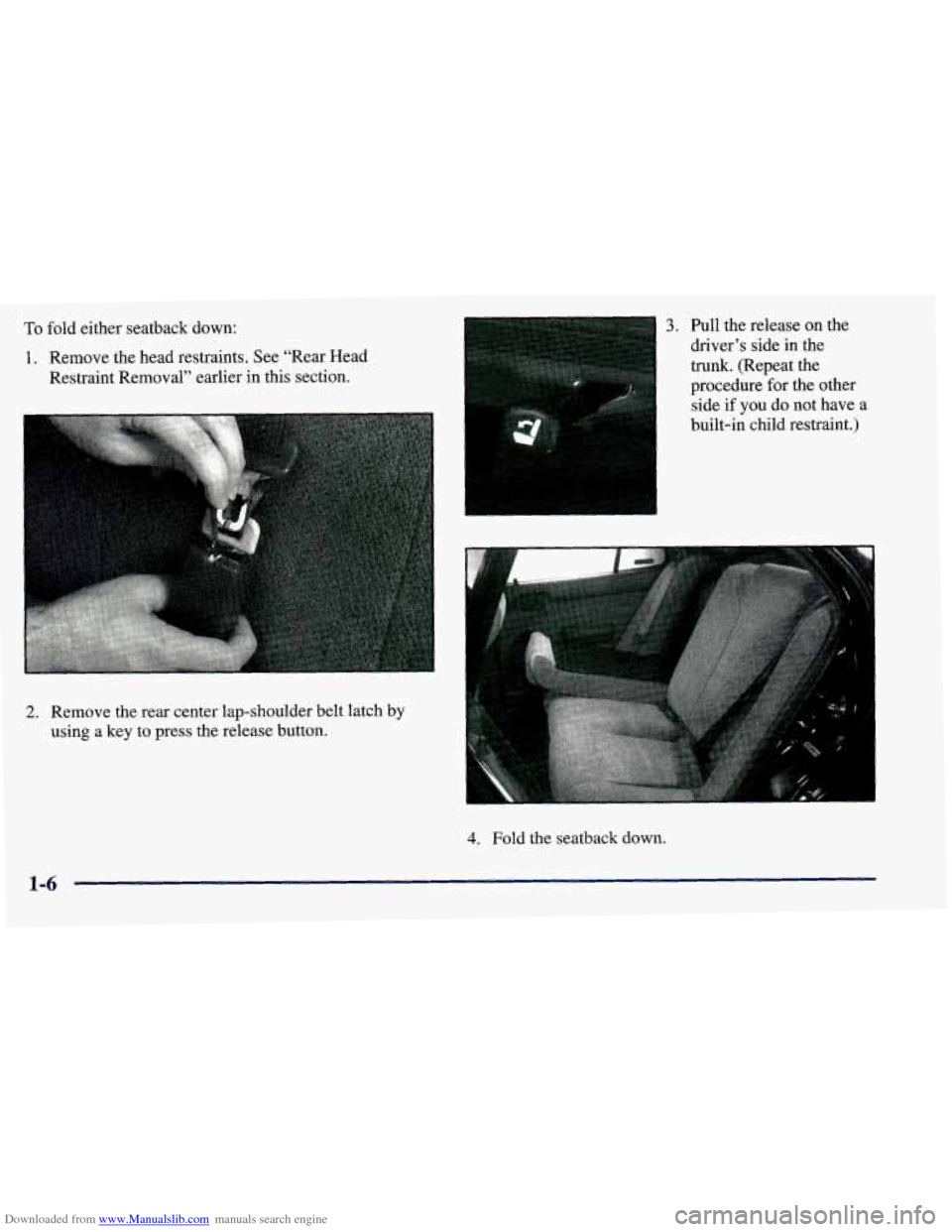

Downloaded from www.Manualslib.com manuals search engine To fold either seatback down:
1. Remove the head restraints. See “Rear Head
Restraint Removal” earlier in this section.
2. Remove the rear center lap-shoulder belt latch by
using a key to press the release button.
3. Pull the release on the
driver’s side in the
trunk. (Repeat the
procedure for the other
side if
you do not have a
built-in child restraint.)
4. Fold the seatback down.
