CHEVROLET S10 1995 2.G Owners Manual

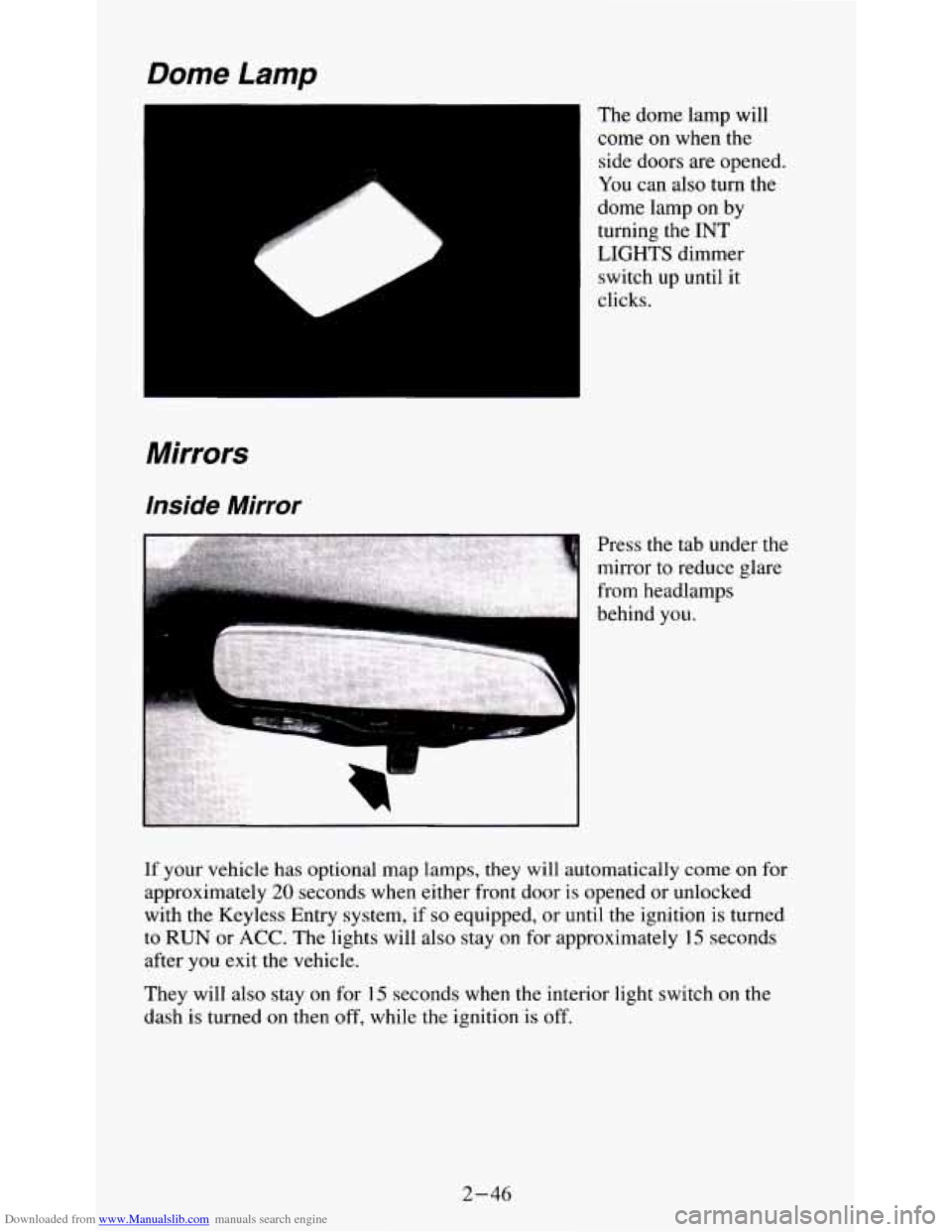

Downloaded from www.Manualslib.com manuals search engine Dome Lamp
L A
The dome lamp will
come
on when the
side doors are opened
You can also turn the
dome lamp on by
turning the INT
LIGHTS dimmer
switch up until it
clicks.
Mirrors
Inside Mirror
If your vehicle has optional map lamps, they will automatically come on for
approximately
20 seconds when either front door is opened or unlocked
with
the Keyless Entry system, if so equipped, or until the ignition is turned
to RUN or ACC. The lights will also stay on for approximately 15 seconds
after you exit the vehicle.
They will also stay on for 15 seconds when the interior light switch on the
dash is turned
on then off, while the ignition is off.
2-46

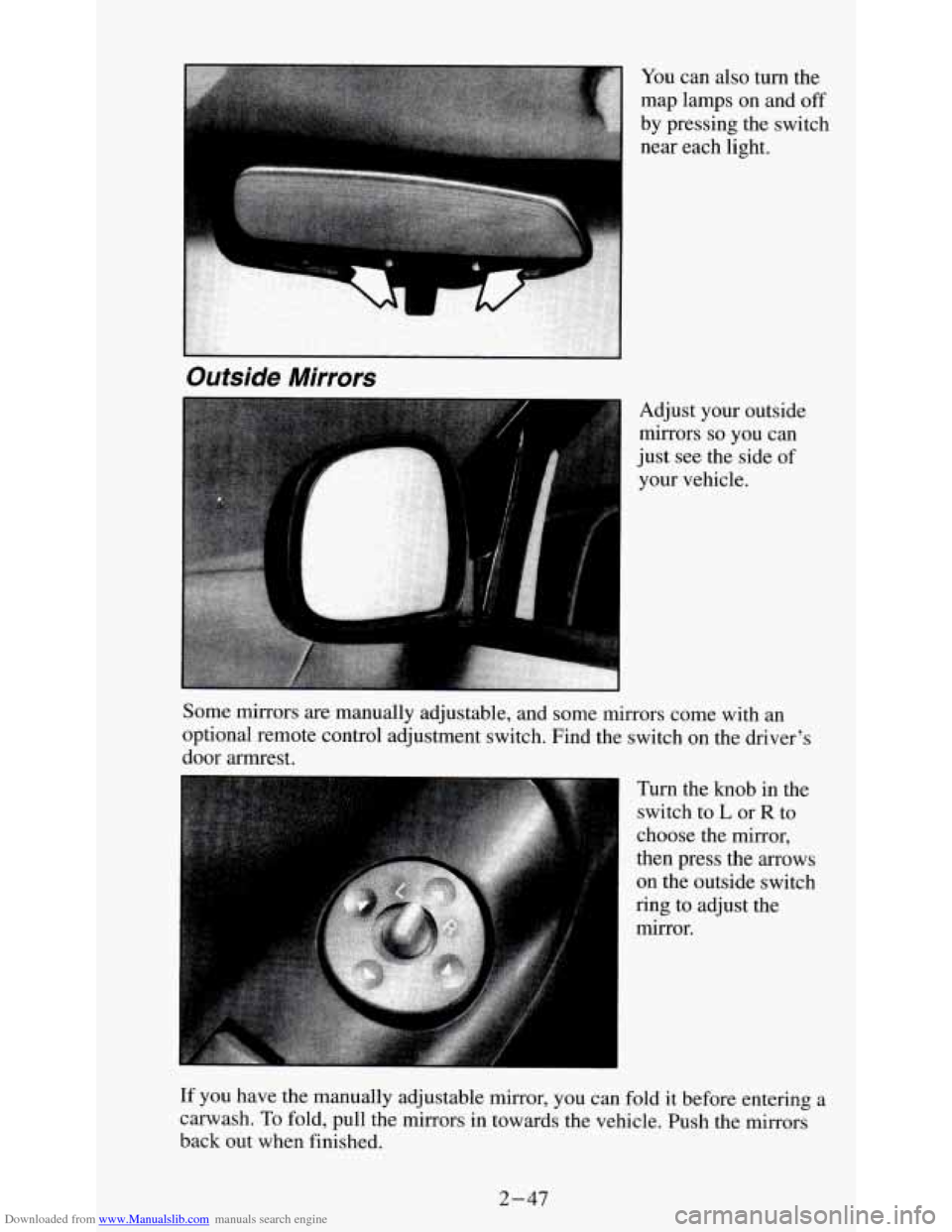

Downloaded from www.Manualslib.com manuals search engine Adjust your outside
mirrors
so you can
just see the side
of
your vehicle.
Outside Mirrors
Some mirrors are manually adjustable, and some mirrors come with an
optional remote control adjustment switch. Find the switch on the driver's
door armrest.
Turn the knob
in the
switch to
L or R to
choose the mirror,
then press the arrows
on the outside switch
ring to adjust the
mirror.
If you have the manually adjustable mirror, you can fold it before entering a
carwash. To fold, pull the mirrors in towards the vehicle. Push the mirrors
back out when finished.
2-47

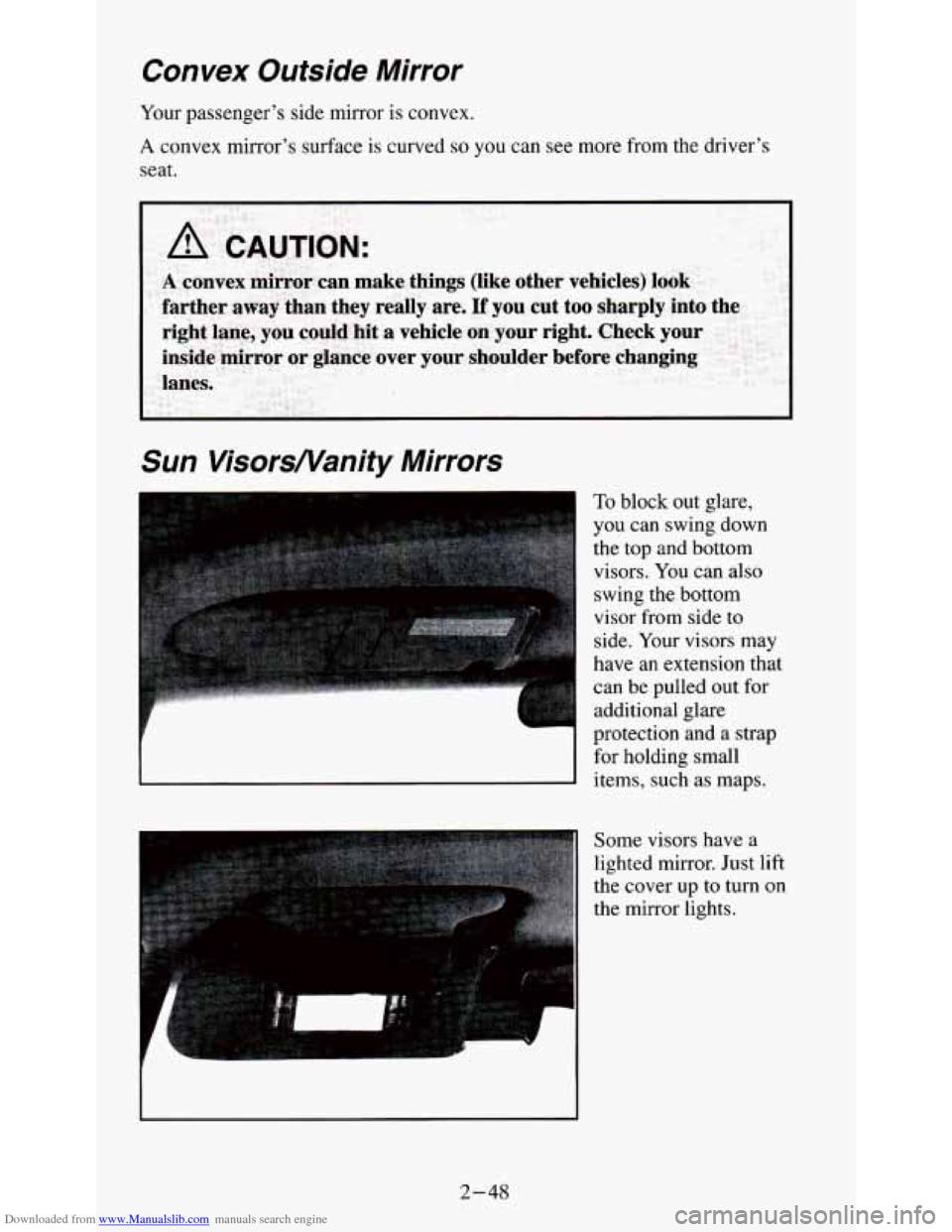

Downloaded from www.Manualslib.com manuals search engine Convex Outside Mirror
Your passenger’s side mirror is convex.
A convex mirror’s surface is curved so you can see more from the driver’s
seat.
Sun VisorsNanity Mirrors
To block out glare,
you can swing down
the top and bottom visors.
You can also
swing the bottom
visor from side to
side.
Your visors may
have an extension that
can
be pulled out for
additional glare
protection and a strap
for holding small
items, such as maps.
Some visors have a
lighted mirror. Just lift
the cover
up to turn on
the mirror lights.
2-48

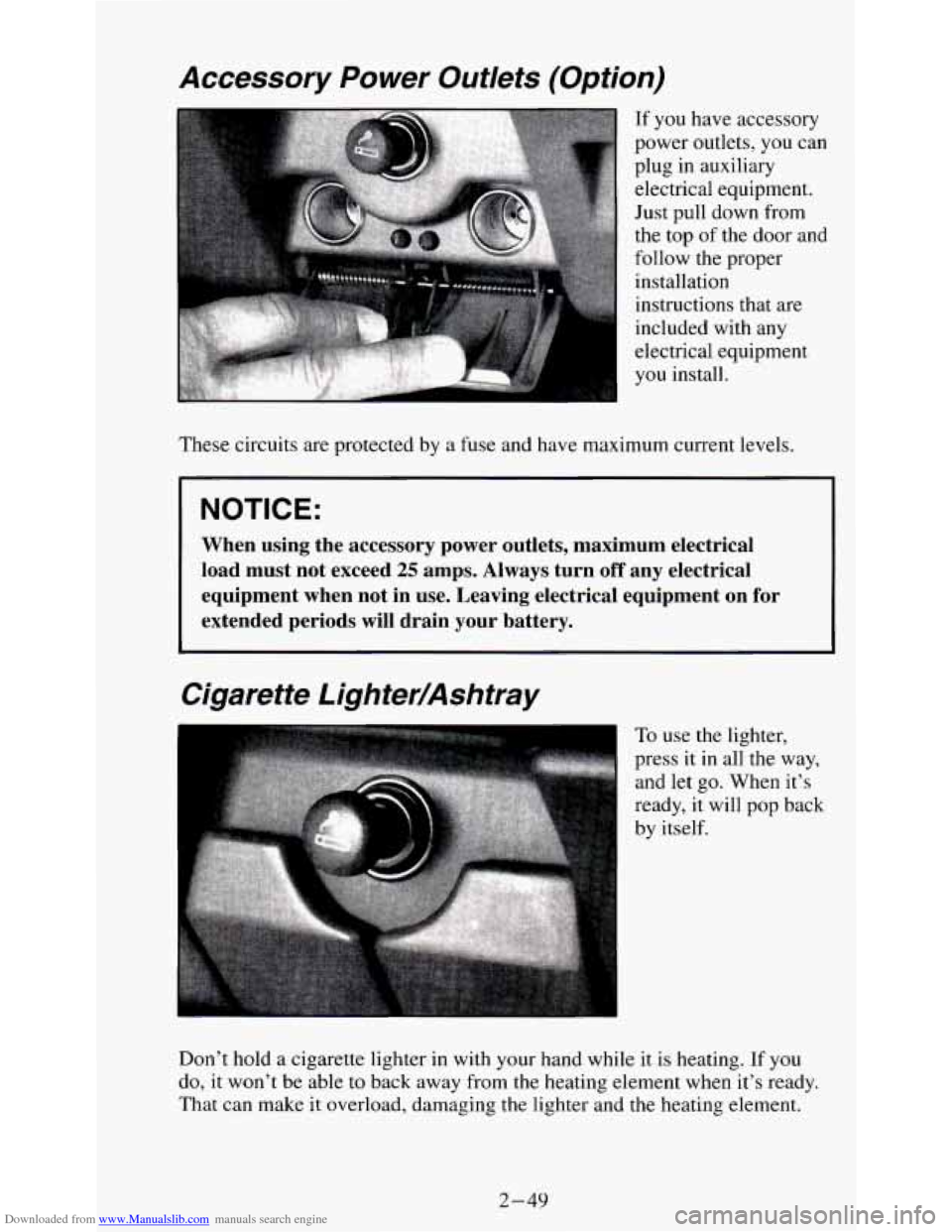

Downloaded from www.Manualslib.com manuals search engine Accessory Power Outlets (Option)
If you have accessory
power outlets, you can
plug in auxiliary
electrical equipment.
Just pull down from
the top
of the door and
follow
the proper
installation
instructions that are
included with any
electrical equipment
you install.
These circuits are protected by a fuse and have maximum current levels.
I NOTICE:
When using the accessory power outlets, maximum electrical
load must not exceed
25 amps. Always turn off any electrical
equipment when not in use. Leaving electrical equipment on for \
extended periods
will drain your battery.
Cigarette Lighter/Ashtray
To use the lighter,
press it in all the way,
and let go. When it’s
ready, it will
pop back
by itself.
Don’t hold
a cigarette lighter in with your hand while it is heating. If you
do, it won’t be able
to back away from the heating element when it’s ready.
That can make it overload, damaging
the lighter and the heating element.
2-49

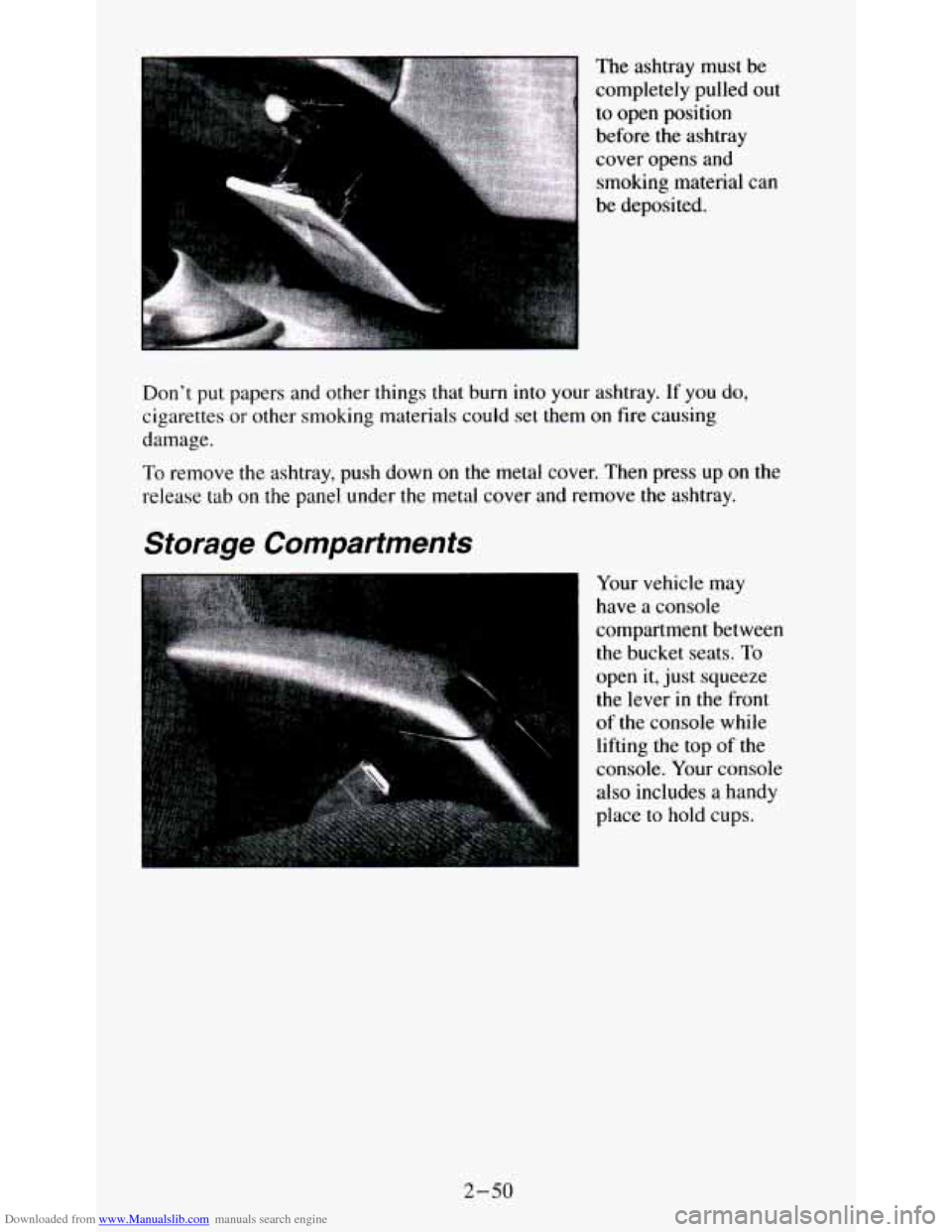

Downloaded from www.Manualslib.com manuals search engine The ashtray must be
completely pulled out
to open position
before the ashtray
cover opens and
smoking material can
be deposited.
Don’t put papers and other things that burn
into your ashtray. If you do,
cigarettes or other smoking materials could set them on fire causing
damage.
To remove the ashtray, push down on the metal cover. Then press up on the
release tab
on the panel under the metal cover and remove the ashtray.
Storage Compartments
Your vehicle may
have
a console
compartment between
the bucket seats.
To
open it, just squeeze
the lever
in the front
of the console while
lifting
the top of the
console. Your console
also includes a handy
place to hold cups.
2-50

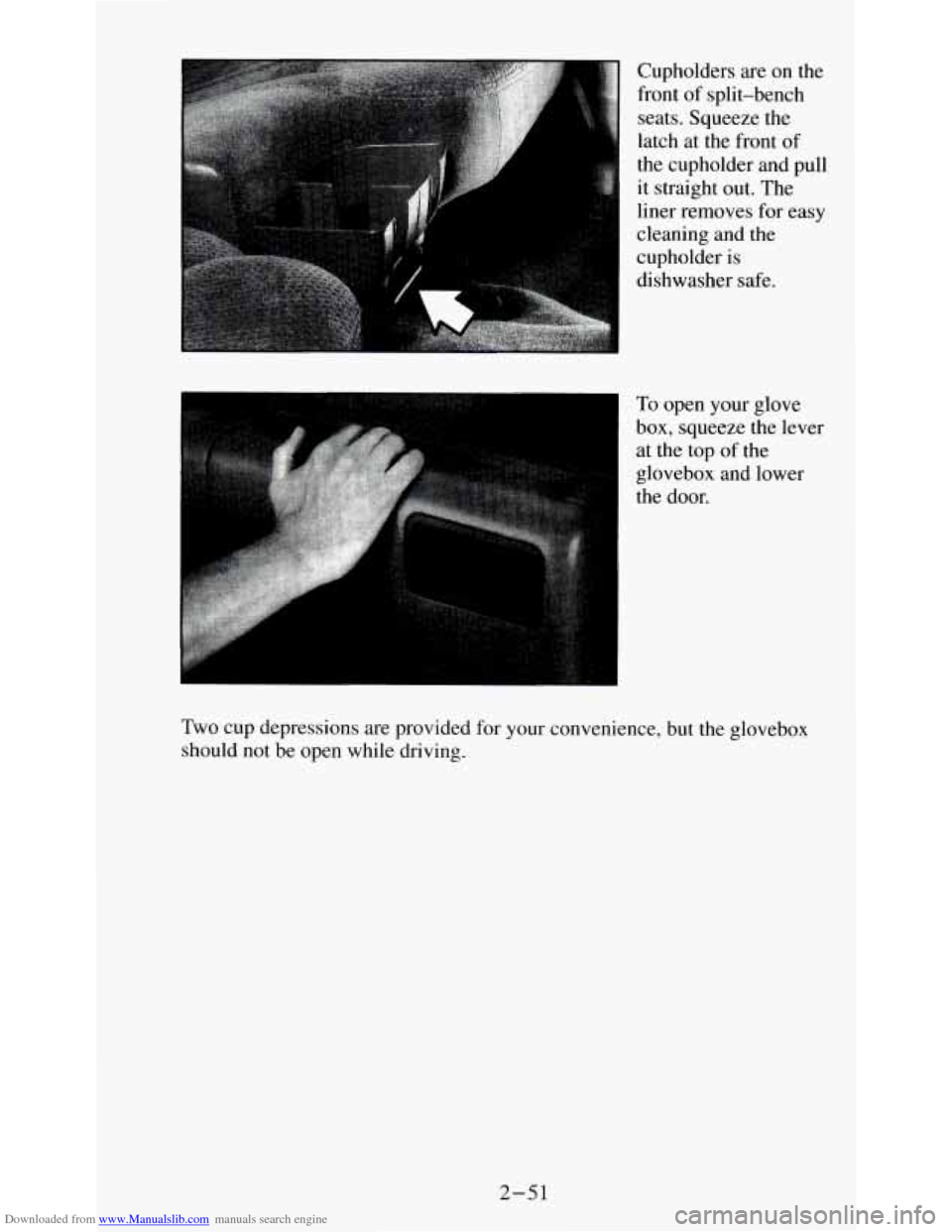

Downloaded from www.Manualslib.com manuals search engine Cupholders are on the
front of split-bench
seats. Squeeze the
latch at the front of
the cupholder and pull
it straight
out. The
liner removes for easy
cleaning and the
cupholder is
dishwasher safe.
To open your glove
box, squeeze the lever
at the top of the
glovebox and lower
the door.
Two cup depressions are provided for your convenience, but the glovebox
should not be open while driving.
2-53

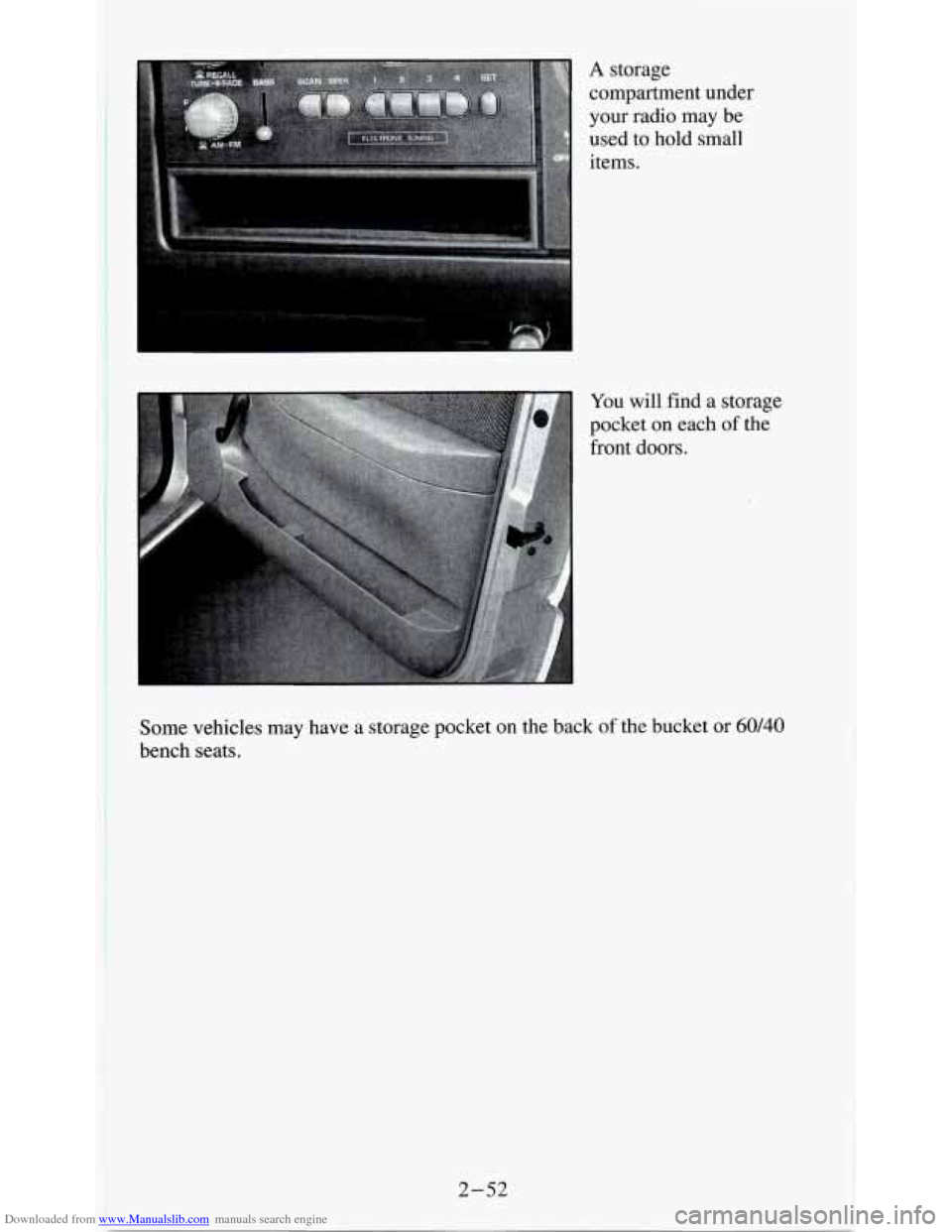

Downloaded from www.Manualslib.com manuals search engine A storage
compartment under
your radio may be
used to hold small
items.
You
will find a storage
pocket
on each of the
front doors.
Some vehicles may have a storage pocket on the back of the bucket or 60/40
bench seats.
2-52

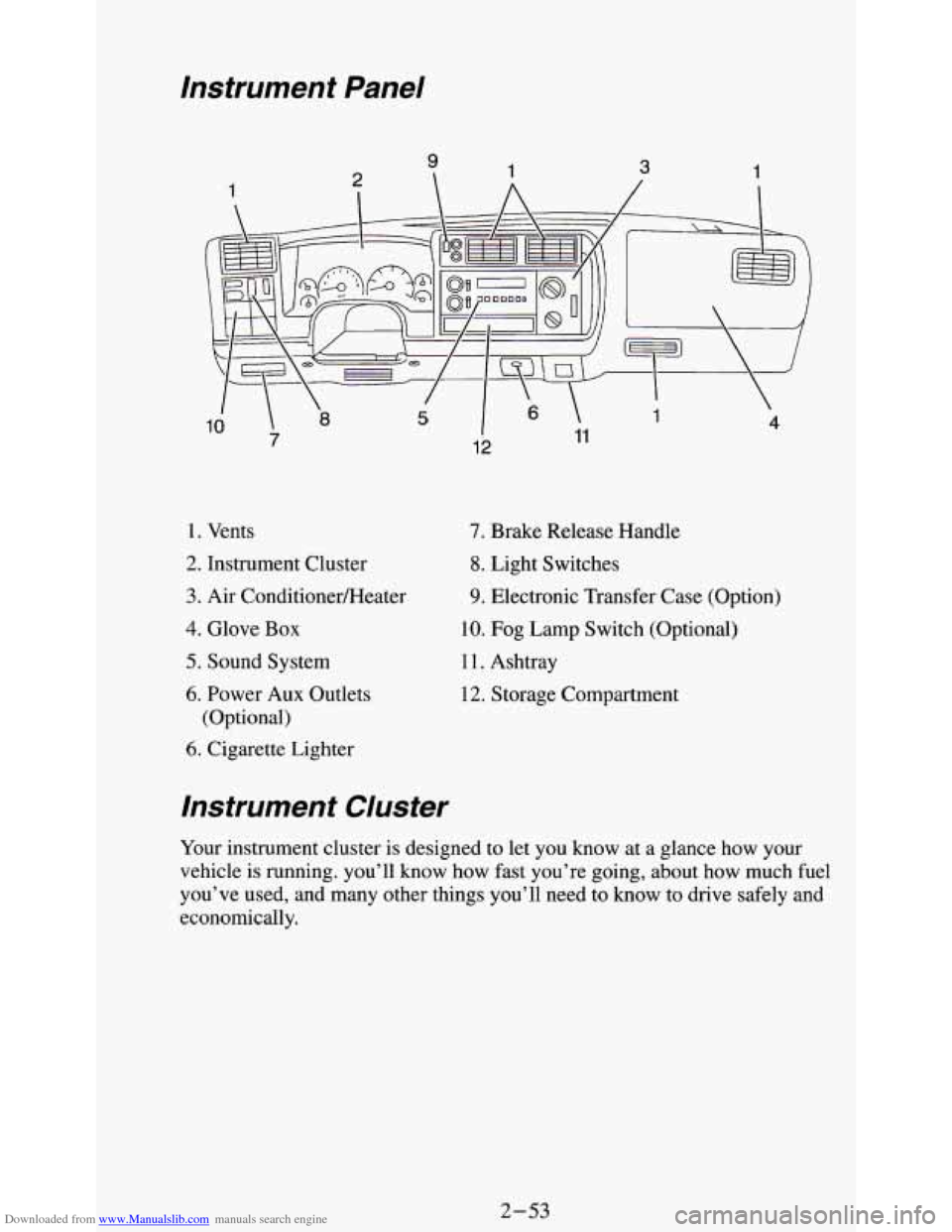

Downloaded from www.Manualslib.com manuals search engine lnstrument Panel
1. Vents
2. Instrument Cluster
3. Air ConditionerLHeater
4. Glove Box
5. Sound System
6. Power Aux Outlets
(Optional)
6. Cigarette Lighter
lnstrument Cluster
7. Brake Release Handle
8. Light Switches
9. Electronic Transfer Case (Option)
10. Fog Lamp Switch (Optional)
11. Ashtray
12. Storage Compartment
Your instrument cluster
is designed to let you know at a glance how your
vehicle is running. you’ll know how fast you’re going, about how much fuel
you’ve used, and many other things you’ll need to know to drive safely and
economically.
2-53

Downloaded from www.Manualslib.com manuals search engine Speedometer and Odometer
Your speedometer lets
you see your speed
in
both miles per hour
(mph) and kilometers
per hour (km/h).
Your odometer shows
how far your vehicle has been driven, in either miles
(used
in the U.S.) or kilometers (used in Canada).
Tamper Resistant Odometer
Standard Cluster Tachometer Cluster
Your odometer is tamper resistant. It will show silver lines between the
numbers if someone tries to turn
it back.
You may wonder what happens
if your vehicle needs a new odometer
installed.
If the new one can be set to the mileage total of the old odometer,
then it must be. But
if it can’t, then it’s set at zero, and a label must be put
on the driver’s door to show the old mileage reading when the new
odometer was installed.
2-54

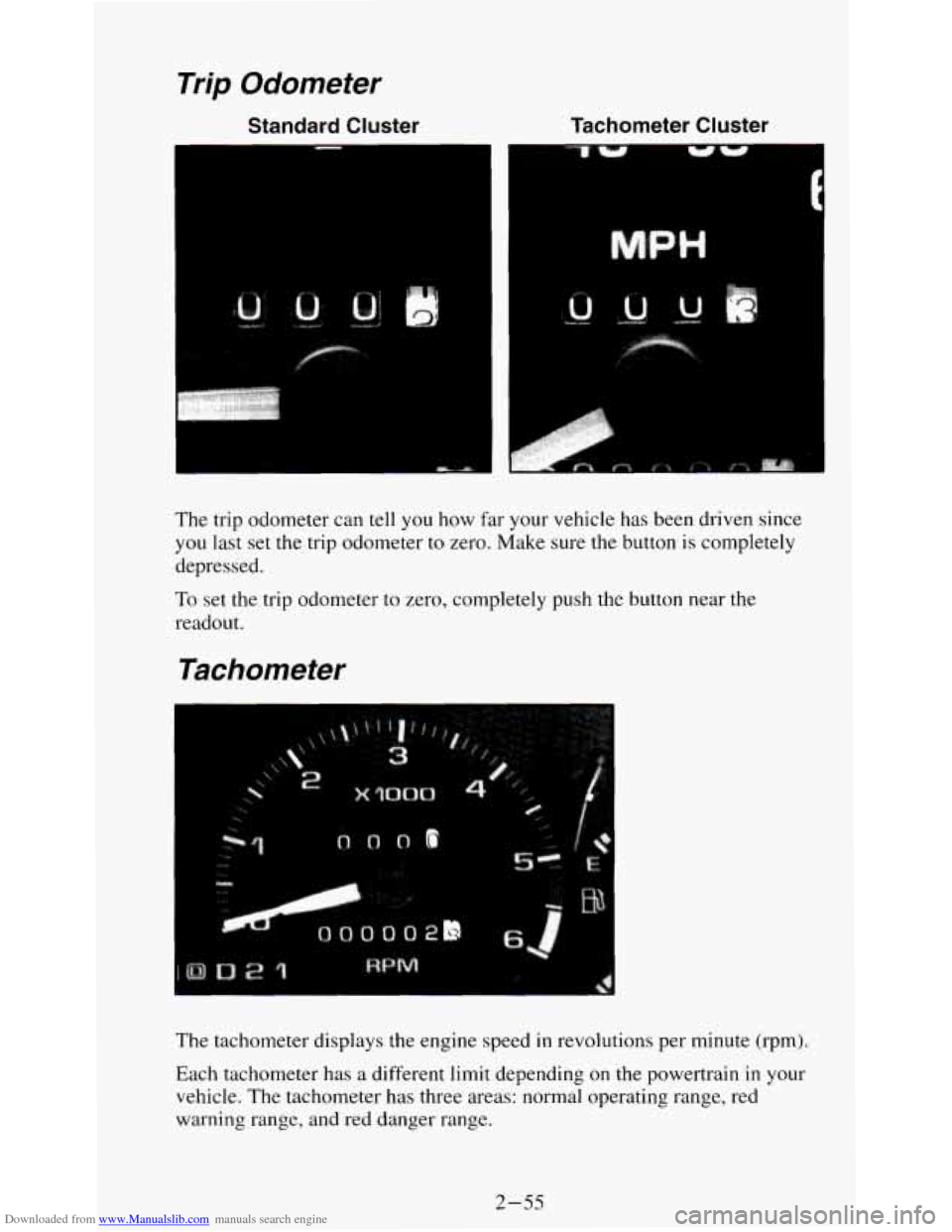

Downloaded from www.Manualslib.com manuals search engine Trip Odometer
Standard Cluster
The trip odometer can tell you how far your vehicle has been driven since
you last set the trip odometer to zero. Make sure the button is completely
depressed.
TO set the trip odometer to zero, completely push the button near the
readout.
Tachometer
The tachometer displays the engine speed in revolutions per minute (rpmj.
Each tachometer has
a different limit depending on the powertrain in your
vehicle. The tachometer has three areas: normal operating range, red
warning range, and red danger range.
2-55
