100 Seats and Restraints
Caution (Continued)
seat. Unbuckle and return the
safety belt to its stowed position,
before folding the seat.
If you need to secure more than onechild restraint in the rear seat, seeWhere to Put the Restraint094.
This system is designed to makeinstallation of child restraints easier.When using lower anchors, do notuse the vehicle's safety belts.Instead use the vehicle's anchorsand child restraint attachments tosecure the restraints. Somerestraints also use another vehicleanchor to secure a top tether.
1. Attach and tighten the lowerattachments to the loweranchors. If the child restraintdoes not have lowerattachments or the desiredseating position does not havelower anchors, secure the childrestraint with the top tether andthe safety belts. Refer to your
child restraint manufacturerinstructions and theinstructions in this manual.
1.1. Find the lower anchorsfor the desired seatingposition.
1.2. Put the child restraint onthe seat.
1.3. Attach and tighten thelower attachments on thechild restraint to the loweranchors.
2. For forward facing childrestraints, attach and tightenthe top tether to the top tetheranchor (loop), if your vehiclehas one. Follow the childrestraint instructions thevehicle LATCH anchor weightlimits described at thebeginning of this section, andthe following steps:
Example—Rear Driver Side
Position
Example—Rear Driver Side
Position
Page 102 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Seats and Restraints 101
2.1. For a top tether in therear driver side position:
2.1.1. Raise theheadrest.
2.1.2. Route the toptether (4) betweenthe headrestposts, through theloop (3), behindthe inboardheadrest post, andunder the centershoulder belt (2).
2.1.3. Then attach thetop tether (4) tothe top tetheranchor (loop) (1) atthe center rearseating position.
2.2. For a top tether in therear center position:
2.2.1. Route the toptether (4) throughthe center loop (1),and behind thepassenger sideheadrest post.
2.2.2. Then attach thetop tether (4) tothe top tetheranchor (loop) atthe rear passengerside seatingposition.
2.3. For a top tether in therear passenger position:
2.3.1. Raise theheadrest.
2.3.2. Route the toptether (4) betweenthe headrestposts, through theloop on thepassenger sideand behind theinboardheadrest post.
2.3.3. Then attach thetop tether (4) tothe top tetheranchor (loop) (1) atthe center rearseating position.
3. Tighten the top tether per thechild restraint manufacturer'sinstructions.
When the top tether is properlytightened, the anchor (loop)may bend. This is normal andwill not damage the vehicle.
If child restraints are installedin both outboard positions, bothtop tethers can be attached tothe center loop. Top tetherscan be attached for childrestraints in all three rearseating positions at the sametime, following the routinginstructions above.
4. Before placing a child in thechild restraint, make sure it issecurely held in place. Tocheck, grasp the child restraintat the LATCH path and attemptto move it side to side andback and forth. There shouldbe no more than 2.5 cm (1 in)of movement for properinstallation.
Page 103 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
102 Seats and Restraints
Headrest Removal and
Reinstallation
Removing Rear Headrests
For outboard rear seating positions,if the child restraint cannot beinstalled properly with the headrestin place, the headrest may beremoved. See your dealer forassistance with removal, and storethe removed headrests in a secureplace. When the child restraint isremoved, reinstall the headrestbefore the seating position is used.
Reinstalling Rear Headrests
To r e i n s t a l l t h e h e a d r e s t :
1. Insert the headrest posts intothe holes in the top of theseatback with the longerchrome plated post toward thedriver side of the vehicle.
2. Push the headrest all the waydown until it contacts the top ofthe seatback.
Replacing LATCH System
Parts After a Crash
{Warning
AcrashcandamagetheLATCH
system in the vehicle. A damaged
LATCH system may not properly
secure the child restraint,
resulting in serious injury or even
death in a crash. To help make
sure the LATCH system is
working properly after a crash,
see your dealer to have the
system inspected and any
necessary replacements made as
soon as possible.
If the vehicle has the LATCH systemand it was being used during acrash, new LATCH system partsmay be needed.
New parts and repairs may benecessary even if the LATCHsystem was not being used at thetime of the crash.
Securing Child Restraints
(With the Safety Belt in
the Rear Seat)
When securing a child restraint in arear seating position, study theinstructions that came with the childrestraint to make sure it iscompatible with this vehicle.
If the child restraint has the LATCHsystem, seeLower Anchors andTe t h e r s f o r C h i l d r e n ( L AT C HSystem)096for how and where toinstall the child restraint usingLATCH. If a child restraint is securedin the vehicle using a safety beltand it uses a top tether, seeLowerAnchors and Tethers for Children(LATCH System)096for top tetheranchor locations.
Page 104 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Seats and Restraints 103
Do not secure a child seat in aposition without a top tether anchorif a national or local law requiresthat the top tether be anchored, or ifthe instructions that come with thechild restraint say that the top strapmust be anchored.
In Canada, the law requires thatforward-facing child restraints haveatoptether,andthatthetetherbeattached.
If the child restraint or vehicle seatposition does not have the LATCHsystem, you will be using the safetybelt to secure the child restraint. Besure to follow the instructions thatcame with the child restraint.
If more than one child restraintneeds to be installed in the rearseat, be sure to readWhere to Putthe Restraint094.
Double Cab
1. Remove the headrest prior toinstalling a forward-facing childrestraint in an outboard rearseating position. See“HeadrestRemoval and Reinstallation”
underLower Anchors andTe t h e r s f o r C h i l d r e n ( L AT C HSystem)096.
2. Put the child restraint onthe seat.
3. Pick up the latch plate, and runthe lap and shoulder portionsof the vehicle's safety beltthrough or around the restraint.The child restraint instructionswill show you how.
4. Push the latch plate into thebuckle until it clicks.
Position the release button onthe buckle, away from the childrestraint system, so that thesafety belt could be quicklyunbuckled if necessary.
5. Pull the shoulder belt all theway out of the retractor to setthe lock. When the retractorlock is set, the belt can betightened but not pulled out ofthe retractor.
Page 105 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
104 Seats and Restraints
6. To tighten the belt, push downon the child restraint, pull theshoulder portion of the belt totighten the lap portion of thebelt, and feed the shoulder beltback into the retractor. Wheninstalling a forward-facing childrestraint, it may be helpful touse your knee to push down onthe child restraint as youtighten the belt.
Try to pull the belt out of theretractor to make sure theretractor is locked. If theretractor is not locked, repeatSteps 5 and 6.
7. For forward-facing childrestraints, attach and tightenthe top tether to the top tetheranchor (loop). Refer to the childrestraint instructions, thevehicle LATCH anchor weightlimits and instructions listed inLower Anchors and Tethers forChildren (LATCH System)096.
8. Before placing a child in thechild restraint, make sure it issecurely held in place. Tocheck, grasp the child restraintat the safety belt path andattempt to move it side to sideand back and forth. When thechild restraint is properlyinstalled, there should be nomore than 2.5 cm (1 in) ofmovement.
To r e m o v e t h e c h i l d r e s t r a i n t ,unbuckle the vehicle safety belt andlet it return to the stowed position.If the top tether is attached to a toptether anchor, disconnect it.Reinstall the headrest before theseating position is used. See“Headrest Removal andReinstallation”underLower Anchorsand Tethers for Children (LATCHSystem)096for additionalinformation on installing theheadrest properly.
Crew Cab
1. Put the child restraint onthe seat.
2. Pick up the latch plate, and runthe lap and shoulder portionsof the vehicle's safety beltthrough or around the restraint.The child restraint instructionswill show you how.
Page 106 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Seats and Restraints 105
3. Push the latch plate into thebuckle until it clicks.
Position the release button onthe buckle, away from the childrestraint system, so that thesafety belt could be quicklyunbuckled if necessary.
4. Pull the shoulder belt all theway out of the retractor to setthe lock. When the retractorlock is set, the belt can betightened but not pulled out ofthe retractor.
5. To tighten the belt, push downon the child restraint, pull theshoulder portion of the belt totighten the lap portion of thebelt, and feed the shoulder beltback into the retractor. Wheninstalling a forward-facing childrestraint, it may be helpful touse your knee to push down onthe child restraint as youtighten the belt.
Try to pull the belt out of theretractor to make sure theretractor is locked. If theretractor is not locked, repeatSteps 4 and 5.
Page 107 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
106 Seats and Restraints
6. If the child restraint has a toptether, follow the child restraintmanufacturer's instructionsregarding the use of the toptether. SeeLower Anchors andTe t h e r s f o r C h i l d r e n ( L AT C HSystem)096for moreinformation on using the toptether anchors.
7. Before placing a child in thechild restraint, make sure it issecurely held in place. Tocheck, grasp the child restraintat the safety belt path andattempt to move it side to sideand back and forth. When thechild restraint is properlyinstalled, there should be nomore than 2.5 cm (1 in) ofmovement.
To r e m o v e t h e c h i l d r e s t r a i n t ,unbuckle the vehicle safety belt andlet it return to the stowed position.If the top tether is attached to a toptether anchor, disconnect it.
For outboard rear seating positions,if the child restraint cannot beinstalled properly with the headrestin place, the headrest may be
removed. See your dealer forassistance with removal, and storethe removed headrest in a secureplace. When the child restraint isremoved, reinstall the headrestbefore the seating position is used.For reinstallation instructions, see“Headrest Removal andReinstallation”underLower Anchorsand Tethers for Children (LATCHSystem)096.
Securing Child Restraints
(With the Safety Belt in
the Center Front Seat)
{Warning
Achildinachildrestraintinthe
center front seat can be badly
injured or killed by the frontal
airbags if they inflate. Never
secure a child restraint in the
center front seat. It is always
better to secure a child restraint in
arearseat.
Do not use child restraints in thecenter front seat position.
Securing Child Restraints
(With the Safety Belt in
the Front
Passenger Seat)
With Passenger Sensing
System
This vehicle has airbags. A rearseat is a safer place to secure aforward-facing child restraint. SeeWhere to Put the Restraint094.
In addition, the vehicle may have apassenger sensing system which isdesigned to turn off the frontoutboard passenger frontal airbagunder certain conditions. SeePassenger Sensing System082andPassenger Airbag StatusIndicator0137for more informationon this, including important safetyinformation.
Never put a rear-facing child seat inthe front. This is because the risk tothe rear-facing child is so great,if the airbag deploys.
Page 108 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Seats and Restraints 107
{Warning
Achildinarear-facingchild
restraint can be seriously injured
or killed if the front outboard
passenger airbag inflates. This is
because the back of the
rear-facing child restraint would
be very close to the inflating
airbag. A child in a forward-facing
child restraint can be seriously
injured or killed if the front
outboard passenger airbag
inflates and the passenger seat is
in a forward position.
The vehicle may have a
passenger sensing system which
is designed to turn off the front
outboard passenger frontal airbag
under certain conditions.
Even if the passenger sensing
system, if equipped, has turned
off the front outboard passenger
frontal airbag, no system is
fail-safe. No one can guarantee
that an airbag will not deploy
(Continued)
Warning (Continued)
under some unusual
circumstance, even though it is
turned off.
Secure rear-facing child restraints
in a rear seat, even if the airbag
is off. If you secure a
forward-facing child restraint in
the front outboard passenger
seat, always move the seat as far
back as it will go. It is better to
secure the child restraint in a
rear seat.
SeePassenger Sensing System
082for additional information.
If the vehicle does not have a rearseat that will accommodate arear-facing child restraint, arear-facing child restraint should notbe installed in the vehicle, even ifthe airbag is off.
If a child restraint uses a top tether,seeLower Anchors and Tethers forChildren (LATCH System)096fortop tether anchor locations.
Do not secure a child seat in aposition without a top tether anchorif a national or local law requiresthat the top tether be anchored, or ifthe instructions that come with thechild restraint say that the top strapmust be anchored.
In Canada, the law requires thatforward-facing child restraints haveatoptether,andthatthetetherbeattached.
When using the lap-shoulder belt tosecure the child restraint in thisposition, follow the instructions thatcame with the child restraint and thefollowing instructions:
1. Move the seat as far back as itwill go before securing theforward-facing child restraint.Move the seat upward or theseatback to an upright position,if needed, to get a tightinstallation of the childrestraint.
When the passenger sensingsystem, if equipped, has turnedoff the front outboardpassenger frontal airbag, theoff indicator in the passenger
Page 109 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
108 Seats and Restraints
airbag status indicator shouldlight and stay lit when you startthe vehicle. SeePassengerAirbag Status Indicator0137.
2. Put the child restraint onthe seat.

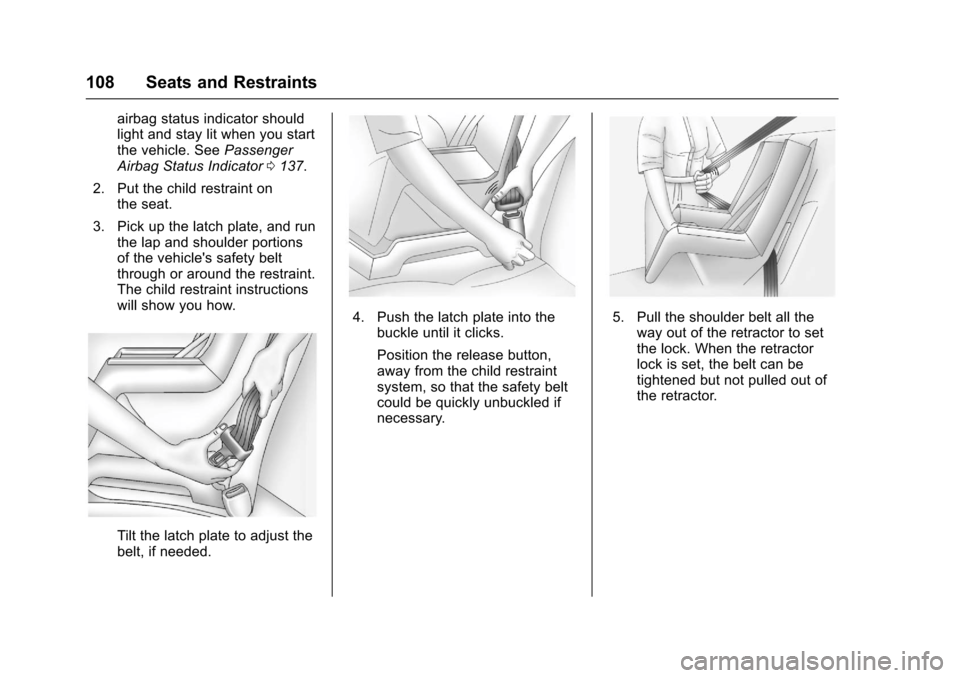

3. Pick up the latch plate, and runthe lap and shoulder portionsof the vehicle's safety beltthrough or around the restraint.The child restraint instructionswill show you how.
Tilt the latch plate to adjust thebelt, if needed.
4. Push the latch plate into thebuckle until it clicks.
Position the release button,away from the child restraintsystem, so that the safety beltcould be quickly unbuckled ifnecessary.
5. Pull the shoulder belt all theway out of the retractor to setthe lock. When the retractorlock is set, the belt can betightened but not pulled out ofthe retractor.
Page 110 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Seats and Restraints 109
6. To tighten the belt, push downon the child restraint, pull theshoulder portion of the belt totighten the lap portion of thebelt, and feed the shoulder beltback into the retractor. Wheninstalling a forward-facing childrestraint, it may be helpful touse your knee to push down onthe child restraint as youtighten the belt.
Try to pull the belt out of theretractor to make sure theretractor is locked. If theretractor is not locked, repeatSteps 5 and 6.
7. If the vehicle does not have arear seat and the child restraintmanufacturer recommendsusing a top tether anchor,attach the top tether to the toptether anchor. Refer to theinstructions that came with thechild restraint and toLowerAnchors and Tethers forChildren (LATCH System)096.
8. Before placing a child in thechild restraint, make sure it issecurely held in place. Tocheck, grasp the child restraintat the safety belt path andattempt to move it side to sideand back and forth. When thechild restraint is properlyinstalled, there should be nomore than 2.5 cm (1 in) ofmovement.
If the vehicle is equipped with apassenger sensing system, andwhen the passenger sensing systemhas turned off the front outboardpassenger frontal airbag, the offindicator in the passenger airbagstatus indicator should light and staylit when the vehicle is started.
If a child restraint has been installedand the on indicator is lit, see“If theOn Indicator Is Lit for a ChildRestraint”underPassenger SensingSystem082for more information.
To r e m o v e t h e c h i l d r e s t r a i n t ,unbuckle the vehicle safety belt andlet it return to the stowed position.If the top tether is attached to a toptether anchor, disconnect it.
With Airbag On-Off Switch
This vehicle has airbags. A rearseat is a safer place to secure aforward-facing child restraint. SeeWhere to Put the Restraint094.
There may be a switch on theinstrument panel endcap that youcan use to turn off the frontoutboard passenger frontal airbag.SeeAirbag On-Off Switch080formore information, includingimportant safety information.
Never put a rear-facing child seat inthe front. This is because the risk tothe rear-facing child is so great,if the airbag deploys.
