Technical Data 357
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 357
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 357
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 358
Engine Drive Belt Routing . . . . 360
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
0 358
iifor the vehicle's engine code.
Service Parts
Identification Label
This label, on the rear load floor,
behind the spare tire tub, has the
following information:
.
Vehicle Identification
Number (VIN).
. Model designation.
. Paint information.
. Production options and special
equipment.
Do not remove this label from the
vehicle.
ProCarManuals.com

Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-9234782) - 2016 -
CRC - 8/24/15
358 Technical Data

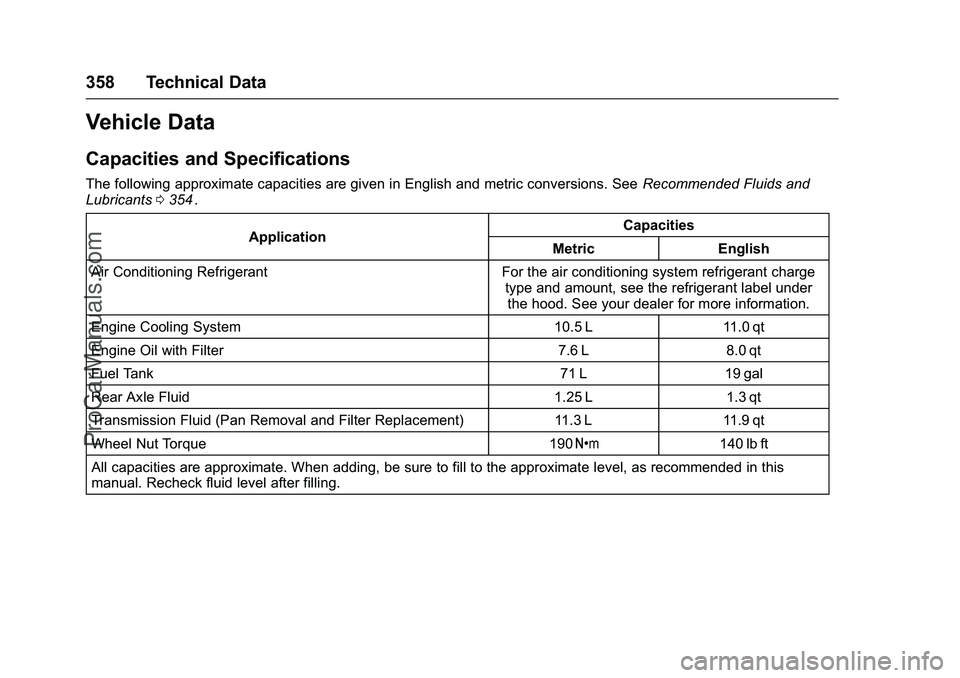

Vehicle Data
Capacities and Specifications
The following approximate capacities are given in English and metric conversions. SeeRecommended Fluids and
Lubricants 0354ii.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant charge
type and amount, see the refrigerant label underthe hood. See your dealer for more information.
Engine Cooling System 10.5 L11.0 qt
Engine Oil with Filter 7.6 L8.0 qt
Fuel Tank 71 L19 gal
Rear Axle Fluid 1.25 L1.3 qt
Transmission Fluid (Pan Removal and Filter Replacement) 11.3 L11.9 qt
Wheel Nut Torque 190Y 140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
ProCarManuals.com

Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-9234782) - 2016 -
CRC - 8/24/15
Technical Data 359

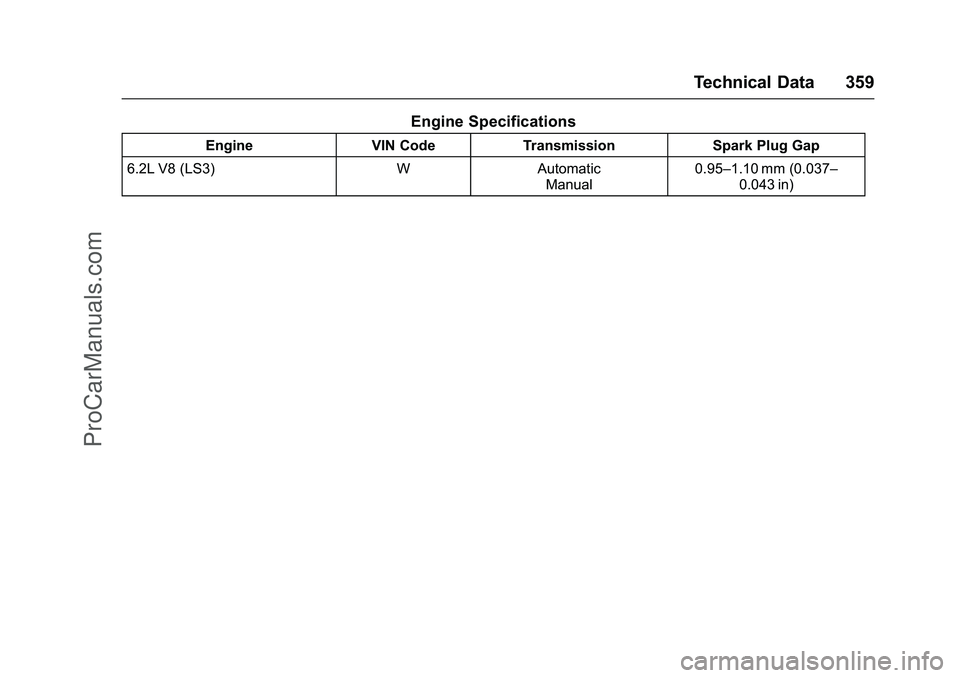

Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
6.2L V8 (LS3) WAutomatic
Manual 0.95–1.10 mm (0.037–
0.043 in)
