When Should an Airbag In ate?
The driver’s and right front passenger’s frontal airbags
are designed to in ate in moderate to severe frontal
or near-frontal crashes. But they are designed to in ate
only if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account
a variety of desired deployment and non-deployment
events and are used to predict how severe a crash
is likely to be in time for the airbags to in ate and help
restrain the occupants. Whether your frontal airbags
will or should deploy is not based on how fast your
vehicle is traveling. It depends largely on what you hit,
the direction of the impact and how quickly your
vehicle slows down.
In addition, your vehicle has “dual stage” frontal airbags,
which adjust the restraint according to crash severity.
Your vehicle is equipped with electronic frontal sensors,
which help the sensing system distinguish between a
moderate frontal impact and a more severe frontal
impact. For moderate frontal impacts, these airbags
in ate at a level less than full deployment. For
more severe frontal impacts, full deployment occurs.If the front of your vehicle goes straight into a wall
that does not move or deform, the threshold level for
the reduced deployment is about 12 to 16 mph
(19 to 26 km/h), and the threshold level for a full
deployment is about 20 to 25 mph (32 to 40 km/h).
(The threshold level can vary, however, with speci c
vehicle design, so that it can be somewhat above
or below this range.)
Airbags may in ate at different crash speeds.
For example:
If the vehicle hits a stationary object, the airbag
could in ate at a different crash speed than if
the object were moving.
If the object deforms, the airbag could in ate at a
different crash speed than if the object does not
deform.
If the vehicle hits a narrow object (like a pole) the
airbag could in ate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle the
airbag could in ate at a different crash speed
than if the vehicle goes straight into the object.
The frontal airbags (driver and right front passenger)
are not intended to in ate during vehicle rollovers, rear
impacts, or in many side impacts because in ation
would not likely help the occupants.
1-45
Page 52 of 374
Side impact airbags are designed to in ate in moderate
to severe side crashes. A side impact airbag will
in ate if the crash severity is above the system’s
designed “threshold level.” The threshold level can vary
with speci c vehicle design. Side impact airbags are
not designed to in ate in frontal or near-frontal impacts,
rollovers or rear impacts, because in ation would not
likely help the occupant. A side impact airbag will
only deploy on the side of the vehicle that is struck.
In any particular crash, no one can say whether
an airbag should have in ated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, in ation is determined by
the angle of the impact and how quickly the vehicle
slows down in frontal and near-frontal impacts. For side
impact airbags, in ation is determined by the location
and severity of the impact.
What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. For
both frontal and side impact airbags, the sensing system
triggers a release of gas from the in ator, which
in ates the airbag. The in ator, the airbag and related
hardware are all part of the airbag modules inside
the steering wheel, the instrument panel, and the side
of the front seatbacks closest to the door.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal airbags would not help you in many types
of collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion
is not toward the airbag. Side impact airbags would not
help you in many types of collisions, including frontal
or near frontal collisions, rollovers, and rear impacts,
primarily because an occupant’s motion is not toward
those airbags. Airbags should never be regarded
as anything more than a supplement to safety belts, and
then only in moderate to severe frontal or near-frontal
collisions for the driver’s and passenger’s frontal airbags,
and only in moderate to severe side collisions for
vehicles with a driver’s and passenger’s side impact
airbag.
1-46
Page 53 of 374
What Will You See After an Airbag
In ates?
After the air bag in ates, it quickly de ates, so quickly
that some people may not even realize the air bag
in ated. Some components of the air bag module will
be hot for a short time. These components include
the steering wheel hub for the driver’s frontal air bag
and the instrument panel for the passenger’s frontal
air bag and the side of the seatback closest to the
driver’s and/or passenger’s door. The parts of the bag
that come into contact with you may be warm, but
not too hot to touch. There will be some smoke and
dust coming from the vents in the de ated air bags.
Air bag in ation doesn’t prevent the driver from seeing
or being able to steer the vehicle, nor does it stop
people from leaving the vehicle.
{CAUTION:
When an airbag in ates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is safe
to do so. If you have breathing problems but
cannot get out of the vehicle after an airbag
in ates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an airbag deployment, you
should seek medical attention.
Your vehicle has a feature that will automatically unlock
the doors and turn the interior lamps on when the air
bags in ate (if battery power is available). You can lock
the doors again and turn the interior lamps off by
using the door lock and interior lamp controls.
1-47
Page 54 of 374
In many crashes severe enough to in ate an air bag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from
the passenger air bag.
Air bags are designed to in ate only once. After
an air bag in ates, you’ll need some new parts
for your air bag system. If you don’t get them, the
air bag system won’t be there to help protect you in
another crash. A new system will include air bag
modules and possibly other parts. The service
manual for your vehicle covers the need to replace
other parts.
Your vehicle is equipped with electronic frontal
sensors, which help the sensing system distinguish
between a moderate frontal impact and a more
severe frontal impact. Your vehicle is also equipped
with a crash sensing and diagnostic module,
which records information about the frontal air bag
system. The module records information about
the readiness of the system, when the system
commands air bag in ation and driver’s safety belt
usage at deployment. The module also records
speed, engine RPM, brake and throttle data.
Let only quali ed technicians work on your air bag
systems. Improper service can mean that an air
bag system won’t work properly. See your dealer
for service.Notice:If you damage the covering for the driver’s
or the passenger’s airbag, the bag may not work
properly. You may have to replace the airbag module
in the steering wheel or both the airbag module and
the instrument panel for the passenger’s airbag.
Do not open or break the airbag coverings.
Airbag Off Switch
Your vehicle has a switch inside the glovebox that you
can use to turn off the passenger’s frontal airbag.United States
Canada
1-48
Page 55 of 374
This switch should only be turned to the off position if
the person in the passenger’s position is a member of
a passenger risk group identi ed by the national
government as follows:
Infant. An infant (less than 1 year old)
must ride in the front seat because:
my vehicle has no rear seat;
my vehicle has a rear seat too small to
accommodate a rear-facing infant seat; or
the infant has a medical condition which, according
to the infant’s physician, makes it necessary for the
infant to ride in the front seat so that the driver
can constantly monitor the child’s condition.
Child age 1 to 12. A child age 1 to 12 must
ride in the front seat because:
my vehicle has no rear seat;
although children ages 1 to 12 ride in the rear
seat(s) whenever possible, children ages 1 to
12 sometimes must ride in the front because no
space is available in the rear seat(s) of my vehicle;
or
the child has a medical condition which, according
to the child’s physician, makes it necessary for the
child to ride in the front seat so that the driver
can constantly monitor the child’s condition.
Medical Condition. A passenger has a
medical condition which, according to his
or her physician:
causes the passenger airbag to pose a special risk
for the passenger; and
makes the potential harm from the passenger
airbag in a crash greater than the potential
harm from turning off the airbag and allowing the
passenger, even if belted, to hit the dashboard
or windshield in a crash.
{CAUTION:
If the passenger’s frontal airbag is turned off
for a person who is not in a risk group
identi ed by the national government, that
person will not have the extra protection of a
frontal airbag. In a crash, the frontal airbag
would not be able to in ate and help protect
the person sitting there. Do not turn off the
passenger’s frontal airbag unless the person
sitting there is in a risk group.
1-49
Page 56 of 374
To turn off the passenger’s frontal airbag, insert your
ignition key into the switch, push in, and move the switch
to off position.United States
Canada
United States
Canada
1-50
Page 57 of 374
The airbag off light, located on the roof panel above
the rearview mirror, will come on and stay on to let you
know that the passenger’s frontal airbag is off. See
Airbag Off Light on page 3-26. The passenger’s frontal
airbag will remain off until you turn it back on again.
{CAUTION:
If the airbag readiness light ever comes on
when you have turned off the passenger’s
frontal airbag, it means that something may be
wrong with the airbag system. The passenger’s
frontal airbag could in ate even though the
switch is off. If this ever happens, do not let
anyone whom the national government has
identi ed as a member of a passenger airbag
risk group sit in the passenger’s position (for
example, do not secure a rear-facing child
restraint in your vehicle) until you have your
vehicle serviced.To turn the passenger’s frontal airbag on again, insert
your ignition key into the switch, push in, and move
the switch to the on position.United States
Canada
1-51
Page 58 of 374
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be serviced.
There are parts of the airbag system in several places
around your vehicle. Your dealer and the service manual
have information about servicing your vehicle and the
airbag system. To purchase a service manual, see
Service Publications Ordering Information on page 7-9.
{CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected, an
airbag can still in ate during improper service.
You can be injured if you are close to an
airbag when it in ates. Avoid yellow
connectors. They are probably part of the
airbag system. Be sure to follow proper
service procedures, and make sure the person
performing work for you is quali ed to do so.
The airbag system does not need regular maintenance.
Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates, retractors
and anchorages are working properly. Look for any
other loose or damaged safety belt system parts. If you
see anything that might keep a safety belt system
from doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt
is torn or frayed, get a new one right away.
Also look for any opened or broken airbag covers, and
have them repaired or replaced. (The airbag system
does not need regular maintenance.)
1-52
Page 59 of 374

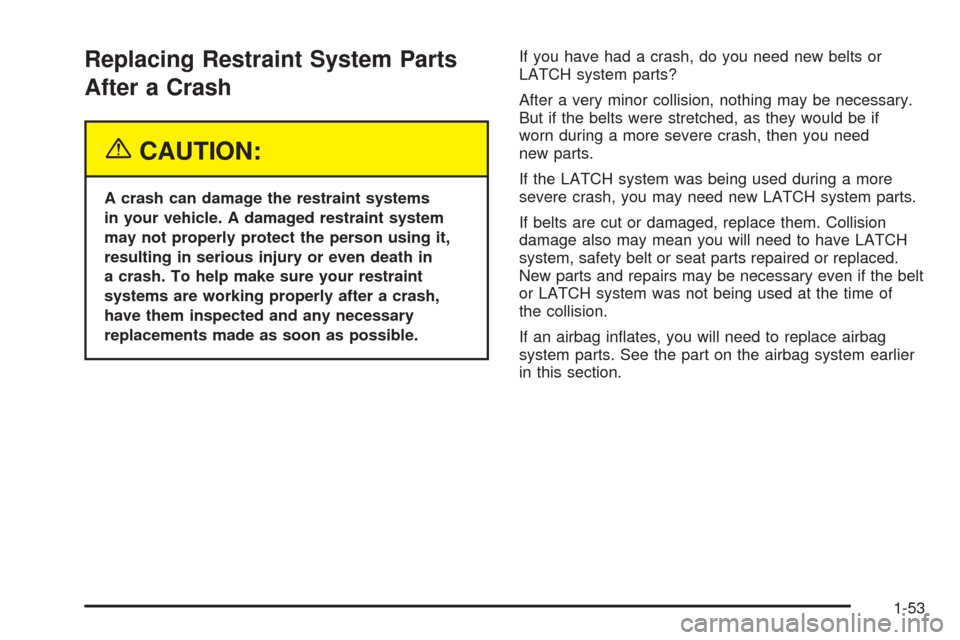

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint system
may not properly protect the person using it,
resulting in serious injury or even death in
a crash. To help make sure your restraint
systems are working properly after a crash,
have them inspected and any necessary
replacements made as soon as possible.If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if
worn during a more severe crash, then you need
new parts.
If the LATCH system was being used during a more
severe crash, you may need new LATCH system parts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have LATCH
system, safety belt or seat parts repaired or replaced.
New parts and repairs may be necessary even if the belt
or LATCH system was not being used at the time of
the collision.
If an airbag in ates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.
1-53
Page 60 of 374
✍NOTES
1-54
