If a locked door is opened with the key, without the key,
or without the remote keyless entry transmitter, the
alarm will go off. The headlamps and parking lamps will
ash for two minutes, and the horn will sound for
30 seconds, then will turn off to save the battery power.
You can disable the alarm using the remote keyless
entry transmitter or by putting the key in the ignition and
starting the vehicle.
Remember, the theft-deterrent system won’t activate if
you lock the doors with a key or use the manual
door lock. It activates only if you use a power door lock
switch with the door open, or with the remote keyless
entry transmitter. You should also remember that
you can start your vehicle with the correct ignition key if
the alarm has been set off.
Here’s how to avoid setting off the alarm by accident:
If you don’t want to activate the theft-deterrent
system, the vehicle should be locked with the door
keyafterthe doors are closed.
Always unlock a door with a key, or use the remote
keyless entry transmitter. Unlocking a door any
other way will set off the alarm.
If you set off the alarm by accident, unlock any door
with the key. You can also turn off the alarm by pressing
unlock on the remote keyless entry transmitter. The
alarm won’t stop if you try to unlock a door any
other way.
Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, lower the driver’s window
and open the driver’s door.
2. Activate the system by locking the doors with the
power door lock switch while the door is open, or
with the remote keyless entry transmitter.
3. Get out of the vehicle, close the door and wait for
the security light to go out.
4. Then reach in through the window, unlock the door
with the manual door lock and open the door. This
should set off the alarm.
When the alarm is set the power door unlock switch is
not operational.
If the alarm does not sound when it should but the
headlamps ash, check to see if the horn works. The
horn fuse may be blown. To replace the fuse, seeFuses
and Circuit Breakers on page 5-82.
If the alarm does not sound or the headlamps do not
ash, the vehicle should be serviced by your dealer.
2-13

Passlock®
Your vehicle is equipped with the
Passlock®theft-deterrent system.
Passlock®is a passive theft-deterrent system.
Passlock®enables fuel if the ignition lock cylinder is
turned with a valid key. If a correct key is not used or the
ignition lock cylinder is tampered with, the fuel system
is disabled and the vehicle will not start.
During normal operation, the security light will turn off
approximately ve seconds after the key is turned
to RUN. SeeSecurity Light on page 3-35.
If the engine stalls and the security light ashes, wait
about 10 minutes until the light stops ashing before
trying to restart the engine. Remember to release
the key from START as soon as the engine starts.
If the engine does not start after three tries, the vehicle
needs service.
If the engine is running and the security light comes on,
you will be able to restart the engine if you turn the
engine off. However, your Passlock
®system is
not working properly and must be serviced by your
dealer. Your vehicle is not protected by Passlock
®at this
time. You may also want to check the fuse. See
Fuses and Circuit Breakers on page 5-82. See your
dealer for service.
In an emergency, call the GM Roadside Assistance
Center. SeeRoadside Assistance Program on page 7-5.
Starting and Operating Your
Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an elaborate
break-in. But it will perform better in the long run if
you follow these guidelines:
Keep your speed at 55 mph (88 km/h) or less for
the rst 500 miles (805 km).
Do not drive at any one speed, fast or slow, for
the rst 500 miles (805 km). Do not make
full-throttle starts.
Avoid making hard stops for the rst 200 miles
(322 km) or so. During this time your new
brake linings are not yet broken in. Hard stops
with new linings can mean premature wear
and earlier replacement. Follow this breaking-in
guideline every time you get new brake
linings.
Do not tow a trailer during break-in. SeeTowing
a Trailer on page 4-38for more information.
2-14

Cargo Cover
Opening the Cargo Cover
Press this button located in
the glovebox to release
the cargo cover.
You can also open the cargo cover using the remote
keyless entry transmitter. SeeRemote Keyless
Entry System Operation on page 2-5for more
information. The tailgate must be open for you to close
the cargo cover. SeeTailgate on page 2-9for more
information.
If you cannot open your cargo cover area using your
remote keyless entry transmitter you should rst check
the battery. See “Battery Replacement” underRemote
Keyless Entry System Operation on page 2-5.If
changing the battery does not work, you may need to
replace the fuse. SeeFuses and Circuit Breakers
on page 5-82for more information.To open your cargo cover area manually, do the
following:
1. Locate the control box under the rear of the vehicle
on the driver’s side, behind the rear tire.
2. Insert the convertible top release tool or your
ignition key and turn it to activate the emergency
release. The convertible top release tool is provided
by the dealer and stored in the glovebox.
Convertible top release tool shown
2-32

Side-Saddle Storage
Your vehicle may have a side-saddle storage system to
store items on either side of the rear cargo area. For
more information on this feature, see your dealer.
Convertible Top
Roof Tonneau
Your vehicle has a roof tonneau that is raised or
lowered along with the convertible top using the
convertible top switch located on the center console
switchbank. See “Convertible Top Operation” following
in this section for more information.
If you are unable to raise or lower your roof tonneau
using the convertible top switch, verify that the
cargo cover is closed. The roof tonneau will not raise or
lower if the cargo cover is open. SeeCargo Cover on
page 2-32and for more information. There will also be a
message displayed on the on the Driver Information
Center (DIC). SeeDIC Warnings and Messages
on page 3-45for more information on possible DIC
messages and how to clear them from the display.
If the cargo area is closed and you still cannot operate
the roof tonneau, check to see if a fuse is blown.
SeeFuses and Circuit Breakers on page 5-82for more
information.
Contact your dealer if you are still unable to operate the
roof tonneau.
You may need to raise the roof tonneau manually in the
event of a power loss. See “Convertible Top Operation”
for instructions.
2-37

Convertible Top Operation
Notice:If you operate the convertible top switch
continuously while the ignition is in ACCESSORY,
the battery will drain and you might not be able
to start your vehicle. Do not use the convertible top
switch for extended periods of time when the
ignition is in ACCESSORY.
The ignition must be in RUN or ACCESSORY and your
foot must be on the brake in order to raise or lower
the convertible top. The cargo cover must also be closed
for the convertible top to work properly.
Operate the convertible top by pressing the convertible
top switch located on the console switchback. See
Center Console Switchbank on page 3-16for more
information on location.
{CAUTION:
Moving parts of the convertible top can be
dangerous. People can be injured by the
convertible top and its mechanism. Keep
people away from your vehicle when you are
lowering or raising the top.
a(Top Open):Press and hold this symbol on
the convertible top switch to open the convertible
top. The windows will lower automatically when the top
begins to lower. Two chimes will sound when the
convertible top is fully opened.
b(Top Closed):Press and hold this symbol on
the convertible top switch to close the convertible
top. Two chimes will sound when the top is fully closed.
If you cannot raise or lower the convertible top by
using your convertible top switch, you may need to
replace the fuse. SeeFuses and Circuit Breakers
on page 5-82for more information.
If you still cannot operate your convertible top, contact
your dealer.
You may need to raise the roof tonneau and convertible
top manually in the event of a power loss. You will
need two people to lift the roof tonneau and convertible
top when using the following procedure. To manually
raise the roof tonneau and convertible top, do the
following:
1. Turn the ignition to OFF.
2. Be sure the cargo cover is closed. SeeCargo
Cover on page 2-32andRemote Keyless Entry
System Operation on page 2-5for more information.
3. Open both doors.
2-38

As you signal a turn or a lane change, if the arrows
ash more quickly than normal, a signal bulb may
be burned out and other drivers won’t see your
turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don’t go on at all when you signal
a turn, check the fuse. SeeFuses and Circuit Breakers
on page 5-82and for burned-out bulbs.
If you have a trailer towing option with added wiring
for the trailer lamps, a different turn signal asher
is used. With this asher installed, the signal indicator
will ash even if a turn signal bulb is burned out.
Check the front and rear turn signal lamps regularly to
make sure they are working.
Turn Signal On Chime
If your turn signal is left on for more than 3/4 of a mile
(1.2 km), a chime will sound at each ash of the
turn signal. You will also receive a DIC message.
See “Turn Signal On” underDIC Warnings and
Messages on page 3-45for more information.
To turn off the chime, move the turn signal lever to
the off position.
Headlamp High/Low-Beam Changer
To change the headlamps from low to high beam, push
the lever toward the instrument panel. To return to
low-beam headlamps, pull the multifunction lever toward
you. Then release it.
When the high beams are
on, this indicator light on
the instrument panel
cluster will also be on.
Flash-to-Pass
This feature lets you use your high-beam headlamps to
signal a driver in front of you that you want to pass.
It works even if your headlamps are in the automatic
position.
To use it, pull the turn signal lever toward you, then
release it.
If your headlamps are in the automatic position or on
low beam, your high-beam headlamps will turn on.
They’ll stay on as long as you hold the lever toward you.
The high-beam indicator on the instrument panel
cluster will come on. Release the lever to return to
normal operation.
3-6

Certain electrical accessories may not be compatible
with the accessory power outlet and could result
in blown vehicle or adapter fuses. If you experience a
problem, see your dealer for additional information
on accessory power outlets.
Notice:Adding any electrical equipment to your
vehicle may damage it or keep other components
from working as they should. The repairs would not
be covered by your warranty. Do not use equipment
exceeding maximum amperage rating. Check with
your dealer before adding electrical equipment.
When adding electrical equipment, be sure to follow the
proper installation instructions included with the
equipment.
Notice:Improper use of the power outlet can cause
damage not covered by your warranty. Do not
hang any type of accessory or accessory bracket
from the plug because the power outlets are

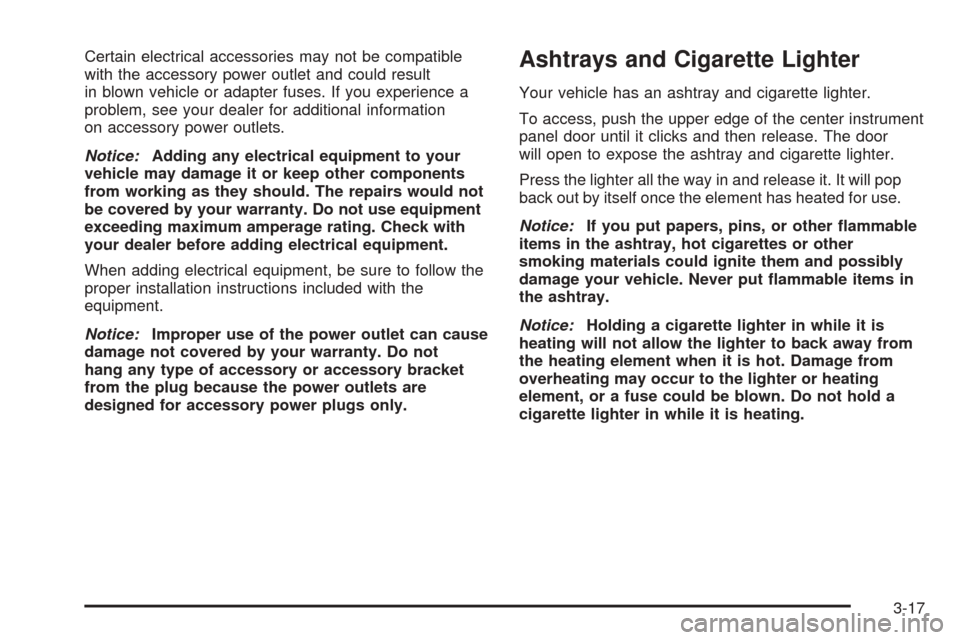

designed for accessory power plugs only.Ashtrays and Cigarette Lighter
Your vehicle has an ashtray and cigarette lighter.
To access, push the upper edge of the center instrument
panel door until it clicks and then release. The door
will open to expose the ashtray and cigarette lighter.
Press the lighter all the way in and release it. It will pop
back out by itself once the element has heated for use.
Notice:If you put papers, pins, or other ammable
items in the ashtray, hot cigarettes or other
smoking materials could ignite them and possibly
damage your vehicle. Never put ammable items in
the ashtray.
Notice:Holding a cigarette lighter in while it is
heating will not allow the lighter to back away from
the heating element when it is hot. Damage from
overheating may occur to the lighter or heating
element, or a fuse could be blown. Do not hold a
cigarette lighter in while it is heating.
3-17

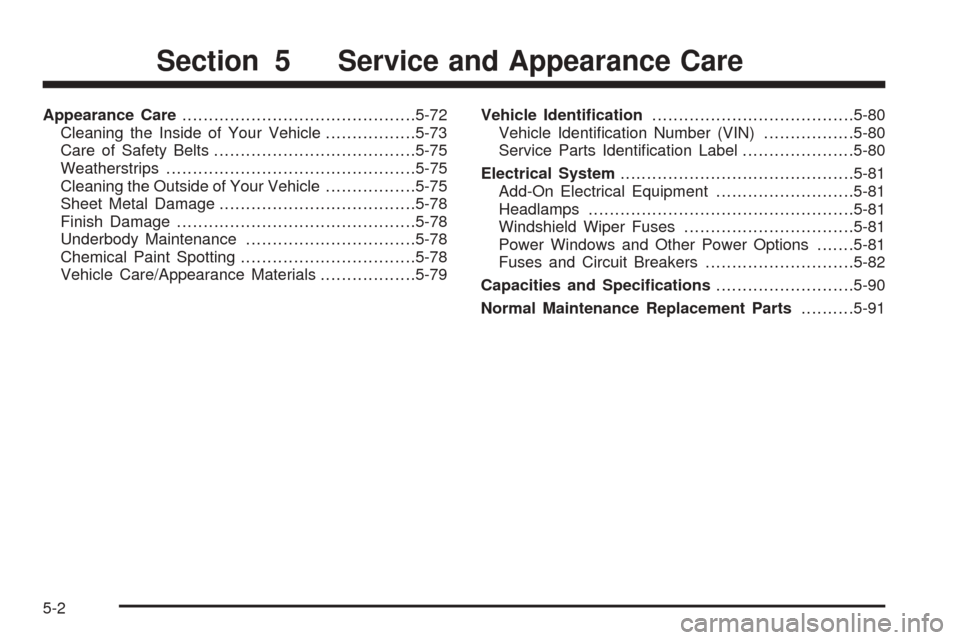

Appearance Care............................................5-72
Cleaning the Inside of Your Vehicle.................5-73
Care of Safety Belts......................................5-75
Weatherstrips...............................................5-75
Cleaning the Outside of Your Vehicle.................5-75
Sheet Metal Damage.....................................5-78
Finish Damage.............................................5-78
Underbody Maintenance................................5-78
Chemical Paint Spotting.................................5-78
Vehicle Care/Appearance Materials..................5-79Vehicle Identication......................................5-80
Vehicle Identication Number (VIN).................5-80
Service Parts Identication Label.....................5-80
Electrical System............................................5-81
Add-On Electrical Equipment..........................5-81
Headlamps..................................................5-81
Windshield Wiper Fuses................................5-81
Power Windows and Other Power Options.......5-81
Fuses and Circuit Breakers............................5-82
Capacities and Specications..........................5-90
Normal Maintenance Replacement Parts..........5-91
Section 5 Service and Appearance Care
5-2

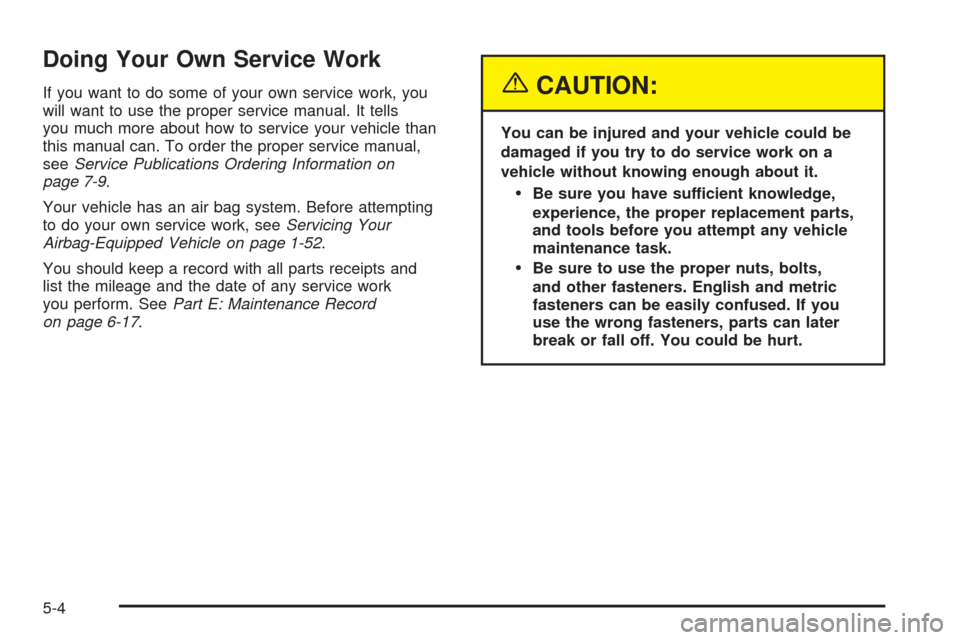

Doing Your Own Service Work
If you want to do some of your own service work, you
will want to use the proper service manual. It tells
you much more about how to service your vehicle than
this manual can. To order the proper service manual,
seeService Publications Ordering Information on
page 7-9.
Your vehicle has an air bag system. Before attempting
to do your own service work, seeServicing Your
Airbag-Equipped Vehicle on page 1-52.
You should keep a record with all parts receipts and
list the mileage and the date of any service work
you perform. SeePart E: Maintenance Record
on page 6-17.{CAUTION:
You can be injured and your vehicle could be
damaged if you try to do service work on a
vehicle without knowing enough about it.
Be sure you have sufficient knowledge,
experience, the proper replacement parts,
and tools before you attempt any vehicle
maintenance task.
Be sure to use the proper nuts, bolts,
and other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
5-4

A. Remote Positive Terminal. SeeJump Starting
on page 5-36for more information.
B. Coolant Surge Tank. SeeEngine Coolant
on page 5-24for more information.
C. Engine Oil Dipstick. SeeEngine Oil on page 5-14
for more information.
D. Engine Oil Fill Cap. SeeEngine Oil on page 5-14
for more information.
E. Automatic Transmission Fluid Dipstick. See
Automatic Transmission Fluid on page 5-21
for more information.
F. Engine Cover. SeeEngine Cover on page 5-19
for more information.G. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-20for more information.
H. Remote Negative Terminal. SeeJump Starting
on page 5-36for more information.
I. Power Steering Reservoir. SeePower Steering Fluid
on page 5-31for more information.
J. Brake Master Cylinder. SeeBrakes on page 5-33
for more information.
K. Underhood Fuse Block Cover. SeeFuses and
Circuit Breakers on page 5-82for more information.
L. Windshield Washer Fluid Reservoir. SeeWindshield
Washer Fluid on page 5-32for more information.
5-13
