To get an accurate reading, the vehicle should be on a
level surface.
The proper level is from 0 to 3/8 inch (0 to 10 mm)
below the bottom of the filler plug hole.
If the level is below the bottom of the filler plug hole,
located on the rear axle, you’ll need to add some
lubricant. Add enough lubricant to raise the level to the
bottom of the filler plug hole.
What to Use
SeeRecommended Fluids and Lubricants on page 6-12
for the type of fluid to use.
Headlamp Aiming
If your vehicle is damaged in an accident, the headlamp
aim may be affected. If you believe your headlamps
need to be re-aimed, we recommend that you take your
vehicle to the dealer for service. However, it is
possible for you to re-aim your headlamps by following
the procedure in the service manual for your vehicle.
SeeService Publications Ordering Information on
page 7-14for more information.
Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 5-48.
For any bulb changing procedure not listed in this
section, contact your dealer. Manual Transmission
5-43

Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside
and can burst if you drop or scratch the
bulb. You or others could be injured. Be
sure to read and follow the instructions on
the bulb package.
Headlamps
To replace the headlamp bulbs, do the following:
1. Turn the front wheels as far as they will go in the
opposite direction of the bulb that is being changed.
2. Reach underneath the vehicle and locate the
headlamp door. Remove the fastener retaining
the door.3. Turn the bulb socket counterclockwise to remove it
from the headlamp assembly.
There are separate sockets for the high and
low-beam headlamps.
4. Pull the bulb socket out of the headlamp assembly.
5-44

5. Disconnect the bulb socket from the wiring harness
and replace the unit.
6. Reinstall the bulb socket back into the headlamp
assembly by turning it clockwise.
7. Reinstall the headlamp cover and tighten
the fastener.
Front Turn Signal, Sidemarker and
Parking Lamps
Front Turn and Parking Lamps
To replace the front turn or parking lamp bulbs, do
the following:
1. Open the hood. SeeHood Release on page 5-11
for more information.
2. Locate the bar that runs across the front of the
vehicle and remove the two screws located near
the front of the hood that hold the bar in place.
3. Release the tabs that attach the bar to
the headlamps.
5-45

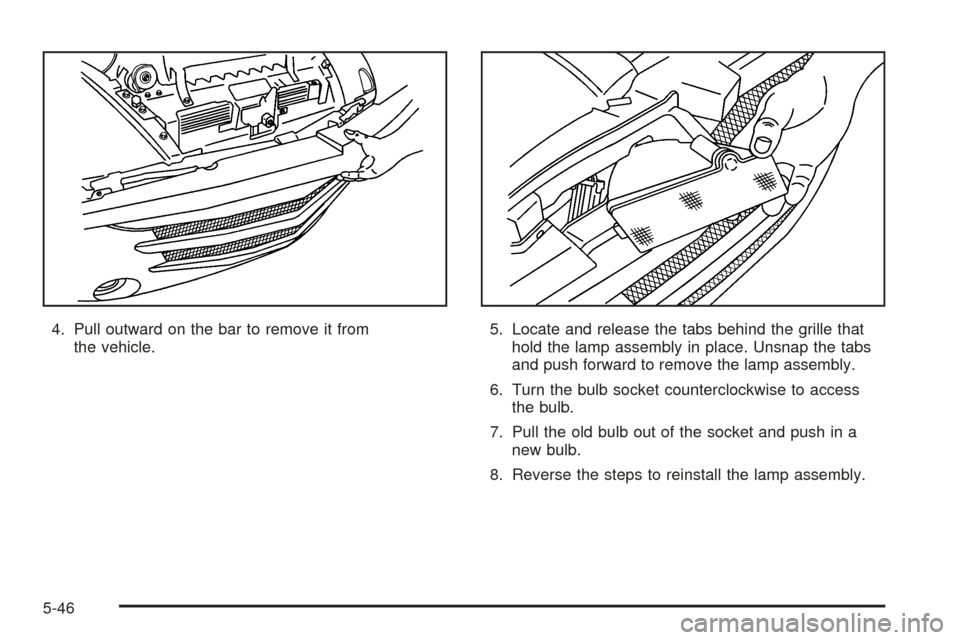

4. Pull outward on the bar to remove it from
the vehicle.5. Locate and release the tabs behind the grille that
hold the lamp assembly in place. Unsnap the tabs
and push forward to remove the lamp assembly.
6. Turn the bulb socket counterclockwise to access
the bulb.
7. Pull the old bulb out of the socket and push in a
new bulb.
8. Reverse the steps to reinstall the lamp assembly.
5-46

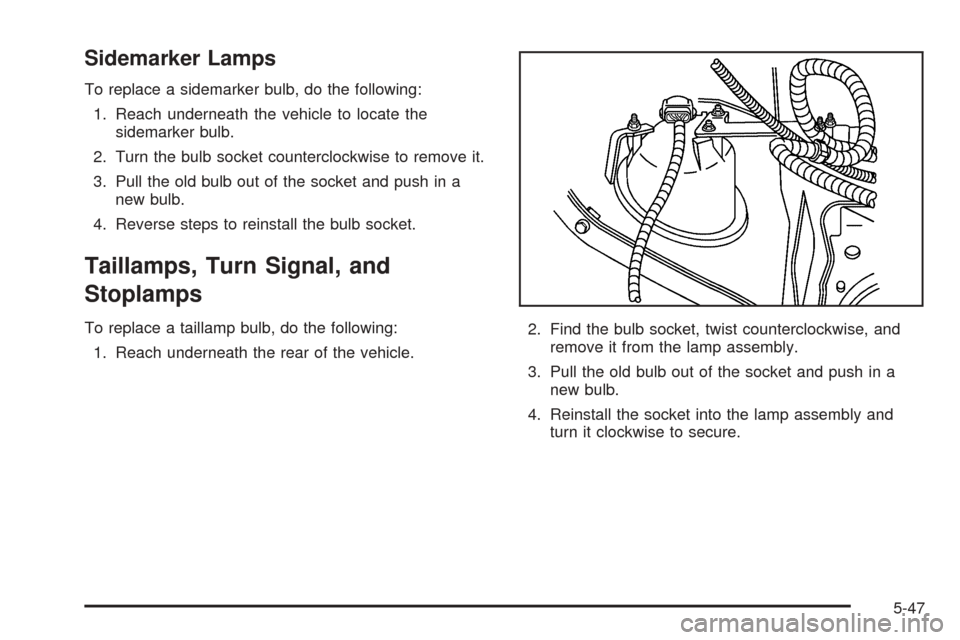

Sidemarker Lamps
To replace a sidemarker bulb, do the following:
1. Reach underneath the vehicle to locate the
sidemarker bulb.
2. Turn the bulb socket counterclockwise to remove it.
3. Pull the old bulb out of the socket and push in a
new bulb.
4. Reverse steps to reinstall the bulb socket.
Taillamps, Turn Signal, and
Stoplamps
To replace a taillamp bulb, do the following:
1. Reach underneath the rear of the vehicle.2. Find the bulb socket, twist counterclockwise, and
remove it from the lamp assembly.
3. Pull the old bulb out of the socket and push in a
new bulb.
4. Reinstall the socket into the lamp assembly and
turn it clockwise to secure.
5-47

Back-Up Lamps
To replace a back-up lamp bulb, do the following:
1. Reach underneath the vehicle near the license plate
and find the bulb socket.
2. Remove the socket from the lamp assembly by
locating and then squeezing the release tab
while turning the socket counterclockwise.3. Turn the bulb counterclockwise and then pull
outward to remove it from the socket.
4. Insert a new bulb into the socket by lining up the
notches on the bulb and turn it clockwise to
secure it.
5. Reverse the steps to reinstall the lamp assembly on
the vehicle.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-Up Lamp 2057
Front Turn Signal/Parking Lamp T20
Headlamps
High-Beam 9005HB3
Low-Beam H11
Sidemarker Lamp 194
Stoplamp, Taillamp and Turn
Signal Lamp3157
For replacement bulbs not listed here, contact
your dealer.
5-48

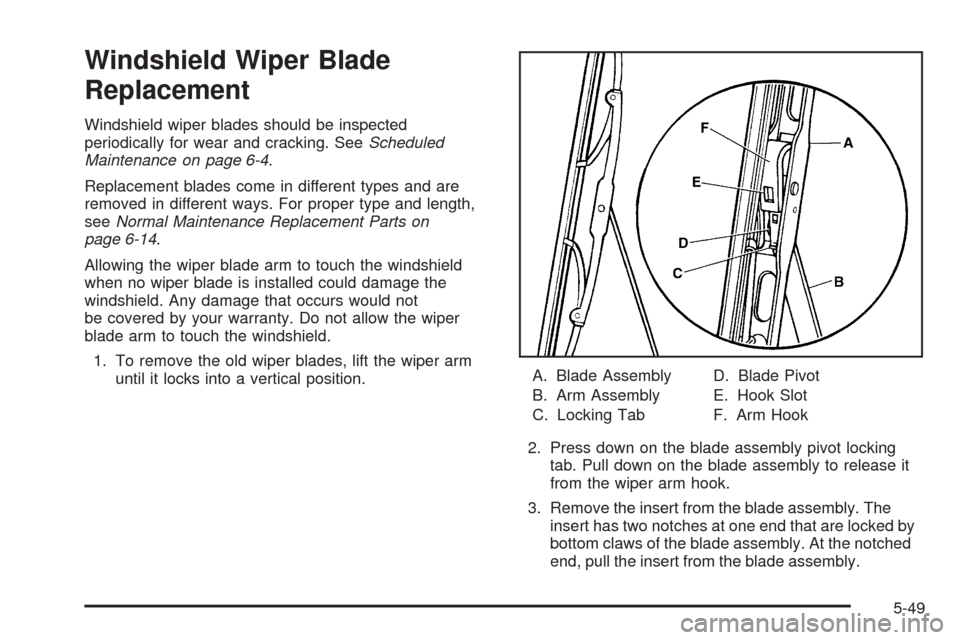

Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected
periodically for wear and cracking. SeeScheduled
Maintenance on page 6-4.
Replacement blades come in different types and are
removed in different ways. For proper type and length,
seeNormal Maintenance Replacement Parts on
page 6-14.
Allowing the wiper blade arm to touch the windshield
when no wiper blade is installed could damage the
windshield. Any damage that occurs would not
be covered by your warranty. Do not allow the wiper
blade arm to touch the windshield.
1. To remove the old wiper blades, lift the wiper arm
until it locks into a vertical position.A. Blade Assembly
B. Arm Assembly
C. Locking TabD. Blade Pivot
E. Hook Slot
F. Arm Hook
2. Press down on the blade assembly pivot locking
tab. Pull down on the blade assembly to release it
from the wiper arm hook.
3. Remove the insert from the blade assembly. The
insert has two notches at one end that are locked by
bottom claws of the blade assembly. At the notched
end, pull the insert from the blade assembly.
5-49

4. To install the new wiper insert, slide the insert (D),
notched end last, into the end with two blade
claws (A). Slide the insert all the way through
the blade claws at the opposite end (B). The
plastic caps (C) will be forced off as the insert is
fully inserted.
5. Be sure that the notches are locked by the bottom
claws. Make sure that all other claws are properly
locked on both sides of the insert slots.A. Claw in Notch
B. Correct Installation
C. Incorrect Installation
6. Put the blade assembly pivot in the wiper arm
hook. Pull up until the pivot locking tab locks in
the hook slot.
7. Carefully lower the wiper arm and blade assembly
onto the windshield.
5-50

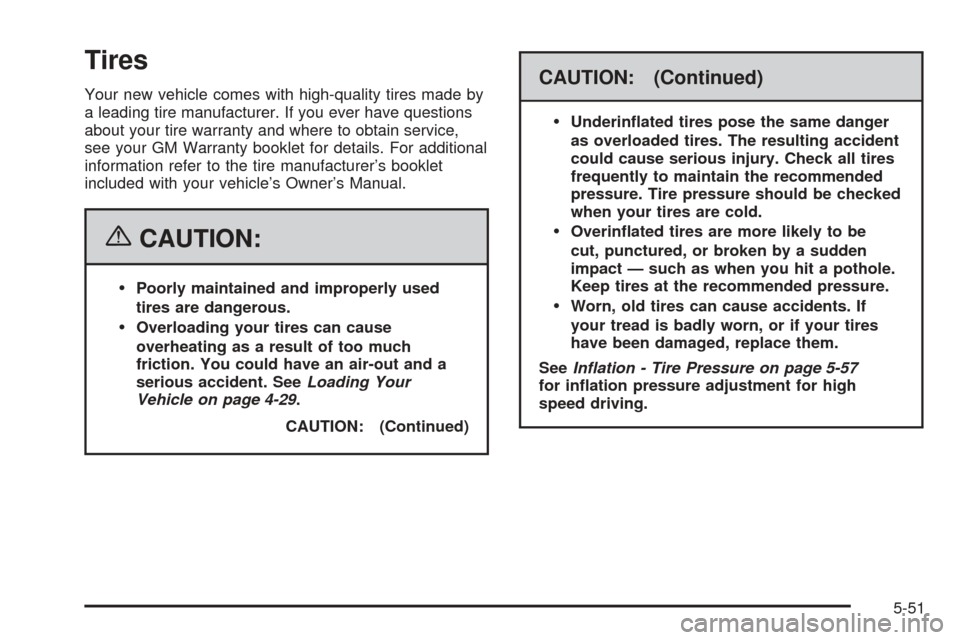

Tires
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where to obtain service,
see your GM Warranty booklet for details. For additional
information refer to the tire manufacturer’s booklet
included with your vehicle’s Owner’s Manual.
{CAUTION:
Poorly maintained and improperly used
tires are dangerous.
Overloading your tires can cause
overheating as a result of too much
friction. You could have an air-out and a
serious accident. SeeLoading Your
Vehicle on page 4-29.
CAUTION: (Continued)
CAUTION: (Continued)

Underinated tires pose the same danger
as overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
Overinated tires are more likely to be
cut, punctured, or broken by a sudden
impact — such as when you hit a pothole.
Keep tires at the recommended pressure.
Worn, old tires can cause accidents. If
your tread is badly worn, or if your tires
have been damaged, replace them.
SeeInflation - Tire Pressure on page 5-57
for ination pressure adjustment for high
speed driving.
5-51

Winter Tires
If you expect to drive on snow or ice covered roads
often, you may want to get winter tires for your vehicle.
All season tires provide good overall performance on
most surfaces but they may not offer the traction
you would like or the same level of performance as
winter tires on snow or ice covered roads.
See your dealer for details regarding winter tire
availability and proper tire selection. Also, seeBuying
New Tires on page 5-60
If you choose to use winter tires:
•Use tires of the same brand and tread type on all
four wheel positions.
•Use only radial ply tires of the same size, load
range, and speed rating as the original
equipment tires.
Winter tires with the same speed rating as your original
equipment tires may not be available for H, V, W
and ZR speed rated tires. If you choose winter tires with
a lower speed rating, never exceed the tire’s maximum
speed capability.
Tire Sidewall Labeling
Useful information about a tire is molded into the
sidewall. The following illustration is an example of a
typical P-Metric tire sidewall.
(A) Tire Size:The tire size code is a combination of
letters and numbers used to define a particular
tire’s width, height, aspect ratio, construction type, and
service description. See the Tire Size illustration
later in this section for more detail.
