Sheet Metal Damage
If the vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti-corrosion material to parts repaired or
replaced to restore corrosion protection.
Original manufacturer replacement parts will provide the
corrosion protection while maintaining the warranty.
Finish Damage
Any stone chips, fractures or deep scratches in the
finish should be repaired right away. Bare metal
will corrode quickly and may develop into major
repair expense.
Minor chips and scratches can be repaired with touch-up
materials available from your GM dealer. Larger areas of
finish damage can be corrected in your GM dealer’s body
and paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal and dust
control can collect on the underbody. If these are not
removed, corrosion and rust can develop on the
underbody parts such as fuel lines, frame, floor
pan, and exhaust system even though they have
corrosion protection.
At least every spring, flush these materials from the
underbody with plain water. Clean any areas where mud
and debris can collect. Dirt packed in close areas of
the frame should be loosened before being flushed.
Your dealer or an underbody car washing system can
do this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a
chemical fallout. Airborne pollutants can fall upon and
attack painted surfaces on the vehicle. This damage can
take two forms: blotchy, ring-shaped discolorations,
and small, irregular dark spots etched into the
paint surface.
Although no defect in the paint job causes this, GM will
repair, at no charge to the owner, the surfaces of
new vehicles damaged by this fallout condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever occurs first.
5-83

Vehicle Care/Appearance Materials
Description Usage
Polishing Cloth
Wax-TreatedInterior and exterior
polishing cloth.
Tar and Road
Oil RemoverRemoves tar, road oil,
and asphalt.
Chrome Cleaner
and PolishUse on chrome or
stainless steel.
White Sidewall
Tire CleanerRemoves soil and black
marks from whitewalls.
Vinyl Cleaner Cleans vinyl.
Glass CleanerRemoves dirt, grime,
smoke and fingerprints.
Chrome and Wire
Wheel CleanerRemoves dirt and grime
from chrome wheels and
wire wheel covers.
Finish EnhancerRemoves dust,
fingerprints, and surface
contaminants. Spray on
and wipe off.
Description Usage
Swirl Remover PolishRemoves swirl marks, fine
scratches, and other light
surface contamination.
Cleaner WaxRemoves light scratches
and protects finish.
Foaming Tire Shine
Low GlossCleans, shines, and
protects in one step. No
wiping necessary.
Wash Wax ConcentrateMedium foaming
shampoo. Cleans and
lightly waxes.
Biodegradable and
phosphate free.
Spot LifterQuickly removes spots
and stains from carpets,
vinyl, and cloth upholstery.
Odor EliminatorOdorless spray odor
eliminator used on fabrics,
vinyl, leather and carpet.
5-84

Vehicle Identication
Vehicle Identication Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on
the driver’s side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identication
The eighth character in the VIN is the engine code. This
code will help you identify your vehicle’s engine,
specifications, and replacement parts.
Service Parts Identication Label
You will find this label on the inside of the glove box. It
is very helpful if you ever need to order parts. On
this label, you will find the following:
•VIN
•Model designation
•Paint information
•Production options and special equipment
Be sure that this label is not removed from the vehicle.
5-85

Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your vehicle
unless you check with your dealer rst. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
Your vehicle has an airbag system. Before attempting to
add anything electrical to your vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 1-51.
Headlamps
The headlamp wiring is protected by an internal
circuit breaker. An electrical overload will cause the
lamps to go on and off, or in some cases to remain off.
If this happens, have your headlamp wiring checked
right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow or ice, the wiper will stop until the motor cools.
If the overload is caused by some electrical problem, be
sure to get it fixed.
Power Windows and Other
Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of fires
caused by electrical problems.
5-86

Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating.
If you ever have a problem on the road and don’t have
a spare fuse, you can borrow one that has the same
amperage. Just pick some feature of your vehicle
that you can get along without — like the radio or
cigarette lighter — and use its fuse, if it is the correct
amperage. Replace it as soon as you can.
Floor Console Fuse Block
The floor console fuse
block is located on the
console between the
two seats, on the
passenger’s side.To remove the fuse block cover and access the fuses,
do the following:
1. Move the passenger’s seat all the way forward and
tilt the seatback forward. SeePower Seats on
page 1-2andSeatback Latches on page 1-6for
more information.
2. Pull the handle on the fuse block cover toward you
and then slide it to the side. You will then be able
to remove the cover completely.
3. To reinstall the cover, slide it to the side until it is
lined up with the access hole. Then, push on the
fuse panel cover until it latches into place.
5-87

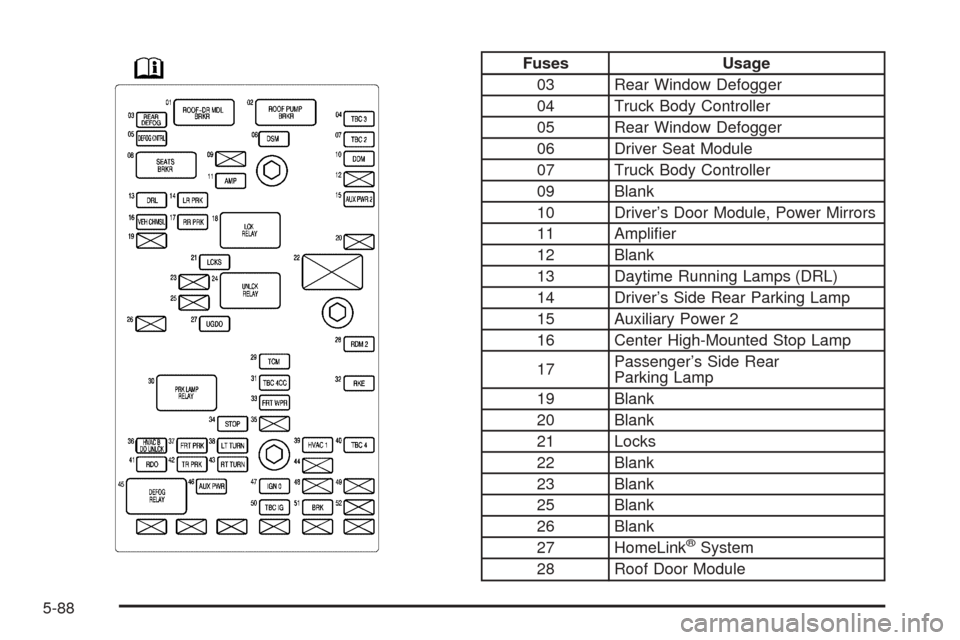

Fuses Usage
03 Rear Window Defogger
04 Truck Body Controller
05 Rear Window Defogger
06 Driver Seat Module
07 Truck Body Controller
09 Blank
10 Driver’s Door Module, Power Mirrors
11 Amplifier
12 Blank
13 Daytime Running Lamps (DRL)
14 Driver’s Side Rear Parking Lamp
15 Auxiliary Power 2
16 Center High-Mounted Stop Lamp
17Passenger’s Side Rear
Parking Lamp
19 Blank
20 Blank
21 Locks
22 Blank
23 Blank
25 Blank
26 Blank
27 HomeLink
®System
28 Roof Door Module
5-88

Fuses Usage
29 Transmission Control Module
31 Truck Body Controller
32 Remote Keyless Entry (RKE)
33 Windshield Wipers
34 Stoplamps
35 Blank
36Climate Control System, Driver’s
Door Unlock
37 Front Parking Lamps
38 Driver’s Side Turn Signal
39 Climate Control System
40 Truck Body Controller
41 Radio
42 Trailer Parking Lamps
43 Passenger’s Side Turn Signal
44 Blank
46 Accessory Power Outlets
47 IgnitionFuses Usage
48 Blank
49 Blank
50 Truck Body Controller, Ignition
51 Brakes
52 Blank
Relays Usage
18 Locks
24 Unlock
30 Parking Lamps
45Rear Window Defogger, Outside
Power Heated Mirrors
Circuit
BreakersUsage
01 Roof & Door Module
02 Roof Pump
08 Power Seats
5-89

Engine Compartment Fuse Block
The fuse block is located
under the hood in the
engine compartment on
the driver’s side of
the vehicle. SeeEngine
Compartment Overview on
page 5-12for more
information on location.
To remove the fuse block cover and access the fuses,
do the following:
1. To remove the primary fuse block cover, press in
on the two locking tabs and then lift the cover off.
2. Lift up on the secondary cover to remove it.
3. Reverse the steps to reinstall the covers.
Fuses Usage
1 Auxiliary Power 2
2Passenger’s Side High
Beam Headlamp
3Passenger’s Side Low
Beam Headlamp
5-90

Fuses Usage
4 Driver’s Side High Beam Headlamp
5 Driver’s Side Low Beam Headlamp
6 Cargo Cover Release
7Transmission Control
Module/Canister
8 Truck Body Controller
9 Windshield Washer
10 Driver’s Side Stoplamp/Turn Signals
11 Fuel Pump
12 Fog Lamps
13 Stoplamps
14 Headlamp Driver Module (HDM)
15Passenger’s Side Stoplamp/Turn
Signals
16 Cigarette Lighter
17 Hazard Warning Flashers
18 Coils
19 Truck Body Control, Ignition 1
20 Starter
21 Airbag System
22 Horn
23 Ignition EFuses Usage
24Instrument Panel Cluster, Driver
Information Center (DIC)
25Automatic Transmission Shift
Interlock Control System
26 Back-up lamps, Lock Out
27 Engine Control Module
28 Oxygen Sensor B
29 Injector B
30 Air Conditioning
31Engine Control Module (ECM),
Transmission Control Module (TCM)
32 Transmission
33 Engine 1
34Engine Control Module, Electronic
Brake Controller
35 Oxygen Sensor A
36 Injector A
37 Engine Cooling Fan
38 Anti-lock Brake System (ABS)
39 Ignition A
40 Climate Control Fan
41 Ignition B
5-91

Relays Usage
42 Powertrain
43 Starter
44 Fuel Pump
45 Cargo Cover Release
46 Windshield Washer
47 Headlamp Driver Module (HDM)
48 Fog Lamps
49 High Beam Headlamps
50 Horn
51 Air Conditioning
Miscellaneous Usage
52 Instrument Panel Battery
Relay Center
There is a relay center located in the area where the
convertible top is stored when it is open. To access the
relay center, do the following:
1. Open the convertible top until the roof tonneau and
the boot cover panel are upright so that you can
reach into the convertible top storage area as
shown. SeeLowering the Convertible Top on
page 2-47for more information.
