check engine CHEVROLET TRACKER 1997 Workshop Manual

Long Tripmighway Maintenance Schedule I
30,000 Miles (50 000 km) (Continued)
0 Check engine idle speed and adjust it to
underhood label specifications.
An Em.ission Control Senice. (See footnote?.)
0 Inspect propeller shafts and u-joints for
looseness and damage
(or every I5 months,
whichever occurs first). Inspect more
frequently if used off-road or for pulling a
trailer. Tighten u-joint flange bolts
if necessary.
DATE SERVICED BY ACTUAL MILEAGE
37,500 Miles (62 500 kr:)
0 Change engine oil and filter (or every
7.5 months, whichever occurs first).
An Emission Control Service.
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. (See footnote
+.)
0 Inspect the locking front hubs (if equipped)
for correct operation (or every 3 months,
whichever occurs first). Repair or replace
if necessary.
7-38
ProCarManuals.com

45,000 Miles (75 000 km)
0 Change engine oil and filter (or every
7.5 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
Inspect the locking front hubs (if equipped)
for correct operation (or every
3 months,
whichever occurs first). Repair or replace
if necessary.
An Emission Control Service.
0 Inspect the valve lash and adjust if
necessary. An Emission Con.trol Service.
0 Check engine idle speed and adjust it to
underhood label specifications.
An Elnission Control Service. (See footnote?.)
0 Inspect propeller shafts and u-joints for
looseness and damage (or every 15 months,
whichever occurs first). Inspect more
frequently if used off-road or for pulling a
trailer. Tighten u-joint flange bolts
if necessary.
DATE
SERVICED BY ACTUAL MILEAGE
- 7-39
ProCarManuals.com

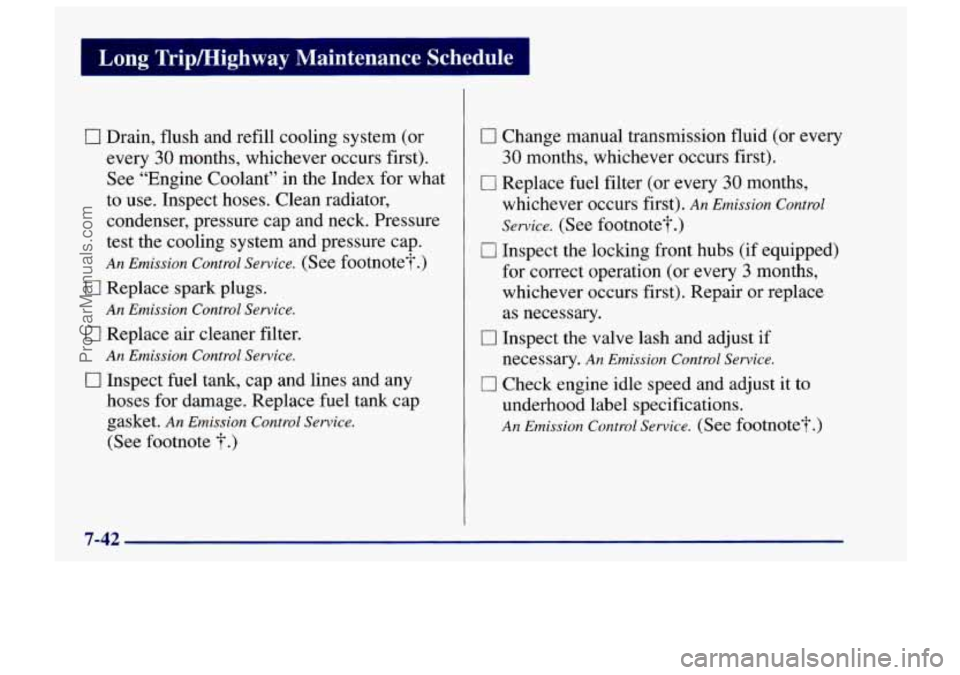

Long TripMighway Maintenance Schedule I
0 Drain, flush and refill cooling system (or
every
30 months, whichever occurs first).
See “Engine Coolant” in the Index for what
to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service. (See footnote?.)
0 Replace spark plugs.
An Emission Control Service.
0 Replace air cleaner filter.
An Emission Control Service.
0 Inspect fuel tank, cap and lines and any
hoses for damage. Replace fuel tank cap
gasket.
An Emission Control Service.
(See footnote ?.)
0 Change manual transmission fluid (or every
30 months, whichever occurs first).
0 Replace fuel filter (or every 30 months,
whichever occurs first).
An Emission Control
Service.
(See footnote?.)
0 Inspect the locking front hubs (if equipped)
for correct operation (or every
3 months,
whichever occurs first). Repair
or replace
as necessary.
0 Inspect the valve lash and adjust if
necessary.
An Emission Control Service.
0 Check engine idle speed and adjust it to
underhood label specifications.
An Emission Control Service. (See footnote?.)
7-42
ProCarManuals.com

Long Tripmighway Maintenance Schedule 1
I7 Check engine idle speed and adjust it to
underhood label specifications.
An Emission Control Service. (See footnote?.)
0 Inspect propeller shafts and u-joints for
looseness and damage (or every
15 months,
whichever occurs first). Inspect more
frequently if used off-road or for pulling a
trailer. Tighten u-joint flange bolts
if necessary.
DATE SERVICED BY: ACTUAL MILEAGE
82,500 Miles (137 500 km)
17 Change engine oil and filter (or every
7.5 months, whichever occurs first).
17 Rotate tires. See “Tire Inspection and
Rotation’’ in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
0 Inspect the locking front hubs (if equipped)
for correct operation
(or every 3 months,
whichever occurs first). Repair or replace
if necessary.
An Emission Control Service.
7-45
ProCarManuals.com

0 Inspect the valve lash and adjust if
necessary. An Emission Control Service.
Check engine idle speed and adjust it to
underhood label specifications.
An Emission
Control Sewice. (See footnote?.)
0 Inspect propeller shafts and u-joints for
looseness and damage (or every
15 months,
whichever occurs first). Inspect more
frequently if used off-road or for pulling a
trailer. Tighten u-joint flange bolts if necessary.
Rotate tires. See “Tire Inspection and Rotation”
in the Index for proper rotation pattern and
additional information. (See footnote
+.)
97,500 Miles (162 500 km)
I7 Change engine oil and filter (or every
7.5 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
An Emission Control Service.
0 Inspect the locking front hubs (if equipped)
for correct operation (or every
3 months,
whichever occurs first). Repair
or replace
if necessary.
7-47
ProCarManuals.com

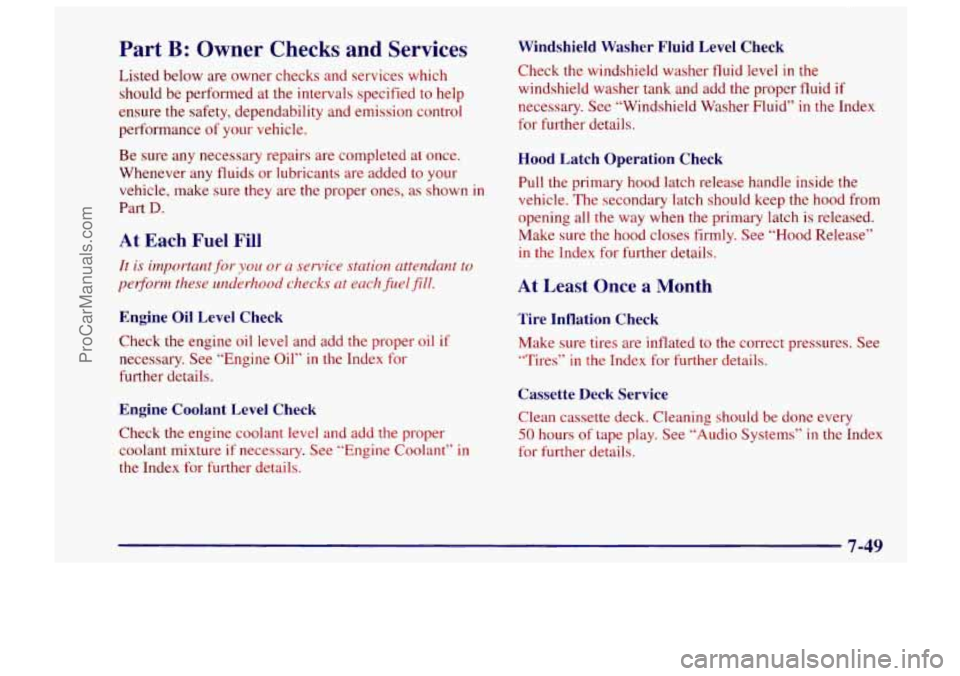

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified
to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in
Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
pelrform these underhood checks at each fuel fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil”
in the Index for
further
details.
Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mixture if necessary. See “Engine Coolant” in
the Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
Hood Latch Operation Check
Pull the primary hood latch release handle inside the
vehicle. The secondary latch should keep the hood from
opening all the way when the primary latch
is released.
Make sure the hood closes firmly. See
“Hood Release”
in the Index for further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures. See
”Tires”
in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the Index
for further details.
7-49
I
ProCarManuals.com

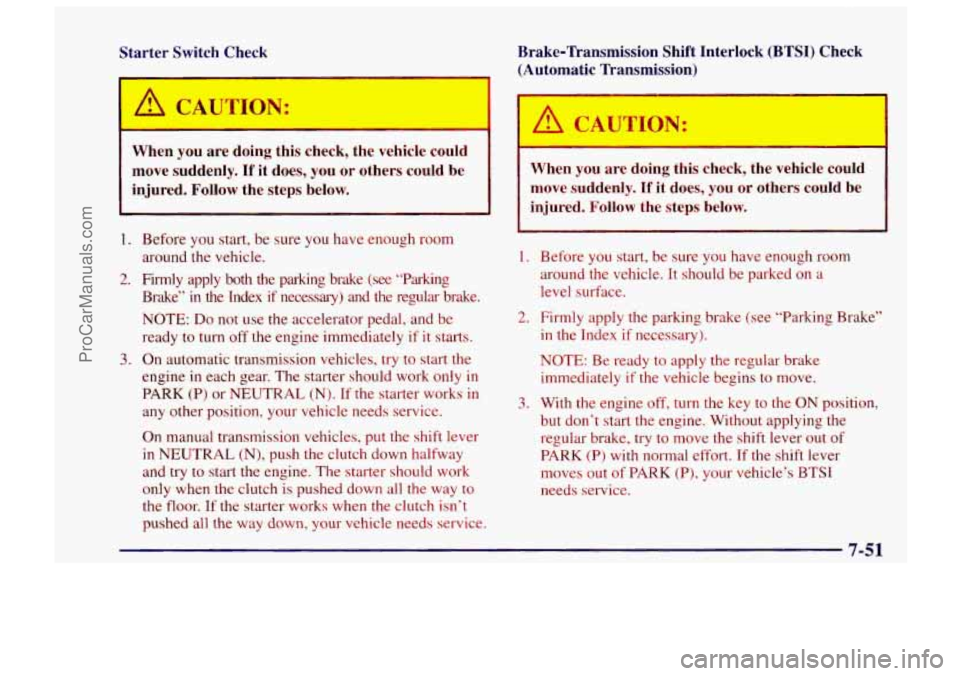

Starter Switch Check Brake-Transmission Shift Interlock (BTSI) Check
(Automatic Transmission)
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the. steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle.
Firmly apply both the parking brake (see “Parking Brake” in the Index if necessary) and the regular brake.
NOTE:
Do not use the accelerator pedal, and be
ready to turn
off the engine immediately if it starts.
On automatic transmission vehicles, try to start the
engine in each gear.
The starter should work only in
PARK
(P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transmission vehicles,
put the shift lever
in NEUTRAL (N), push the clutch down halfway
and
try to start the engine. The starter should work
only when the clutch
is pushed down all the way to
the floor.
If the starter works when the clutch isn’t
pushed all the way down, your vehicle needs service.
When you are doing this check, the vehicle
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle. It should be parked on a
level surface.
Firmly apply the parking brake (see “Parking Brake’’
in the Tndex
if necessary).
NOTE: Be ready
to apply the regular brake
immediately if the vehicle begins
to move.
With
the engine off, turn the key to the ON position,
but don’t start the engine. Without applying the
regular brake,
try to move the shift lever out of
PARK (P) with normal effort. If the shift lever
moves out of
PARK (P), your vehicle’s BTSI
needs service.
7-51
ProCarManuals.com

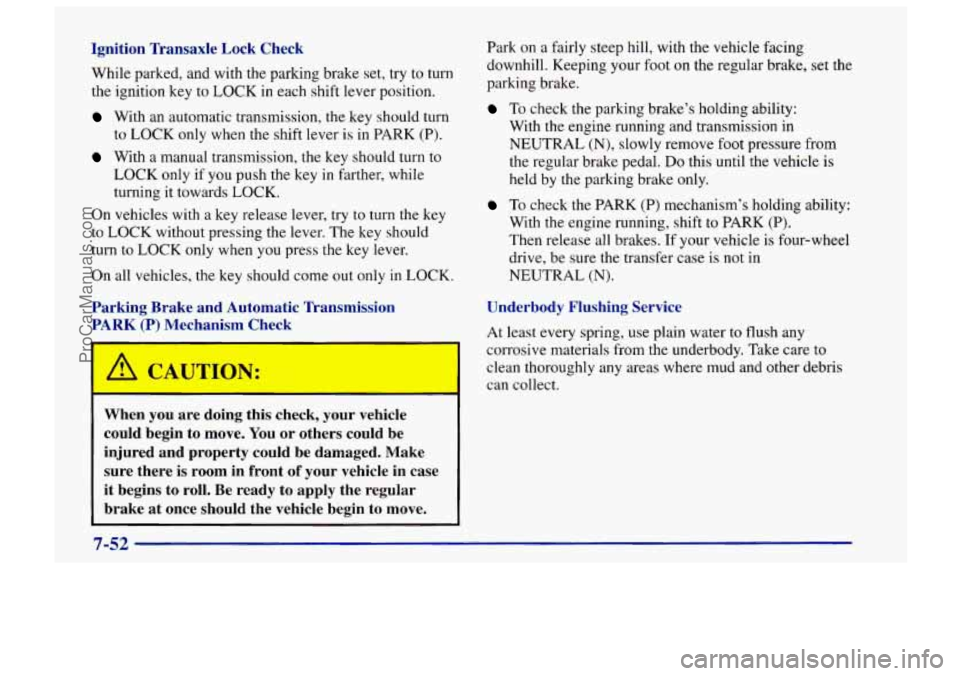

Ignition Transaxle Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to
LOCK in each shift lever position.
With an automatic transmission, the key should turn
to LOCK only when the shift lever
is in PARK (P).
With a manual transmission, the key should turn to
LOCK only if you push the key in farther, while
turning it towards
LOCK.
On vehicles with a key release lever, try to turn the key
to LOCK without pressing the lever. The key should
turn to LOCK only when you press the key lever.
On all vehicles,
the key should come out only in LOCK.
Parking Brake and Automatic Transmission
PARK (P) Mechanism Check
A CA "TION:
-
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front
of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot
on the regular brake, set the
parking brake.
To check the parking brake's holding ability:
With the engine running and transmission in
NEUTRAL
(N), slowly remove foot pressure from
the regular brake pedal.
Do this until the vehicle is
held by the parking brake only.
To check the PARK (P) mechanism's holding ability:
With the engine running, shift to PARK
(P).
Then release all brakes. If your vehicle is four-wheel
drive, be sure the transfer case is not in
NEUTRAL
(N).
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care
to
clean thoroughly any areas where mud and other debris
can collect.
7-52
ProCarManuals.com

1997 CHEVROLET/GEO SERVICE PUBLICATIONS ORDERING INFORMATION
The following publications covering the operation and servicing of your vehicle can be purchased by filling out
the Service Publication
Order Form in this book and mailing it in with your check, money o\
rder,
or credit card information to Helm, Incorporated (address below.)
~~ ~~
CURRENT PUBLICATIONS FOR 1997 CHEVROLETIGEO
SERVICE MANUALS
Service Manuals have the diagnosis and repair information
on engines, transmission, axle, suspension, brakes,
electrical, steering, body, etc.
RETAIL SELL PRICE:
$90.00
TRANSMISSION, TRANSAXLE, TRANSFER CASE UNIT REPAIR MANUAL
This manual provides information on unit repair service
procedures, adjustments and specifications for the
1997
GM transmissions, transaxles and transfer cases.
RETAIL SELL PRICE: $40.00
SERVICE BULLETINS
Service Bulletins give technical service information needed
to knowledgeably service General Motors cars and trucks.
Each bulletin contains instructions to assist in the
diagnosis and service of your vehicle.
PLEASE COMPLETE THE ORDER FORM SHOWN ON
THE FOLLOWING PAGE AND MAIL TO:
Helm, Incorporated P.O. Box 07130 Detroit, MI 48207
OWNER’S INFORMATION
Owner publications are written directly for Owners and
intended to provide basic operational information about the
vehicle. The owner’s manual will include the Maintenance
Schedule for all models.
In-Portfolio: Includes a Portfolio, Owner’s Manual and
Warranty Booklet. RETAIL SELL PRICE:
$15.00
Without Portfolio: Owner’s Manual only.
RETAIL SELL PRICE:
$1 0.00
CURRENT & PAST MODEL ORDER FORMS
Service Publications are available for current and past
model GM vehicles. To request an order form, please
specify year and model name of the vehicle.
OR ORDER TOLL FREE: 1-800-782-4356
Monday-Friday 8:OO AM - 6:OO PM Eastern Time
For Credit Card Orders Only
(VlSA-MasterCard-Discover)
ProCarManuals.com

Gem Section 9 Index
Adding Equipment to the Outside of Your Vehicle ..... 6-3
AirBag
....................................... 1-25
Adding Equipment
............................ 1-3 1
How Does it Restrain
.......................... 1-29
How it Works
................................ 1-27
Location
.................................... 1-27
Readiness Light
......................... 1-26. 2-63
Servicing ................................... 1-30
What Makes it Inflate
.......................... 1-28
What Will
You See After it Inflates ............... 1-29
When Should it Inflate
......................... 1-28
Aircleaner
.................................... 6-14
Air Conditioning
................................ 3-3
Air Conditioning Refrigerants
..................... 6-64
Alignment and Balance. Tire
...................... 6-46
Aluminum Wheels. Cleaning
...................... 6-55
Antenna
...................................... 3-19
Antifreeze
..................................... 6-23
Anti-Lock Brake System Active Light
................. 2-66. 4-9
Brake System Warning Light
................ 2-65. 4-7
Brakes
...................................... 4-7
Appearance Care
............................... 6-48
Appearance Care Materials
....................... 6-57 Arbitration
Program
.............................. 8-9
Ashtrays ...................................... 2-43
Audio Systems
.................................. 3-6
Automatic
Overdrive
................................... 2-14
Overdrive Off Switch
.......................... 2-14
Automatic Transmission
.......................... 2-9
Check
...................................... 7-50
Fluid
....................................... 6-16
Operation
................................... 2-10
Park Mechanism Check ........................ 7-52
Shifting
..................................... 2-10
Starting Your Engine
........................... 2-9
Axle. Front .................................... 6-23
Axle. Rear
.................................... 6-21
Battery
...................................... 6-33
Jump Starting
................................. 5-3
Warnings
................................ 5-3, 5-5
BBB Auto Line
................................. 8-9
Better Business Bureau Mediation ................... 8-9
Blizzard ...................................... 4-42
9-1
ProCarManuals.com
