Page 11 of 391
ix
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important for
you and your
passengers
whenever your
vehicle is driven:
CHILD
RESTRAINT
TOP STRAP
ANCHOR
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle. Also see ªWarning Lights and Gagesº in the Index.
Page 12 of 391
Service Station Guide
Oil Viscosity
Engine Oil
See Section 6
1.6L, 2.0L Engine Oil
Dipstick
See Section 6
2.5L Engine Oil Dipstick
See Section 6
Cooling System
See Section 5
Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Spare Tire Pressure
See Section 5
Battery
See Section 6
Tire Pressure
See Section 6
For
a More
Detailed Look at
What's Under the Hood
See Section 6
Fuel
Use unleaded only.
See Section 6
for octane ratings.
Page 13 of 391
1-
1-1
Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
-2 Seats and Seat Controls
1
-10 Safety Belts: They're for Everyone
1
-15 Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
1
-16 How to Wear Safety Belts Properly
1
-16 Driver Position
1
-23 Safety Belt Use During Pregnancy
1
-24 Right Front Passenger Position
1
-24 Supplemental Restraint System (SRS)1
-31 Rear Seat Passengers
1
-34 Center Passenger Position (4-Door Models)
1
-35 Children
1
-39 Restraint Systems for Children
1
-51 Older Children
1
-54 Safety Belt Extender
1
-54 Checking Your Restraint Systems
1
-54 Replacing Restraint System Parts After
a Crash
Page 14 of 391
1-2
Seats and Seat Controls
This part tells you about the seats -- how to adjust them,
and also about reclining front seatbacks, head restraints,
easy entry seats and the folding rear seatback.
Manual Front Seat
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.
Page 15 of 391
1-3
Lift the lever located under the front seat to unlock it.
Slide the seat to where you want it and release the lever.
Then try to move the seat with your body to make sure
the seat is locked into place.
Reclining Front Seatbacks
To adjust the seatback, lift the lever on the outboard side
of the seat cushion. Release the lever to lock the
seatback where you want it. Pull up on the lever, and the
seat will go to its original upright position.
Page 16 of 391
1-4

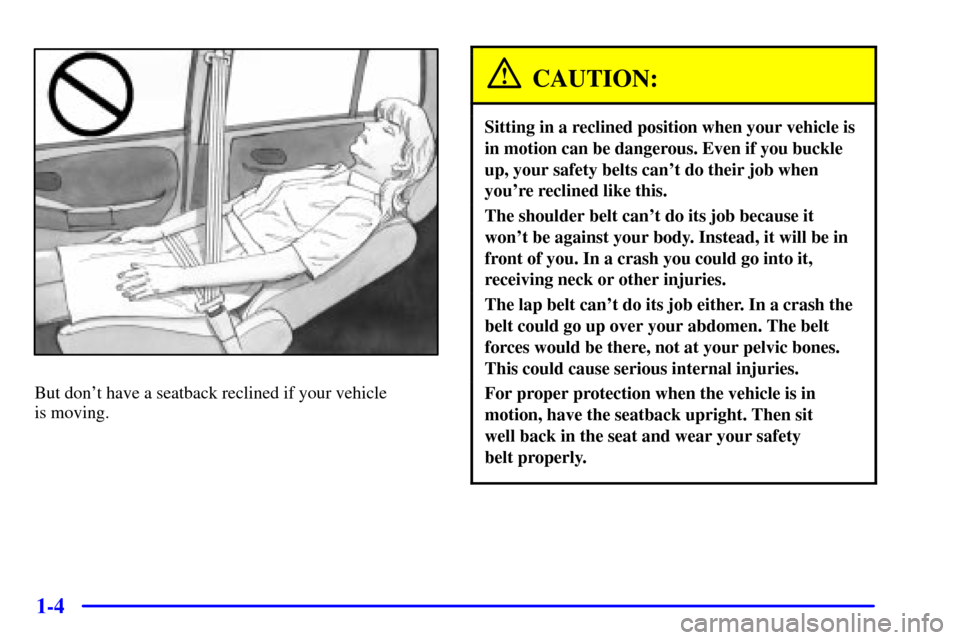

But don't have a seatback reclined if your vehicle
is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be in
front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Page 17 of 391
1-5 Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your ears. This position
reduces the chance of a neck injury in a crash.
The head restraint can be adjusted to four positions.
To raise the restraint, pull up on the restraint. To lower
the restraint, push in the release button while you push
down on the restraint.
Page 18 of 391
1-6 Easy Entry Seats (2-Door)
The front seats of your vehicle make it easy to get in and
out of the rear seat.
When you pull up on the recliner release lever, the
seatback will tilt forward and the whole seat can
slide forward when pushed by hand.
After someone gets into the rear seat area, move the
seat rearward until it locks. Then move the seatback
to its original position.
CAUTION:
If any easy entry seat isn't locked, it can move.
In a sudden stop or crash, the person sitting there
could be injured. And, even if there is no crash or
sudden stop, a driver sitting in an unlocked easy
entry seat could be startled by the sudden
movement and hit the wrong control or pedal,
causing an accident. After you've used it, be sure
to push rearward on any easy entry seat to be
sure it is locked.
Page 19 of 391
1-7
To get out, push the release pedal on the rear of the
passenger's side front seat. Then tilt the seatback
forward, and slide the whole seat forward.
Rear Seats
CAUTION:
If a head restraint is not installed on the seatback
or stored in the vehicle properly, it could be
thrown about the vehicle in a crash or sudden
maneuver. People in the vehicle could be injured.
Remove the head restraints only when you need
to fold the seat, and be sure that the head
restraints are stored securely in the top of the
folded seat bottom. When the seat is returned to
the passenger position, be sure the head
restraints are installed properly.
Page 20 of 391
1-8
Folding the Rear Seatback
The rear seat in your vehicle folds to provide more cargo
space. To fold the rear seats do the following:
1. Fold the safety belt buckles and center safety belt
(if equipped) into the pocket of the rear seatback.
2. Pull the release straps located near the center of the
vehicle to release the seat cushion. Fold the seat
cushion forward.
