Front Seats......................................................1-2
Manual Seats................................................1-2
Power Seats..................................................1-2
Manual Lumbar..............................................1-3
Power Lumbar...............................................1-3
Heated Seats.................................................1-3
Reclining Seatbacks........................................1-4
Head Restraints.............................................1-5
Rear Seats.......................................................1-6
Rear Seat Operation.......................................1-6
Safety Belts.....................................................1-8
Safety Belts: They Are for Everyone.................1-8
Questions and Answers About Safety Belts......1-13
How to Wear Safety Belts Properly.................1-14
Driver Position..............................................1-14
Safety Belt Use During Pregnancy..................1-20
Right Front Passenger Position.......................1-21
Rear Seat Passengers..................................1-21
Rear Safety Belt Comfort Guides for Children
and Small Adults.......................................1-24
Safety Belt Extender.....................................1-27
Child Restraints.............................................1-28
Older Children..............................................1-28
Infants and Young Children............................1-31
Child Restraint Systems.................................1-34Where to Put the Restraint.............................1-37
Top Strap....................................................1-38
Top Strap Anchor Location.............................1-39
Lower Anchorages and Top Tethers for
Children (LATCH System)...........................1-40
Securing a Child Restraint Designed for the
LATCH System.........................................1-42
Securing a Child Restraint in a Rear Outside
Seat Position............................................1-43
Securing a Child Restraint in the Center
Seat Position............................................1-46
Securing a Child Restraint in the Right Front
Seat Position............................................1-46
Air Bag Systems............................................1-49
Where Are the Air Bags?...............................1-52
When Should an Air Bag In¯ate?....................1-55
What Makes an Air Bag In¯ate?.....................1-56
How Does an Air Bag Restrain?.....................1-56
What Will You See After an Air
Bag In¯ates?............................................1-57
Servicing Your Air Bag-Equipped Vehicle.........1-59
Restraint System Check..................................1-59
Checking Your Restraint Systems...................1-59
Replacing Restraint System Parts
After a Crash............................................1-60
Section 1 Seats and Restraint Systems
1-1

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you don't want to. Adjust the driver's
seat only when the vehicle is not moving.
Pull up on the lever located under the front of the
manual seat to unlock it. Slide the seat to where you
want it and release the lever. Then try to move the
seat with your body to make sure the seat is locked
into place.
Power Seats

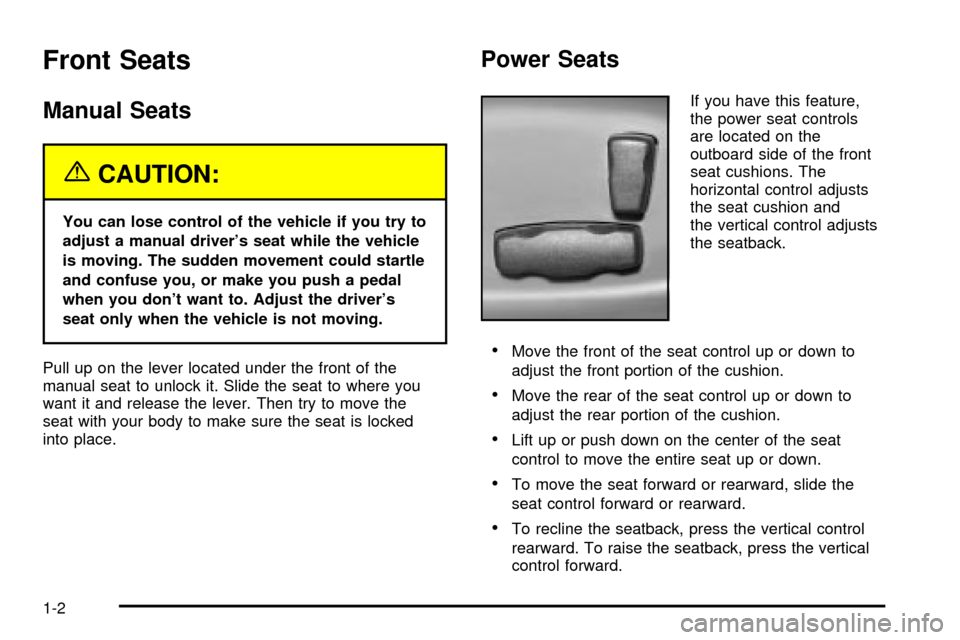

If you have this feature,
the power seat controls
are located on the
outboard side of the front
seat cushions. The
horizontal control adjusts
the seat cushion and
the vertical control adjusts
the seatback.
·Move the front of the seat control up or down to
adjust the front portion of the cushion.
·Move the rear of the seat control up or down to
adjust the rear portion of the cushion.
·Lift up or push down on the center of the seat
control to move the entire seat up or down.
·To move the seat forward or rearward, slide the
seat control forward or rearward.
·To recline the seatback, press the vertical control
rearward. To raise the seatback, press the vertical
control forward.
1-2

Manual Lumbar
Your vehicle may have this feature. This control is
located on the outboard side of the seat.
Turn the knob counterclockwise to increase lumbar
support and clockwise to decrease lumbar support.
Power Lumbar
Your vehicle may have this feature. The driver's and
passenger's seatback lumbar support can be adjusted
by moving a single control located on the outboard
side of the seat cushions. To increase or decrease
support, hold the control forward or rearward.
Keep in mind that as your seating position changes, as
it may during long trips, so should the position of
your lumbar support. Adjust the seat as needed.
Heated Seats
Your vehicle may have
heated front seats. The
buttons used to control this
feature are located on
the front door armrests.
The engine must be
running for the heated seat
feature to work.
To heat the entire seat, press the horizontal button with
the heated seat symbol. Press the button repeatedly
to cycle through the temperature settings of high,
medium, low and off. The indicator lights will glow to
designate the level of heat selected: three for high,
two for medium and one for low. The low setting warms
the seatback and cushion until the seat temperature
is near body temperature. The medium and high settings
heat the seatback and seat cushion to a slightly
higher temperature. You will be able to feel heat in
about two minutes.
1-3

To heat only the seatback, press the button with the
words BACK ONLY. An indicator light on the switch will
glow to designate that only the seatback is being
heated. Additional presses will cycle through the heat
levels for the seatback only. Press the horizontal button
again to heat the whole seat.
The feature will shut off automatically when the ignition
is turned off.
Reclining Seatbacks
If your vehicle has a manual recliner, lift the lever
located on the outboard side of the seat and push the
seatback rearward to recline the seatback. To return the
seatback to the normal position, lift the lever without
pushing rearward on the seatback and the seatback will
move forward.
If your vehicle has power seat controls, the vertical
power seat control described earlier allows the seatback
to recline.But don't have a seatback reclined if your vehicle is
moving.
1-4
