Black plate (15,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
Service and Maintenance 11-15

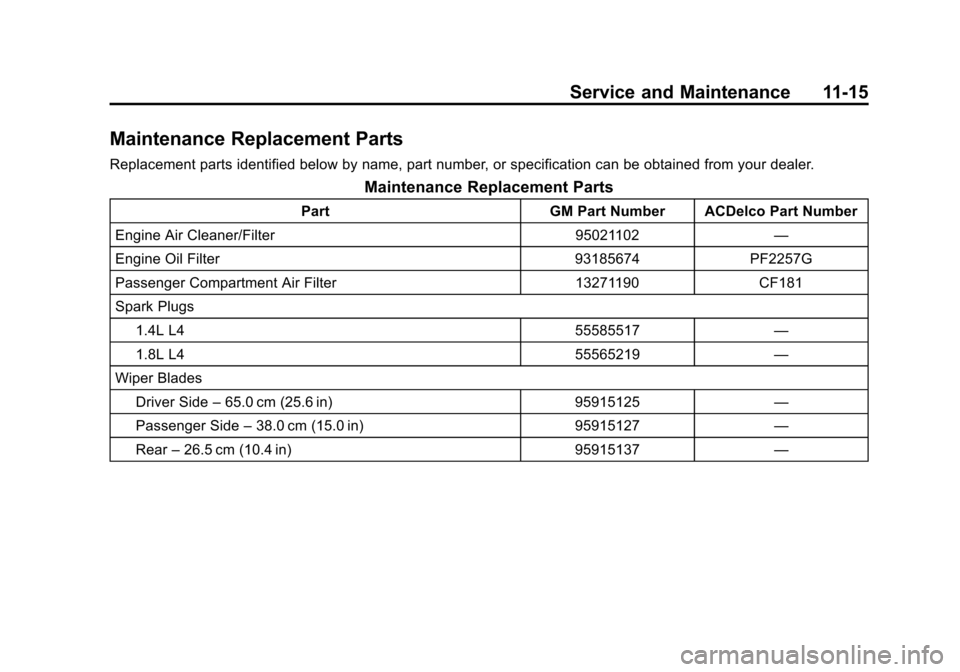

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Maintenance Replacement Parts
PartGM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 95021102—
Engine Oil Filter 93185674PF2257G
Passenger Compartment Air Filter 13271190CF181
Spark Plugs
1.4L L4 55585517—
1.8L L4 55565219—
Wiper Blades Driver Side –65.0 cm (25.6 in) 95915125—
Passenger Side –38.0 cm (15.0 in) 95915127—
Rear –26.5 cm (10.4 in) 95915137—

Black plate (16,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
11-16 Service and Maintenance
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Services Performed

Black plate (17,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
Service and Maintenance 11-17
DateOdometer
Reading Serviced By Services Performed

Black plate (18,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
11-18 Service and Maintenance
DateOdometer
Reading Serviced By Services Performed

Black plate (1,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2 for the vehicle's
engine code.
Service Parts
Identification Label
This label, on the inside of the glove
box, has the following information:
.Vehicle Identification
Number (VIN).
.Model designation.
.Paint information.
.Production options and special
equipment.
Do not remove this label from the
vehicle.

Black plate (2,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
12-2 Technical Data

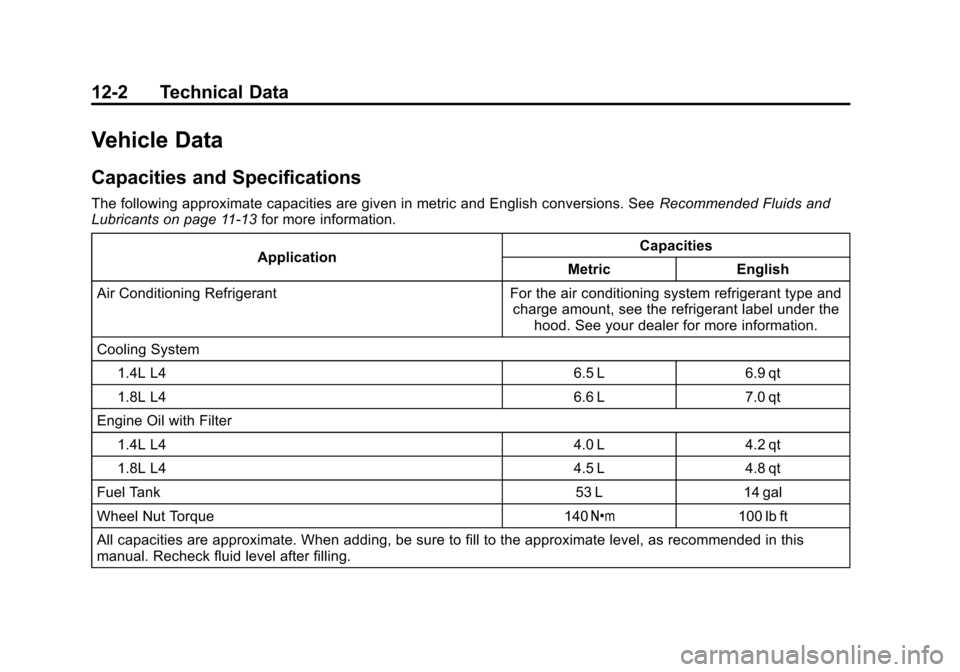

Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and
Lubricants on page 11‑13 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Cooling System 1.4L L4 6.5 L 6.9 qt
1.8L L4 6.6 L 7.0 qt
Engine Oil with Filter 1.4L L4 4.0 L4.2 qt
1.8L L4 4.5 L4.8 qt
Fuel Tank 53 L14 gal
Wheel Nut Torque 140Y 100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

Black plate (3,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
Technical Data 12-3

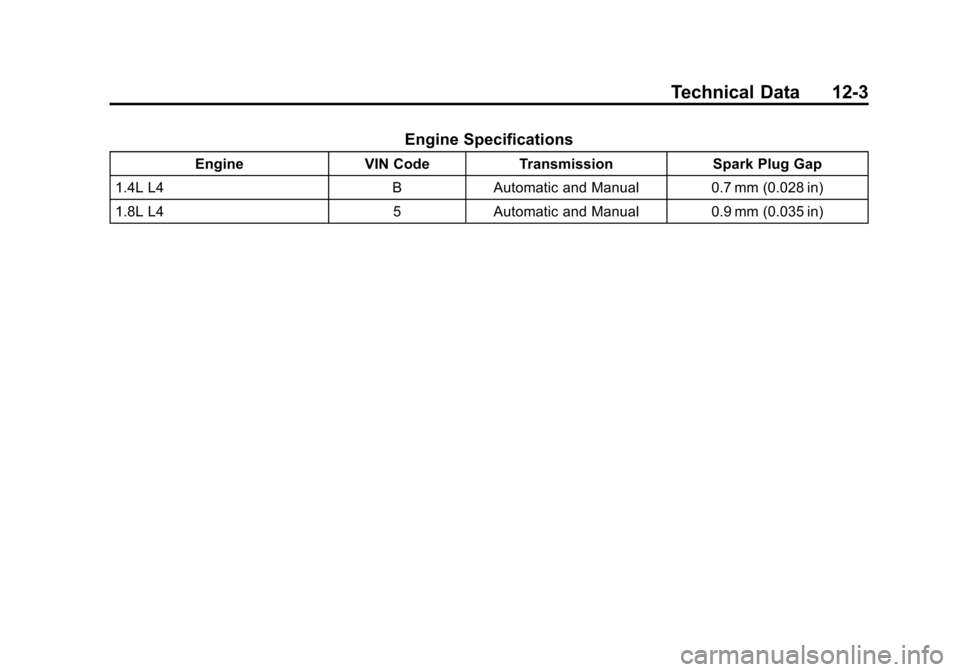

Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
1.4L L4 BAutomatic and Manual 0.7 mm (0.028 in)
1.8L L4 5Automatic and Manual 0.9 mm (0.035 in)

Black plate (4,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
12-4 Technical Data

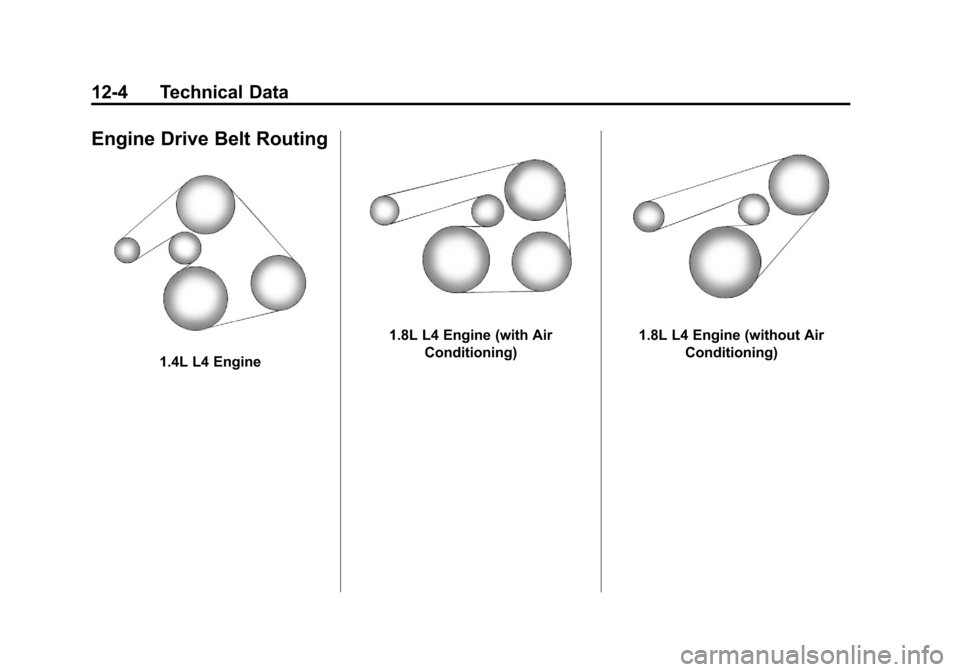

Engine Drive Belt Routing
1.4L L4 Engine
1.8L L4 Engine (with AirConditioning)1.8L L4 Engine (without Air Conditioning)

Black plate (1,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
Customer Information 13-1
Customer
Information
Customer Information
Customer SatisfactionProcedure (Canada) . . . . . . . . 13-1
Customer Satisfaction Procedure (Mexico) . . . . . . . . 13-3
Customer Assistance Offices (Canada) . . . . . . . . . . . . . . . . . . . 13-4
Customer Assistance Offices (Mexico) . . . . . . . . . . . . . . . . . . . . 13-4
Customer Assistance for Text Telephone (TTY) Users
(Canada) . . . . . . . . . . . . . . . . . . . 13-4
Online Owner Center (Canada) . . . . . . . . . . . . . . . . . . . 13-5
GM Mobility Reimbursement Program (Canada) . . . . . . . . . 13-5
Roadside Assistance Program (Canada) . . . . . . . . . . . . . . . . . . . 13-5
Roadside Assistance Program (Mexico) . . . . . . . . . . . . . . . . . . . . 13-7
Scheduling Service Appointments (Canada) . . . 13-11 Courtesy Transportation
Program (Canada) . . . . . . . . 13-11
Collision Damage Repair (Canada) . . . . . . . . . . . . . . . . . . 13-12
Service Publications
Ordering Information . . . . . . 13-15Reporting Safety Defects
Reporting Safety Defects tothe Canadian
Government . . . . . . . . . . . . . . . 13-16
Reporting Safety Defects to General Motors . . . . . . . . . . . 13-16
Vehicle Data Recording and
Privacy
Vehicle Data Recording andPrivacy . . . . . . . . . . . . . . . . . . . . 13-16
Event Data Recorders . . . . . . 13-17
OnStar
®(Canada) . . . . . . . . . . 13-18
Radio Frequency Identification (RFID) . . . . . . . 13-18
Radio Frequency Statement (Canada) . . . . . . . . . . . . . . . . . . 13-18
Customer Information
Customer Satisfaction
Procedure (Canada)
Your satisfaction and goodwill are
important to your dealer and to
Chevrolet. Normally, any concerns
with the sales transaction or the
operation of the vehicle will be
resolved by your dealer's sales or
service departments. Sometimes,
however, despite the best intentions
of all concerned, misunderstandings
can occur. If your concern has not
been resolved to your satisfaction,
the following steps should be taken:
STEP ONE: Discuss your concern
with a member of dealership
management. Normally, concerns
can be quickly resolved at that level.
If the matter has already been
reviewed with the sales, service,
or parts manager, contact the owner
of your dealership or the general
manager.

Black plate (2,1)Chevrolet TRAX Owner Manual - 2013 - CRC - 3/6/13
13-2 Customer Information
STEP TWO:If after contacting a
member of dealership management,
it appears your concern cannot be
resolved by your dealership without
further help, call General Motors of
Canada Customer Care Centre at
1-800-263-3777 (English) or
1-800-263-7854 (French).
We encourage you to call the
toll-free number in order to give your
inquiry prompt attention. Have the
following information available to
give the Customer Care
representative:
.Vehicle Identification
Number (VIN). This is available
from the vehicle registration or
title, or the plate at the top left of
the instrument panel and visible
through the windshield.
.Dealership name and location.
.Vehicle delivery date and
present mileage. When contacting Chevrolet,
remember that your concern will
likely be resolved at a dealer's
facility. That is why we suggest
following Step One first.
STEP THREE:
In the event that
you do not feel your concerns have
been addressed after following the
procedure outlined in Steps One
and Two, General Motors of Canada
Limited wants you to be aware of its
participation in a no-charge
Mediation/Arbitration Program.
General Motors of Canada Limited
has committed to binding arbitration
of owner disputes involving
factory-related vehicle service
claims. The program provides for
the review of the facts involved by
an impartial third party arbiter, and
may include an informal hearing
before the arbiter. The program is
designed so that the entire dispute
settlement process, from the time
you file your complaint to the final
decision, should be completed in
about 70 days. We believe our impartial program
offers advantages over courts in
most jurisdictions because it is
informal, quick, and free of charge.
For further information concerning
eligibility in the Canadian Motor
Vehicle Arbitration Plan (CAMVAP),
call toll-free 1-800-207-0685, or call
the General Motors Customer Care
Centre, 1-800-263-3777 (English),
1-800-263-7854 (French),
or write to:
The Mediation/Arbitration Program
c/o Customer Care Centre
General Motors of Canada Limited
Mail Code: CA1-163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Your inquiry should be accompanied
by the Vehicle Identification
Number (VIN).
