Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
102 Infotainment System
Infotainment System
Introduction
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Steering Wheel Controls . . . . . . . . . . . . . . . 104
Using the System . . . . . . . . . . . . . . . . . . . . . 105
Radio
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . 108
Radio Reception . . . . . . . . . . . . . . . . . . . . . . . 108
Multi-Band Antenna . . . . . . . . . . . . . . . . . . . 109
Audio Players
Avoiding Untrusted Media Devices . . . . 109
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Auxiliary Jack . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . 112
Phone
Bluetooth (Overview) . . . . . . . . . . . . . . . . . . 113
Bluetooth (Pairing and Using thePhone) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Apple CarPlay and Android Auto . . . . . . . 117
Settings
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Trademarks and License Agreements
Trademarks and License Agreements . . . 123
Introduction
Read the following pages to become familiar
with the features.
{Warning
Taking your eyes off the road for too
long or too often while using any
infotainment feature can cause a crash.
You or others could be injured or killed.
Do not give extended attention to
infotainment tasks while driving. Limit
your glances at the vehicle displays and
focus your attention on driving. Use voice
commands whenever possible.
The infotainment system has built-in
features intended to help avoid distraction
by disabling some features when driving.
These features may gray out when they are
unavailable. Many infotainment features are
also available through the instrument cluster
and steering wheel controls.
Before driving:
.Become familiar with the operation,
center stack controls, steering wheel
controls, and infotainment display.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21

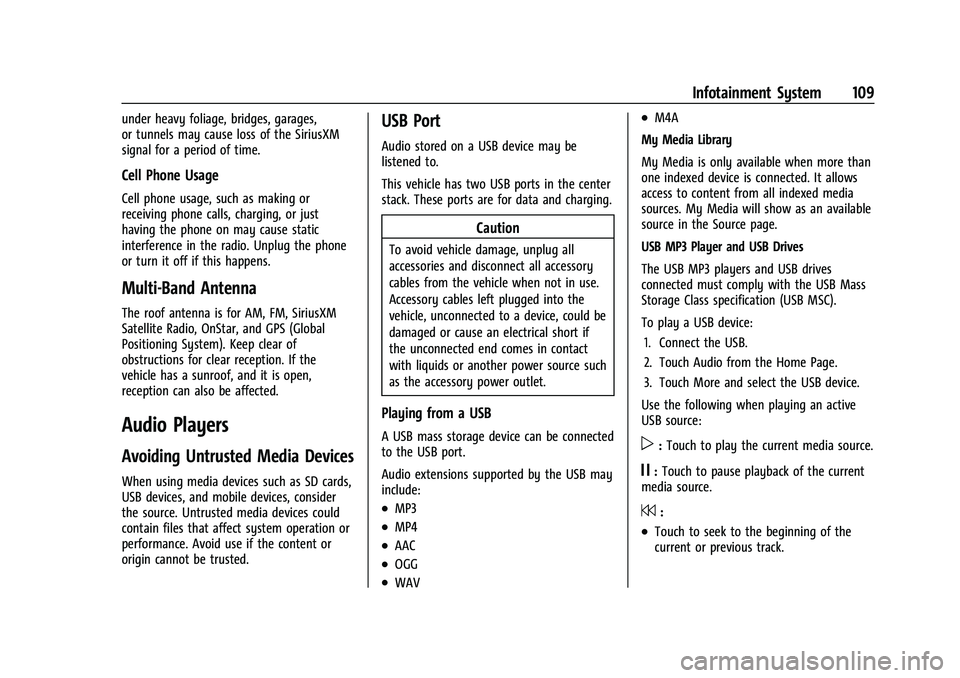

Infotainment System 109
under heavy foliage, bridges, garages,
or tunnels may cause loss of the SiriusXM
signal for a period of time.
Cell Phone Usage
Cell phone usage, such as making or
receiving phone calls, charging, or just
having the phone on may cause static
interference in the radio. Unplug the phone
or turn it off if this happens.
Multi-Band Antenna
The roof antenna is for AM, FM, SiriusXM
Satellite Radio, OnStar, and GPS (Global
Positioning System). Keep clear of
obstructions for clear reception. If the
vehicle has a sunroof, and it is open,
reception can also be affected.
Audio Players
Avoiding Untrusted Media Devices
When using media devices such as SD cards,
USB devices, and mobile devices, consider
the source. Untrusted media devices could
contain files that affect system operation or
performance. Avoid use if the content or
origin cannot be trusted.
USB Port
Audio stored on a USB device may be
listened to.
This vehicle has two USB ports in the center
stack. These ports are for data and charging.
Caution
To avoid vehicle damage, unplug all
accessories and disconnect all accessory
cables from the vehicle when not in use.
Accessory cables left plugged into the
vehicle, unconnected to a device, could be
damaged or cause an electrical short if
the unconnected end comes in contact
with liquids or another power source such
as the accessory power outlet.
Playing from a USB
A USB mass storage device can be connected
to the USB port.
Audio extensions supported by the USB may
include:
.MP3
.MP4
.AAC
.OGG
.WAV
.M4A
My Media Library
My Media is only available when more than
one indexed device is connected. It allows
access to content from all indexed media
sources. My Media will show as an available
source in the Source page.
USB MP3 Player and USB Drives
The USB MP3 players and USB drives
connected must comply with the USB Mass
Storage Class specification (USB MSC).
To play a USB device: 1. Connect the USB.
2. Touch Audio from the Home Page.
3. Touch More and select the USB device.
Use the following when playing an active
USB source:
p: Touch to play the current media source.
j: Touch to pause playback of the current
media source.
7:
.Touch to seek to the beginning of the
current or previous track.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
Index 269
IndexA
About Driving the Vehicle . . . . . . . . . . . . . . . . . .2
Accessories and Modifications . . . . . . . . . . . 168
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . .147
Add-On Electrical Equipment . . . . . . . . . . . . . 165
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Additional Maintenance and Care . . . . . . . . 240
Adjustments Lumbar, Front Seats . . . . . . . . . . . . . . . . . . . . 33
Agreements Trademarks and License . . . . . . . . . . . . . . . 123
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . . 175
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Air Filter, Passenger Compartment . . . . . . . . 127
Air Intake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
How Does an Airbag Restrain? . . . . . . . . . . 48
Passenger Sensing System . . . . . . . . . . . . . . 49
What Makes an Airbag Inflate? . . . . . . . . . 48
What Will You See after an AirbagInflates? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
When Should an Airbag Inflate? . . . . . . . . 47
Where Are the Airbags? . . . . . . . . . . . . . . . . 46
Airbags Adding Equipment to the Vehicle . . . . . . . 53 Airbags (cont'd)
Passenger Status Indicator . . . . . . . . . . . . . . 82
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . 82
Servicing Airbag-Equipped Vehicles . . . . . . 52
System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Alarm Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 22
Alert Side Blind Zone (SBZA) . . . . . . . . . . . . . . . . . . 161
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 200
All-Wheel Drive System . . . . . . . . . . . . . . . . . . . . . . . . . . 152
All-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . .182
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Antilock Brake System (ABS) . . . . . . . . . . . . . . 153 Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Apple CarPlay and Android Auto . . . . . . . . . . 117
Armrest Front Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Assistance Program, Roadside . . . . . . . . . . . . 253
Audio
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
