Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17041293) - 2024 - CRC - 12/2/22
308 OnStar
OnStar
OnStar Overview
OnStar Overview . . . . . . . . . . . . . . . . . . . . . . 308
OnStar Services
Emergency . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
OnStar Additional Information
OnStar Additional Information . . . . . . . . . 310
OnStar Overview
=Voice Command Button
QBlue OnStar Button
>Red Emergency Button
This vehicle may be equipped with a
comprehensive, in-vehicle system that can
connect to an OnStar Advisor for Emergency,
Security, Navigation, Connections, and
Diagnostics Services. OnStar services may
require a paid service plan and data plan.
OnStar requires the vehicle battery and
electrical system, cellular service, and GPS
satellite signals to be available and
operating. OnStar acts as a link to existing
emergency service providers. OnStar may
collect information about you and your
vehicle, including location information. See
OnStar User Terms, Privacy Statement, and
Software Terms for more details including
system limitations at www.onstar.com (U.S.)
or www.onstar.ca (Canada). The OnStar system status light is next to
the OnStar buttons. If the status light is:
.Solid Green: System is ready.
.Flashing Green: On a call.
.Red: Indicates a problem.
.Off: System is off. PressQtwice to
speak with an OnStar Advisor.
Press
Qor call 1-888-4ONSTAR
(1-888-466-7827) to speak to an Advisor.
Functionality of the Voice Command button
may vary by vehicle and region.
Press
=to:
.Open the OnStar app on the infotainment
display. If equipped, the infotainment
system has OnStar controls in the
embedded OnStar app on the Home Page.
Most OnStar functions that can be
performed with the buttons can be done
using the app. To open the app, touch the
OnStar icon on the Home Page. App
updates require a corresponding service
plan. Features vary by region and model.
Features are subject to change. For more
information, see my.chevrolet.com/learn
or press
Q.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17041293) - 2024 - CRC - 12/2/22
OnStar 311
TTY Users
OnStar has the ability to communicate to
deaf, hard-of-hearing, or speech-impaired
customers while in the vehicle. The available
TTY system can provide in-vehicle access to
all OnStar services, except Virtual Advisor
and OnStar Turn-by-Turn Navigation.
If equipped, TTY mode can be turned on or
off by touching Settings, then Apps, and
then Phone. When TTY mode is on, phone
calls can be made or received with OnStar
using the infotainment display.
OnStar Personal Identification
Number (PIN)
A PIN is needed to access some OnStar
services. The PIN will need to be changed
the first time when speaking with an
Advisor. To change the OnStar PIN, contact
an OnStar Advisor by pressing
Qor calling
1-888-4ONSTAR.
Warranty
OnStar equipment may be warranted as part
of the vehicle warranty.
Languages
The vehicle can be programmed to respond
in multiple languages. Press
Qand ask for
an Advisor. Advisors are available in English,
Spanish, and French. Available languages
may vary by country.
Potential Issues
OnStar cannot perform Remote Door Unlock
or Stolen Vehicle Assistance after the vehicle
has been off continuously for an extended
period of time without an ignition cycle. To
find out the duration of time that applies
for the vehicle, contact an OnStar Advisor by
pressing
Qor calling 1-888-4ONSTAR. If the
vehicle has not been started for an extended
period of time, OnStar can contact Roadside
Assistance or a locksmith to help gain access
to the vehicle.
Global Positioning System (GPS)
.Obstruction of the GPS can occur in a
large city with tall buildings; in parking
garages; around airports; in tunnels and
underpasses; or in an area with very
dense trees. If GPS signals are not
available, the OnStar system should still operate to call OnStar. However, OnStar
could have difficulty identifying the exact
location.
.In emergency situations, OnStar can use
the last stored GPS location to send to
emergency responders.
A temporary loss of GPS can cause loss of
the ability to send a Turn-by-Turn
Navigation route. The Advisor may give a
verbal route or may ask for a call back after
the vehicle is driven into an open area.
Cellular and GPS Antennas
Cellular reception is required for OnStar to
send remote signals to the vehicle. Do not
place items over or near the antenna to
prevent blocking cellular and GPS signal
reception.
Unable to Connect to OnStar Message
If there is limited cellular coverage or the
cellular network has reached maximum
capacity, this message may come on. Press
Qto try the call again or try again after
driving a few miles into another
cellular area.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17041293) - 2024 - CRC - 12/2/22
Connected Services 313
Connected Services
Connected Services
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Connected Services
Navigation
Navigation requires a specific OnStar or
connected service plan.
Press
Qto receive Turn-by-Turn directions
or have them sent to the vehicle’s
navigation screen, if equipped. Select
Turn-by-Turn Directions from the Services
tab of the OnStar app to call an Advisor or
select a recent or favorite destination. Touch
the navigation icons to select home, address,
or place. A destination transfer from OnStar
will show the detail view of the destination
when it is transferred from OnStar to the
Navigation application. See www.onstar.com
for a coverage map. Services vary by model.
Map coverage is available in the United
States and Canada.
Turn-by-Turn Navigation
1. PressQto connect to an Advisor.
2. Request directions to be downloaded to the vehicle.
3. Follow the voice-guided commands.
Using Voice Commands During a
Planned Route
Functionality of the Voice Command button,
if equipped, may vary by vehicle and region.
For some vehicles, press
=to open the
OnStar app on the infotainment display.
Send Destination to Vehicle
Directions can be sent to the vehicle’s
navigation screen, if equipped.
Press
Q, then ask the Advisor to download
directions to the vehicle’s navigation system,
if equipped. After the call ends, the
navigation screen will provide prompts to
begin driving directions. Routes that are sent
to the navigation screen can only be
canceled through the navigation system.
See www.onstar.com (U.S.) or www.onstar.ca
(Canada).
Connections
The following services help with staying
connected.
For coverage maps, see www.onstar.com
(U.S.) or www.onstar.ca (Canada).

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17041293) - 2024 - CRC - 12/2/22
Connected Services 315

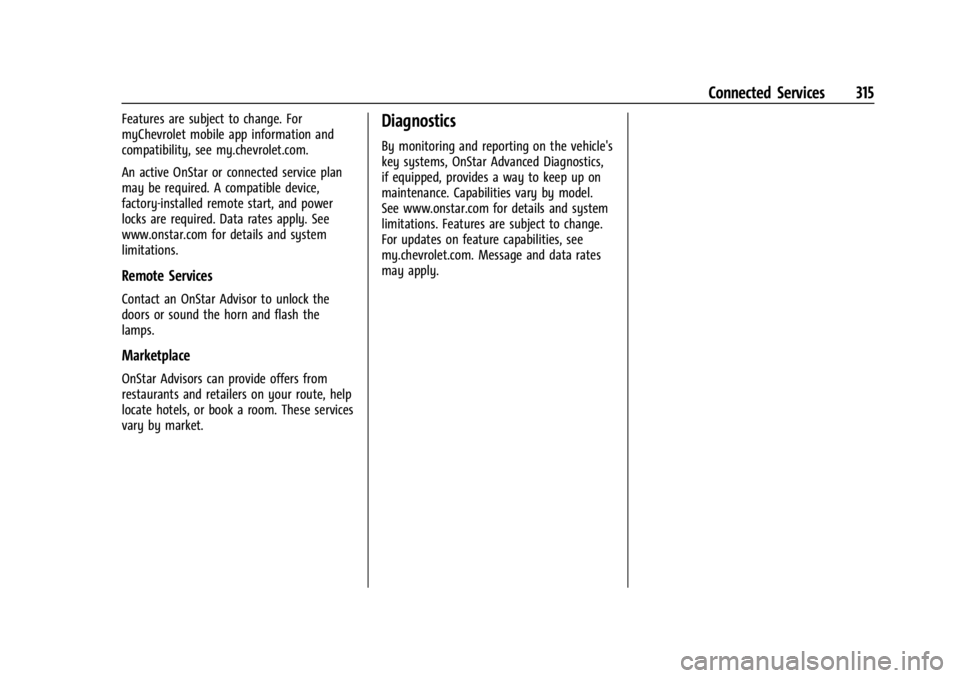

Features are subject to change. For
myChevrolet mobile app information and
compatibility, see my.chevrolet.com.
An active OnStar or connected service plan
may be required. A compatible device,
factory-installed remote start, and power
locks are required. Data rates apply. See
www.onstar.com for details and system
limitations.
Remote Services
Contact an OnStar Advisor to unlock the
doors or sound the horn and flash the
lamps.
Marketplace
OnStar Advisors can provide offers from
restaurants and retailers on your route, help
locate hotels, or book a room. These services
vary by market.
Diagnostics
By monitoring and reporting on the vehicle's
key systems, OnStar Advanced Diagnostics,
if equipped, provides a way to keep up on
maintenance. Capabilities vary by model.
See www.onstar.com for details and system
limitations. Features are subject to change.
For updates on feature capabilities, see
my.chevrolet.com. Message and data rates
may apply.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17041293) - 2024 - CRC - 12/2/22
Index 317
Assistance Program, Roadside . . . . . . . . . . . . 300
Assistance SystemsAdvanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Automatic EmergencyBraking (AEB) . . . . . . . . . . . . . . . . . . . . . . . . 205
Blind Zone Alert (SBZA) . . . . . . . . . . . . . . . . 208
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Front Pedestrian Braking (FPB) . . . . . . . . . 206
Lane Change Alert (LCA) . . . . . . . . . . . . . . . 208
Lane Keep Assist (LKA) . . . . . . . . . . . . . . . . . 209
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Parking and Backing . . . . . . . . . . . . . . . . . . . 201
Rear Cross Traffic Alert (RCTA) . . . . . . . . . 202
Rear Vision Camera (RVC) . . . . . . . . . . . . . . 201
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . 122, 144
Auto Stop Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Automatic
Climate Control System . . . . . . . . . . . . . . . . 160
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Emergency Braking (AEB) DisabledLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Headlamp System . . . . . . . . . . . . . . . . . . . . . 110
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . 223 Automatic (cont'd)
Transmission Shift Lock Control
Function Check . . . . . . . . . . . . . . . . . . . . . . . 231
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . 185
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122, 141
B
Battery
Exterior Lighting Battery Saver . . . . . . . . . 114
Load Management . . . . . . . . . . . . . . . . . . . . . . 113
Power Protection . . . . . . . . . . . . . . . . . . . . . . . 114
Battery - North America . . . . . . . . . . . . .230, 272
Blade Replacement, Wiper . . . . . . . . . . . . . . . 232
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Overview . . . . . . . . . . . . . . . . . . . . . . 122, 123, 145
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . 144
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
System Warning Light . . . . . . . . . . . . . . . . . . 94
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Electric Brake Boost . . . . . . . . . . . . . . . . . . . . 186
Electric Parking Brake . . . . . . . . . . . . . . . . . . 187
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 Braking (cont'd)
Automatic Emergency (AEB) . . . . . . . . . . . 205
Front Pedestrian (FPB) System . . . . . . . . . 206
Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . . 175
Buckle To Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . 234 Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 235
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . 234
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps . . . . . . 235
Taillamps, Turn Signal, Sidemarker, Stoplamps, and Backup Lamps . . . . . . . 236
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . 256
C
Calibration Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
California Perchlorate Materials Requirements . . . 216
California Proposition 65 Warning . . . . . 1, 272
Camera Rear Vision (RVC) . . . . . . . . . . . . . . . . . . . . . . 201
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . .2
Capacities and Specifications . . . . . . . . . . . . . 295
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 183
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . 170

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17041293) - 2024 - CRC - 12/2/22
322 Index
Lights (cont'd)Traction Control System
(TCS)/Electronic Stability Control
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 21
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 22
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . 99
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . 60
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . 34 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 287 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 93
Manual
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 Media
Avoiding Untrusted Devices . . . . . . . . 122, 141
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Mirrors
Automatic Dimming Rearview . . . . . . . . . . 27
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Interior Rearview . . . . . . . . . . . . . . . . . . . . . . . 27
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 27
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Monitor System, Tire Pressure . . . . . . . . . . . 249
Multi-band Antenna . . . . . . . . . . . . . . . . . .121, 141
Multi-Point Vehicle Inspection (MPVI) . . . . 289
N
Navigation Connected Services . . . . . . . . . . . . . . . . . . . . 313
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . . 175
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Off-Road
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Engine Oil Life System . . . . . . . . . . . . . . . . . 222
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Older Children, Restraints . . . . . . . . . . . . . . . . . 54
Online Account . . . . . . . . . . . . . . . . . . . . . . . . . . 299
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307 Additional Information . . . . . . . . . . . . . . . . . 310
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . 309
OnStar Security . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Overheating, Engine . . . . . . . . . . . . . . . . . . . . . 227
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116, 135 Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . 5
P
Park
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201, 202
Shifting Into . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Shifting Out of . . . . . . . . . . . . . . . . . . . . . . . . 182
Parking Brake and P (Park) MechanismCheck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Over Things That Burn . . . . . . . . . . . . . . . . . 183
