CHEVROLET UPLANDER 2007 1.G Owners Manual

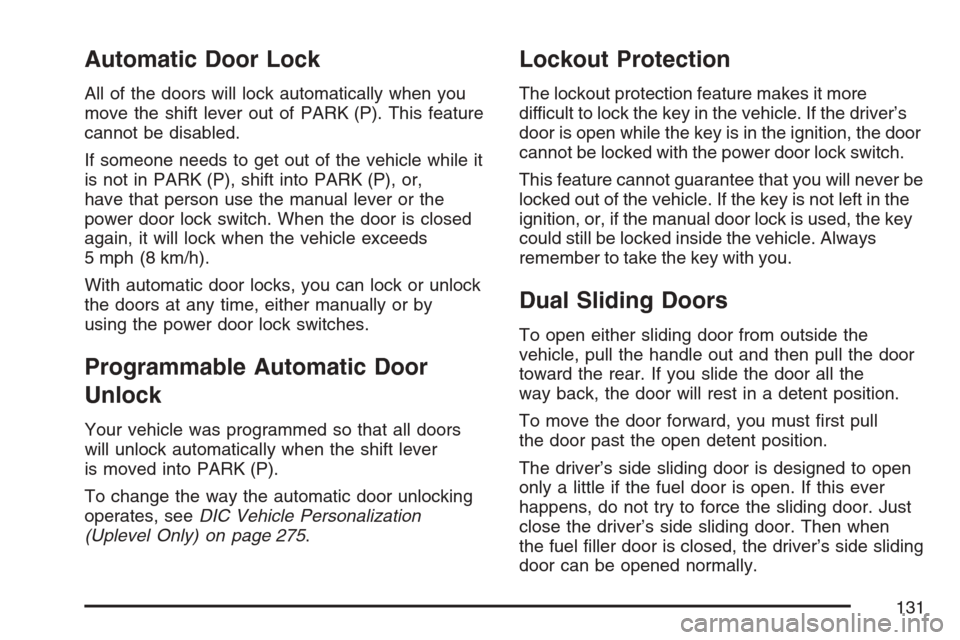

Automatic Door Lock
All of the doors will lock automatically when you
move the shift lever out of PARK (P). This feature
cannot be disabled.
If someone needs to get out of the vehicle while it
is not in PARK (P), shift into PARK (P), or,
have that person use the manual lever or the
power door lock switch. When the door is closed
again, it will lock when the vehicle exceeds
5 mph (8 km/h).
With automatic door locks, you can lock or unlock
the doors at any time, either manually or by
using the power door lock switches.
Programmable Automatic Door
Unlock
Your vehicle was programmed so that all doors
will unlock automatically when the shift lever
is moved into PARK (P).
To change the way the automatic door unlocking
operates, seeDIC Vehicle Personalization
(Uplevel Only) on page 275.
Lockout Protection
The lockout protection feature makes it more
difficult to lock the key in the vehicle. If the driver’s
door is open while the key is in the ignition, the door
cannot be locked with the power door lock switch.
This feature cannot guarantee that you will never be
locked out of the vehicle. If the key is not left in the
ignition, or, if the manual door lock is used, the key
could still be locked inside the vehicle. Always
remember to take the key with you.
Dual Sliding Doors
To open either sliding door from outside the
vehicle, pull the handle out and then pull the door
toward the rear. If you slide the door all the
way back, the door will rest in a detent position.
To move the door forward, you must rst pull
the door past the open detent position.
The driver’s side sliding door is designed to open
only a little if the fuel door is open. If this ever
happens, do not try to force the sliding door. Just
close the driver’s side sliding door. Then when
the fuel ller door is closed, the driver’s side sliding
door can be opened normally.
131

Sliding Door Lock
{CAUTION:
If your vehicle is facing downward on a
steep grade (15 percent or more), the door
may not stay open and could slam shut,
possibly injuring someone. To make sure
the door does not slam shut be sure to
hold it open until everyone is clear of the
door, and only then allow it to slowly
close.
132

Lock either sliding door from inside the vehicle by
moving the manual lever down. Unlock it by
moving the lever up.
With the power door locks, the sliding door lock
has a delay feature. SeeDelayed Locking on
page 130andDIC Vehicle Personalization
(Uplevel Only) on page 275.
Sliding Door Security Lock
Your vehicle is equipped with sliding door security
locks that helps prevent young children or other
passengers from opening the sliding door(s) using
the inside door handle. To use one of these
locks, do the following:
1. Open the sliding door.
2. On the inside of the
sliding door(s), on
the front edge of the
door will be a lock.
Push the lever up to
engage the lock.
3. Close the door.
4. Repeat Steps 1 through 3 for the other door.
133

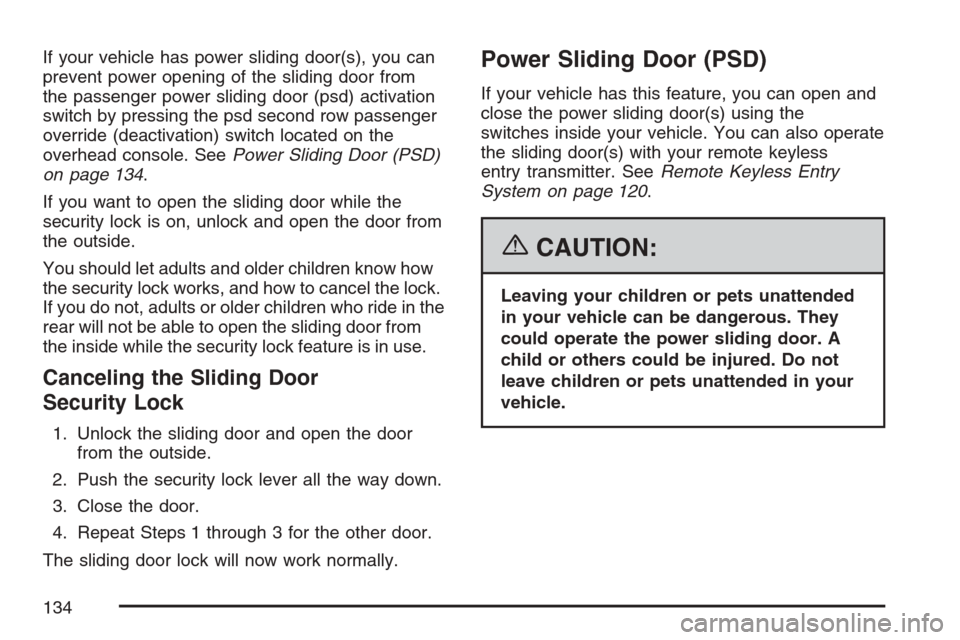

If your vehicle has power sliding door(s), you can
prevent power opening of the sliding door from
the passenger power sliding door (psd) activation
switch by pressing the psd second row passenger
override (deactivation) switch located on the
overhead console. SeePower Sliding Door (PSD)
on page 134.
If you want to open the sliding door while the
security lock is on, unlock and open the door from
the outside.
You should let adults and older children know how
the security lock works, and how to cancel the lock.
If you do not, adults or older children who ride in the
rear will not be able to open the sliding door from
the inside while the security lock feature is in use.
Canceling the Sliding Door
Security Lock
1. Unlock the sliding door and open the door
from the outside.
2. Push the security lock lever all the way down.
3. Close the door.
4. Repeat Steps 1 through 3 for the other door.
The sliding door lock will now work normally.
Power Sliding Door (PSD)
If your vehicle has this feature, you can open and
close the power sliding door(s) using the
switches inside your vehicle. You can also operate
the sliding door(s) with your remote keyless
entry transmitter. SeeRemote Keyless Entry
System on page 120.
{CAUTION:
Leaving your children or pets unattended
in your vehicle can be dangerous. They
could operate the power sliding door. A
child or others could be injured. Do not
leave children or pets unattended in your
vehicle.
134

Power Sliding Door (PSD) Switches
Your vehicle will have one of the following
switch(es) located on the overhead console
switchbank.
If your vehicle has a
single power sliding
door (PSD), you
have this switch.If your vehicle has dual
power sliding doors, you
have these switches.
PSD Activation/Override
(Deactivation) Switch
Driver’s Side and
Passenger’s Side PSD
Activation/Override
(Deactivation) Switches
135

Your vehicle also has
passenger power sliding
door activation
switch(es).
If you have a single PSD, this switch is located in
front of the passenger side sliding door. If your
vehicle has dual PSDs, the switches are located in
front of both sliding doors.Power Sliding Door Operation
The power sliding door(s) will only open if the
transaxle is in PARK (P). The transaxle does not
have to be in PARK (P) to close the door(s).
There are several ways to open and close the
power sliding door(s).
If your vehicle has a single power sliding door,
press the top of the overhead console PSD
activation/override (deactivation) switch.
If your vehicle has dual power sliding doors,
press the top of the driver’s side and/or
passenger’s side overhead console PSD
activation/override (deactivation) switch.
Press the passenger PSD activation switch.
This switch will also stop a moving door
immediately.
Passenger PSD
Activation Switch
136

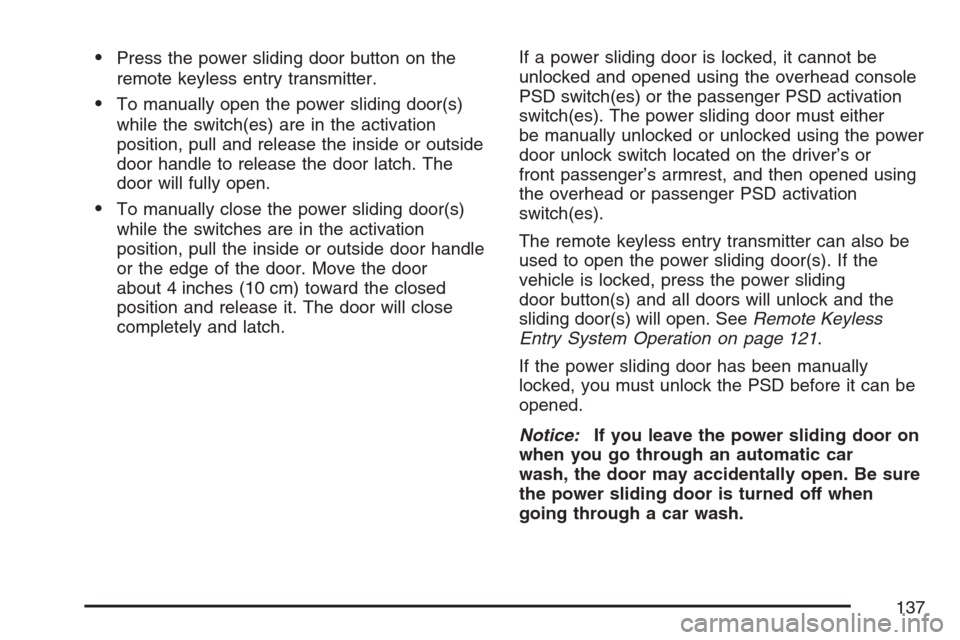

Press the power sliding door button on the
remote keyless entry transmitter.
To manually open the power sliding door(s)
while the switch(es) are in the activation
position, pull and release the inside or outside
door handle to release the door latch. The
door will fully open.
To manually close the power sliding door(s)
while the switches are in the activation
position, pull the inside or outside door handle
or the edge of the door. Move the door
about 4 inches (10 cm) toward the closed
position and release it. The door will close
completely and latch.If a power sliding door is locked, it cannot be
unlocked and opened using the overhead console
PSD switch(es) or the passenger PSD activation
switch(es). The power sliding door must either
be manually unlocked or unlocked using the power
door unlock switch located on the driver’s or
front passenger’s armrest, and then opened using
the overhead or passenger PSD activation
switch(es).
The remote keyless entry transmitter can also be
used to open the power sliding door(s). If the
vehicle is locked, press the power sliding
door button(s) and all doors will unlock and the
sliding door(s) will open. SeeRemote Keyless
Entry System Operation on page 121.
If the power sliding door has been manually
locked, you must unlock the PSD before it can be
opened.
Notice:If you leave the power sliding door on
when you go through an automatic car
wash, the door may accidentally open. Be sure
the power sliding door is turned off when
going through a car wash.
137

If the power sliding door(s) is open or in the
process of closing when you shift out of PARK (P),
a chime will sound. This is a warning that the
sliding door(s) is not completely closed. Also, the
Driver Information Center (DIC) will indicate if
the door is open. SeeDIC Warnings and
Messages on page 256. Stop the vehicle and
close the door.
{CAUTION:
If you shift the transaxle out of PARK (P)
and accelerate before the power sliding
door latches closed, the door may reverse
to the open position. A child or others
could fall out of the vehicle and be
injured. Always make sure the power
sliding door is closed and latched before
you drive away.If an object obstructs the power sliding door(s)
while it is closing, the door will automatically
reverse to the open position, provided it meets
sufficient resistance. Resistance must be as strong
as the force of the closing door, or stronger.
The force of the closing door increases
signicantly as the door approaches the latched
position.
The driver’s side sliding door is designed to open
only a little if the fuel door is open. If this ever
happens, do not try to force the sliding door. When
the fuel ller door is closed, the driver’s side
sliding door can be opened normally.
138

{CAUTION:
You or others could be injured if caught in
the path of the sliding door. Make sure the
door path is clear before closing the door.
{CAUTION:
If your vehicle is facing downward on a
steep grade (15 percent or more), the door
may not stay open and could slam shut,
possibly injuring someone. To make sure
the door does not slam shut, turn on the
power sliding door feature. Then if the
door closes, it will close under the control
of the power door system.
139

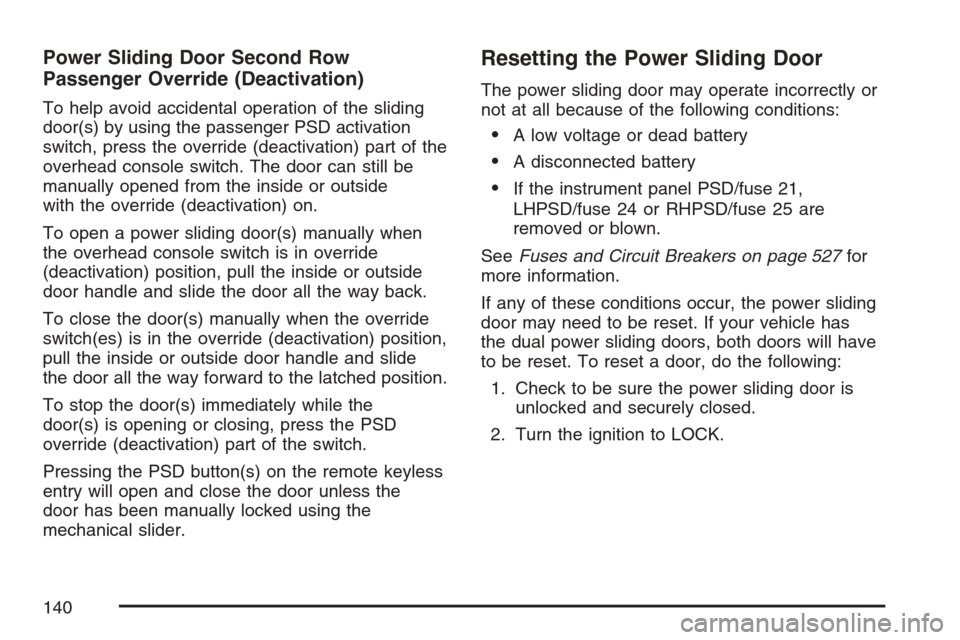

Power Sliding Door Second Row
Passenger Override (Deactivation)
To help avoid accidental operation of the sliding
door(s) by using the passenger PSD activation
switch, press the override (deactivation) part of the
overhead console switch. The door can still be
manually opened from the inside or outside
with the override (deactivation) on.
To open a power sliding door(s) manually when
the overhead console switch is in override
(deactivation) position, pull the inside or outside
door handle and slide the door all the way back.
To close the door(s) manually when the override
switch(es) is in the override (deactivation) position,
pull the inside or outside door handle and slide
the door all the way forward to the latched position.
To stop the door(s) immediately while the
door(s) is opening or closing, press the PSD
override (deactivation) part of the switch.
Pressing the PSD button(s) on the remote keyless
entry will open and close the door unless the
door has been manually locked using the
mechanical slider.
Resetting the Power Sliding Door
The power sliding door may operate incorrectly or
not at all because of the following conditions:
A low voltage or dead battery
A disconnected battery
If the instrument panel PSD/fuse 21,
LHPSD/fuse 24 or RHPSD/fuse 25 are
removed or blown.
SeeFuses and Circuit Breakers on page 527for
more information.
If any of these conditions occur, the power sliding
door may need to be reset. If your vehicle has
the dual power sliding doors, both doors will have
to be reset. To reset a door, do the following:
1. Check to be sure the power sliding door is
unlocked and securely closed.
2. Turn the ignition to LOCK.
140
