CHEVROLET UPLANDER 2007 1.G Owners Manual

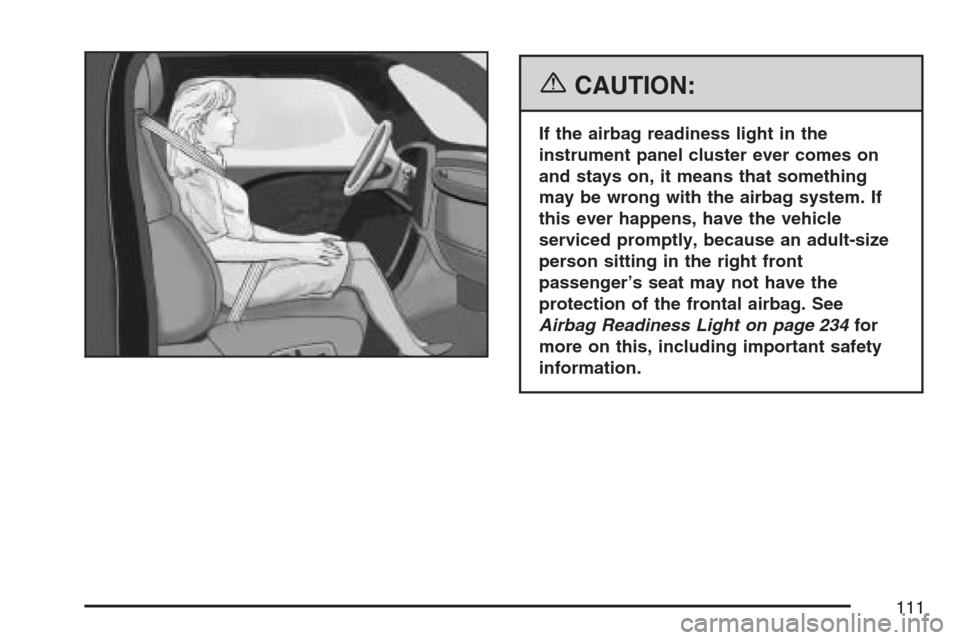

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system. If
this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front
passenger’s seat may not have the
protection of the frontal airbag. See
Airbag Readiness Light on page 234for
more on this, including important safety
information.
111

Aftermarket equipment, such as seat covers, can
affect how well the passenger sensing system
operates. You may want to consider not using seat
covers or other aftermarket equipment if your
vehicle has the passenger sensing system. See
Adding Equipment to Your Airbag-Equipped
Vehicle on page 113for more information about
modications that can affect how the system
operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to inate while someone is
working on your vehicle. Your dealer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase a
service manual, seeService Publications
Ordering Information on page 574.
112

{CAUTION:
For up to 10 seconds after the ignition key
is turned off and the battery is
disconnected, an airbag can still inate
during improper service. You can be
injured if you are close to an airbag when
it inates. Avoid yellow connectors. They
are probably part of the airbag system. Be
sure to follow proper service procedures,
and make sure the person performing
work for you is qualied to do so.
The airbag system does not need regular
maintenance.
Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front
or sides of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors. If
you have any questions about this, you should
contact Customer Assistance before you
modify your vehicle. The phone numbers and
addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 556.
113

Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
the instrument panel, or airbag wiring can
affect the operation of the airbag system. If
you have questions, call Customer Assistance.
The phone numbers and addresses for
Customer Assistance are in Step Two of the
Customer Satisfaction Procedure in this
manual. SeeCustomer Satisfaction Procedure
on page 556.
Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors and anchorages are working properly. If
your vehicle has a built-in child restraint, also
periodically make sure the harness straps, latch
plates, buckle, clip, child head restraint and
anchorages are working properly. Look for any
other loose or damaged safety belt system parts. If
you see anything that might keep a safety belt
system from doing its job, have it repaired. See
Care of Safety Belts and Built-in Child Restraint
Harness on page 520for more information.
Torn or frayed safety belts may not protect you in
a crash. They can rip apart under impact forces.
If a belt is torn or frayed, get a new one right away.
114

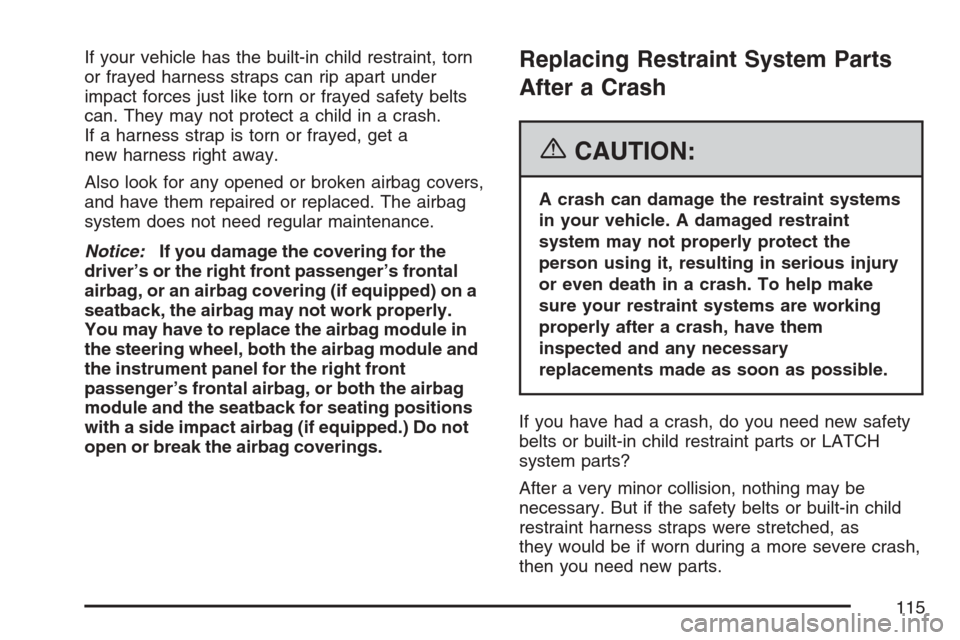

If your vehicle has the built-in child restraint, torn
or frayed harness straps can rip apart under
impact forces just like torn or frayed safety belts
can. They may not protect a child in a crash.
If a harness strap is torn or frayed, get a
new harness right away.
Also look for any opened or broken airbag covers,
and have them repaired or replaced. The airbag
system does not need regular maintenance.
Notice:If you damage the covering for the
driver’s or the right front passenger’s frontal
airbag, or an airbag covering (if equipped) on a
seatback, the airbag may not work properly.
You may have to replace the airbag module in
the steering wheel, both the airbag module and
the instrument panel for the right front
passenger’s frontal airbag, or both the airbag
module and the seatback for seating positions
with a side impact airbag (if equipped.) Do not
open or break the airbag coverings.Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make
sure your restraint systems are working
properly after a crash, have them
inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new safety
belts or built-in child restraint parts or LATCH
system parts?
After a very minor collision, nothing may be
necessary. But if the safety belts or built-in child
restraint harness straps were stretched, as
they would be if worn during a more severe crash,
then you need new parts.
115

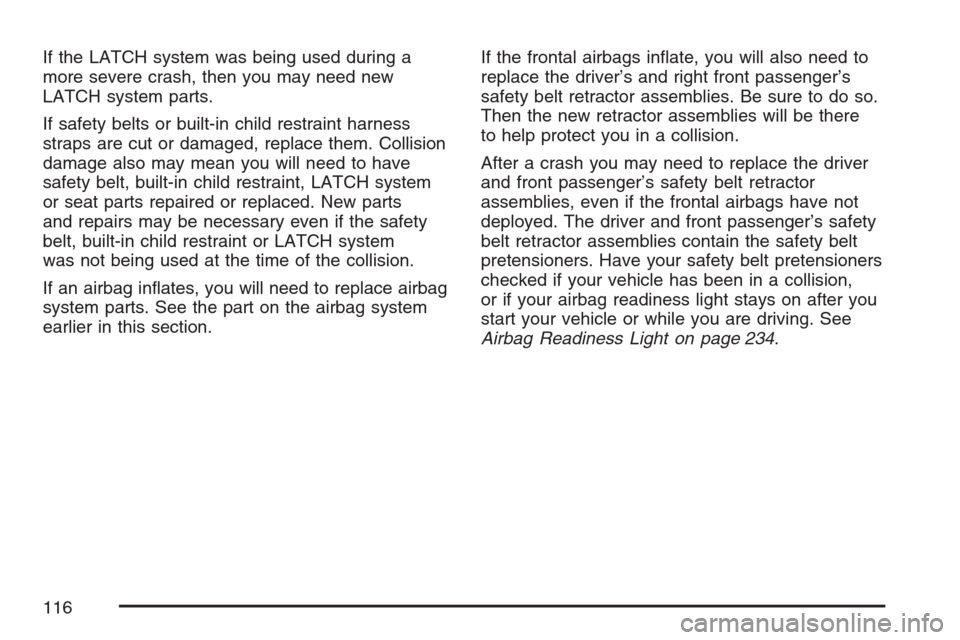

If the LATCH system was being used during a
more severe crash, then you may need new
LATCH system parts.
If safety belts or built-in child restraint harness
straps are cut or damaged, replace them. Collision
damage also may mean you will need to have
safety belt, built-in child restraint, LATCH system
or seat parts repaired or replaced. New parts
and repairs may be necessary even if the safety
belt, built-in child restraint or LATCH system
was not being used at the time of the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system
earlier in this section.If the frontal airbags inate, you will also need to
replace the driver’s and right front passenger’s
safety belt retractor assemblies. Be sure to do so.
Then the new retractor assemblies will be there
to help protect you in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt retractor assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision,
or if your airbag readiness light stays on after you
start your vehicle or while you are driving. See
Airbag Readiness Light on page 234.
116

Keys............................................................ 119
Remote Keyless Entry System.................. 120
Remote Keyless Entry System
Operation............................................... 121
Doors and Locks........................................ 128
Door Locks................................................ 128
Power Door Locks..................................... 129
Delayed Locking........................................ 130
Automatic Door Lock................................. 131
Programmable Automatic Door Unlock....... 131
Lockout Protection..................................... 131
Dual Sliding Doors.................................... 131
Power Sliding Door (PSD)......................... 134
Liftgate...................................................... 141
Windows...................................................... 143
Power Windows........................................ 144
Manual Rear Quarter Windows.................. 144
Power Rear Quarter Windows................... 145
Sun Visors................................................ 145Theft-Deterrent Systems............................. 145
Content Theft-Deterrent............................. 146
PASS-Key
®III ........................................... 148
PASS-Key®III Operation........................... 148
Starting and Operating Your Vehicle......... 150
New Vehicle Break-In................................ 150
Ignition Positions....................................... 151
Retained Accessory Power (RAP)............. 152
Starting the Engine.................................... 152
Engine Coolant Heater.............................. 154
Automatic Transaxle Operation.................. 155
Parking Brake........................................... 159
Shifting Into Park (P) ................................. 160
Shifting Out of Park (P)............................. 161
Parking Over Things That Burn................. 162
Engine Exhaust......................................... 163
Running the Engine While Parked............. 164
Section 2 Features and Controls
117

Mirrors......................................................... 165
Manual Rearview Mirror............................. 165
Outside Power Mirrors............................... 165
Outside Convex Mirror............................... 166
Outside Heated Mirrors............................. 166
OnStar
®System.......................................... 167
Universal Home Remote System................ 169
Universal Home Remote System
(With Three Round LED)....................... 169
Universal Home Remote System
(With One Triangular LED)..................... 170
Universal Home Remote System
Operation (With Three Round LED)....... 171
Universal Home Remote System Operation
(With One Triangular LED)...................... 176Storage Areas............................................. 180
Glove Box................................................. 180
Cupholder(s).............................................. 180
Overhead Console (Without Rail)............... 181
Overhead Console (With Rail)................... 181
Floor Console Storage Area...................... 183
Folding Tray.............................................. 183
Second Row Center Console.................... 183
Luggage Carrier........................................ 184
Convenience Net
(With Rear Convenience Center)............ 185
Convenience Net
(Without Rear Convenience Center)....... 186
Convenience Center.................................. 186
Section 2 Features and Controls
118

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons. They could operate the power
windows or other controls or even make
the vehicle move. The children or others
could be badly injured or even killed. Do
not leave the keys in a vehicle with
children.
This vehicle has one key for the ignition and the
driver’s door lock.
119

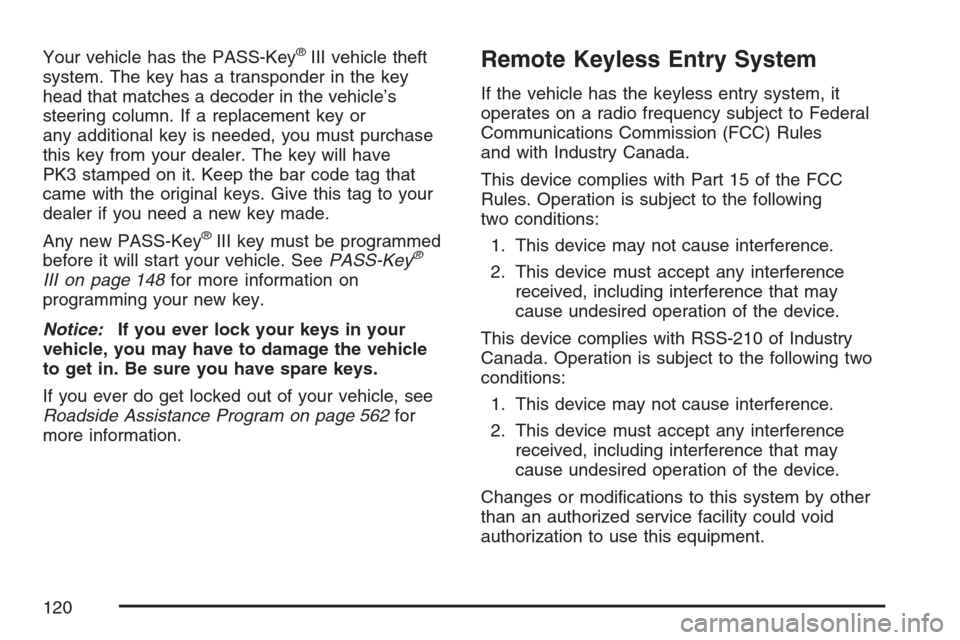

Your vehicle has the PASS-Key®III vehicle theft
system. The key has a transponder in the key
head that matches a decoder in the vehicle’s
steering column. If a replacement key or
any additional key is needed, you must purchase
this key from your dealer. The key will have
PK3 stamped on it. Keep the bar code tag that
came with the original keys. Give this tag to your
dealer if you need a new key made.
Any new PASS-Key
®III key must be programmed
before it will start your vehicle. SeePASS-Key®
III on page 148for more information on
programming your new key.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.
If you ever do get locked out of your vehicle, see
Roadside Assistance Program on page 562for
more information.
Remote Keyless Entry System
If the vehicle has the keyless entry system, it
operates on a radio frequency subject to Federal
Communications Commission (FCC) Rules
and with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
120
