CHEVROLET UPLANDER 2007 1.G Owners Manual

At times you may notice a decrease in range. This
is normal for any remote keyless entry system.
If the transmitter does not work or if you have to
stand closer to your vehicle for the transmitter
to work, try this:
Check the distance. You may be too far from
your vehicle. You may need to stand closer
during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement”
underRemote Keyless Entry System
Operation on page 121.
If you are still having trouble, see your dealer
or a qualied technician for service.
Remote Keyless Entry System
Operation
You can lock and unlock the vehicle’s doors and
the liftgate using the remote keyless entry
transmitter supplied with your vehicle.The remote keyless
entry transmitter shown
here is for a vehicle
equipped with the
remote vehicle start
feature and dual power
sliding doors.
The remote keyless entry transmitter supplied with
your vehicle will only contain the buttons specic
to your vehicle’s factory installed remote
system features.
/(Remote Vehicle Start):If your vehicle has
this feature, you can start the engine from outside
the vehicle. See “Remote Vehicle Start” at the
end of this section for more detailed information.
121

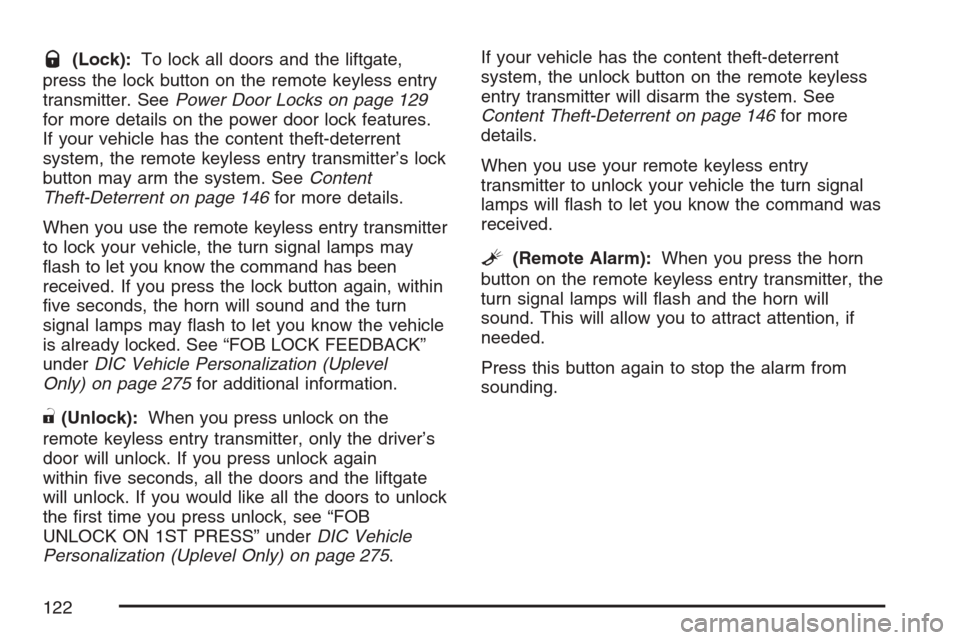

Q(Lock):To lock all doors and the liftgate,
press the lock button on the remote keyless entry
transmitter. SeePower Door Locks on page 129
for more details on the power door lock features.
If your vehicle has the content theft-deterrent
system, the remote keyless entry transmitter’s lock
button may arm the system. SeeContent
Theft-Deterrent on page 146for more details.
When you use the remote keyless entry transmitter
to lock your vehicle, the turn signal lamps may
ash to let you know the command has been
received. If you press the lock button again, within
ve seconds, the horn will sound and the turn
signal lamps may ash to let you know the vehicle
is already locked. See “FOB LOCK FEEDBACK”
underDIC Vehicle Personalization (Uplevel
Only) on page 275for additional information.
"(Unlock):When you press unlock on the
remote keyless entry transmitter, only the driver’s
door will unlock. If you press unlock again
within ve seconds, all the doors and the liftgate
will unlock. If you would like all the doors to unlock
the rst time you press unlock, see “FOB
UNLOCK ON 1ST PRESS” underDIC Vehicle
Personalization (Uplevel Only) on page 275.If your vehicle has the content theft-deterrent
system, the unlock button on the remote keyless
entry transmitter will disarm the system. See
Content Theft-Deterrent on page 146for more
details.
When you use your remote keyless entry
transmitter to unlock your vehicle the turn signal
lamps will ash to let you know the command was
received.
L(Remote Alarm):When you press the horn
button on the remote keyless entry transmitter, the
turn signal lamps will ash and the horn will
sound. This will allow you to attract attention, if
needed.
Press this button again to stop the alarm from
sounding.
122

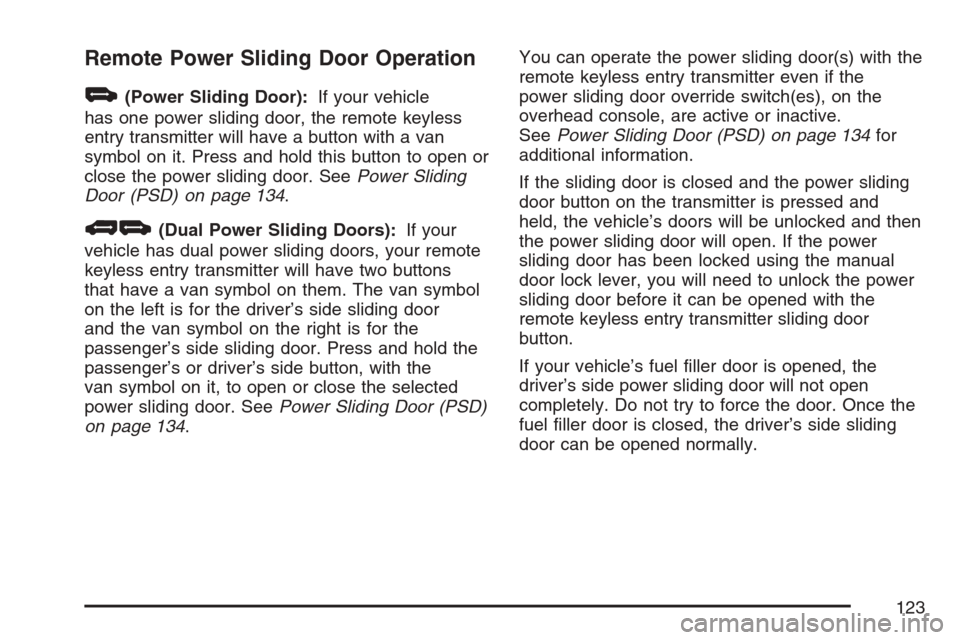

Remote Power Sliding Door Operation
+
(Power Sliding Door):If your vehicle
has one power sliding door, the remote keyless
entry transmitter will have a button with a van
symbol on it. Press and hold this button to open or
close the power sliding door. SeePower Sliding
Door (PSD) on page 134.
*+(Dual Power Sliding Doors):If your
vehicle has dual power sliding doors, your remote
keyless entry transmitter will have two buttons
that have a van symbol on them. The van symbol
on the left is for the driver’s side sliding door
and the van symbol on the right is for the
passenger’s side sliding door. Press and hold the
passenger’s or driver’s side button, with the
van symbol on it, to open or close the selected
power sliding door. SeePower Sliding Door (PSD)
on page 134.You can operate the power sliding door(s) with the
remote keyless entry transmitter even if the
power sliding door override switch(es), on the
overhead console, are active or inactive.
SeePower Sliding Door (PSD) on page 134for
additional information.
If the sliding door is closed and the power sliding
door button on the transmitter is pressed and
held, the vehicle’s doors will be unlocked and then
the power sliding door will open. If the power
sliding door has been locked using the manual
door lock lever, you will need to unlock the power
sliding door before it can be opened with the
remote keyless entry transmitter sliding door
button.
If your vehicle’s fuel ller door is opened, the
driver’s side power sliding door will not open
completely. Do not try to force the door. Once the
fuel ller door is closed, the driver’s side sliding
door can be opened normally.
123

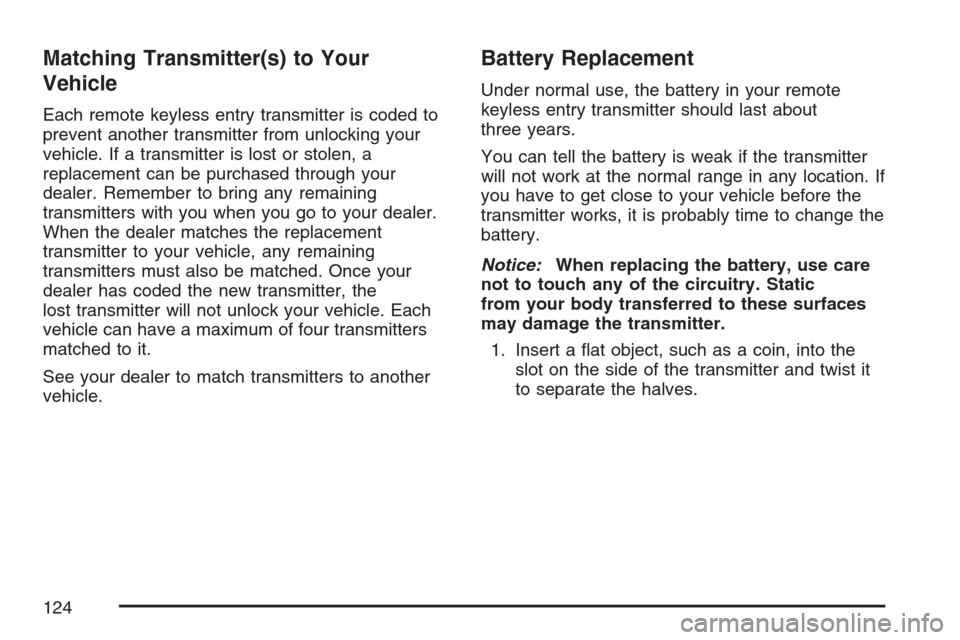

Matching Transmitter(s) to Your
Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your
vehicle. If a transmitter is lost or stolen, a
replacement can be purchased through your
dealer. Remember to bring any remaining
transmitters with you when you go to your dealer.
When the dealer matches the replacement
transmitter to your vehicle, any remaining
transmitters must also be matched. Once your
dealer has coded the new transmitter, the
lost transmitter will not unlock your vehicle. Each
vehicle can have a maximum of four transmitters
matched to it.
See your dealer to match transmitters to another
vehicle.
Battery Replacement
Under normal use, the battery in your remote
keyless entry transmitter should last about
three years.
You can tell the battery is weak if the transmitter
will not work at the normal range in any location. If
you have to get close to your vehicle before the
transmitter works, it is probably time to change the
battery.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.
1. Insert a at object, such as a coin, into the
slot on the side of the transmitter and twist it
to separate the halves.
124

2. Gently pry the battery out of the transmitter.
Do not use the metal anges to pop out the
battery.
3. Replace the battery.
4. Reassemble the transmitter. Make sure the
halves are snapped together tightly so water
will not get in.
5. Press and hold the lock and unlock buttons
for seven seconds to synchronize the
transmitter.
6. Check the transmitter operation.
Remote Vehicle Start
This feature allows you to start the engine from
outside the vehicle. It may also turn the rear
window defogger if the outside temperature is
below 45°F (7°C).
Laws in some local communities may restrict the
use of remote starters. For example, some
laws may require a person using remote start to
have the vehicle in view when doing so. Check
local regulations for any requirements on remote
starting of vehicles.
/(Remote Vehicle Start):If your vehicle has
the remote vehicle start feature, the remote
keyless entry transmitter will have a button with
this symbol on it.
An increased range of operation is provided with
the remote keyless entry transmitter that has
the remote vehicle start button.
If your vehicle is low on fuel, do not use the
remote start feature. The vehicle may run out of
fuel. The vehicle may also run out of fuel if
the vehicle is running for a long period of time
when parked on an incline facing downward with a
low fuel condition.
125

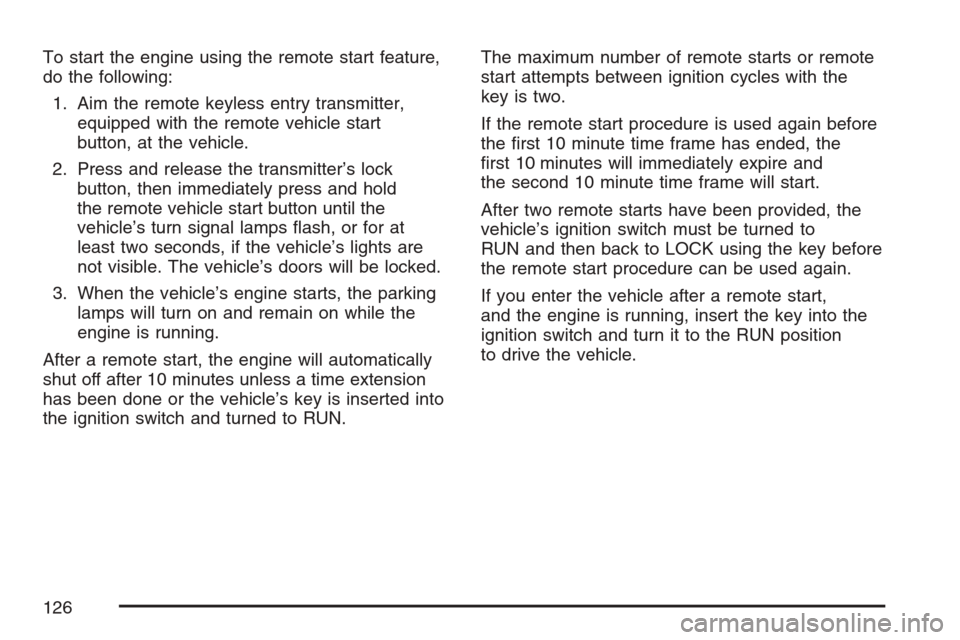

To start the engine using the remote start feature,
do the following:
1. Aim the remote keyless entry transmitter,
equipped with the remote vehicle start
button, at the vehicle.
2. Press and release the transmitter’s lock
button, then immediately press and hold
the remote vehicle start button until the
vehicle’s turn signal lamps ash, or for at
least two seconds, if the vehicle’s lights are
not visible. The vehicle’s doors will be locked.
3. When the vehicle’s engine starts, the parking
lamps will turn on and remain on while the
engine is running.
After a remote start, the engine will automatically
shut off after 10 minutes unless a time extension
has been done or the vehicle’s key is inserted into
the ignition switch and turned to RUN.The maximum number of remote starts or remote
start attempts between ignition cycles with the
key is two.
If the remote start procedure is used again before
the rst 10 minute time frame has ended, the
rst 10 minutes will immediately expire and
the second 10 minute time frame will start.
After two remote starts have been provided, the
vehicle’s ignition switch must be turned to
RUN and then back to LOCK using the key before
the remote start procedure can be used again.
If you enter the vehicle after a remote start,
and the engine is running, insert the key into the
ignition switch and turn it to the RUN position
to drive the vehicle.
126

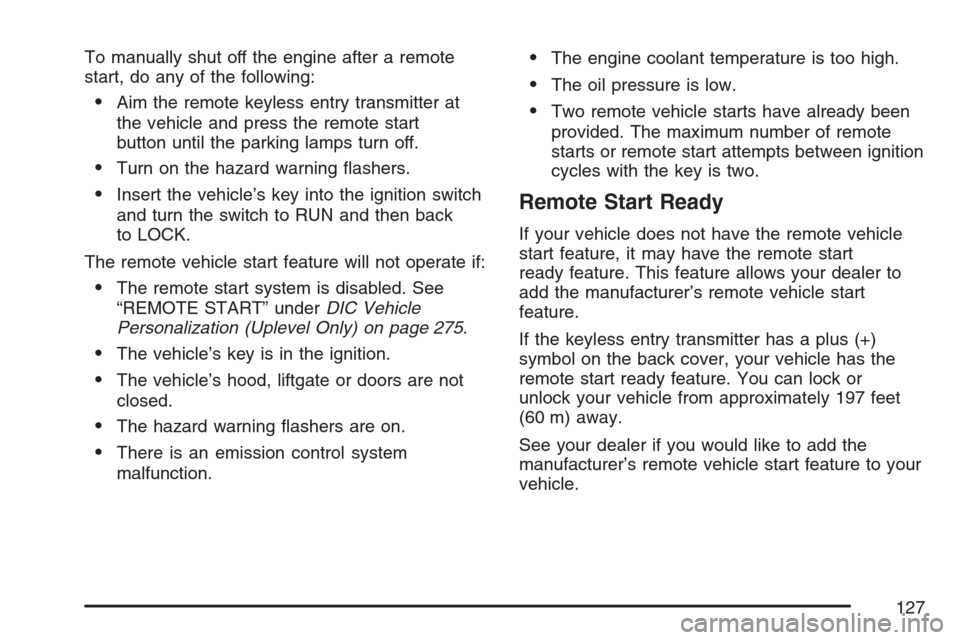

To manually shut off the engine after a remote
start, do any of the following:
Aim the remote keyless entry transmitter at
the vehicle and press the remote start
button until the parking lamps turn off.
Turn on the hazard warning ashers.
Insert the vehicle’s key into the ignition switch
and turn the switch to RUN and then back
to LOCK.
The remote vehicle start feature will not operate if:
The remote start system is disabled. See
“REMOTE START” underDIC Vehicle
Personalization (Uplevel Only) on page 275.
The vehicle’s key is in the ignition.
The vehicle’s hood, liftgate or doors are not
closed.
The hazard warning ashers are on.
There is an emission control system
malfunction.
The engine coolant temperature is too high.
The oil pressure is low.
Two remote vehicle starts have already been
provided. The maximum number of remote
starts or remote start attempts between ignition
cycles with the key is two.
Remote Start Ready
If your vehicle does not have the remote vehicle
start feature, it may have the remote start
ready feature. This feature allows your dealer to
add the manufacturer’s remote vehicle start
feature.
If the keyless entry transmitter has a plus (+)
symbol on the back cover, your vehicle has the
remote start ready feature. You can lock or
unlock your vehicle from approximately 197 feet
(60 m) away.
See your dealer if you would like to add the
manufacturer’s remote vehicle start feature to your
vehicle.
127

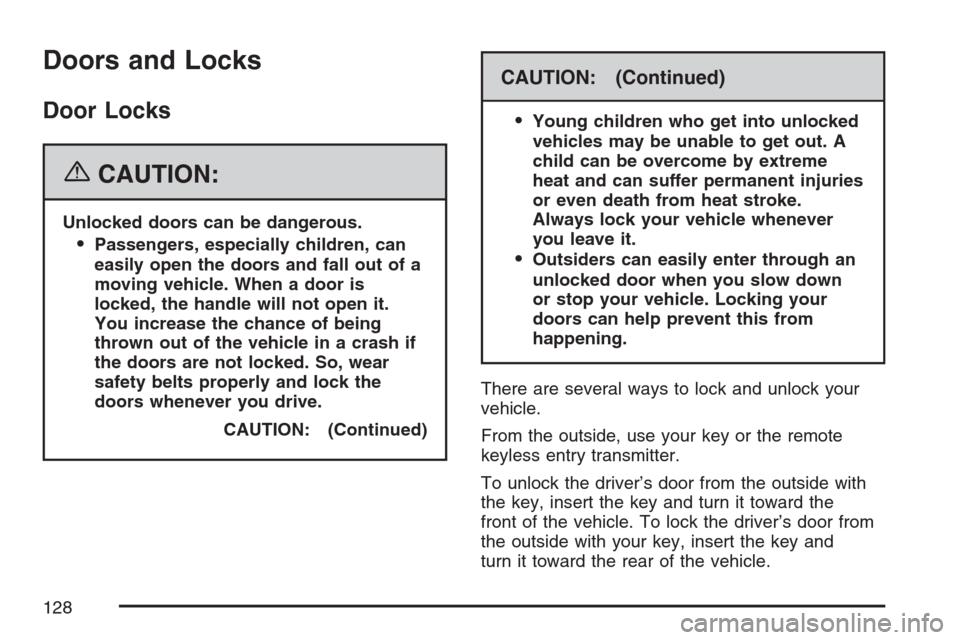

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of a
moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)

Young children who get into unlocked
vehicles may be unable to get out. A
child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
There are several ways to lock and unlock your
vehicle.
From the outside, use your key or the remote
keyless entry transmitter.
To unlock the driver’s door from the outside with
the key, insert the key and turn it toward the
front of the vehicle. To lock the driver’s door from
the outside with your key, insert the key and
turn it toward the rear of the vehicle.
128

If your vehicle has power door locks, you may be
able to unlock all of the doors and the liftgate
when you insert the key, turn it toward the front of
the vehicle, and hold it there for one second.
You may be able to lock all of the doors when you
insert the key and turn it toward the rear of the
vehicle.
From the inside, use the manual or power
door locks.
To unlock either front door from the inside, pull
back on the manual lever. To lock either front door
from the inside, push the manual lever forward.Power Door Locks
Your vehicle has power door locks.
The switches are
located on the driver’s
and front passenger’s
door. Press the top
of the switch to unlock
the doors and liftgate.
With the content theft-deterrent system, the power
door lock switch will not unlock the doors until
the system is disarmed. SeeContent
Theft-Deterrent on page 146for more details.
Press the bottom of the switch to lock the doors
and liftgate. With the content theft-deterrent
system, the power door lock switch may cause the
system to arm. SeeContent Theft-Deterrent on
page 146for more details.
129

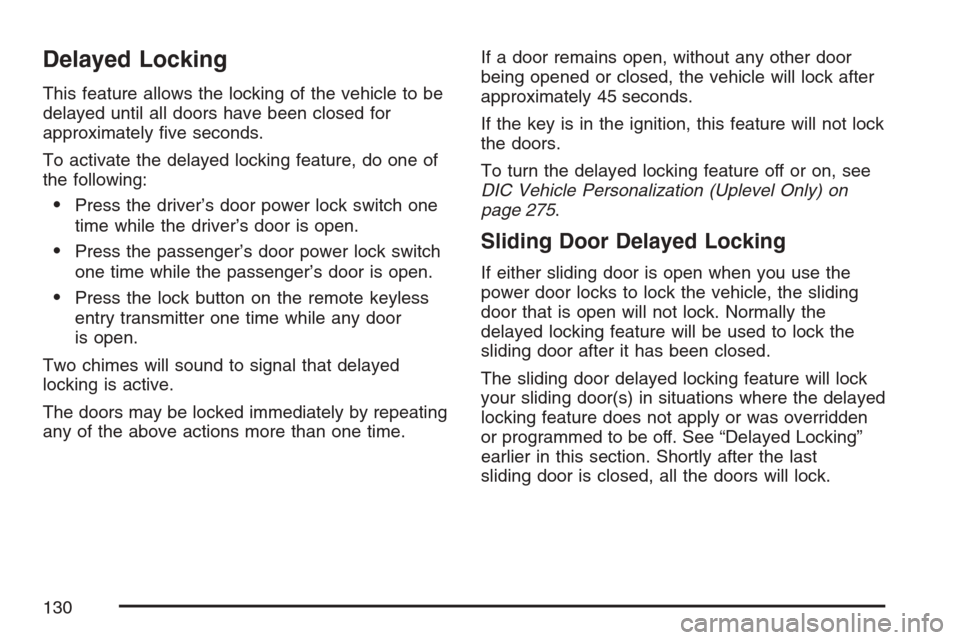

Delayed Locking
This feature allows the locking of the vehicle to be
delayed until all doors have been closed for
approximately ve seconds.
To activate the delayed locking feature, do one of
the following:
Press the driver’s door power lock switch one
time while the driver’s door is open.
Press the passenger’s door power lock switch
one time while the passenger’s door is open.
Press the lock button on the remote keyless
entry transmitter one time while any door
is open.
Two chimes will sound to signal that delayed
locking is active.
The doors may be locked immediately by repeating
any of the above actions more than one time.If a door remains open, without any other door
being opened or closed, the vehicle will lock after
approximately 45 seconds.
If the key is in the ignition, this feature will not lock
the doors.
To turn the delayed locking feature off or on, see
DIC Vehicle Personalization (Uplevel Only) on
page 275.
Sliding Door Delayed Locking
If either sliding door is open when you use the
power door locks to lock the vehicle, the sliding
door that is open will not lock. Normally the
delayed locking feature will be used to lock the
sliding door after it has been closed.
The sliding door delayed locking feature will lock
your sliding door(s) in situations where the delayed
locking feature does not apply or was overridden
or programmed to be off. See “Delayed Locking”
earlier in this section. Shortly after the last
sliding door is closed, all the doors will lock.
130
