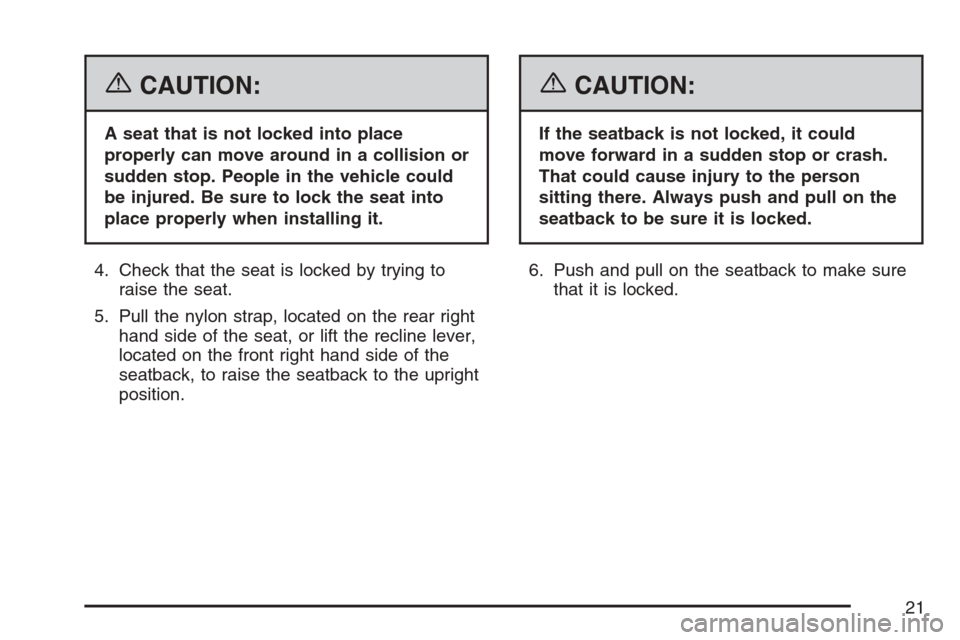

{CAUTION:
A seat that is not locked into place
properly can move around in a collision or
sudden stop. People in the vehicle could
be injured. Be sure to lock the seat into
place properly when installing it.
4. Check that the seat is locked by trying to
raise the seat.
5. Pull the nylon strap, located on the rear right
hand side of the seat, or lift the recline lever,
located on the front right hand side of the
seatback, to raise the seatback to the upright
position.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
6. Push and pull on the seatback to make sure
that it is locked.
21

Captain Chairs
Your vehicle may have second row captain chairs.
If so, they can be adjusted forward or rearward
and the seatbacks can be adjusted.
Adjusting the Captain Chairs Forward
and Rearward
There are two manual adjustment bars on each
seat. One is located under the front of the
seat cushion. The other one is located under the
rear of the seat cushion.
Lift up either bar to slide the seat forward or
rearward. Release the lever. Push and pull on the
seat to make sure it is locked into place.
Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
22

To recline the seatback, lift up on the recliner
lever located on the outboard side of the seat, then
move the seatback to the desired position.
To raise the seatback, lift up on the recliner lever
without applying pressure to the seatback.
Push and pull on the seatback to make sure it is
locked in place.Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
To fold the seatback forward, lift up fully on the
recliner lever. Push the seatback forward until it
is at.
The armrests can be lowered or raised for easier
entry or exit of the vehicle. If your vehicle has
captain chairs with side impact airbags, they will
have one armrest on the inboard side.
23

Removing a Captain Chair (without a
Side Impact Airbag)
If your vehicle has captain chairs with side impact
airbags, the seats cannot be removed. See
Where Are the Airbags? on page 99for more
information.
To remove a captain chair, do the following:
1. Pull the nylon strap behind the seat to release
the rear hooks from the oor pins.2. The seat can then be lifted off the front oor
pins and removed from the vehicle.
24

Installing a Captain Chair (without a
Side Impact Airbag)
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not
provide the protection needed in a crash.
The person wearing the belt could be
seriously injured. After installing the seat,
always check to be sure that the safety
belts are properly routed and attached,
and are not twisted.
Do not put the seats in so they face rearward
because they will not latch that way. For the
second row, if you want more storage room behind
the seat, adjust the seat by sliding it forward.
Make sure the seatbacks are in the upright
position, the seat belts are on the correct side of
the seats and the seats are in the full rear position
before beginning this procedure.To install a captain chair, do the following:
1. Hook the front latches over the front
oor pins.
25

2. Push the rear of the seat down to lock the
rear latches onto the rear set of oor pins.
{CAUTION:
A seat that is not locked into place
properly can move around in a collision or
sudden stop. People in the vehicle could
be injured. Be sure to lock the seat into
place properly when installing it.
3. Push and pull on the seat to be sure it is
properly attached.
26

Third Row Seat
Your vehicle may have a third row seat. It is a full
bench seat and may come with the convenience
center. SeeConvenience Center on page 186
for more information. The third row seat can be
removed and replaced, or with the seatback
folded, it will lie at with the convenience center.
Folding the Seatback(s)
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.To fold down either side of the 50/50 split bench
seat, lift the lever located on the back of the seat
you want to fold, and push the seatback down.
27

Returning the Seatback to an Upright
Position
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
To raise the seatback, do the following:
1. Move the second row seat completely forward
by using the manual adjustment bar under
either the front or rear of the seat cushion.
2. Open the liftgate.3. From the rear of the vehicle, locate the
pullstrap attached to the lever on the back of
the seat and pull it to raise the seat.
4. Push and pull on the seatback to make sure
that it is locked into place.
28

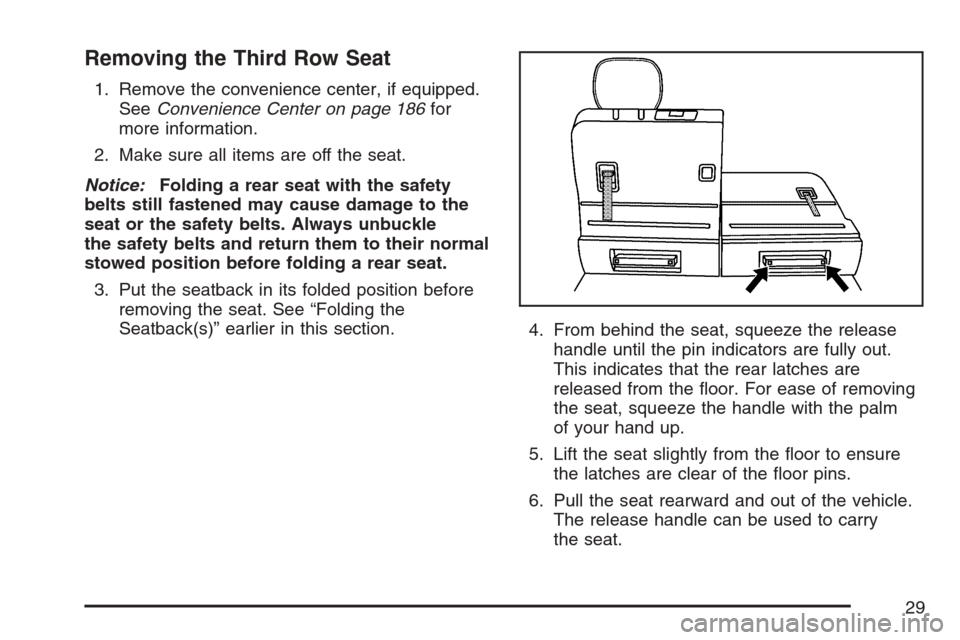

Removing the Third Row Seat
1. Remove the convenience center, if equipped.
SeeConvenience Center on page 186for
more information.
2. Make sure all items are off the seat.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
3. Put the seatback in its folded position before
removing the seat. See “Folding the
Seatback(s)” earlier in this section.
4. From behind the seat, squeeze the release
handle until the pin indicators are fully out.
This indicates that the rear latches are
released from the oor. For ease of removing
the seat, squeeze the handle with the palm
of your hand up.
5. Lift the seat slightly from the oor to ensure
the latches are clear of the oor pins.
6. Pull the seat rearward and out of the vehicle.
The release handle can be used to carry
the seat.
29

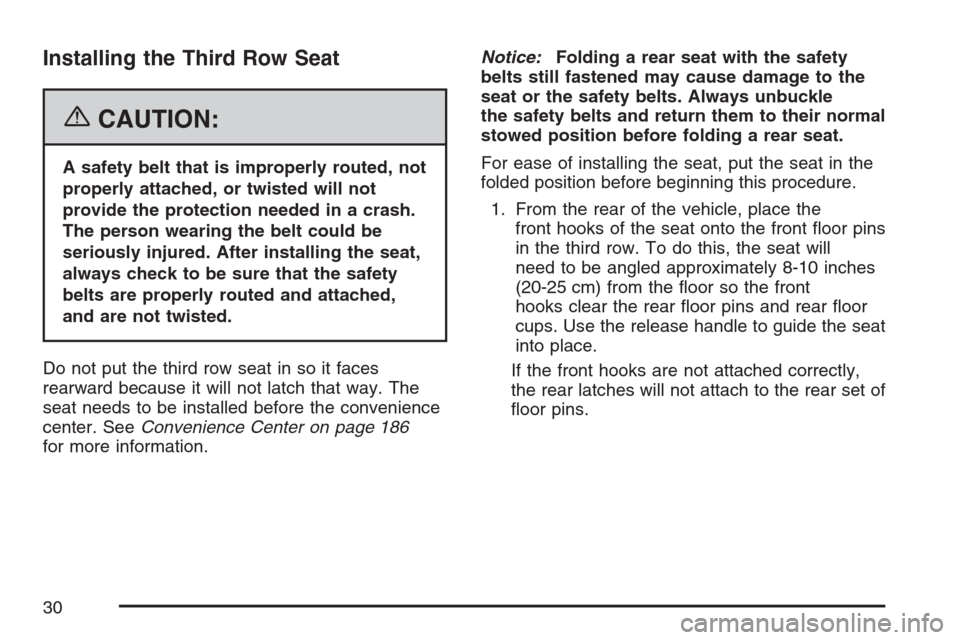

Installing the Third Row Seat
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not
provide the protection needed in a crash.
The person wearing the belt could be
seriously injured. After installing the seat,
always check to be sure that the safety
belts are properly routed and attached,
and are not twisted.
Do not put the third row seat in so it faces
rearward because it will not latch that way. The
seat needs to be installed before the convenience
center. SeeConvenience Center on page 186
for more information.Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
For ease of installing the seat, put the seat in the
folded position before beginning this procedure.
1. From the rear of the vehicle, place the
front hooks of the seat onto the front oor pins
in the third row. To do this, the seat will
need to be angled approximately 8-10 inches
(20-25 cm) from the oor so the front
hooks clear the rear oor pins and rear oor
cups. Use the release handle to guide the seat
into place.
If the front hooks are not attached correctly,
the rear latches will not attach to the rear set of
oor pins.
