CHEVROLET UPLANDER 2009 1.G Owners Manual

Keys
{CAUTION:
Leaving children in a vehicle with the ignition key
is dangerous for many reasons, children or others
could be badly injured or even killed. They could
operate the power windows or other controls or
even make the vehicle move. The windows will
function with the keys in the ignition and children
could be seriously injured or killed if caught in the
path of a closing window. Do not leave the keys in
a vehicle with children.
The key can be used for the ignition and the driver’s
door lock.
Your vehicle has the PASS-Key
®III vehicle theft
system. The key has a transponder in the key head that
matches a decoder in the vehicle’s steering column.
If a replacement key or any additional key is needed,
you must purchase this key from your dealer/retailer.
The key will have PK3 stamped on it. Keep the bar code
tag that came with the original keys. Give this tag to
your dealer/retailer if you need a new key made.
2-3

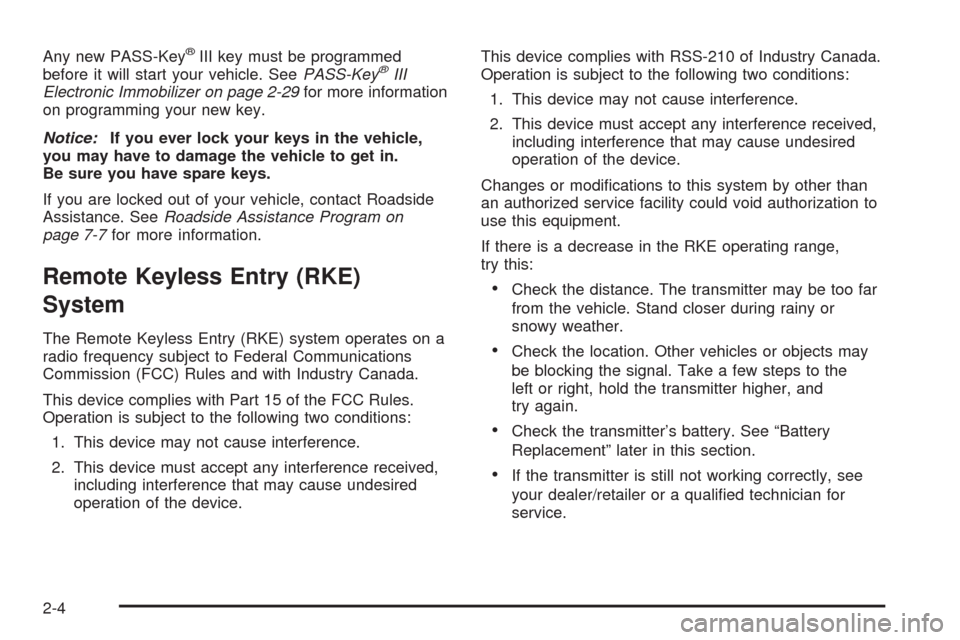

Any new PASS-Key®III key must be programmed
before it will start your vehicle. SeePASS-Key®III
Electronic Immobilizer on page 2-29for more information
on programming your new key.
Notice:If you ever lock your keys in the vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
If you are locked out of your vehicle, contact Roadside
Assistance. SeeRoadside Assistance Program on
page 7-7for more information.
Remote Keyless Entry (RKE)
System
The Remote Keyless Entry (RKE) system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
If there is a decrease in the RKE operating range,
try this:
Check the distance. The transmitter may be too far
from the vehicle. Stand closer during rainy or
snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check the transmitter’s battery. See “Battery
Replacement” later in this section.
If the transmitter is still not working correctly, see
your dealer/retailer or a qualied technician for
service.
2-4

Remote Keyless Entry (RKE)
System Operation
The Remote Keyless Entry (RKE) transmitter works up
to 195 feet (60 m) away from the vehicle.
There are other conditions which can affect the
performance of the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-4.The following functions may be available if the vehicle
has the RKE system:/(Remote Vehicle Start):For vehicles with this
feature, press to start the engine from outside the
vehicle using the RKE transmitter. SeeRemote Vehicle
Start on page 2-7for additional information.
Q(Lock):Press to lock all doors and the liftgate. See
Power Door Locks on page 2-11for more details on
the power door lock features. The turn signal lamps may
ash to indicate locking has occurred. If
Qis pressed
again, within ve seconds, the horn sounds and the turn
signal lamps may ash to let you know the vehicle is
already locked. See “FOB LOCK FEEDBACK”
underDIC Vehicle Personalization (Uplevel Only) on
page 3-68for additional information.
Pressing
Qmay also arm the content theft-deterrent
system if the vehicle has one. SeeContent
Theft-Deterrent on page 2-27.
"(Unlock):Press once to unlock the driver door.
Press
"again, within ve seconds, to unlock all
the doors and the liftgate. The turn signal lamps ash. With Remote Start and
Dual Power Sliding
Doors Shown, Without
Similar
2-5

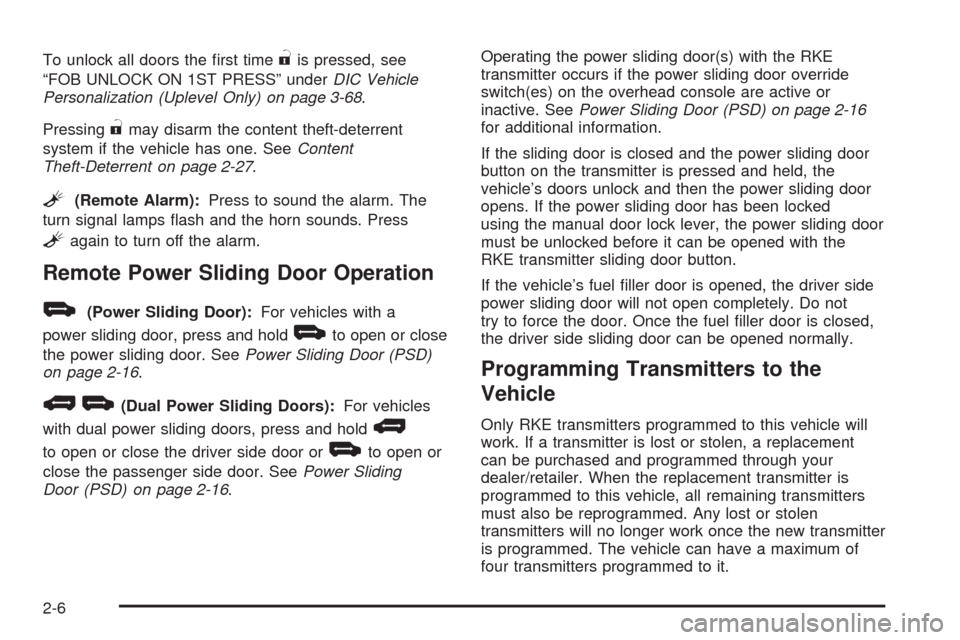

To unlock all doors the rst time"is pressed, see
“FOB UNLOCK ON 1ST PRESS” underDIC Vehicle
Personalization (Uplevel Only) on page 3-68.
Pressing
"may disarm the content theft-deterrent
system if the vehicle has one. SeeContent
Theft-Deterrent on page 2-27.
L(Remote Alarm):Press to sound the alarm. The
turn signal lamps ash and the horn sounds. Press
Lagain to turn off the alarm.
Remote Power Sliding Door Operation
+
(Power Sliding Door):For vehicles with a
power sliding door, press and hold
+to open or close
the power sliding door. SeePower Sliding Door (PSD)
on page 2-16.
*+(Dual Power Sliding Doors):For vehicles
with dual power sliding doors, press and hold
*
to open or close the driver side door or+to open or
close the passenger side door. SeePower Sliding
Door (PSD) on page 2-16.Operating the power sliding door(s) with the RKE
transmitter occurs if the power sliding door override
switch(es) on the overhead console are active or
inactive. SeePower Sliding Door (PSD) on page 2-16
for additional information.
If the sliding door is closed and the power sliding door
button on the transmitter is pressed and held, the
vehicle’s doors unlock and then the power sliding door
opens. If the power sliding door has been locked
using the manual door lock lever, the power sliding door
must be unlocked before it can be opened with the
RKE transmitter sliding door button.
If the vehicle’s fuel ller door is opened, the driver side
power sliding door will not open completely. Do not
try to force the door. Once the fuel ller door is closed,
the driver side sliding door can be opened normally.
Programming Transmitters to the
Vehicle
Only RKE transmitters programmed to this vehicle will
work. If a transmitter is lost or stolen, a replacement
can be purchased and programmed through your
dealer/retailer. When the replacement transmitter is
programmed to this vehicle, all remaining transmitters
must also be reprogrammed. Any lost or stolen
transmitters will no longer work once the new transmitter
is programmed. The vehicle can have a maximum of
four transmitters programmed to it.
2-6

Battery Replacement
Notice:When replacing the battery, do not touch
any of the circuitry on the transmitter. Static
from your body could damage the transmitter.
To replace the battery:
1. Separate the transmitter with a at, thin object
inserted into the notch on the side.
2. Remove the old battery. Do not use a metal object.
3. Insert the new battery. Replace with a CR2032
or equivalent battery.
4. Put the transmitter back together tightly.
Remote Vehicle Start
This feature allows you to start the engine from outside
the vehicle. It may also turn the rear window defogger
if the outside temperature is below 45°F (7°C).
Laws in some local communities may restrict the use of
remote starters. For example, some laws may require
a person using remote start to have the vehicle in view
when doing so. Check local regulations for any
requirements on remote starting of vehicles.
If your vehicle is low on fuel, do not use the remote
start feature. The vehicle may run out of fuel. The
vehicle may also run out of fuel if the vehicle is running
for a long period of time when parked on an incline
facing downward with a low fuel condition.
If your vehicle has the remote start feature, the RKE
transmitter functions will have an increased range
of operation. However, the range may be less while the
vehicle is running.
There are other conditions which can affect the
performance of the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-4for additional
information.
2-7

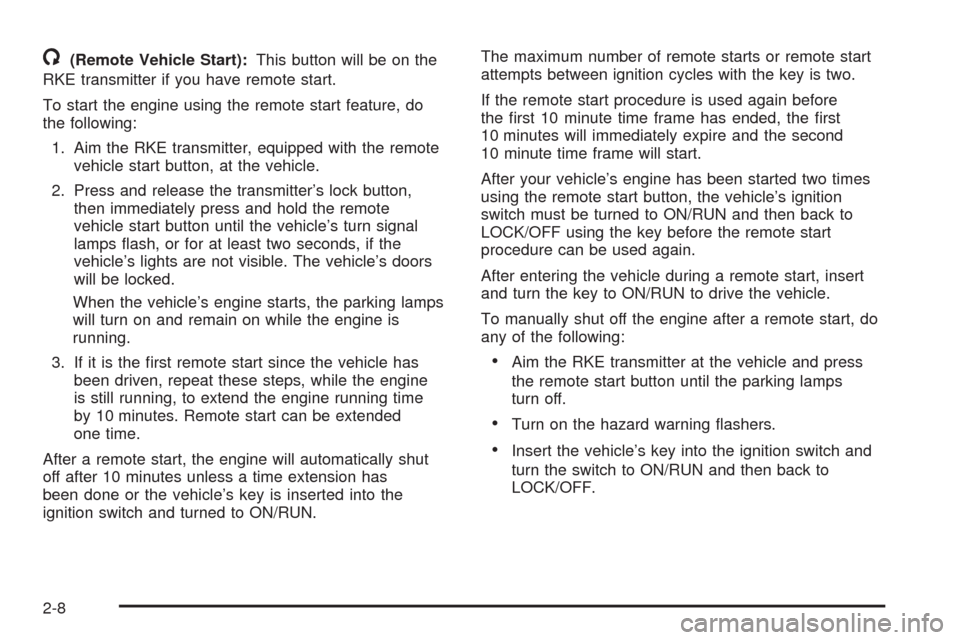

/(Remote Vehicle Start):This button will be on the
RKE transmitter if you have remote start.
To start the engine using the remote start feature, do
the following:
1. Aim the RKE transmitter, equipped with the remote
vehicle start button, at the vehicle.
2. Press and release the transmitter’s lock button,
then immediately press and hold the remote
vehicle start button until the vehicle’s turn signal
lamps ash, or for at least two seconds, if the
vehicle’s lights are not visible. The vehicle’s doors
will be locked.
When the vehicle’s engine starts, the parking lamps
will turn on and remain on while the engine is
running.
3. If it is the rst remote start since the vehicle has
been driven, repeat these steps, while the engine
is still running, to extend the engine running time
by 10 minutes. Remote start can be extended
one time.
After a remote start, the engine will automatically shut
off after 10 minutes unless a time extension has
been done or the vehicle’s key is inserted into the
ignition switch and turned to ON/RUN.The maximum number of remote starts or remote start
attempts between ignition cycles with the key is two.
If the remote start procedure is used again before
the rst 10 minute time frame has ended, the rst
10 minutes will immediately expire and the second
10 minute time frame will start.
After your vehicle’s engine has been started two times
using the remote start button, the vehicle’s ignition
switch must be turned to ON/RUN and then back to
LOCK/OFF using the key before the remote start
procedure can be used again.
After entering the vehicle during a remote start, insert
and turn the key to ON/RUN to drive the vehicle.
To manually shut off the engine after a remote start, do
any of the following:
Aim the RKE transmitter at the vehicle and press
the remote start button until the parking lamps
turn off.
Turn on the hazard warning ashers.
Insert the vehicle’s key into the ignition switch and
turn the switch to ON/RUN and then back to
LOCK/OFF.
2-8

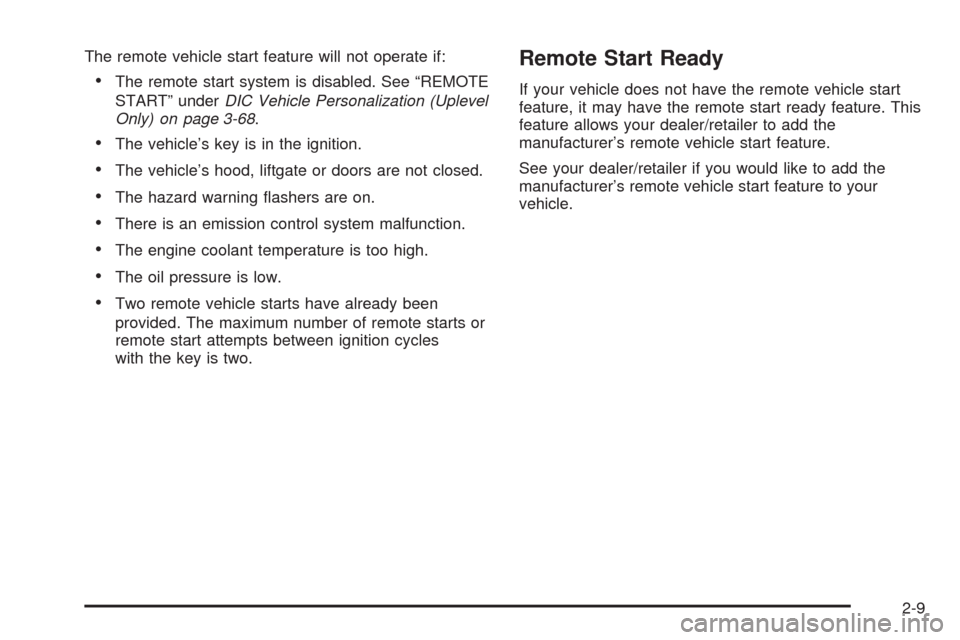

The remote vehicle start feature will not operate if:
The remote start system is disabled. See “REMOTE
START” underDIC Vehicle Personalization (Uplevel
Only) on page 3-68.
The vehicle’s key is in the ignition.
The vehicle’s hood, liftgate or doors are not closed.
The hazard warning ashers are on.
There is an emission control system malfunction.
The engine coolant temperature is too high.
The oil pressure is low.
Two remote vehicle starts have already been
provided. The maximum number of remote starts or
remote start attempts between ignition cycles
with the key is two.
Remote Start Ready
If your vehicle does not have the remote vehicle start
feature, it may have the remote start ready feature. This
feature allows your dealer/retailer to add the
manufacturer’s remote vehicle start feature.
See your dealer/retailer if you would like to add the
manufacturer’s remote vehicle start feature to your
vehicle.
2-9

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can easily
open the doors and fall out of a moving vehicle.
When a door is locked, the handle will not open
it. You increase the chance of being thrown out
of the vehicle in a crash if the doors are not
locked. So, wear safety belts properly and lock
the doors whenever you drive.
Young children who get into unlocked vehicles
may be unable to get out. A child can be
overcome by extreme heat and can suffer
permanent injuries or even death from heat
stroke. Always lock your vehicle whenever you
leave it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
Locking your doors can help prevent this from
happening.There are several ways to lock and unlock your vehicle.
From the outside, use your key or the remote keyless
entry transmitter.
To unlock the driver’s door from the outside with the
key, insert the key and turn it toward the front of
the vehicle. To lock the driver’s door from the outside
with your key, insert the key and turn it toward the rear
of the vehicle.
If your vehicle has power door locks, you may be able
to unlock all of the doors and the liftgate when you insert
the key, turn it toward the front of the vehicle, and
hold it there for one second. You may be able to lock all
of the doors when you insert the key and turn it toward
the rear of the vehicle.
2-10

From the inside, use the manual or power door locks.
To unlock either front door from the inside, pull back on
the manual lever. To lock either front door from the
inside, push the manual lever forward.
Power Door Locks
Your vehicle has power door locks.
The switches are located
on the driver’s and front
passenger’s door. Press
the top of the switch to
unlock the doors and
liftgate.
With the content theft-deterrent system, the power door
lock switch will not unlock the doors until the system
is disarmed. SeeContent Theft-Deterrent on page 2-27
for more details.
Press the bottom of the switch to lock the doors and
liftgate. With the content theft-deterrent system,
the power door lock switch may cause the system to
arm. SeeContent Theft-Deterrent on page 2-27for more
details.
2-11

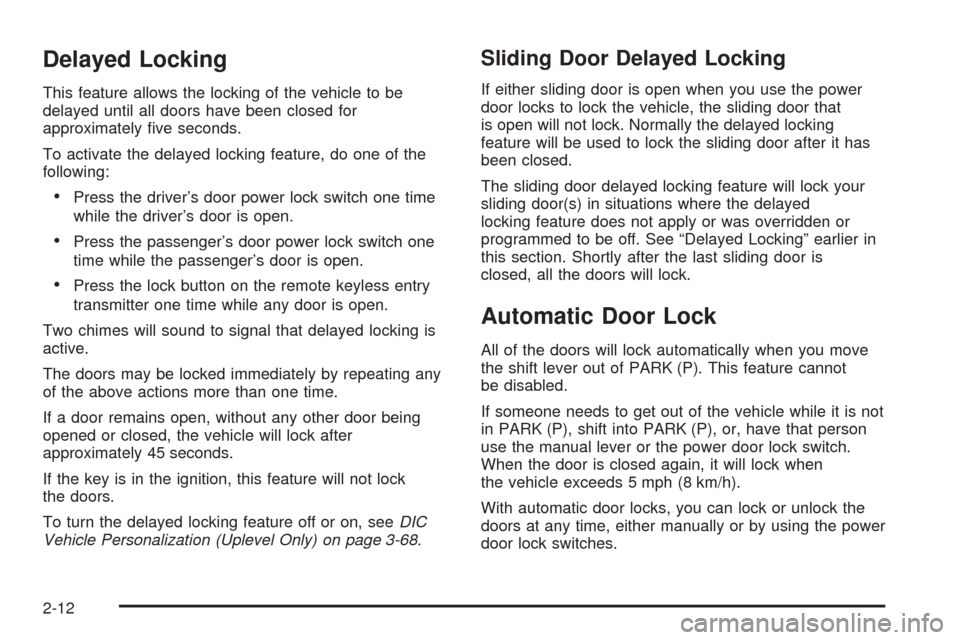

Delayed Locking
This feature allows the locking of the vehicle to be
delayed until all doors have been closed for
approximately ve seconds.
To activate the delayed locking feature, do one of the
following:
Press the driver’s door power lock switch one time
while the driver’s door is open.
Press the passenger’s door power lock switch one
time while the passenger’s door is open.
Press the lock button on the remote keyless entry
transmitter one time while any door is open.
Two chimes will sound to signal that delayed locking is
active.
The doors may be locked immediately by repeating any
of the above actions more than one time.
If a door remains open, without any other door being
opened or closed, the vehicle will lock after
approximately 45 seconds.
If the key is in the ignition, this feature will not lock
the doors.
To turn the delayed locking feature off or on, seeDIC
Vehicle Personalization (Uplevel Only) on page 3-68.
Sliding Door Delayed Locking
If either sliding door is open when you use the power
door locks to lock the vehicle, the sliding door that
is open will not lock. Normally the delayed locking
feature will be used to lock the sliding door after it has
been closed.
The sliding door delayed locking feature will lock your
sliding door(s) in situations where the delayed
locking feature does not apply or was overridden or
programmed to be off. See “Delayed Locking” earlier in
this section. Shortly after the last sliding door is
closed, all the doors will lock.
Automatic Door Lock
All of the doors will lock automatically when you move
the shift lever out of PARK (P). This feature cannot
be disabled.
If someone needs to get out of the vehicle while it is not
in PARK (P), shift into PARK (P), or, have that person
use the manual lever or the power door lock switch.
When the door is closed again, it will lock when
the vehicle exceeds 5 mph (8 km/h).
With automatic door locks, you can lock or unlock the
doors at any time, either manually or by using the power
door lock switches.
2-12
