CHEVROLET VENTURE 2003 1.G Owner's Manual

5. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat and raise the
seatback until it locks upright.
6. Push and pull on the seatback to check that it is
locked.
7. If you have the 40/60 seat, attach the mini-buckle
so that the safety belt is ready for use when a
passenger uses the seat.
The buckle reattaches by pushing the latch into the
buckle until the red center pops out again.
Repeat these steps for the other section of the split
bench seat.Bucket Seats
If your vehicle has the bucket seats, the seatbacks can
be folded down or reclined. The seats can also be
adjusted forward or rearward and removed.
One of the bucket seats may be equipped with a built-in
child restraint. See
Built-In Child Restraint on page 1-82.
1-15

Adjusting the Bucket Seats
There are two adjustment levers on each seat to adjust
the seat forward or rearward.
One is located below the center, in front of the
bucket seats.The other lever is
located on the rear of the
bucket seat.
Lift up either lever and slide the seat forward or
rearward.
Release the lever. Push and pull on the seat to make
sure it is locked into place.
1-16

Folding or Reclining the Seatbacks
{CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
The seatback on a bucket seat can be either folded
forward or reclined. The following explains how to use
either the nylon strap or the lever to fold or recline
the seatback.To fold the seatback forward, pull the nylon strap
located on the rear of the seat or lift up on the recliner
lever located on the front of the seatback. The
seatback will lock into place.Nylon Strap
Recliner Lever
1-17

To raise a seatback, pull the nylon strap or lift the
recliner lever while raising the seatback until it locks
upright. Push and pull on the seatback to check that it is
locked into place.
To recline the seatback, pull the nylon strap or lift the
recliner lever. Press back on the seatback until you
reach the desired position then let go of the strap
or lever.
To return the seatback to an upright position, pull on the
nylon strap or lift the recliner lever without putting any
pressure on the seatback. Push and pull on the
seatback to be sure it is locked into place.Removing the Bucket Seats
Make sure the seatback is in the upright position. The
head restraints should be fully down.
1. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat to fold the seatback
forward.
2. Slide the seat all the way back by lifting either one
of the adjuster levers and sliding the seat fully
rearward.
3. From behind the seat, pull the nylon strap, located
at the base of the seat, to release the rear latches
from the ¯oor pins.
1-18

You can also lift the lever on the side of the seat to
release the rear latches from the ¯oor pins.
Do not let go of the strap or lever until the seat is
folded all the way forward.4. To unlatch the front latches, with the seat folded
forward, squeeze the angled bar toward the
straight crossbar.
5. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle and then pulling it
out. This should be done in one motion.
1-19

Replacing the Bucket Seats
{CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide the
protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Don't put the seats in so they face rearward because
they won't latch that way. If you want more storage room
behind the seat, adjust the seat by sliding it forward.
The bucket seats have seat position labels, located on
the back of the seat, showing where the seat must
go. Follow that diagram. The seat must be placed in the
proper location for the legs to attach correctly.
1-20

Make sure the seats are in the full rear position before
beginning this procedure.

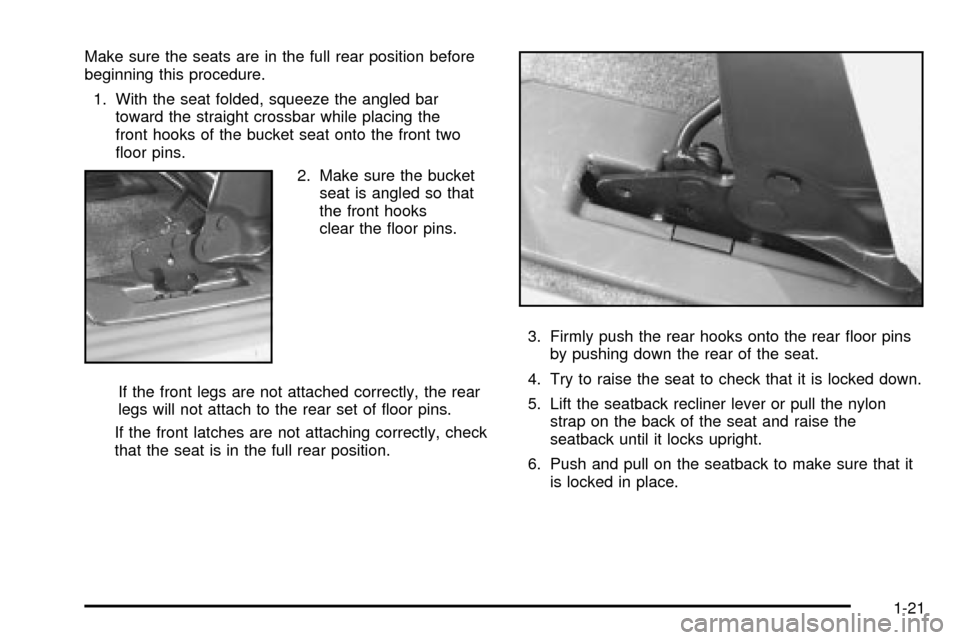

1. With the seat folded, squeeze the angled bar
toward the straight crossbar while placing the
front hooks of the bucket seat onto the front two
¯oor pins.
2. Make sure the bucket
seat is angled so that
the front hooks
clear the ¯oor pins.
If the front legs are not attached correctly, the rear
legs will not attach to the rear set of ¯oor pins.
If the front latches are not attaching correctly, check
that the seat is in the full rear position.3. Firmly push the rear hooks onto the rear ¯oor pins
by pushing down the rear of the seat.
4. Try to raise the seat to check that it is locked down.
5. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat and raise the
seatback until it locks upright.
6. Push and pull on the seatback to make sure that it
is locked in place.
1-21

Captain Chairs
If your vehicle has captain's chairs, the chairs and
seatbacks can be adjusted forward or rearward.
Adjusting the Captain's Chairs
(Second Row)
The second row captain's chairs can be adjusted
forward or rearward.
There are two adjustment levers on each seat. One is
located below the center, in front of the seat. The
other is located across the rear of the seat.
Lift up either lever to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to make
sure it is locked into place.
Folding or Reclining the Seatbacks
{CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
1-22

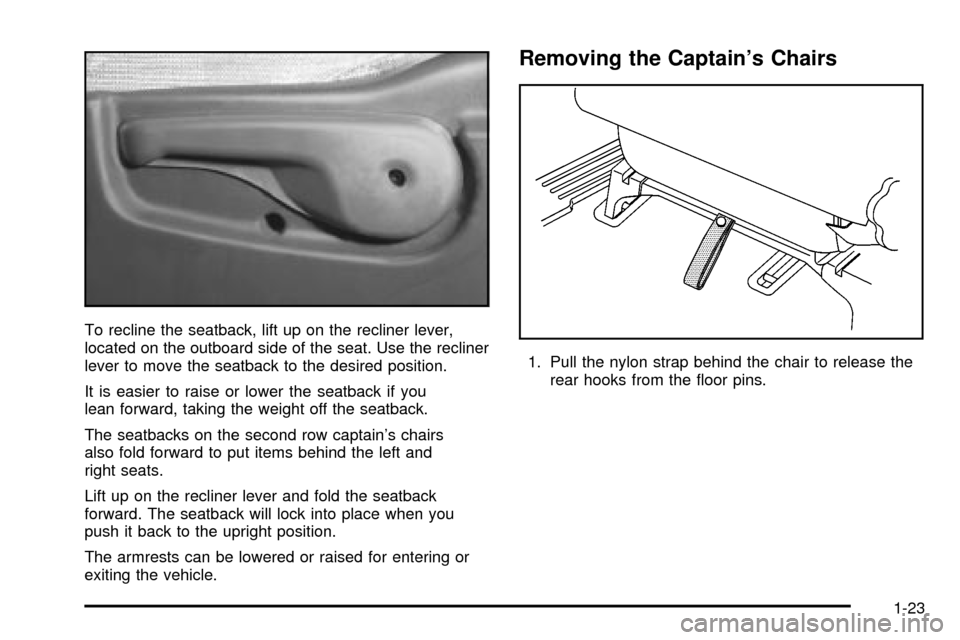

To recline the seatback, lift up on the recliner lever,
located on the outboard side of the seat. Use the recliner
lever to move the seatback to the desired position.
It is easier to raise or lower the seatback if you
lean forward, taking the weight off the seatback.
The seatbacks on the second row captain's chairs
also fold forward to put items behind the left and
right seats.
Lift up on the recliner lever and fold the seatback
forward. The seatback will lock into place when you
push it back to the upright position.
The armrests can be lowered or raised for entering or
exiting the vehicle.
Removing the Captain's Chairs
1. Pull the nylon strap behind the chair to release the
rear hooks from the ¯oor pins.
1-23

2. The seat can then be lifted off the front ¯oor pins
and removed from the vehicle.
Replacing the Captain's Chairs
{CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
1-24
