CHEVROLET VOLT 2011 Owner's Manual

Black plate (95,1)Chevrolet Volt Owner Manual - 2011

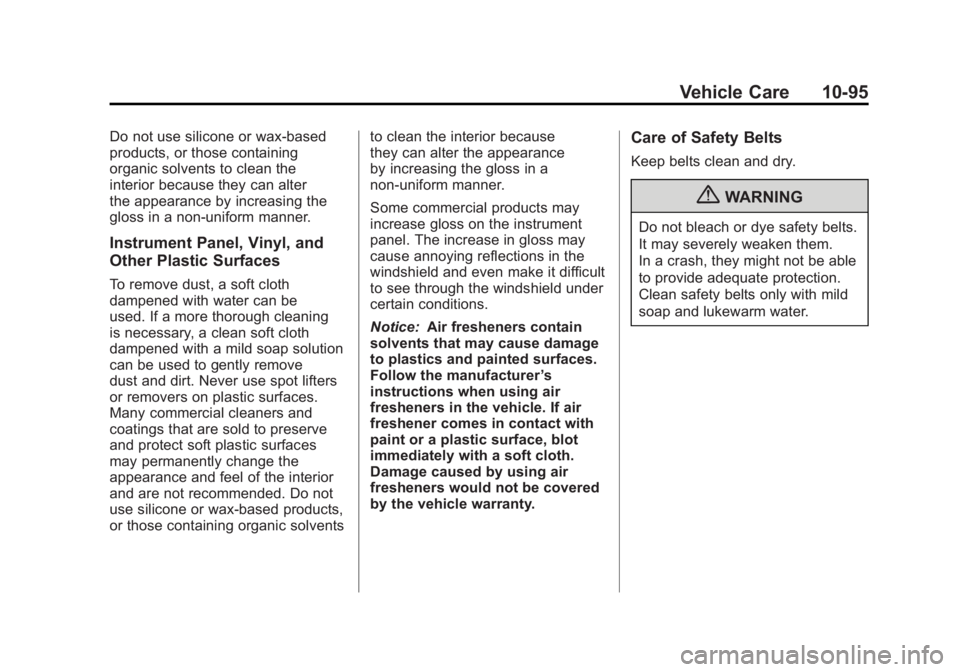

Vehicle Care 10-95
Do not use silicone or wax-based
products, or those containing
organic solvents to clean the
interior because they can alter
the appearance by increasing the
gloss in a non-uniform manner.
Instrument Panel, Vinyl, and
Other Plastic Surfaces
To remove dust, a soft cloth
dampened with water can be
used. If a more thorough cleaning
is necessary, a clean soft cloth
dampened with a mild soap solution
can be used to gently remove
dust and dirt. Never use spot lifters
or removers on plastic surfaces.
Many commercial cleaners and
coatings that are sold to preserve
and protect soft plastic surfaces
may permanently change the
appearance and feel of the interior
and are not recommended. Do not
use silicone or wax-based products,
or those containing organic solventsto clean the interior because
they can alter the appearance
by increasing the gloss in a
non-uniform manner.
Some commercial products may
increase gloss on the instrument
panel. The increase in gloss may
cause annoying reflections in the
windshield and even make it difficult
to see through the windshield under
certain conditions.
Notice:
Air fresheners contain
solvents that may cause damage
to plastics and painted surfaces.
Follow the manufacturer ’s
instructions when using air
fresheners in the vehicle. If air
freshener comes in contact with
paint or a plastic surface, blot
immediately with a soft cloth.
Damage caused by using air
fresheners would not be covered
by the vehicle warranty.
Care of Safety Belts
Keep belts clean and dry.
{WARNING
Do not bleach or dye safety belts.
It may severely weaken them.
In a crash, they might not be able
to provide adequate protection.
Clean safety belts only with mild
soap and lukewarm water.

Black plate (96,1)Chevrolet Volt Owner Manual - 2011

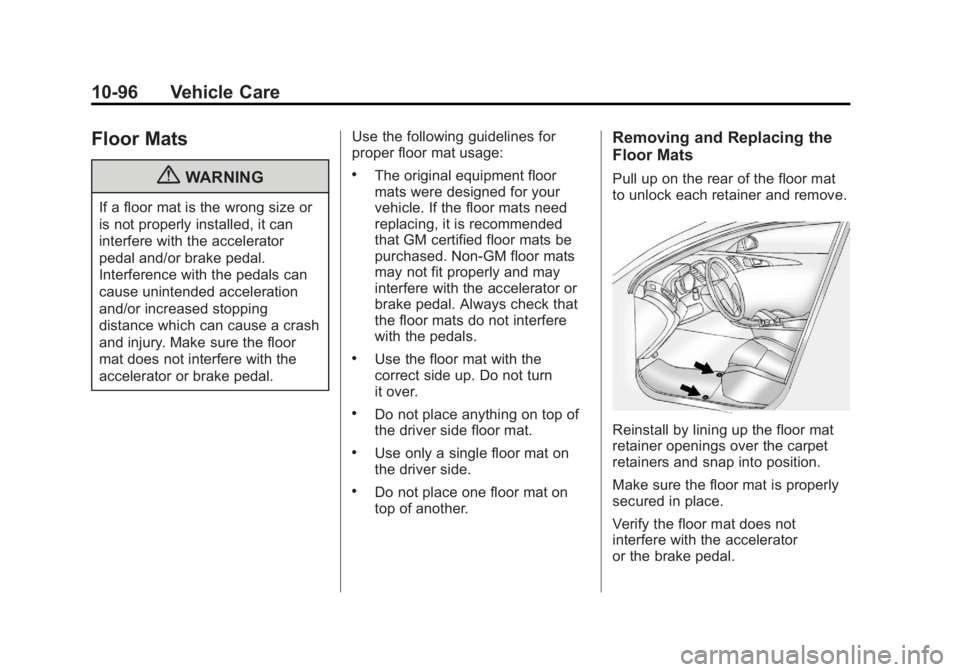

10-96 Vehicle Care
Floor Mats
{WARNING
If a floor mat is the wrong size or
is not properly installed, it can
interfere with the accelerator
pedal and/or brake pedal.
Interference with the pedals can
cause unintended acceleration
and/or increased stopping
distance which can cause a crash
and injury. Make sure the floor
mat does not interfere with the
accelerator or brake pedal.Use the following guidelines for
proper floor mat usage:
.The original equipment floor
mats were designed for your
vehicle. If the floor mats need
replacing, it is recommended
that GM certified floor mats be
purchased. Non-GM floor mats
may not fit properly and may
interfere with the accelerator or
brake pedal. Always check that
the floor mats do not interfere
with the pedals.
.Use the floor mat with the
correct side up. Do not turn
it over.
.Do not place anything on top of
the driver side floor mat.
.Use only a single floor mat on
the driver side.
.Do not place one floor mat on
top of another.
Removing and Replacing the
Floor Mats
Pull up on the rear of the floor mat
to unlock each retainer and remove.
Reinstall by lining up the floor mat
retainer openings over the carpet
retainers and snap into position.
Make sure the floor mat is properly
secured in place.
Verify the floor mat does not
interfere with the accelerator
or the brake pedal.

Black plate (1,1)Chevrolet Volt Owner Manual - 2011

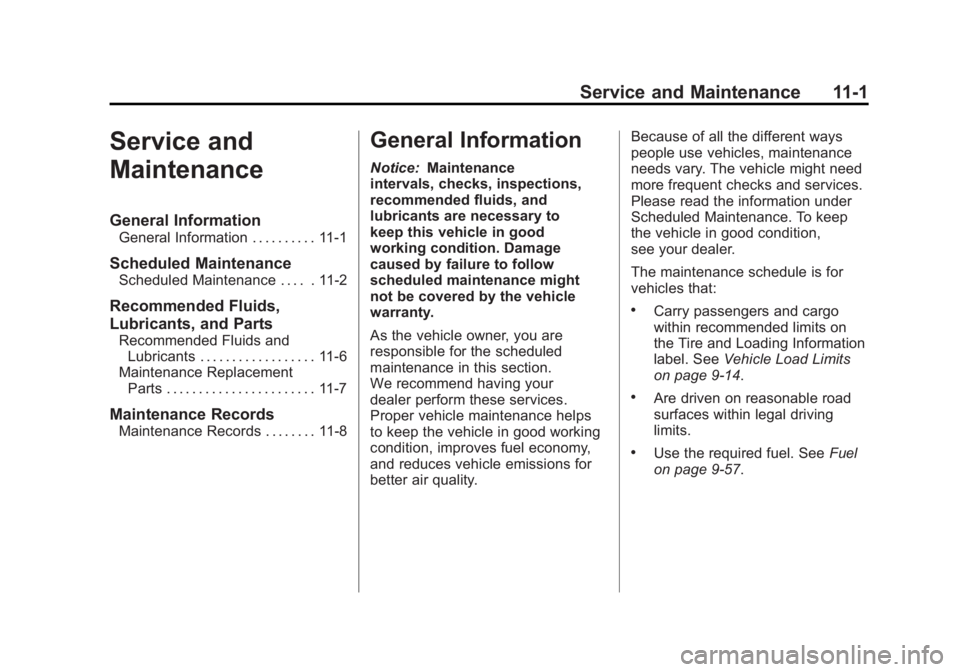

Service and Maintenance 11-1
Service and
Maintenance
General Information
General Information . . . . . . . . . . 11-1
Scheduled Maintenance
Scheduled Maintenance . . . . . 11-2
Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . 11-6
Maintenance Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . 11-7

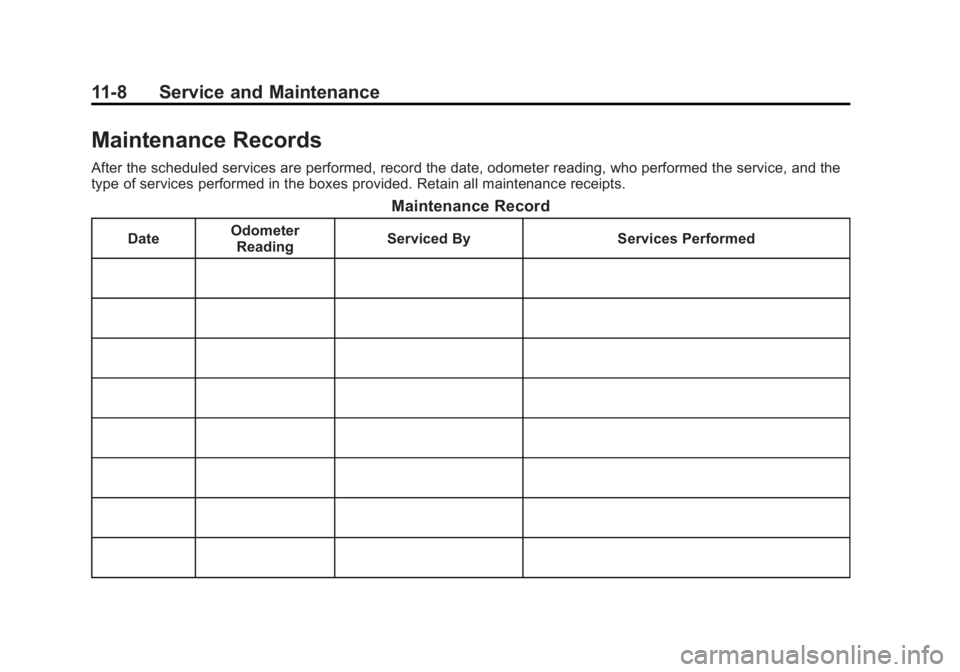

Maintenance Records
Maintenance Records . . . . . . . . 11-8
General Information
Notice: Maintenance
intervals, checks, inspections,
recommended fluids, and
lubricants are necessary to
keep this vehicle in good
working condition. Damage
caused by failure to follow
scheduled maintenance might
not be covered by the vehicle
warranty.
As the vehicle owner, you are
responsible for the scheduled
maintenance in this section.
We recommend having your
dealer perform these services.
Proper vehicle maintenance helps
to keep the vehicle in good working
condition, improves fuel economy,
and reduces vehicle emissions for
better air quality. Because of all the different ways
people use vehicles, maintenance
needs vary. The vehicle might need
more frequent checks and services.
Please read the information under
Scheduled Maintenance. To keep
the vehicle in good condition,
see your dealer.
The maintenance schedule is for
vehicles that:
.Carry passengers and cargo
within recommended limits on
the Tire and Loading Information
label. See
Vehicle Load Limits
on page 9‑14.
.Are driven on reasonable road
surfaces within legal driving
limits.
.Use the required fuel. See Fuel
on page 9‑57.

Black plate (2,1)Chevrolet Volt Owner Manual - 2011

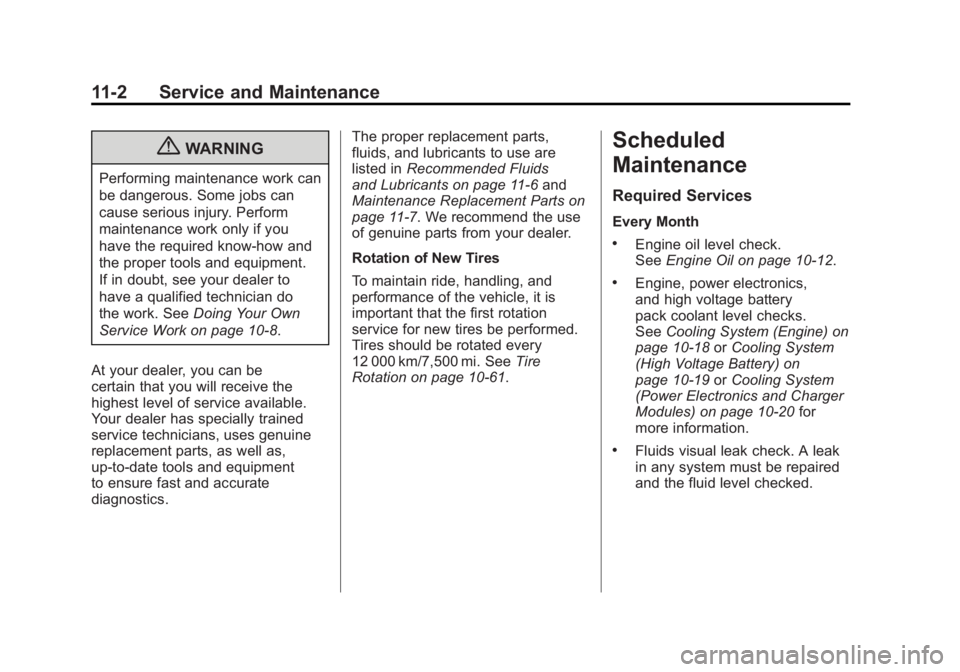

11-2 Service and Maintenance
{WARNING
Performing maintenance work can
be dangerous. Some jobs can
cause serious injury. Perform
maintenance work only if you
have the required know-how and
the proper tools and equipment.
If in doubt, see your dealer to
have a qualified technician do
the work. SeeDoing Your Own
Service Work on page 10‑8.
At your dealer, you can be
certain that you will receive the
highest level of service available.
Your dealer has specially trained
service technicians, uses genuine
replacement parts, as well as,
up‐to‐date tools and equipment
to ensure fast and accurate
diagnostics. The proper replacement parts,
fluids, and lubricants to use are
listed in
Recommended Fluids
and Lubricants on page 11‑6 and
Maintenance Replacement Parts on
page 11‑7. We recommend the use
of genuine parts from your dealer.
Rotation of New Tires
To maintain ride, handling, and
performance of the vehicle, it is
important that the first rotation
service for new tires be performed.
Tires should be rotated every
12 000 km/7,500 mi. See Tire
Rotation on page 10‑61.
Scheduled
Maintenance
Required Services
Every Month
.Engine oil level check.
See Engine Oil on page 10‑12.
.Engine, power electronics,
and high voltage battery
pack coolant level checks.
SeeCooling System (Engine) on
page 10‑18 orCooling System
(High Voltage Battery) on
page 10‑19 orCooling System
(Power Electronics and Charger
Modules) on page 10‑20 for
more information.
.Fluids visual leak check. A leak
in any system must be repaired
and the fluid level checked.

Black plate (3,1)Chevrolet Volt Owner Manual - 2011
Service and Maintenance 11-3
.Windshield washer fluid level
check. SeeWasher Fluid on
page 10‑24.
.Tire inflation check. See Tire
Pressure on page 10‑54.
.Tire wear inspection. See Tire
Inspection on page 10‑61.
Every 12 000 km/7,500 mi
.Rotate tires. See Tire Rotation
on page 10‑61.
Every 24 000 km/15,000 mi
.Check the engine oil filter for
corrosion if driving in a corrosive
environment, such as areas of
high humidity, along an ocean
coast, and/or areas that apply
road salt during winter.
Have the engine oil and filter
changed if the filter shows signs
of corrosion. After each oil and
filter change, the oil life system
must be reset. See Engine Oil
Life System on page 10‑15.
.Cooling systems inspection.
Visually inspect the hoses,
pipes, fittings, and clamps.
Replace, if needed.
.Windshield wiper blade
inspection for wear, cracking,
or contamination and windshield
and wiper blade cleaning,
if contaminated. See Exterior
Care on page 10‑89. Worn
or damaged wiper blade
replacement. See Wiper Blade
Replacement on page 10‑31.
.Engine air cleaner filter
inspection. See Engine Air
Cleaner/Filter on page 10‑16.
.Brake system inspection.
See your dealer.
.Steering and suspension
inspection. Visual inspection
for damaged, loose, or missing
parts or signs of wear.
.Body hinges and latches and
key lock cylinders lubrication.
See Recommended Fluids
and Lubricants on page 11‑6.
More frequent lubrication may
be required when the vehicle
is exposed to a corrosive
environment, such as areas of
high humidity, along an ocean
coast, and/or areas that apply
road salt during winter. Applying
silicone grease on weatherstrips
with a clean cloth makes them
last longer, seal better, and not
stick or squeak.
.Restraint system component
check. See Safety System
Check on page 3‑23.
.Fuel system inspection for
damage or leaks.

Black plate (4,1)Chevrolet Volt Owner Manual - 2011
11-4 Service and Maintenance
.Exhaust system and nearby heat
shields inspection for loose or
damaged components.
.SeePropulsion System Start
Check on page 10‑29.
.See Electrical Drive Unit Shift
Lock Control Function Check on
page 10‑30.
.See Park Brake and P (Park)
Mechanism Check on
page 10‑30.
.Cooling systems check.
See Cooling System (Engine) on
page 10‑18 orCooling System
(High Voltage Battery) on
page 10‑19 orCooling System
(Power Electronics and Charger
Modules) on page 10‑20.
.Accelerator pedal check for
damage, high effort, or binding.
Replace if needed.
.Check the sealant expiration
date printed on the instruction
label of the tire sealant and
compressor kit. See Tire
Sealant and Compressor
Kit on page 10‑71.
.Hood/Decklid/Liftgate Support
Gas Strut Service: Visually
inspect gas strut, if equipped, for
signs of wear, cracks, or other
damage. Check the hold open
ability of the gas strut. Contact
your dealer if service is required. Every 24 Months or When the
Change Engine Oil Soon Message
Displays
.Every 24 months or when the
CHANGE ENGINE OIL SOON
message displays, change the
engine oil and filter as soon
as possible, within the next
1 000 km/600 mi. The engine oil
and filter must be changed at
least once every 24 months.
After each oil and filter change,
the oil life system must be reset.
See
Engine Oil Life System on
page 10‑15. More frequent
changes may be required when
the vehicle is exposed to a
corrosive environment, such as
areas of high humidity, along an
ocean coast, and/or areas that
apply road salt during winter.

Black plate (5,1)Chevrolet Volt Owner Manual - 2011
Service and Maintenance 11-5
Your dealer has trained service
technicians who will perform
this work and reset the system.
If the engine oil life system is
reset accidentally, service the
vehicle within 5 000 km/3,000 mi
since the last service. Reset the
oil life system whenever the oil is
changed.
Every 80 000 km/50,000 mi
.Engine air cleaner filter
replacement.
.Evaporative control system
inspection. Check all fuel and
vapor lines and hoses for proper
hook‐up, routing, and condition.
Check that the purge valve,
if the vehicle has one, works
properly. Replace as needed. An Emission Control Service.
The U.S. Environmental
Protection Agency or the
California Air Resources Board
has determined that the failure
to perform this maintenance
item will not nullify the emission
warranty or limit recall liability
prior to the completion of
the vehicle's useful life.
We, however, urge that all
recommended maintenance
services be performed at the
indicated intervals and the
maintenance be recorded.
Every 160 000 km/100,000 mi
.Spark plug replacement.
An Emission Control Service. Every 240 000 km/150,000 mi or
every 5 years, whichever occurs
first
.Engine cooling system drain,
flush, and refill (or every five
years, whichever occurs first).
See
Cooling System (Engine) on
page 10‑18 orCooling System
(High Voltage Battery) on
page 10‑19 orCooling System
(Power Electronics and Charger
Modules) on page 10‑20.
An Emission Control Service.
Every 240 000 km/150,000 mi or
every 10 years, whichever occurs
first
.Engine drive belt inspection
for fraying, excessive cracks,
or obvious damage. Replace,
if needed.
Every 10 Years
.Air conditioning system flush
and refill and desiccant
replacement.

Black plate (6,1)Chevrolet Volt Owner Manual - 2011
11-6 Service and Maintenance
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Engine Oil The engine requires engine oil approved to the dexos specification.
Oils meeting this specification can be identified with the dexos certification
mark. Look for and use only an engine oil that displays the dexos
certification mark of the proper viscosity grade. See
Engine Oil on
page 10‑12.
Engine Cooling System 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
See
Engine Coolant on page 10‑21.
High Voltage Battery Cooling System Always use the pre‐mixed 50/50 mixture of deionized water and
DEX-COOL Coolant available at your dealer.
Power Electronics Cooling System Always use the pre‐mixed 50/50 mixture of deionized water and
DEX-COOL Coolant available at your dealer.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 88863461,
in Canada 88863462).
Windshield Washer Optikleen
®Washer Solvent.
Parking Brake Cable Guides Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or
lubricant meeting requirements of NLGI #2, Category LB or GC‐LB.
Electric Drive Unit DEXRON
®-VI Automatic Transmission Fluid

Black plate (7,1)Chevrolet Volt Owner Manual - 2011
Service and Maintenance 11-7
UsageFluid/Lubricant
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. 12346241,
in Canada 10953474).
Hood and Hatch Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241,
in Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or
Dielectric Silicone Grease (GM Part No. 12345579, in Canada 992887).
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 20871244 A3148C
Engine Oil Filter 55352643 —
Spark Plugs 55564962 —
Wiper Blades Driver –65 cm (25.6 in) 22742323 —
Passenger –65 cm (25.6 in) 22742324 —

Black plate (8,1)Chevrolet Volt Owner Manual - 2011
11-8 Service and Maintenance
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By Services Performed
