NOTE:
•The temperature setting can be adjusted at anytime
without affecting automatic operation.
• Pressing the Air Conditioning Control button while in
AUTO mode will cause the LED in the control button
to flash three times and then turn off. This indicates
that the system is in AUTO mode and requesting the
air conditioning is not necessary.
• If your air conditioning performance seems lower than
expected, check the front of the A/C condenser located
in front of the radiator for an accumulation of dirt or
insects. Clean with a gentle water spray from the front
of the radiator and through the condenser.Manual Operation
This system offers a full complement of manual override
features, which consist of Blower Preferred Automatic,
Mode Preferred Automatic, or Blower and Mode Pre-
ferred Automatic. This means the operator can override
the blower, the mode, or both. There is a manual blower
range for times when the AUTO setting is not desired.
The blower can be set to any fixed blower speed by
rotating the Blower Control knob (on the left).
NOTE: Please read the Automatic Temperature Control
Operation Chart that follows for details.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 279

280 UNDERSTANDING YOUR INSTRUMENT PANEL

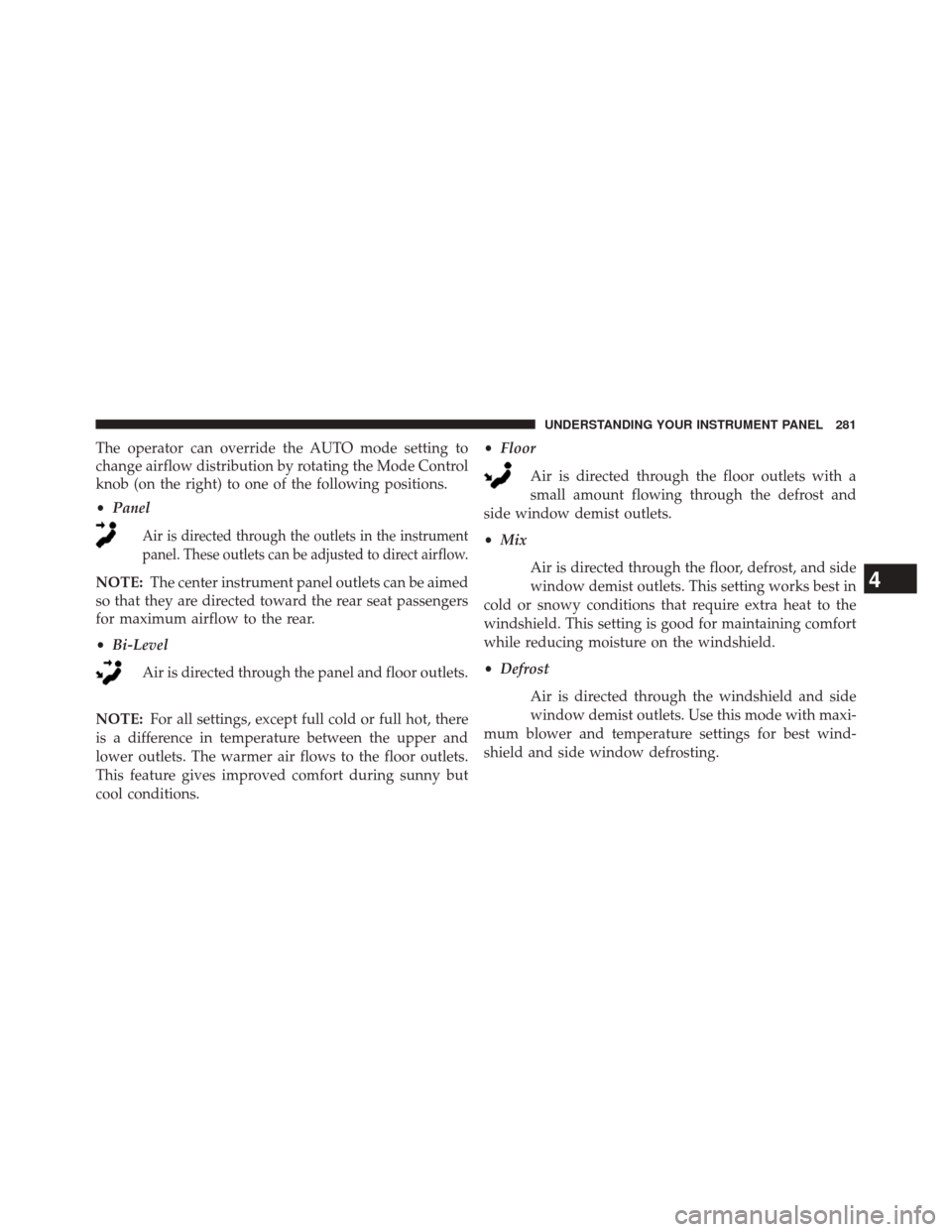

The operator can override the AUTO mode setting to
change airflow distribution by rotating the Mode Control
knob (on the right) to one of the following positions.
•Panel
Air is directed through the outlets in the instrument
panel. These outlets can be adjusted to direct airflow.
NOTE: The center instrument panel outlets can be aimed
so that they are directed toward the rear seat passengers
for maximum airflow to the rear.
• Bi-Level
Air is directed through the panel and floor outlets.
NOTE: For all settings, except full cold or full hot, there
is a difference in temperature between the upper and
lower outlets. The warmer air flows to the floor outlets.
This feature gives improved comfort during sunny but
cool conditions. •
Floor
Air is directed through the floor outlets with a
small amount flowing through the defrost and
side window demist outlets.
• Mix
Air is directed through the floor, defrost, and side
window demist outlets. This setting works best in
cold or snowy conditions that require extra heat to the
windshield. This setting is good for maintaining comfort
while reducing moisture on the windshield.
• Defrost
Air is directed through the windshield and side
window demist outlets. Use this mode with maxi-
mum blower and temperature settings for best wind-
shield and side window defrosting.4
UNDERSTANDING YOUR INSTRUMENT PANEL 281

•Air Conditioner Control
Press this button to turn on the air
conditioning during manual operation
only. When the air conditioning is
turned on, cool dehumidified air will
flow through the outlets selected with
the Mode control dial. Press this but-
ton a second time to turn OFF the air
conditioning. An LED in the button illuminates when
manual compressor operation is selected.
• Recirculation Control
The system will automatically control recircu-
lation. However, pressing the Recirculation
Control button will temporarily put the system
in recirculation mode. This can be used when
outside conditions such as smoke, odors, dust, or high
humidity are present. Activating recirculation will cause
the LED in the control button to illuminate. NOTE:
•
When the ignition switch is turned to the LOCK
position, the recirculation feature will be cancelled.
• In cold weather, use of the Recirculation mode may
lead to excessive window fogging. The Recirculation
mode is not allowed in defrost, in order to improve
window clearing. Recirculation will be disabled auto-
matically if Defrost is selected.
•
Extended use of recirculation may cause the windows to
fog. If the interior of the windows begins to fog, press the
Recirculation button to return to outside air. Some temp/
humidity conditions will cause captured interior air to
condense on windows and hamper visibility. For this
reason, the system will not allow Recirculation to be
selected while in defrost. Attempting to use the recircu-
lation while in Defrost will cause the LED in the control
button to blink and then turn off.
282 UNDERSTANDING YOUR INSTRUMENT PANEL

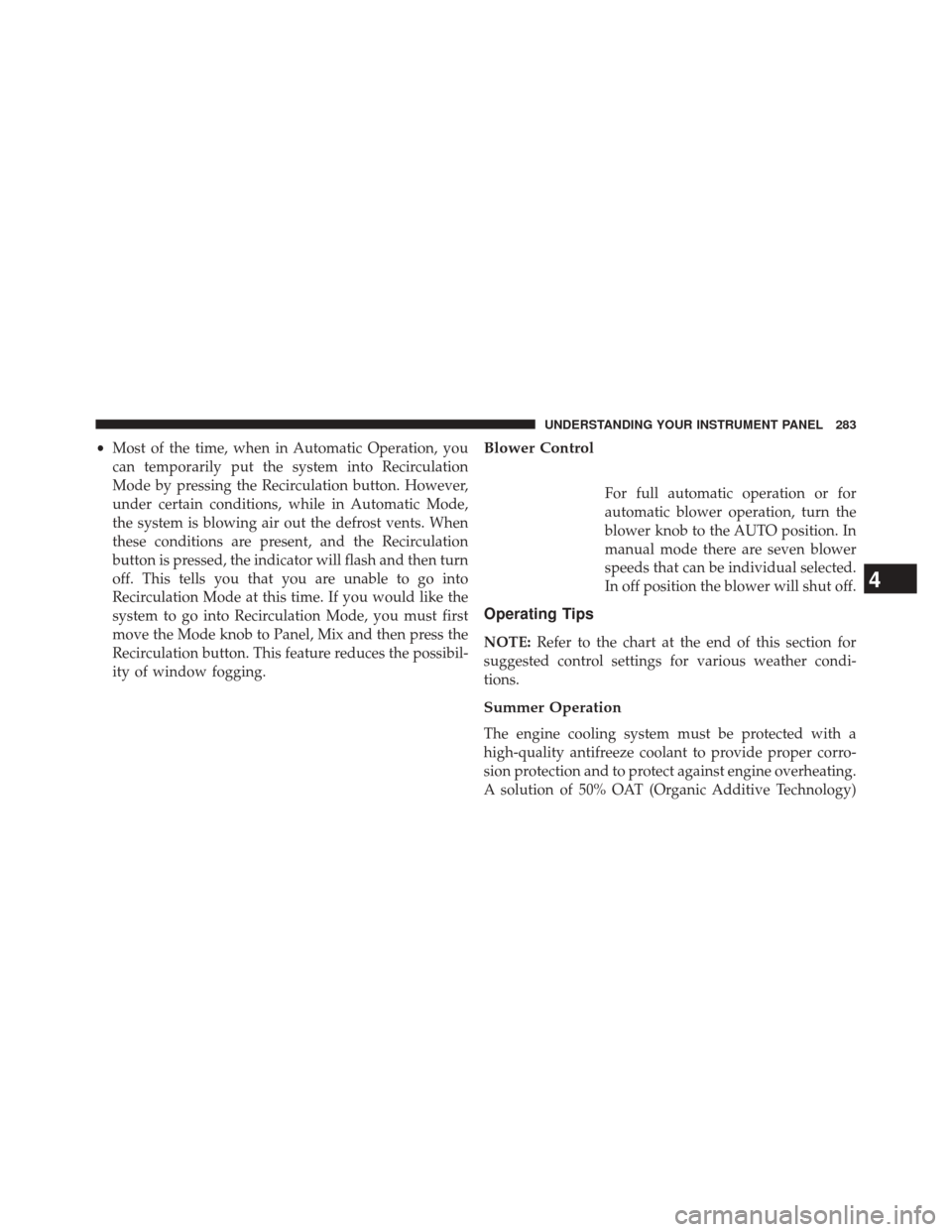

•Most of the time, when in Automatic Operation, you
can temporarily put the system into Recirculation
Mode by pressing the Recirculation button. However,
under certain conditions, while in Automatic Mode,
the system is blowing air out the defrost vents. When
these conditions are present, and the Recirculation
button is pressed, the indicator will flash and then turn
off. This tells you that you are unable to go into
Recirculation Mode at this time. If you would like the
system to go into Recirculation Mode, you must first
move the Mode knob to Panel, Mix and then press the
Recirculation button. This feature reduces the possibil-
ity of window fogging.Blower Control
For full automatic operation or for
automatic blower operation, turn the
blower knob to the AUTO position. In
manual mode there are seven blower
speeds that can be individual selected.
In off position the blower will shut off.
Operating Tips
NOTE: Refer to the chart at the end of this section for
suggested control settings for various weather condi-
tions.
Summer Operation
The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corro-
sion protection and to protect against engine overheating.
A solution of 50% OAT (Organic Additive Technology)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 283

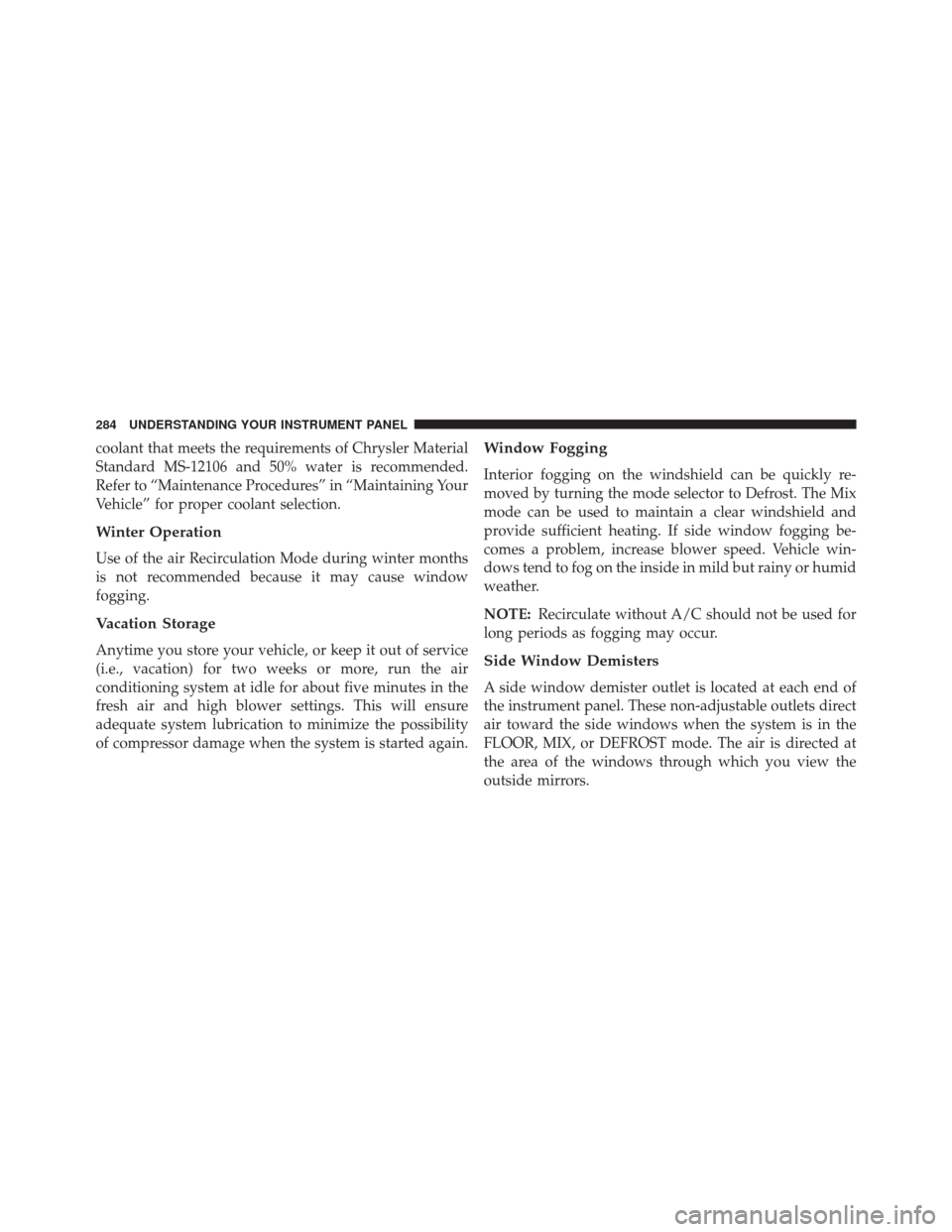

coolant that meets the requirements of Chrysler Material
Standard MS-12106 and 50% water is recommended.
Refer to “Maintenance Procedures” in “Maintaining Your
Vehicle” for proper coolant selection.
Winter Operation
Use of the air Recirculation Mode during winter months
is not recommended because it may cause window
fogging.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower settings. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
Window Fogging
Interior fogging on the windshield can be quickly re-
moved by turning the mode selector to Defrost. The Mix
mode can be used to maintain a clear windshield and
provide sufficient heating. If side window fogging be-
comes a problem, increase blower speed. Vehicle win-
dows tend to fog on the inside in mild but rainy or humid
weather.
NOTE:Recirculate without A/C should not be used for
long periods as fogging may occur.
Side Window Demisters
A side window demister outlet is located at each end of
the instrument panel. These non-adjustable outlets direct
air toward the side windows when the system is in the
FLOOR, MIX, or DEFROST mode. The air is directed at
the area of the windows through which you view the
outside mirrors.
284 UNDERSTANDING YOUR INSTRUMENT PANEL

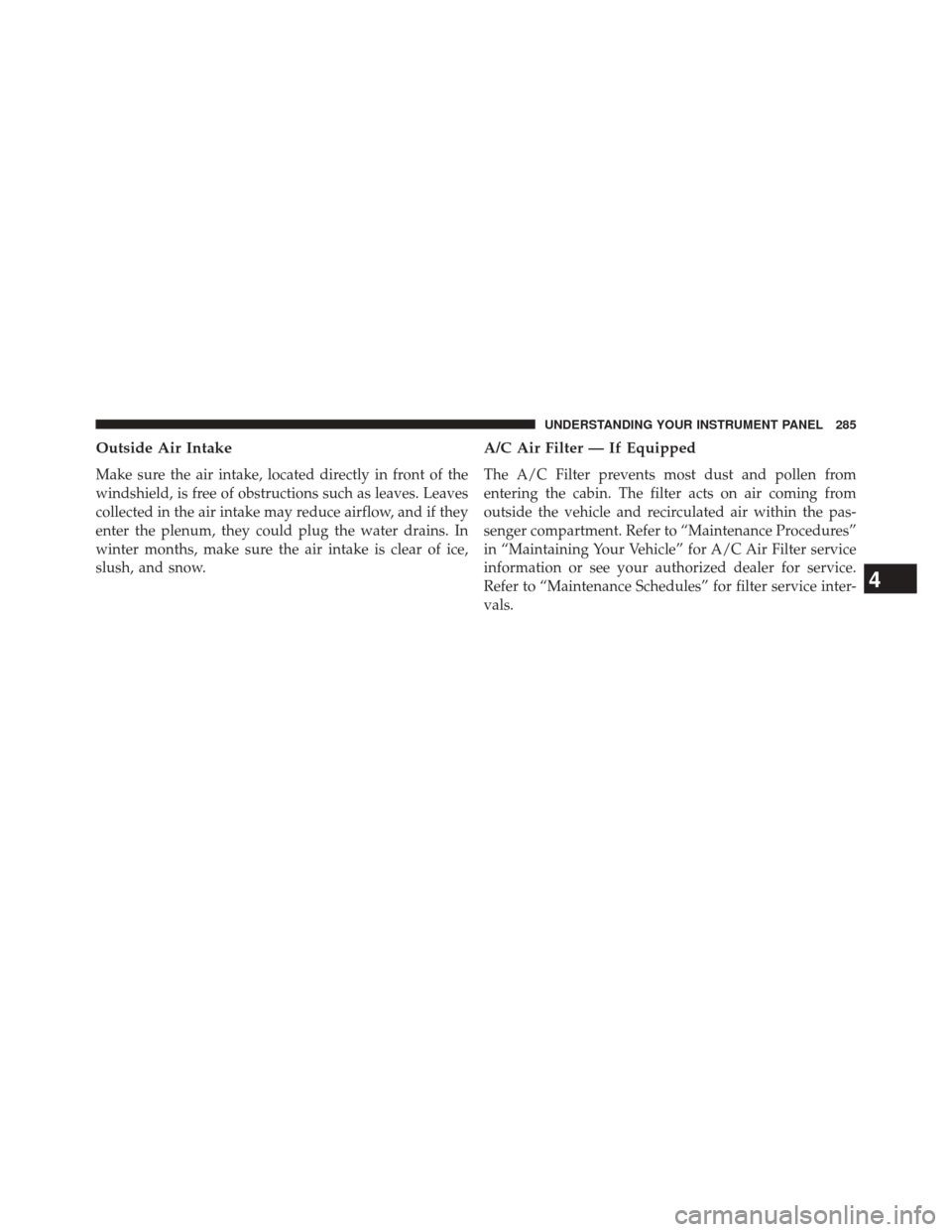

Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter — If Equipped
The A/C Filter prevents most dust and pollen from
entering the cabin. The filter acts on air coming from
outside the vehicle and recirculated air within the pas-
senger compartment. Refer to “Maintenance Procedures”
in “Maintaining Your Vehicle” for A/C Air Filter service
information or see your authorized dealer for service.
Refer to “Maintenance Schedules” for filter service inter-
vals.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 285

Control Setting Suggestions For Various Weather Conditions
286 UNDERSTANDING YOUR INSTRUMENT PANEL

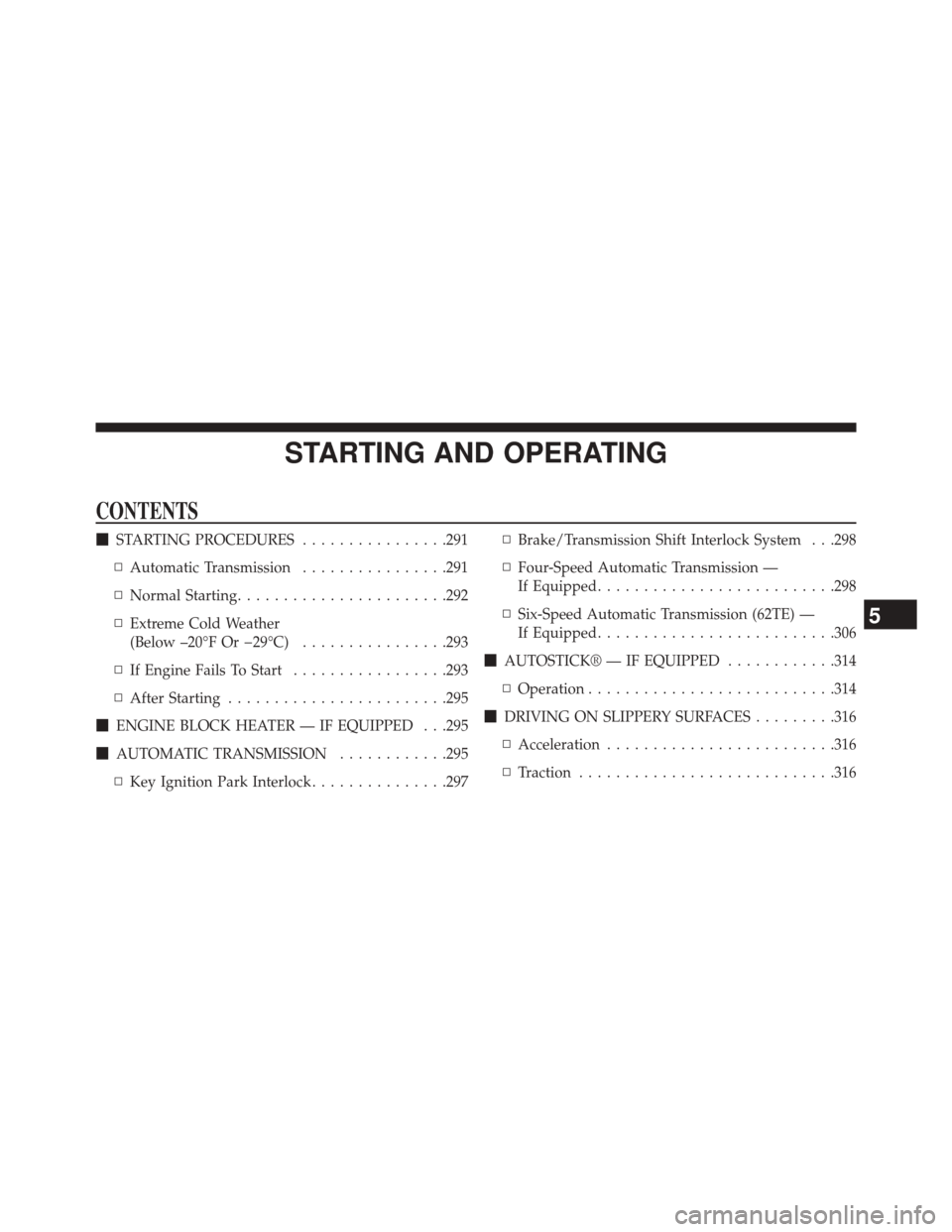

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................291
▫ Automatic Transmission ................291
▫ Normal Starting ...................... .292
▫ Extreme Cold Weather
(Below –20°F Or 29°C) ................293
▫ If Engine Fails To Start .................293
▫ After Starting ....................... .295
 ENGINE BLOCK HEATER — IF EQUIPPED . . .295
 AUTOMATIC TRANSMISSION ............295
▫ Key Ignition Park Interlock ...............297 ▫
Brake/Transmission Shift Interlock System . . .298
▫ Four-Speed Automatic Transmission —
If Equipped ......................... .298
▫ Six-Speed Automatic Transmission (62TE) —
If Equipped ......................... .306
 AUTOSTICK® — IF EQUIPPED ............314
▫ Operation .......................... .314
 DRIVING ON SLIPPERY SURFACES .........316
▫ Acceleration ........................ .316
▫ Traction ........................... .316
5

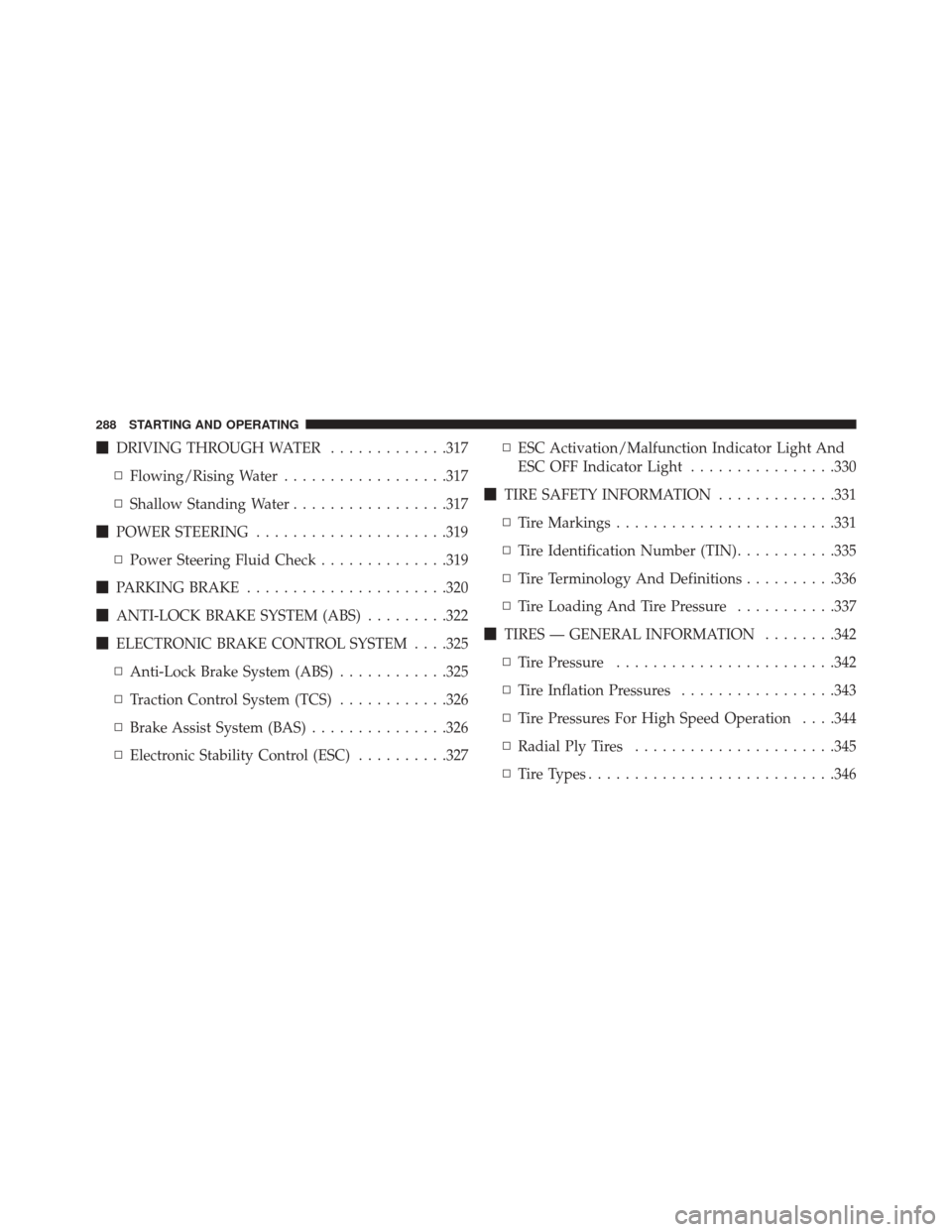

DRIVING THROUGH WATER .............317
▫ Flowing/Rising Water ..................317
▫ Shallow Standing Water .................317
 POWER STEERING .....................319
▫ Power Steering Fluid Check ..............319
 PARKING BRAKE ..................... .320
 ANTI-LOCK BRAKE SYSTEM (ABS) .........322
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .325
▫ Anti-Lock Brake System (ABS) ............325
▫ Traction Control System (TCS) ............326
▫ Brake Assist System (BAS) ...............326
▫ Electronic Stability Control (ESC) ..........327▫
ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light ................330
 TIRE SAFETY INFORMATION .............331
▫ Tire Markings ....................... .331
▫ Tire Identification Number (TIN) ...........335
▫ Tire Terminology And Definitions ..........336
▫ Tire Loading And Tire Pressure ...........337
 TIRES — GENERAL INFORMATION ........342
▫ Tire Pressure ....................... .342
▫ Tire Inflation Pressures .................343
▫ Tire Pressures For High Speed Operation . . . .344
▫ Radial Ply Tires ..................... .345
▫ Tire Types .......................... .346
