Page 641 of 702

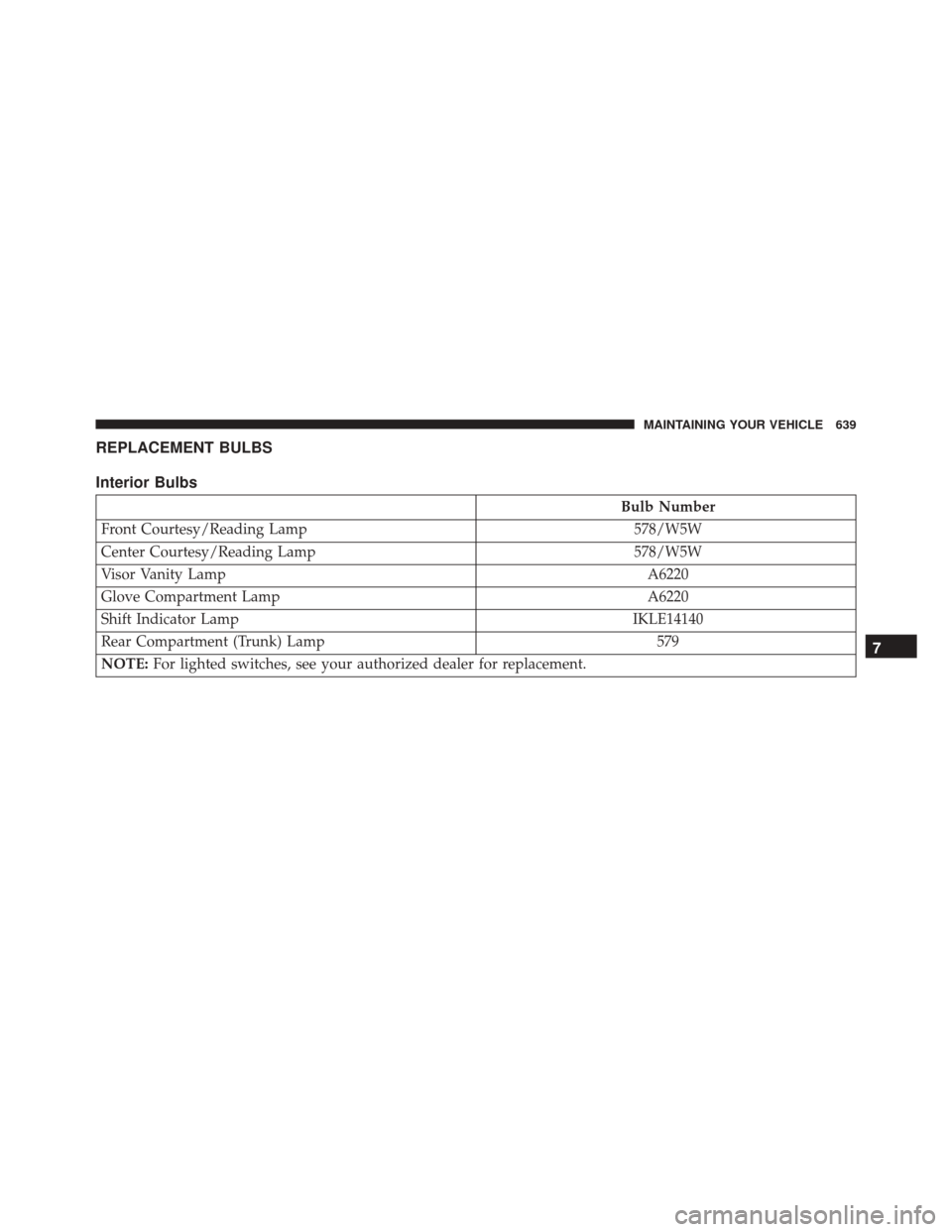

CHRYSLER 200 2016 2.G Owners Manual REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Courtesy/Reading Lamp 578/W5W
Center Courtesy/Reading Lamp 578/W5W
Visor Vanity Lamp A6220
Glove Compartment Lamp A6220
Shift Indicator Lamp IKLE1414

Page 642 of 702

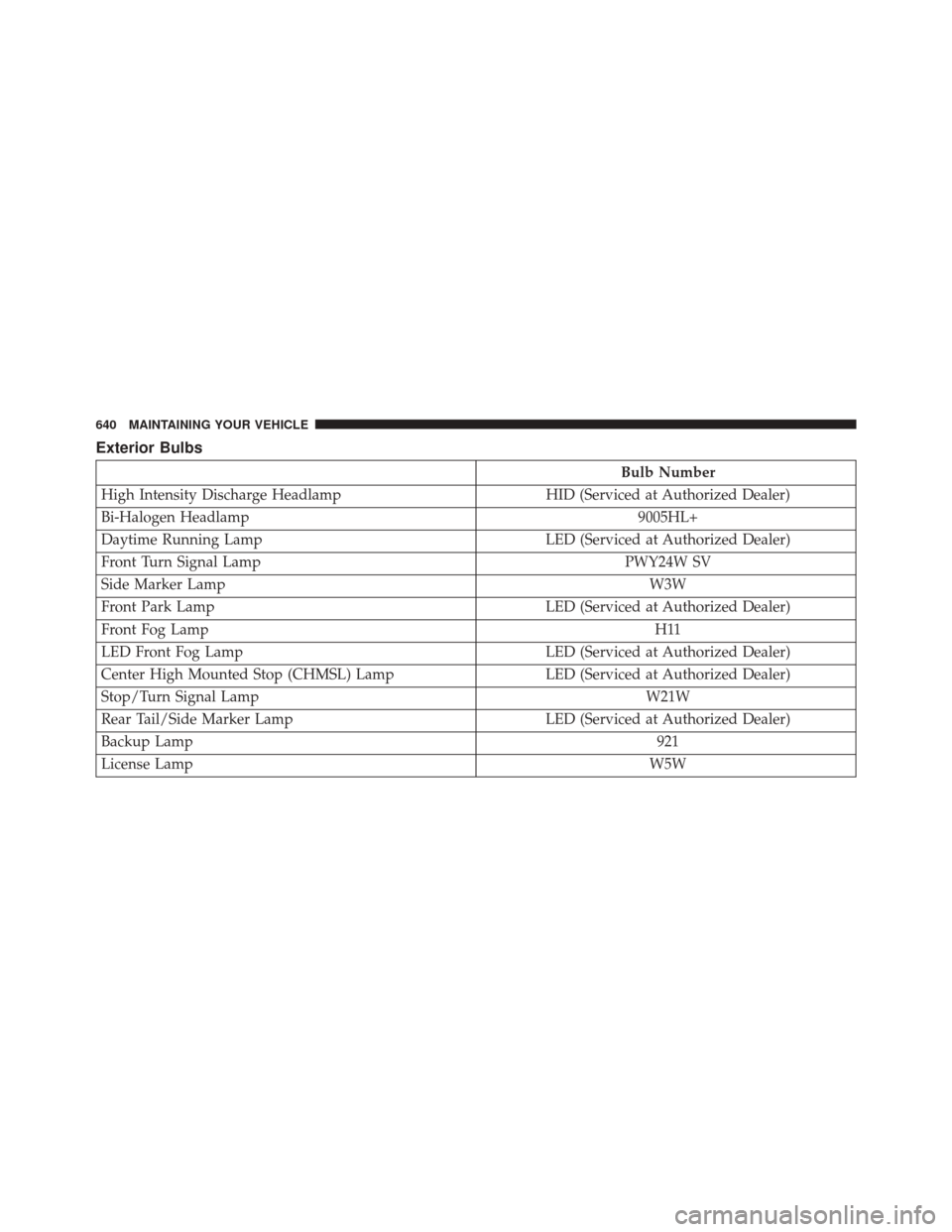

CHRYSLER 200 2016 2.G Owners Manual Exterior Bulbs
Bulb Number
High Intensity Discharge Headlamp HID (Serviced at Authorized Dealer)
Bi-Halogen Headlamp 9005HL+
Daytime Running Lamp LED (Serviced at Authorized Dealer)
Front Turn Signal

Page 643 of 702

CHRYSLER 200 2016 2.G Owners Manual BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Tur

Page 644 of 702

CHRYSLER 200 2016 2.G Owners Manual 2. Reach behind the headlamp housing to access theheadlamp bulb cap.
3. Firmly grasp the headlamp bulb cap and rotate it counterclockwise to unlock it. 4. Firmly grasp the headlamp bulb socket assembl

Page 645 of 702

CHRYSLER 200 2016 2.G Owners Manual 5. Disconnect the bulb from the electrical connector andthen connect the replacement bulb.CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If th

Page 646 of 702

CHRYSLER 200 2016 2.G Owners Manual 6. Install the bulb and connector assembly into theheadlamp housing and rotate clockwise to lock it in
place.
7. Install the headlamp bulb cap in the headlamp hous- ing and rotate clockwise to lock it

Page 647 of 702

CHRYSLER 200 2016 2.G Owners Manual 5. Pull the bulb out of the socket and insert the replace-ment bulb.
6. Install the front turn signal lamp socket assembly into the housing, and rotate the front turn signal lamp
socket clockwise to l

Page 648 of 702

CHRYSLER 200 2016 2.G Owners Manual Front Side Marker Lamps
1. Remove the three fasteners from the inner wheel linerand carefully peel back liner for access.
2. Firmly grasp the front side marker lamp socket and rotate 1/4 turn counterc

Page 649 of 702

CHRYSLER 200 2016 2.G Owners Manual Front Fog Lamp
1. Remove the three fasteners from the lower closeout,and peel down the lower closeout.
2. Reach behind the fog lamp housing to access the bulb. 3. Rotate the front fog lamp socket coun

Page 650 of 702

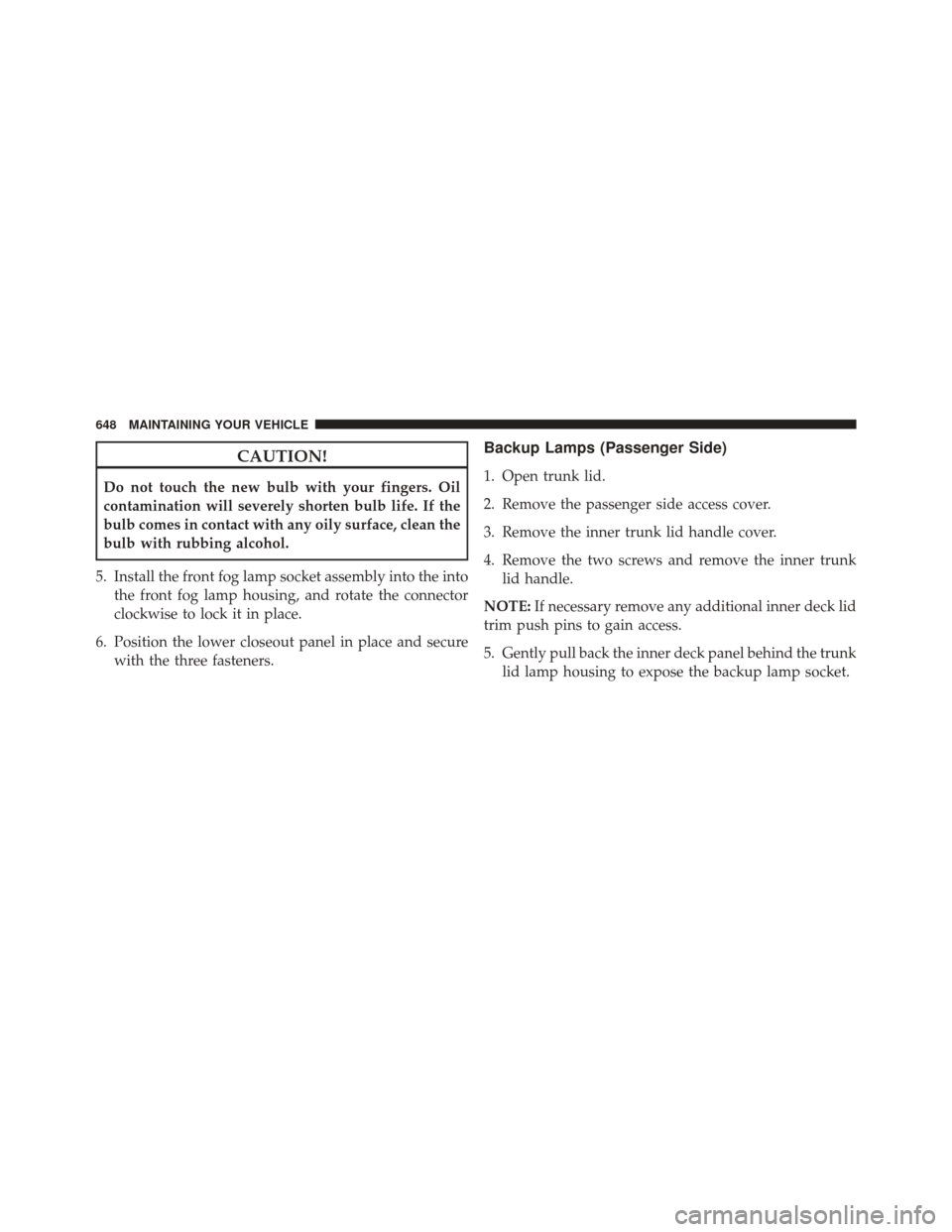

CHRYSLER 200 2016 2.G Owners Manual CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
5. Ins
