CHRYSLER 200 2016 2.G Owners Manual

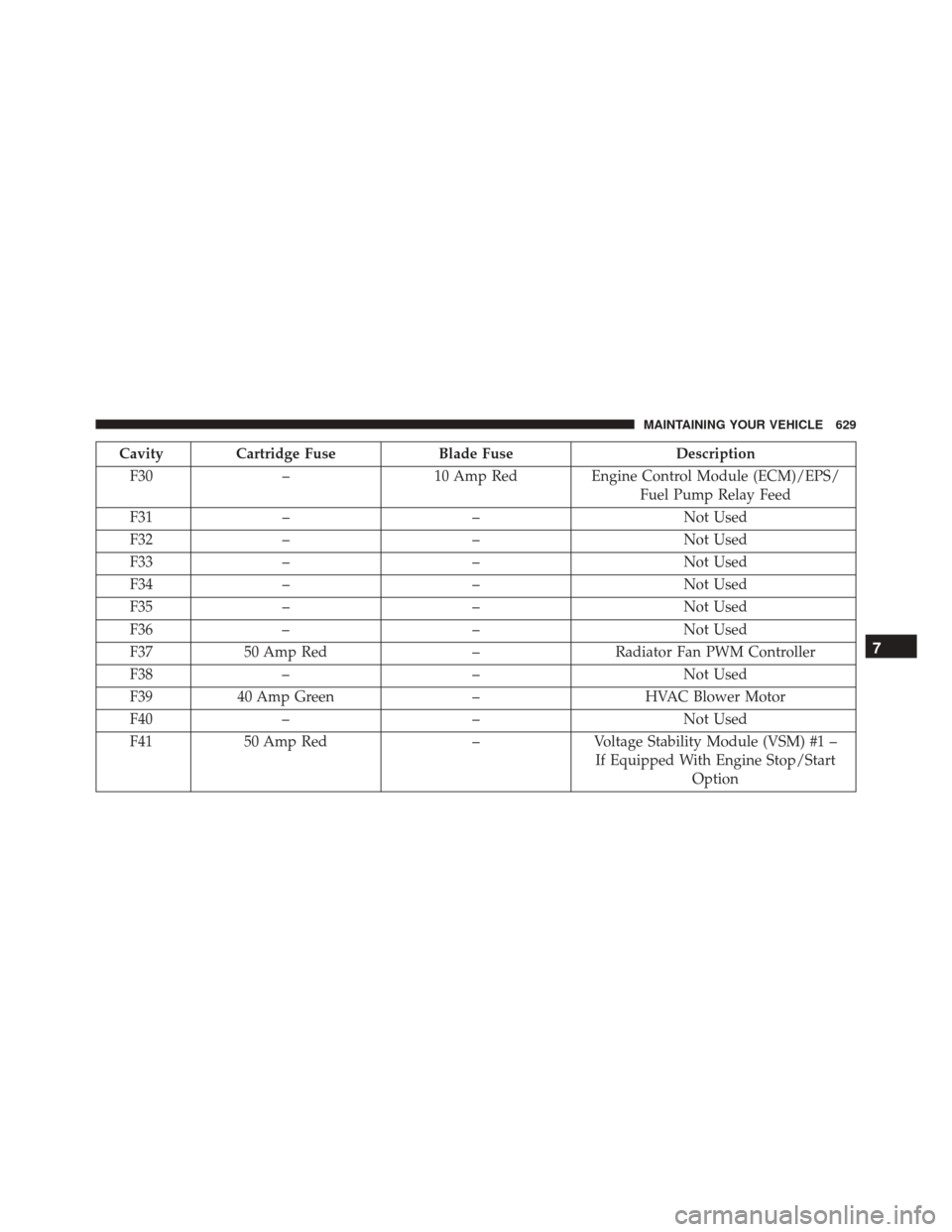

Cavity Cartridge FuseBlade FuseDescription
F30 –10 Amp Red Engine Control Module (ECM)/EPS/
Fuel Pump Relay Feed
F31 – – Not Used
F32 – – Not Used
F33 – – Not Used
F34 – – Not Used
F35 – – Not Used
F36 – – Not Used
F37 50 Amp Red –Radiator Fan PWM Controller
F38 – – Not Used
F39 40 Amp Green –HVAC Blower Motor
F40 – – Not Used
F41 50 Amp Red –Voltage Stability Module (VSM) #1 –
If Equipped With Engine Stop/Start Option
7
MAINTAINING YOUR VEHICLE 629

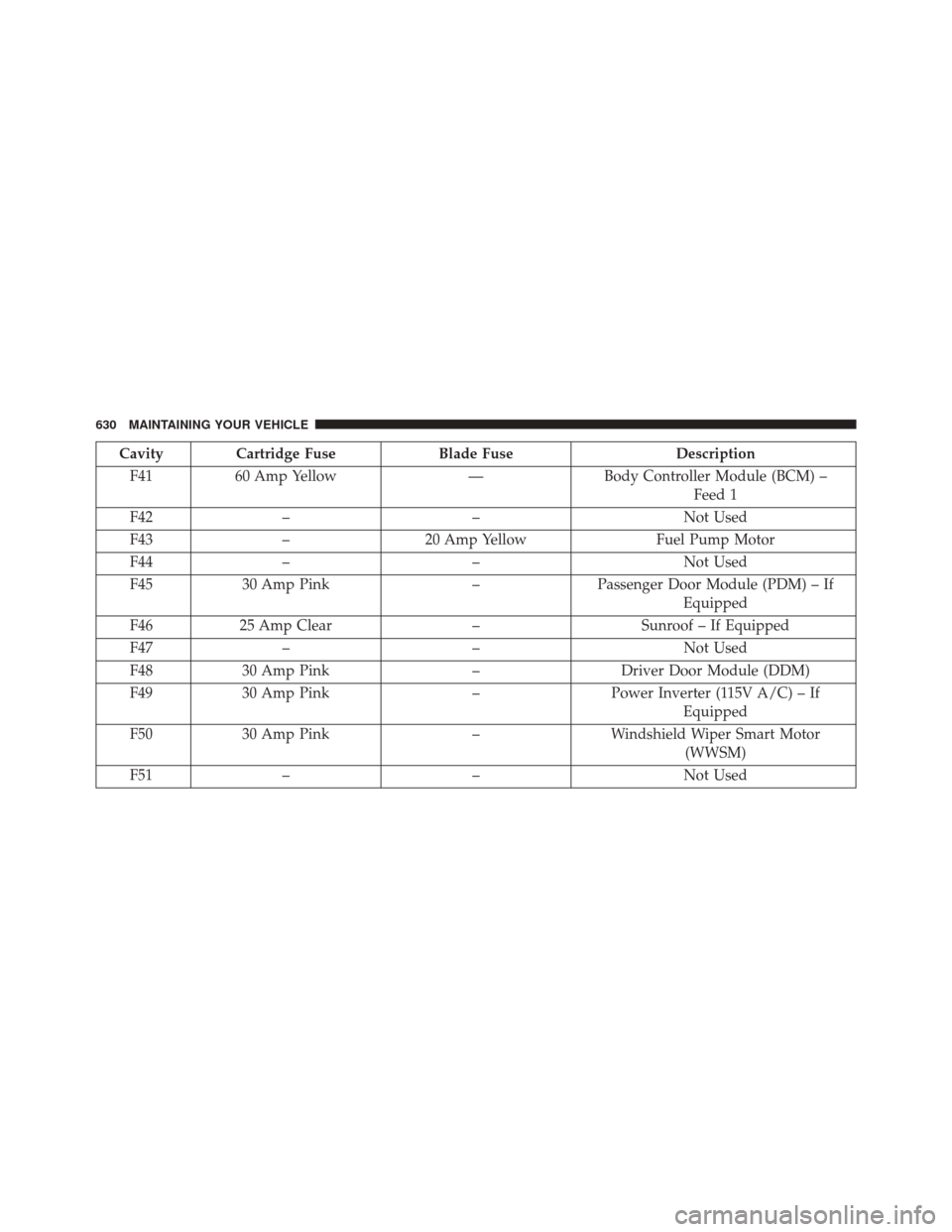

Cavity Cartridge FuseBlade FuseDescription
F41 60 Amp Yellow —Body Controller Module (BCM) –
Feed 1
F42 – – Not Used
F43 –20 Amp Yellow Fuel Pump Motor
F44 – – Not Used
F45 30 Amp Pink –Passenger Door Module (PDM) – If
Equipped
F46 25 Amp Clear –Sunroof – If Equipped
F47 – – Not Used
F48 30 Amp Pink –Driver Door Module (DDM)
F49 30 Amp Pink –Power Inverter (115V A/C) – If
Equipped
F50 30 Amp Pink –Windshield Wiper Smart Motor
(WWSM)
F51 – – Not Used
630 MAINTAINING YOUR VEHICLE

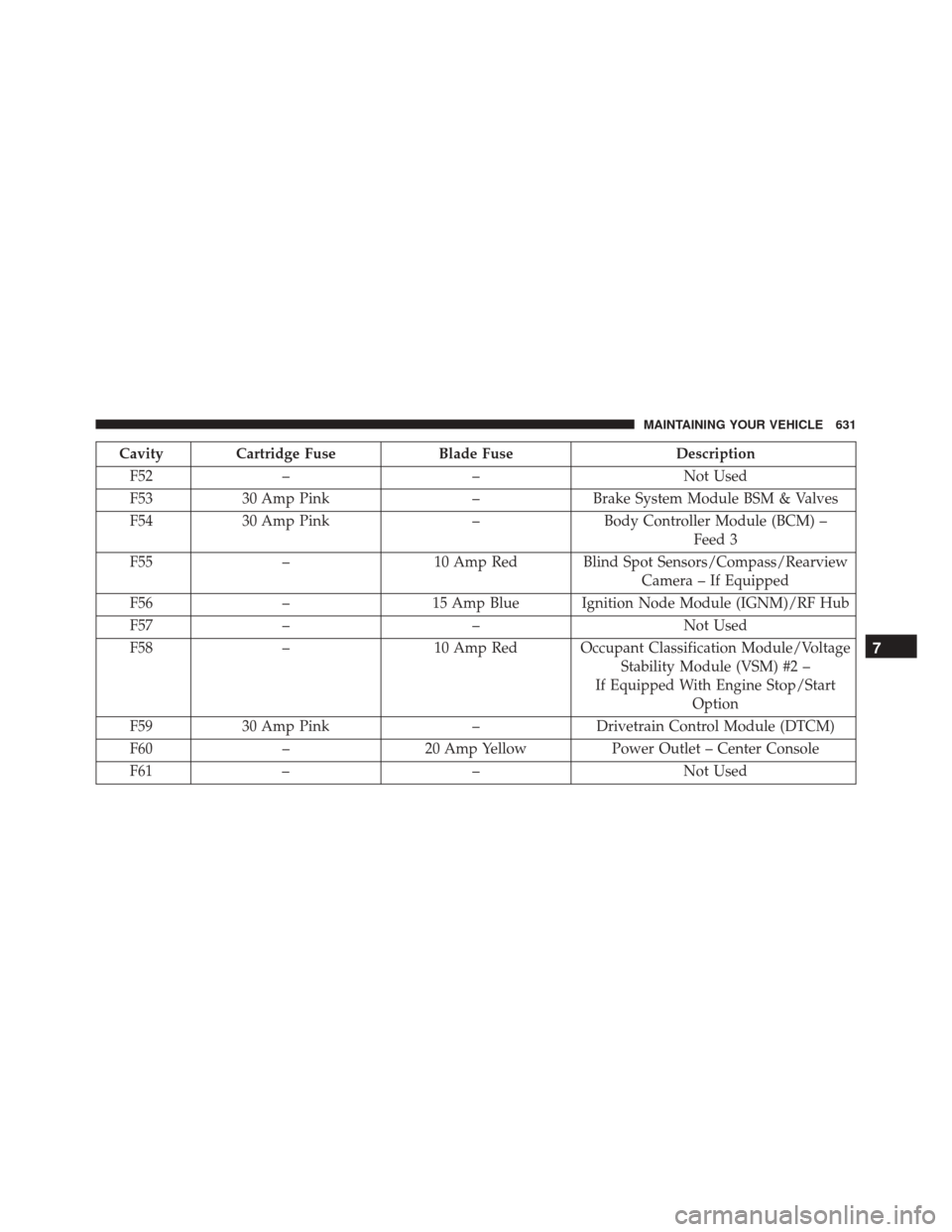

Cavity Cartridge FuseBlade FuseDescription
F52 – – Not Used
F53 30 Amp Pink –Brake System Module BSM & Valves
F54 30 Amp Pink –Body Controller Module (BCM) –
Feed 3
F55 –10 Amp Red Blind Spot Sensors/Compass/Rearview
Camera – If Equipped
F56 –15 Amp Blue Ignition Node Module (IGNM)/RF Hub
F57 – – Not Used
F58 –10 Amp Red Occupant Classification Module/Voltage
Stability Module (VSM) #2 –
If Equipped With Engine Stop/Start Option
F59 30 Amp Pink –Drivetrain Control Module (DTCM)
F60 –20 Amp Yellow Power Outlet – Center Console
F61 – – Not Used
7
MAINTAINING YOUR VEHICLE 631

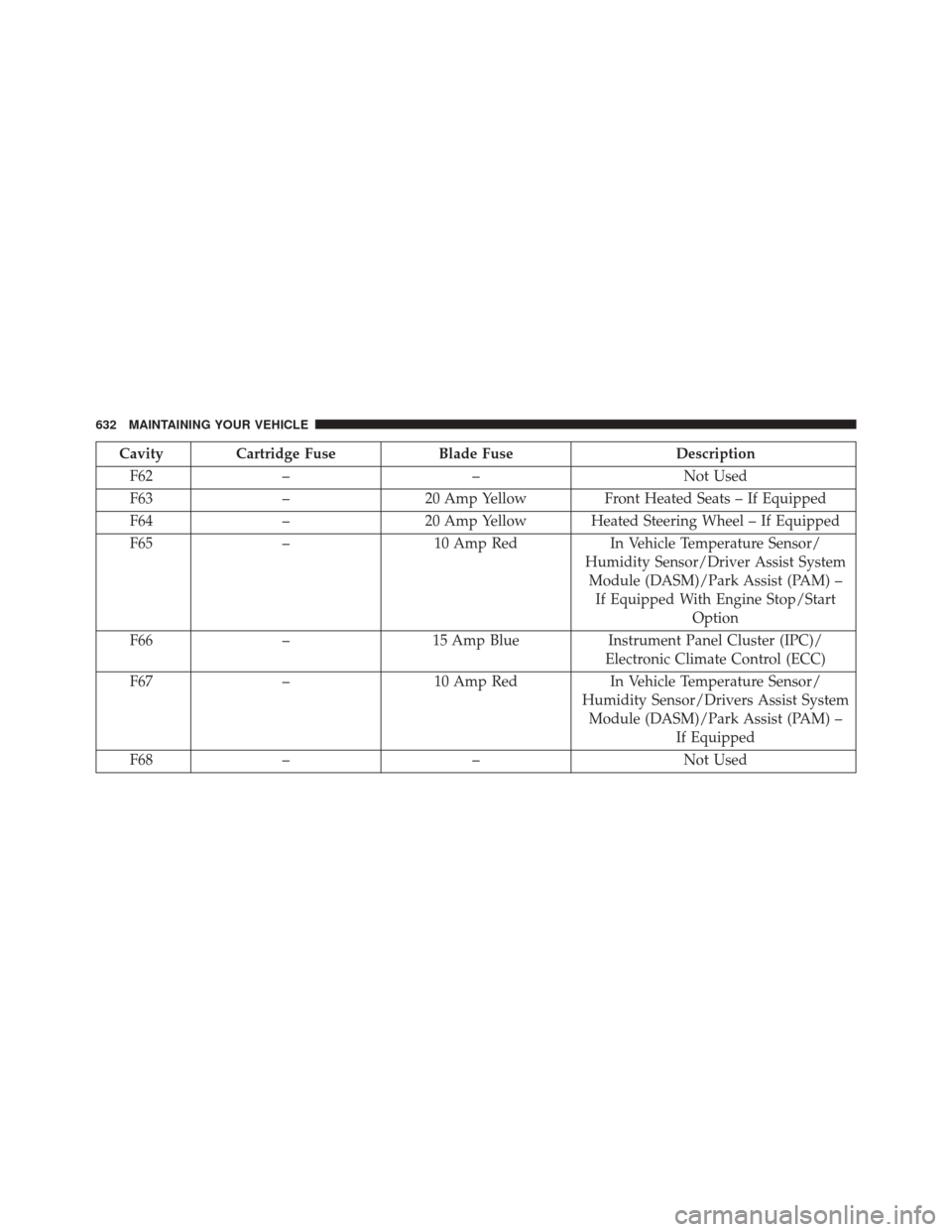

Cavity Cartridge FuseBlade FuseDescription
F62 – – Not Used
F63 –20 Amp Yellow Front Heated Seats – If Equipped
F64 –20 Amp Yellow Heated Steering Wheel – If Equipped
F65 –10 Amp Red In Vehicle Temperature Sensor/
Humidity Sensor/Driver Assist System Module (DASM)/Park Assist (PAM) – If Equipped With Engine Stop/Start Option
F66 –15 Amp Blue Instrument Panel Cluster (IPC)/
Electronic Climate Control (ECC)
F67 –10 Amp Red In Vehicle Temperature Sensor/
Humidity Sensor/Drivers Assist System Module (DASM)/Park Assist (PAM) – If Equipped
F68 – – Not Used
632 MAINTAINING YOUR VEHICLE

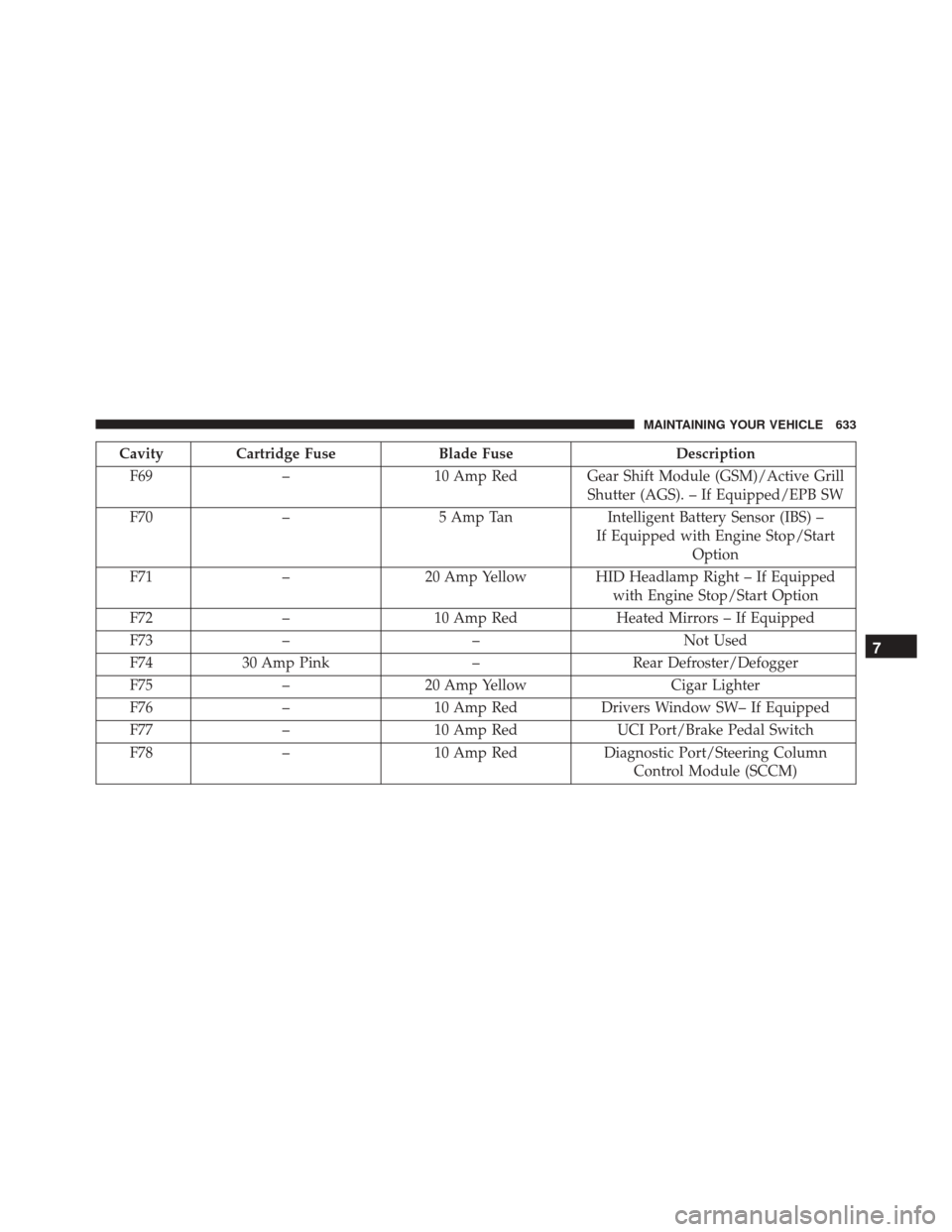

Cavity Cartridge FuseBlade FuseDescription
F69 –10 Amp Red Gear Shift Module (GSM)/Active Grill
Shutter (AGS). – If Equipped/EPB SW
F70 – 5 Amp Tan Intelligent Battery Sensor (IBS) –
If Equipped with Engine Stop/Start Option
F71 –20 Amp Yellow HID Headlamp Right – If Equipped
with Engine Stop/Start Option
F72 –10 Amp Red Heated Mirrors – If Equipped
F73 – – Not Used
F74 30 Amp Pink –Rear Defroster/Defogger
F75 –20 Amp Yellow Cigar Lighter
F76 –10 Amp Red Drivers Window SW– If Equipped
F77 –10 Amp Red UCI Port/Brake Pedal Switch
F78 –10 Amp Red Diagnostic Port/Steering Column
Control Module (SCCM)
7
MAINTAINING YOUR VEHICLE 633

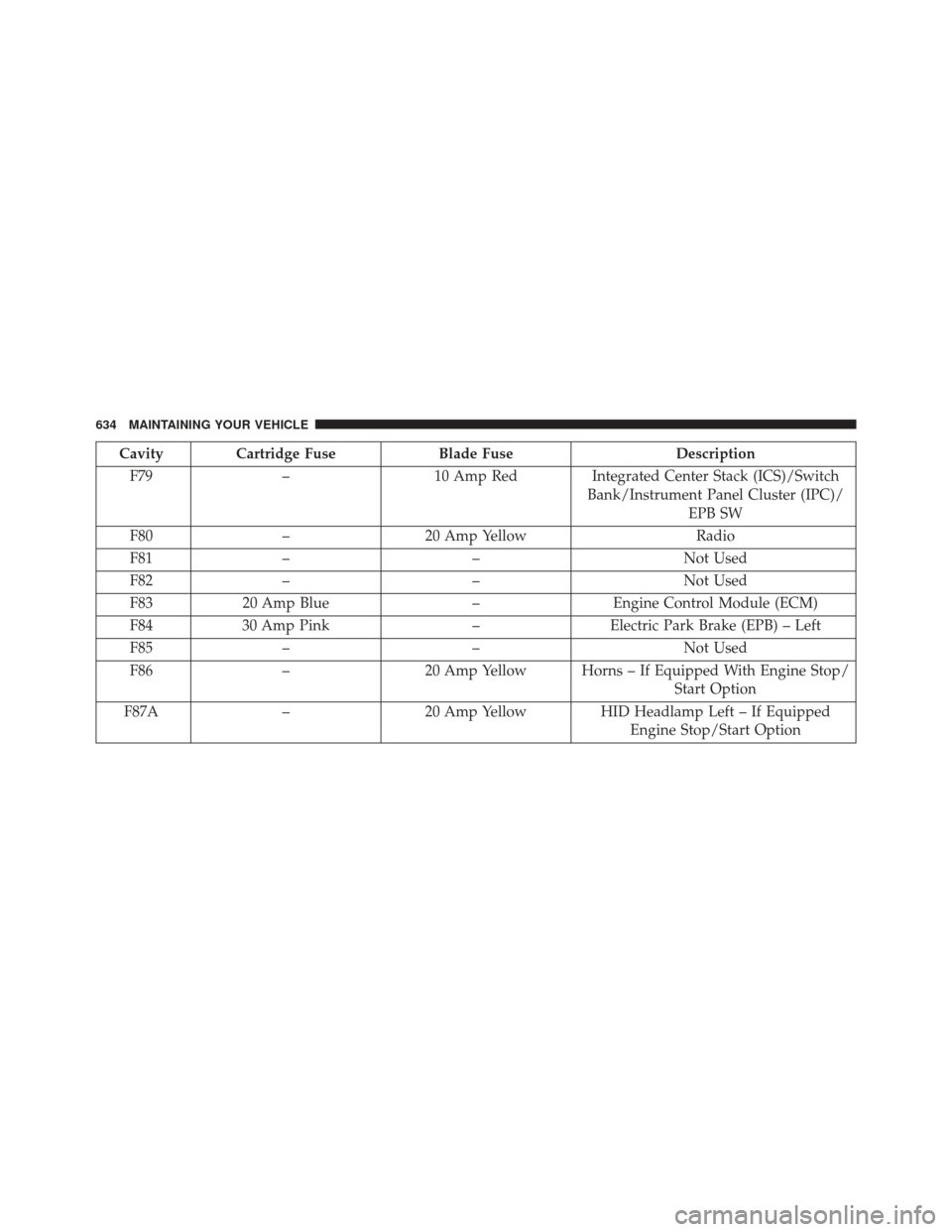

Cavity Cartridge FuseBlade FuseDescription
F79 –10 Amp Red Integrated Center Stack (ICS)/Switch
Bank/Instrument Panel Cluster (IPC)/ EPB SW
F80 –20 Amp Yellow Radio
F81 – – Not Used
F82 – – Not Used
F83 20 Amp Blue –Engine Control Module (ECM)
F84 30 Amp Pink –Electric Park Brake (EPB) – Left
F85 – – Not Used
F86 –20 Amp Yellow Horns – If Equipped With Engine Stop/
Start Option
F87A –20 Amp Yellow HID Headlamp Left – If Equipped
Engine Stop/Start Option
634 MAINTAINING YOUR VEHICLE

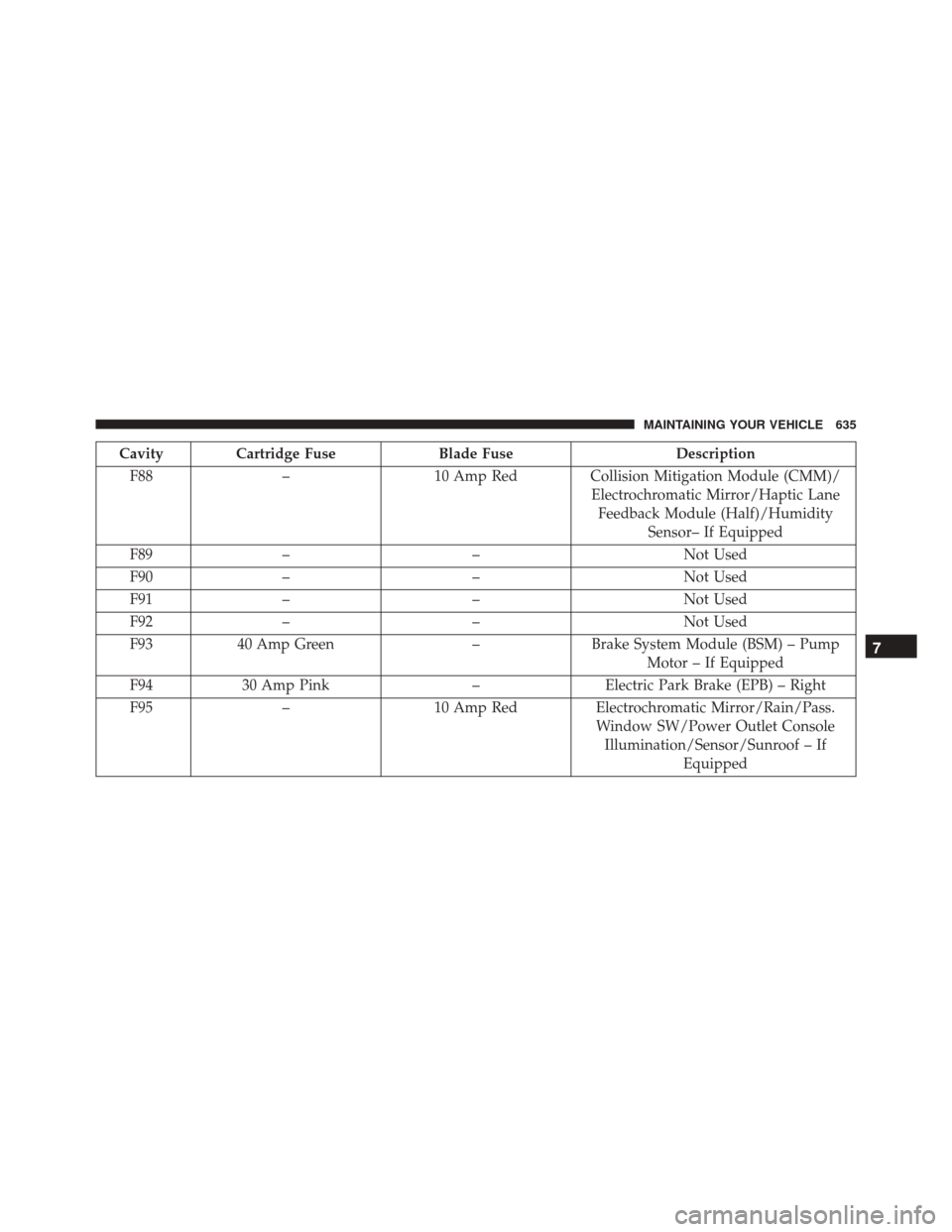

Cavity Cartridge FuseBlade FuseDescription
F88 –10 Amp Red Collision Mitigation Module (CMM)/
Electrochromatic Mirror/Haptic LaneFeedback Module (Half)/Humidity Sensor– If Equipped
F89 – – Not Used
F90 – – Not Used
F91 – – Not Used
F92 – – Not Used
F93 40 Amp Green –Brake System Module (BSM) – Pump
Motor – If Equipped
F94 30 Amp Pink –Electric Park Brake (EPB) – Right
F95 –10 Amp Red Electrochromatic Mirror/Rain/Pass.
Window SW/Power Outlet Console Illumination/Sensor/Sunroof – If Equipped
7
MAINTAINING YOUR VEHICLE 635

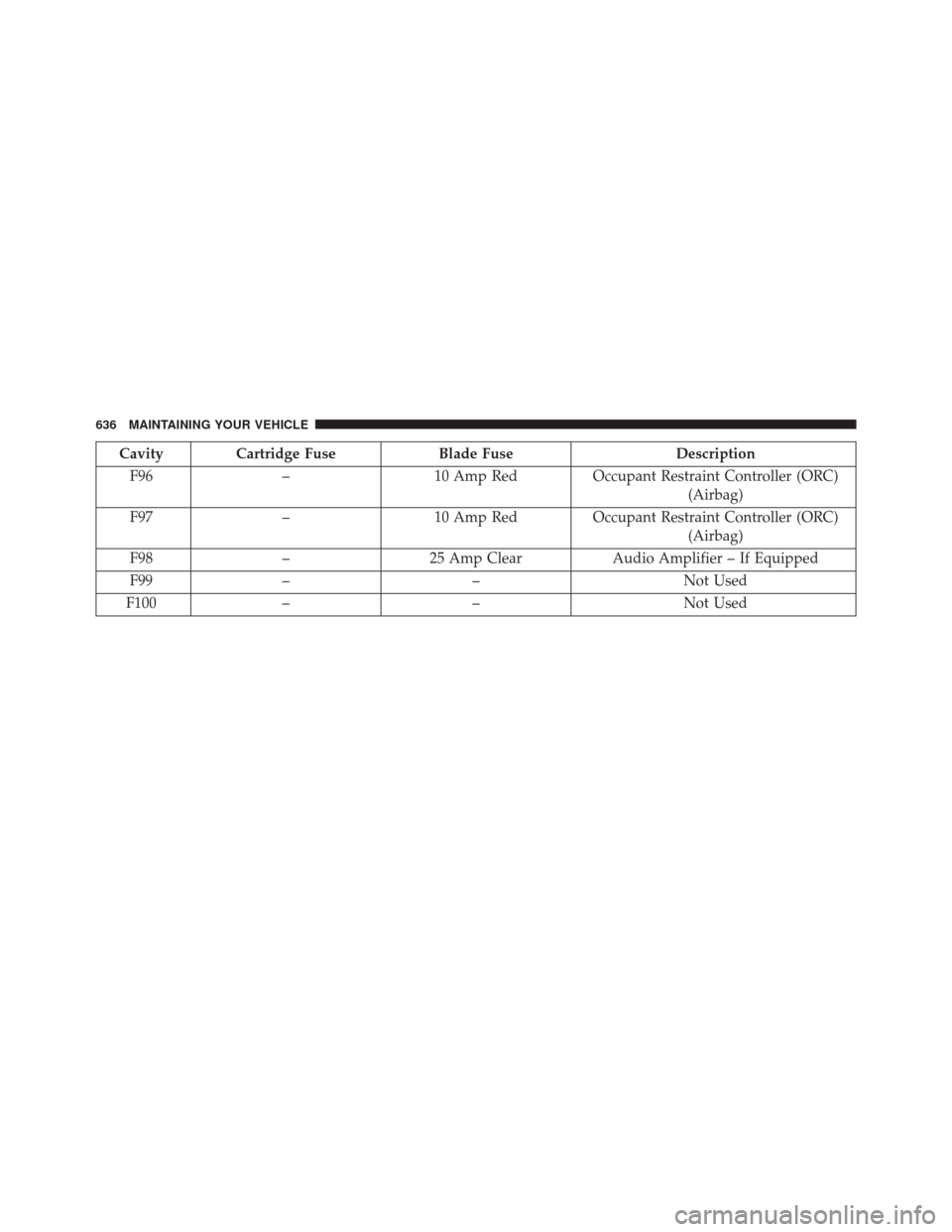

Cavity Cartridge FuseBlade FuseDescription
F96 –10 Amp Red Occupant Restraint Controller (ORC)
(Airbag)
F97 –10 Amp Red Occupant Restraint Controller (ORC)
(Airbag)
F98 –25 Amp Clear Audio Amplifier – If Equipped
F99 – – Not Used
F100 – – Not Used
636 MAINTAINING YOUR VEHICLE

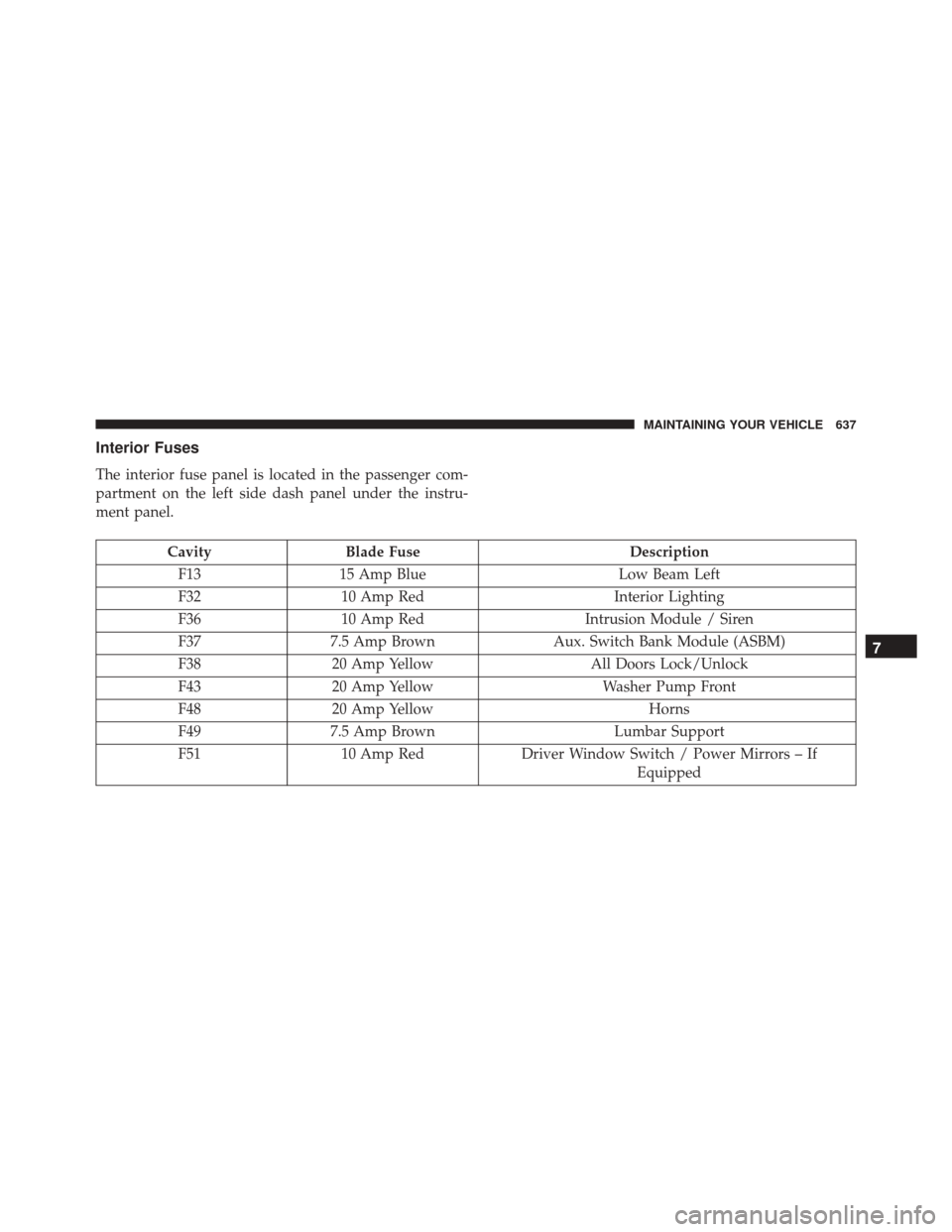

Interior Fuses
The interior fuse panel is located in the passenger com-
partment on the left side dash panel under the instru-
ment panel.
CavityBlade Fuse Description
F13 15 Amp Blue Low Beam Left
F32 10 Amp Red Interior Lighting
F36 10 Amp Red Intrusion Module / Siren
F37 7.5 Amp Brown Aux. Switch Bank Module (ASBM)
F38 20 Amp Yellow All Doors Lock/Unlock
F43 20 Amp Yellow Washer Pump Front
F48 20 Amp Yellow Horns
F49 7.5 Amp Brown Lumbar Support
F51 10 Amp Red Driver Window Switch / Power Mirrors – If
Equipped
7
MAINTAINING YOUR VEHICLE 637

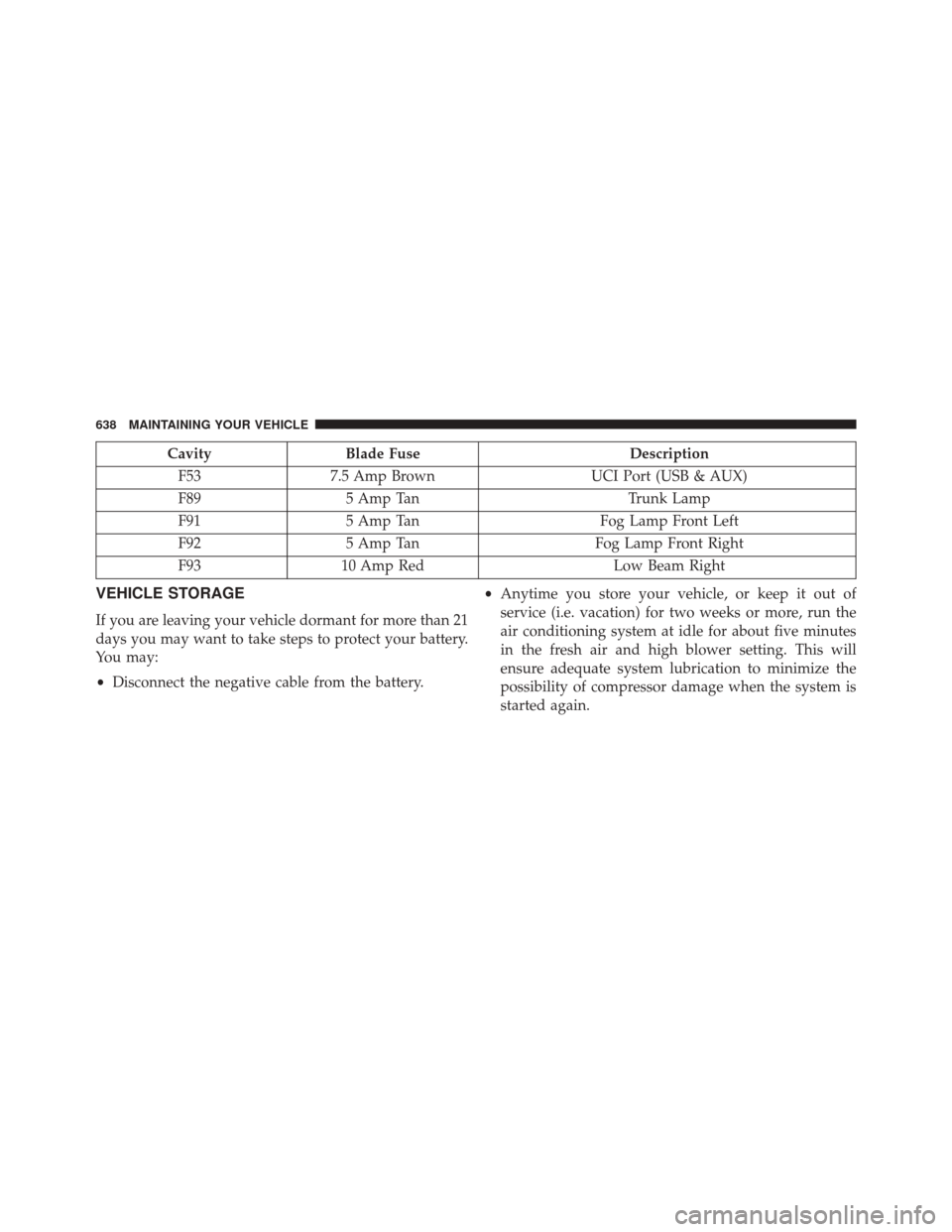

CavityBlade Fuse Description
F53 7.5 Amp Brown UCI Port (USB & AUX)
F89 5 Amp Tan Trunk Lamp
F91 5 Amp Tan Fog Lamp Front Left
F92 5 Amp Tan Fog Lamp Front Right
F93 10 Amp Red Low Beam Right
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
•Disconnect the negative cable from the battery. •
Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
