CHRYSLER 200 2016 2.G Owners Manual

6. Rotate the backup lamp socket counter clockwise 1/4turn to remove the backup lamp socket from the trunk
lid lamp housing.
Backup Lamp Socket
7. Remove the bulb from the socket and install thereplacement bulb.
8. Install the backup lamp socket into the trunk lid lamp housing.
Inner Deck Panel
7
MAINTAINING YOUR VEHICLE 649

9. Rotate backup lamp socket clockwise 1/4 turn to lockit into place.
10. Reposition the inner deck panel and secure with a push pin if removed.
11. Install access cover.
Backup Lamps (Driver Side)
1. Open trunk lid.
2. Remove the drivers side access cover.
3. Remove inner deck lid support push pin.
NOTE: If necessary remove any additional inner deck lid
trim push pins to gain access.
4. Gently pull back the inner deck panel behind the trunk lid lamp housing to expose the backup lamp socket.
NOTE: passenger side shown the drivers side is similar.
Backup Lamp Socket
5. Rotate the backup lamp socket counter clockwise 1/4
turn to remove the backup lamp socket from the trunk
lid lamp housing.
6. Remove the bulb from the socket and install the replacement bulb.
650 MAINTAINING YOUR VEHICLE

7. Install the backup lamp socket into the trunk lid lamphousing.
8. Rotate backup lamp socket clockwise 1/4 turn to lock it into place.
9. Reposition the inner deck panel and secure with a push pin if removed.
10. Install the access cover.
Stop/Rear Turn Signal Lamp
1. Open the trunk lid.
2. Remove the tail lamp housing beauty cover by grasp- ing the top edge and pulling rearward to expose the
tail lamp housing bolts. 3. Remove the tail lamp housing bolts
Tail Lamp Beauty Cover
7
MAINTAINING YOUR VEHICLE 651

4. Pull the tail lamp housing directly rearward to dis-lodge the two out bored ball studs from the socket
fasteners.
NOTE: It may be necessary to use significant force to
remove the two out bored ball studs from the socket
fasteners to remove the tail lamp housing. 5. Rotate the stop/rear turn signal lamp socket 1/4 turn
counterclockwise and remove it from the tail lamp
housing.
6. Remove the bulb from the socket and install the replacement bulb.
7. Install the bulb socket into the tail lamp housing and rotate the bulb socket ¼ turn clockwise to lock it in
place.
8. Install the tail lamp housing.
9. Install the tail lamp housing beauty cover.
License Plate Lamp
1. Remove the screw of the license plate lamp assembly and pull down on the license plate lamp assembly to
remove.
2. Remove the bulb from the socket and install the replacement bulb.
3. Install the license plate lamp assembly.
Tail Lamp Bolts
652 MAINTAINING YOUR VEHICLE

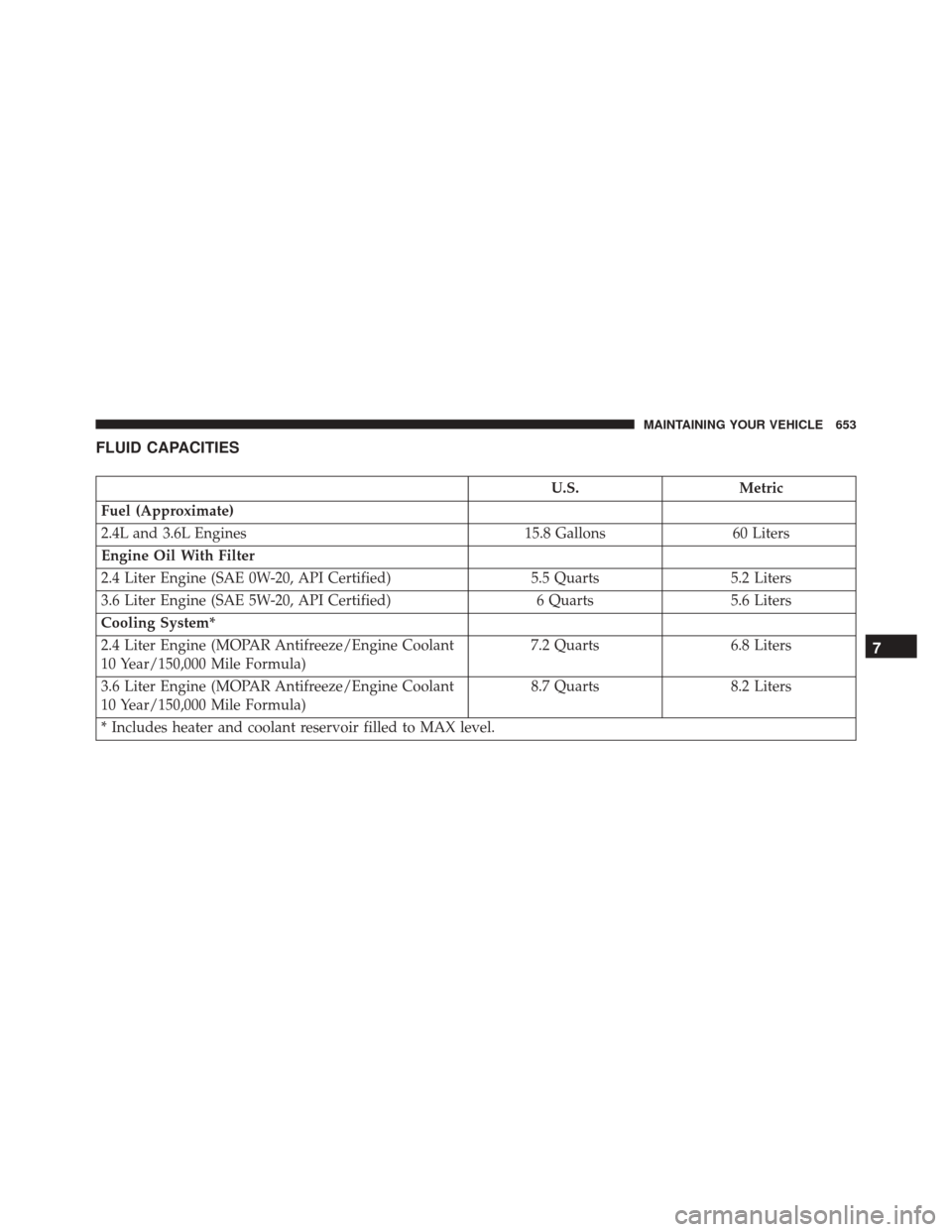

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
2.4L and 3.6L Engines 15.8 Gallons60 Liters
Engine Oil With Filter
2.4 Liter Engine (SAE 0W-20, API Certified) 5.5 Quarts5.2 Liters
3.6 Liter Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
Cooling System*
2.4 Liter Engine (MOPAR Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula) 7.2 Quarts
6.8 Liters
3.6 Liter Engine (MOPAR Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula) 8.7 Quarts
8.2 Liters
* Includes heater and coolant reservoir filled to MAX level.
7
MAINTAINING YOUR VEHICLE 653

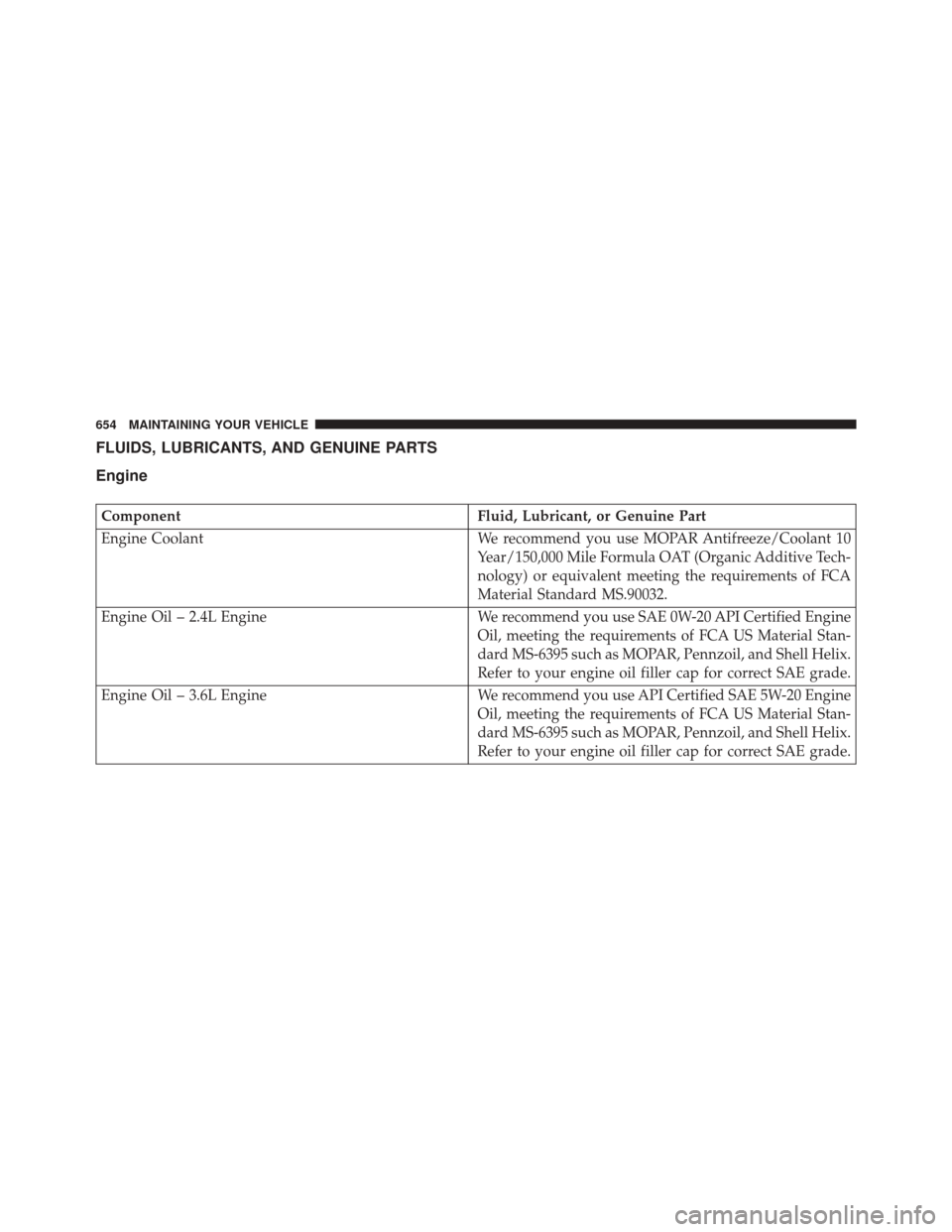

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology) or equivalent meeting the requirements of FCA
Material Standard MS.90032.
Engine Oil – 2.4L Engine We recommend you use SAE 0W-20 API Certified Engine
Oil, meeting the requirements of FCA US Material Stan-
dard MS-6395 such as MOPAR, Pennzoil, and Shell Helix.
Refer to your engine oil filler cap for correct SAE grade.
Engine Oil – 3.6L Engine We recommend you use API Certified SAE 5W-20 Engine
Oil, meeting the requirements of FCA US Material Stan-
dard MS-6395 such as MOPAR, Pennzoil, and Shell Helix.
Refer to your engine oil filler cap for correct SAE grade.
654 MAINTAINING YOUR VEHICLE

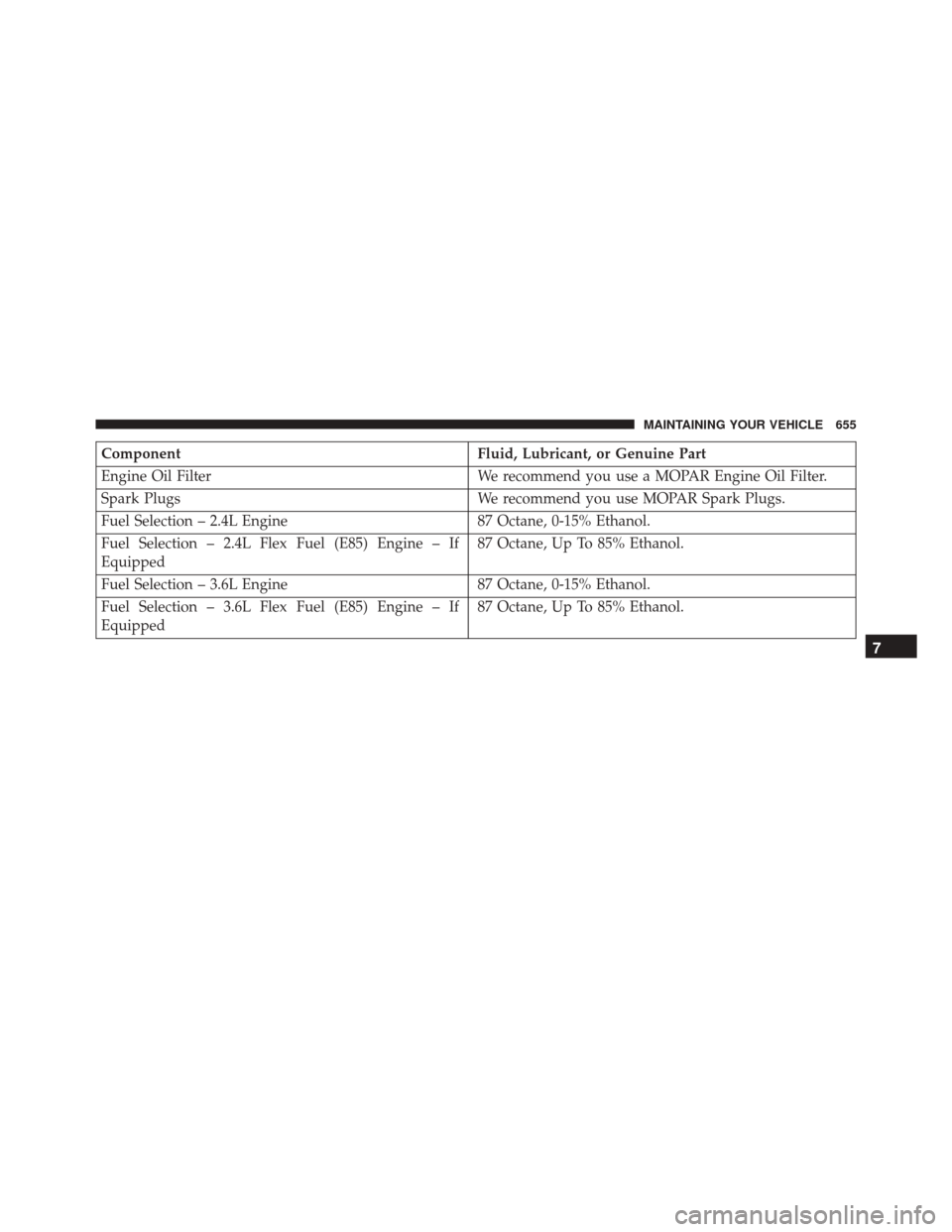

ComponentFluid, Lubricant, or Genuine Part
Engine Oil Filter We recommend you use a MOPAR Engine Oil Filter.
Spark Plugs We recommend you use MOPAR Spark Plugs.
Fuel Selection – 2.4L Engine 87 Octane, 0-15% Ethanol.
Fuel Selection – 2.4L Flex Fuel (E85) Engine – If
Equipped 87 Octane, Up To 85% Ethanol.
Fuel Selection – 3.6L Engine 87 Octane, 0-15% Ethanol.
Fuel Selection – 3.6L Flex Fuel (E85) Engine – If
Equipped 87 Octane, Up To 85% Ethanol.
7
MAINTAINING YOUR VEHICLE 655

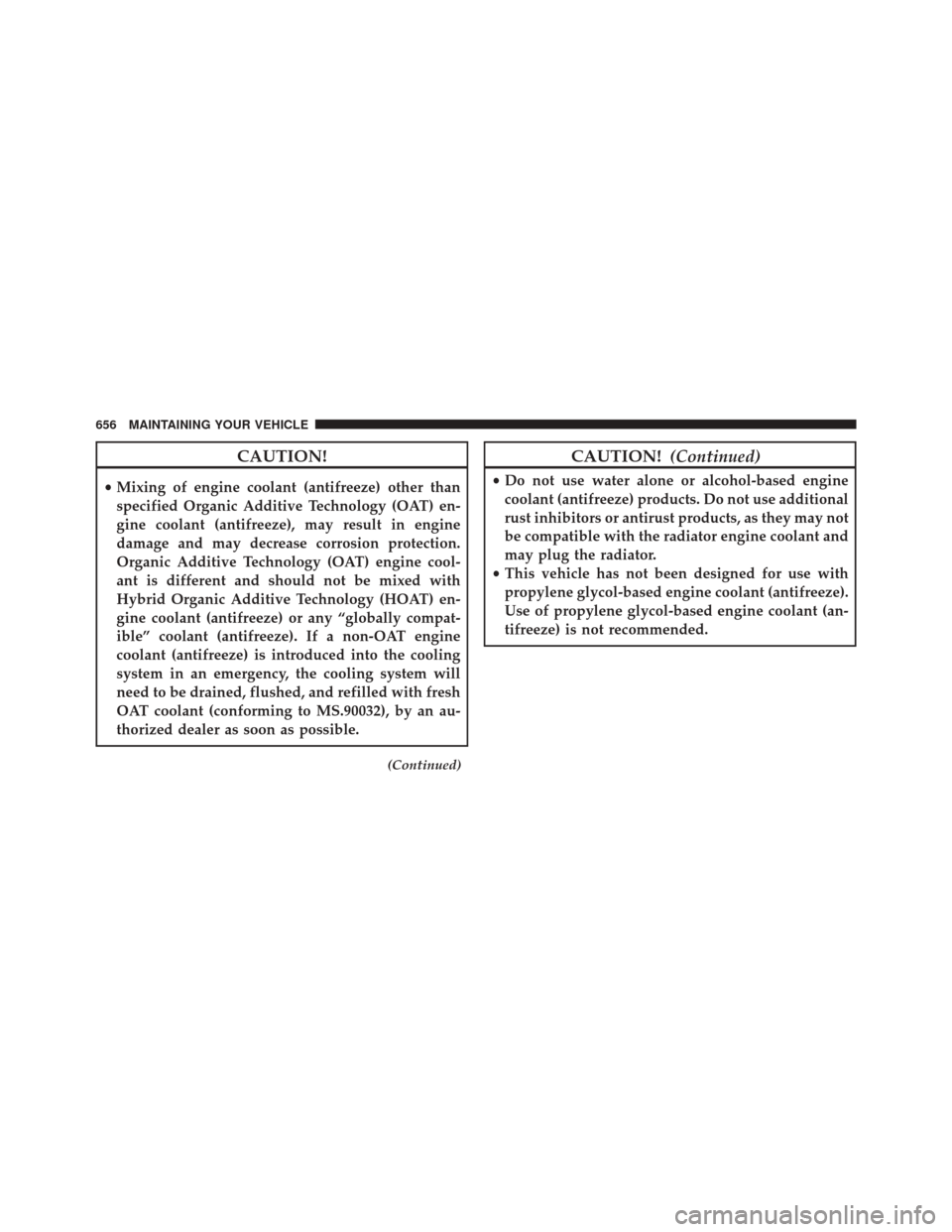

CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine
damage and may decrease corrosion protection.
Organic Additive Technology (OAT) engine cool-
ant is different and should not be mixed with
Hybrid Organic Additive Technology (HOAT) en-
gine coolant (antifreeze) or any “globally compat-
ible” coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into the cooling
system in an emergency, the cooling system will
need to be drained, flushed, and refilled with fresh
OAT coolant (conforming to MS.90032), by an au-
thorized dealer as soon as possible.
(Continued)
CAUTION! (Continued)
•Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.
• This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (an-
tifreeze) is not recommended.
656 MAINTAINING YOUR VEHICLE

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission Use only MOPAR ZF 8&9 Speed ATF Automatic Trans-
mission Fluid, or equivalent.
Failure to use the correct fluid may affect the function or
performance of your transmission.
Brake Master Cylinder We recommend you use MOPAR DOT 3 Brake Fluid,
SAE J1703 should be used. If DOT 3, SAE J1703 brake
fluid is not available, then DOT 4 is acceptable. Use only
recommended brake fluids.
7
MAINTAINING YOUR VEHICLE 657
