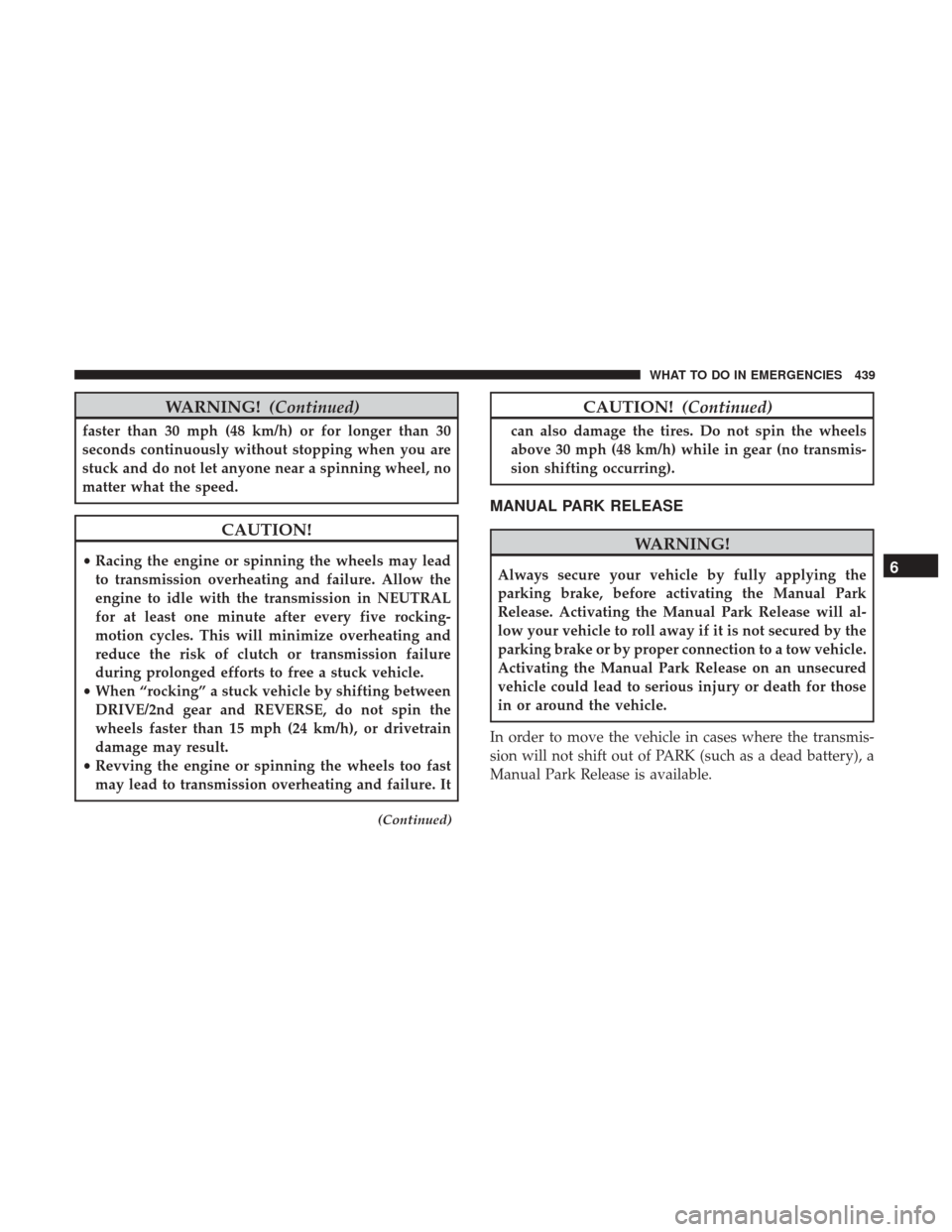

WARNING!(Continued)
faster than 30 mph (48 km/h) or for longer than 30
seconds continuously without stopping when you are
stuck and do not let anyone near a spinning wheel, no
matter what the speed.
CAUTION!
•Racing the engine or spinning the wheels may lead
to transmission overheating and failure. Allow the
engine to idle with the transmission in NEUTRAL
for at least one minute after every five rocking-
motion cycles. This will minimize overheating and
reduce the risk of clutch or transmission failure
during prolonged efforts to free a stuck vehicle.
• When “rocking” a stuck vehicle by shifting between
DRIVE/2nd gear and REVERSE, do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.
• Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure. It
(Continued)
CAUTION! (Continued)
can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no transmis-
sion shifting occurring).
MANUAL PARK RELEASE
WARNING!
Always secure your vehicle by fully applying the
parking brake, before activating the Manual Park
Release. Activating the Manual Park Release will al-
low your vehicle to roll away if it is not secured by the
parking brake or by proper connection to a tow vehicle.
Activating the Manual Park Release on an unsecured
vehicle could lead to serious injury or death for those
in or around the vehicle.
In order to move the vehicle in cases where the transmis-
sion will not shift out of PARK (such as a dead battery), a
Manual Park Release is available.6
WHAT TO DO IN EMERGENCIES 439

Follow these steps to activate the Manual Park Release:
1. Apply the parking brake.
2. Using a small screwdriver or similar tool, remove theManual Park Release access cover, which is underneath
the rubber storage bin liner in the center console pass-
through. 3. Unsnap the tether from the Manual Park Release lever,
and use it to pull the lever upwards.
Manual Park Release location
Manual Park Release Cover
440 WHAT TO DO IN EMERGENCIES

4. Pull the tether to rotate the lever up and rearward, untilit locks vertically in place. Verify that the Manual Park
Release lever is locked in the released position. 5. The vehicle is now out of PARK and can be moved.
Release the parking brake only when the vehicle is
securely connected to a tow vehicle.
To reset the Manual Park Release:
1. Pull the tether upwards to unlock the lever.
2. Rotate the Manual Park Release lever forward and down to its original position.
3. Re-install the access cover and the rubber storage bin liner.
Manual Park Release TetherLocked Position
6
WHAT TO DO IN EMERGENCIES 441

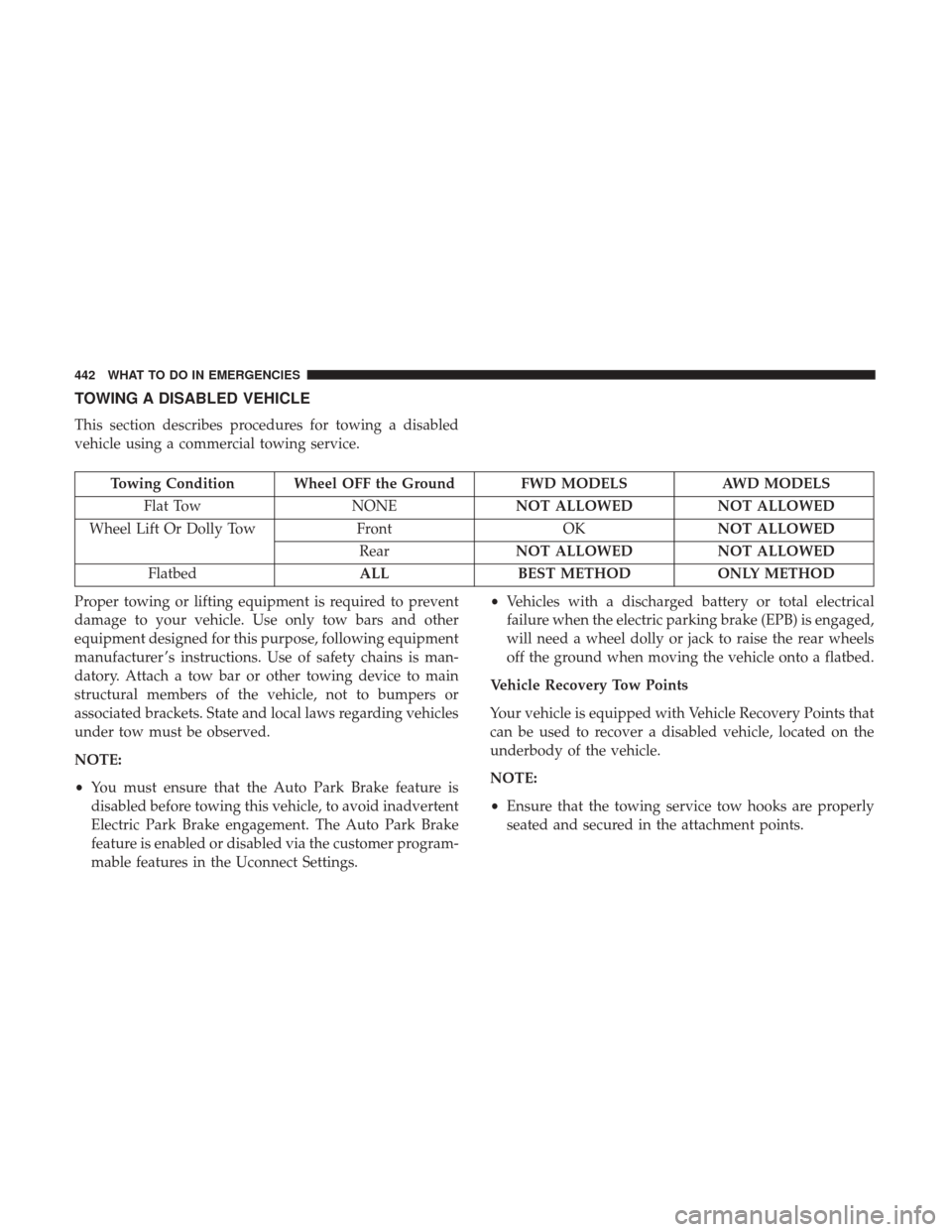

TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service.
Towing Condition Wheel OFF the Ground FWD MODELSAWD MODELS
Flat Tow NONENOT ALLOWED NOT ALLOWED
Wheel Lift Or Dolly Tow FrontOKNOT ALLOWED
Rear NOT ALLOWED NOT ALLOWED
Flatbed ALLBEST METHOD ONLY METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equipment
manufacturer ’s instructions. Use of safety chains is man-
datory. Attach a tow bar or other towing device to main
structural members of the vehicle, not to bumpers or
associated brackets. State and local laws regarding vehicles
under tow must be observed.
NOTE:
• You must ensure that the Auto Park Brake feature is
disabled before towing this vehicle, to avoid inadvertent
Electric Park Brake engagement. The Auto Park Brake
feature is enabled or disabled via the customer program-
mable features in the Uconnect Settings. •
Vehicles with a discharged battery or total electrical
failure when the electric parking brake (EPB) is engaged,
will need a wheel dolly or jack to raise the rear wheels
off the ground when moving the vehicle onto a flatbed.
Vehicle Recovery Tow Points
Your vehicle is equipped with Vehicle Recovery Points that
can be used to recover a disabled vehicle, located on the
underbody of the vehicle.
NOTE:
• Ensure that the towing service tow hooks are properly
seated and secured in the attachment points.
442 WHAT TO DO IN EMERGENCIES

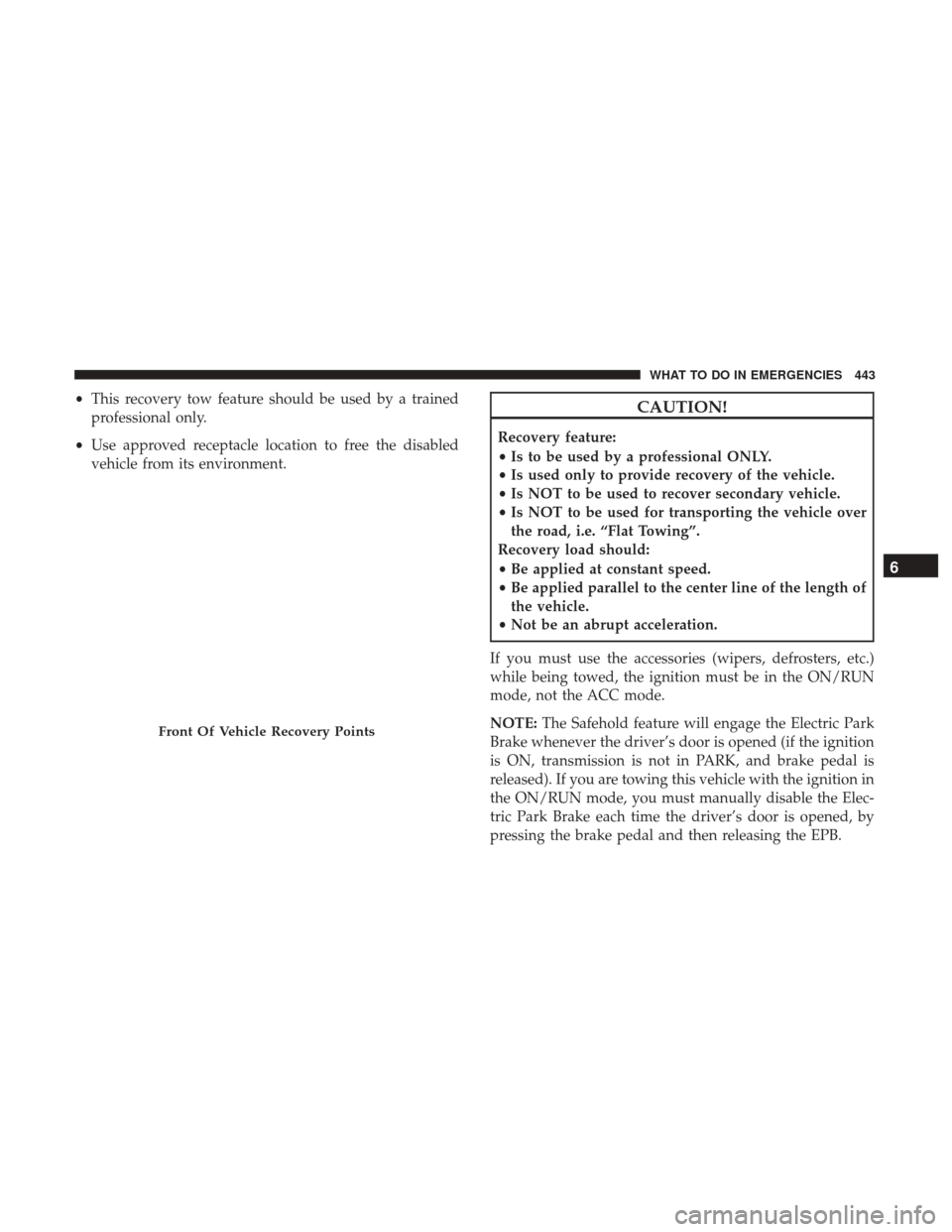

•This recovery tow feature should be used by a trained
professional only.
• Use approved receptacle location to free the disabled
vehicle from its environment.CAUTION!
Recovery feature:
• Is to be used by a professional ONLY.
• Is used only to provide recovery of the vehicle.
• Is NOT to be used to recover secondary vehicle.
• Is NOT to be used for transporting the vehicle over
the road, i.e. “Flat Towing”.
Recovery load should:
• Be applied at constant speed.
• Be applied parallel to the center line of the length of
the vehicle.
• Not be an abrupt acceleration.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
mode, not the ACC mode.
NOTE: The Safehold feature will engage the Electric Park
Brake whenever the driver’s door is opened (if the ignition
is ON, transmission is not in PARK, and brake pedal is
released). If you are towing this vehicle with the ignition in
the ON/RUN mode, you must manually disable the Elec-
tric Park Brake each time the driver’s door is opened, by
pressing the brake pedal and then releasing the EPB.
Front Of Vehicle Recovery Points
6
WHAT TO DO IN EMERGENCIES 443

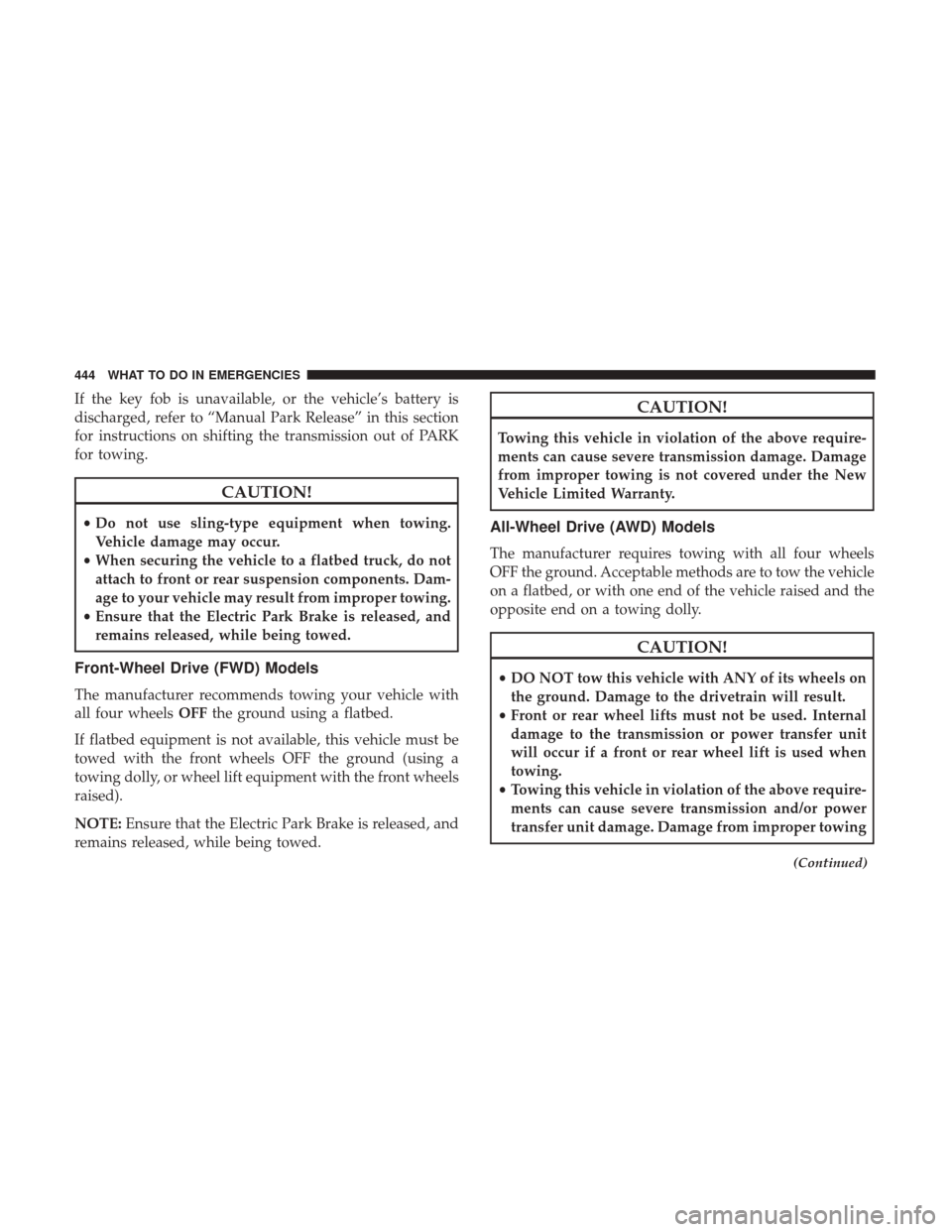

If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to “Manual Park Release” in this section
for instructions on shifting the transmission out of PARK
for towing.
CAUTION!
•Do not use sling-type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.
• Ensure that the Electric Park Brake is released, and
remains released, while being towed.
Front-Wheel Drive (FWD) Models
The manufacturer recommends towing your vehicle with
all four wheels OFFthe ground using a flatbed.
If flatbed equipment is not available, this vehicle must be
towed with the front wheels OFF the ground (using a
towing dolly, or wheel lift equipment with the front wheels
raised).
NOTE: Ensure that the Electric Park Brake is released, and
remains released, while being towed.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Damage
from improper towing is not covered under the New
Vehicle Limited Warranty.
All-Wheel Drive (AWD) Models
The manufacturer requires towing with all four wheels
OFF the ground. Acceptable methods are to tow the vehicle
on a flatbed, or with one end of the vehicle raised and the
opposite end on a towing dolly.
CAUTION!
• DO NOT tow this vehicle with ANY of its wheels on
the ground. Damage to the drivetrain will result.
• Front or rear wheel lifts must not be used. Internal
damage to the transmission or power transfer unit
will occur if a front or rear wheel lift is used when
towing.
• Towing this vehicle in violation of the above require-
ments can cause severe transmission and/or power
transfer unit damage. Damage from improper towing
(Continued)
444 WHAT TO DO IN EMERGENCIES

CAUTION!(Continued)
is not covered under the New Vehicle Limited War-
ranty.
ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)
This vehicle is equipped with an Enhanced Accident
Response System.
Please refer to “Supplemental Restraint System (SRS) —
Air Bags” in “Occupant Restraints” in the Owner ’s Manual
on the DVD for further information on the Enhanced
Accident Response System (EARS) function.
EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record, in certain
crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed.
Please refer to “Supplemental Restraint System (SRS) —
Air Bags” in “Occupant Restraints” in the Owner’s Manual
on the DVD for further information on the Event Data
Recorder (EDR).
6
WHAT TO DO IN EMERGENCIES 445

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 2.4L ...........449
 ENGINE COMPARTMENT — 3.6L ...........450
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .451
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................ .451
▫ Loose Fuel Filler Cap Message .............452
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS .......................... .452
 REPLACEMENT PARTS ...................453
 DEALER SERVICE ...................... .453
 MAINTENANCE PROCEDURES .............454
▫ Engine Oil .......................... .454
▫ Engine Oil Filter ...................... .457
▫ Engine Air Cleaner Filter .................457
▫ Maintenance-Free Battery .................458 ▫
Air Conditioner Maintenance ..............458
▫ Body Lubrication ..................... .462
▫ Windshield Wiper Blades .................462
▫ Adding Washer Fluid ...................462
▫ Exhaust System ....................... .463
▫ Cooling System ....................... .464
▫ Brake System ........................ .469
▫ Automatic Transmission ..................470
▫ Appearance Care And Protection
From Corrosion ....................... .472
 FUSES ............................... .476
▫ Power Distribution Center (Fuses) ...........477
▫ Interior Fuses ........................ .487
 VEHICLE
STORAGE.....................488
7

REPLACEMENT BULBS ...................488
 BULB REPLACEMENT ....................490
▫ Low Beam And High Beam Headlamps ......490
▫ Front Turn Signal Lamp ..................492
▫ Front Side Marker Lamps ................494
▫ Front Fog Lamp ...................... .495
▫ Backup Lamps (Passenger Side) .............496
▫ Backup Lamps (Driver Side) ...............497 ▫
Stop/Rear Turn Signal Lamp ...............498
▫ License Plate Lamp .....................499
 FLUID CAPACITIES ..................... .500
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS .............................. .501
▫ Engine ............................. .501
▫ Chassis ............................ .503
448 MAINTAINING YOUR VEHICLE
