CavityCartridge Fuse Blade Fuse Description
F18 – –Not Used
F19 40 Amp Green –Starter Solenoid
F20 –10 Amp Red A/C Compressor Clutch
F21 – –Not Used
F22 –5 Amp Tan Radiator Fan Enable
F23 –70 Amp Tan Body Controller Module (BCM) –
Feed 2
F23 –50 Amp RedVoltage Stability Module (VSM)
#2 – If Equipped With Engine Stop/Start Option
F24 – –Not Used
F25B –20 Amp Yellow Front Washer Pump – If
Equipped with Engine Stop/Start Option
F26 – –Not Used
F27 – –Not Used
F28 –15 Amp Blue Transmission Control Module
(TCM)
7
MAINTAINING YOUR VEHICLE 479

CavityCartridge Fuse Blade Fuse Description
F29 – –Not Used
F30 –10 Amp Red Engine Control Module (ECM)/
EPS/Fuel Pump Relay Feed
F31 – –Not Used
F32 – –Not Used
F33 – –Not Used
F34 – –Not Used
F35 – –Not Used
F36 – –Not Used
F37 50 Amp Red –Radiator Fan PWM Controller
F38 – –Not Used
F39 40 Amp Green –HVAC Blower Motor
F40 – –Not Used
F41 50 Amp Red –Voltage Stability Module (VSM)
#1 – If Equipped With Engine Stop/Start Option
F41 60 Amp Yellow –Body Controller Module (BCM) –
Feed 1
480 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Blade Fuse Description
F42 – –Not Used
F43 –20 Amp Yellow Fuel Pump Motor
F44 – –Not Used
F45 30 Amp Pink –Passenger Door Module (PDM) –
If Equipped
F46 25 Amp Clear –Sunroof – If Equipped
F47 – –Not Used
F48 30 Amp Pink –Driver Door Module (DDM)
F49 30 Amp Pink –Power Inverter (115V A/C) – If
Equipped
F50 30 Amp Pink –Windshield Wiper Smart Motor
(WWSM)
F51 – –Not Used
F52 – –Not Used
F53 30 Amp Pink –Brake System Module BSM &
Valves
F54 30 Amp Pink –Body Controller Module (BCM) –
Feed 3
7
MAINTAINING YOUR VEHICLE 481

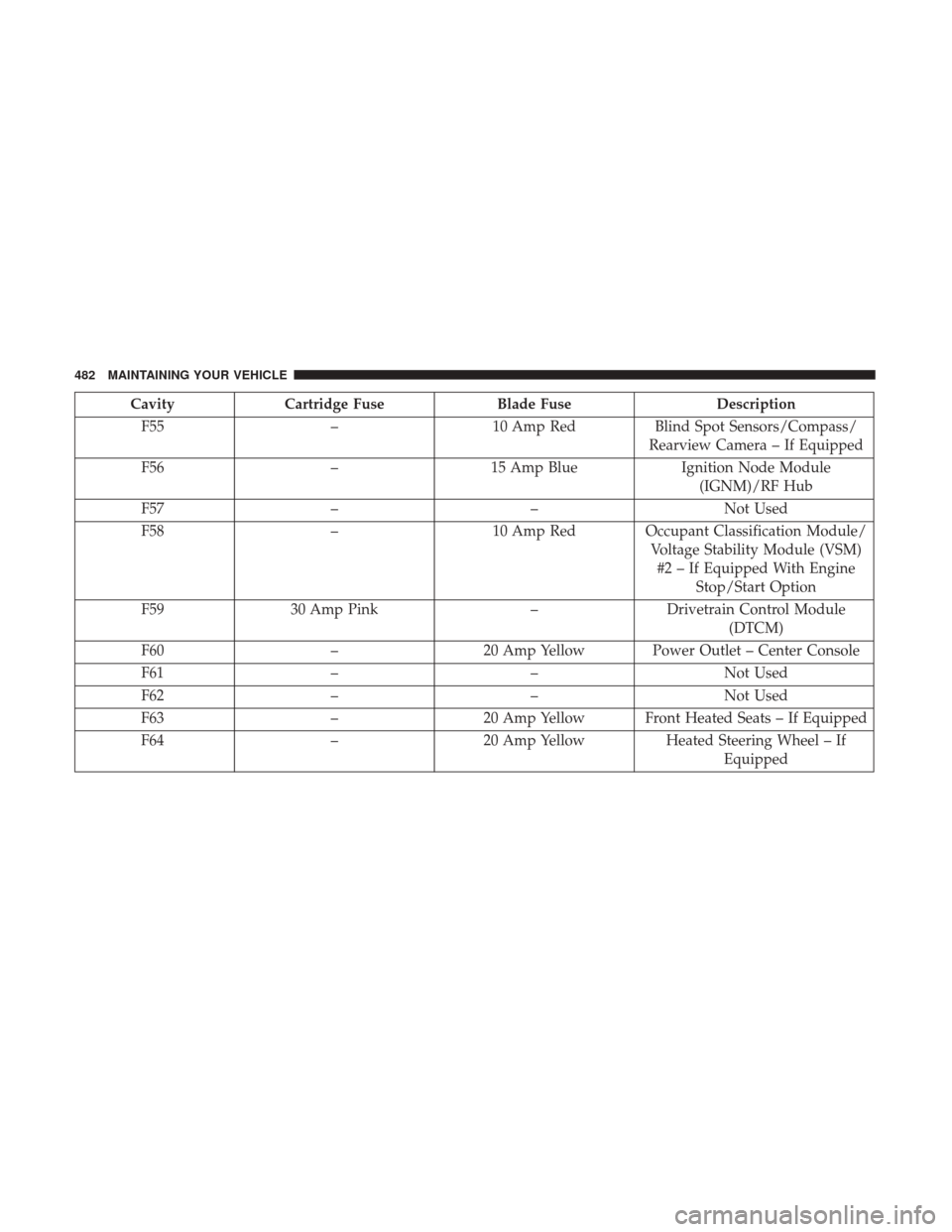

CavityCartridge Fuse Blade Fuse Description
F55 –10 Amp Red Blind Spot Sensors/Compass/
Rearview Camera – If Equipped
F56 –15 Amp Blue Ignition Node Module
(IGNM)/RF Hub
F57 – –Not Used
F58 –10 Amp Red Occupant Classification Module/
Voltage Stability Module (VSM)#2 – If Equipped With Engine Stop/Start Option
F59 30 Amp Pink –Drivetrain Control Module
(DTCM)
F60 –20 Amp Yellow Power Outlet – Center Console
F61 – –Not Used
F62 – –Not Used
F63 –20 Amp Yellow Front Heated Seats – If Equipped
F64 –20 Amp Yellow Heated Steering Wheel – If
Equipped
482 MAINTAINING YOUR VEHICLE

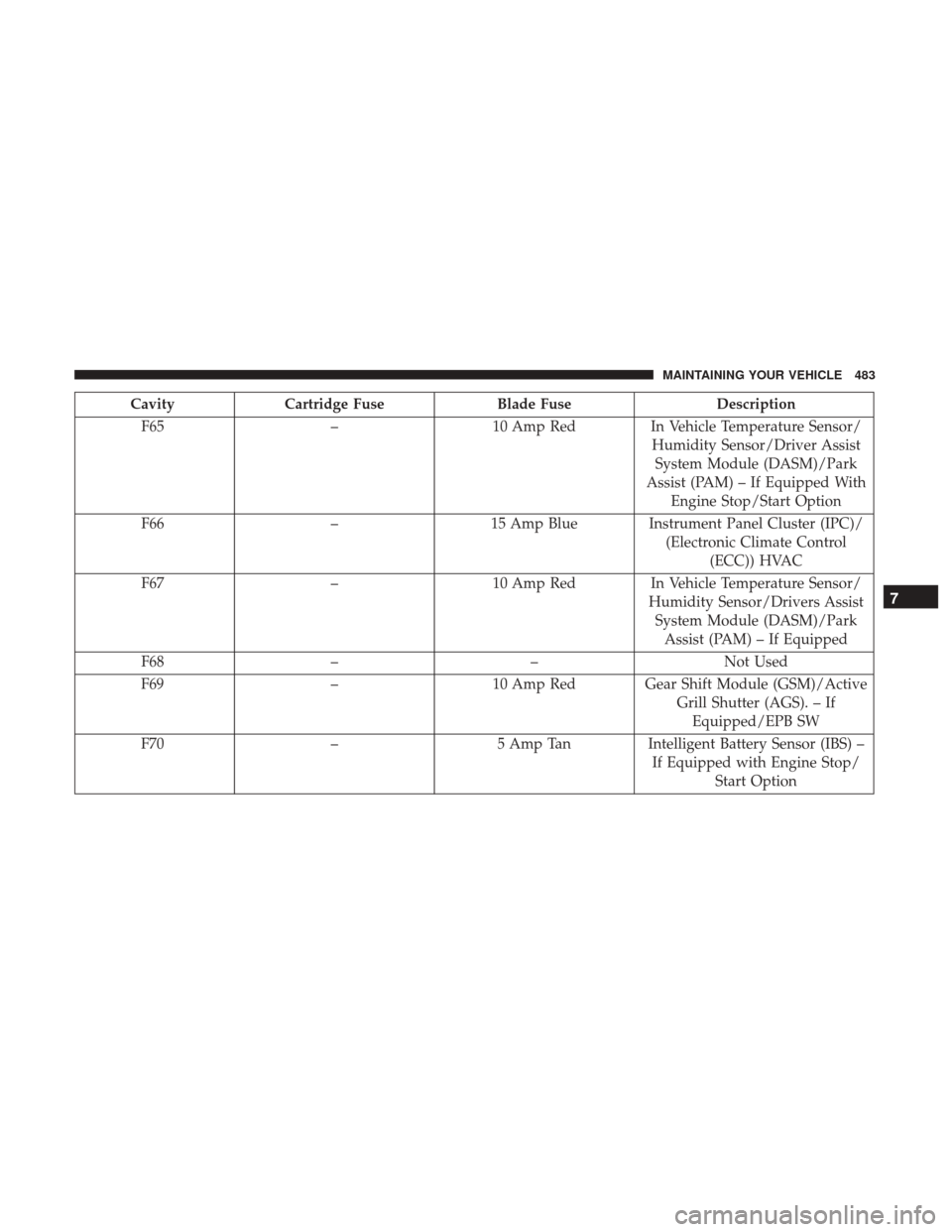

CavityCartridge Fuse Blade Fuse Description
F65 –10 Amp RedIn Vehicle Temperature Sensor/
Humidity Sensor/Driver Assist System Module (DASM)/Park
Assist (PAM) – If Equipped With Engine Stop/Start Option
F66 –15 Amp Blue Instrument Panel Cluster (IPC)/
(Electronic Climate Control(ECC)) HVAC
F67 –10 Amp RedIn Vehicle Temperature Sensor/
Humidity Sensor/Drivers Assist System Module (DASM)/Park Assist (PAM) – If Equipped
F68 – –Not Used
F69 –10 Amp Red Gear Shift Module (GSM)/Active
Grill Shutter (AGS). – IfEquipped/EPB SW
F70 –5 Amp TanIntelligent Battery Sensor (IBS) –
If Equipped with Engine Stop/ Start Option
7
MAINTAINING YOUR VEHICLE 483

CavityCartridge Fuse Blade Fuse Description
F71 –20 Amp Yellow HID Headlamp Right – If
Equipped with Engine Stop/Start Option
F72 –10 Amp Red Heated Mirrors – If Equipped
F73 – –Not Used
F74 30 Amp Pink –Rear Defroster/Defogger
F75 –20 Amp Yellow Cigar Lighter
F76 –10 Amp Red Drivers Window SW– If
Equipped
F77 –10 Amp Red UCI Port/Brake Pedal Switch
F78 –10 Amp Red Diagnostic Port/Steering Column
Control Module (SCCM)
F79 –10 Amp Red Integrated Center Stack (ICS)/
Switch Bank/Instrument Panel Cluster (IPC)/EPB SW
F80 –20 Amp Yellow Radio
F81 – –Not Used
F82 – –Not Used
F83 20 Amp Blue –Engine Control Module (ECM)
484 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Blade Fuse Description
F84 30 Amp Pink –Electric Park Brake (EPB) – Left
F85 – –Not Used
F86 –20 Amp Yellow Horns – If Equipped With Engine
Stop/Start Option
F87A –20 Amp Yellow HID Headlamp Left – If
Equipped Engine Stop/Start Op- tion
F88 –10 Amp Red Collision Mitigation Module
(CMM)/Electrochromatic Mirror/ Haptic Lane Feedback Module (Half)/Humidity Sensor– If Equipped
F89 – –Not Used
F90 – –Not Used
F91 – –Not Used
F92 – –Not Used
F93 40 Amp Green –Brake System Module (BSM) –
Pump Motor – If Equipped
F94 30 Amp Pink –Electric Park Brake (EPB) – Right
7
MAINTAINING YOUR VEHICLE 485

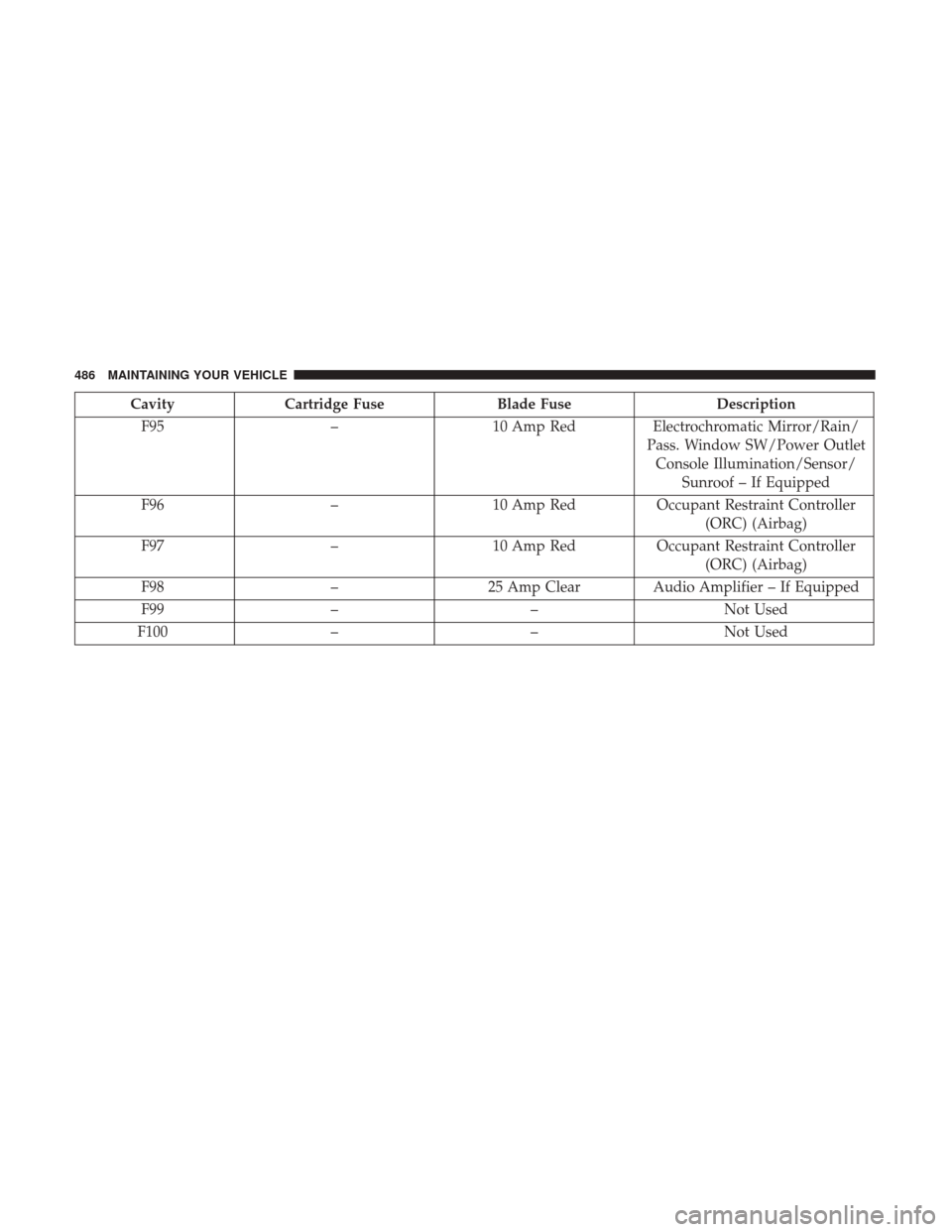

CavityCartridge Fuse Blade Fuse Description
F95 –10 Amp RedElectrochromatic Mirror/Rain/
Pass. Window SW/Power Outlet Console Illumination/Sensor/ Sunroof – If Equipped
F96 –10 Amp Red Occupant Restraint Controller
(ORC) (Airbag)
F97 –10 Amp Red Occupant Restraint Controller
(ORC) (Airbag)
F98 –25 Amp Clear Audio Amplifier – If Equipped
F99 – –Not Used
F100 – –Not Used
486 MAINTAINING YOUR VEHICLE

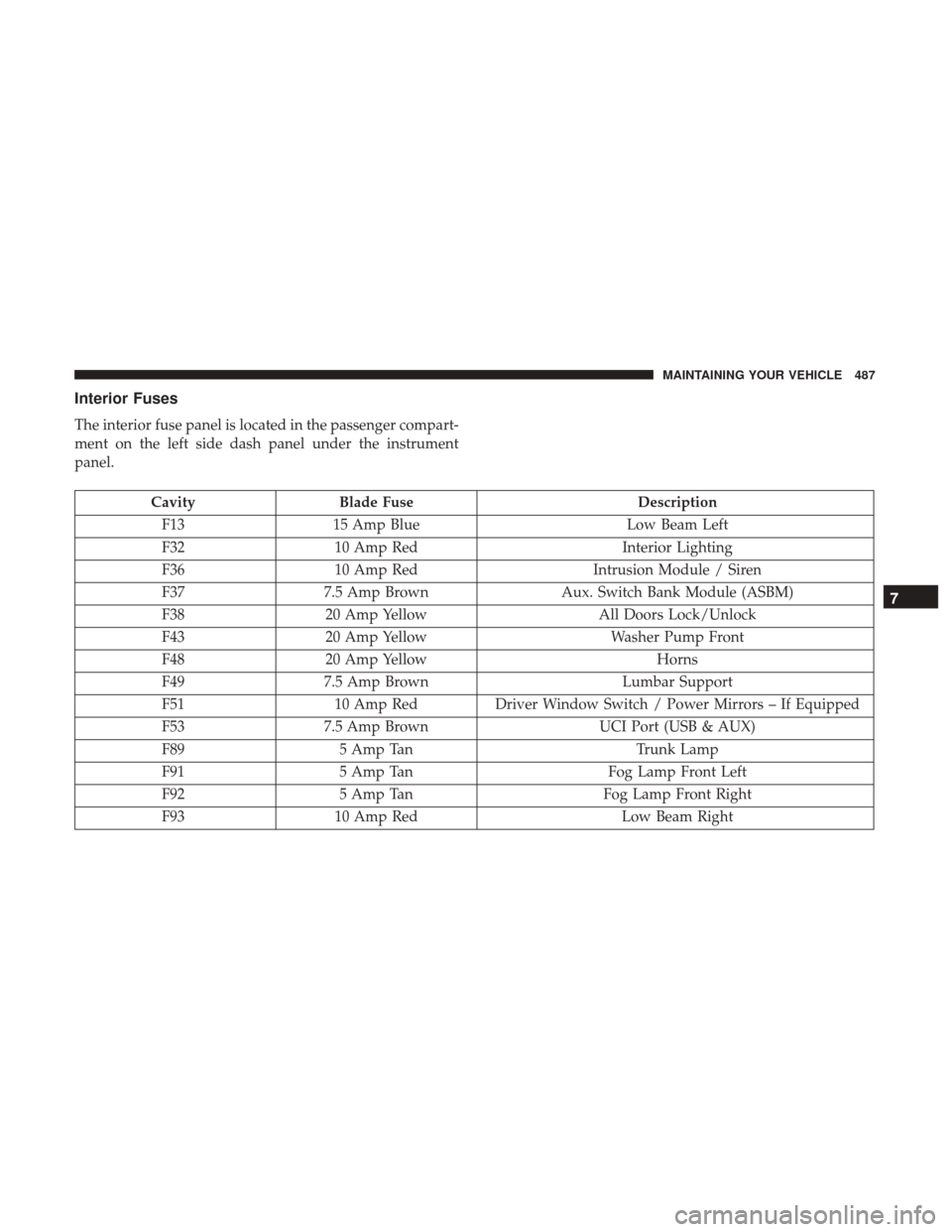

Interior Fuses
The interior fuse panel is located in the passenger compart-
ment on the left side dash panel under the instrument
panel.
CavityBlade Fuse Description
F13 15 Amp Blue Low Beam Left
F32 10 Amp Red Interior Lighting
F36 10 Amp Red Intrusion Module / Siren
F37 7.5 Amp Brown Aux. Switch Bank Module (ASBM)
F38 20 Amp Yellow All Doors Lock/Unlock
F43 20 Amp Yellow Washer Pump Front
F48 20 Amp Yellow Horns
F49 7.5 Amp Brown Lumbar Support
F51 10 Amp RedDriver Window Switch / Power Mirrors – If Equipped
F53 7.5 Amp Brown UCI Port (USB & AUX)
F89 5 Amp Tan Trunk Lamp
F91 5 Amp Tan Fog Lamp Front Left
F92 5 Amp Tan Fog Lamp Front Right
F93 10 Amp Red Low Beam Right
7
MAINTAINING YOUR VEHICLE 487

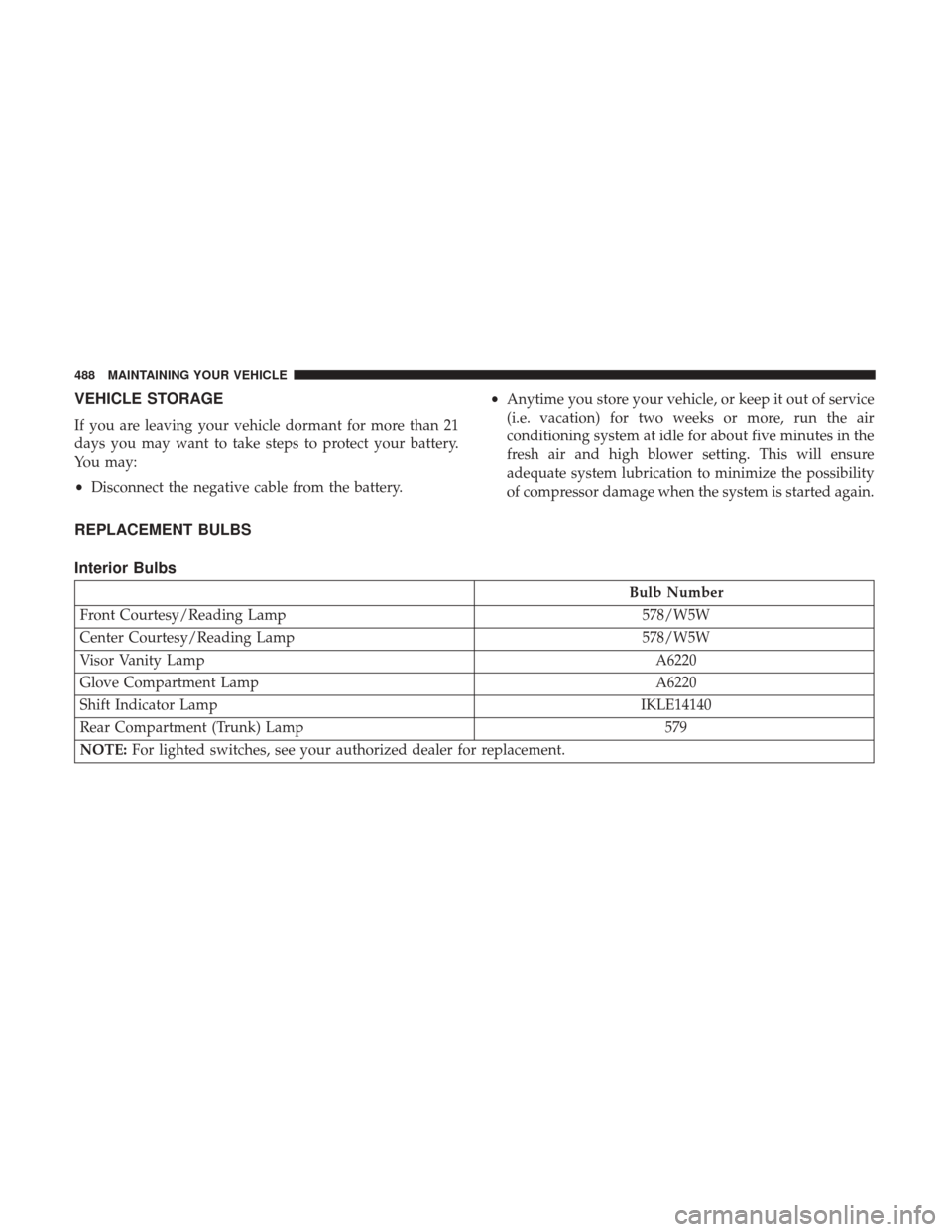

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
•Disconnect the negative cable from the battery. •
Anytime you store your vehicle, or keep it out of service
(i.e. vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Courtesy/Reading Lamp 578/W5W
Center Courtesy/Reading Lamp 578/W5W
Visor Vanity Lamp A6220
Glove Compartment Lamp A6220
Shift Indicator Lamp IKLE14140
Rear Compartment (Trunk) Lamp 579
NOTE: For lighted switches, see your authorized dealer for replacement.
488 MAINTAINING YOUR VEHICLE
