Page 451 of 517

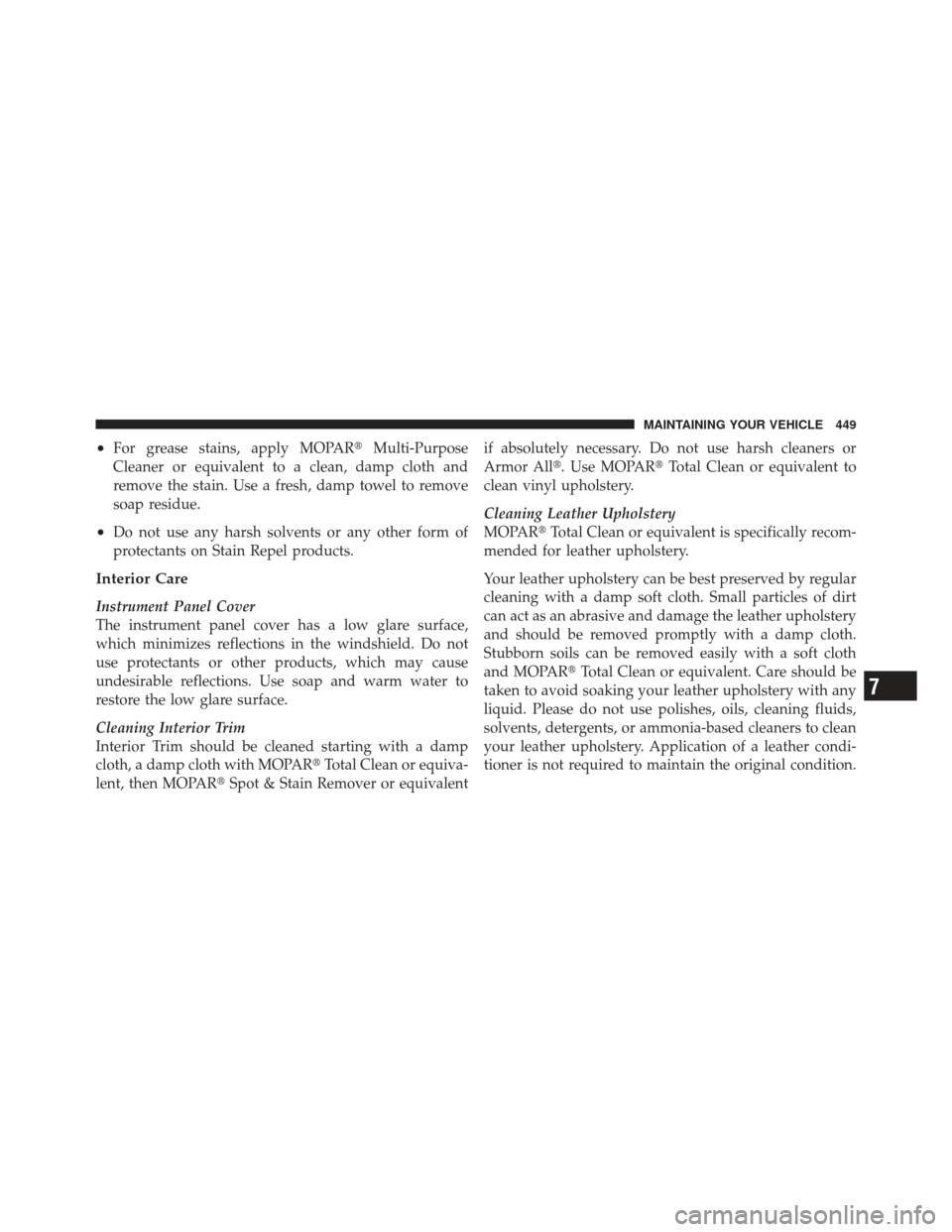

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual •For grease stains, apply MOPARMulti-Purpose
Cleaner or equivalent to a clean, damp cloth and
remove the stain. Use a fresh, damp towel to remove
soap residue.
•Do not use any harsh solvents or a

Page 452 of 517

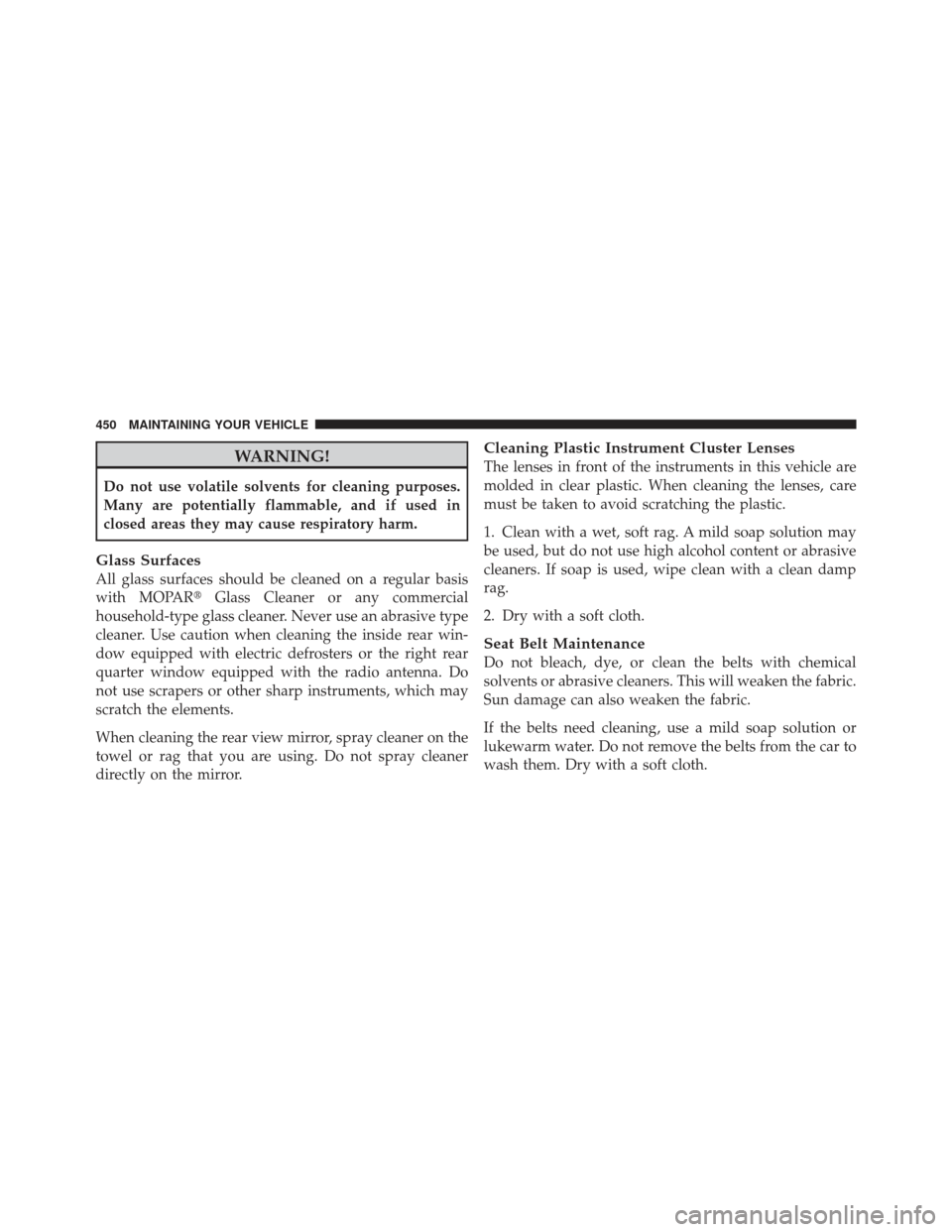

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Glass Surfaces
All glass surfaces should be cl

Page 453 of 517

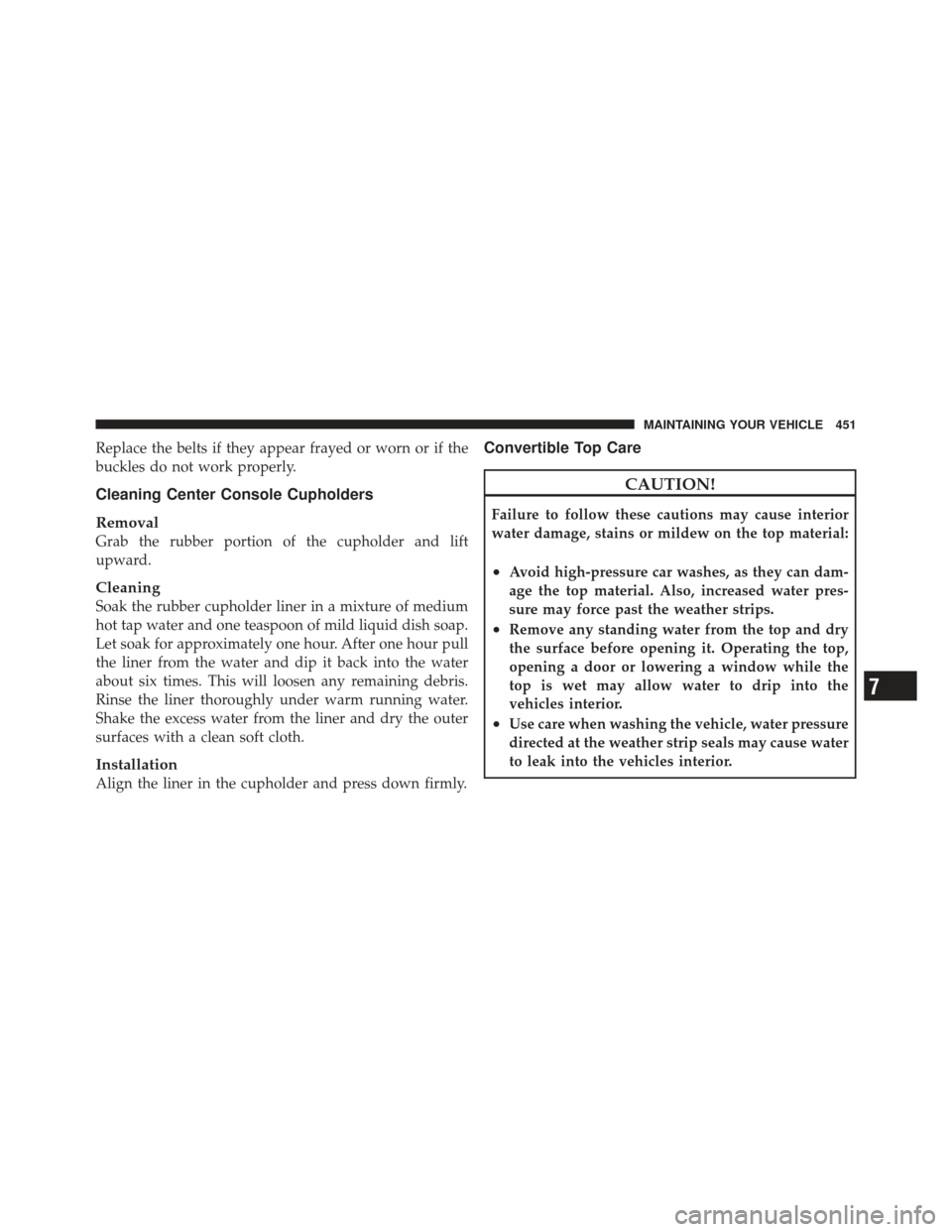

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Cleaning Center Console Cupholders
Removal
Grab the rubber portion of the cupholder and lift
upward.
Cleaning
So

Page 454 of 517

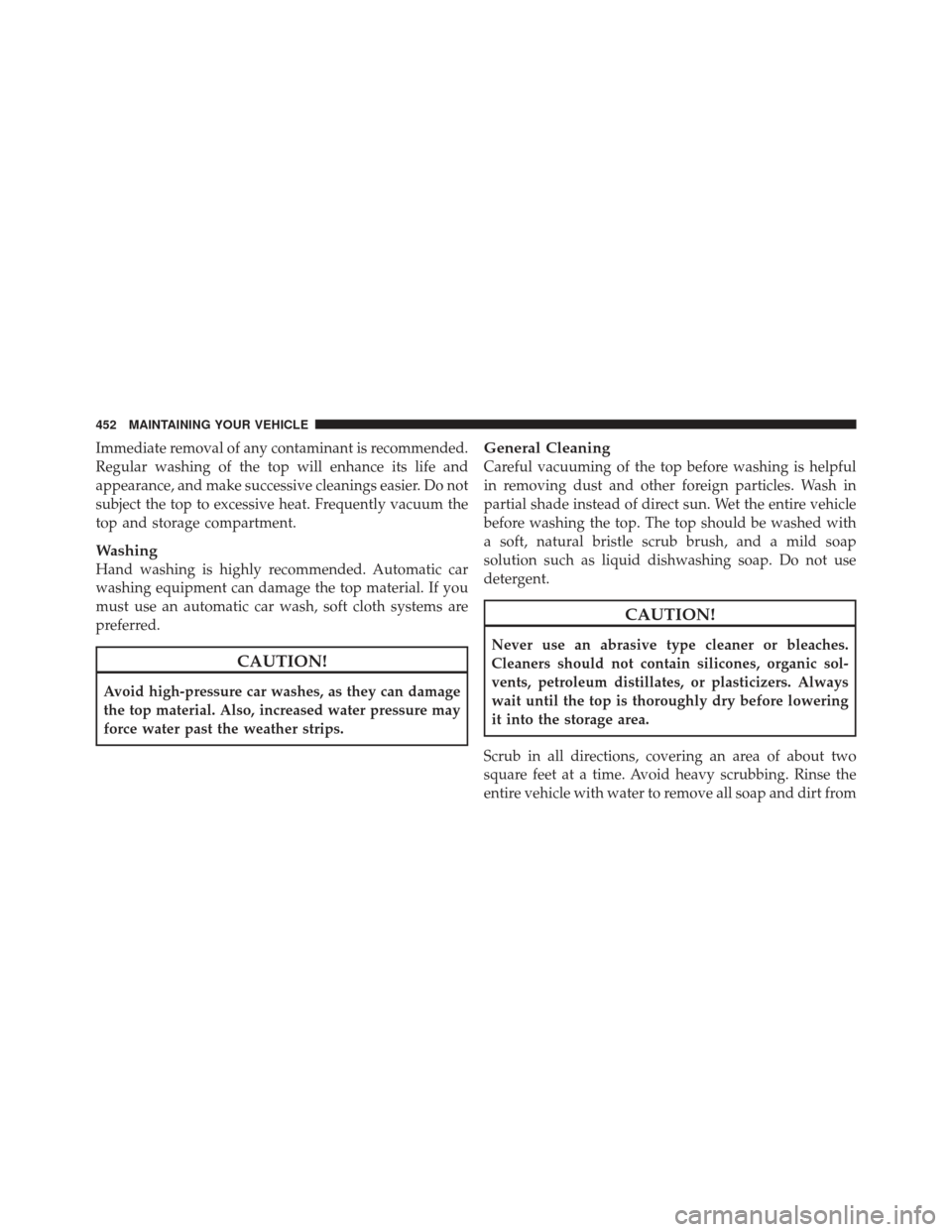

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual Immediate removal of any contaminant is recommended.
Regular washing of the top will enhance its life and
appearance, and make successive cleanings easier. Do not
subject the top to excessive heat. Fr

Page 455 of 517

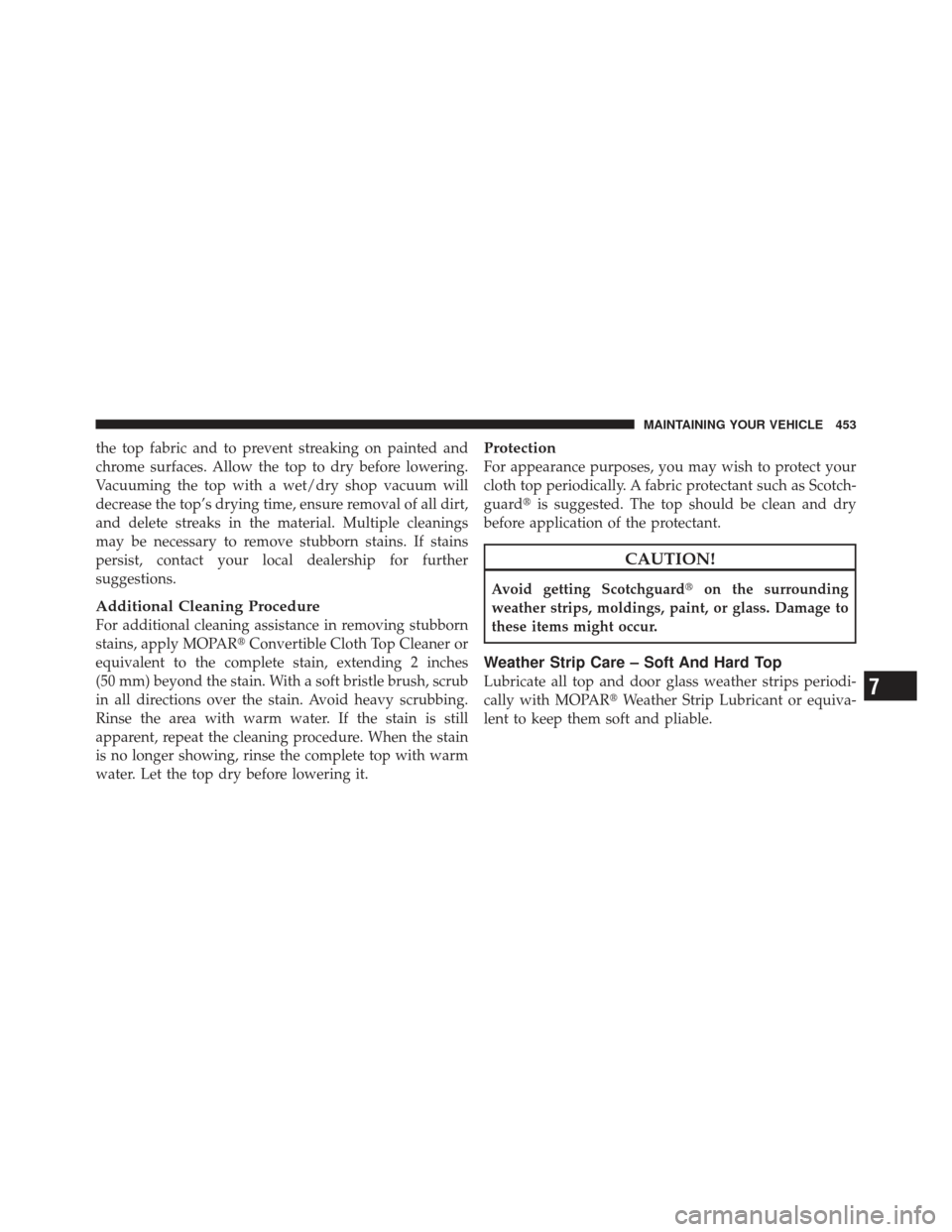

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual the top fabric and to prevent streaking on painted and
chrome surfaces. Allow the top to dry before lowering.
Vacuuming the top with a wet/dry shop vacuum will
decrease the top’s drying time, ensure

Page 456 of 517

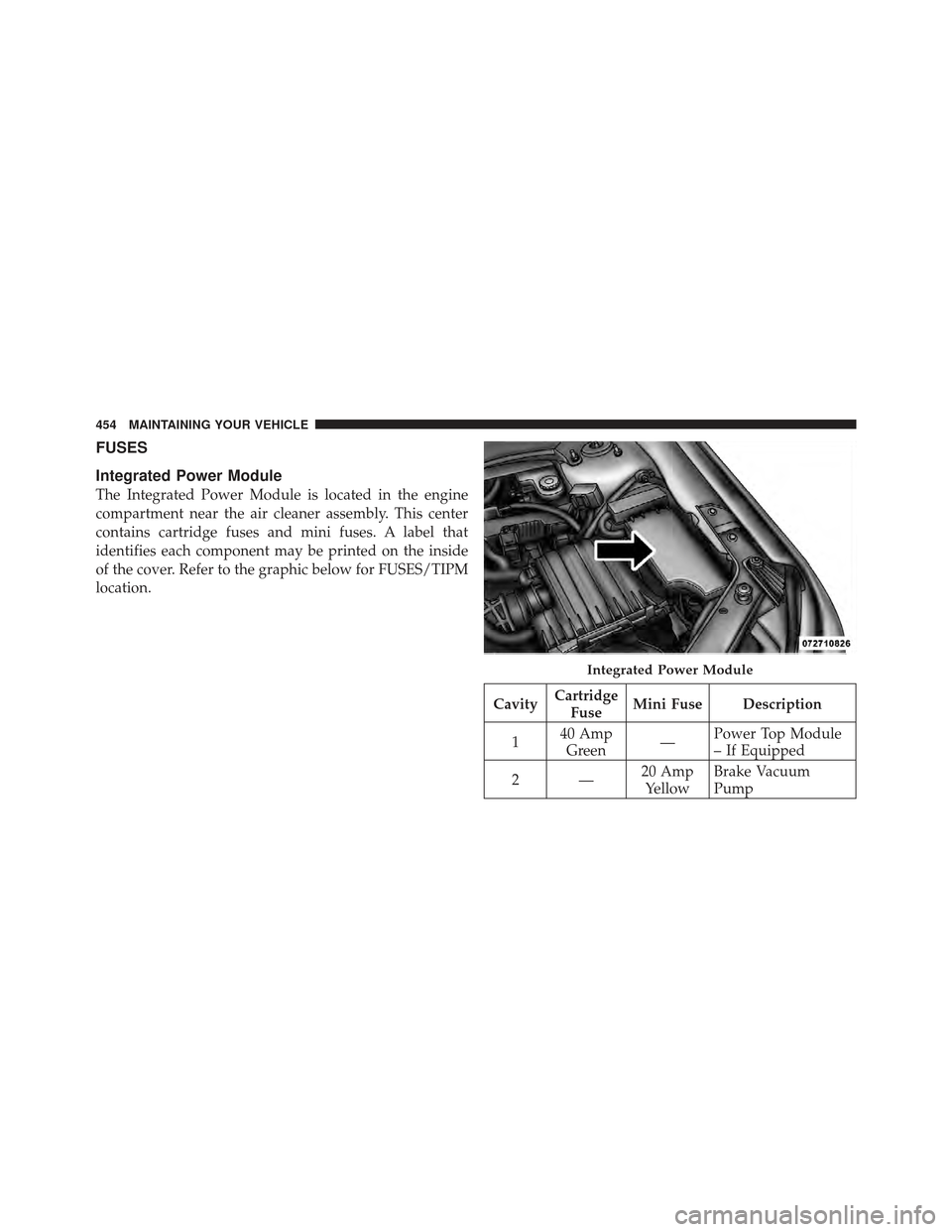

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual FUSES
Integrated Power Module
The Integrated Power Module is located in the engine
compartment near the air cleaner assembly. This center
contains cartridge fuses and mini fuses. A label that
identifi

Page 457 of 517

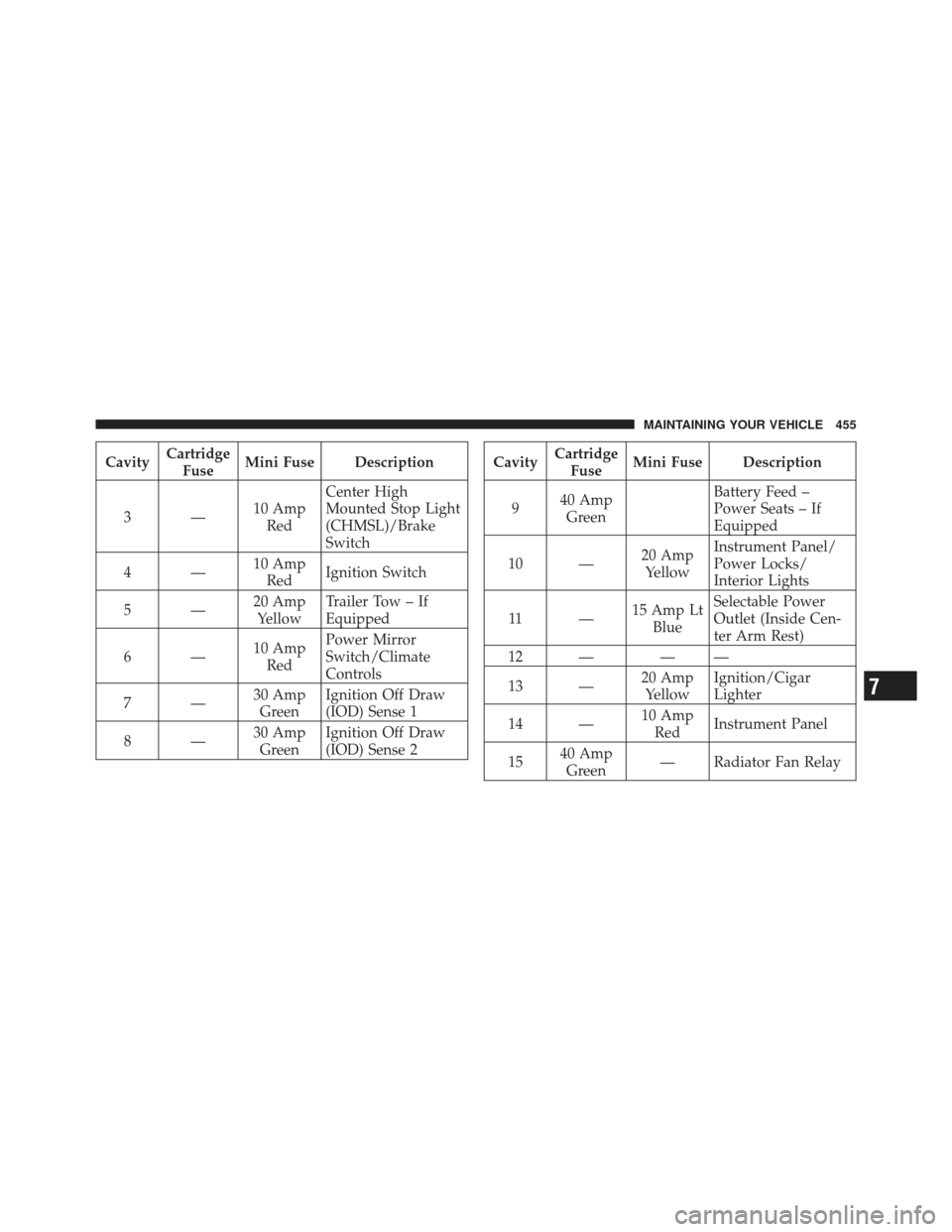

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual CavityCartridge
Fuse Mini Fuse Description
3— 10 Amp
Red Center High
Mounted Stop Light
(CHMSL)/Brake
Switch
4— 10 Amp
Red Ignition Switch
5— 20 Amp
Yellow Trailer Tow – If
Equipped
6— 10 Am

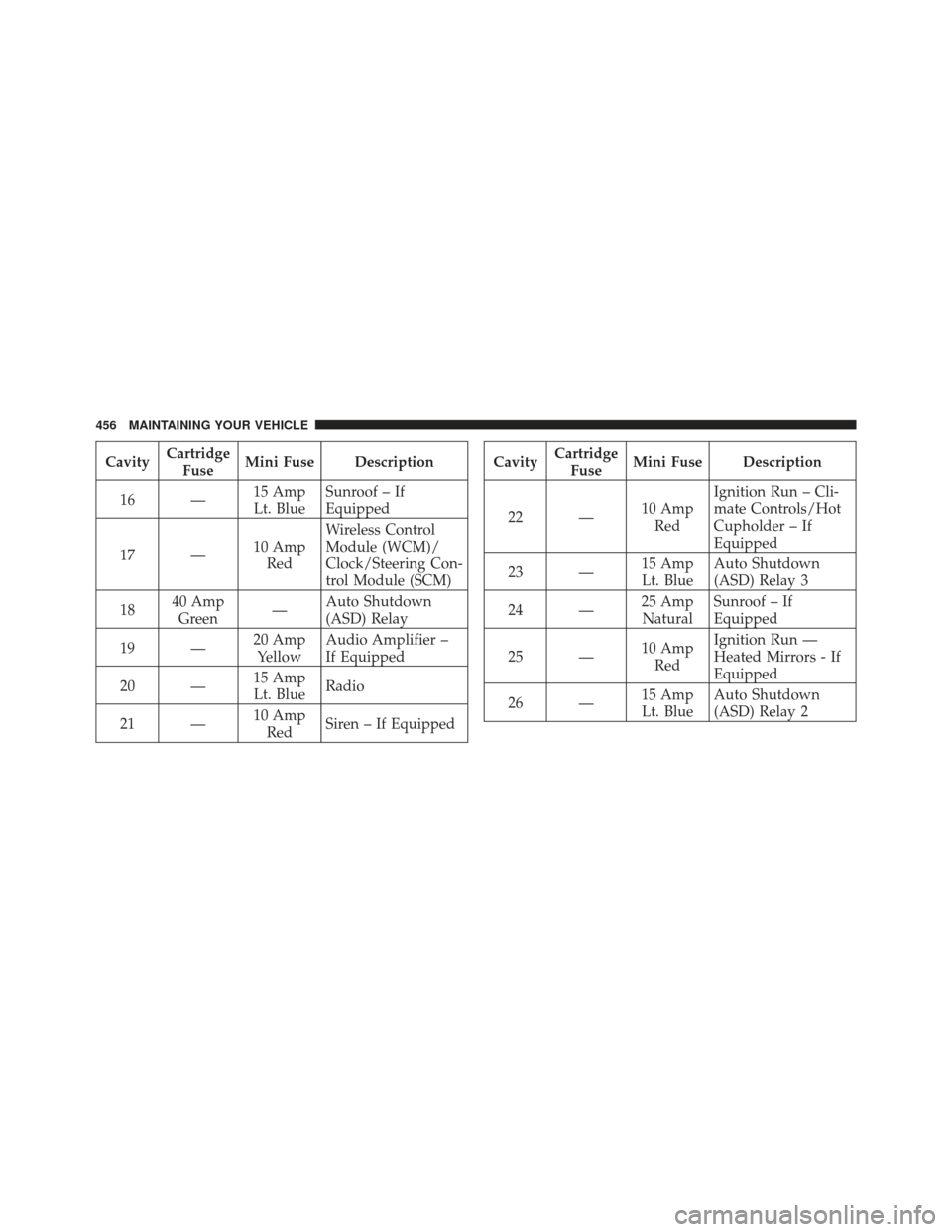

Page 458 of 517

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual CavityCartridge
Fuse Mini Fuse Description
16 — 15 Amp
Lt. Blue Sunroof – If
Equipped
17 — 10 Amp
Red Wireless Control
Module (WCM)/
Clock/Steering Con-
trol Module (SCM)
18 40 Amp
Green —Auto

Page 459 of 517

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual CavityCartridge
Fuse Mini Fuse Description
27 — 10 Amp
Red Ignition Run – Oc-
cupant Classifica-
tion Module
(OCM)/Occupant
Restraint Controller
(ORC)
28 — 10 Amp
Red Ignition Run — Oc-
cupant

Page 460 of 517

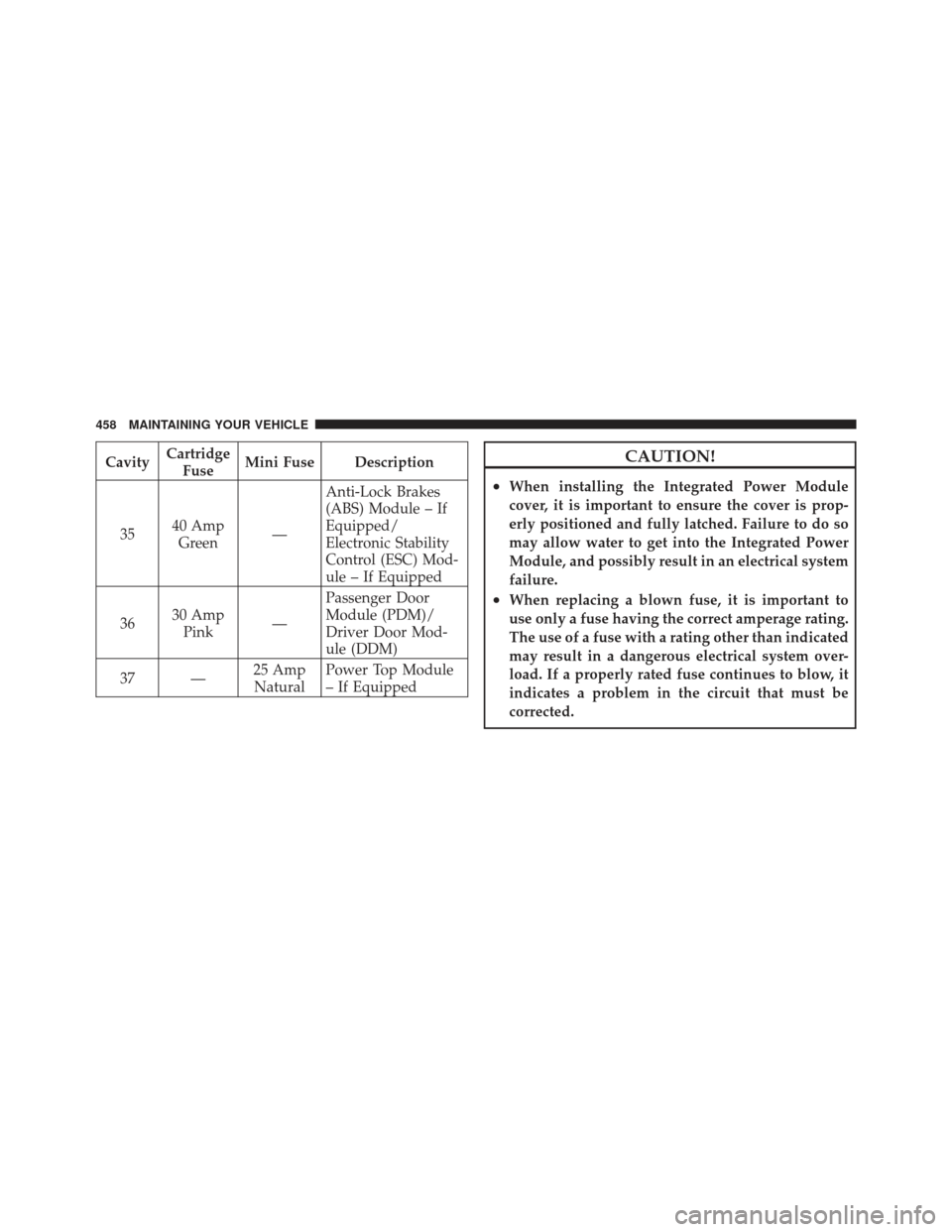

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual CavityCartridge
Fuse Mini Fuse Description
35 40 Amp
Green —Anti-Lock Brakes
(ABS) Module – If
Equipped/
Electronic Stability
Control (ESC) Mod-
ule – If Equipped
36 30 Amp
Pink —Passenger Doo
