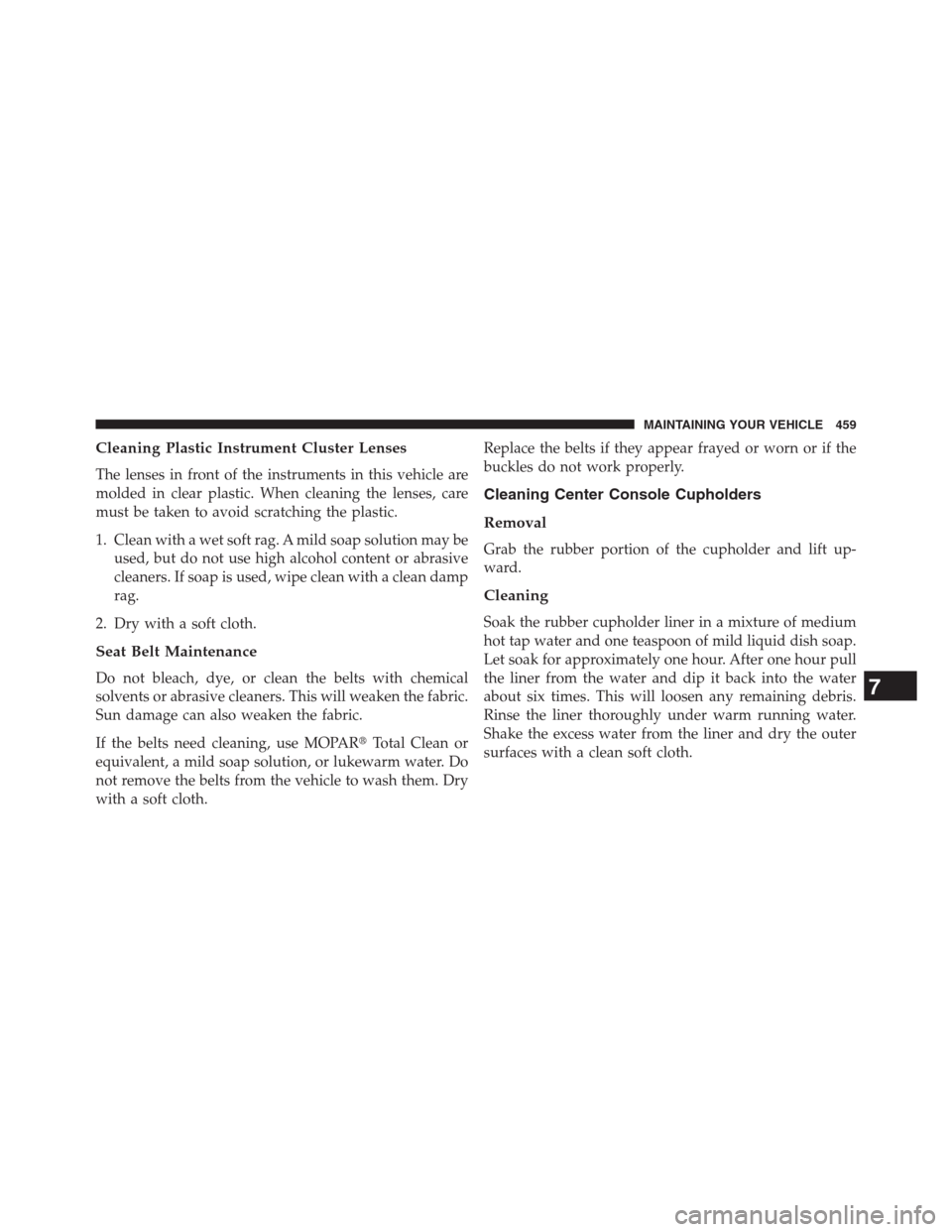

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plas

Page 462 of 519

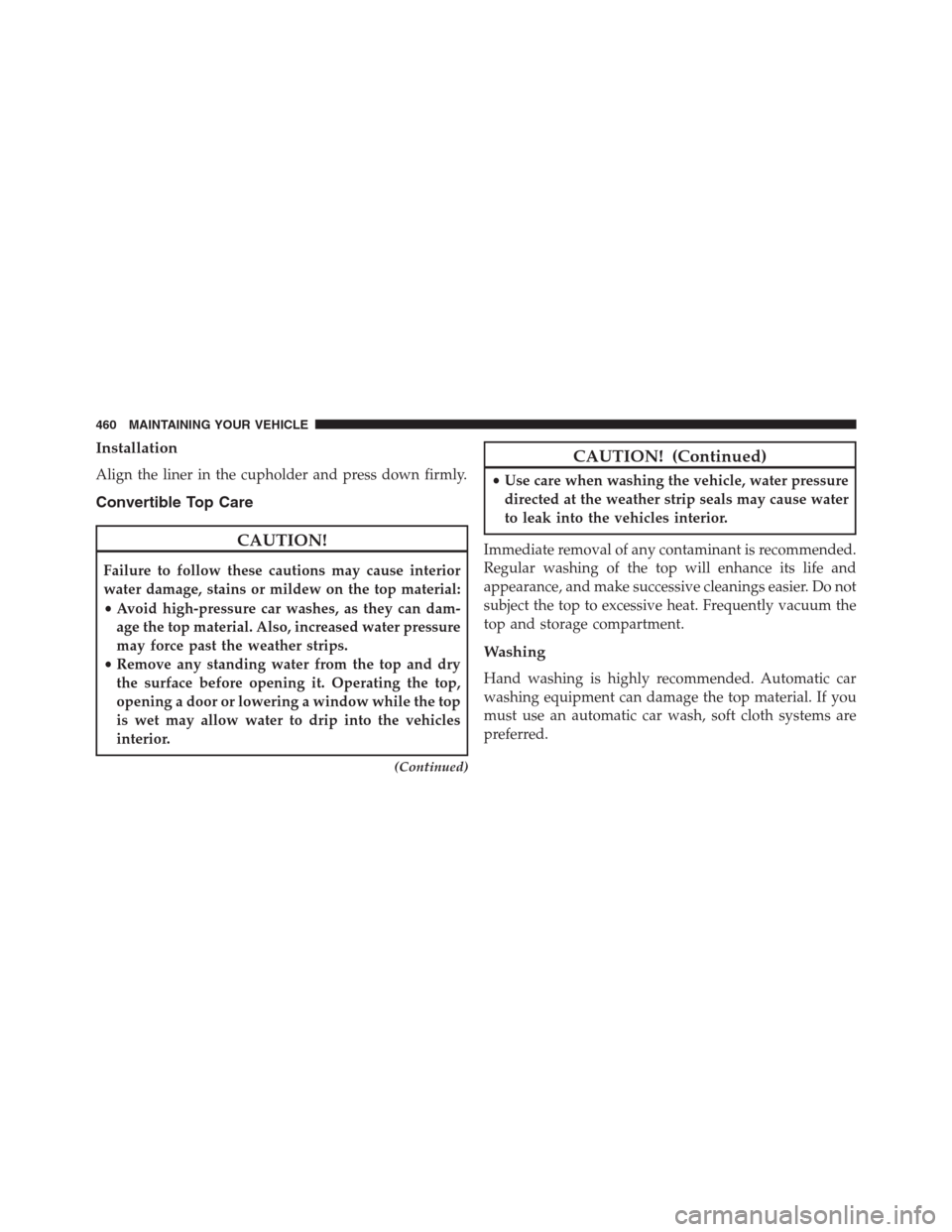

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual Installation
Align the liner in the cupholder and press down firmly.
Convertible Top Care
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top materia

Page 463 of 519

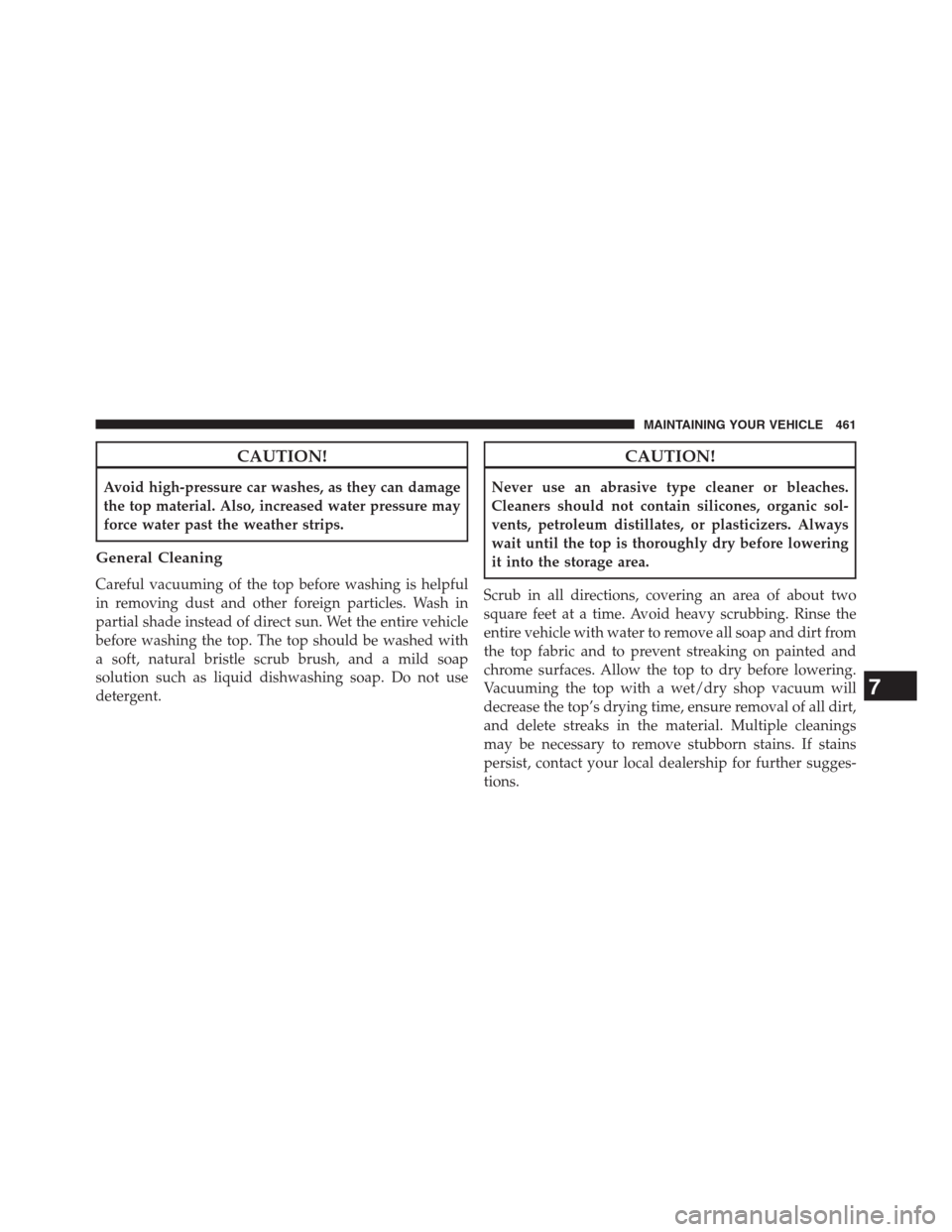

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual CAUTION!
Avoid high-pressure car washes, as they can damage
the top material. Also, increased water pressure may
force water past the weather strips.
General Cleaning
Careful vacuuming of the top befo

Page 464 of 519

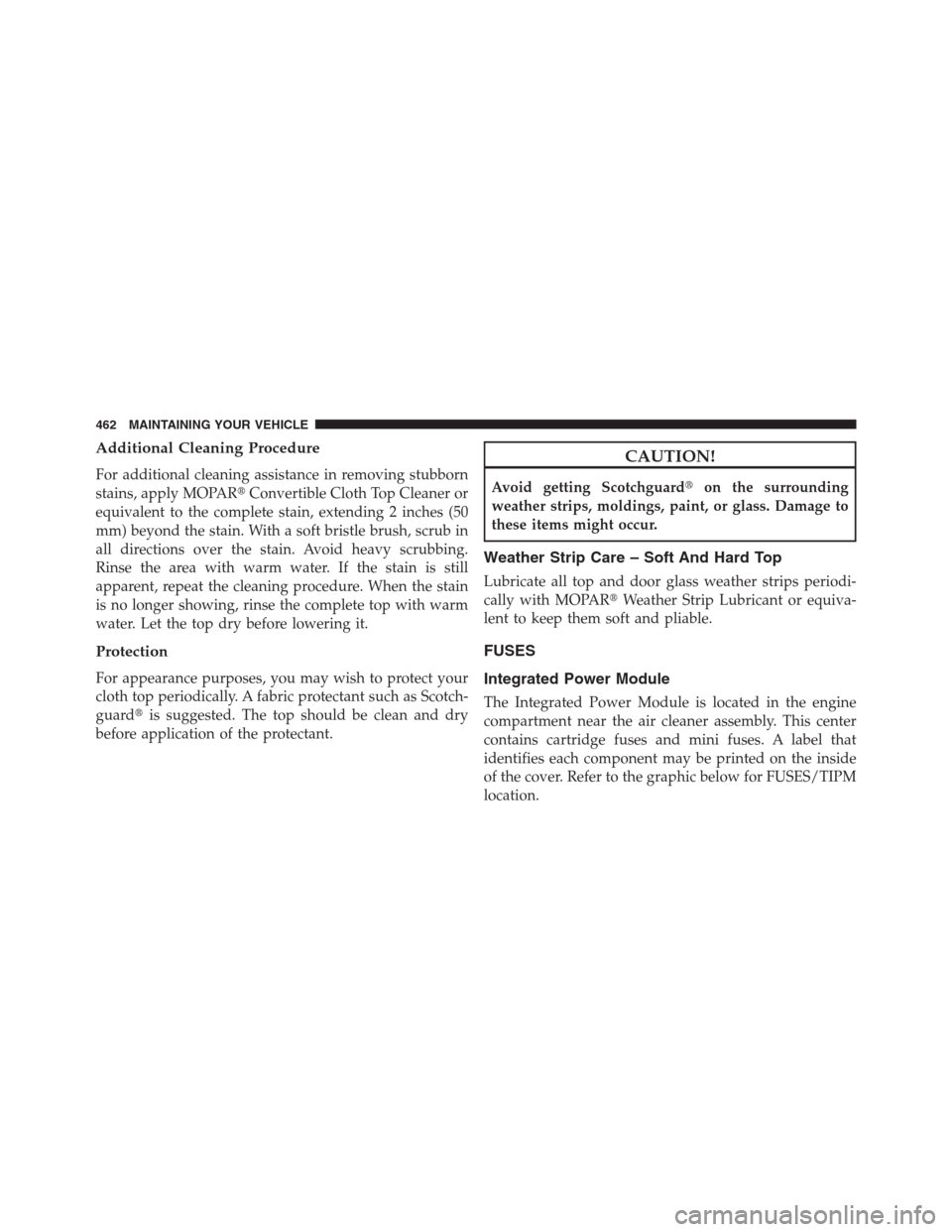

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual Additional Cleaning Procedure
For additional cleaning assistance in removing stubborn
stains, apply MOPARConvertible Cloth Top Cleaner or
equivalent to the complete stain, extending 2 inches (50
mm)

Page 465 of 519

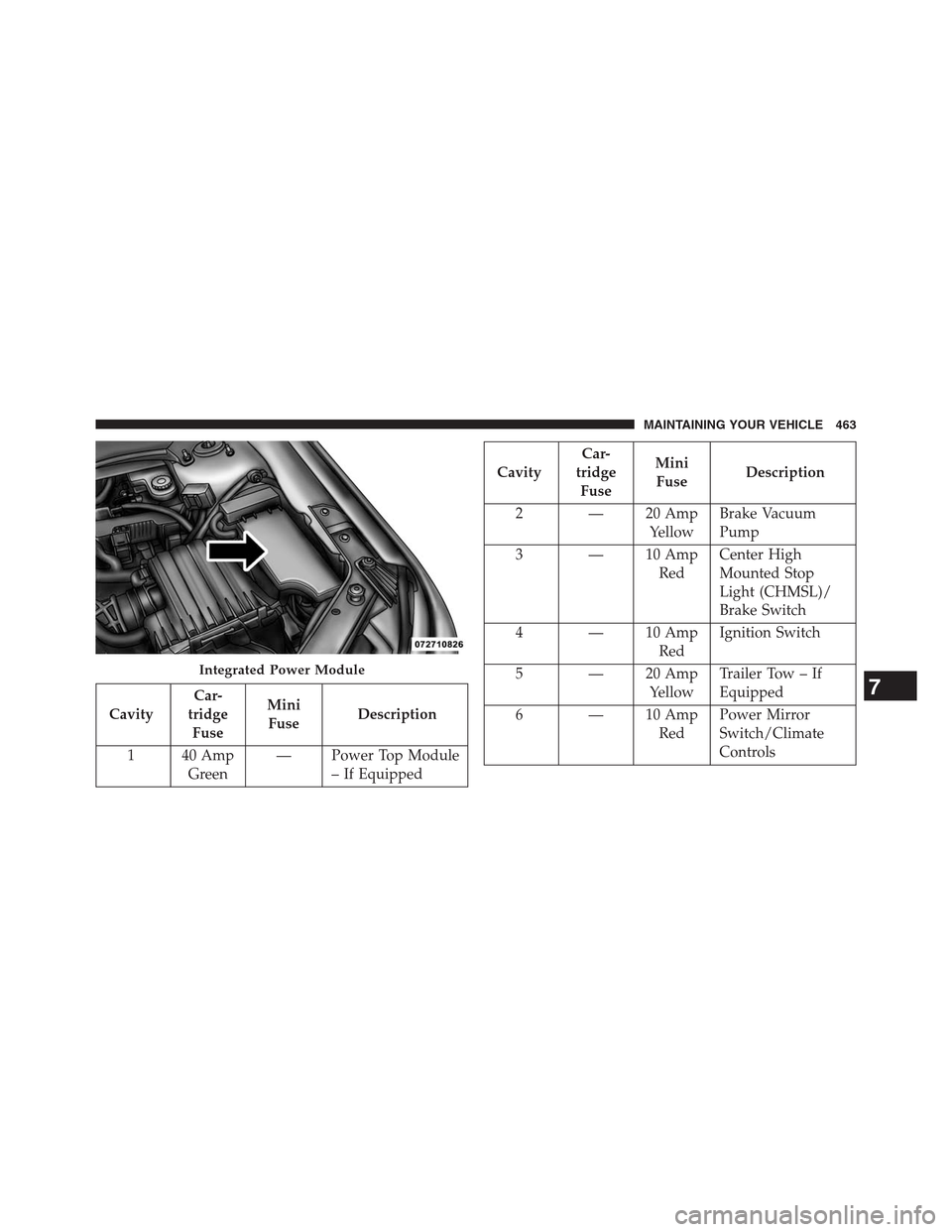

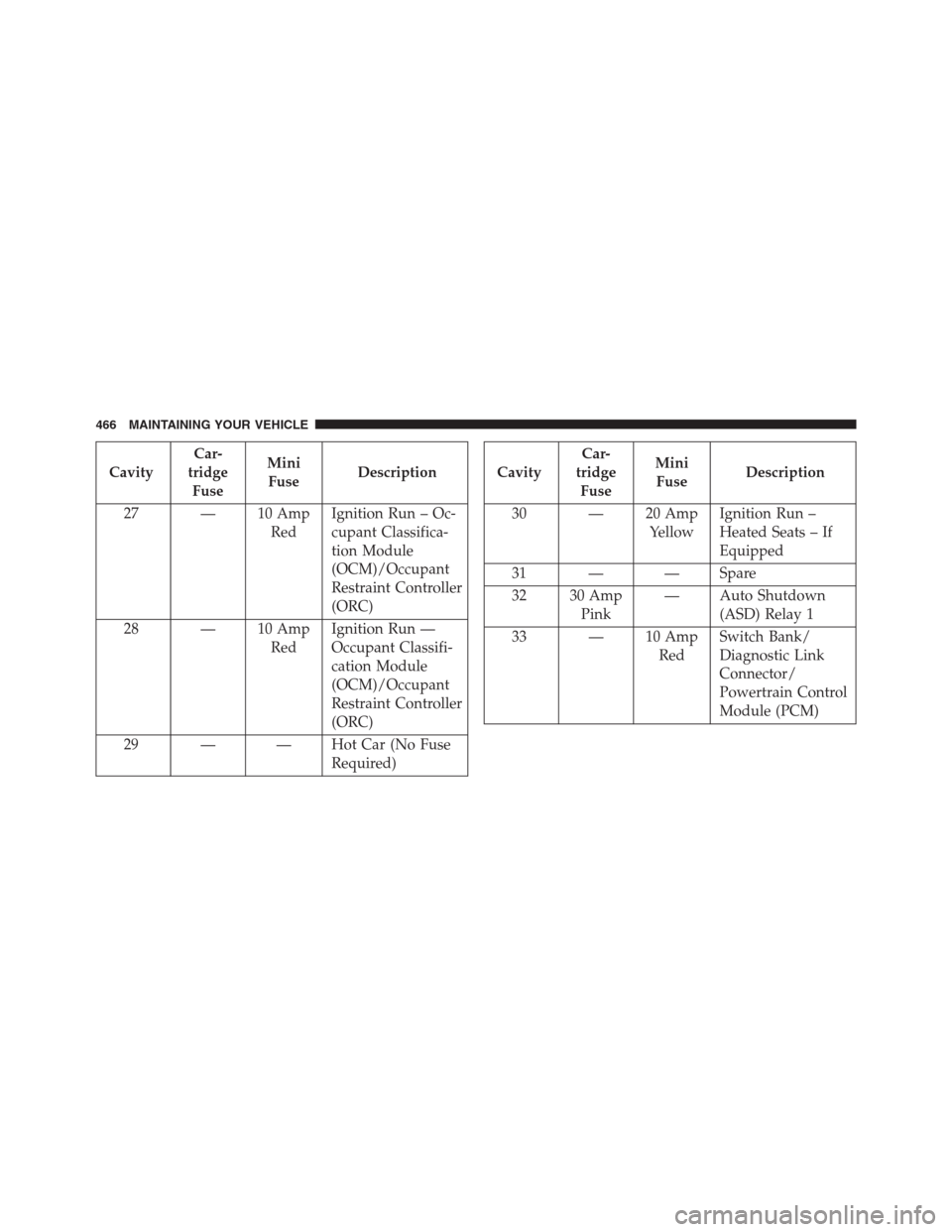

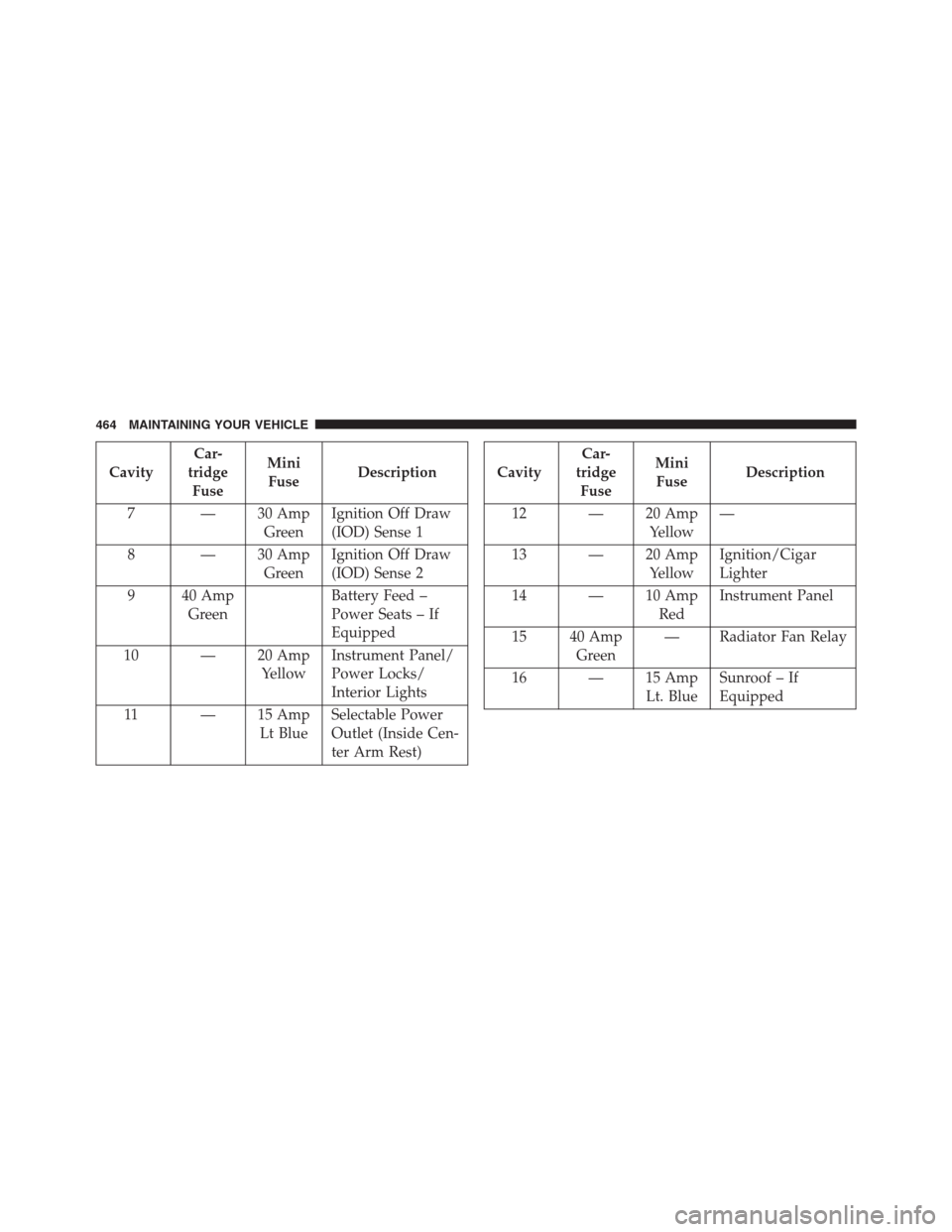

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual CavityCar-
tridge
FuseMini
FuseDescription
1 40 Amp
Green— Power Top Module
– If Equipped
CavityCar-
tridge
FuseMini
FuseDescription
2 — 20 Amp
YellowBrake Vacuum
Pump
3 — 10 Amp
RedCenter Hig

Page 466 of 519

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual CavityCar-
tridge
FuseMini
FuseDescription
7 — 30 Amp
GreenIgnition Off Draw
(IOD) Sense 1
8 — 30 Amp
GreenIgnition Off Draw
(IOD) Sense 2
9 40 Amp
GreenBattery Feed –
Power Seats – If
Equippe

Page 467 of 519

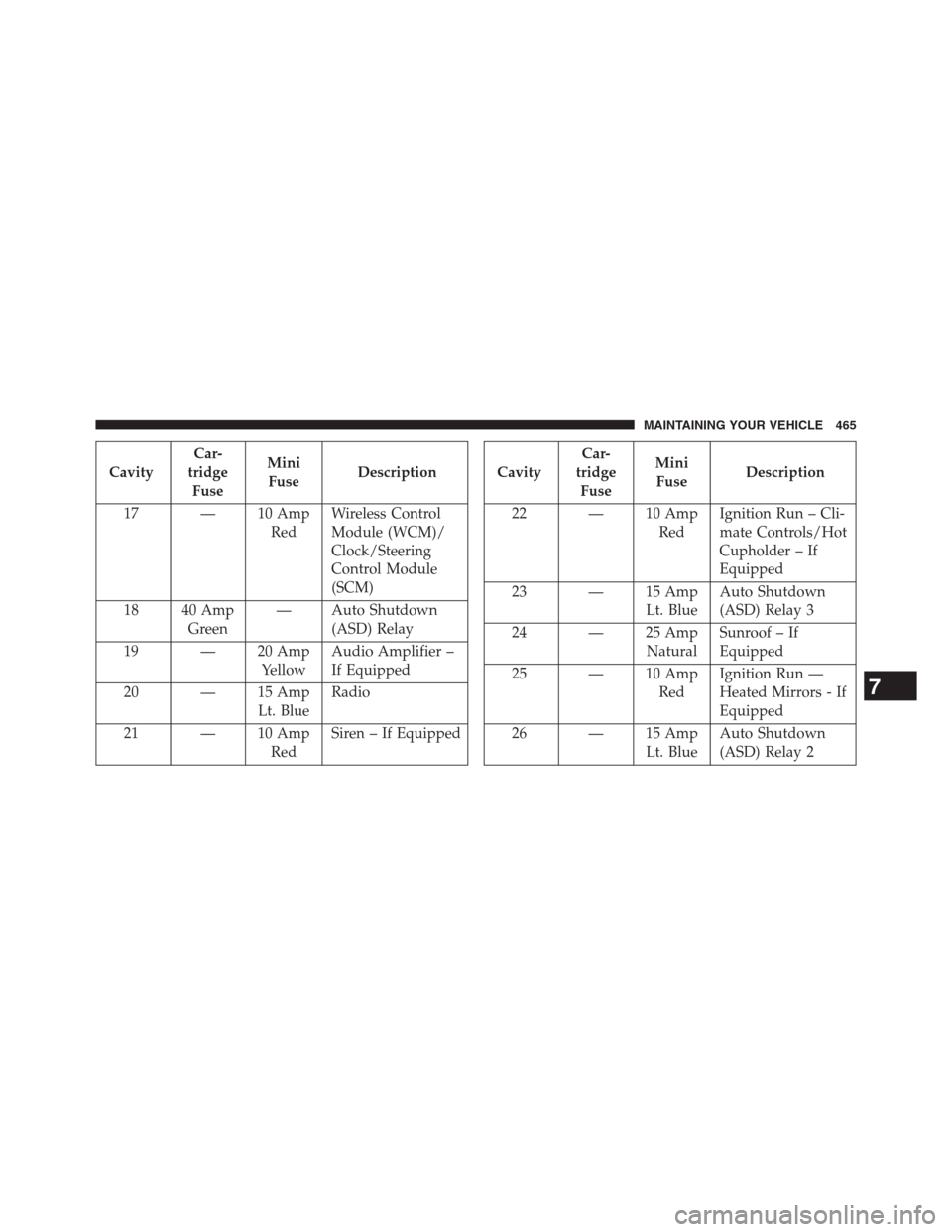

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual CavityCar-
tridge
FuseMini
FuseDescription
17 — 10 Amp
RedWireless Control
Module (WCM)/
Clock/Steering
Control Module
(SCM)
18 40 Amp
Green— Auto Shutdown
(ASD) Relay
19 — 20 Amp
YellowAudio Am

Page 468 of 519

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual CavityCar-
tridge
FuseMini
FuseDescription
27 — 10 Amp
RedIgnition Run – Oc-
cupant Classifica-
tion Module
(OCM)/Occupant
Restraint Controller
(ORC)
28 — 10 Amp
RedIgnition Run —
Occupant Cla

Page 469 of 519

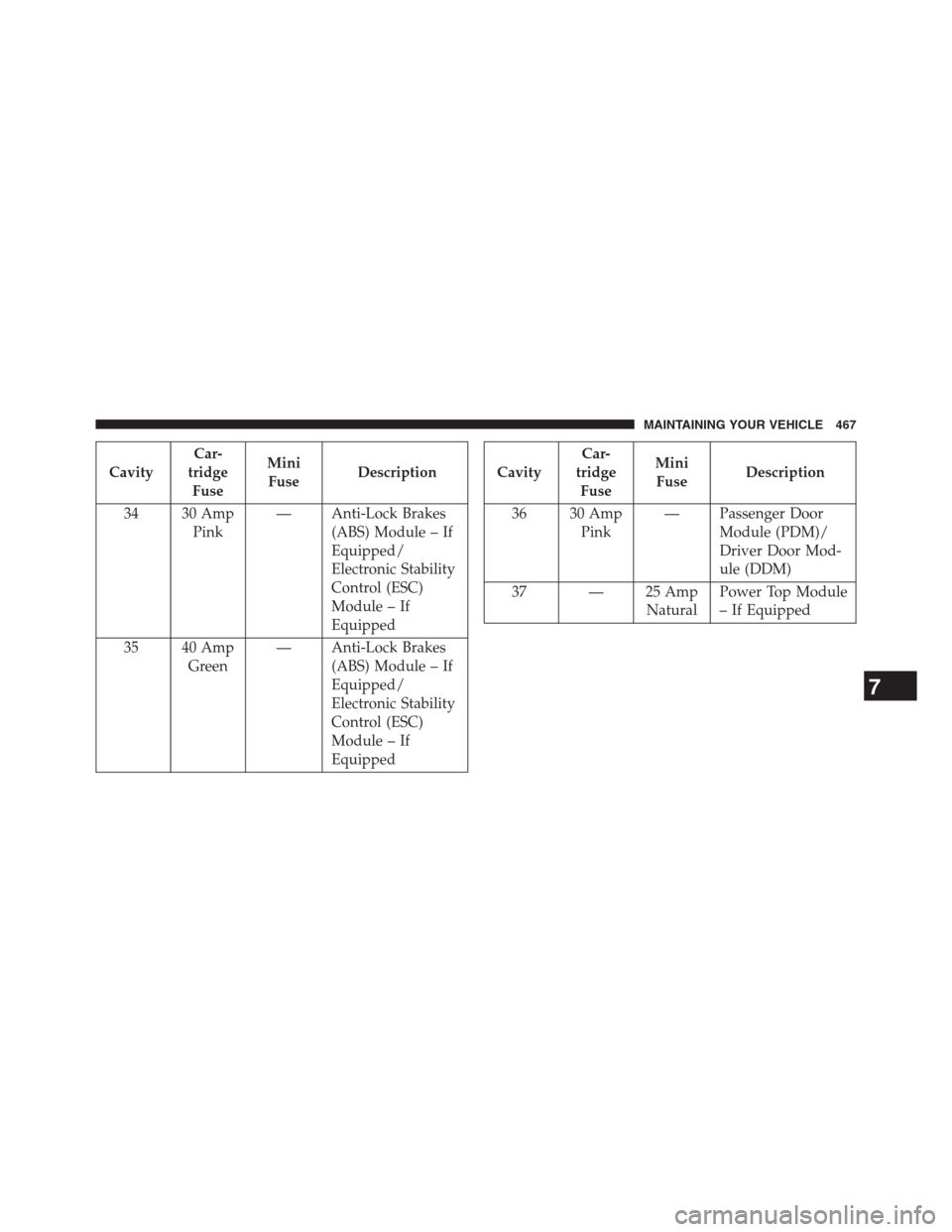

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual CavityCar-
tridge
FuseMini
FuseDescription
34 30 Amp
Pink— Anti-Lock Brakes
(ABS) Module – If
Equipped/
Electronic Stability
Control (ESC)
Module – If
Equipped
35 40 Amp
Green— Anti-Lock Brake

Page 470 of 519

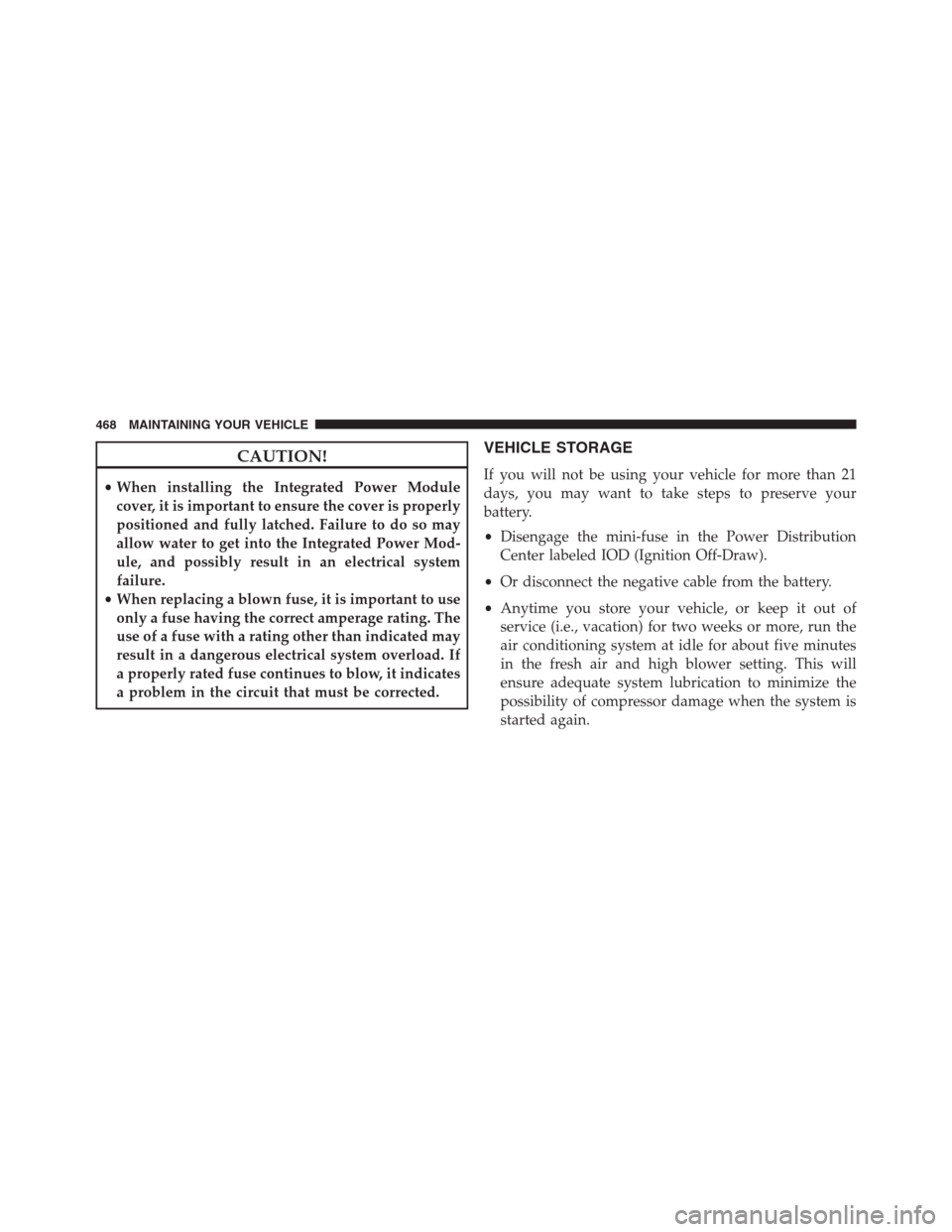

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual CAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the Integrated
