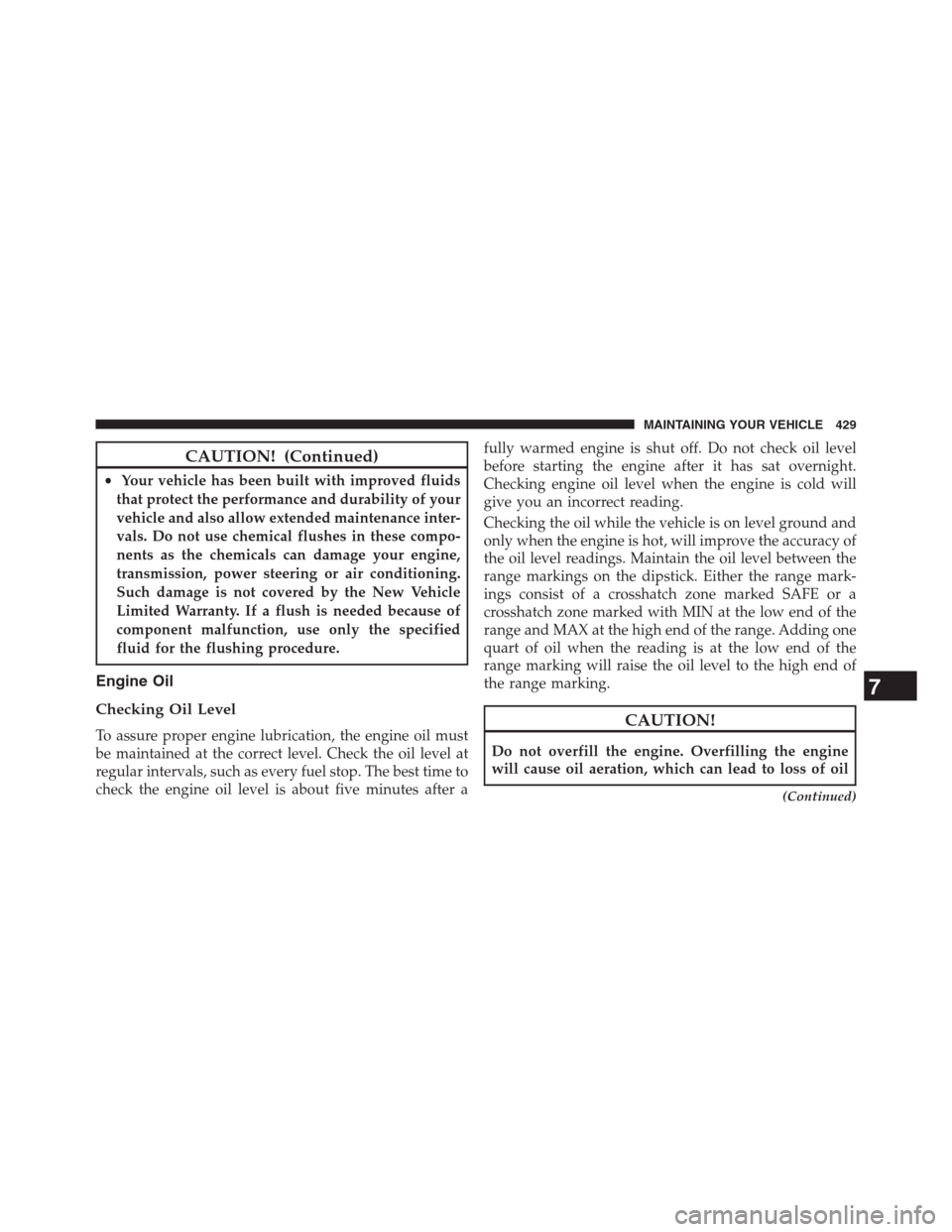

Page 431 of 519

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual CAUTION! (Continued)
•Your vehicle has been built with improved fluids
that protect the performance and durability of your
vehicle and also allow extended maintenance inter-
vals. Do not use chemica

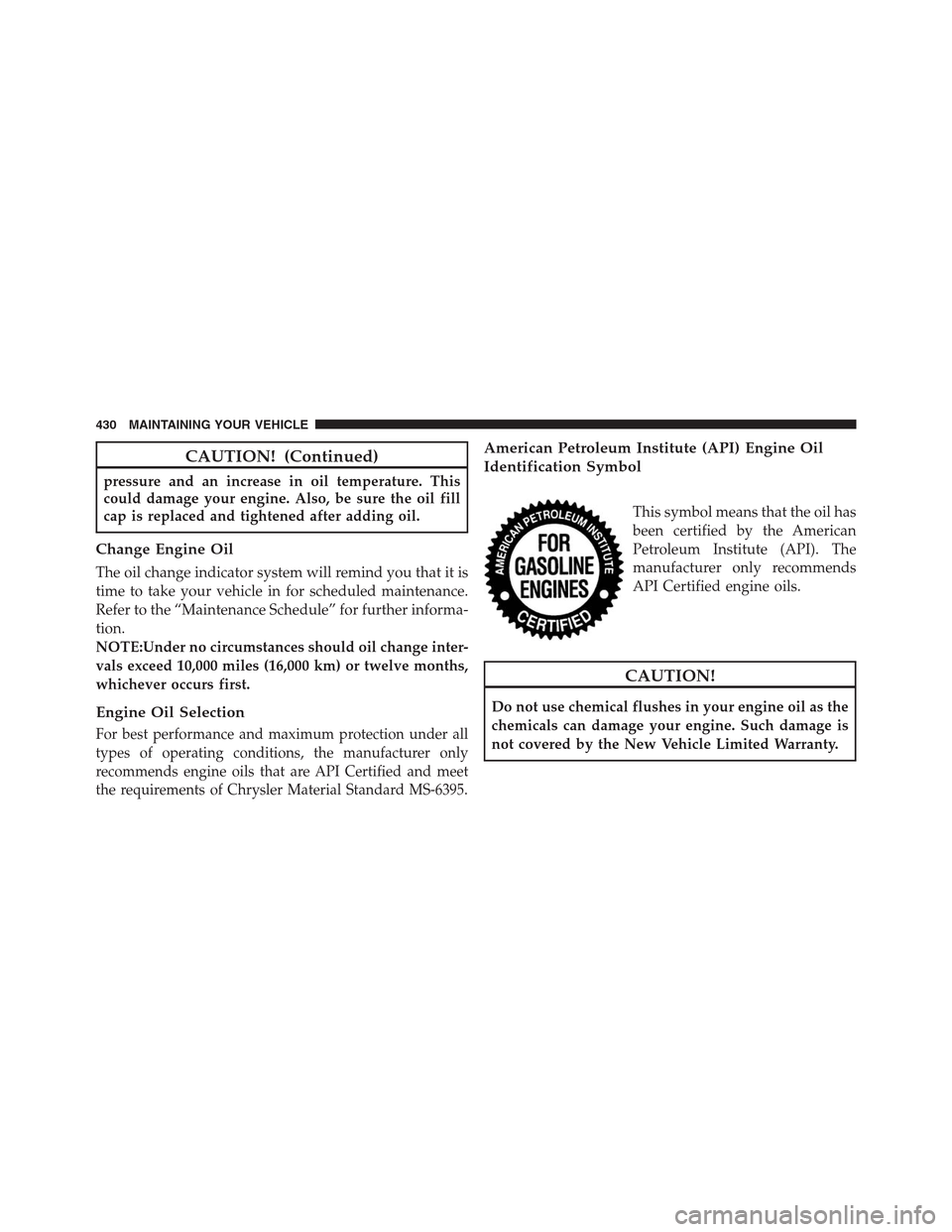

Page 432 of 519

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual CAUTION! (Continued)
pressure and an increase in oil temperature. This
could damage your engine. Also, be sure the oil fill
cap is replaced and tightened after adding oil.
Change Engine Oil
The oil ch

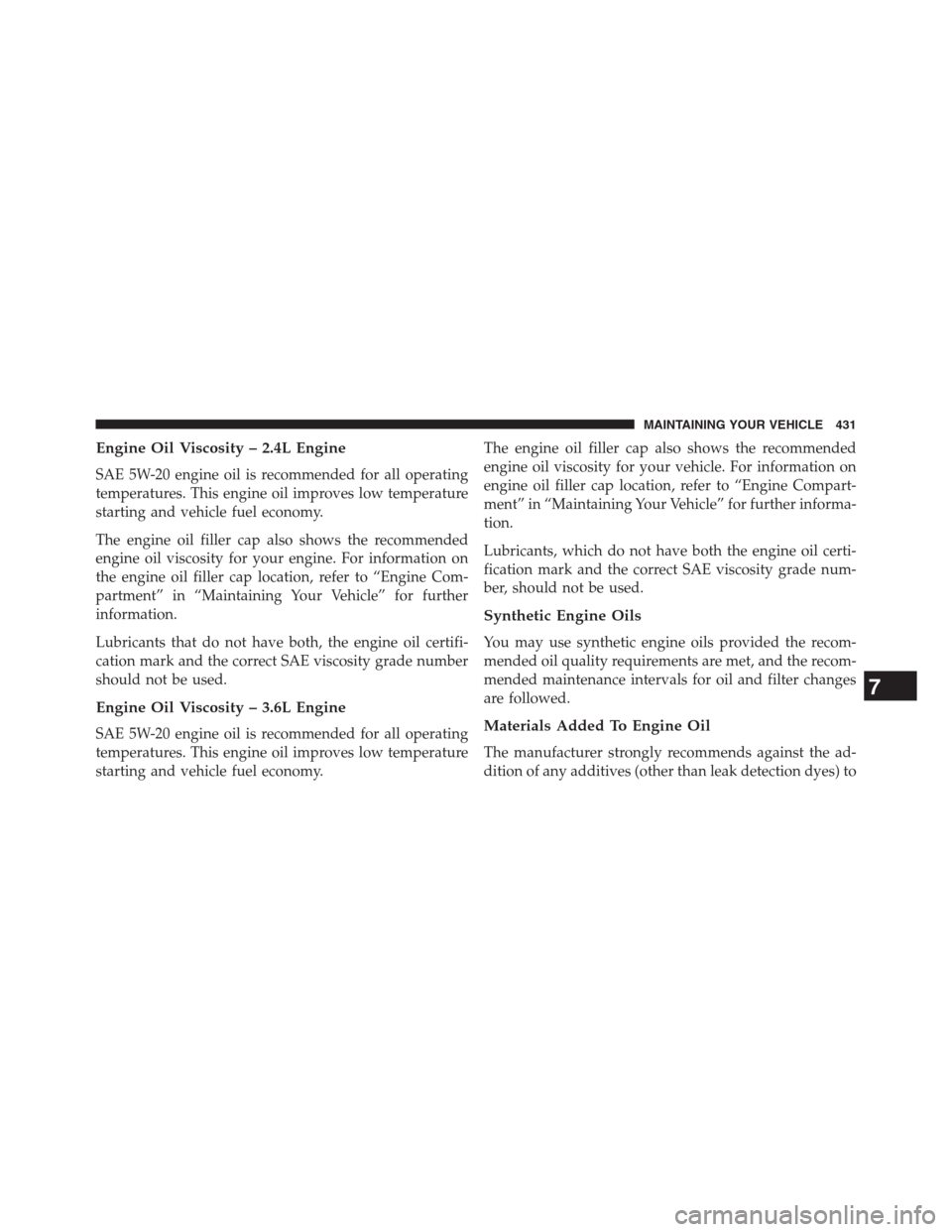

Page 433 of 519

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual Engine Oil Viscosity – 2.4L Engine
SAE 5W-20 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil fill

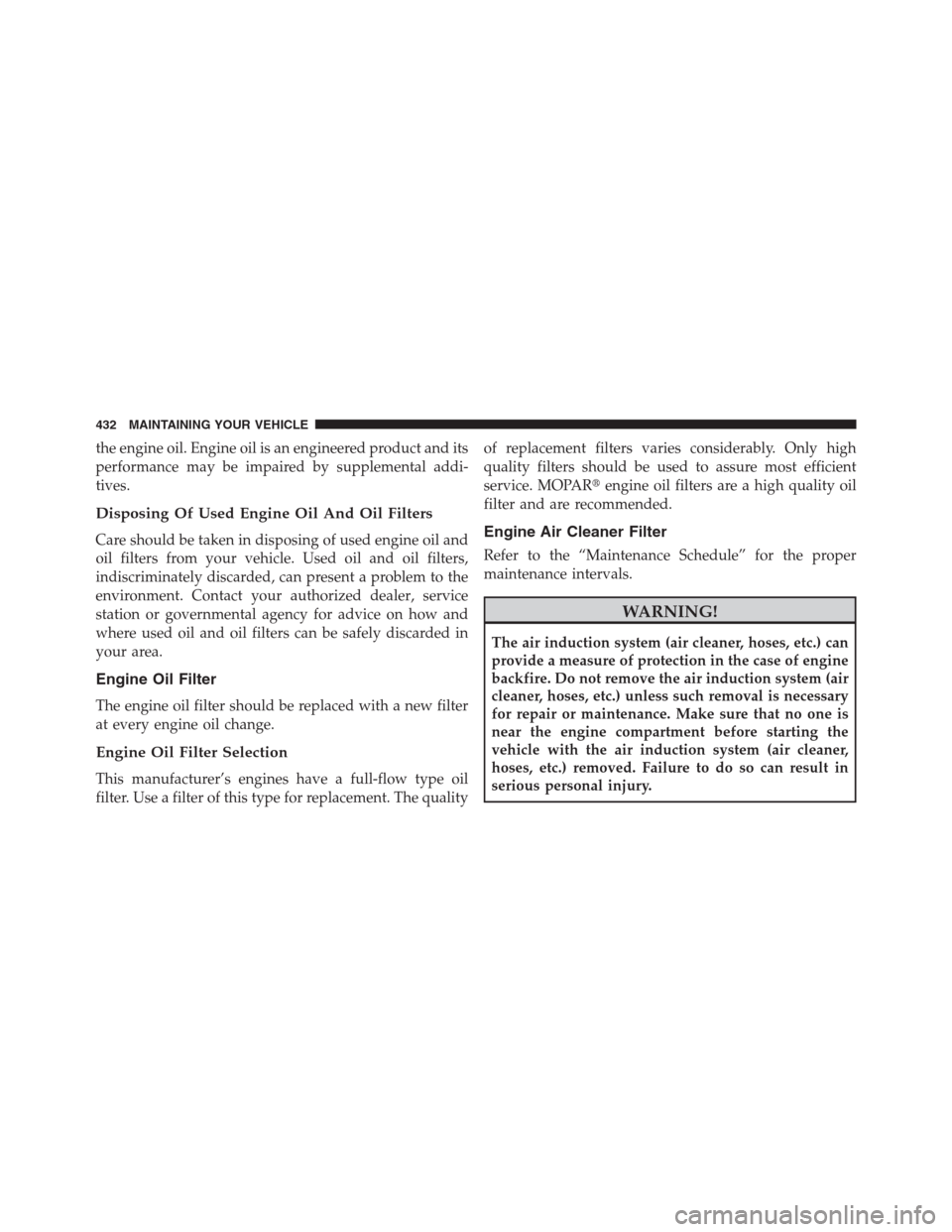

Page 434 of 519

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual the engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental addi-
tives.
Disposing Of Used Engine Oil And Oil Filters
Care should be taken in disposing of u

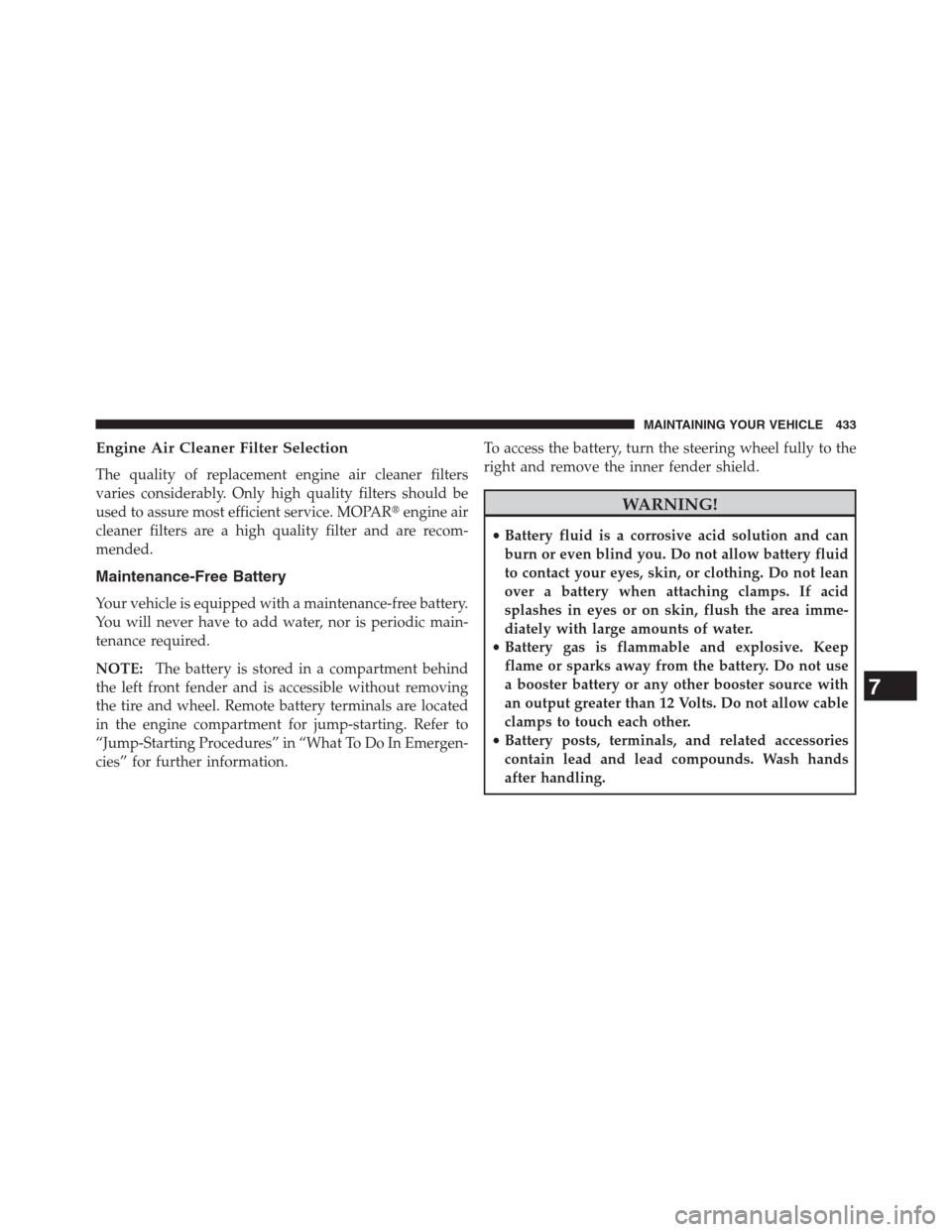

Page 435 of 519

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPARengine a

Page 436 of 519

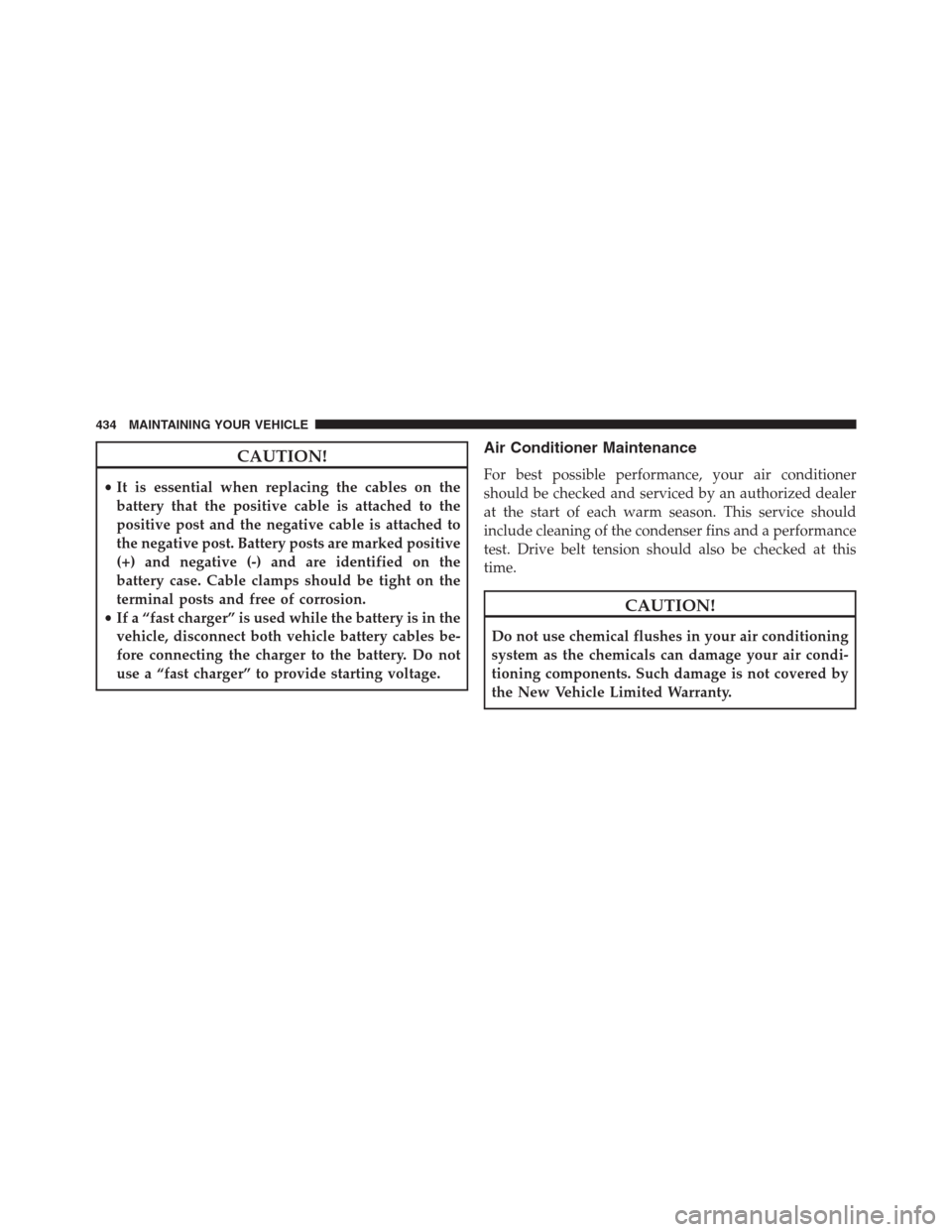

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual CAUTION!
•It is essential when replacing the cables on the
battery that the positive cable is attached to the
positive post and the negative cable is attached to
the negative post. Battery posts are

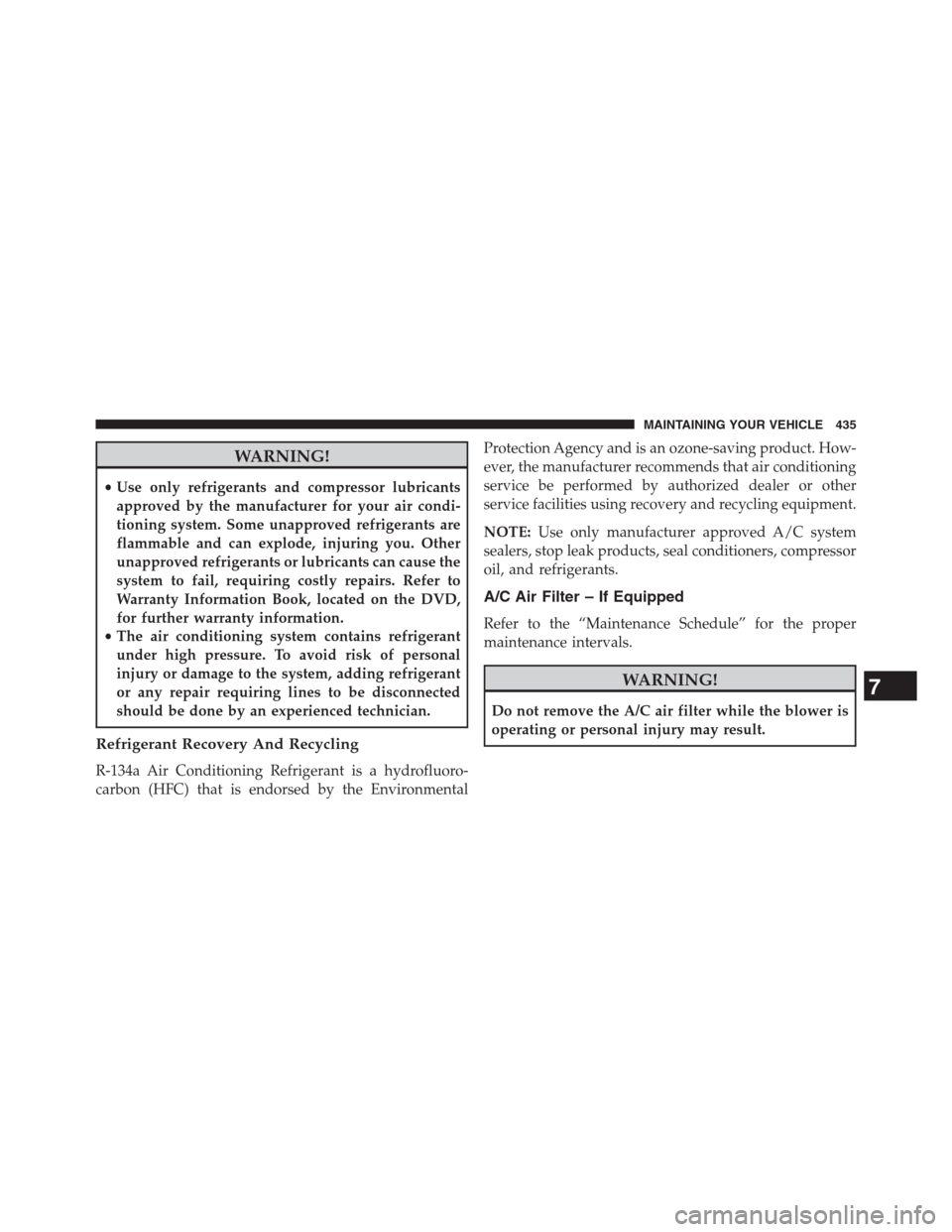

Page 437 of 519

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual WARNING!
•Use only refrigerants and compressor lubricants
approved by the manufacturer for your air condi-
tioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. O

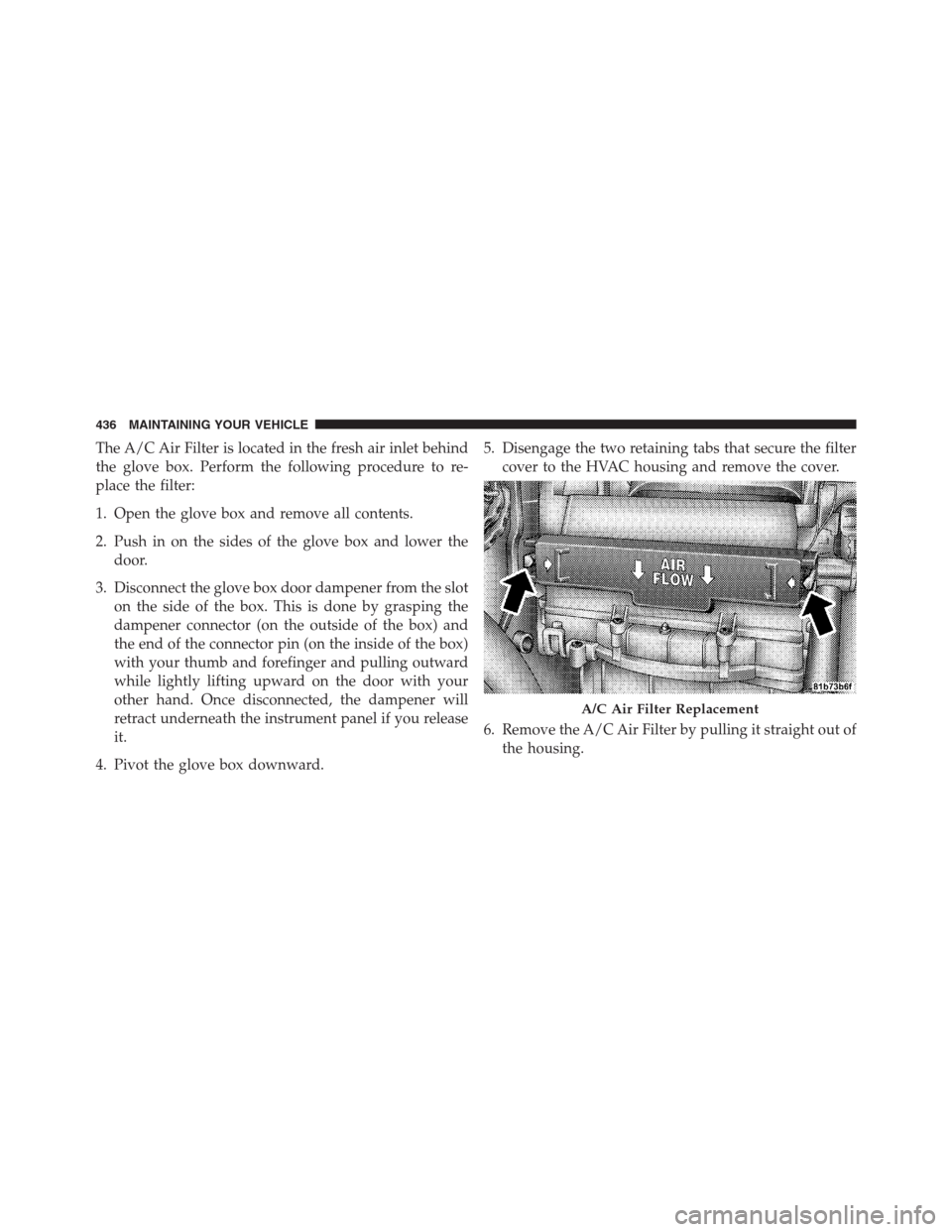

Page 438 of 519

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual The A/C Air Filter is located in the fresh air inlet behind
the glove box. Perform the following procedure to re-
place the filter:
1. Open the glove box and remove all contents.
2. Push in on the sid

Page 439 of 519

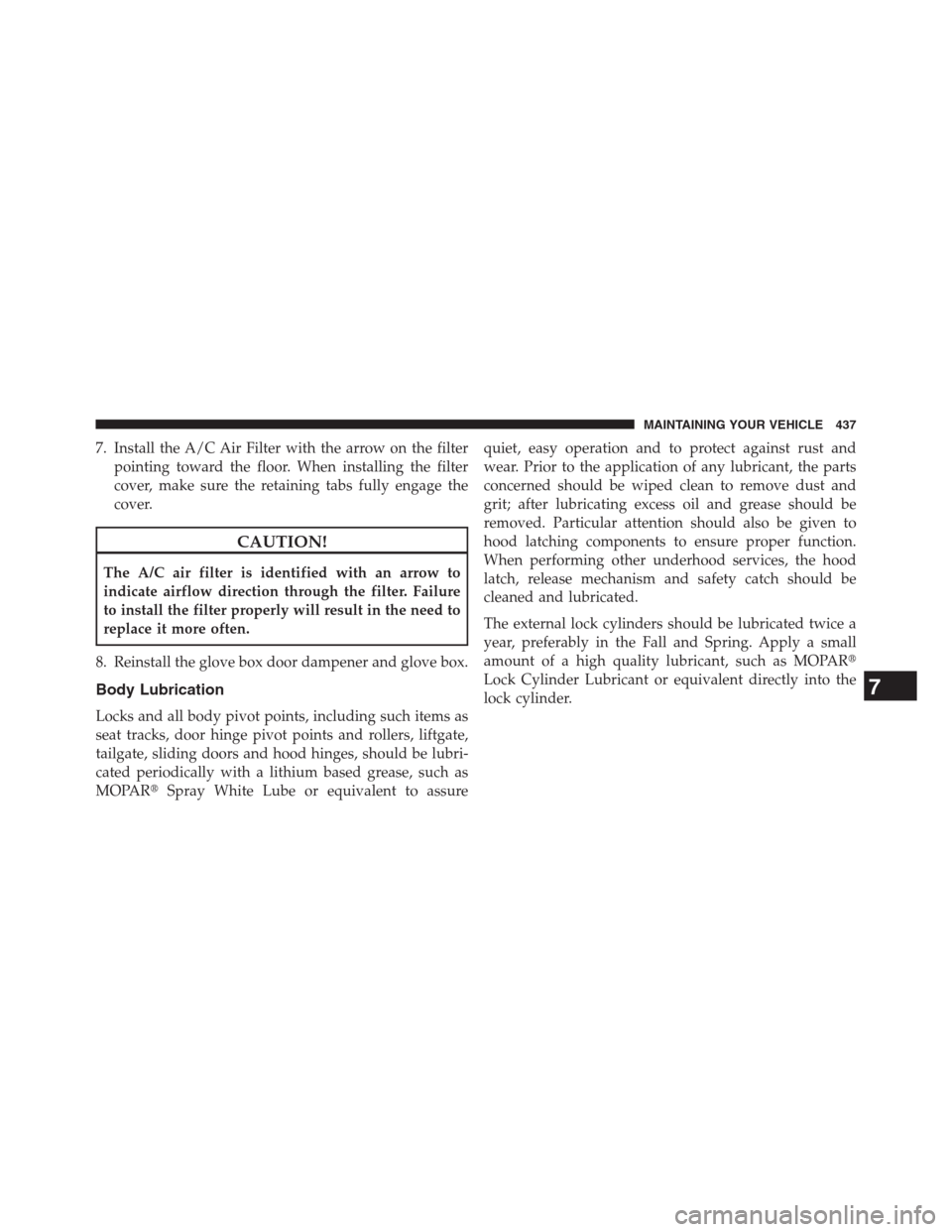

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual 7. Install the A/C Air Filter with the arrow on the filter
pointing toward the floor. When installing the filter
cover, make sure the retaining tabs fully engage the
cover.
CAUTION!
The A/C air filter

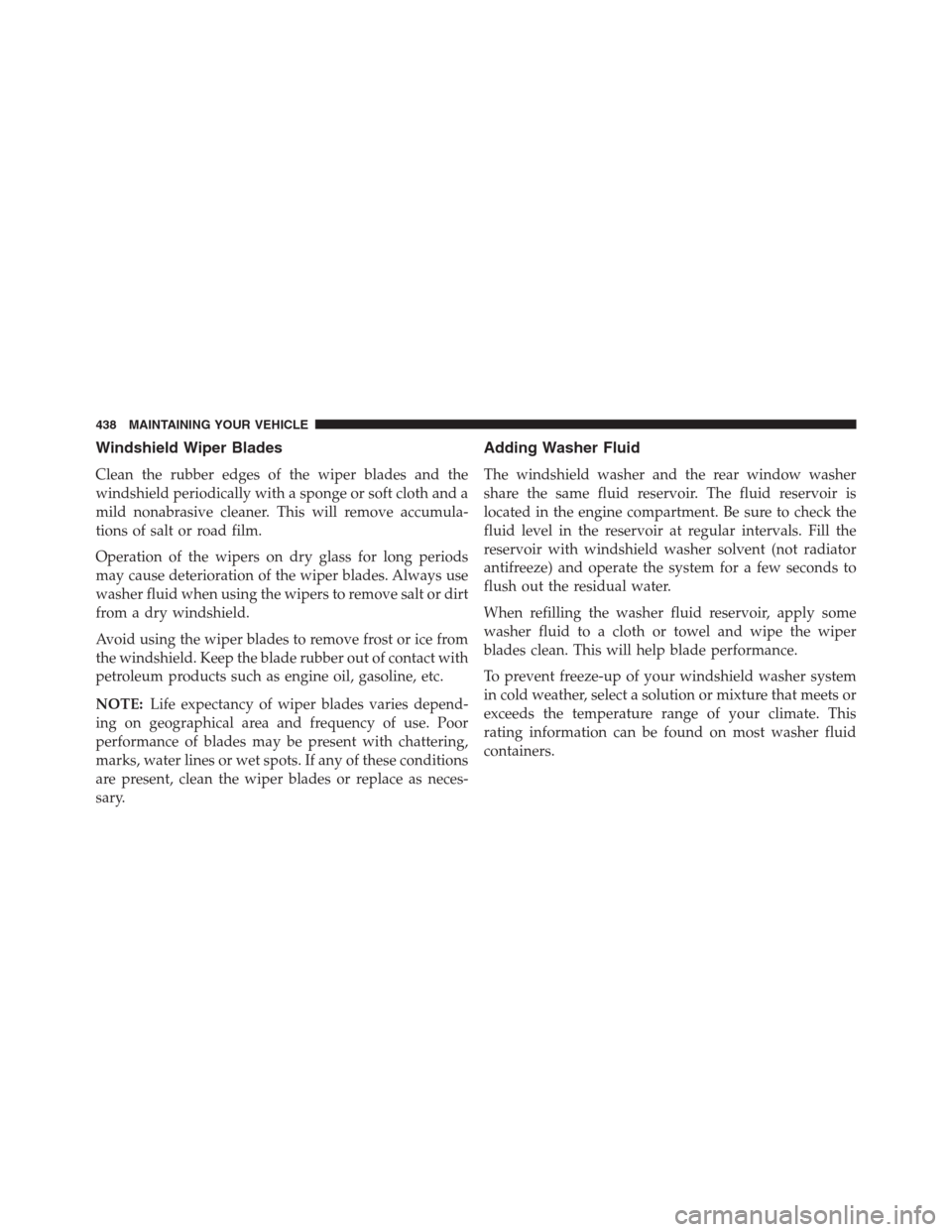

Page 440 of 519

CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt
