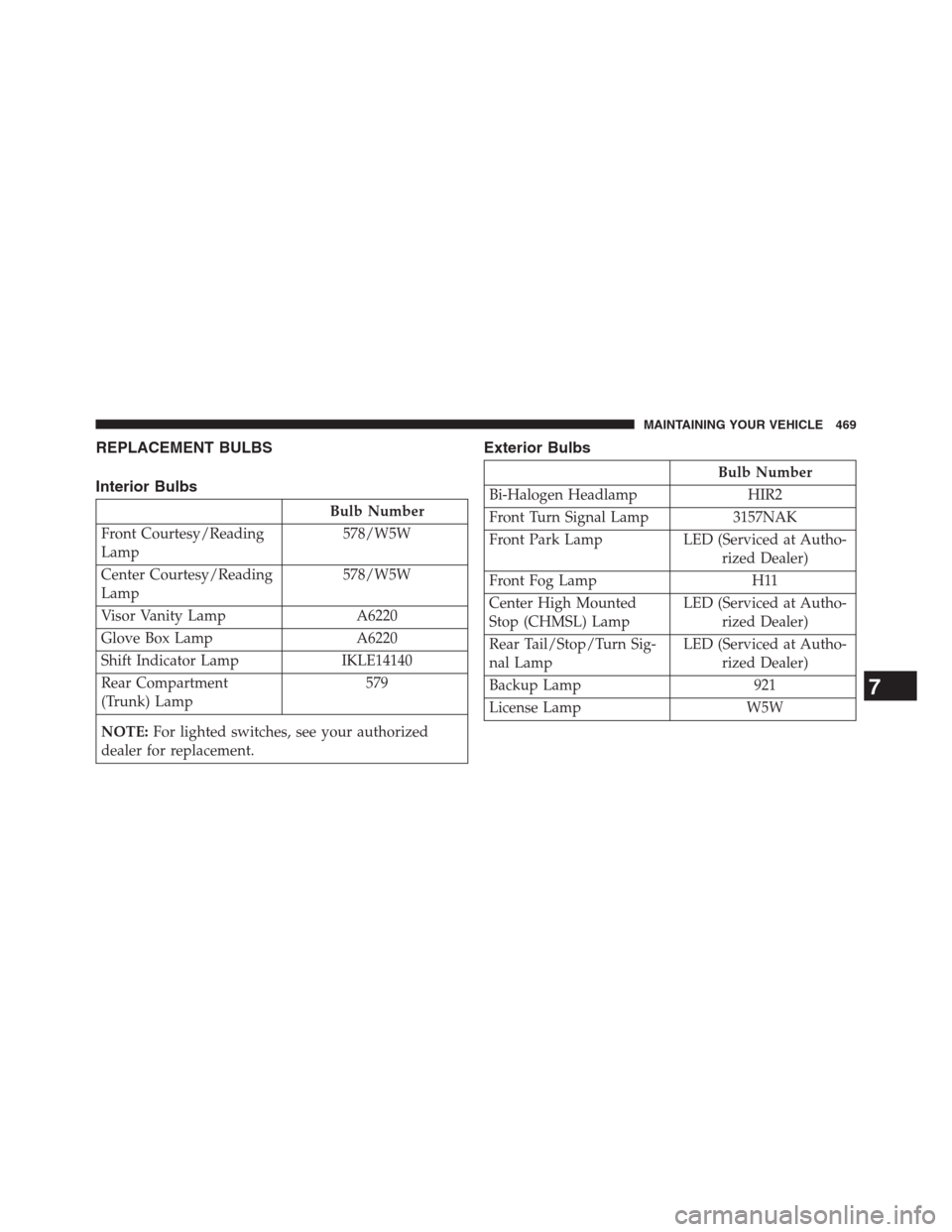

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Courtesy/Reading
Lamp578/W5W
Center Courtesy/Reading
Lamp578/W5W
Visor Vanity Lamp A6220
Glove Box Lamp A6220
Shift Indicator Lamp IKLE14140
Rear Compartment
(Trunk) Lamp579
NOTE:For lighted switches, see your authorized
dealer for replacement.
Exterior Bulbs
Bulb Number
Bi-Halogen Headlamp HIR2
Front Turn Signal Lamp 3157NAK
Front Park Lamp LED (Serviced at Autho-
rized Dealer)
Front Fog Lamp H11
Center High Mounted
Stop (CHMSL) LampLED (Serviced at Autho-
rized Dealer)
Rear Tail/Stop/Turn Sig-
nal LampLED (Serviced at Autho-
rized Dealer)
Backup Lamp 921
License Lamp W5W
7
MAINTAINING YOUR VEHICLE 469

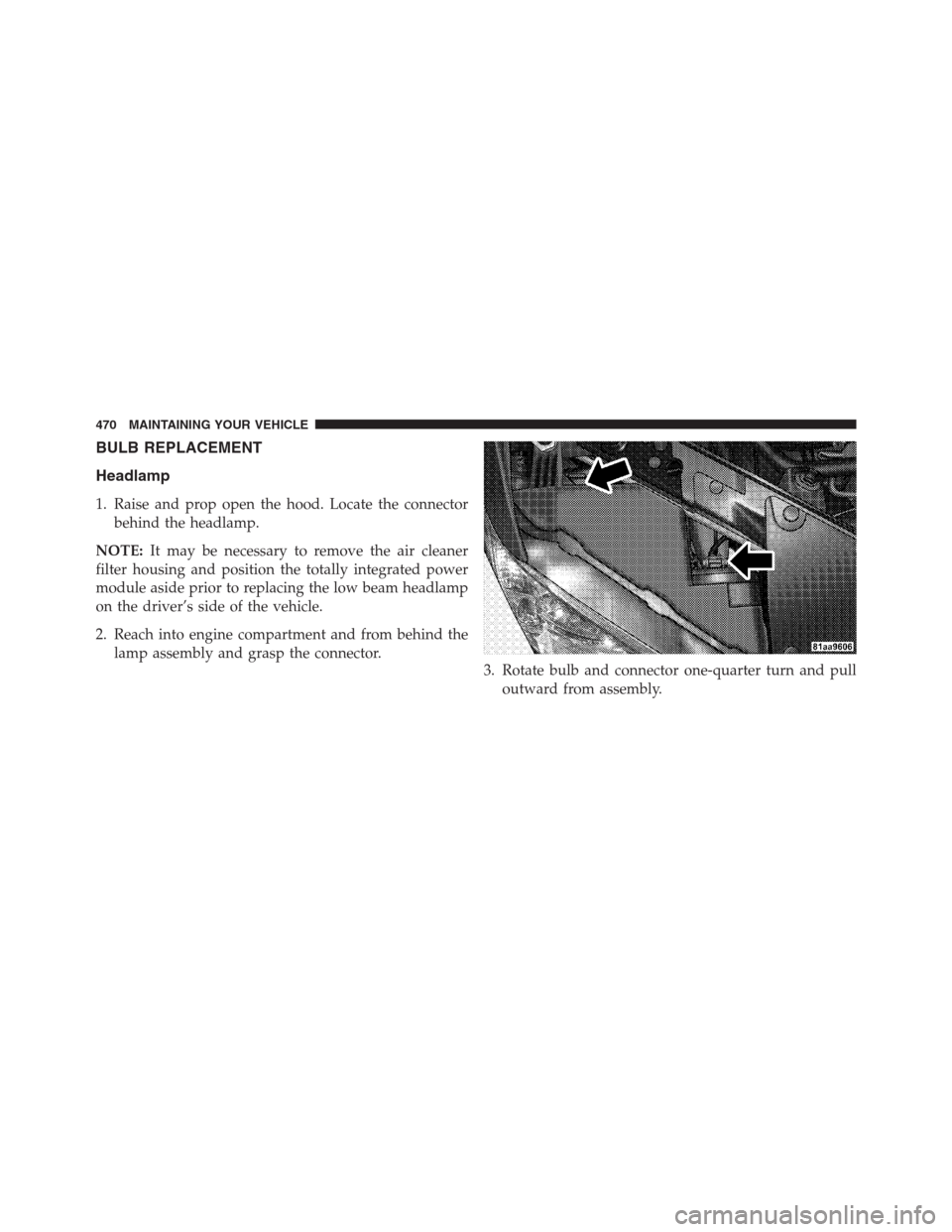

BULB REPLACEMENT
Headlamp
1. Raise and prop open the hood. Locate the connector
behind the headlamp.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.
3. Rotate bulb and connector one-quarter turn and pull
outward from assembly.
470 MAINTAINING YOUR VEHICLE

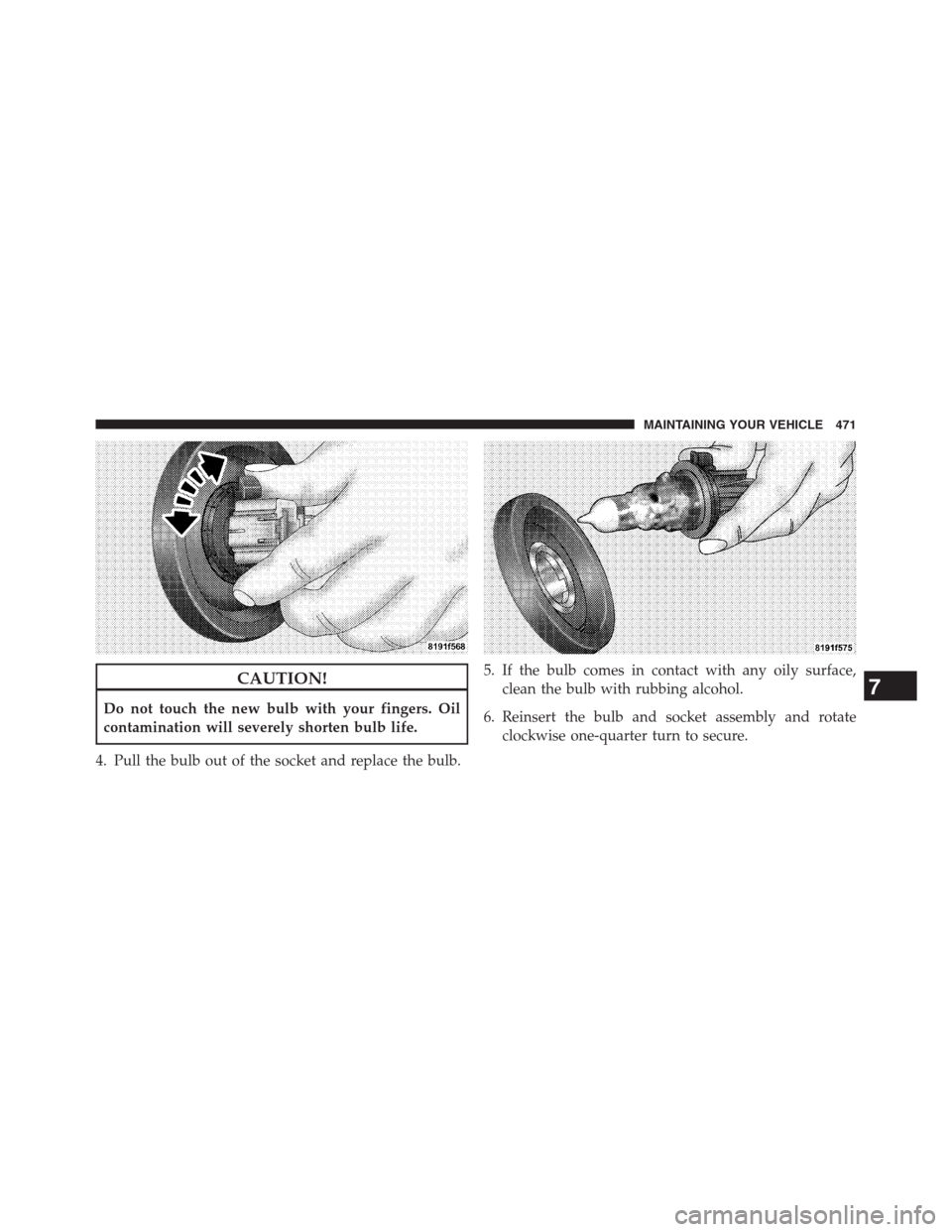

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.
4. Pull the bulb out of the socket and replace the bulb.5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate
clockwise one-quarter turn to secure.
7
MAINTAINING YOUR VEHICLE 471

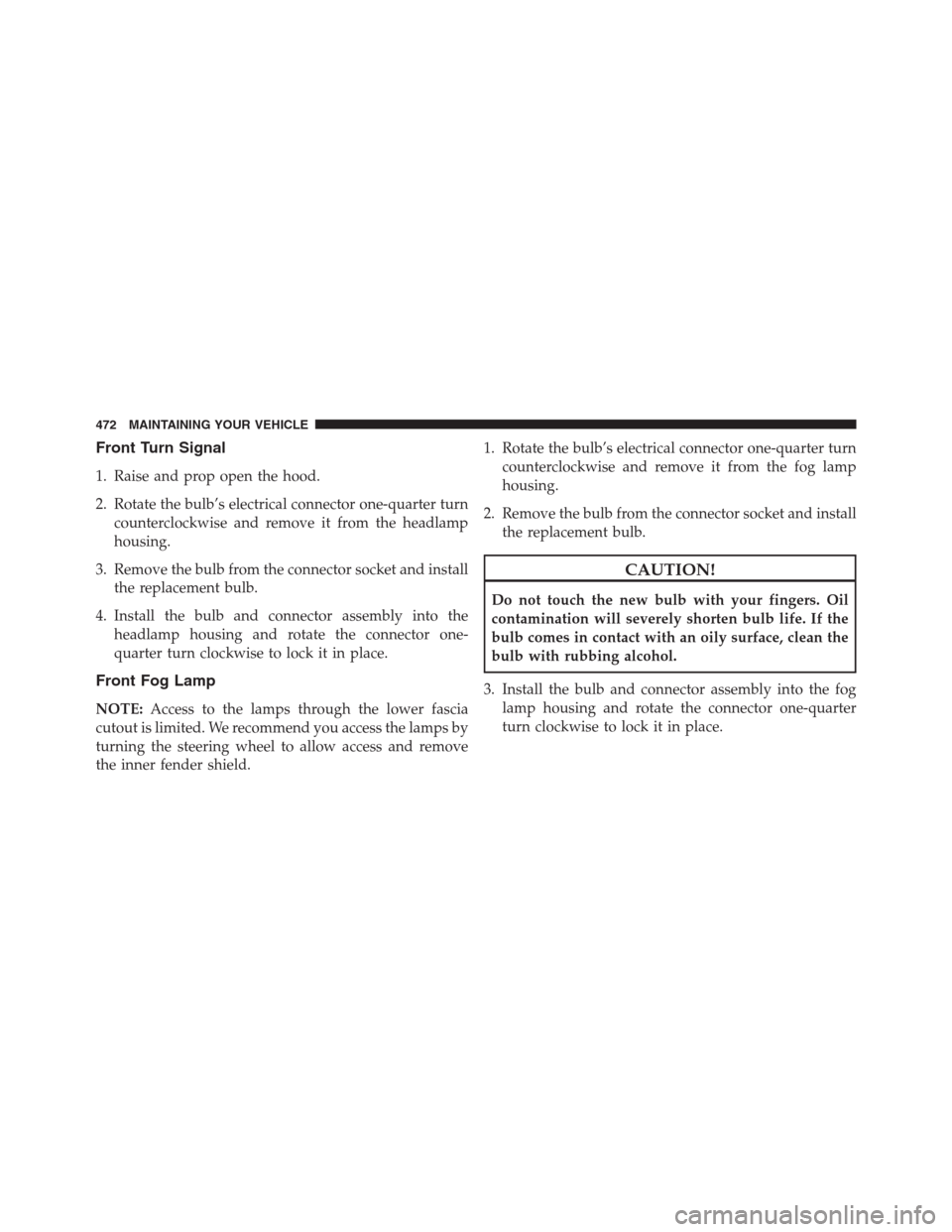

Front Turn Signal
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the headlamp
housing.
3. Remove the bulb from the connector socket and install
the replacement bulb.
4. Install the bulb and connector assembly into the
headlamp housing and rotate the connector one-
quarter turn clockwise to lock it in place.
Front Fog Lamp
NOTE:Access to the lamps through the lower fascia
cutout is limited. We recommend you access the lamps by
turning the steering wheel to allow access and remove
the inner fender shield.1. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the fog lamp
housing.
2. Remove the bulb from the connector socket and install
the replacement bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Install the bulb and connector assembly into the fog
lamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.
472 MAINTAINING YOUR VEHICLE

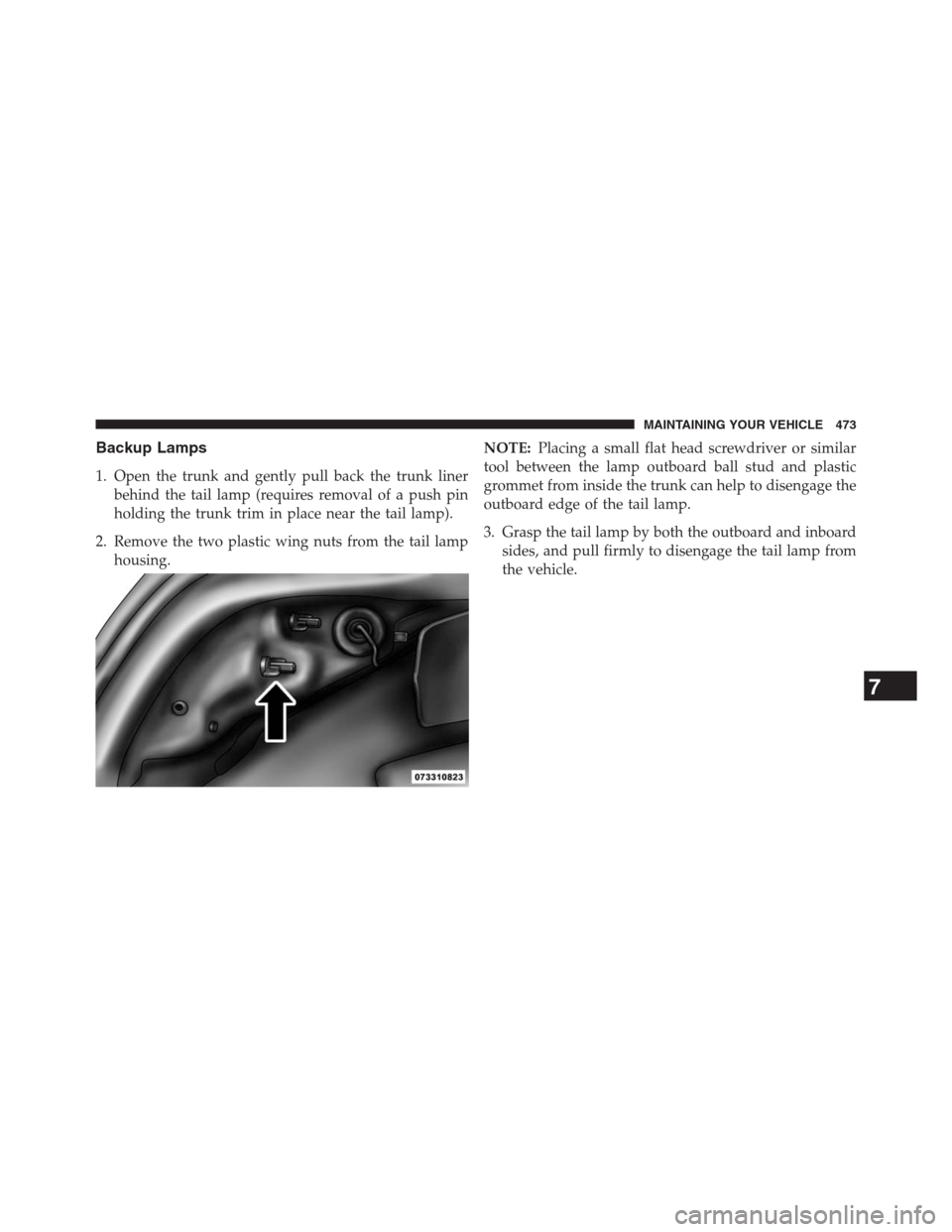

Backup Lamps
1. Open the trunk and gently pull back the trunk liner
behind the tail lamp (requires removal of a push pin
holding the trunk trim in place near the tail lamp).
2. Remove the two plastic wing nuts from the tail lamp
housing.NOTE:Placing a small flat head screwdriver or similar
tool between the lamp outboard ball stud and plastic
grommet from inside the trunk can help to disengage the
outboard edge of the tail lamp.
3. Grasp the tail lamp by both the outboard and inboard
sides, and pull firmly to disengage the tail lamp from
the vehicle.
7
MAINTAINING YOUR VEHICLE 473

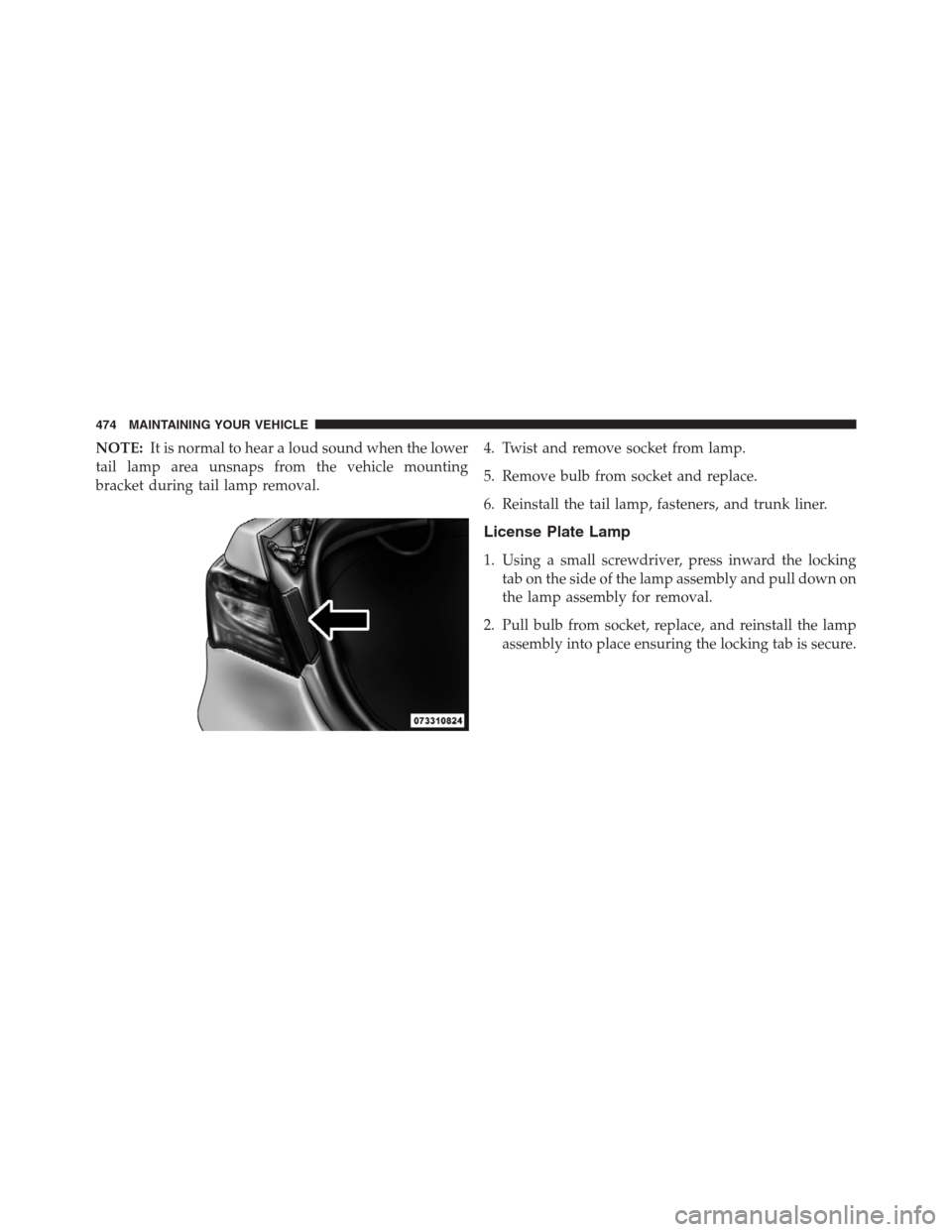

NOTE:It is normal to hear a loud sound when the lower
tail lamp area unsnaps from the vehicle mounting
bracket during tail lamp removal.4. Twist and remove socket from lamp.
5. Remove bulb from socket and replace.
6. Reinstall the tail lamp, fasteners, and trunk liner.
License Plate Lamp
1. Using a small screwdriver, press inward the locking
tab on the side of the lamp assembly and pull down on
the lamp assembly for removal.
2. Pull bulb from socket, replace, and reinstall the lamp
assembly into place ensuring the locking tab is secure.
474 MAINTAINING YOUR VEHICLE

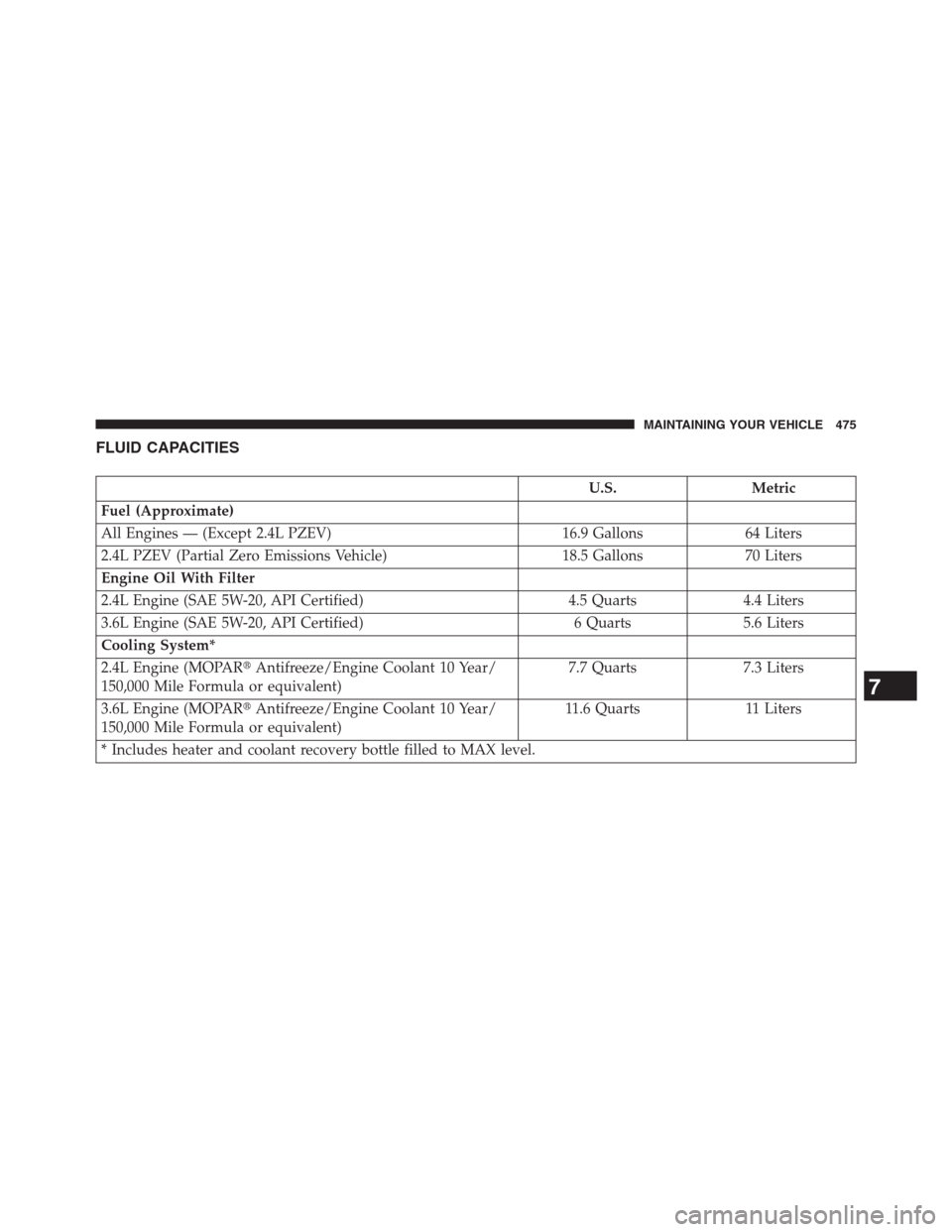

FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)
All Engines — (Except 2.4L PZEV) 16.9 Gallons 64 Liters
2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons 70 Liters
Engine Oil With Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts 4.4 Liters
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts 5.6 Liters
Cooling System*
2.4L Engine (MOPARAntifreeze/Engine Coolant 10 Year/
150,000 Mile Formula or equivalent)7.7 Quarts 7.3 Liters
3.6L Engine (MOPARAntifreeze/Engine Coolant 10 Year/
150,000 Mile Formula or equivalent)11.6 Quarts 11 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 475

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic
Additive Technology) or equivalent meeting the requirements of Chrysler
Material Standard MS-12106.
Engine Oil – 2.4L Engine Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Chrysler
Material Standard MS-6395. Refer to your engine oil filler cap for correct SAE
grade.
Engine Oil – 3.6L Engine Use API Certified SAE 5W-20 Engine Oil, meeting Chrysler Material Standard
MS-6395. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs – 2.4L Engine ex-
cept PZEV*ZFR5F-11 (Gap 0.043 in [1.1 mm])
Spark Plugs – 2.4L with PZEV* ZFR5AP (Gap 0.031 in [0.8 mm])
476 MAINTAINING YOUR VEHICLE

Component Fluid, Lubricant, or Genuine Part
Spark Plugs – 3.6L Engine RER8ZWYCB4 (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
* PZEV = Partial Zero Emission Vehicle
Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4product.
Brake Master Cylinder MOPARDOT 3 and SAE J1703 should be used. If DOT 3 brake fluid is not
available, then DOT 4 is acceptable. Use only recommended brake fluids.
Power Steering Reservoir MOPARPower Steering Fluid +4, MOPARATF+4Automatic Transmis-
sion Fluid or equivalent licensed ATF+4product.
7
