CHRYSLER 200 CONVERTIBLE 2014 1.G User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............12
▫ Ignition Key Removal ...................12
▫ Key-In-Ignition Reminder ................15
 SENTRY KEY® .........................15
▫ Replacement Keys .....................16
▫ Customer Key Programming ..............17
▫ General Information ....................18

VEHICLE SECURITY ALARM — IF EQUIPPED . . .18
▫ Rearming The System ...................18
▫ To Arm The System ....................19 ▫
To Disarm The System ...................20
 ILLUMINATED ENTRY — IF EQUIPPED ......21
 REMOTE KEYLESS ENTRY (RKE) ...........21
▫ To Unlock The Doors ....................22
▫ To Lock The Doors .....................25
▫ Convertible Top Operation Button — If
Equipped ............................26
▫ To Unlatch The Trunk ...................26
▫ Using The Panic Alarm ..................26
▫ Programming Additional Transmitters ........26
2

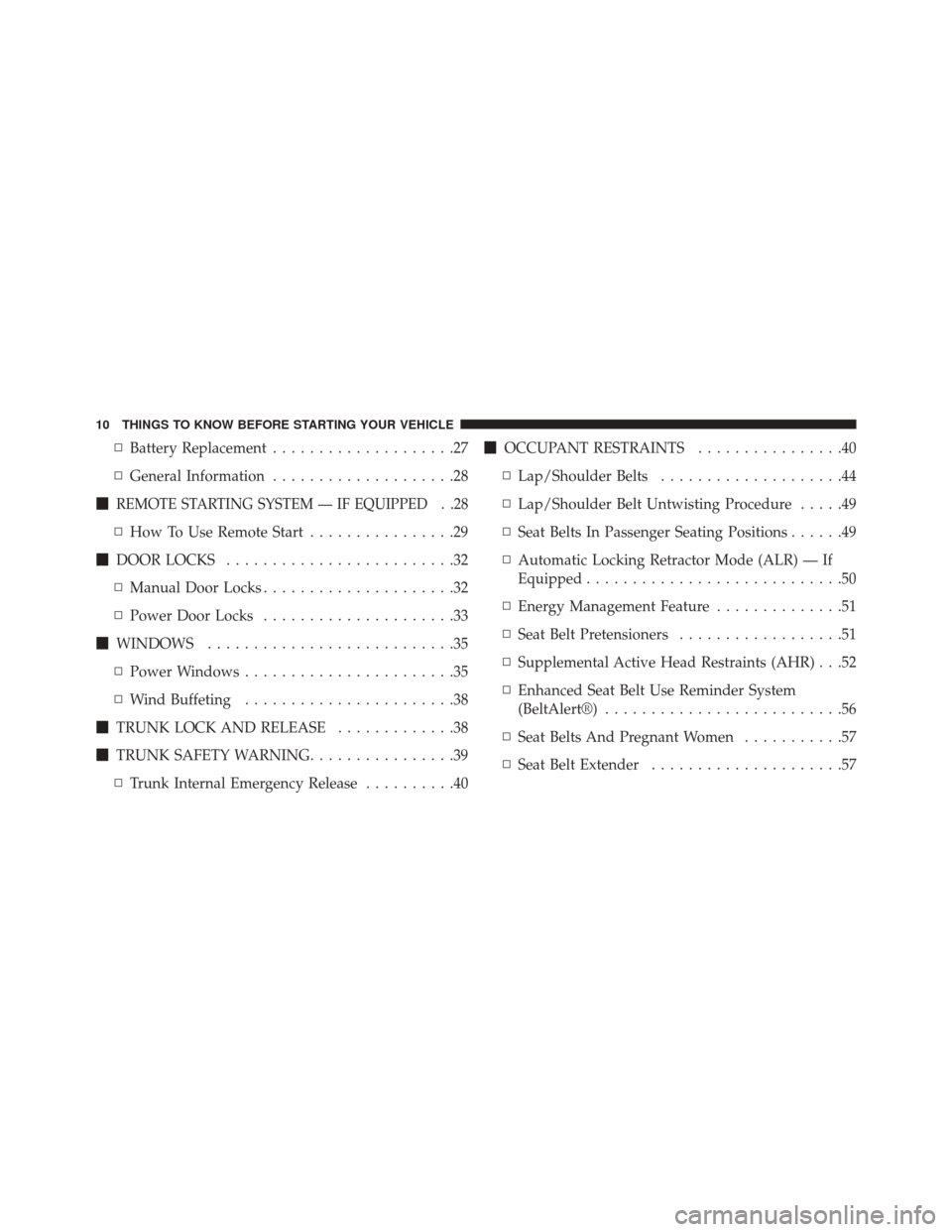

▫Battery Replacement ....................27
▫ General Information ....................28

REMOTE STARTING SYSTEM — IF EQUIPPED . .28
▫ How To Use Remote Start ................29
 DOOR LOCKS .........................32
▫ Manual Door Locks .....................32
▫ Power Door Locks .....................33
 WINDOWS ...........................35
▫ Power Windows .......................35
▫ Wind Buffeting .......................38
 TRUNK LOCK AND RELEASE .............38
 TRUNK SAFETY WARNING ................39
▫ Trunk Internal Emergency Release ..........40
OCCUPANT RESTRAINTS ................40
▫ Lap/Shoulder Belts ....................44
▫ Lap/Shoulder Belt Untwisting Procedure .....49
▫ Seat Belts In Passenger Seating Positions ......49
▫ Automatic Locking Retractor Mode (ALR) — If
Equipped ............................50
▫ Energy Management Feature ..............51
▫ Seat Belt Pretensioners ..................51
▫ Supplemental Active Head Restraints (AHR) . . .52
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert®) ..........................56
▫ Seat Belts And Pregnant Women ...........57
▫ Seat Belt Extender .....................57
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

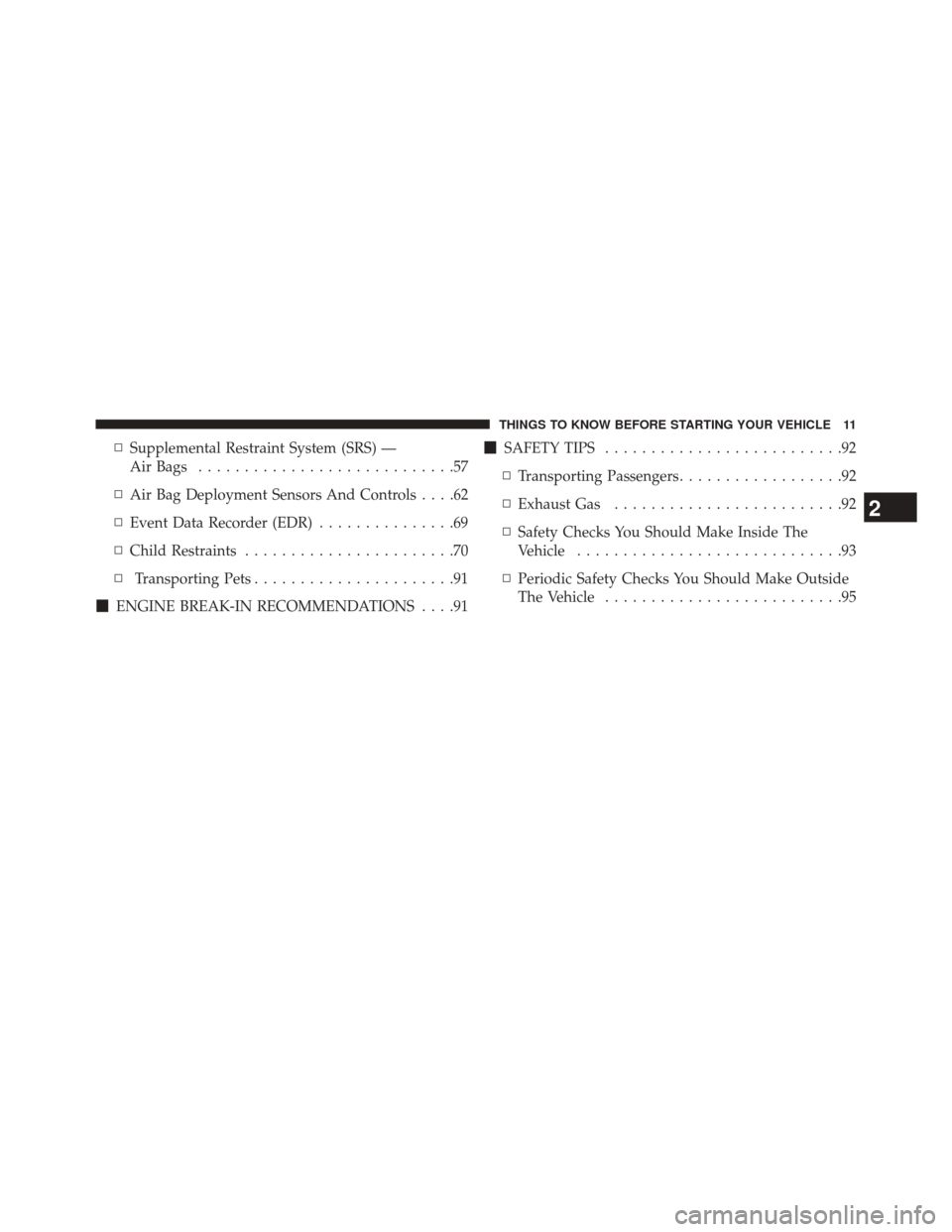

▫Supplemental Restraint System (SRS) —
Air Bags ............................57
▫ Air Bag Deployment Sensors And Controls ....62
▫ Event Data Recorder (EDR) ...............69
▫ Child Restraints .......................70
▫ Transporting Pets ......................91
 ENGINE BREAK-IN RECOMMENDATIONS ....91
SAFETY TIPS ..........................92
▫ Transporting Passengers ..................92
▫ Exhaust Gas .........................92
▫ Safety Checks You Should Make Inside The
Vehicle .............................93
▫ Periodic Safety Checks You Should Make Outside
The Vehicle ..........................95
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer. Ask your authorized dealer for these
numbers and keep them in a safe place.
You can insert the double-sided keys into the locks with
either side up.
Ignition Key Removal
Place the shift lever in PARK. Turn the ignition switch to
the ACC position, push the key slightly inward, rotate the
key to the LOCK position, and remove the key.
Vehicle Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:
•If you try to remove the key before you place the shift
lever into PARK, the key may become trapped tempo-
rarily in the ignition switch lock cylinder. If this occurs,
place the shift lever in PARK, rotate the key to the right
slightly, then remove the key as described. If a mal-
function occurs, the system will trap the key in the
ignition switch lock cylinder to warn you that this
safety feature is inoperable. The engine can be started
and stopped, but the key cannot be removed until you
obtain service.
• For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, hands–free system (if equipped), and
power outlets will remain active for 45 seconds after
the ignition switch is turned to the LOCK position.
Opening either door will cancel this feature.
Ignition Switch Positions
1 — LOCK 3 — ON/RUN
2 — ACC (ACCESSORY) 4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, hands–free system (if equipped), and
power outlets will remain active for up to 10 minutes
after the ignition switch is turned to the LOCK posi-
tion. Opening either front door will cancel this feature.
The time for this feature is programmable. Refer to
“Electronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Programmable Fea-
tures)” in “Understanding Your Instrument Panel” for
further information.
WARNING!
• Before exiting a vehicle, always apply the parking
brake, shift the transmission into PARK, and re-
move the Key Fob from the ignition. When leaving
the vehicle, always lock your vehicle.
(Continued)
WARNING! (Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the shift lever.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

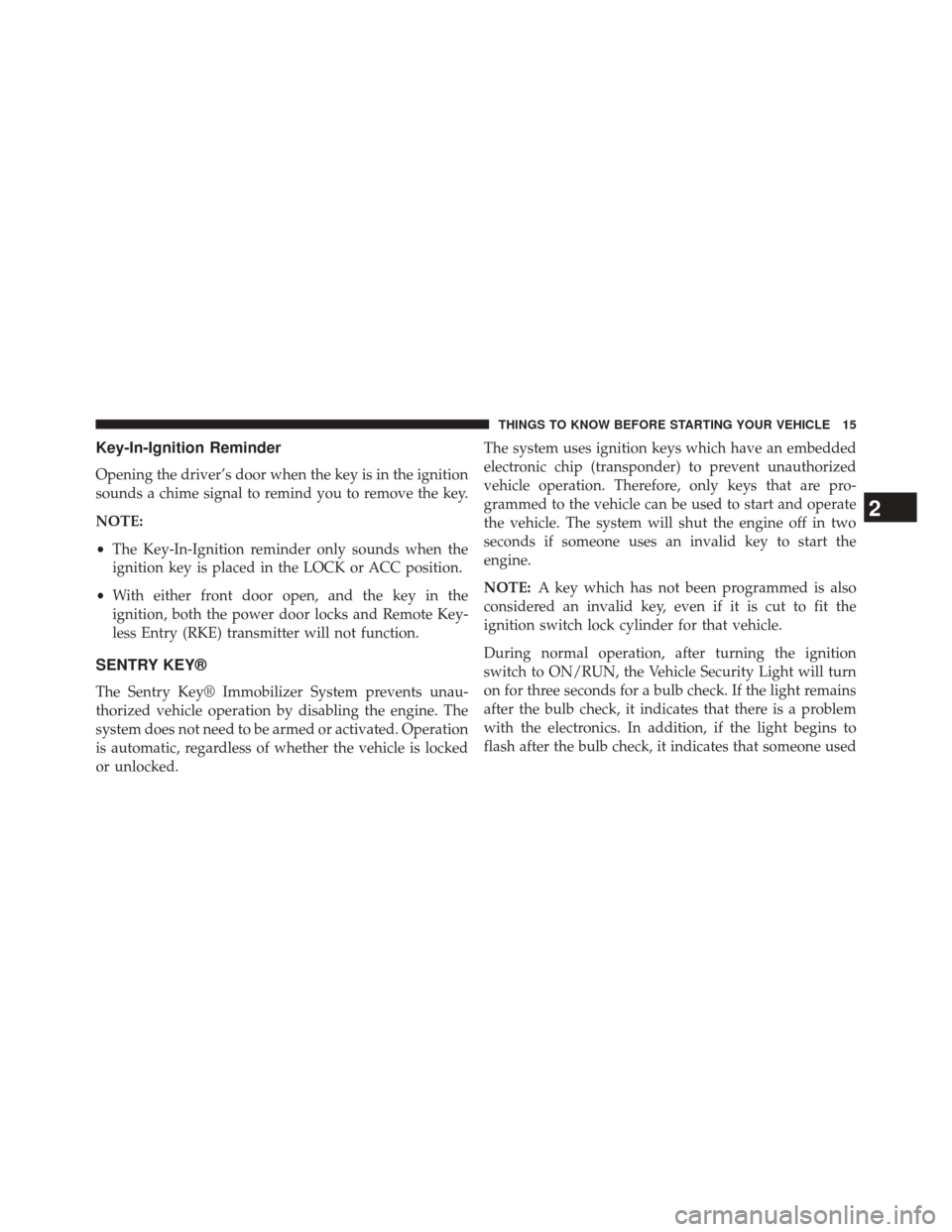

Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
sounds a chime signal to remind you to remove the key.
NOTE:
•The Key-In-Ignition reminder only sounds when the
ignition key is placed in the LOCK or ACC position.
• With either front door open, and the key in the
ignition, both the power door locks and Remote Key-
less Entry (RKE) transmitter will not function.
SENTRY KEY®
The Sentry Key® Immobilizer System prevents unau-
thorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked. The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to start the
engine.
NOTE:
A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning the ignition
switch to ON/RUN, the Vehicle Security Light will turn
on for three seconds for a bulb check. If the light remains
after the bulb check, it indicates that there is a problem
with the electronics. In addition, if the light begins to
flash after the bulb check, it indicates that someone used
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

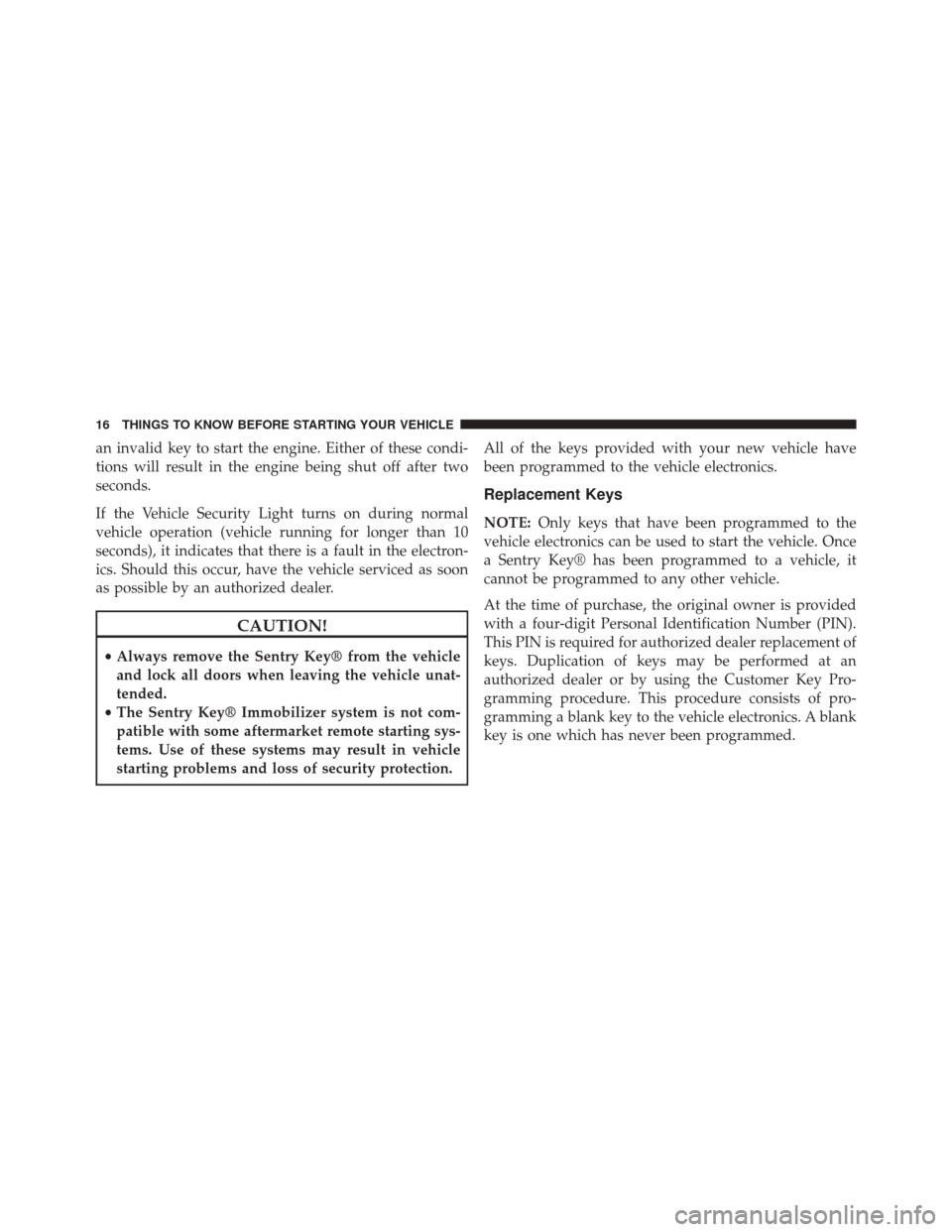

an invalid key to start the engine. Either of these condi-
tions will result in the engine being shut off after two
seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the electron-
ics. Should this occur, have the vehicle serviced as soon
as possible by an authorized dealer.
CAUTION!
•Always remove the Sentry Key® from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
• The Sentry Key® Immobilizer system is not com-
patible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection. All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:
Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key® has been programmed to a vehicle, it
cannot be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
This PIN is required for authorized dealer replacement of
keys. Duplication of keys may be performed at an
authorized dealer or by using the Customer Key Pro-
gramming procedure. This procedure consists of pro-
gramming a blank key to the vehicle electronics. A blank
key is one which has never been programmed.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

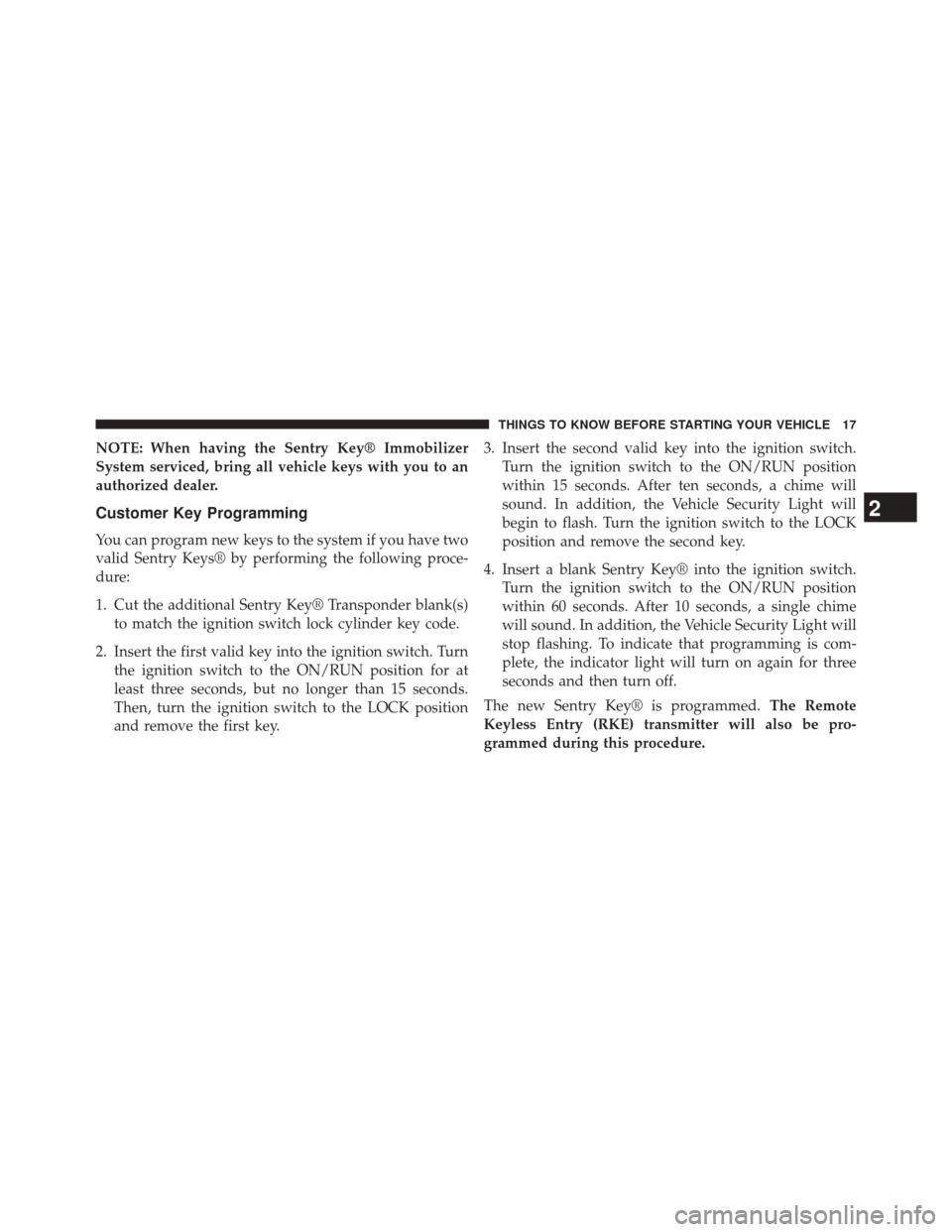

NOTE: When having the Sentry Key® Immobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
Customer Key Programming
You can program new keys to the system if you have two
valid Sentry Keys® by performing the following proce-
dure:
1. Cut the additional Sentry Key® Transponder blank(s)to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn the ignition switch to the ON/RUN position for at
least three seconds, but no longer than 15 seconds.
Then, turn the ignition switch to the LOCK position
and remove the first key. 3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON/RUN position
within 15 seconds. After ten seconds, a chime will
sound. In addition, the Vehicle Security Light will
begin to flash. Turn the ignition switch to the LOCK
position and remove the second key.
4. Insert a blank Sentry Key® into the ignition switch. Turn the ignition switch to the ON/RUN position
within 60 seconds. After 10 seconds, a single chime
will sound. In addition, the Vehicle Security Light will
stop flashing. To indicate that programming is com-
plete, the indicator light will turn on again for three
seconds and then turn off.
The new Sentry Key® is programmed. The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

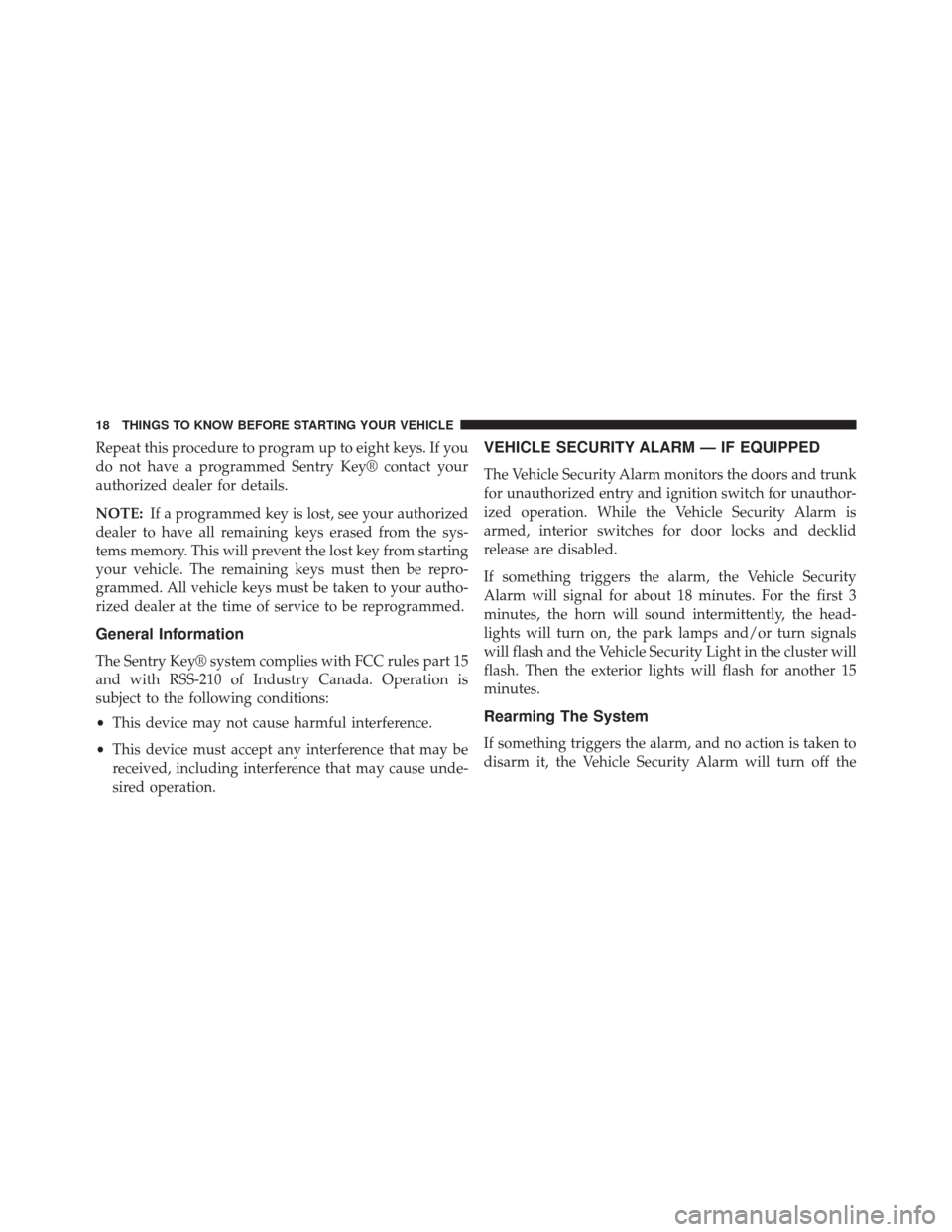

Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key® contact your
authorized dealer for details.
NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tems memory. This will prevent the lost key from starting
your vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to your autho-
rized dealer at the time of service to be reprogrammed.
General Information
The Sentry Key® system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the doors and trunk
for unauthorized entry and ignition switch for unauthor-
ized operation. While the Vehicle Security Alarm is
armed, interior switches for door locks and decklid
release are disabled.
If something triggers the alarm, the Vehicle Security
Alarm will signal for about 18 minutes. For the first 3
minutes, the horn will sound intermittently, the head-
lights will turn on, the park lamps and/or turn signals
will flash and the Vehicle Security Light in the cluster will
flash. Then the exterior lights will flash for another 15
minutes.
Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
