Page 63 of 374
mWindshield Wipers And Washers..........106
NWindshield Washers...................106
NRain Sensing WipersÐIf Equipped.........107
NMist Feature.........................107
NHeadlamps On With Wipers
(Available With Auto Headlights Only)......107
NWindshield Wiper Operation.............108
NIntermittent Wiper System...............108
NAdding Washer Fluid..................108
mTilt/Telescoping Steering Column..........109
mPower Tilt/Telescoping Steering Column Ð
If Equipped
..........................109
mTraction Control System (Tcs) Ð If Equipped..110
mBrake Assist System (BAS)Ð If Equipped....112
mElectronic Stability Program (ESP)Ð
If Equipped
..........................113
NSynchronizing ESP....................115
mElectronic Speed Control.................115
NTo Activate..........................116
NTo Set At A Desired Speed...............116
NTo Deactivate........................116
NTo Resume Speed.....................116
NTo Vary The Speed Setting...............116
NTo Accelerate For Passing...............117
mOverhead Console Ð If Equipped..........118
NCourtesy/Reading Lights................118
NSunglasses Storage....................118
mGarage Door Opener Ð If Equipped........119
NProgramming Homelink................119
NCanadian Programming/Gate Programming . . 122
NUsing Homelink......................123
NErasing Homelink Buttons...............123
NReprogramming a Single Homelink Button . . . 123
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 63
3
ProCarManuals.com

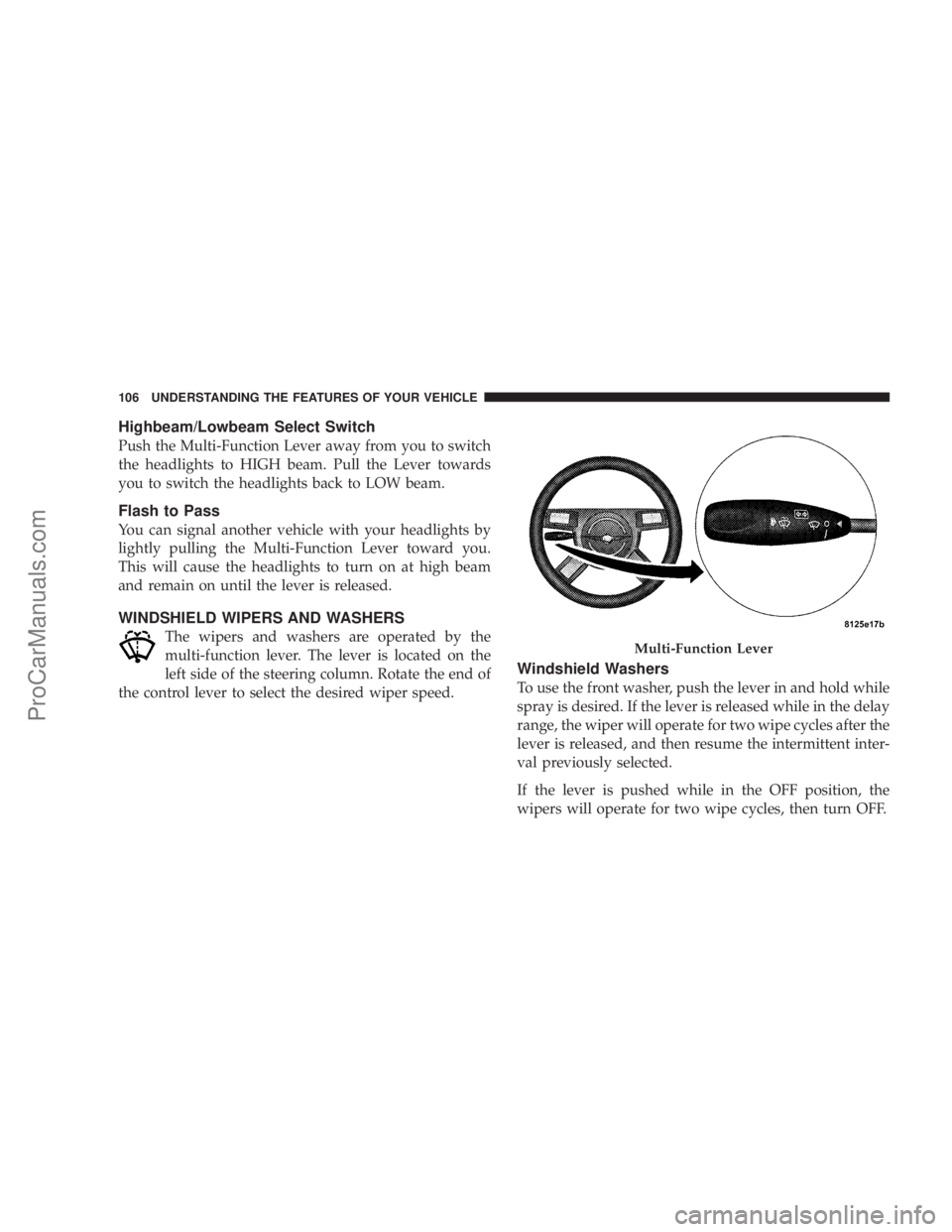

Page 106 of 374
Highbeam/Lowbeam Select Switch
Push the Multi-Function Lever away from you to switch
the headlights to HIGH beam. Pull the Lever towards
you to switch the headlights back to LOW beam.
Flash to Pass
You can signal another vehicle with your headlights by
lightly pulling the Multi-Function Lever toward you.
This will cause the headlights to turn on at high beam
and remain on until the lever is released.
WINDSHIELD WIPERS AND WASHERS
The wipers and washers are operated by the
multi-function lever. The lever is located on the
left side of the steering column. Rotate the end of
the control lever to select the desired wiper speed.
Windshield Washers
To use the front washer, push the lever in and hold while
spray is desired. If the lever is released while in the delay
range, the wiper will operate for two wipe cycles after the
lever is released, and then resume the intermittent inter-
val previously selected.
If the lever is pushed while in the OFF position, the
wipers will operate for two wipe cycles, then turn OFF.
Multi-Function Lever
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
ProCarManuals.com
Page 107 of 374
Rain Sensing WipersÐIf Equipped
This feature senses moisture on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful when road splash or over-
spray from the windshield washers of the vehicle ahead
requires quick but brief wiping action. The sensitivity of
the system to the amount of water on the glass can be
adjusted with the rotary knob on the wiper stalk. Wiper
delay positions 1±6 indicate the rain sensing wiper sen-
sitivity where 1 is the least sensitive, and 6 is the most
sensitive.
NOTE:The rain sensing feature will not operate when
the wiper switch is in the LOW or HIGH speed position.
CAUTION!
Turn the windshield wipers off when driving
through an automatic car wash. Damage to the
windshield wipers may result if the wiper switch is
left in any position other than OFF.
NOTE:A customer programmable feature in the Elec-
tronic Vehicle Information Center (EVIC) allows the Rain
Sense feature to be turned off. Refer to ªPersonal Set-
tingsº in the Electronic Vehicle Information Center sec-
tion of this manual for details.
Mist Feature
Push the wiper lever in to activate a single wipe to clear
off road mist or spray from a passing vehicle. As long as
the lever is pushed in, the wipers will continue to
operate.
Headlamps On With Wipers (Available with Auto
Headlights Only)
The headlights will turn on approximately 10 seconds
after the wipers are turned on if the headlight switch is
placed in the AUTO position. The headlights will also
turn off when the wipers are turned off if they were
turned on by this feature. This feature can be turned on or
off using the Electronic Vehicle Information Center
(EVIC) Ð If equipped. Refer to ºHeadlamps On With
Wipersº in the Electronic Vehicle Information Center
section of this manual for details.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107
3
ProCarManuals.com
Page 156 of 374
FUNCTION SELECT button when in this display until
ªONº or ªOFFº appears to make your selection.
Sound Horn with Remote Key Lock
When ON is selected a short horn sound will occur when
the remote keyless entry ªLockº button is pressed. This
feature may be selected with or without the flash lights
on lock/unlock feature. Press and release the FUNC-
TION SELECT button when in this display until ªONº or
ªOFFº appears to make your selection.
Flash Lights with Remote Key Lock
When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked using the
remote keyless entry transmitter. This feature may be
selected with or without the sound horn on lock feature
selected. Press and release the FUNCTION SELECT
button when in this display until ªONº or ªOFFº appears
to make your selection.
Delay Turning Headlamps Off
When this feature is selected the driver can choose to
have the headlamps remain on for 0, 30, 60, or 90 secondswhen exiting the vehicle. Press and release the FUNC-
TION SELECT button when in this display until 0, 30, 60,
or 90 appears to make your selection.
Headlamps On With Wipers (Available with Auto
Headlights Only)
When ON is selected and the headlight switch is in the
AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. The
headlights will also turn off when the wipers are turned
off if they were turned on by this feature. Press and
release the FUNCTION SELECT button when in this
display until ªONº or ªOFFº appears to make your
selection.
NOTE:Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to ªLightsº in this section.
Rain Sensing Intermittent Wipers Ð If Equipped
When ON is selected the system senses moisture on the
windshield and automatically activates the wipers for the
driver. Press and release the FUNCTION SELECT button
156 UNDERSTANDING YOUR INSTRUMENT PANEL
ProCarManuals.com

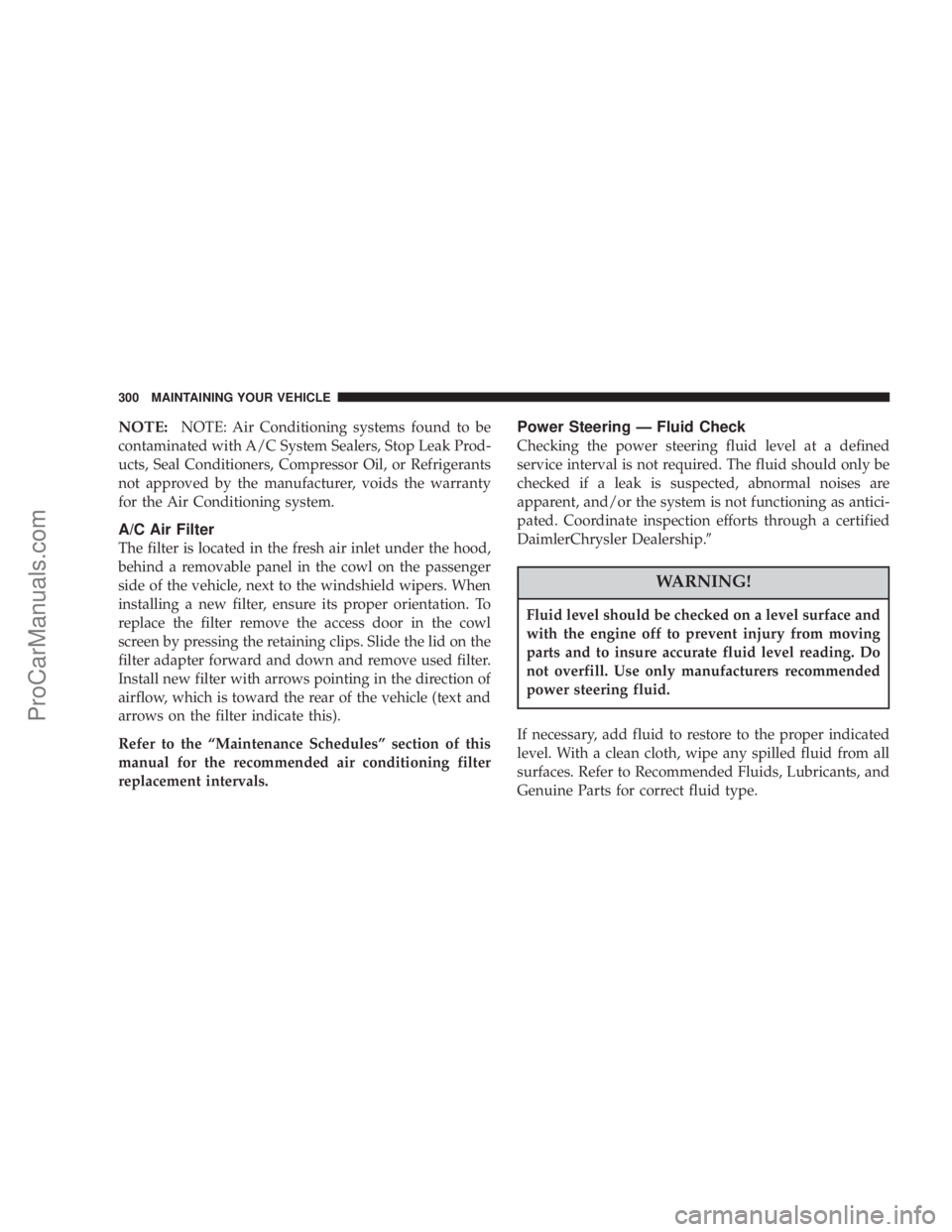

Page 300 of 374
NOTE:NOTE: Air Conditioning systems found to be
contaminated with A/C System Sealers, Stop Leak Prod-
ucts, Seal Conditioners, Compressor Oil, or Refrigerants
not approved by the manufacturer, voids the warranty
for the Air Conditioning system.
A/C Air Filter
The filter is located in the fresh air inlet under the hood,
behind a removable panel in the cowl on the passenger
side of the vehicle, next to the windshield wipers. When
installing a new filter, ensure its proper orientation. To
replace the filter remove the access door in the cowl
screen by pressing the retaining clips. Slide the lid on the
filter adapter forward and down and remove used filter.
Install new filter with arrows pointing in the direction of
airflow, which is toward the rear of the vehicle (text and
arrows on the filter indicate this).
Refer to the ªMaintenance Schedulesº section of this
manual for the recommended air conditioning filter
replacement intervals.
Power Steering Ð Fluid Check
Checking the power steering fluid level at a defined
service interval is not required. The fluid should only be
checked if a leak is suspected, abnormal noises are
apparent, and/or the system is not functioning as antici-
pated. Coordinate inspection efforts through a certified
DaimlerChrysler Dealership.9
WARNING!
Fluid level should be checked on a level surface and
with the engine off to prevent injury from moving
parts and to insure accurate fluid level reading. Do
not overfill. Use only manufacturers recommended
power steering fluid.
If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from all
surfaces. Refer to Recommended Fluids, Lubricants, and
Genuine Parts for correct fluid type.
300 MAINTAINING YOUR VEHICLE
ProCarManuals.com
Page 302 of 374
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
Windshield Washers
The windshield washer fluid reservoir is located in the
engine compartment and should be checked for fluid
level at regular intervals. Fill the reservoir with wind-
shield washer solvent (not radiator antifreeze) and oper-
ate the system for a few seconds to flush out the residual
water.
The washer fluid reservoir will hold a full gallon of fluid
when the Low Washer Fluid Light illuminates.
Exhaust System
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
302 MAINTAINING YOUR VEHICLE
ProCarManuals.com
Page 364 of 374
Compass Variance...................... 151
Computer, Trip/Travel................... 149
Console.............................. 130
Console, Floor......................... 130
Console, Overhead...................... 118
Contract, Service....................... 354
Coolant Pressure Cap.................... 305
Cooling System........................ 303
Adding Coolant (Antifreeze)............. 305
Coolant Capacity..................... 332
Coolant Level........................ 306
Disposal of Used Coolant............... 306
Drain, Flush, and Refill................. 304
Inspection........................... 303
Points to Remember................... 306
Pressure Cap........................ 305
Radiator Cap........................ 305
Selection of Coolant.............304,332,333
Cruise Control......................... 115
Cup Holder........................129,315
Customer Assistance.................... 352
Data Recorder, Event..................... 48Dealer Service......................... 289
Defroster, Rear Window.................. 195
Defroster, Windshield...............59,196,201
Delay Wipers.......................... 108
Diagnostic System, Onboard............... 287
Dimmer Switch, Headlight................ 106
Disposal
Antifreeze........................... 306
Door Locks............................ 15
Door Locks, Automatic................... 17
Door Opener, Garage.................... 119
Drive Belts............................ 295
Drive Shaft Universal Joints............... 301
Driver's Seat Glide Feature................ 95
Driving
On Slippery Surfaces.................. 276
Electric Remote Mirrors................... 67
Electrical Power Outlets.................. 127
Electronic Speed Control................. 115
Electronic Stability Program............... 113
Electronic Vehicle Information Center........ 147
364 INDEX
ProCarManuals.com
Page 374 of 374

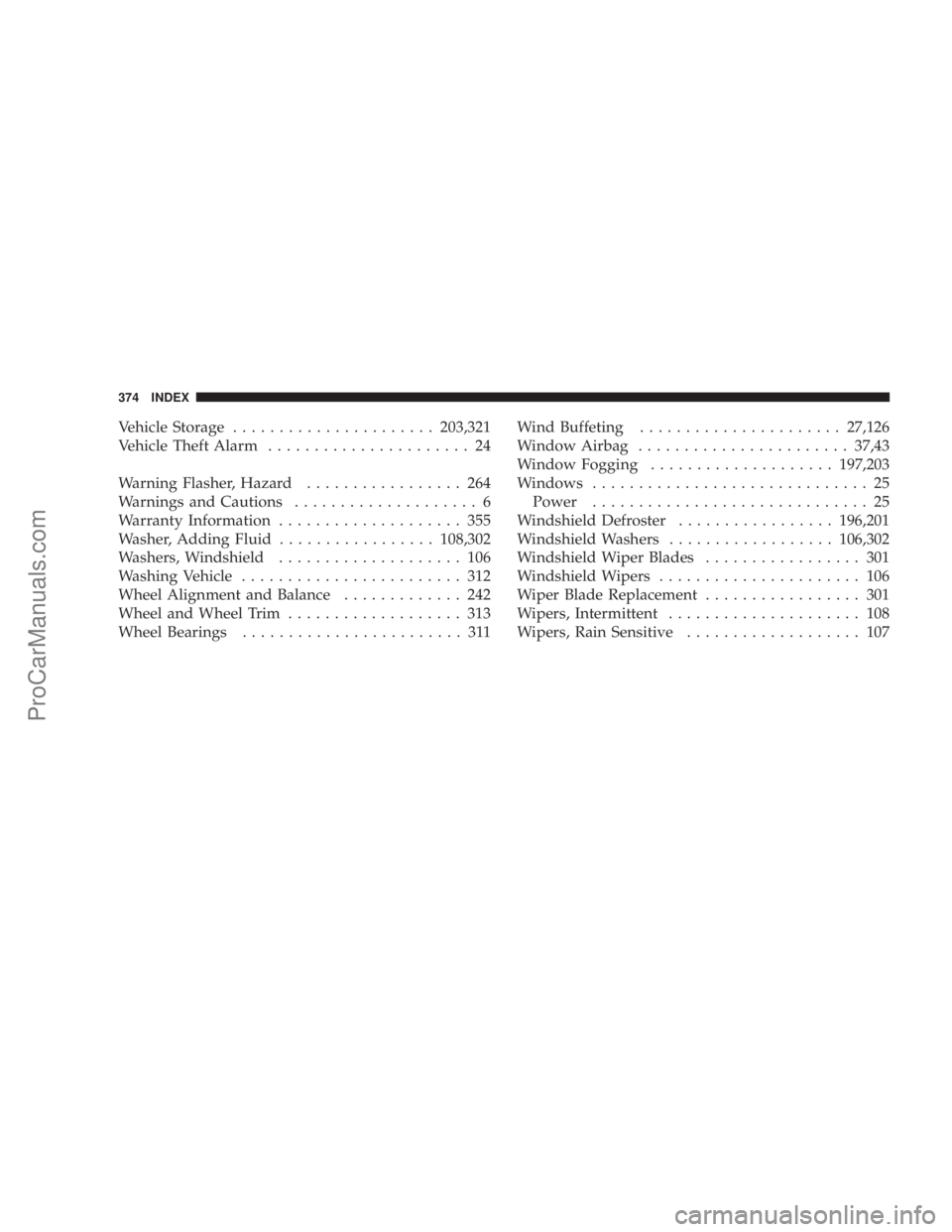

Vehicle Storage......................203,321
Vehicle Theft Alarm...................... 24
Warning Flasher, Hazard................. 264
Warnings and Cautions.................... 6
Warranty Information.................... 355
Washer, Adding Fluid.................108,302
Washers, Windshield.................... 106
Washing Vehicle........................ 312
Wheel Alignment and Balance............. 242
Wheel and Wheel Trim................... 313
Wheel Bearings........................ 311Wind Buffeting......................27,126
Window Airbag.......................37,43
Window Fogging....................197,203
Windows.............................. 25
Power.............................. 25
Windshield Defroster.................196,201
Windshield Washers..................106,302
Windshield Wiper Blades................. 301
Windshield Wipers...................... 106
Wiper Blade Replacement................. 301
Wipers, Intermittent..................... 108
Wipers, Rain Sensitive................... 107
374 INDEX
ProCarManuals.com
